SUBARU FORESTER 2006 Owners Manual
Manufacturer: SUBARU, Model Year: 2006, Model line: FORESTER, Model: SUBARU FORESTER 2006Pages: 355, PDF Size: 5.49 MB

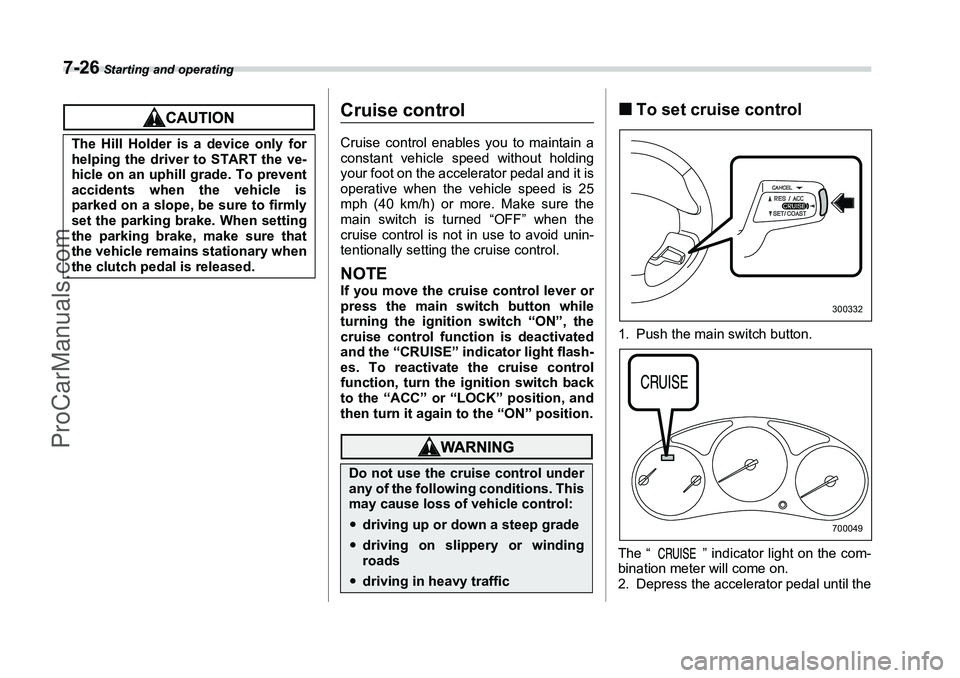

Page 221 of 355
7-26
Starting and operating
Cruise controlCruise control enables you to maintain a
constant vehicle speed without holding
your foot on the accelerator pedal and it is
operative when the vehicle speed is 25
mph (40 km/h) or more. Make sure the
main switch is turned “OFF” when the
cruise control is not in use to avoid unin-
tentionally setting the cruise control.NOTEIf you move the cruise control lever or
press the main switch button while
turning the ignition switch “ON”, the
cruise control function is deactivated
and the “CRUISE” indicator light flash-
es. To reactivate the cruise control
function, turn the ignition switch back
to the “ACC” or “LOCK” position, and
then turn it again to the “ON” position.
„To set cruise control
0
1. Push the main switch button.
The “ ” indicator light on the com-
bination meter will come on.
2. Depress the accelerator pedal until the
The Hill Holder is a device only for
helping the driver to START the ve-
hicle on an uphill grade. To prevent
accidents when the vehicle is
parked on a slope, be sure to firmly
set the parking brake. When setting
the parking brake, make sure that
the vehicle remains stationary when
the clutch pedal is released.
Do not use the cruise control under
any of the following conditions. This
may cause loss of vehicle control: y
driving up or down a steep grade ydriving on slippery or winding
roads ydriving in heavy traffic
300332700049
ProCarManuals.com

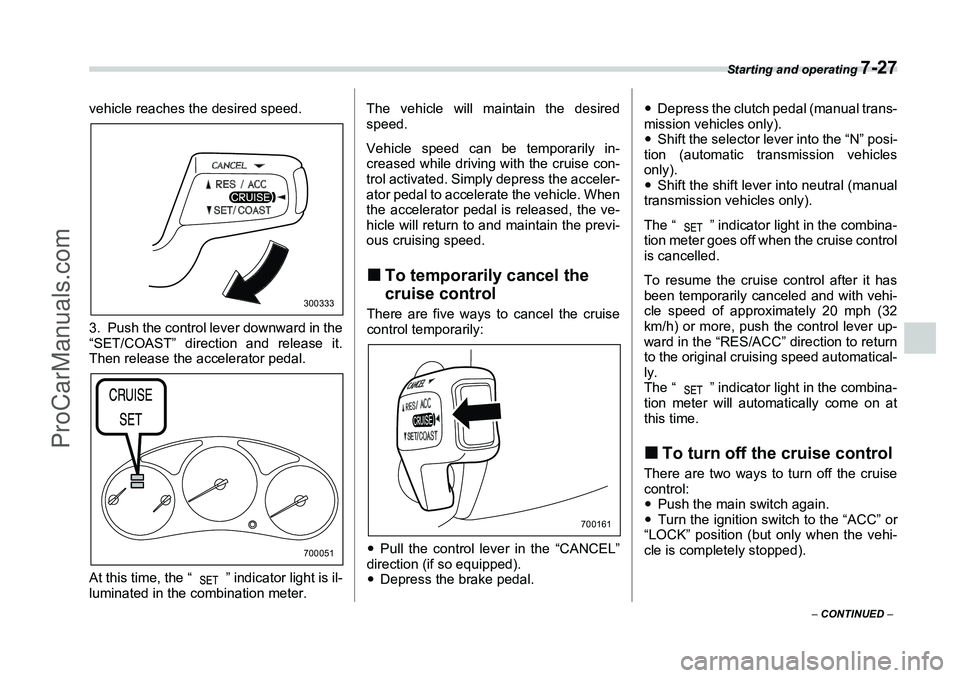

Page 222 of 355
Starting and operating
7-27
– CONTINUED –
vehicle reaches the desired speed.
3. Push the control lever downward in the
“SET/COAST” direction and release it.
Then release the accelerator pedal.
At this time, the “ ” indicator light is il-
luminated in the combination meter. The vehicle will maintain the desired
speed.
Vehicle speed can be temporarily in-
creased while driving with the cruise con-
trol activated. Simply depress the acceler-
ator pedal to accelerate the vehicle. When
the accelerator pedal is released, the ve-
hicle will return to and maintain the previ-
ous cruising speed.
„
To temporarily cancel the
cruise controlThere are five ways to cancel the cruise
control temporarily:
yPull the control lever in the “CANCEL”
direction (if so equipped).
y Depress the brake pedal. y
Depress the clutch pedal (manual trans-
mission vehicles only).
y Shift the selector lever into the “N” posi-
tion (automatic transmission vehicles
only).
y Shift the shift lever into neutral (manual
transmission vehicles only).
The “ ” indicator light in the combina-
tion meter goes off when the cruise control
is cancelled.
To resume the cruise control after it has
been temporarily canceled and with vehi-
cle speed of approximately 20 mph (32
km/h) or more, push the control lever up-
ward in the “RES/ACC” direction to return
to the original cruising speed automatical-
ly.
The “ ” indicator light in the combina-
tion meter will automatically come on at
this time.
„ To turn off the cruise controlThere are two ways to turn off the cruise
control:
yPush the main switch again.
y Turn the ignition switch to the “ACC” or
“LOCK” position (but only when the vehi-
cle is completely stopped).
300333700051
700161
ProCarManuals.com

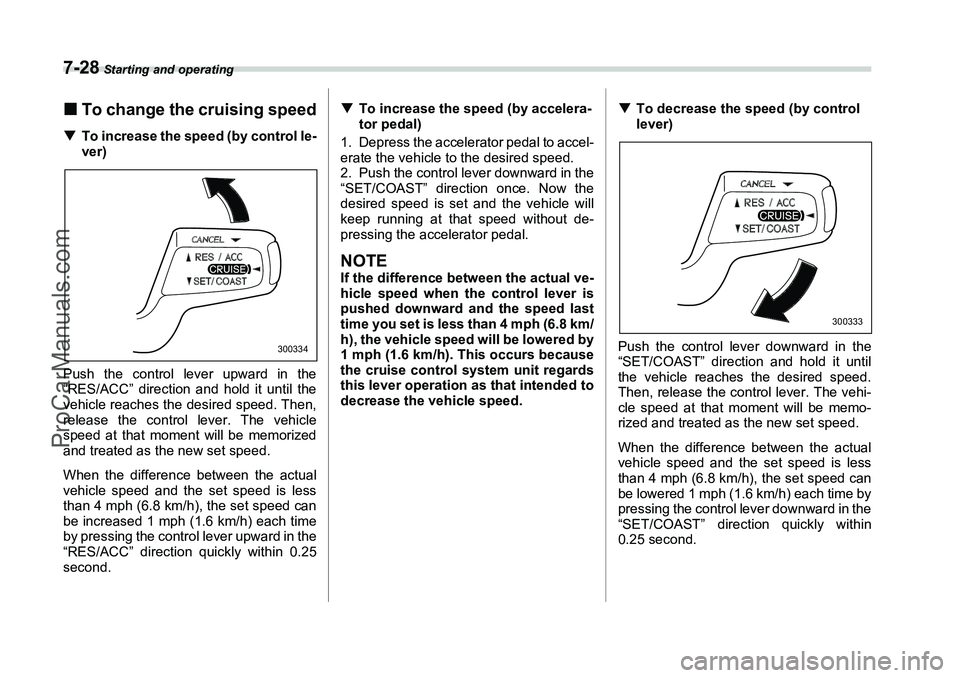

Page 223 of 355
7-28
Starting and operating
„To change the cruising speed T To increase the speed (by control le-
ver)
Push the control lever upward in the
“RES/ACC” direction and hold it until the
vehicle reaches the desired speed. Then,
release the control lever. The vehicle
speed at that moment will be memorized
and treated as the new set speed.
When the difference between the actual
vehicle speed and the set speed is less
than 4 mph (6.8 km/h), the set speed can
be increased 1 mph (1.6 km/h) each time
by pressing the control lever upward in the
“RES/ACC” direction quickly within 0.25
second. T
To increase the speed (by accelera-
tor pedal)
1. Depress the accelerator pedal to accel-
erate the vehicle to the desired speed.
2. Push the control lever downward in the
“SET/COAST” direction once. Now the
desired speed is set and the vehicle will
keep running at that speed without de-
pressing the accelerator pedal.
NOTEIf the difference between the actual ve-
hicle speed when the control lever is
pushed downward and the speed last
time you set is less than 4 mph (6.8 km/
h), the vehicle speed will be lowered by
1 mph (1.6 km/h). This occurs because
the cruise control system unit regards
this lever operation as that intended to
decrease the vehicle speed. T
To decrease the speed (by control
lever)
Push the control lever downward in the
“SET/COAST” direction and hold it until
the vehicle reaches the desired speed.
Then, release the control lever. The vehi-
cle speed at that moment will be memo-
rized and treated as the new set speed.
When the difference between the actual
vehicle speed and the set speed is less
than 4 mph (6.8 km/h), the set speed can
be lowered 1 mph (1.6 km/h) each time by
pressing the control lever downward in the
“SET/COAST” direction quickly within
0.25 second.
300334
300333
ProCarManuals.com

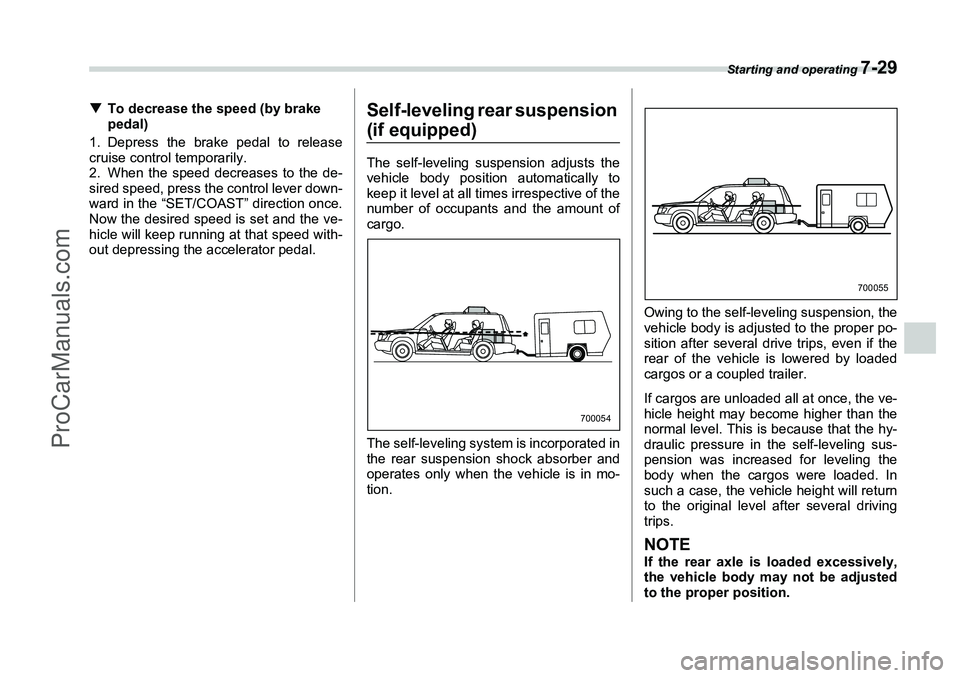

Page 224 of 355
Starting and operating
7-29
TTo decrease the speed (by brake
pedal)
1. Depress the brake pedal to release
cruise control temporarily.
2. When the speed decreases to the de-
sired speed, press the control lever down-
ward in the “SET/COAST” direction once.
Now the desired speed is set and the ve-
hicle will keep running at that speed with-
out depressing the accelerator pedal.
Self-leveling rear suspension (if equipped)The self-leveling suspension adjusts the
vehicle body position automatically to
keep it level at all times irrespective of the
number of occupants and the amount of
cargo.
The self-leveling system is incorporated in
the rear suspension shock absorber and
operates only when the vehicle is in mo-
tion. Owing to the self-leveling suspension, the
vehicle body is adjusted to the proper po-
sition after several drive trips, even if the
rear of the vehicle is lowered by loaded
cargos or a coupled trailer.
If cargos are unloaded all at once, the ve-
hicle height may become higher than the
normal level. This is because that the hy-
draulic pressure in the self-leveling sus-
pension was increased for leveling the
body when the cargos were loaded. In
such a case, the vehicle height will return
to the original level after several driving
trips.
NOTEIf the rear axle is loaded excessively,
the vehicle body may not be adjusted
to the proper position.
700054
700055
ProCarManuals.com

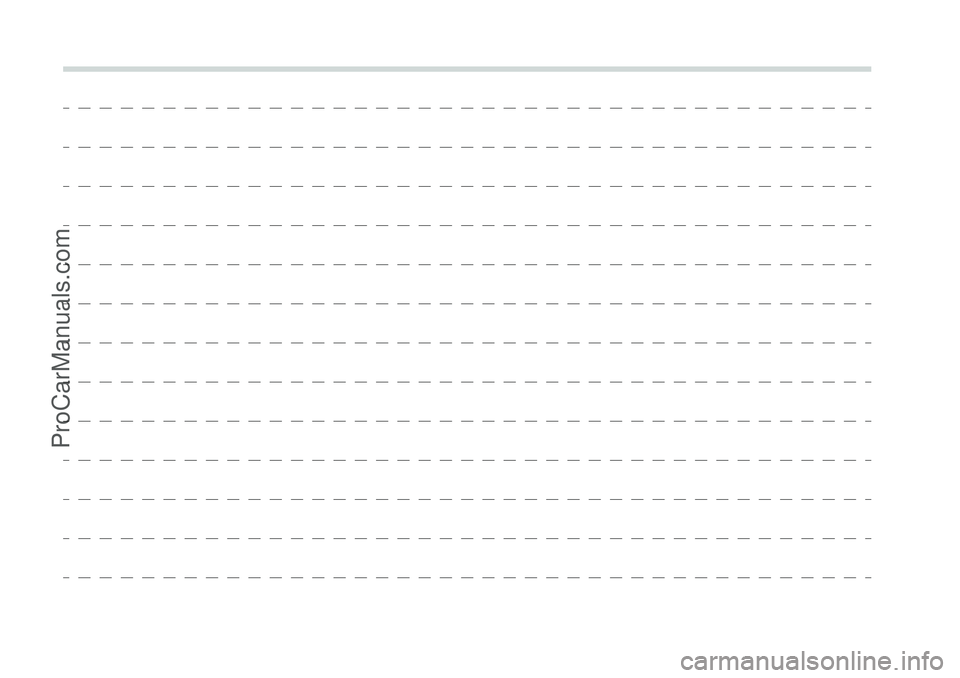

Page 225 of 355
ProCarManuals.com
Page 226 of 355
8
Driving tips
New vehicle break-in driving – the first 1,000 miles (1,600 km) .............................................. 8-2
Fuel economy hints ........................................... 8-2
Engine exhaust gas (Carbon monoxide) ........ 8-2
Catalytic converter ............................................. 8-3

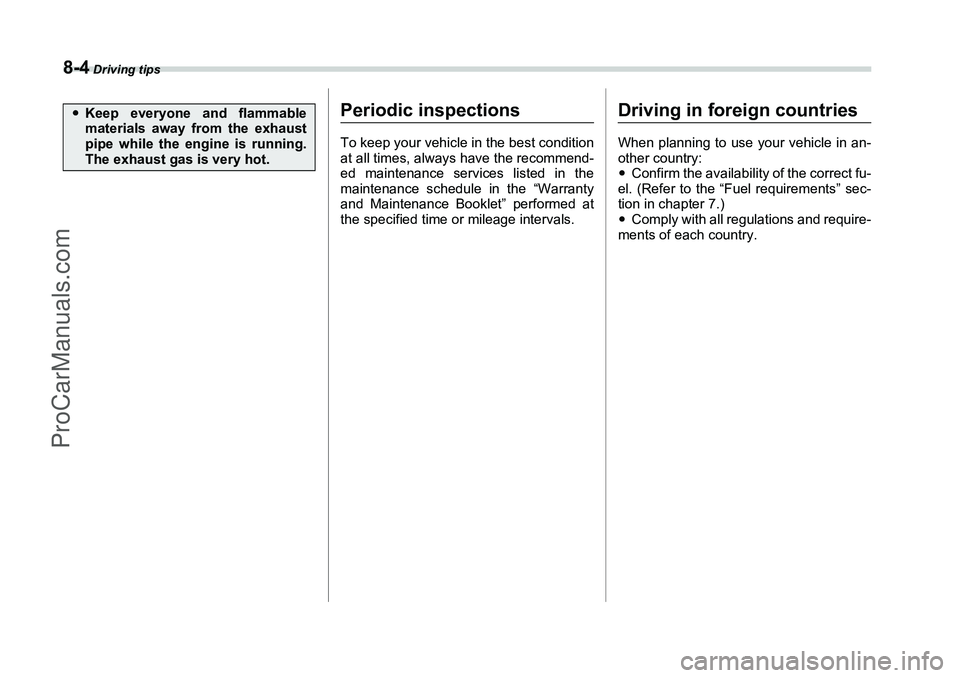

Periodic inspections .......................................... 8-4
Driving in foreign countries .............................. 8-4

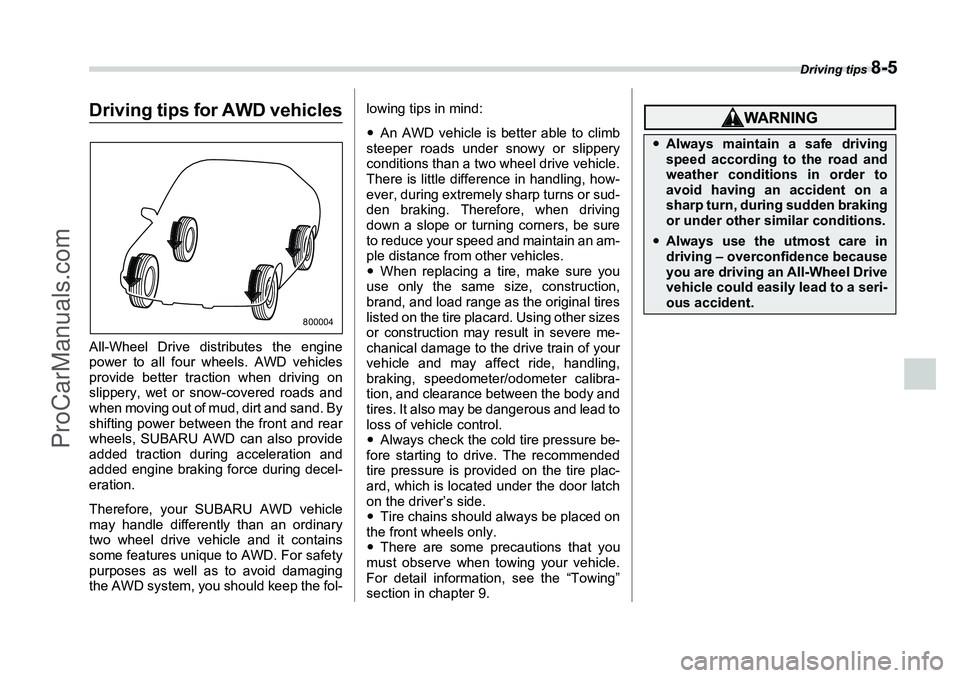

Driving tips for AWD vehicles ........................... 8-5
Off road driving .................................................. 8-6
Winter driving ..................................................... 8-7
Operation during cold weather .............................. 8-7
Driving on snowy and icy roads ............................ 8-9
Corrosion protection .............................................. 8-10
Snow tires ............................................................... 8-10
Tire chains ............................................................... 8-10
Rocking the vehicle ................................................ 8-11
Loading your vehicle ......................................... 8-11
Vehicle capacity weight ......................................... 8-12
GVWR and GAWR (Gross Vehicle Weight Rating and Gross Axle Weight Rating) ........................... 8-12
Roof rail and crossbar (if equipped) ..................... 8-13
Trailer hitch (if equipped) .................................. 8-16
Connecting a trailer ................................................ 8-16
When you do not tow a trailer ............................... 8-17
Trailer towing ...................................................... 8-18
Warranties and maintenance ................................. 8-18
Maximum load limits .............................................. 8-18 Trailer hitches ......................................................... 8-21
Connecting a trailer ................................................ 8-22
Trailer towing tips ................................................... 8-23
ProCarManuals.com

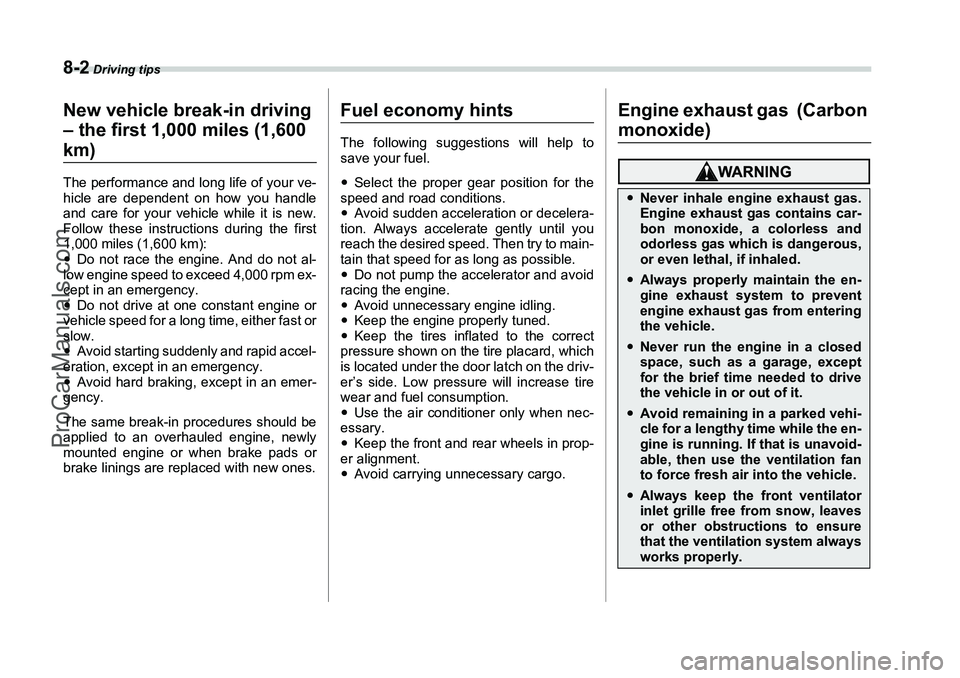

Page 227 of 355
8-2
Driving tips
Driving tips
New vehicle break-in driving
– the first 1,000 miles (1,600 km)The performance and long life of your ve-
hicle are dependent on how you handle
and care for your vehicle while it is new.
Follow these instructions during the first
1,000 miles (1,600 km):
yDo not race the engine. And do not al-
low engine speed to exceed 4,000 rpm ex-
cept in an emergency.
y Do not drive at one constant engine or
vehicle speed for a long time, either fast or
slow.
y Avoid starting suddenly and rapid accel-
eration, except in an emergency.
y Avoid hard braking, except in an emer-
gency.
The same break-in procedures should be
applied to an overhauled engine, newly
mounted engine or when brake pads or
brake linings are replaced with new ones.
Fuel economy hintsThe following suggestions will help to
save your fuel.
y Select the proper gear position for the
speed and road conditions.
y Avoid sudden acceleration or decelera-
tion. Always accelerate gently until you
reach the desired speed. Then try to main-
tain that speed for as long as possible.
y Do not pump the accelerator and avoid
racing the engine.
y Avoid unnecessary engine idling.
y Keep the engine properly tuned.
y Keep the tires inflated to the correct
pressure shown on the tire placard, which
is located under the door latch on the driv-
er’s side. Low pressure will increase tire
wear and fuel consumption.
y Use the air conditioner only when nec-
essary.
y Keep the front and rear wheels in prop-
er alignment.
y Avoid carrying unnecessary cargo.
Engine exhaust gas (Carbon monoxide) yNever inhale engine exhaust gas.
Engine exhaust gas contains car-
bon monoxide, a colorless and
odorless gas which is dangerous,
or even lethal, if inhaled. yAlways properly maintain the en-
gine exhaust system to prevent
engine exhaust gas from entering
the vehicle. yNever run the engine in a closed
space, such as a garage, except
for the brief time needed to drive
the vehicle in or out of it. yAvoid remaining in a parked vehi-
cle for a lengthy time while the en-
gine is running. If that is unavoid-
able, then use the ventilation fan
to force fresh air into the vehicle. yAlways keep the front ventilator
inlet grille free from snow, leaves
or other obstructions to ensure
that the ventilation system always
works properly.
ProCarManuals.com

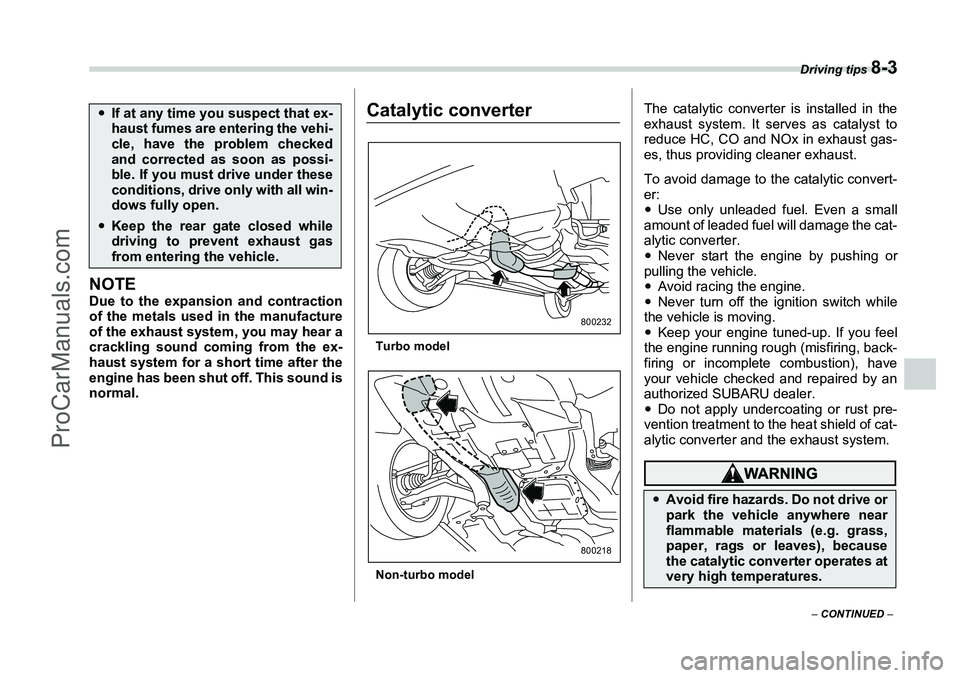

Page 228 of 355
Driving tips
8-3
– CONTINUED –
NOTEDue to the expansion and contraction
of the metals used in the manufacture
of the exhaust system, you may hear a
crackling sound coming from the ex-
haust system for a short time after the
engine has been shut off. This sound is
normal.
Catalytic converterTurbo model
Non-turbo model
The catalytic converter is installed in the
exhaust system. It serves as catalyst to
reduce HC, CO and NOx in exhaust gas-
es, thus providing cleaner exhaust.
To avoid damage to the catalytic convert-
er:
yUse only unleaded fuel. Even a small
amount of leaded fuel will damage the cat-
alytic converter.
y Never start the engine by pushing or
pulling the vehicle.
y Avoid racing the engine.
y Never turn off the ignition switch while
the vehicle is moving.
y Keep your engine tuned-up. If you feel
the engine running rough (misfiring, back-
firing or incomplete combustion), have
your vehicle checked and repaired by an
authorized SUBARU dealer.
y Do not apply undercoating or rust pre-
vention treatment to the heat shield of cat-
alytic converter and the exhaust system.
y If at any time you suspect that ex-
haust fumes are entering the vehi-
cle, have the problem checked
and corrected as soon as possi-
ble. If you must drive under these
conditions, drive only with all win-
dows fully open. yKeep the rear gate closed while
driving to prevent exhaust gas
from entering the vehicle.
800232800218
yAvoid fire hazards. Do not drive or
park the vehicle anywhere near
flammable materials (e.g. grass,
paper, rags or leaves), because
the catalytic converter operates at
very high temperatures.
ProCarManuals.com
Page 229 of 355
8-4
Driving tips
Periodic inspectionsTo keep your vehicle in the best condition
at all times, always have the recommend-
ed maintenance services listed in the
maintenance schedule in the “Warranty
and Maintenance Booklet” performed at
the specified time or mileage intervals.
Driving in foreign countriesWhen planning to use your vehicle in an-
other country:
yConfirm the availability of the correct fu-
el. (Refer to the “Fuel requirements” sec-
tion in chapter 7.)
y Comply with all regulations and require-
ments of each country.
y Keep everyone and flammable
materials away from the exhaust
pipe while the engine is running.
The exhaust gas is very hot.
ProCarManuals.com
Page 230 of 355
Driving tips
8-5
Driving tips for AWD vehiclesAll-Wheel Drive distributes the engine
power to all four wheels. AWD vehicles
provide better traction when driving on
slippery, wet or snow-covered roads and
when moving out of mud, dirt and sand. By
shifting power between the front and rear
wheels, SUBARU AWD can also provide
added traction during acceleration and
added engine braking force during decel-
eration.
Therefore, your SUBARU AWD vehicle
may handle differently than an ordinary
two wheel drive vehicle and it contains
some features unique to AWD. For safety
purposes as well as to avoid damaging
the AWD system, you should keep the fol-lowing tips in mind:
y
An AWD vehicle is better able to climb
steeper roads under snowy or slippery
conditions than a two wheel drive vehicle.
There is little difference in handling, how-
ever, during extremely sharp turns or sud-
den braking. Therefore, when driving
down a slope or turning corners, be sure
to reduce your speed and maintain an am-
ple distance from other vehicles.
y When replacing a tire, make sure you
use only the same size, construction,
brand, and load range as the original tires
listed on the tire placard. Using other sizes
or construction may result in severe me-
chanical damage to the drive train of your
vehicle and may affect ride, handling,
braking, speedometer/odometer calibra-
tion, and clearance between the body and
tires. It also may be dangerous and lead to
loss of vehicle control.
y Always check the cold tire pressure be-
fore starting to drive. The recommended
tire pressure is provided on the tire plac-
ard, which is located under the door latch
on the driver’s side.
y Tire chains should always be placed on
the front wheels only.
y There are some precautions that you
must observe when towing your vehicle.
For detail information, see the “Towing”
section in chapter 9.
800004
y Always maintain a safe driving
speed according to the road and
weather conditions in order to
avoid having an accident on a
sharp turn, during sudden braking
or under other similar conditions. yAlways use the utmost care in
driving – overconfidence because
you are driving an All-Wheel Drive
vehicle could easily lead to a seri-
ous accident.
ProCarManuals.com
