Warranties „Warranties for U.S.A.
All SUBARU vehicles distributed by
Subaru of America, Inc. and sold at retail
by an authorized SUBARU dealer in the
United States come with the following
warranties: y SUBARU Limited Warranty
y Emission Control Systems Warranty
y Emissions Performance Warranty
All warranty information, including details
of coverage and exclusions, is in the
“Warranty and Maintenance Booklet”.
Please read these warranties carefully. „ Warranties for Canada
All SUBARU vehicles distributed by
Subaru Canada, Inc. and sold at retail by
an authorized SUBARU dealer in Canada
come with the following warranties: y SUBARU Limited Warranty
y Anti-Corrosion Warranty
y Emission Control Warranty
All warranty information, including details
of coverage and exclusions, is in the War-
ranty and Service Booklet. Please read
these warranties carefully. T
2.5XT (Canada model only)
TAll models except Canada model
2.5XT
How to use this Owner’s
Manual „ Using your Owner’s Manual
Before you operate your vehicle, carefully
read this manual. To protect yourself and
extend the service life of your vehicle, fol-
low the instructions in this manual. Failure
to observe these instructions may result in
serious injury and damage to your vehicle.
This manual is composed of fourteen
chapters. Each chapter begins with a brief
table of contents, so you can usually tell at
a glance if that chapter contains the infor-
mation you want.
Chapter 1: Seat, seatbelt and SRS air-
bags
This chapter informs you how to use the
seat and seatbelt and contains precau-
tions for the SRS airbags.
Chapter 2: Keys and doors
This chapter informs you how to operate
the keys, locks and windows.
Chapter 3: Instruments and controls
This chapter informs you about the opera-
tion of instrument panel indicators and
how to use the instruments and other
switches.
Chapter 4: Climate Control
This chapter informs you how to operate
2.5XT models are equipped with
High Intensity Discharge (HID) head-
lights that contain mercury. For that
reason, it is necessary to remove
HID headlights before vehicle dis-
posal. Once removed, please reuse,
recycle or dispose of the HID head-
lights as hazardous waste.
This vehicle does not contain mer-
cury devices or parts.

3
– CONTINUED –
Vehicle symbols
There are some of the symbols you may
see on your vehicle.Mark Name WARNING
CAUTION
Power door lock
Passenger’s windows lock
Fuel
Front fog lights
Parking lights
Hazard warning flasher
Engine hood
Seat heater
Child restraint top tether an-
chorages
Child restraint lower anchor- ages Horn
Windshield wiper deicer
Wiper intermittent
Windshield washer
Windshield wiper mist (for single wipe) Rear window wiper Rear window washer
Lights
Mark NameParking lights, tail lights, li-
cense plate light and instru-
ment panel illumination
Head lights
Headlight beam leveler
Illumination brightness
Fan speed
Instrument panel outlets
Instrument panel outlets and
foot outlets
Foot outlets
Windshield defroster and
foot outlets
Windshield defroster
Outside mirror defogger
Mark Name

24

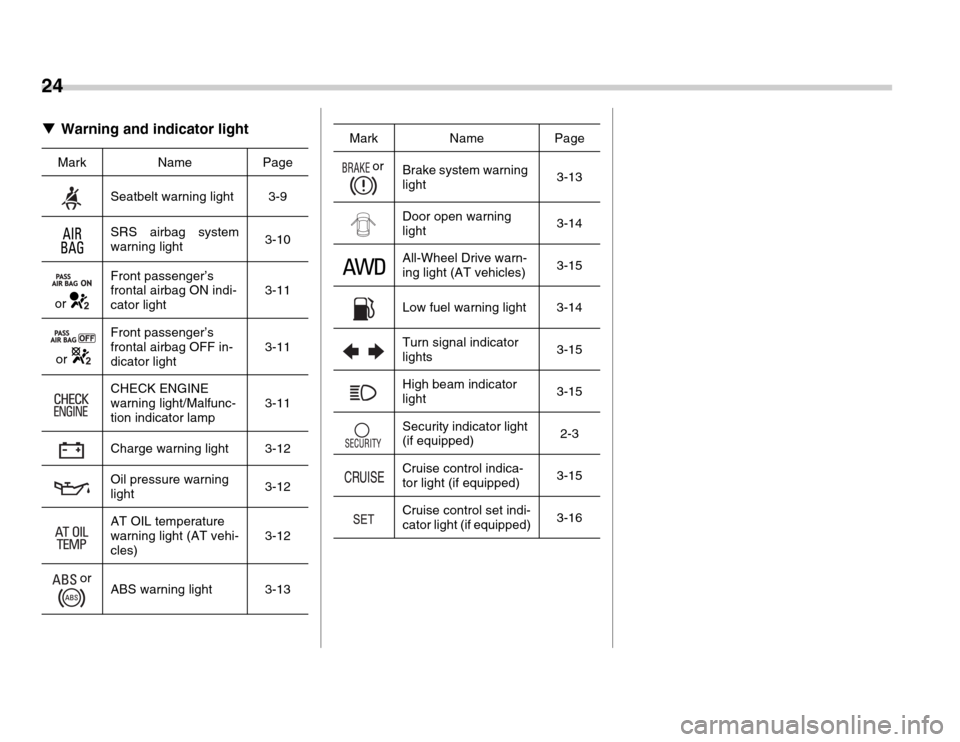

TWarning and indicator light
Mark Name Page
Seatbelt warning light 3-9
SRS airbag system
warning light 3-10
or Front passenger’s
frontal airbag ON indi-
cator light
3-11
or Front passenger’s
frontal airbag OFF in-
dicator light
3-11
CHECK ENGINE
warning light/Malfunc-
tion indicator lamp 3-11
Charge warning light 3-12
Oil pressure warning light 3-12
AT OIL temperature
warning light (AT vehi-cles) 3-12
or ABS warning light 3-13
or Brake system warning light 3-13
Door open warning light 3-14
All-Wheel Drive warn-
ing light (AT vehicles) 3-15
Low fuel warning light 3-14
Turn signal indicator
lights 3-15
High beam indicator light 3-15
Security indicator light
(if equipped) 2-3
Cruise control indica-
tor light (if equipped) 3-15
Cruise control set indi-
cator light (if equipped) 3-16
Mark Name Page

1-12 Seat, seatbelt and SRS airbags
„Automatic/Emergency Lock-
ing Retractor (A/ELR)
Each passenger’s seatbelt has an Auto-
matic/Emergency Locking Retractor (A/
ELR). The Automatic/Emergency Locking
Retractor normally functions as an Emer-
gency Locking Retractor (ELR). The A/
ELR has an additional locking mode “Au-
tomatic Locking Retractor (ALR) mode” in-
tended to secure a child restraint system.
When the seatbelt is once drawn out com-
pletely and is then retracted even slightly,
the retractor locks the seatbelt in that po-
sition and the seatbelt cannot be extend-
ed. As the belt is rewinding, clicks will be
heard which indicate the retractor func-
tions as an ALR. When the seatbelt is re-
tracted fully, the ALR mode is released.
When securing a child restraint system on
the rear seats by the use of the seatbelt,
the seatbelt must be changed over to the
Automatic Locking Retractor (ALR) mode.
When the child restraint system is re-
moved, make sure that the seatbelt re-
tracts fully and the retractor returned to
the Emergency Locking Retractor (ELR)
mode.
For instructions on how to convert the re-
tractor to the ALR mode and restore it to
the ELR mode, see the “Child restraint systems” section in this chapter.
„ Seatbelt warning light
and chime
Your vehicle is equipped with a seatbelt
warning device at the driver’s seat, as re-
quired by current safety standards. There
is a seatbelt warning light in the combina-
tion meter.
If the driver has not yet fastened the seat-
belt when the ignition switch is turned to
the “ON” position, the seatbelt warning
light will flash for 6 seconds, to warn that
the seatbelt is unfastened. If the driver’s
seatbelt is not fastened, a chime will also
sound simultaneously.
If the driver’s seatbelt is still not fastened
6 seconds later, the warning light will re-
main lit for 15 seconds. If the driver’s seat-
belt is still not fastened even 15 seconds
later (21 seconds after turning ON the ig-
nition switch), the warning lights will alter-
nate between flashing and steady illumi-
nation at 15-second intervals, and the
chime will sound while the warning light is
flashing.
Alternate flashing and steady illumination
of the warning lights and sounding of the
chime will continue until the driver fastens
the seatbelt.NOTE y If the driver unfastens the seatbelt af-
ter fastening, the seatbelt warning de-
vice operates as follows according to
the vehicle speed. y At speeds lower than approximate-
ly 9 mph (15 km/h)
The warning light will alternate be-
tween flashing and steady illumina-
tion at 15-second intervals. The
chime will not sound. y At speeds higher than approxi-
mately 9 mph (15 km/h)
The warning light will alternate be-
tween flashing and steady illumina-
tion at 15-second intervals and the
chime will sound while the warning
light is flashing.
y It is possible to cancel the warning
operation that follows the 6-second
warning after turning ON the ignition
switch. When the ignition switch is
turned ON next time, however, the
complete sequence of warning opera-
tion resumes. For further details about
canceling the warning operation,
please contact your SUBARU dealer.

Keys and doors 2-7
– CONTINUED –
hicle.
The remote keyless entry system has the
following functions. y
Locking and unlocking the doors and
rear gate without a key y Sounding a panic alarm
y Arming and disarming the alarm system
(if your vehicle is equipped with an option-
al alarm system). See the next section
“Alarm system” for detailed information.
The operable distance of the keyless entry
system is approximately 30 feet (10
meters). However, this distance will vary
depending on environmental conditions.
The system’s operable distance will be
shorter in areas near a facility or electronic
equipment emitting strong radio waves
such as a power plant, broadcast station,
TV tower, or remote controller of home
electronic appliances.
The keyless entry system does not oper-
ate when the key is inserted in the ignition

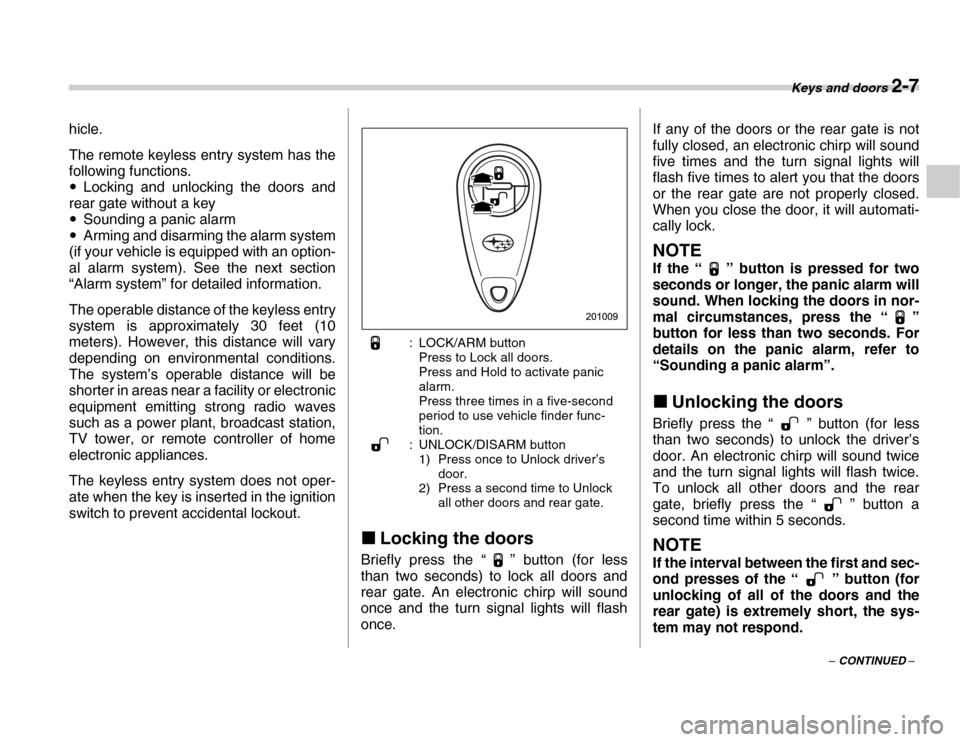

switch to prevent accidental lockout. : LOCK/ARM button
