BASIC FUNCTION
20
“HOME (HOME)” SCREEN
Select to display the “HOME (HOME)” screen.
No. Function Page
*
Select to display the map screen. 184
Select to display the audio control
screen.51
Select to display the hands-free operation
screen.106
No. Function Page
Select to display the “SETTINGS
(SETTINGS)” screen.26
Select to display the “INFO (INFO)”
screen.22
Select to display the “APPS (APPS)”
screen.21
*: With navigation function

BASIC FUNCTION
21
1
QUICK GUIDE
“APPS (APPS)” SCREEN
Select, or select and then select APPS
(APPS), to display the “APPS (APPS)” screen.
No. Function Page
Select to display the “STARLINK
disclaimer (STARLINK disclaimer)”
screen.138
Select to display the “MirrorLink™
(MirrorLink™)” screen.139
No. Function Page
Select to display the “Pandora
(Pandora)*” screen.150
Select to display the “aha (aha)” screen. 142
*: Pandora is a registered trademark of Pandora Media, Inc.
Pandora is available in the United States, Australia, and New Zealand.
NOTE
OIf unable to use functions for such reasons as devices not being
connected, buttons are dimmed and cannot be operated.

BASIC FUNCTION
22
“INFO (INFO)” SCREEN
This screen can be used to display sports information and
photos, etc.
Select
, or select and then select INFO
(INFO), to display the “INFO (INFO)” screen.
No. Function Page
*1Select to display sports information. 154
*1Select to display weather information. 155
No. Function Page
*1Select to display stocks information. 159
*1Select to display fuel information. 160
Select to reorder the menu icons. 42
*2Select to view pictures in the SD card. 78
Select to view pictures in the USB
memory connected to USB port 2.71
Select to view pictures in the USB
memory connected to USB port 1.71
*1: Service is not available in Canada.
*2: With navigation function

BASIC FUNCTION
23
1
QUICK GUIDE
SPLIT SCREEN
Press and hold the “AUDIO/TUNE” knob, to display the
split screen.
The split screen can display two information screens
simultaneously, such as the audio system screen and
hands-free screen or the hands-free screen and navigation*
screen. When hands-free mode is selected, it is possible
to make a call on the home screen if the desired telephone
number is registered to one of the 4 displayed buttons. In
order to register the contact, select and hold the desired
button and register the desired contact by obey displayed
PHVVDJHVRQWKHVFUHHQ
:3
*: With navigation function
When a screen is selected, the selected screen is switched
to a full-screen display. The split screen can be set to a two-
way split screen.
)RUGHWDLOVDERXWVHWWLQJWKHVSOLWVFUHHQ
:3No. Function Page
Select to display the “Customize Split
Screen (Customize Split Screen)” screen.43

BASIC FUNCTION
24
STATUS DISPLAY
The status of the Bluetooth connection and so on is
displayed on the screen.
No. Indicators Conditions
This icon is displayed when a disc has been
inserted.
This icon is displayed when audio is off or the steering switch is pressed.
No. Indicators Conditions
This icon is displayed when the Bluetooth
connection is established.
An antenna for the Bluetooth connection is
built into the instrument panel. The condition
of the Bluetooth connection may deteriorate
and the system may not function when a
Bluetooth phone is used in the following
conditions and/or places:
The cellular phone is obstructed by certain
objects (such as when it is behind the seat or
in the glove box or console box).
The cellular phone is touching or is covered
with metal materials.
Leave the Bluetooth phone in a place where
the condition of the Bluetooth connection is
good.
The
level of
receptionPoor
Excellent
The level of reception does not always
correspond with the level displayed on the
cellular phone. The level of reception may not
be displayed depending on the phone you
have.
“Rm” is displayed when receiving in a
roaming area. While roaming, display “Rm”
top-left on the icon.
The receiving area may not be displayed
depending on the type of phone you have.

BASIC FUNCTION
25
1
QUICK GUIDE
No. Indicators Conditions
The
amount
of battery
charge leftLow
Full
The amount displayed does not always
correspond with the amount displayed on the
Bluetooth device.
The amount of battery charge left may not
be displayed depending on the type of the
Bluetooth device connected.

QUICK REFERENCE
26
QUICK REFERENCE
“SETTINGS (SETTINGS)” SCREEN
The items shown on the “SETTINGS (SETTINGS)” screen
can be set. Select
and then select SETTINGS
(SETTINGS) to display the “SETTINGS (SETTINGS)”
screen.
No. Function Page
Select to turn the screen off. -
Select to change the selected language,
operation sound, automatic screen
change settings, etc.176
Select to customize the split screen. 43
Select to specify voice settings. 181
Select to specify audio settings. 89
Select to specify phone sound, contacts,
message settings, etc.125
Select to set Bluetooth phones and
Bluetooth audio devices.168
Select to adjust the brightness, contrast,
tone and color of the screens.46

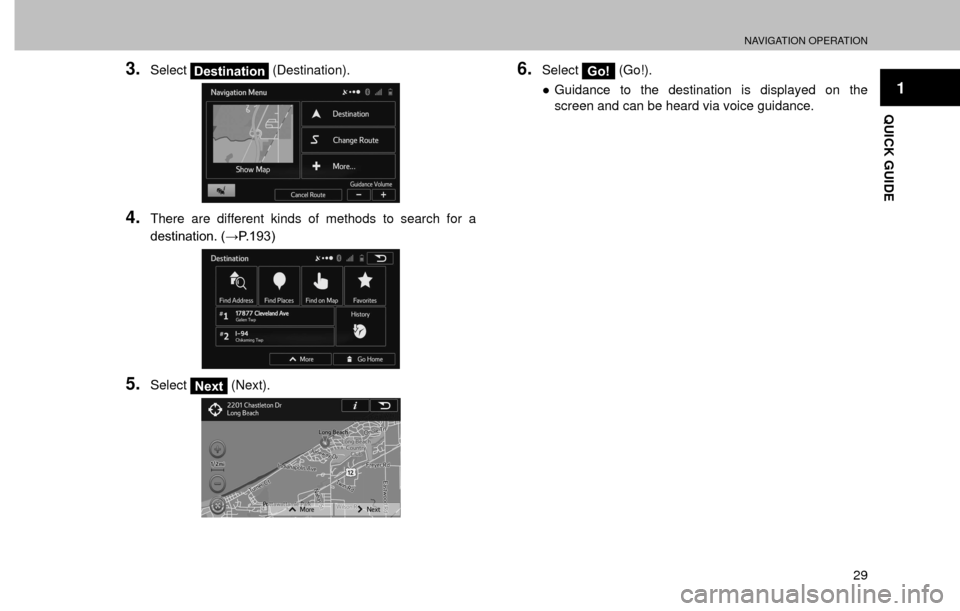

NAVIGATION OPERATION
29
1
QUICK GUIDE
3.SelectDestination (Destination).
4.There are different kinds of methods to search for a
GHVWLQDWLRQ
:3
5.SelectNext (Next).
6.SelectGo! (Go!).

”Guidance to the destination is displayed on the
screen and can be heard via voice guidance.

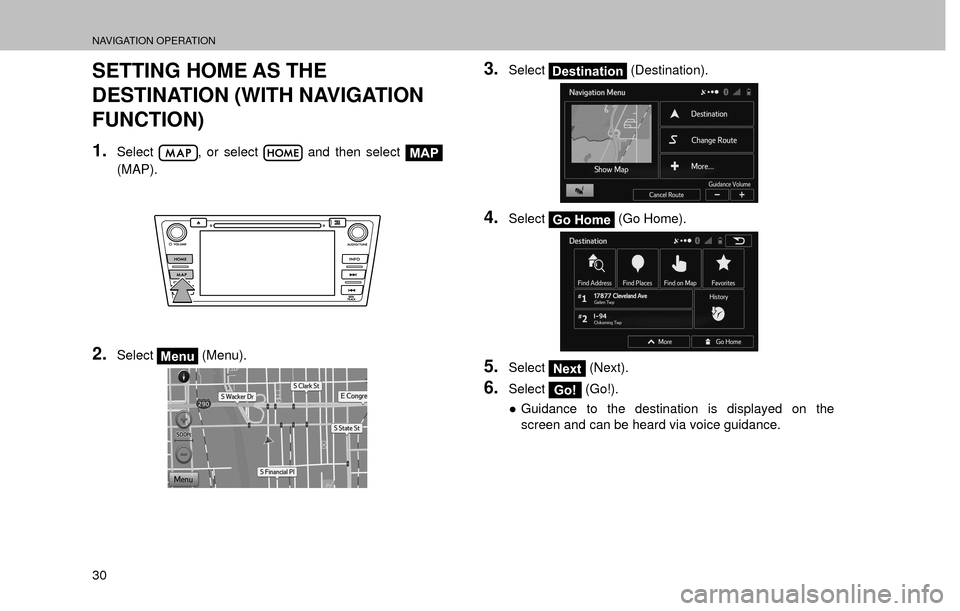

NAVIGATION OPERATION
30
SETTING HOME AS THE
DESTINATION (WITH NAVIGATION
FUNCTION)
1.Select, or select and then select MAP
(MAP).
2.SelectMenu (Menu).
3.SelectDestination (Destination).
4.SelectGo Home (Go Home).
5.SelectNext (Next).
6.SelectGo! (Go!).

”Guidance to the destination is displayed on the
screen and can be heard via voice guidance.

FUNCTION INDEX
31
1
QUICK GUIDE
FUNCTION INDEX
FUNCTION INDEX
XAudio
Function Page
Using the radio 56, 65
Playing an audio CD or MP3/WMA/AAC disc 69
Playing an SD*
1 card 78
Playing a USB memory 71
Playing an iPod
®75
Playing a Bluetooth device 81
Using the aha application 142
Using the AUX port 85
Using the MirrorLink
TM application 139
Using the Pandora
®*2 application 150
Using the steering wheel audio switches 87
Audio system settings 89
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
XMap*
*: With navigation function
Displaying maps Page
Viewing the map screen 184
Displaying the current position 189
Changing the scale 190
Changing the map orientation 190
Displaying the estimated travel/arrival time to the
destination207
'LVSOD\LQJWUDI¿FLQIRUPDWLRQ192
Searching for destinations Page
Searching for the destination 194
