bluetooth SUBARU FORESTER 2016 SJ / 4.G Navigation Manual

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 5
PHONE
4
RECEIVING ON THE Bluetooth
PHONE
INCOMING CALLS
When a call is received, the incoming call screen is
displayed with a sound.
1.Select or press the switch on the steering
wheel to talk on the phone.
To refuse to receive the call: Select or press the switch on the steering wheel.
To put on hold: Select and hold
, or press and hold
the switch on the steering wheel.
To adjust the volume of a received call: Turn the
“POWER/VOLUME” knob, or use the volume control switch
on the steering wheel.
NOTE
ODuring international phone calls, the other party’s name or
number may not be displayed correctly depending on the type of
cellular phone you have.
O7KHLQFRPLQJFDOOGLVSOD\PRGHFDQEHVHW
:3
OThe ringtone that has been set in the “Sound Settings (Sound
Settings)” screen sounds when there is an incoming call.
Depending on the type of Bluetooth phone, both the system and
Bluetooth phone may sound simultaneously when there is an
LQFRPLQJFDOO
:3

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 6
TALKING ON THE Bluetooth PHONE
While talking on the phone, this screen is displayed. The
operations outlined below can be performed on this screen.
No. Function Page
Select to display the dial pad to send tones. 113
Select to mute your voice to the other party. -
Select to change handset modes between
hands-free and cellular phone.-
Select to adjust your voice volume that the
other party hears from their speaker.11 8
No. Function Page
Select to send tones. This button only appears
when a number that contains a (w) is dialed in
hands-free mode.11 7
Select to hang up the phone. -
Select or to adjust the volume of the
other party’s voice.-
Select to start talking with the other party. 118
NOTE
OWhen cellular phone call is changed to hands-free call, the
hands-free screen will be displayed and its functions can be
operated on the screen.
OChanging between cellular phone call and hands-free call can be
performed by operating the cellular phone directly.
OTransferring methods and operations will be different depending
on the type of cellular phone you have.
OFor the operation of the cellular phone, see the manual that
comes with it.
OTurn the “POWER/VOLUME” knob, or use the volume control
switch on the steering wheel to adjust the volume of the other
party's voice.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 9
PHONE
4
Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
XWithout navigation function
1.Select.
2.Select.

”The phone top screen can be displayed by pressing
the
switch on the steering wheel.
3.Check that the message inbox screen is displayed.
XWith navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select.

”The phone top screen can be displayed by pressing
the
switch on the steering wheel.
4.Check that the message inbox screen is displayed.

” : Select to change to phone mode.

SETUP
127
PHONE
4
No. Function
Select to reset all setup items.
“Contact/Call History Settings (Contact/Call
History Settings)” SCREEN
The contact can be transferred from a Bluetooth phone
to the system. The contact also can be added, edited and
deleted.
The call history can be deleted and contact and speed dial
can be changed.
1.Display the “Phone/Message Settings (Phone/Message
6HWWLQJV

SETUP
128
No. Function Page
*
Select to add new contacts to the contact list. 129
*
Select to edit contacts in the contact list. 130
*
Select to delete contacts from the contact list. 131
Select to reset all setup items. -
*: For PBAP compatible Bluetooth phones, this function is available when
“Automatic Contact/History Transfer (Automatic Contact/History Transfer)”
LVVHWWRRII
:3
NOTE
OContact data is managed independently for every registered
phone. When one phone is connected, another phone’s
registered data cannot be read.
UPDATE CONTACTS FROM PHONE
Operation methods differ between PBAP compatible and
OPP compatible Bluetooth phones.
If your cellular phone is neither PBAP nor OPP compatible,
the contacts cannot be transferred.
QFOR PBAP COMPATIBLE Bluetooth PHONES
1.SelectUpdate Contacts from Phone (Update
Contacts from Phone).

”Contacts are transferred automatically.
2.&KHFN WKDW D FRQ

SETUP
129
PHONE
4
2.Transfer the contact data to the system using a
Bluetooth phone.

”This operation may be unnecessary depending on the
type of cellular phone.

”To cancel this function, select
Cancel (Cancel).
3.&KHFN WKDW D FRQ

STARLINK
138
STARLINK
STARLINK
The STARLINK function allows the system to link with a
smartphone using Bluetooth.
When connecting iPhone or Android devices with the
STARLINK application installed, you can control STARLINK
content through the system.
In order to connect to this system, use Bluetooth.
DISPLAYING STARLINK INFORMATION
1.Run the STARLINK application on your smartphone.
2.Connect your smartphone by utilizing the Bluetooth
connection.

”For details about registering or connecting your
VPDUWSKRQH
:3
3.SelectSTARLINK (STARLINK) on the “APPS (APPS)”
screen.
4.Check that the “STARLINK disclaimer (STARLINK
disclaimer)” screen is displayed.
NOTE
OWhen using the STARLINK function, a disclaimer screen will be
displayed. Be sure to fully read the contents before using the
function.
OThere may be times when
STARLINK (STARLINK) does not
appear immediately when the ignition switch is set in the “ACC”
or “ON” position. If so, please wait.
ABOUT THE SUPPORTED DEVICES
This system supports the following devices.

”iPhone: iOS 4.3.5 or later

”Android: Android 4.0 or later

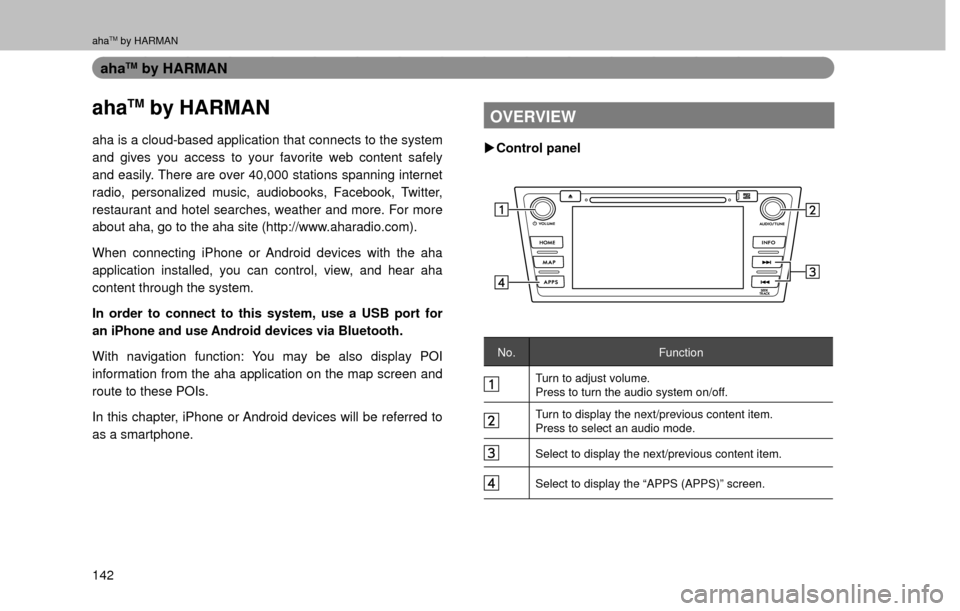

ahaTM by HARMAN
142
ahaTM by HARMAN
ahaTM by HARMAN
aha is a cloud-based application that connects to the system
and gives you access to your favorite web content safely
and easily. There are over 40,000 stations spanning internet
radio, personalized music, audiobooks, Facebook, Twitter,
restaurant and hotel searches, weather and more. For more
about aha, go to the aha site (http://www.aharadio.com).
When connecting iPhone or Android devices with the aha
application installed, you can control, view, and hear aha
content through the system.
In order to connect to this system, use a USB port for
an iPhone and use Android devices via Bluetooth.
With navigation function: You may be also display POI
information from the aha application on the map screen and
route to these POIs.
In this chapter, iPhone or Android devices will be referred to
as a smartphone.
OVERVIEW
XControl panel
No. Function
Turn to adjust volume.
Press to turn the audio system on/off.
Turn to display the next/previous content item.
Press to select an audio mode.
Select to display the next/previous content item.
Select to display the “APPS (APPS)” screen.

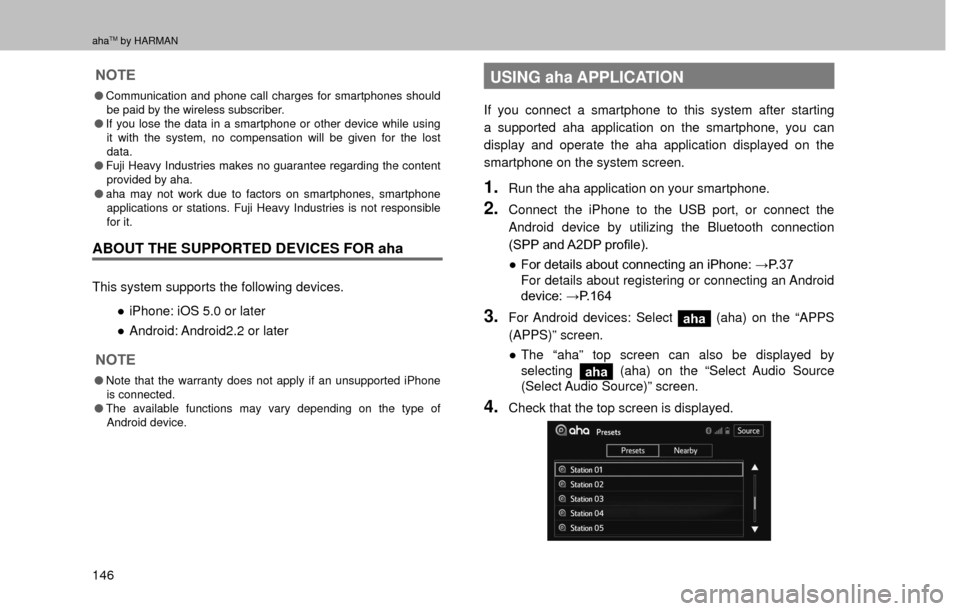

ahaTM by HARMAN
146
NOTE
OCommunication and phone call charges for smartphones should
be paid by the wireless subscriber.
OIf you lose the data in a smartphone or other device while using
it with the system, no compensation will be given for the lost
data.
OFuji Heavy Industries makes no guarantee regarding the content
provided by aha.
Oaha may not work due to factors on smartphones, smartphone
applications or stations. Fuji Heavy Industries is not responsible
for it.
ABOUT THE SUPPORTED DEVICES FOR aha
This system supports the following devices.

”iPhone: iOS 5.0 or later

”Android: Android2.2 or later
NOTE
ONote that the warranty does not apply if an unsupported iPhone
is connected.
OThe available functions may vary depending on the type of
Android device.
USING aha APPLICATION
If you connect a smartphone to this system after starting
a supported aha application on the smartphone, you can
display and operate the aha application displayed on the
smartphone on the system screen.
1.Run the aha application on your smartphone.
2.Connect the iPhone to the USB port, or connect the
Android device by utilizing the Bluetooth connection
633DQG$'3SUR

Pandora®
150
Pandora®
Pandora®
Pandora is free personalized radio that offers effortless and
endless music enjoyment and discovery.
To use the Pandora feature, connect an iPhone via USB,
and Android devices via Bluetooth.
Depending on differences between models or software
version etc., some models might be incompatible with this
system.
This function is not available if the Pandora application has
not been installed on the smartphone.
NOTE
OPandora is available in the United States, Australia, and New
Zealand.
OVERVIEW
The Pandora operation screen can be reached by the
following methods:
