door lock SUBARU FORESTER 2016 SJ / 4.G Quick Reference Guide

2
Remote Keyless Entry
Keyless Access with Push-Button
Start System
(if equipped)
By simply carrying the access key in your pocket, you can
lock and unlock doors, open the rear gate and start your car
without ever having to take the key fob out of your pocket.
1. Lock/Arm
• Press to lock all doors and the rear gate.
• If any of the doors or the rear gate are
not fully closed, an electronic chirp
will sound and the hazard lights will
flash to alert you that the doors or the
rear gate are not properly closed.
• To activate the vehicle finder function,
press three times (within five seconds).
If you are within 30 feet of the vehicle,
the horn will sound one time and the
hazard lights will flash three times.
2. Unlock/Disarm
• Press once to unlock the driver’s door.
• Press twice (within five seconds) to
unlock all doors.
• When the “Unlock/Disarm” button is
pressed, the dome and map lights will
illuminate if the dome light switch is in
the middle position.
3. Unlocking the Rear Gate
• Press the button to unlock the rear gate.
4. Panic Alarm
• Press once and the horn will sound
and the hazard lights will flash.
• Press any button on the remote
to deactivate.
1
23
4
1
2
3
4
1980916_16a_Subaru_Forester_QRG_061015.indd 26/10/15 10:59 AM

17

Automatic Climate
Control System
(if equipped)
1. Automatic On and Off This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2. Temperature Control Dial Rotate the dial clockwise to
increase the temperature or
rotate the dial counterclockwise
to decrease the temperature and
maintain a comfortable climate
within the driver and passenger
compartment. The temperature is
displayed digitally on the screen.
Operation in Manual Mode
3. Recirculated/Outside Air Button Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN THE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME. 4. Fan Speed Control Knob
Rotate the fan speed control
knob to select one of seven
different fan speed positions.
5. Air Flow Mode Selection Dial Turn the “MODE” dial to select
the desired air flow mode. The
selected air flow mode – either
ventilation, bi-level, heat or heat-
defrost – is shown on the display.
6. Air Conditioner Button Press the “A/C” button to activate
the air conditioning. Press it again
to turn off the air conditioning.
7. Defroster Button Press the button to defrost
or dehumidify the windshield
and front door windows.
8. Rear Window Defogger Button Press the button to turn on the
defogger. It will automatically shut off
after about 15 minutes. If the window
clears before that time, you can
press the button again to turn it off.
Controls
Located in the
multi-function
display; top
center of dash
17
3
42
8
6
5
1980916_16a_Subaru_Forester_QRG_061015.indd 176/10/15 11:00 AM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

24

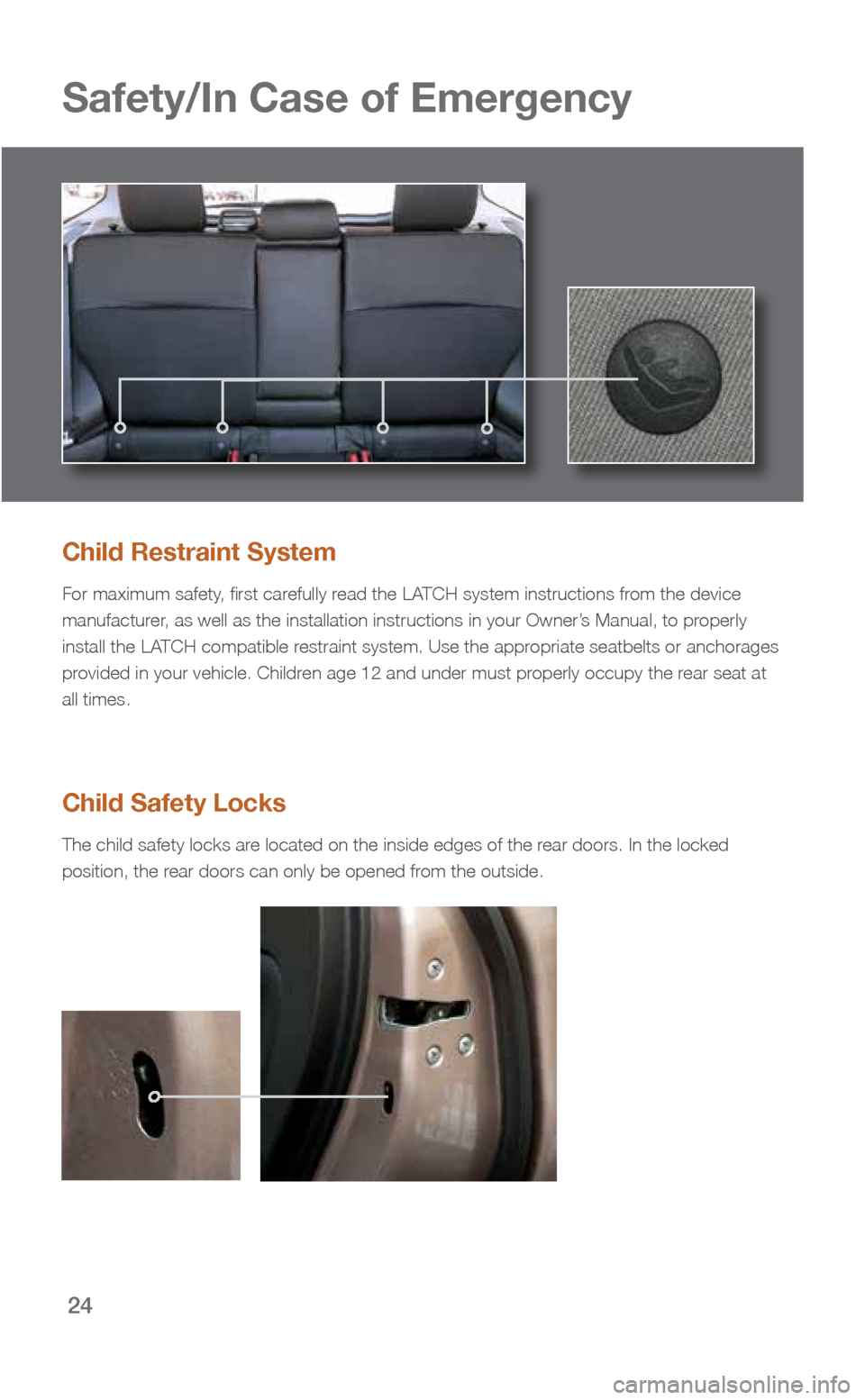

Safety/In Case of Emergency
Child Restraint System
For maximum safety, first carefully read the LATCH system instructions from the device
manufacturer, as well as the installation instructions in your Owner’s Manual, to properly
install the LATCH compatible restraint system. Use the appropriate seatbelts or anchorages
provided in your vehicle. Children age 12 and under must properly occupy the rear seat at
all times.
Child Safety Locks
The child safety locks are located on the inside edges of the rear doors. In the locked
position, the rear doors can only be opened from the outside.
1980916_16a_Subaru_Forester_QRG_061015.indd 246/10/15 11:00 AM

Steering Wheel & Instrument Panel
Master and Valet Keys, Keyless Access System
operation, Push Button Start* and Remote Start*
Tilt/Telescopic Steering Column Adjustments
and Paddle Shift operation*
Front & Rear* Wiper and Washer Controls
Headlights, DRL, Parking Lights, Hazard Lights,
Interior Lights, and Fog Lights*
Gauges, Warning Lights, Multi Function Display*
settings and Parking Brake operation
Safety, Comfort & Convenience
All Wheel Drive System, Emergency towing of AWD,
VDC, X-Mode* and Hill Holder* operation
Rear Vision Camera*
All Weather Package operation - Heated Seats,
Exterior Mirrors & Windshield Wiper De-icer
Review operation of climate control system
Power windows, locks, exterior mirrors, seat
and Power Moonroof* operation
Hood Release and fluid reservoir locations
Fuel Filler Door, Trunk Release, Rear Gate operation
and location of Spare Tire*, Jack & Tools
STARLINK Audio System & Bluetooth
Bluetooth - Pair owner’s phone(s) & show operation
(Download SUBARU STARLINK and MySubaru Apps*)
STARLINK Audio* and Navigation* system controls
(Sources, Presets, List & Back buttons)
Driver Assist Technology
Subaru EyeSight™ System* and SRF*
Blind Spot Detection* and Rear Cross Traffic Alert*
*If Applicable
