ECO mode SUBARU FORESTER 2017 SJ / 4.G Driving Assist Manual

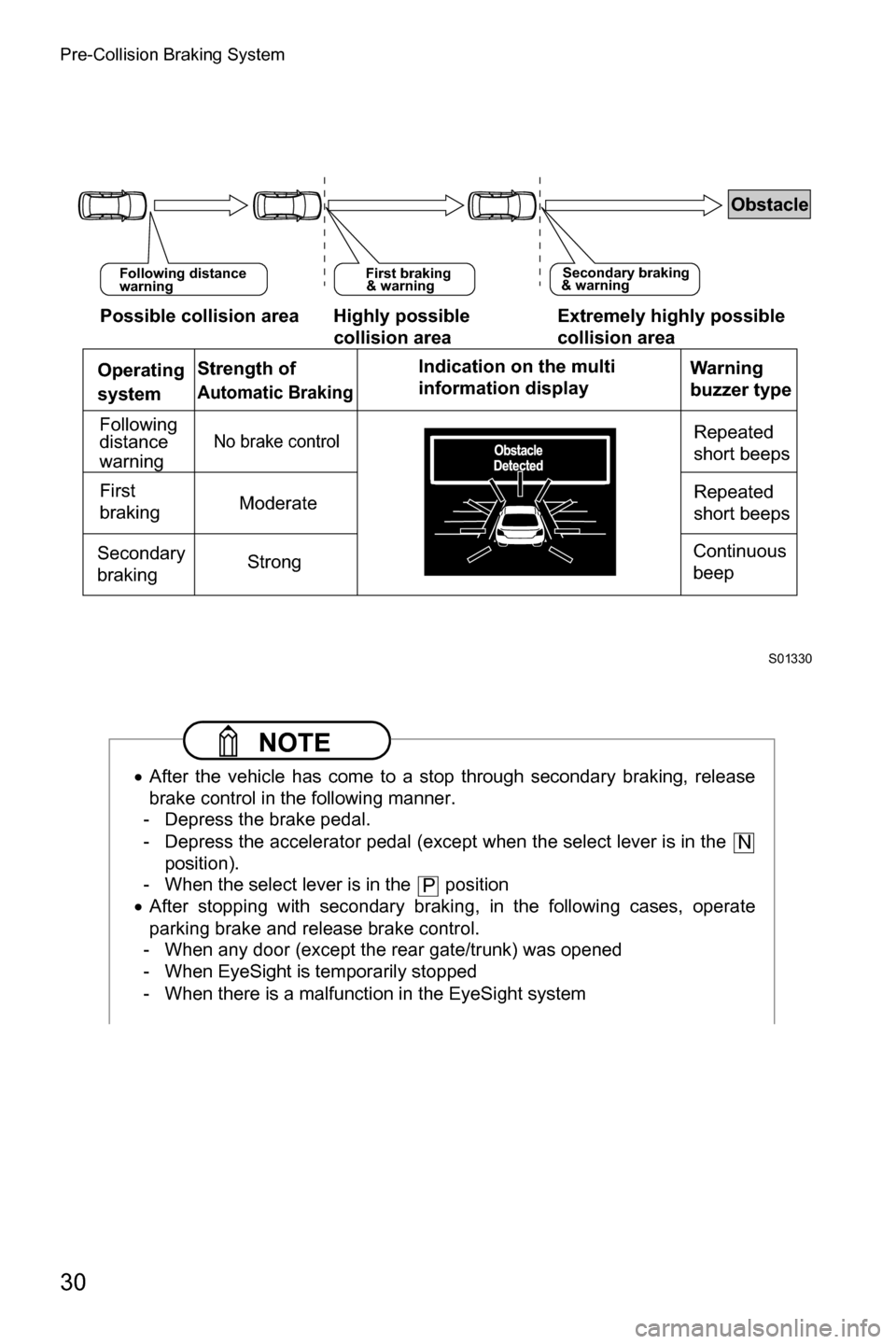

Pre-Collision Braking System
30
NOTE
xAfter the vehicle has come to a stop through secondary braking, release
brake control in the following manner.
- Depress the brake pedal.
- Depress the accelerator pedal (except when the select lever is in the
position).
- When the select lever is in the position
x After stopping with secondary braking, in the following cases, operate
parking brake and release brake control.
- When any door (except the rear gate/trunk) was opened
- When EyeSight is temporarily stopped
- When there is a malfunction in the EyeSight system
& warning Secondary braking
& warning
First braking
Possible collision area Highly possible
collision areaExtremely highly possible
collision areaObstacle
First
braking
No brake controlRepeated
short beeps
Repeated
short beeps
Strong
Secondary
braking Operating
system
Indication on the multi
information display
Continuous
beep
Moderate
Strength of
Automatic Braking
Warning
buzzer type
Following distance
warning
Following
distance
warning
S01330
N
P

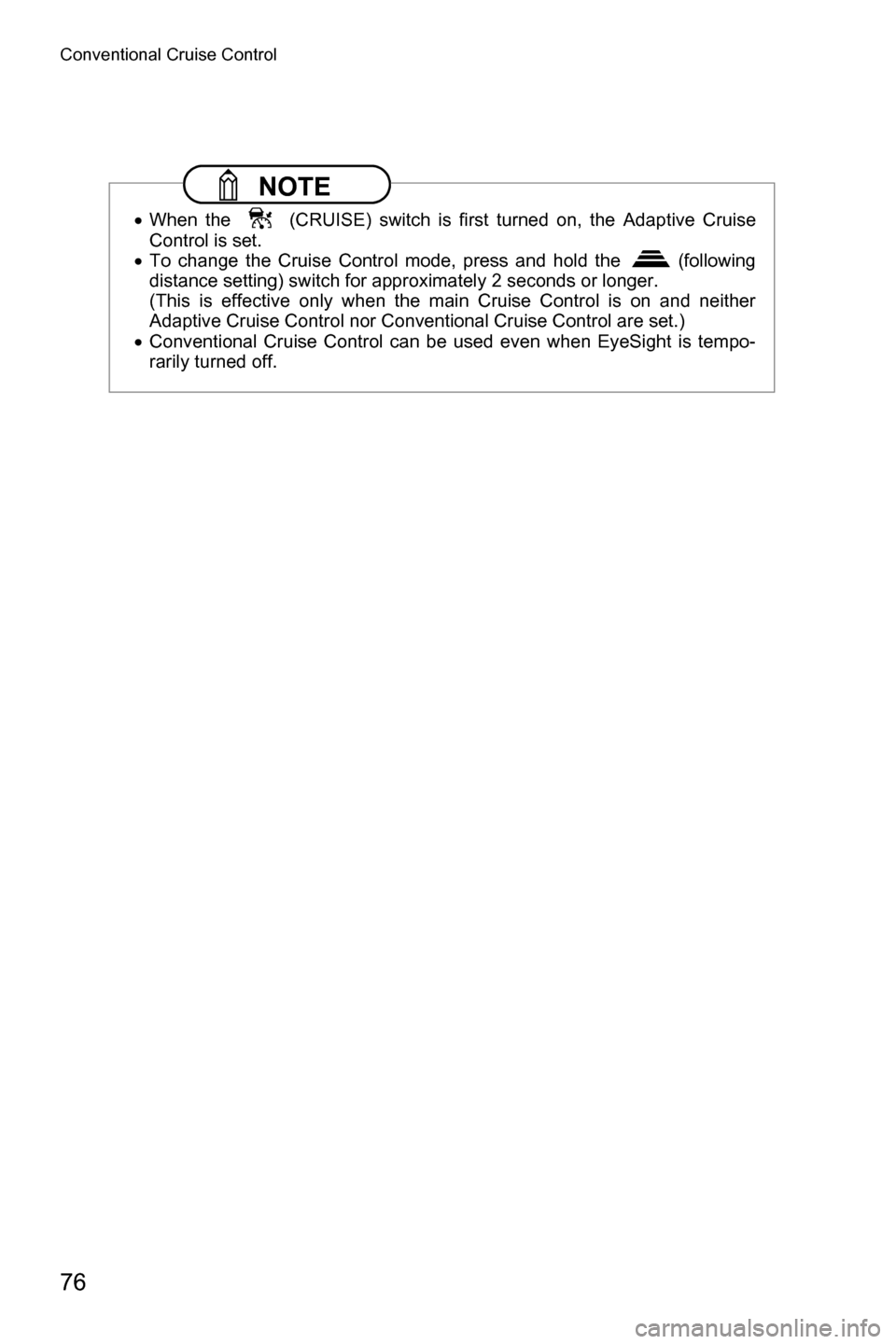

Conventional Cruise Control
76
NOTE
xWhen the (CRUISE) switch is first turned on, the Adaptive Cruise
Control is set.
x To change the Cruise Control mode, press and hold the (following
distance setting) switch for approximately 2 seconds or longer.
(This is effective only when the main Cruise Control is on and neither
Adaptive Cruise Control nor Conventional Cruise Control are set.)
x Conventional Cruise Control can be used even when EyeSight is tempo-
rarily turned off.
