RADIO OPERATION
68
PLAYING BACK THE CACHE MANUALLY
The broadcast cached in the program cache can be played
back manually.
1.'LVSOD\WKHFDFKHUDGLRRSHUDWLRQEXWWRQV
:3
2.Select the desired cache radio operation button.
No.Function
Hides the cache operation buttons.
Skips backward 2 minutes.
Fast rewinds continuously.
Plays or pauses the radio broadcast.
Fast forwards continuously.
Skips forward 2 minutes.
No.Function
Returns to the live radio broadcast.
Shows the current playback location relative to the
cached broadcast recording time with a bar scale.

”Allows HD Radio receivers to store content (songs/
programs and data) in a buffer. Playback shall start at
any point in the buffer and shall continue until the end of
the buffer or until the user has selected to stop playback.
Live Pause has the ability to store both analog and digital
content in the buffer.

ahaTM by HARMAN
160

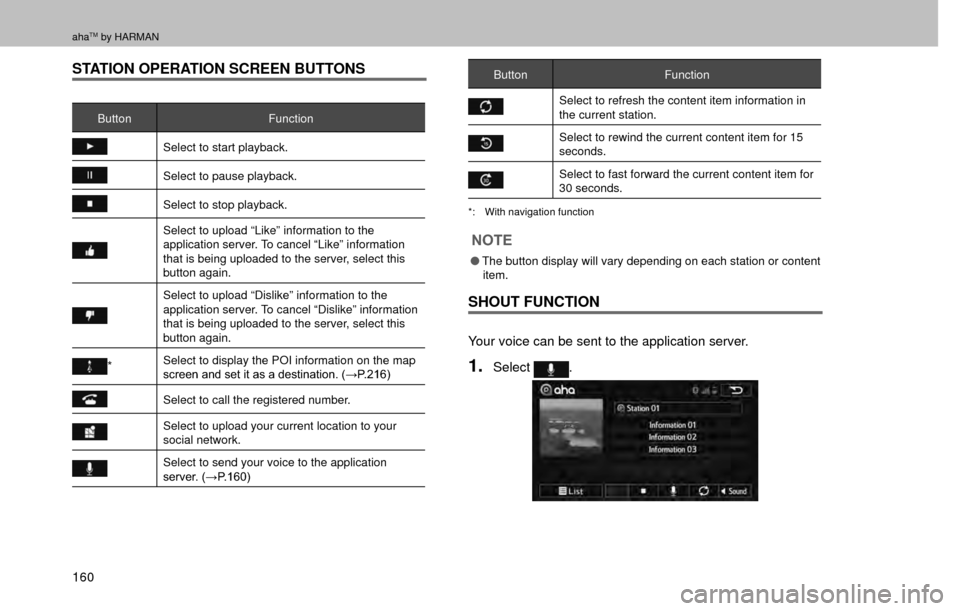

STATION OPERATION SCREEN BUTTONS
ButtonFunction
Select to start playback.
Select to pause playback.
Select to stop playback.
Select to upload “Like” information to the
application server. To cancel “Like” information
that is being uploaded to the server, select this
button again.
Select to upload “Dislike” information to the
application server. To cancel “Dislike” information
that is being uploaded to the server, select this
button again.
*Select to display the POI information on the map
VFUHHQDQGVHWLWDVDGHVWLQDWLRQ
:3
Select to call the registered number.
Select to upload your current location to your
social network.
Select to send your voice to the application
VHUYHU
:3
Button
Function
Select to refresh the content item information in
the current station.
Select to rewind the current content item for 15
seconds.
Select to fast forward the current content item for
30 seconds.
*: With navigation function
NOTE
OThe button display will vary depending on each station or content
item.
SHOUT FUNCTION
Your voice can be sent to the application server.
1.Select.

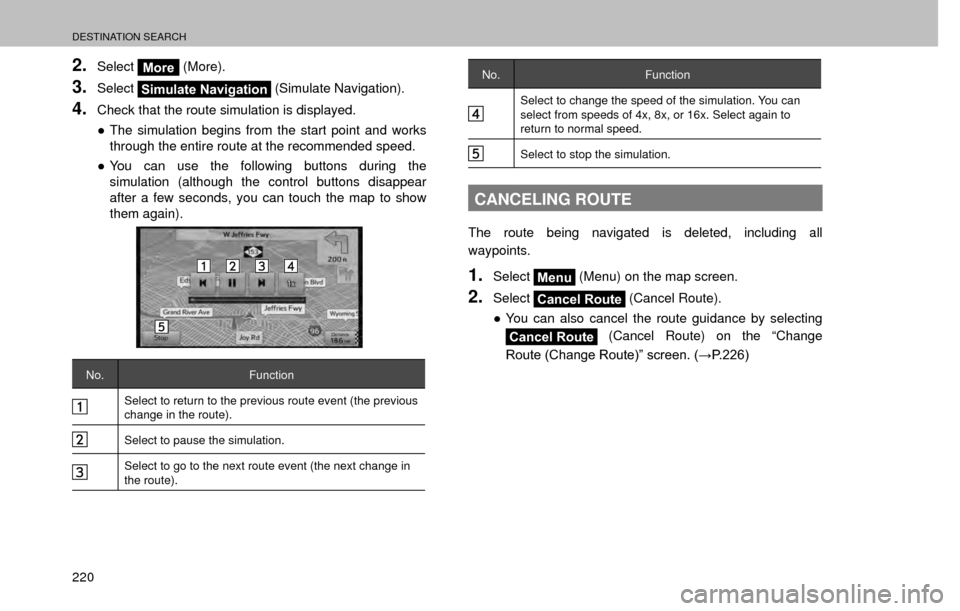

DESTINATION SEARCH
220
2.SelectMore (More).
3.SelectSimulate Navigation (Simulate Navigation).
4.Check that the route simulation is displayed.

”
The simulation begins from the start point and works
through the entire route at the recommended speed.

” You can use the following buttons during the
simulation (although the control buttons disappear
after a few seconds, you can touch the map to show
them again).
No. Function
Select to return to the previous route event (the previous
change in the route).
Select to pause the simulation.
Select to go to the next route event (the next change in
the route).
No.Function
Select to change the speed of the simulation. You can
select from speeds of 4x, 8x, or 16x. Select again to
return to normal speed.
Select to stop the simulation.
CANCELING ROUTE
The route being navigated is deleted, including all
waypoints.
1.SelectMenu (Menu) on the map screen.
2.SelectCancel Route (Cancel Route).

” You can also cancel the route guidance by selecting
Cancel Route (Cancel Route) on the “Change
5RXWH&KDQJH5RXWH
