Page 71 of 507
1-44
Seat, seatbelt and SRS airbags

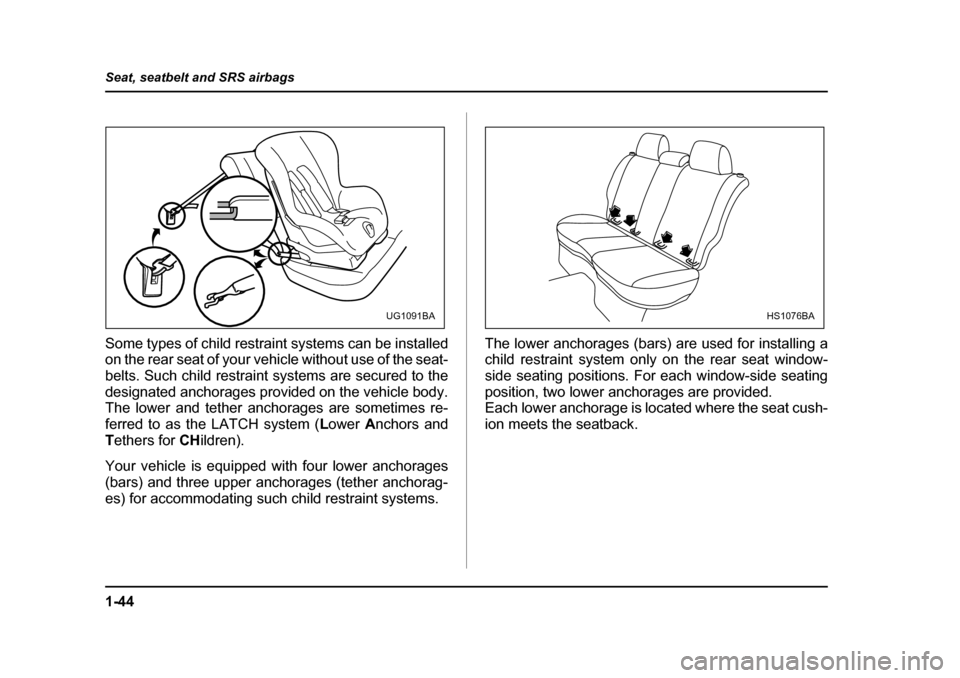

Some types of child restraint systems can be installed
on the rear seat of your vehicle without use of the seat-
belts. Such child restraint systems are secured to the
designated anchorages provided on the vehicle body.
The lower and tether anchorages are sometimes re-
ferred to as the LATCH system (
Lower Anchors and
T ethers for CHildren).
Your vehicle is equipped with four lower anchorages
(bars) and three upper anchorages (tether anchorag-
es) for accommodating such child restraint systems. The lower anchorages (bars) are used for installing a
child restraint system only on the rear seat window-
side seating positions. For each window-side seating
position, two lower anchorages are provided.
Each lower anchorage is located where the seat cush-
ion meets the seatback.
UG1091BAHS1076BA
Page 72 of 507
1-45
Seat, seatbelt and SRS airbags
– CONTINUED –

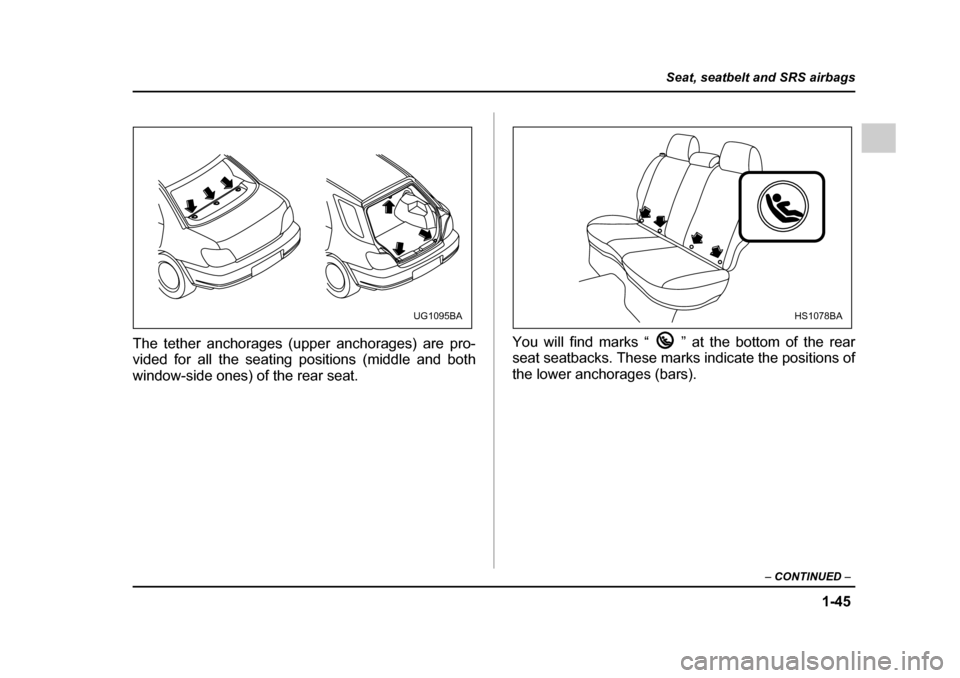

The tether anchorages (upper anchorages) are pro-
vided for all the seating positions (middle and both
window-side ones) of the rear seat. You will find marks “ ” at the bottom of the rear
seat seatbacks. These marks indicate the positions of
the lower anchorages (bars).
UG1095BAHS1078BA
Page 73 of 507
1-46
Seat, seatbelt and SRS airbags

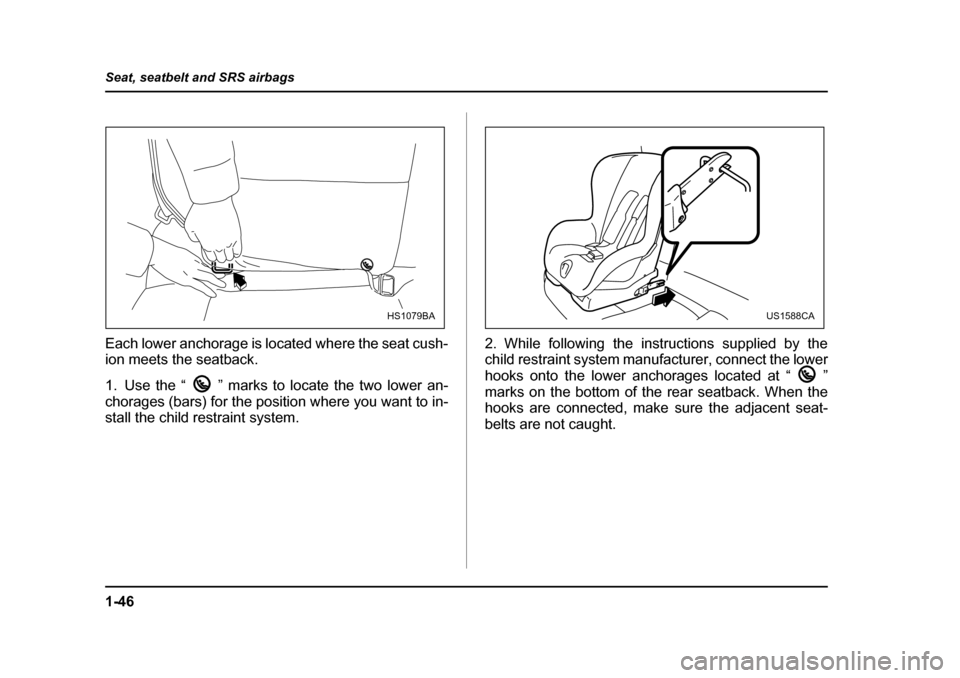

Each lower anchorage is located where the seat cush-
ion meets the seatback.
1. Use the “ ” marks to locate the two lower an-
chorages (bars) for the position where you want to in-
stall the child restraint system.
2. While following the instructions supplied by the
child restraint system manufacturer, connect the lower
hooks onto the lower anchorages located at “ ”
marks on the bottom of the rear seatback. When the
hooks are connected, make sure the adjacent seat-
belts are not caught.
HS1079BAUS1588CA
Page 74 of 507

1-47
Seat, seatbelt and SRS airbags
– CONTINUED –

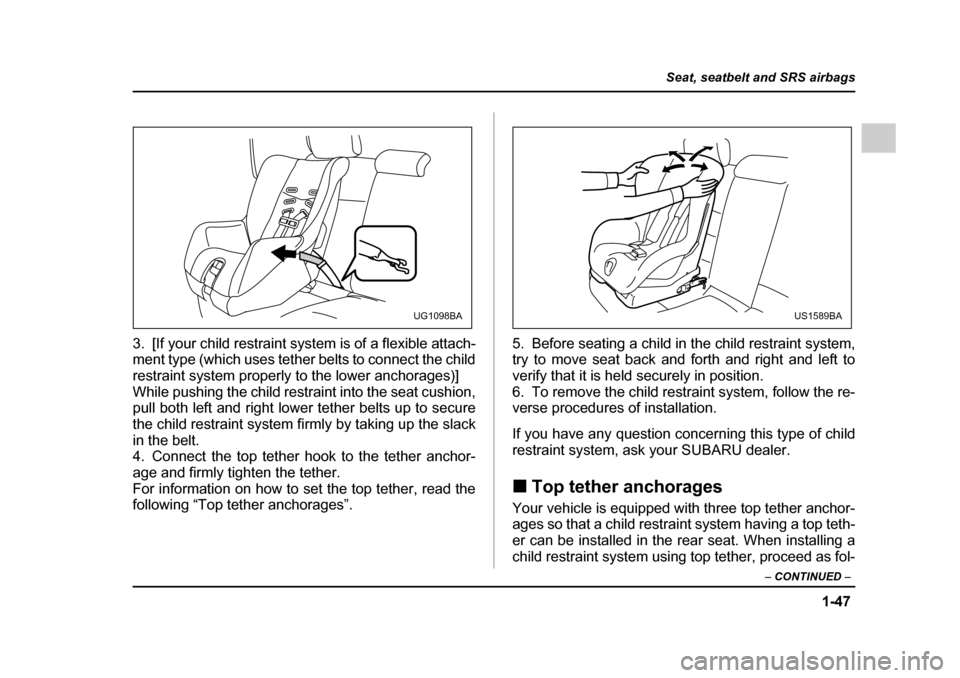

3. [If your child restraint system is of a flexible attach-
ment type (which uses tether belts to connect the child
restraint system properly to the lower anchorages)]
While pushing the child restraint into the seat cushion,
pull both left and right lower tether belts up to secure
the child restraint system firmly by taking up the slack
in the belt.
4. Connect the top tether hook to the tether anchor-
age and firmly tighten the tether.
For information on how to set the top tether, read the
following “Top tether anchorages”. 5. Before seating a child in the child restraint system,
try to move seat back and forth and right and left to
verify that it is held securely in position.
6. To remove the child restraint system, follow the re-
verse procedures of installation.
If you have any question concerning this type of child
restraint system, ask your SUBARU dealer. „
Top tether anchorages
Your vehicle is equipped with three top tether anchor-
ages so that a child restraint system having a top teth-
er can be installed in the rear seat. When installing a
child restraint system using top tether, proceed as fol-
UG1098BAUS1589BA
Page 75 of 507
1-48
Seat, seatbelt and SRS airbags
lows, while observing the instructions by the child re-
straint system manufacturer.
Since a top tether can provide additional stability by of-
fering another connection between a child restraint
system and the vehicle, we recommend that you use
a top tether whenever one is required or available.
T

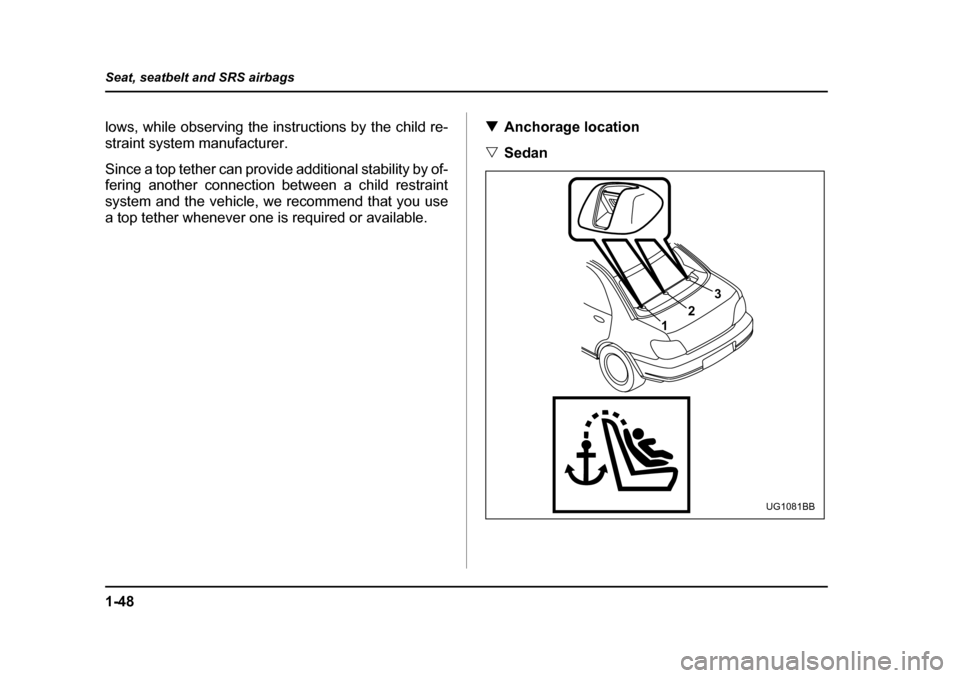

Anchorage location
V Sedan
1 23
UG1081BB
