Page 241 of 306
SETUP
240
QEVENT TYPES SETTINGS
1. ' L V S O D \ W K H
Page 242 of 306
SETUP
241
NAVIGATION SYSTEM
8
No.Function
Select to adjust the standard zoom and the angle of tilt.
You can set the level in three stages.
Select to turn the auto zoom function on or off.
Select to automatically reduce the scale of the 2D map
to display the entire route.
Select to select the screen color used in daytime mode.
Select to select the screen color used in nighttime mode.
Select to select the switches that display on the map.
Select to turn the path log save function on or off (saves
in positional order for each trip).
Select a spot displayed on the map during navigation.
Select the check box to show or hide the spot category.
Select the spot category name to open a sub-category.
More (More): Select to save the currently displayed
spot position, or read spot displays saved previously.
You can also restore the default display settings.
” By turning ON the “Auto Zoom (Auto Zoom)” function,
“Viewpoint (Viewpoint)” and “Automatic Overview
(Automatic Overview)” cannot be set.
UNITS AND FORMATS
Sets the units used by the program to measure distance.
You can select to display the time in various international
date formats.
1. ' L V S O D \ W K H
Page 243 of 306
SETUP
242
TRIP MONITOR
Contains useful information on the user’s distance moved
in the trip logs and path logs. You can save trip logs
automatically by turning this setting on, or save them
manually when arriving at a destination. You can view all
logs on the trip monitor.
1. ' L V S O D \ W K H
Page 244 of 306
SETUP
243
NAVIGATION SYSTEM
8
No.Function
6 H O H F W W R V H W W K H G D W D ¿ H O G V 6 H O H F W W K H J X L G D Q F H \ R X
want to display. You can select route data related to the
¿ Q D O G H V W L Q D W L R Q R U W K H Q H [ W Z D \ S R L Q W R Q W K H U R X W H
Displays service area information while driving on the
expressway. Select to turn this function on and off.
Select to select the service area information display
items.
When information is available, lane information similar to
R Y H U K H D G U R D G W U D I ¿ F V L J Q V L V G L V S O D \ H G D W W K H W R S R I W K H
map. Select to turn this function on and off.
When approaching an expressway exit or a complicated
intersection, the map switches to a 3D display if the
necessary information can be displayed. Select to turn
this function on and off.
Select to turn on the route progress bar which is
displayed as a straight line to the left of the map. This
shows the progress made on the current route. When
a blue arrow is used to indicate position, the arrow
continues to rise as you drive towards your destination.
: D \ S R L Q W V D Q G W U D I
Page 245 of 306
TIPS FOR THE NAVIGATION SYSTEM
244
TIPS FOR THE NAVIGATION SYSTEM
GPS (GLOBAL POSITIONING
SYSTEM)
REGARDING ERRORS IN CURRENT
POSITION DISPLAY
The system displays the vehicle current position based on
GPS information and data from various sensors and road
maps. However, when the radiowave signals from GPS
satellites are weak or when signals are received from only
two satellites or less, errors may occur in the position.
Modifying or adjusting the system will not prevent these
errors.
LIMITATIONS OF THE NAVIGATION SYSTEM
This navigation system calculates the current position using
satellite signals, various vehicle signals, map data, etc.
However, an accurate position may not be shown depending
R Q V D W H O O L W H F R Q G L W L R Q V U R D G F R Q
Page 246 of 306
TIPS FOR THE NAVIGATION SYSTEM
245
NAVIGATION SYSTEM
8

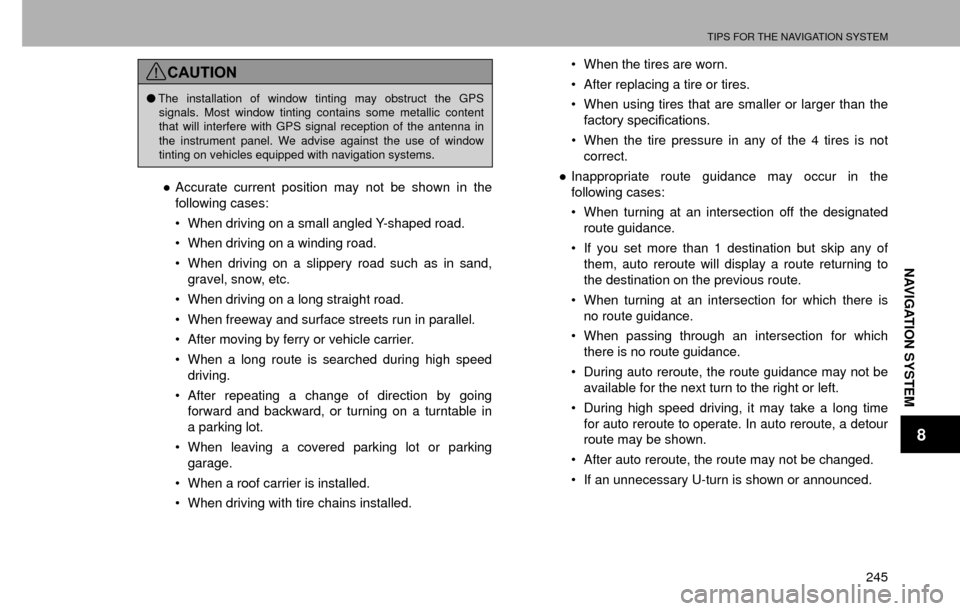

CAUTION
OThe installation of window tinting may obstruct the GPS
signals. Most window tinting contains some metallic content
that will interfere with GPS signal reception of the antenna in
the instrument panel. We advise against the use of window
tinting on vehicles equipped with navigation systems.
” Accurate current position may not be shown in the
following cases:
‡ When driving on a small angled Y-shaped road.
‡ When driving on a winding road.
‡ When driving on a slippery road such as in sand,
gravel, snow, etc.
‡ When driving on a long straight road.
‡ When freeway and surface streets run in parallel.
‡ After moving by ferry or vehicle carrier.
‡ When a long route is searched during high speed
driving.
‡ After repeating a change of direction by going
forward and backward, or turning on a turntable in
a parking lot.
‡ When leaving a covered parking lot or parking
garage.
‡ When a roof carrier is installed.
‡ When driving with tire chains installed. ‡
When the tires are worn.
‡ After replacing a tire or tires.
‡ When using tires that are smaller or larger than the
I D F W R U \ V S H F L ¿ F D W L R Q V
‡ When the tire pressure in any of the 4 tires is not
correct.
” Inappropriate route guidance may occur in the
following cases:
‡ When turning at an intersection off the designated
route guidance.
‡ If you set more than 1 destination but skip any of
them, auto reroute will display a route returning to
the destination on the previous route.
‡ When turning at an intersection for which there is
no route guidance.
‡ When passing through an intersection for which
there is no route guidance.
‡ During auto reroute, the route guidance may not be
available for the next turn to the right or left.
‡ During high speed driving, it may take a long time
for auto reroute to operate. In auto reroute, a detour
route may be shown.
‡ After auto reroute, the route may not be changed.
‡ If an unnecessary U-turn is shown or announced.
Page 247 of 306
TIPS FOR THE NAVIGATION SYSTEM
246 ‡
If a location has multiple names and the system
announces 1 or more of them.
‡ When a route cannot be searched.
‡ If the route to your destination includes gravel,
unpaved roads or alleys, the route guidance may
not be shown.
‡ Your destination point might be shown on the
opposite side of the street.
‡ When a portion of the route has regulations
prohibiting the entry of the vehicle that vary by time
or season or other reasons.
‡ The road and map data stored in the navigation
system may not be complete or may not be the
latest version.
NOTE
O This navigation system uses tire turning data and is designed to
Z R U N Z L W K I D F W R U \ V S H F L
Page 248 of 306
247
Siri/VOICE
RECOGNITION SYSTEM
9
9
Page 249 of 306
Siri
248
Siri
Siri®
Siri is a function that allows your iPhone and iPod touch to
be used without any manual operation by connecting your
device to the unit.
To use Siri, connect your device via Bluetooth.
BEFORE USING Siri
This section describes the preparation required to use Siri.”Register your iPhone or iPod touch in the unit.
: 3
” Connect your iPhone or iPod touch to the unit.
: 3
‡ When using the hands-free system, turn Phone on
(Connected).
‡ When listening to music, turn Phone and Audio
device on (Connected).
” Enable Siri in your iPhone or iPod touch settings.
(See Apple website for details.) ”
An iPhone and iPod touch data plan: If the data plan
for your iPhone and iPod touch does not provide for
unlimited data usage, additional charges from your
carrier may apply for accessing app-based connected
content via 3G, 4G, Wi-Fi, or 4G LTE wireless
networks.
” Connection to the internet via 3G, 4G, Wi-Fi, or 4G
LTE networks.
NOTE
O Available operations will differ based on your iPhone and iPod
touch.
O Be careful not to exceed the data usage limits for your iPhone
and iPod touch. Doing so will result in additional data usage
charges from your phone carrier.
Page 250 of 306
Siri
249
Siri/VOICE RECOGNITION SYSTEM
9
USING Siri
STEERING SWITCH
XTy p e A
XTy p e B
Talk switch
”Press and hold the talk switch to start Siri.
” To cancel Siri, press and hold the talk switch.
MICROPHONE
The microphone is built into the map light slits.
”It is unnecessary to speak directly into the
microphone when using Siri.
Siri OPERATION
1.Press and hold the talk switch.
2.Speak when you hear the beep sound.
”If required to say more, the system will notify you with
the beep sound. Continue speaking.
” If the system fails to recognize what is being said, or
to request a different operation, select
, or press
the talk switch.
