SUBARU IMPREZA 2017 5.G Navigation Manual

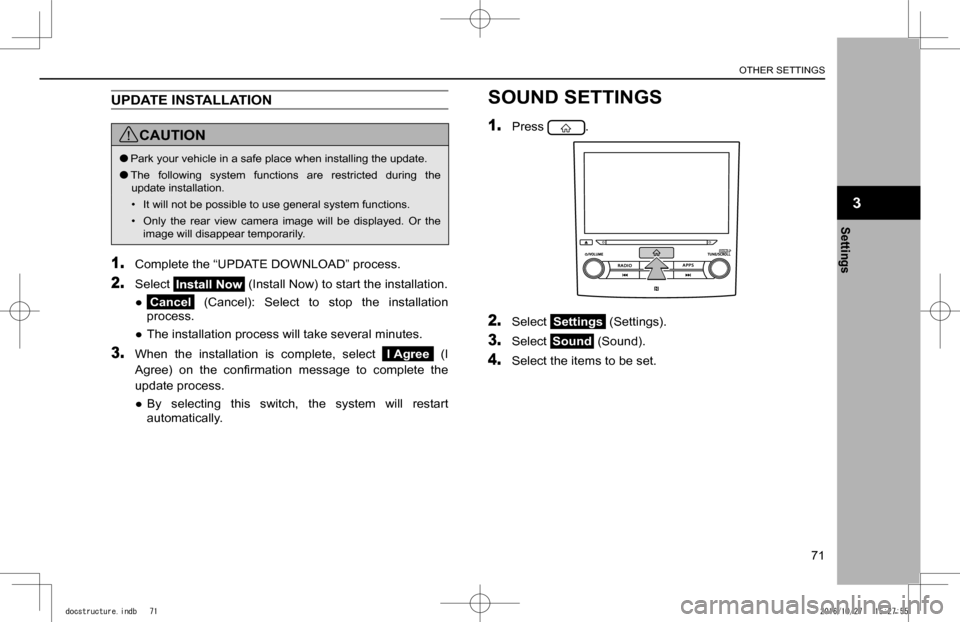

UPDATE INSTALLATION
CAUTION
lPark your vehicle in a safe place when installing the update.
lThe following system functions are restricted during the update installation.
• It will not be possible to use general system functions.
• Only the rear view camera image will be displayed. Or the image will disappear temporarily.
1. Complete the “UPDATE DOWNLOAD” process.
2. Select (Install Now) to start the installation.

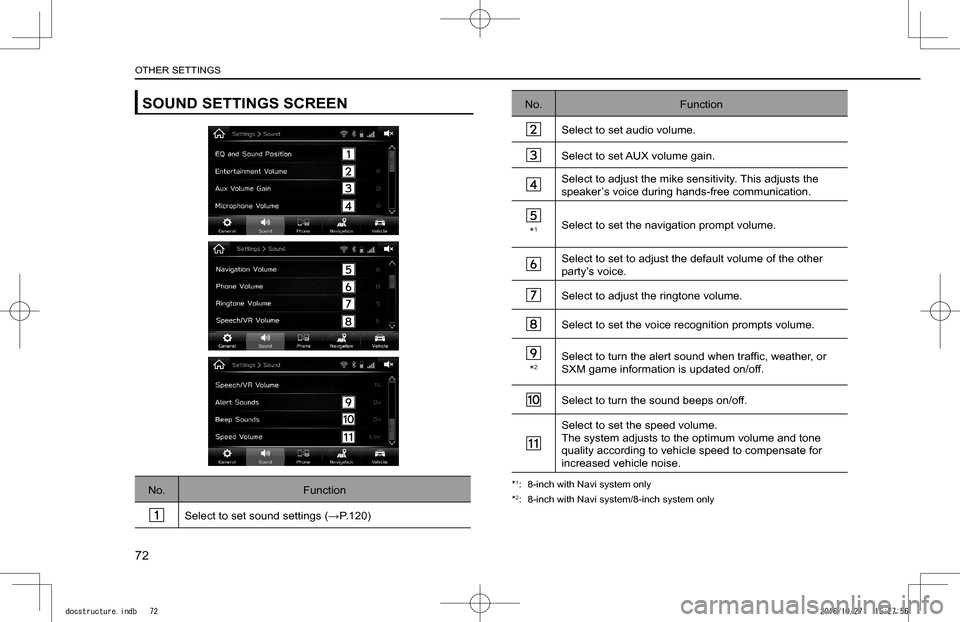

SOUND SETTINGS SCREEN
No.Function
Select to set sound settings (
WP.120)
No.Function
Select to set audio volume.
Select to set AUX volume gain.
Select to adjust the mike sensitivity. This adjusts the speaker’s voice during hands-free communication.
*1Select to set the navigation prompt volume.
Select to set to adjust the default volume of the other party’s voice.
Select to adjust the ringtone volume.
Select to set the voice recognition prompts volume.
*2Select to turn the alert sound when traf

OTHER SETTINGS
73
Settings
3

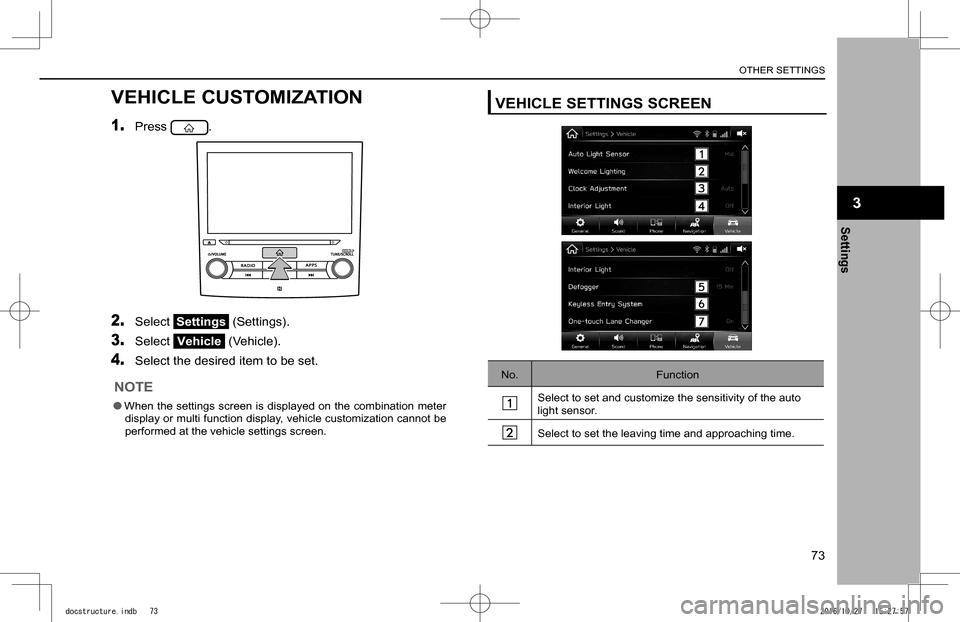

VEHICLE CUSTOMIZATION
1. Press .
2. Select Settings (Settings).
3. Select Vehicle (Vehicle).
4. Select the desired item to be set.
NOTE
lWhen the settings screen is displayed on the combination meter display or multi function display, vehicle customization cannot be performed at the vehicle settings screen.
VEHICLE SETTINGS SCREEN
No.Function
Select to set and customize the sensitivity of the auto light sensor.
Select to set the leaving time and approaching time.
docstructure.indb 732016/10/27 15:27:57

OTHER SETTINGS
74

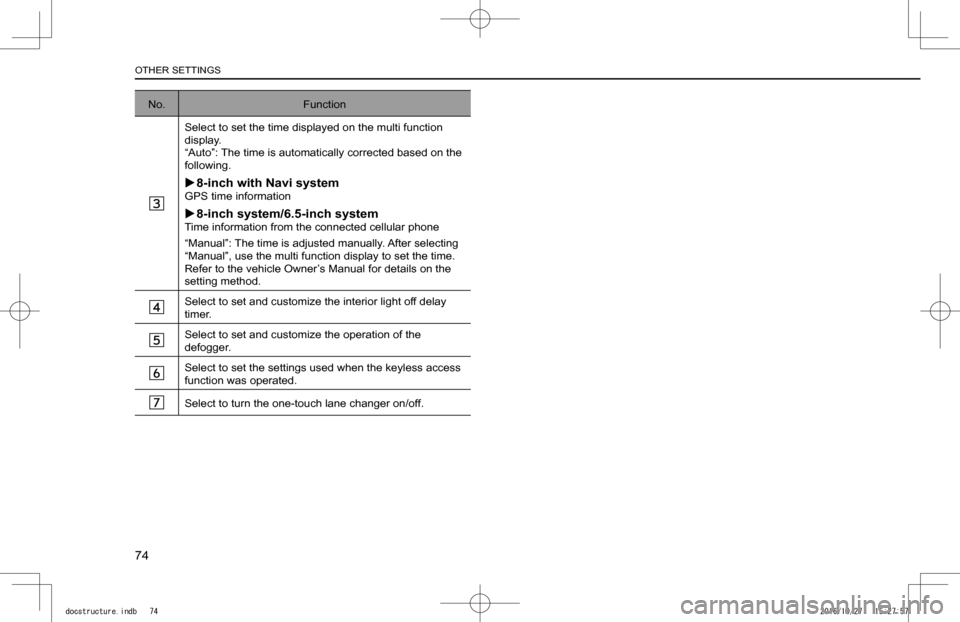

No.Function
Select to set the time displayed on the multi function display.“Auto”: The time is automatically corrected based on the following.
X8-inch with Navi systemGPS time information
X8-inch system/6.5-inch systemTime information from the connected cellular phone
“Manual”: The time is adjusted manually. After selecting “Manual”, use the multi function display to set the time. Refer to the vehicle Owner’s Manual for details on the setting method.
Select to set and customize the interior light off delay timer.
Select to set and customize the operation of the defogger.
Select to set the settings used when the keyless access function was operated.
Select to turn the one-touch lane changer on/off.
docstructure.indb 742016/10/27 15:27:57

75

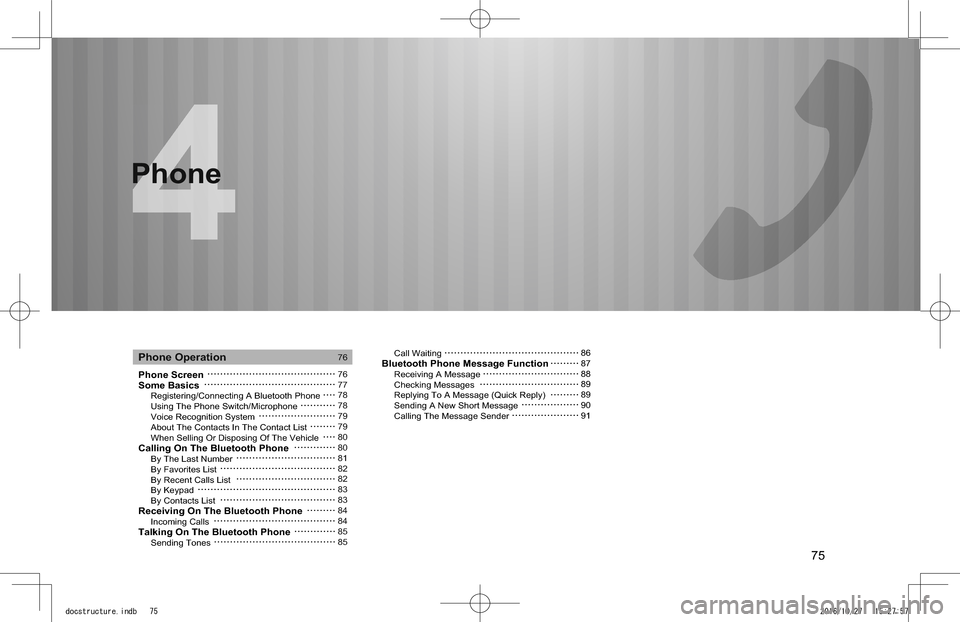

Phone
Phone ScreenSome Basics Registering/Connecting A Bluetooth Phone Using The Phone Switch/Microphone Voice Recognition System About The Contacts In The Contact List When Selling Or Disposing Of The VehicleCalling On The Bluetooth Phone By The Last Number By Favorites List By Recent Calls List By Keypad By Contacts ListReceiving On The Bluetooth Phone Incoming CallsTalking On The Bluetooth Phone Sending Tones
Call WaitingBluetooth Phone Message Function Receiving A Message Checking Messages Replying To A Message (Quick Reply) Sending A New Short Message Calling The Message Sender
Phone Operation76
7677787879798080818282838384848585
86878889899091
Phone
docstructure.indb 752016/10/27 15:27:57

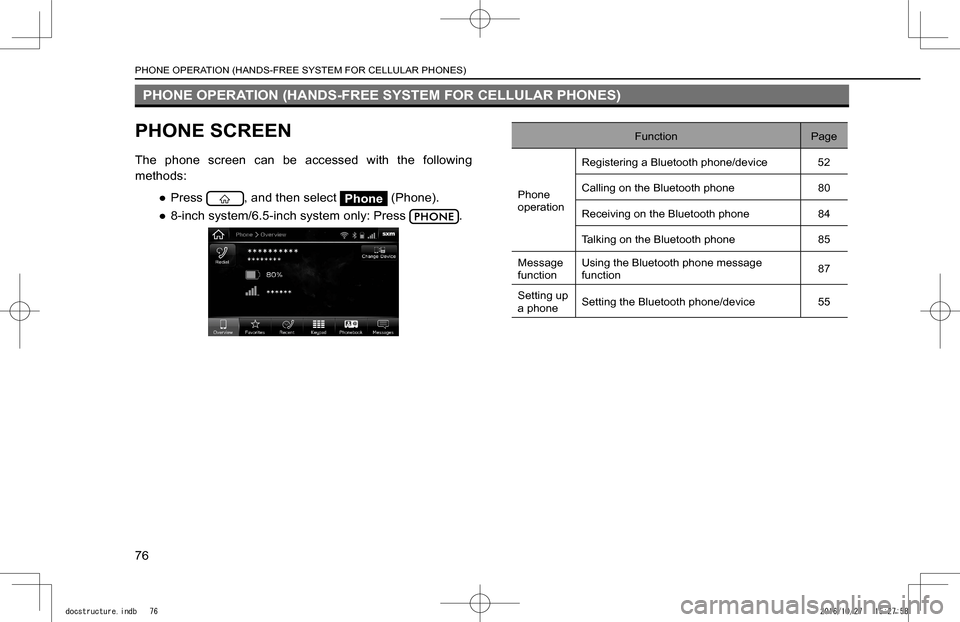

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
PHONE SCREEN
The phone screen can be accessed with the following
methods:

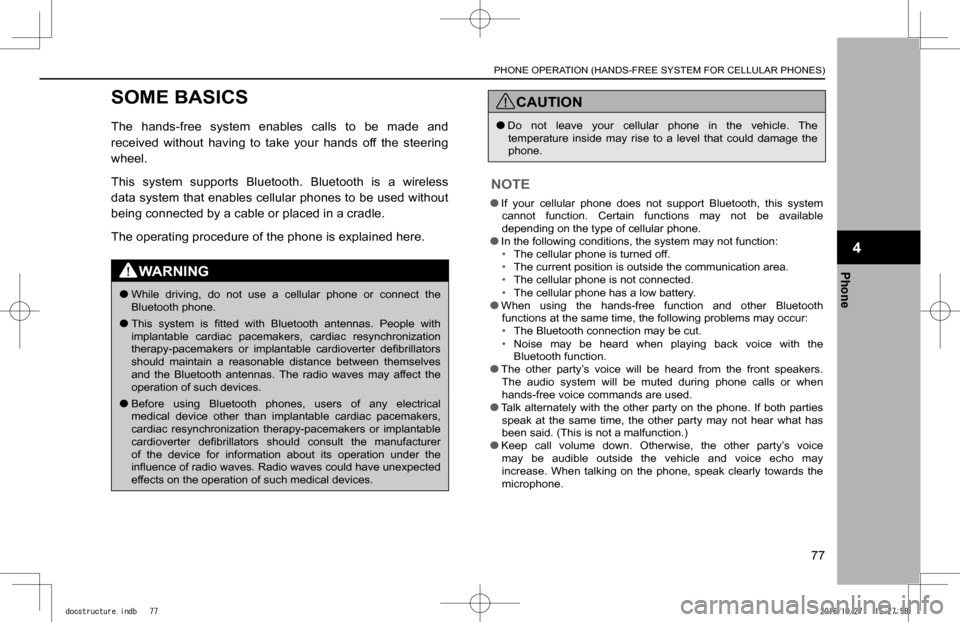

SOME BASICS
The hands-free system enables calls to be made and
received without having to take your hands off the steering
wheel.
This system supports Bluetooth. Bluetooth is a wireless
data system that enables cellular phones to be used without
being connected by a cable or placed in a cradle.
The operating procedure of the phone is explained here.
WARNING
lWhile driving, do not use a cellular phone or connect the Bluetooth phone.
lThis system is

NOTE

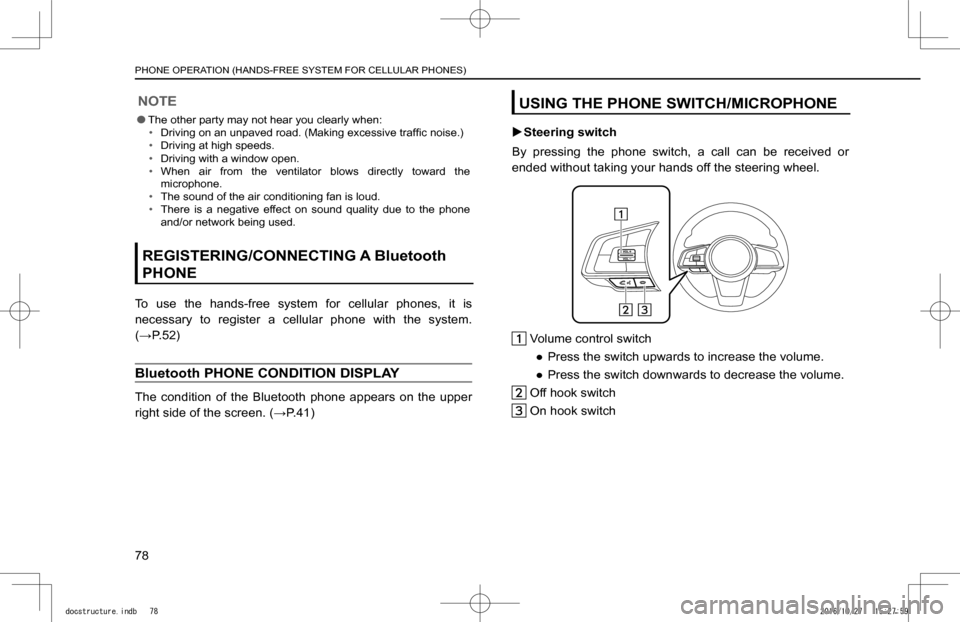

lThe other party may not hear you clearly when:• Driving on an unpaved road. (Making excessive traf

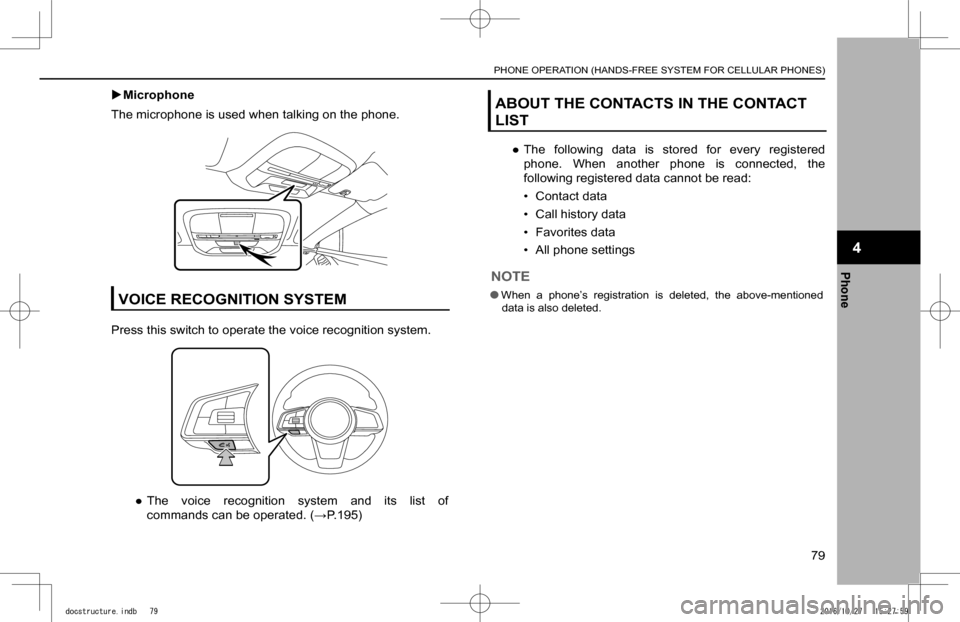

XMicrophone
The microphone is used when talking on the phone.
VOICE RECOGNITION SYSTEM
Press this switch to operate the voice recognition system.

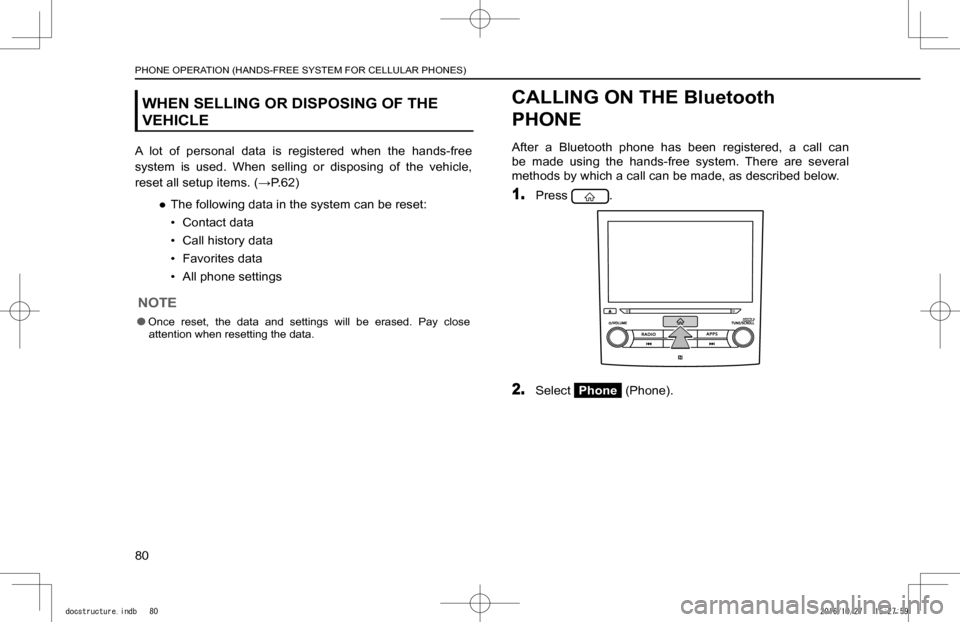

WHEN SELLING OR DISPOSING OF THE
VEHICLE
A lot of personal data is registered when the hands-free
system is used. When selling or disposing of the vehicle,
reset all setup items. (
:P.62)
