BASIC INFORMATION BEFORE OPERATION

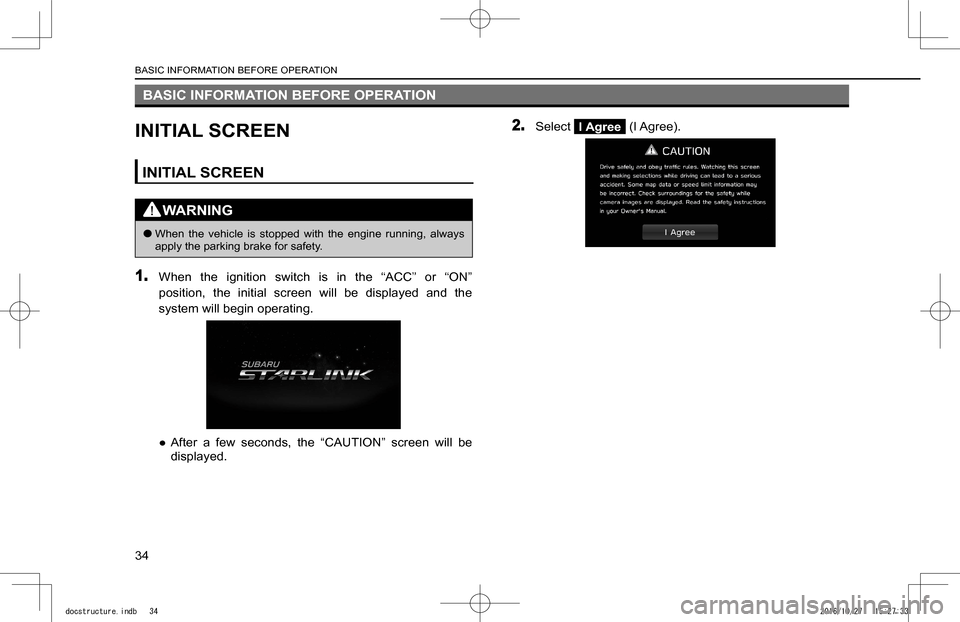

INITIAL SCREEN
INITIAL SCREEN
WARNING
lWhen the vehicle is stopped with the engine running, always apply the parking brake for safety.
1. When the ignition switch is in the “ACC” or “ON”
position, the initial screen will be displayed and the
system will begin operating.

REAR VIEW CAMERA
REAR VIEW CAMERA
A rear view camera is attached to the trunk lid or rear gate.
When the ignition switch is “ON” and the shift lever (MT
models) or select lever (CVT models) is set to “R”, the rear
view camera automatically displays the rear view image
behind the vehicle on one of the following displays.
WARNING
lSince the rear view camera uses a wide-angle lens, the image on the monitor is different from the actual view in terms of distance.
lSince the range of the image on the monitor is limited, you should always check the rear view and the surrounding area with your eyes and mirrors, and move backward at a slow speed. Moving backward only by checking the rear view image from the camera could cause an accident.
lDo not disassemble or modify the camera, switch or wiring. If smoke comes out or you smell a strange odor, stop using the rear view camera immediately. Contact your SUBARU dealer for an inspection. Continued use may result in accident,

REAR VIEW CAMERA
49
Basic Function
2
NOTE
lIf you shift to the “R” range shortly after turning on the ignition switch, the warning message “Check Surroundings Before Backing Up” may not be displayed. Wait for several seconds or more after turning on the ignition switch before shifting to the “R” range. Then the warning message will be displayed.
DIFFERENCE BETWEEN SCREEN IMAGE AND
ACTUAL ROAD
The distance markers show the distance for a level road
when the vehicle is not loaded. It may be different from the
actual distance depending on the loading conditions or road
conditions.
XWhen there is an upward slope at the back
3 feet (1 m)

No.FunctionPage
Select to change the language.When
(Synchronized Language Settings) is selected, the language setting in the system is synced to the language setting in the meter cluster.
-
Select to change the unit of measure for distance.
When (Units
synchronized) is selected, the unit of measure setting in the system is synced to the unit of measure setting in the meter cluster.
-
Select to set the length of time that the camera image remains displayed when the shift lever/select lever is shifted from “R” to “D”.-
Select to update system software versions. 70
Select to turn the available new system software version check on/off.70
Select to turn the automatic downloading of updates on/off.70
Select to display the system information.-
Select to change the Bluetooth system name. -
No.FunctionPage
Select to reset all setup items.The audio system restarts automatically after resetting factory data. To complete the reset process, turn the ignition switch to the “LOCK”/“OFF” position after the audio system has restarted, and then turn to the “ACC” or “ON” position after approximately 3 minutes.
-
*2Select to automatically adjust Daylight Saving Time.-
Select to display the software license.-
*1: 8-inch with Navi system/8-inch system only
*2: Only for 8-inch with Navi system. It may be available depending on the software version.
SETTING THE DRIVER PROFILE
ADDING A NEW PROFILE
1. Display the general settings screen. (
WP.62)
2. Select (Driver Pro

BASIC OPERATION
SOME BASICS
This section describes some of the basic features of the
audio system. Some information may not pertain to your
system.
Your audio system works when the ignition switch is turned
to the “ACC” or “ON” position.
CAUTION
lTo prevent the battery from being discharged, do not leave the audio system on longer than necessary when the engine is not running.
NOTE
lThe audio system upgrade accessory (dealer option) only works when the ignition switch is in the “ACC” or “ON” position. No audio is output from the ampli
