turn signal SUBARU IMPREZA 2019 Quick Guide

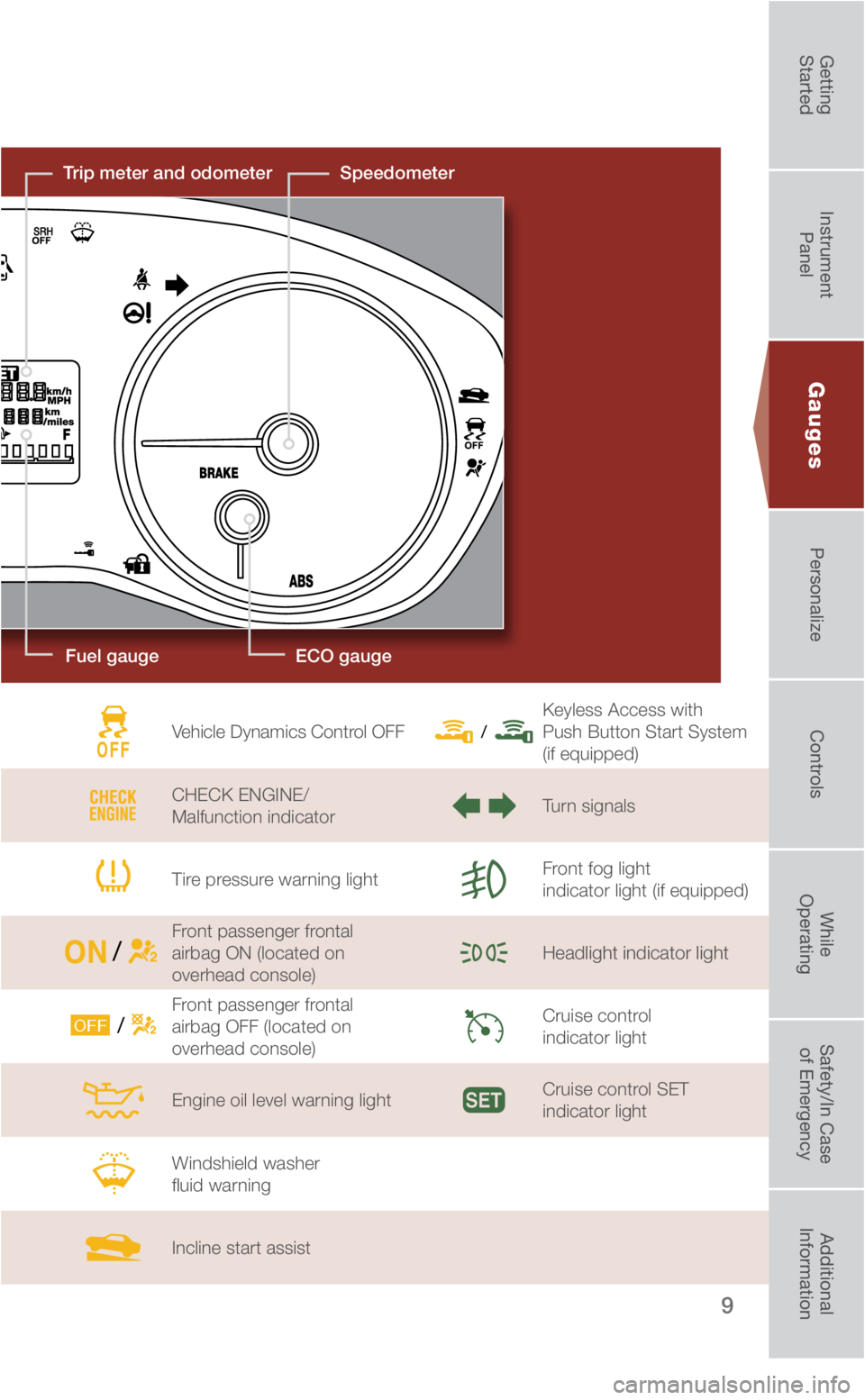

9
Fuel gauge
Speedometer
Trip meter and odometer
Gauges
ECO gauge
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag ON (located on
overhead console)
Front passenger frontal
airbag OFF (located on
overhead console)
Engine oil level warning light
Windshield washer
fluid warning
Incline start assist
Keyless Access with
Push Button Start System
(if equipped)
Turn signals
Front fog light
indicator light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
3641428_19b_Impreza_QRG_072518.indd 97/25/18 11:17 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

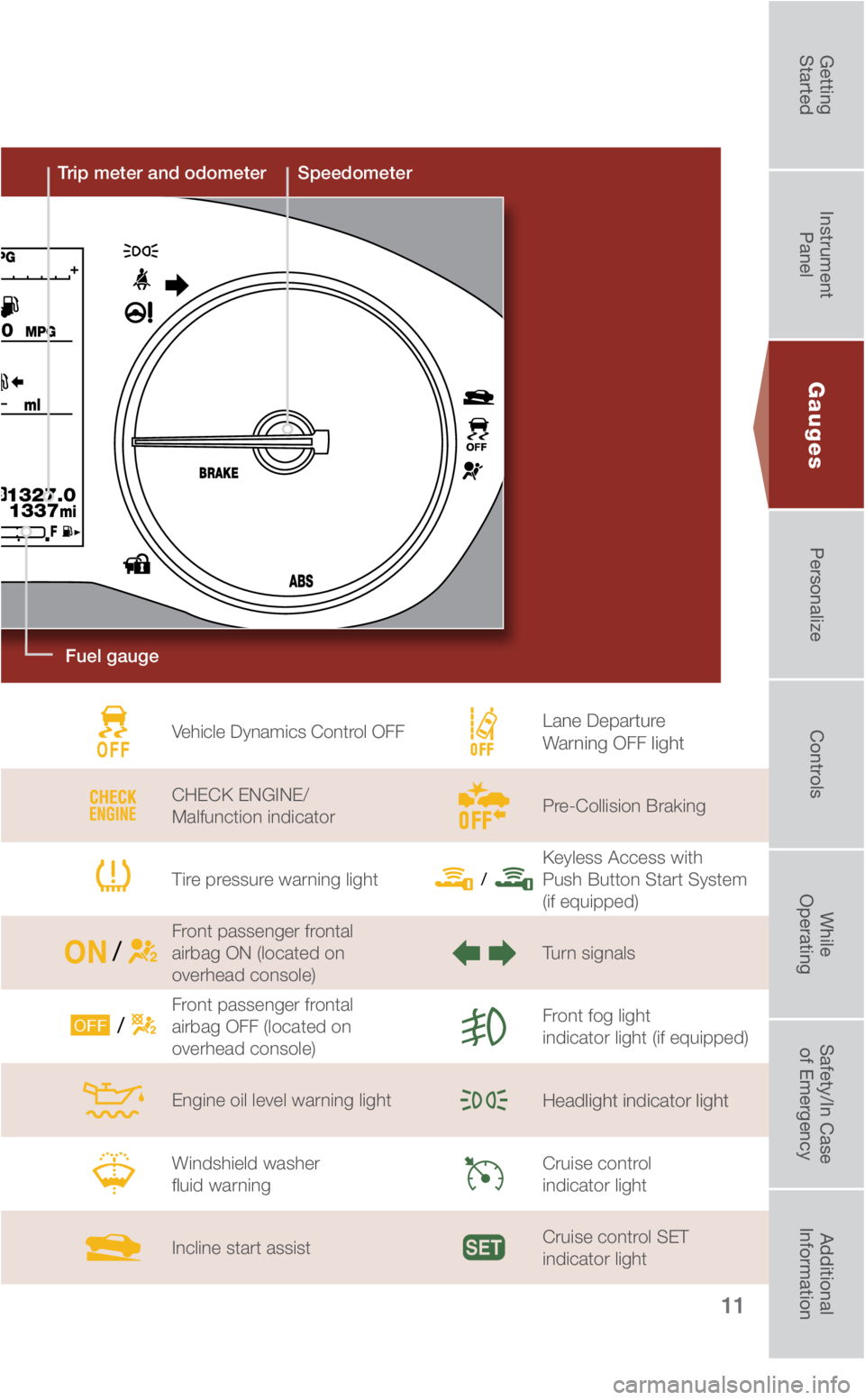

11
SpeedometerTrip meter and odometer
Gauges
Fuel gauge
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag ON (located on
overhead console)
Front passenger frontal
airbag OFF (located on
overhead console)
Engine oil level warning light
Windshield washer
fluid warning
Incline start assist
Lane Departure Warning OFF light
Pre-Collision Braking
Keyless Access with
Push Button Start System
(if equipped)
Turn signals
Front fog light
indicator light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
3641428_19b_Impreza_QRG_072518.indd 117/25/18 11:17 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

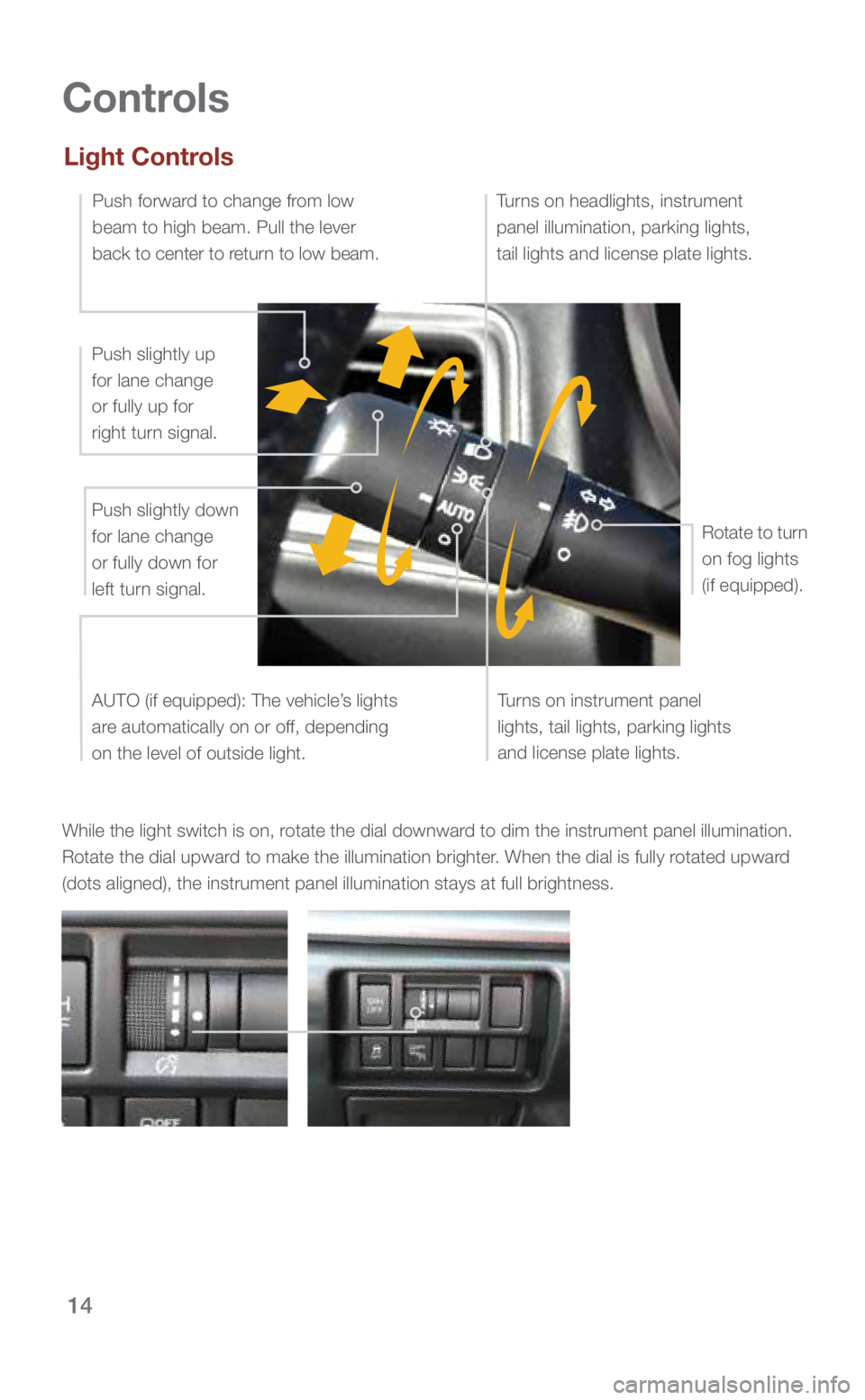

14
Controls
While the light switch is on, rotate the dial downward to dim the instrument panel illumination.
Rotate the dial upward to make the illumination brighter. When the dial is fully rotated upward
(dots aligned), the instrument panel illumination stays at full bright\
ness.
Light Controls
Push slightly down
for lane change
or fully down for
left turn signal.
Push slightly up
for lane change
or fully up for
right turn signal.
Push forward to change from low
beam to high beam. Pull the lever
back to center to return to low beam.

Turns on instrument panel
lights, tail lights, parking lights
and license plate lights.
Turns on headlights, instrument
panel illumination, parking lights,
tail lights and license plate lights.
Rotate to turn
on fog lights
(if equipped).
AUTO (if equipped): The vehicle’s lights
are automatically on or off, depending
on the level of outside light.
3641428_19b_Impreza_QRG_072518.indd 147/25/18 11:18 AM
