Seat, seatbelt and SRS airbags
The tether anchorages (upper anchorages) are pro-
vided for all the seating positions (middle and both
window-side ones) of the rear seat.

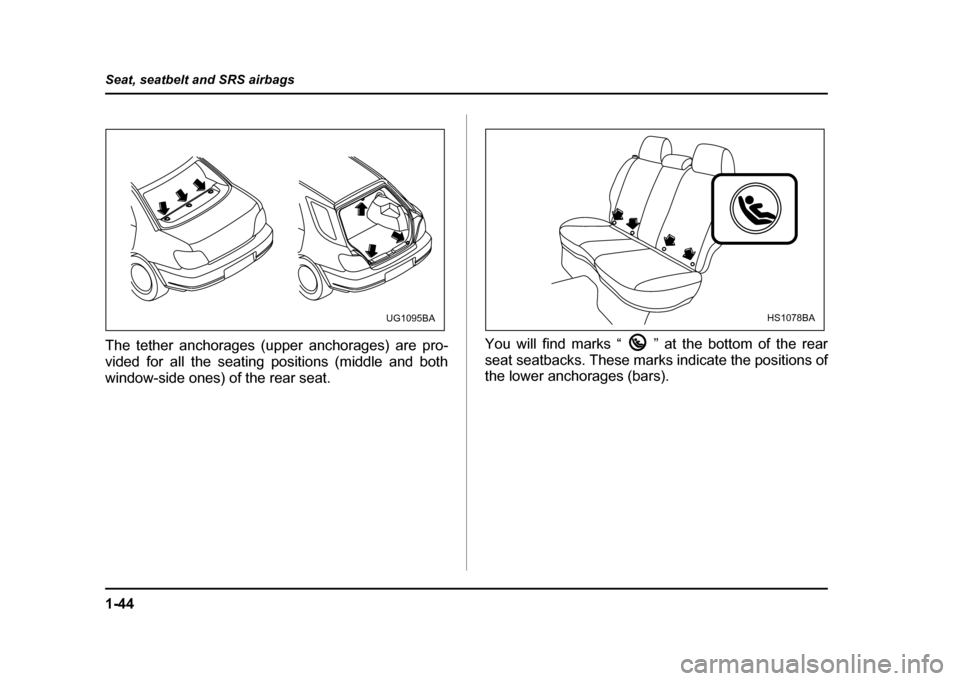

You will find marks “ ” at the bottom of the rear
seat seatbacks. These marks indicate the positions of
the lower anchorages (bars).
UG1095BAHS1078BA

1-45
Seat, seatbelt and SRS airbags
– CONTINUED –
Each lower anchorage is located where the seat cush-
ion meets the seatback.

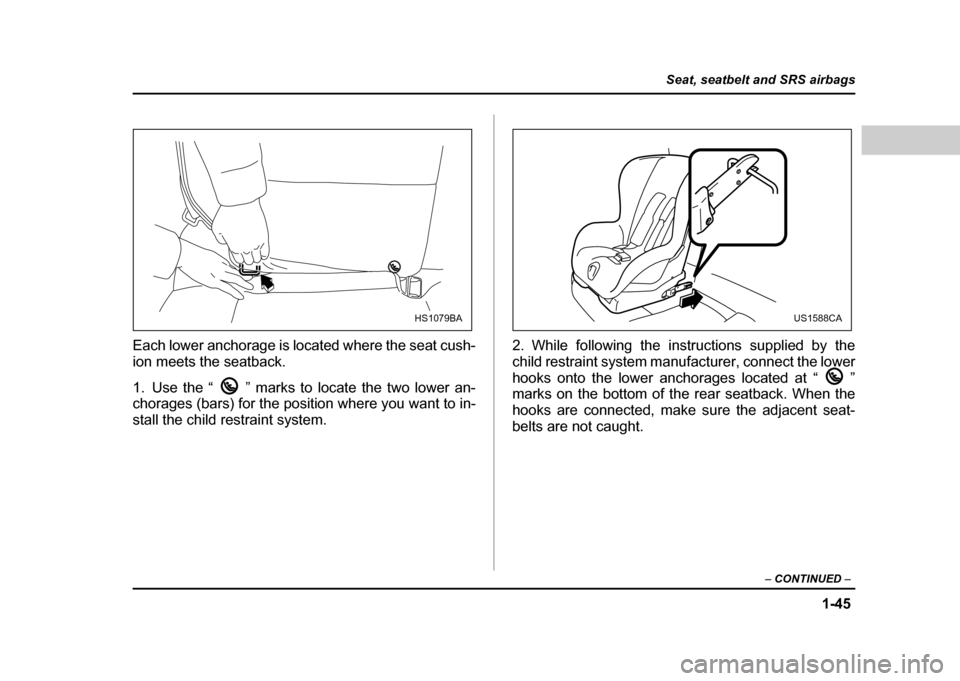

1. Use the “ ” marks to locate the two lower an-
chorages (bars) for the position where you want to in-
stall the child restraint system. 2. While following the instructions supplied by thechild restraint system manufacturer, connect the lower
hooks onto the lower anchorages located at “ ”
marks on the bottom of the rear seatback. When the
hooks are connected, make sure the adjacent seat-
belts are not caught.
HS1079BAUS1588CA

1-46
Seat, seatbelt and SRS airbags
3. [If your child restraint system is of a flexible attach-
ment type (which uses tether belts to connect the child
restraint system properly to the lower anchorages)]
While pushing the child restraint into the seat cushion,
pull both left and right lower tether belts up to secure
the child restraint system firmly by taking up the slack
in the belt.
4. Connect the top tether hook to the tether anchor-
age and firmly tighten the tether.
For information on how to set the top tether, read the
following “Top tether anchorages”.

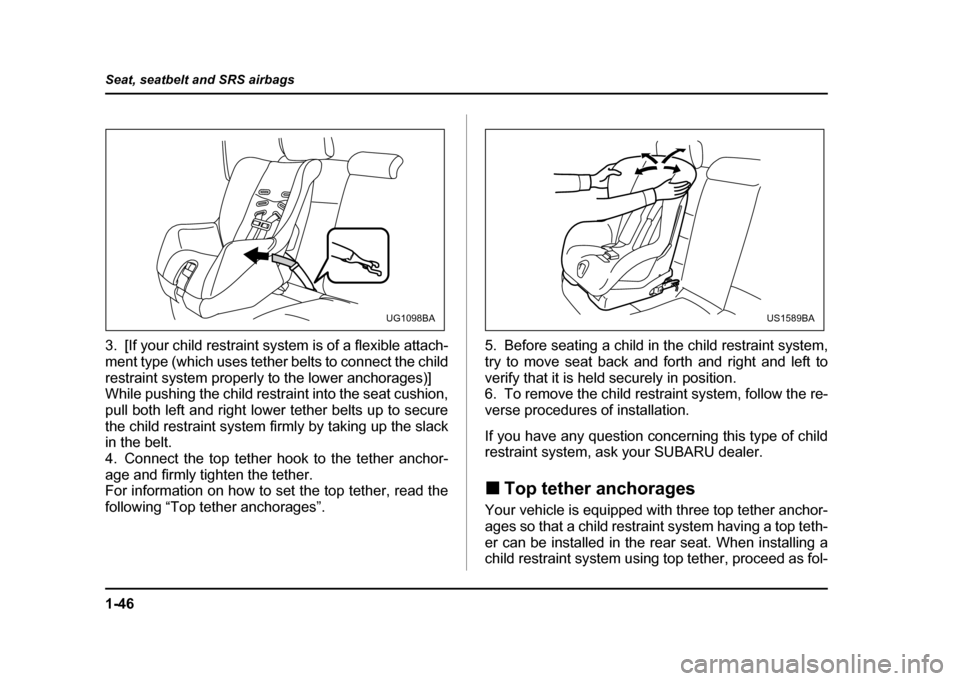

5. Before seating a child in the child restraint system,
try to move seat back and forth and right and left to
verify that it is held securely in position.
6. To remove the child restraint system, follow the re-
verse procedures of installation.
If you have any question concerning this type of child
restraint system, ask your SUBARU dealer. !
Top tether anchorages
Your vehicle is equipped with three top tether anchor-
ages so that a child restraint system having a top teth-
er can be installed in the rear seat. When installing a
child restraint system using top tether, proceed as fol-
UG1098BAUS1589BA

1-47
Seat, seatbelt and SRS airbags
– CONTINUED –
lows, while observing the instructions by the child re-
straint system manufacturer.
Since a top tether can provide additional stability by of-
fering another connection between a child restraint
system and the vehicle, we recommend that you use
a top tether whenever one is required or available. !
Anchorage location

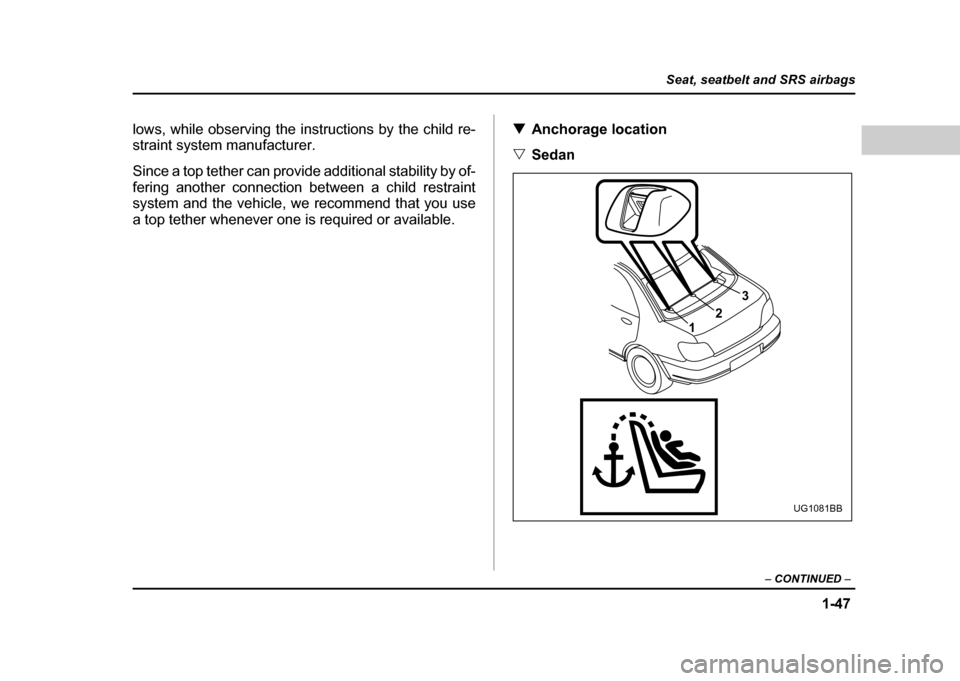

" Sedan
1 23
UG1081BB

1-48
Seat, seatbelt and SRS airbags
1) For left seat
2) For center seat
3) For right seat
Three upper anchorages are installed on the rear shelf
behind the rear seat. "
Wagon
1) For left seat
2) For center seat
3) For right seat

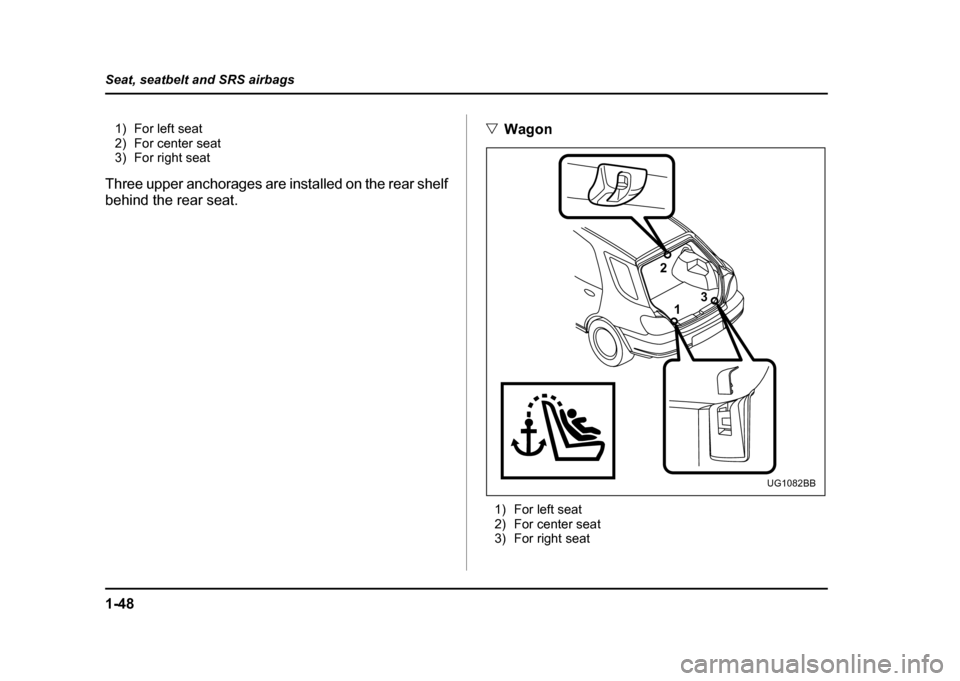

2 1 3
UG1082BB

1-49
Seat, seatbelt and SRS airbags
– CONTINUED –
There is an anchorage for the center seating position
at the rear edge of the roof, and anchorages for each
of the two window-side seating positions on the rear
wall of the cargo area. !To hook the top tether
" Sedan
1. Attach the child restraint top tether hook to the ap-
propriate upper anchorage.
2. Tighten the top tether securely.
Please contact your SUBARU dealer if you have any
question regarding the installation of a child restraint system. "
Wagon
1. Remove the headrest at the seating position where
the child restraint system has been installed with the
lower anchorages or seatbelt; lift up the headrest while
pressing the release button. Store the headrest in the
cargo area. Avoid placing the headrest in the passen-
ger compartment to prevent it from being thrown
around in the passenger compartment in a sudden
stop or a sharp turn.
UG1087BA
HS1081BA

1-50
Seat, seatbelt and SRS airbags

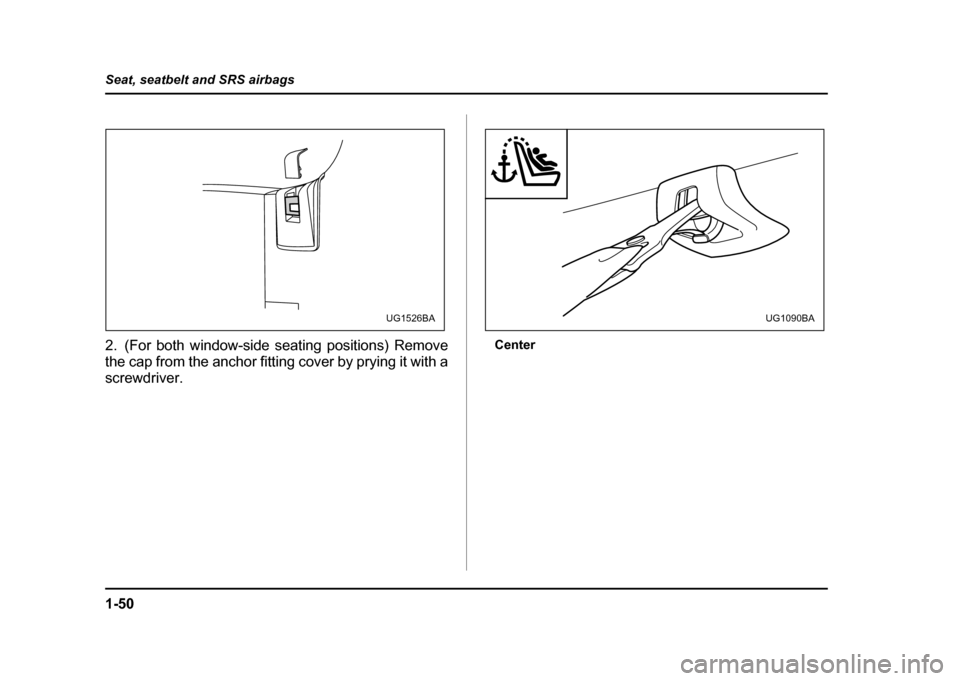

2. (For both window-side seating positions) Remove
the cap from the anchor fitting cover by prying it with a
screwdriver.
Center
UG1526BAUG1090BA

1-51
Seat, seatbelt and SRS airbags
– CONTINUED –

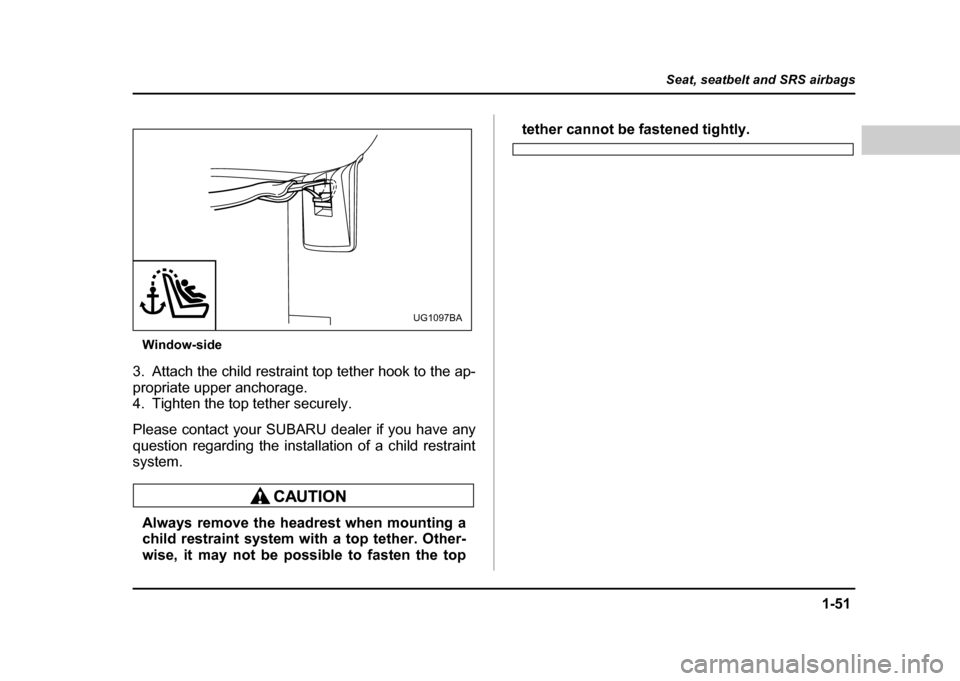

Window-side
3. Attach the child restraint top tether hook to the ap-
propriate upper anchorage.
4. Tighten the top tether securely.
Please contact your SUBARU dealer if you have any
question regarding the installation of a child restraint system.
Always remove the headrest when mounting a
child restraint system with a top tether. Other- wise, it may not be possible to fasten the top
tether cannot be fastened tightly.
UG1097BA

1-52
Seat, seatbelt and SRS airbags
*SRS airbag (Supplemental Restraint
System airbag)
*SRS: This stands for supplemental restraint system.
This name is used because the airbag system supple-
ments the vehicle’s seatbelts. !
Vehicle with driver’s and front passen-
ger’s SRS airbags and lap/shoulder re-straints
Your vehicle is equipped with a supplemental restraint
system in addition to a lap/shoulder belt at each front
seating position.
The supplemental restraint system (SRS) consists of
two airbags (driver’s and front passenger’s frontal air-
bags) or four airbags (driver’s and front passenger’sfrontal airbags and driver’s and front passenger’s
side airbags).
These SRS airbags are designed only as a supple-
ment to the primary protection provided by the
seatbelt.
" To obtain maximum protection in the event of
an accident, the driver and all passengers in the vehicle should always wear seatbelts when the
vehicle is moving. The SRS airbag is designed
only as a supplement to the primary protection
provided by the seatbelt. It does not do away
with the need to fasten seatbelts. In combina-
tion with the seatbelts, it offers the best com-
bined protection in case of a serious accident.
Not wearing a seatbelt increases the chance of
severe injury or death in a crash even when the
car has the SRS airbag.
For instructions and precautions concerning
the seatbelt system, see the “Seatbelts” sec-
tions in this chapter."
Do not sit or lean unnecessarily close to the
SRS airbag. Because the SRS airbag deploys
with considerable speed – faster than the blink
of an eye – and force to protect in high speed
collisions, the force of an airbag can injure an
occupant whose body is too close to SRS air-
bag.
It is also important to wear your seatbelt to help
avoid injuries that can result when the SRS air-
bag contacts an occupant not in proper posi-
tion such as one thrown forward during pre-ac-
cident braking.
Even when properly positioned, there remains
a possibility that an occupant may suffer minor

1-53
Seat, seatbelt and SRS airbags
– CONTINUED –
injury such as abrasions and bruises to the
face or arms because of the SRS airbag deploy-
ment force."The SRS airbags deploy with considerable
speed and force. Occupants who are out of
proper position when the SRS airbag deploys
could suffer very serious injuries. Because the
SRS airbag needs enough space for deploy-
ment, the driver should always sit upright and
well back in the seat as far from the steering
wheel as practical while still maintaining full ve-
hicle control and the front passenger should
move the seat as far back as possible and sit
upright and well back in the seat. " Do not place any objects over or near the
SRS airbag cover or between you and the SRS
airbag. If the SRS airbag deploys, those objects
could interfere with its proper operation and
could be propelled inside the car and cause in-
jury.

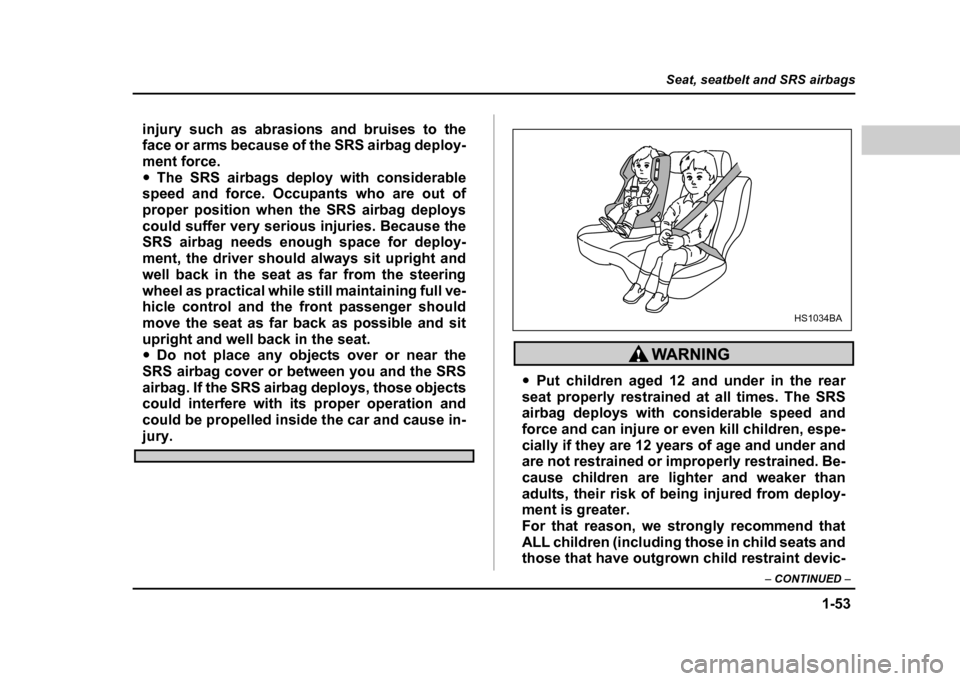

" Put children aged 12 and under in the rear
seat properly restrained at all times. The SRS
airbag deploys with considerable speed and
force and can injure or even kill children, espe-
cially if they are 12 years of age and under and
are not restrained or improperly restrained. Be-
cause children are lighter and weaker than
adults, their risk of being injured from deploy-
ment is greater.
For that reason, we strongly recommend that
ALL children (including those in child seats and
those that have outgrown child restraint devic-
