SUBARU IMPREZA WRX 2005 2.G Owners Manual

3-2
Instruments and controls
High/low beam change (dimmer) .................... 3-31
Headlight flasher .............................................. 3-31
Daytime running light system (except U.S.-spec. WRX-STi) ......................... 3-32
Turn signal lever ........................................... 3-32
Illumination brightness control ................... 3-33
Illumination brightness control (WRX-STi) .................................................. 3-34
Headlight beam leveler (U.S.-spec. WRX-STi) ................................ 3-34
Parking light switch ..................................... 3-35
Fog light button (if equipped) ..................... 3-36
Wiper and washer ......................................... 3-36 Windshield wiper and washer switches ......... 3-38
Rear window wiper and washer switch – Wagon .......................................................... 3-40
Rear window defogger button ..................... 3-41
Windshield wiper deicer (if equipped) ........ 3-43
Intercooler water spray switch (WRX-STi) .................................................. 3-44
Mirrors ........................................................... 3-45 Inside mirror ...................................................... 3-45
Outside mirrors ................................................. 3-48
Tilt steering wheel ........................................ 3-50
Horn ............................................................... 3-51

3-3
Instruments and controls
– CONTINUED –

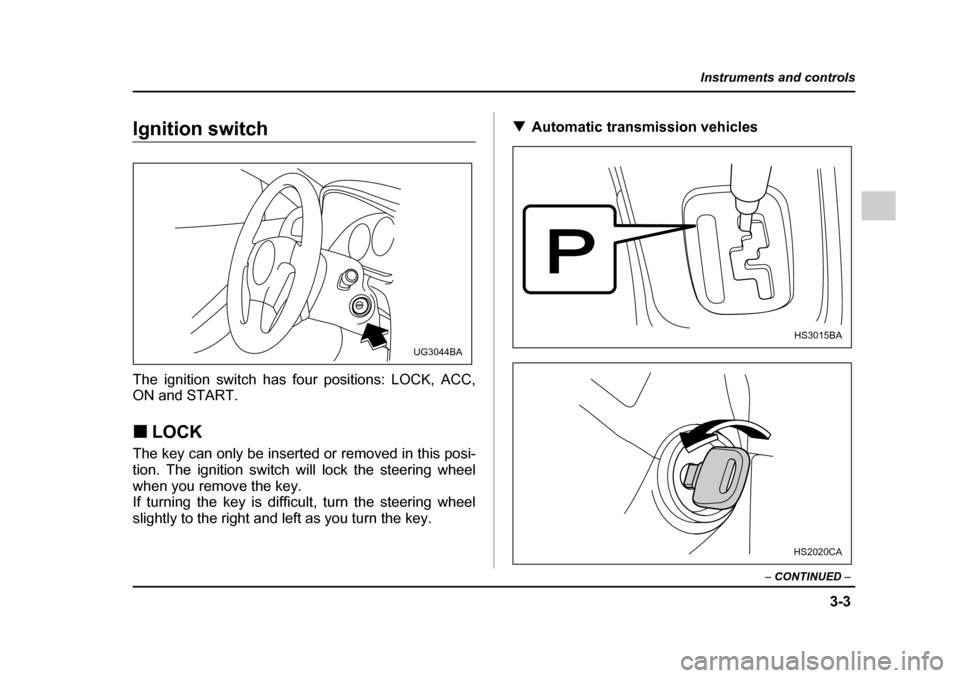

Instruments and controlsIgnition switch
The ignition switch has four positions: LOCK, ACC,
ON and START. „LOCK
The key can only be inserted or removed in this posi-
tion. The ignition switch will lock the steering wheel
when you remove the key.
If turning the key is difficult, turn the steering wheel
slightly to the right and left as you turn the key. T
Automatic transmission vehicles
UG3044BA
HS3015BA
HS2020CA

3-4
Instruments and controls
The key can be turned from “ACC” to “LOCK” only
when the selector lever is in the “P” position. T

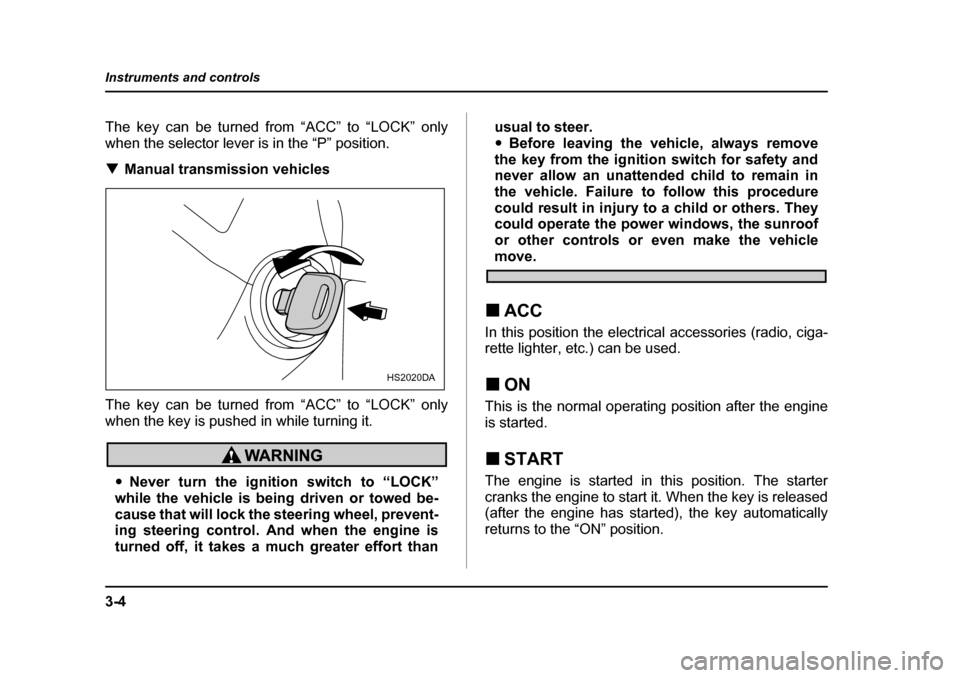

Manual transmission vehicles
The key can be turned from “ACC” to “LOCK” only
when the key is pushed in while turning it.
y Never turn the ignition switch to “LOCK”
while the vehicle is being driven or towed be-
cause that will lock the steering wheel, prevent-
ing steering control. And when the engine is
turned off, it takes a much greater effort than usual to steer.y
Before leaving the vehicle, always remove
the key from the ignition switch for safety and
never allow an unattended child to remain in
the vehicle. Failure to follow this procedure
could result in injury to a child or others. They
could operate the power windows, the sunroof
or other controls or even make the vehicle
move.
„ ACC
In this position the electrical accessories (radio, ciga-
rette lighter, etc.) can be used. „ ON
This is the normal operating position after the engine
is started. „ START
The engine is started in this position. The starter
cranks the engine to start it. When the key is released
(after the engine has started), the key automatically
returns to the “ON” position.
HS2020DA

3-5
Instruments and controls
– CONTINUED –
Do not turn the ignition switch to the “START”
position while the engine is running.
T For vehicle with immobilizer
If you fail to start your engine with your registered key,
once pull out the key (at this time, the security indicator
light blinks), and then insert the key in the ignition
switch and turn it to the “START” position to start your
engine again.

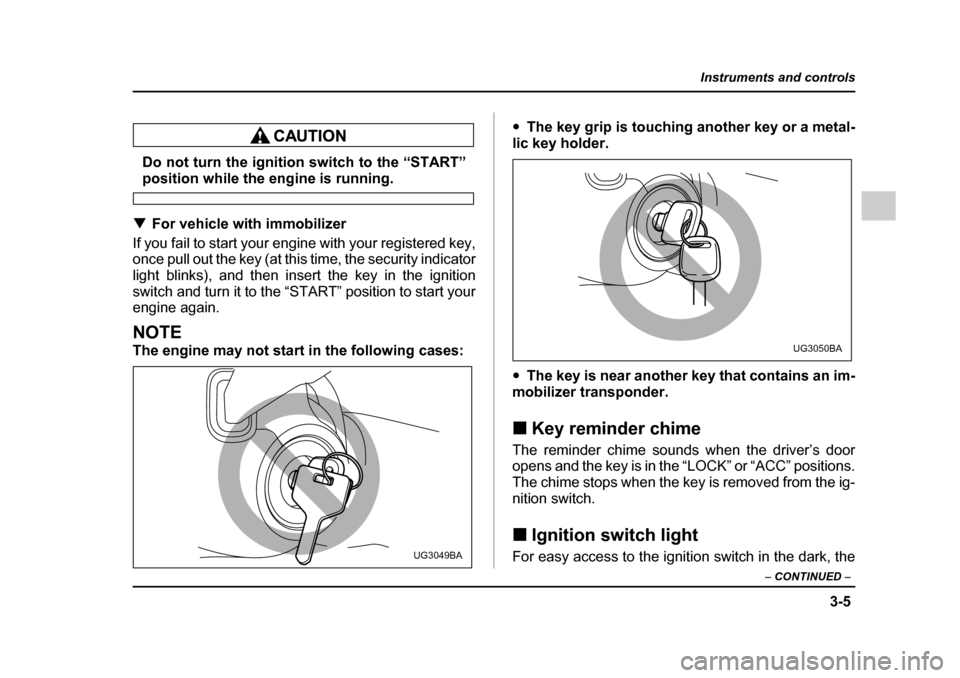

NOTE
The engine may not start in the following cases: y
The key grip is touching another key or a metal-
lic key holder. y The key is near another key that contains an im-
mobilizer transponder. „ Key reminder chime
The reminder chime sounds when the driver’s door
opens and the key is in the “LOCK” or “ACC” positions.
The chime stops when the key is removed from the ig-
nition switch. „ Ignition switch light
For easy access to the ignition switch in the dark, the
UG3049BA
UG3050BA

3-6
Instruments and controls
ignition switch light comes on when driver’s door is
opened. The light remains on for 10 seconds and goes
out after driver’s door is closed or if the key is turned
to the “ON” position. „

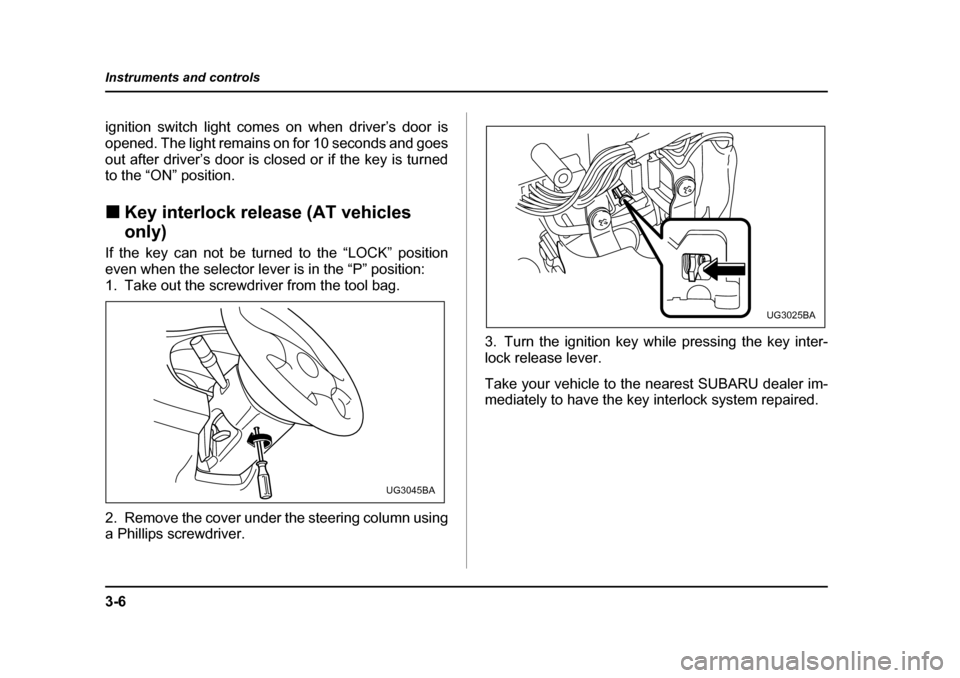

Key interlock release (AT vehicles
only)
If the key can not be turned to the “LOCK” position
even when the selector lever is in the “P” position:
1. Take out the screwdriver from the tool bag.
2. Remove the cover under the steering column using
a Phillips screwdriver. 3. Turn the ignition key while pressing the key inter- lock release lever.
Take your vehicle to the nearest SUBARU dealer im-
mediately to have the key interlock system repaired.
UG3045BA
UG3025BA

3-7
Instruments and controls
– CONTINUED –

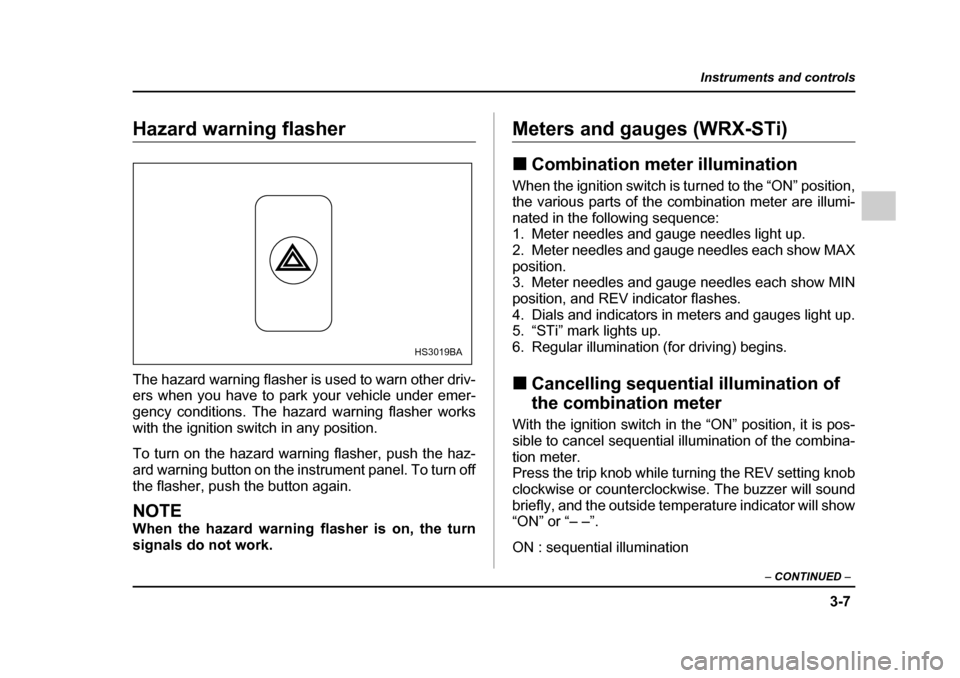

Hazard warning flasher
The hazard warning flasher is used to warn other driv-
ers when you have to park your vehicle under emer-
gency conditions. The hazard warning flasher works
with the ignition switch in any position.
To turn on the hazard warning flasher, push the haz-
ard warning button on the instrument panel. To turn off
the flasher, push the button again.
NOTE
When the hazard warning flasher is on, the turn
signals do not work.
Meters and gauges (WRX-STi) „Combination meter illumination
When the ignition switch is turned to the “ON” position,
the various parts of the combination meter are illumi-
nated in the following sequence:
1. Meter needles and gauge needles light up.
2. Meter needles and gauge needles each show MAX
position.
3. Meter needles and gauge needles each show MIN
position, and REV indicator flashes.
4. Dials and indicators in meters and gauges light up.
5. “STi” mark lights up.
6. Regular illumination (for driving) begins. „ Cancelling sequential illumination of
the combination meter
With the ignition switch in the “ON” position, it is pos-
sible to cancel sequential illumination of the combina- tion meter.
Press the trip knob while turning the REV setting knob
clockwise or counterclockwise. The buzzer will sound
briefly, and the outside temperature indicator will show“ON” or “– –”.
ON : sequential illumination
HS3019BA

3-8
Instruments and controls
– – : sequential illumination cancelled
The setting toggles between “ON” and “– –” each time
the trip knob is pressed.
Return the REV setting knob to its original position to
complete the setting process. The buzzer will sound
briefly. A few seconds later, the outside temperature
indicator will return to showing the outside tempera- ture.
NOTE
It is not possible to cancel sequential illumination
of the combination meter while sequential illumi-
nation is actually taking place. Cancel sequential
illumination when regular illumination (for driving)
has begun. „
Speedometer
The speedometer shows the vehicle speed. „

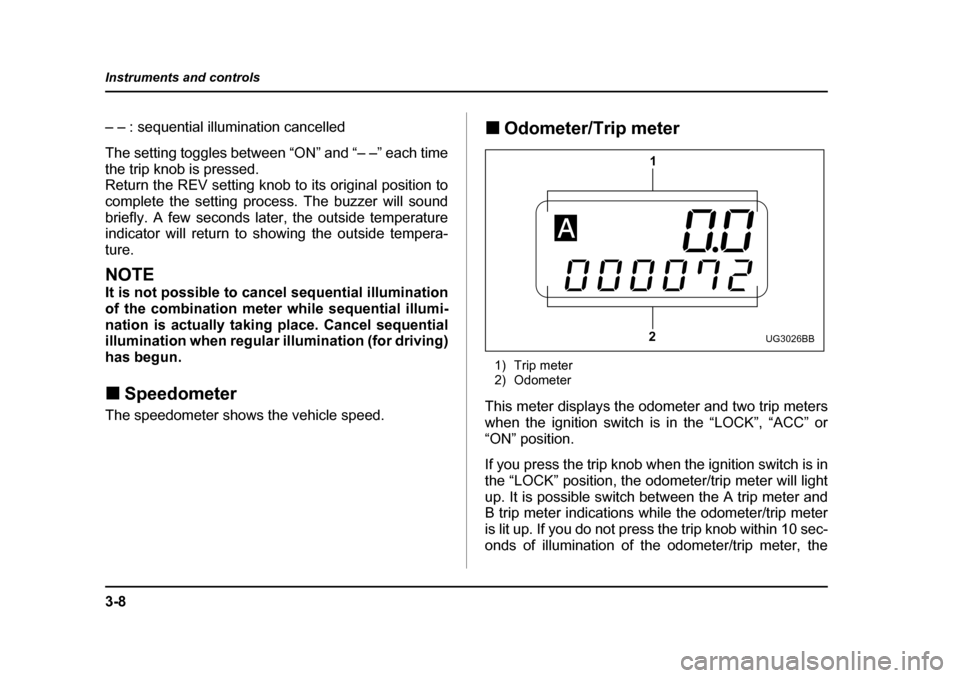

Odometer/Trip meter
1) Trip meter
2) Odometer
This meter displays the odometer and two trip meters
when the ignition switch is in the “LOCK”, “ACC” or “ON” position.
If you press the trip knob when the ignition switch is in
the “LOCK” position, the odometer/trip meter will light
up. It is possible switch between the A trip meter and
B trip meter indications while the odometer/trip meter
is lit up. If you do not press the trip knob within 10 sec-
onds of illumination of the odometer/trip meter, the
1
2
UG3026BB

3-9
Instruments and controls
– CONTINUED –
odometer/trip meter will go off. TOdometer
The odometer shows the total distance that the vehicle

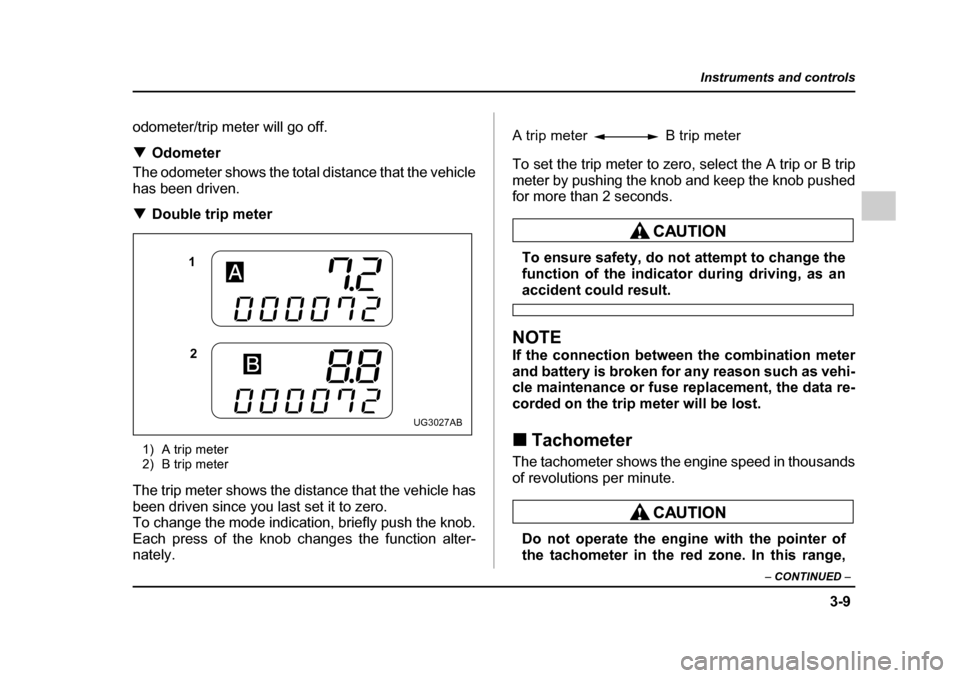

has been driven. T Double trip meter
1) A trip meter
2) B trip meter
The trip meter shows the distance that the vehicle has
been driven since you last set it to zero.
To change the mode indication, briefly push the knob.
Each press of the knob changes the function alter-
nately. To set the trip meter to zero, select the A trip or B trip
meter by pushing the knob and keep the knob pushed for more than 2 seconds.
To ensure safety, do not attempt to change the
function of the indicator during driving, as an
accident could result.
NOTE
If the connection between the combination meter
and battery is broken for any reason such as vehi-
cle maintenance or fuse replacement, the data re-
corded on the trip meter will be lost. „
Tachometer
The tachometer shows the engine speed in thousands
of revolutions per minute.
Do not operate the engine with the pointer of
the tachometer in the red zone. In this range,
1
2
UG3027AB
A trip meter B trip meter

3-10
Instruments and controls
fuel injection will be cut by the engine control
module to protect the engine from overrevving.
The engine will resume running normally after
the engine speed is reduced below the red
zone.

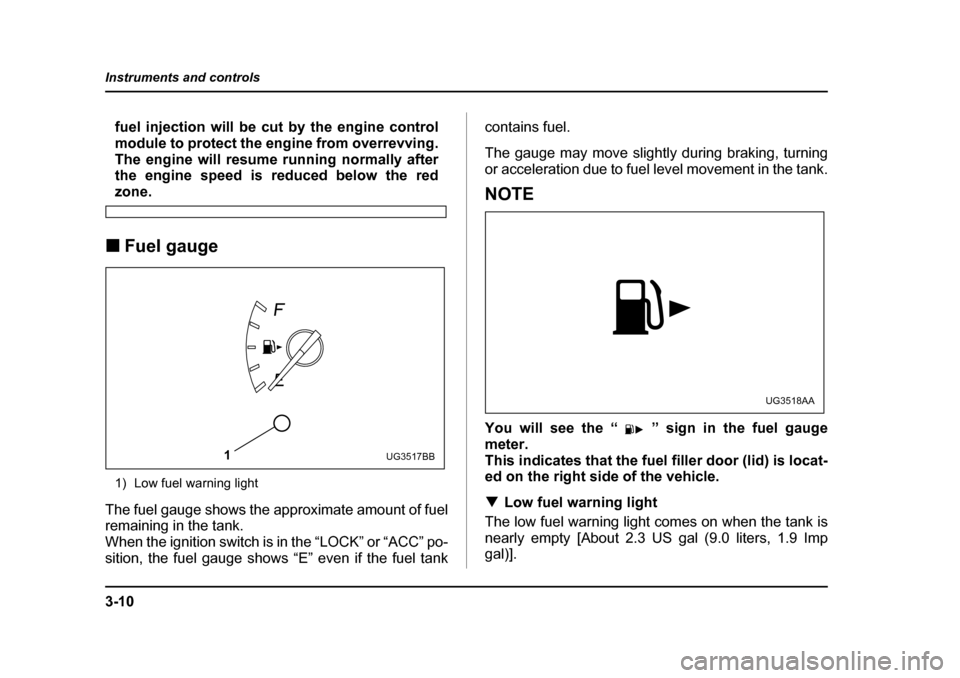

„ Fuel gauge
1) Low fuel warning light
The fuel gauge shows the approximate amount of fuel
remaining in the tank.
When the ignition switch is in the “LOCK” or “ACC” po-
sition, the fuel gauge shows “E” even if the fuel tank contains fuel.
The gauge may move slightly during braking, turning
or acceleration due to fuel level movement in the tank.NOTE
You will see the “ ” sign in the fuel gauge
meter.
This indicates that the fuel filler door (lid) is locat-
ed on the right side of the vehicle. T
Low fuel warning light
The low fuel warning light comes on when the tank is
nearly empty [About 2.3 US gal (9.0 liters, 1.9 Imp
gal)].
1UG3517BB
UG3518AA

3-11
Instruments and controls
– CONTINUED –
It only operates when the ignition switch is in the “ON” position.
NOTE
This light does not go out unless the tank is re-
plenished up to an internal fuel quantity of about
4.0 US gal (15 liters, 3.3 Imp gal).
Promptly put fuel in the tank whenever the low
fuel warning light comes on. If the engine mis-
fired as a result of an empty tank, resulting cat-
alytic converter damage could cause damage
to the turbocharger. „
Temperature gauge
1) Normal operating range
The temperature gauge shows engine coolant temper-
ature when the ignition switch is in the “ON” position.
The coolant temperature will vary in accordance with
the outside temperature and driving conditions.
We recommend that you drive moderately until the
pointer of the temperature gauge reaches near the
middle of the range. Engine operation is optimum with
the engine coolant at this temperature range and high
revving operation when the engine is not warmed up
enough should be avoided.
1
UG3519BB
