SUBARU IMPREZA WRX 2007 3.G Owners Manual

Replacing bulbs
Maintenance and service11-45
– CONTINUED –

11-46Maintenance and service
Wattage Bulb No.
1) Parking light 12V-5W 168
2) Front turn signal light 12V-21W (Amber) –
3) Front side marker light 12V-5W 168
4) Map light 12V-8W –
5) Dome light 12V-8W –
6) High beam headlight 12V-60W 9005 (HB3)
7) Front fog light 12V-55W H3
8) Low beam headlight WRX-STI 12V-35W D2S
Except WRX-STI 12V-55W H7
9) Trunk room light 12V-5W –
10) High mount stop light
Sedan
(in compartment) 12V-21W –
(in rear spoiler) 12V-1.2W –
Wagon 12V-13W 912
11) Brake/tail light 12V-21/5W 7443
12) Tail light 12V-21/5W 7443
13) Rear turn signal light 12V-21W (Amber) –
14) Backup light 12V-21W 7440
15) License plate light 12V-5W 168
16) Cargo area light 12V-5W –CAUTION
Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.

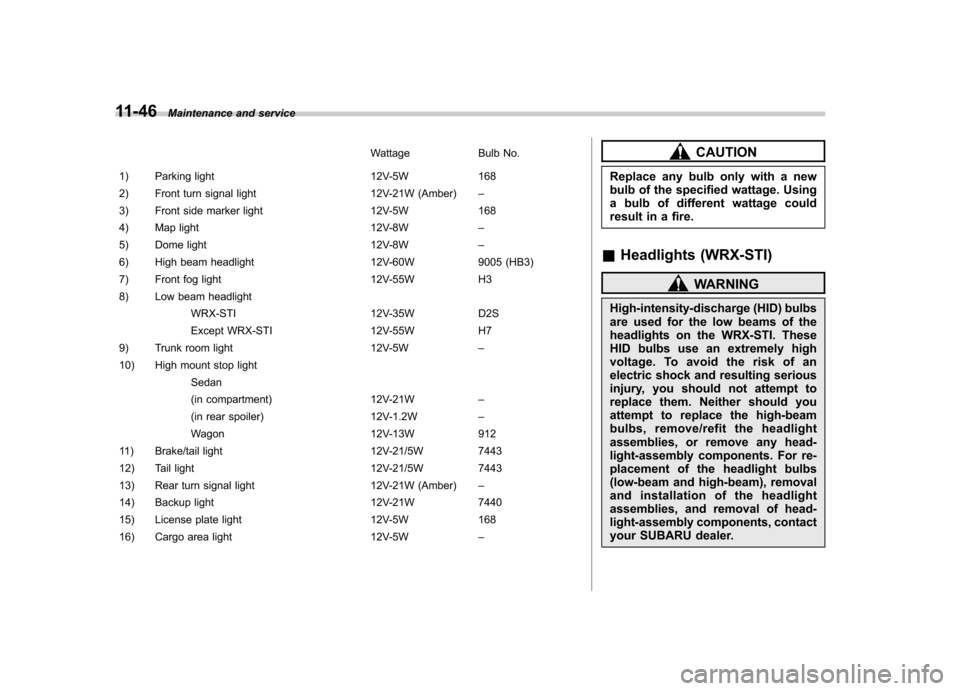

& Headlights (WRX-STI)
WARNING
High-intensity-discharge (HID) bulbs
are used for the low beams of the
headlights on the WRX-STI. These
HID bulbs use an extremely high
voltage. To avoid the risk of an
electric shock and resulting serious
injury, you should not attempt to
replace them. Neither should you
attempt to replace the high-beam
bulbs, remove/refit the headlight
assemblies, or remove any head-
light-assembly components. For re-
placement of the headlight bulbs
(low-beam and high-beam), removal
and installation of the headlight
assemblies, and removal of head-
light-assembly components, contact
your SUBARU dealer.

&Headlights (Except WRX-STI)

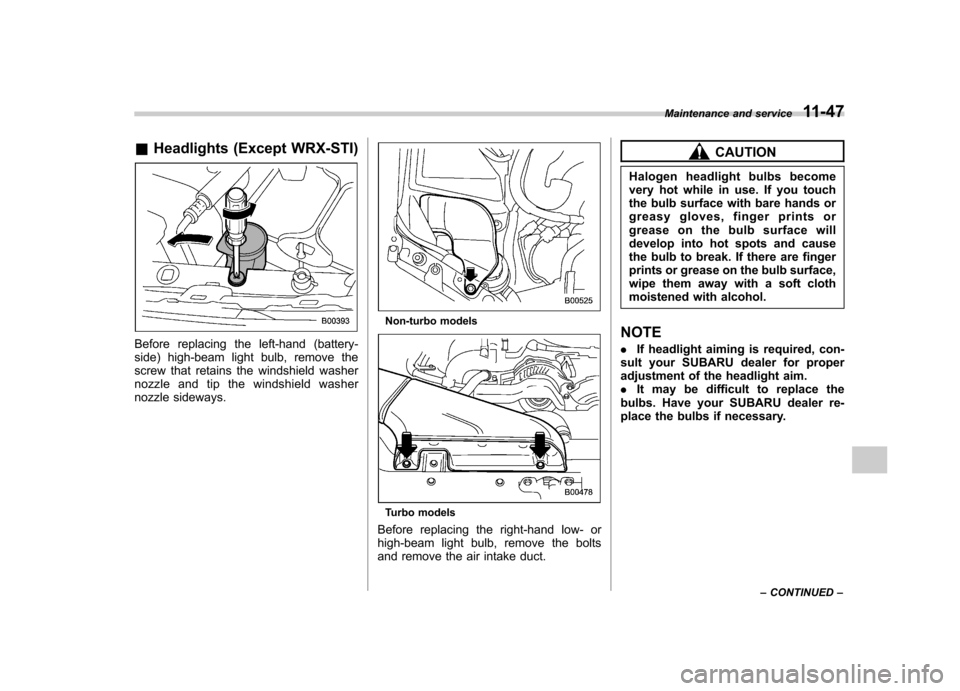

Before replacing the left-hand (battery-
side) high-beam light bulb, remove the
screw that retains the windshield washer
nozzle and tip the windshield washer
nozzle sideways.
Non-turbo models
Turbo models
Before replacing the right-hand low- or
high-beam light bulb, remove the bolts
and remove the air intake duct.
CAUTION
Halogen headlight bulbs become
very hot while in use. If you touch
the bulb surface with bare hands or
greasy gloves, finger prints or
grease on the bulb surface will
develop into hot spots and cause
the bulb to break. If there are finger
prints or grease on the bulb surface,
wipe them away with a soft cloth
moistened with alcohol.
NOTE . If headlight aiming is required, con-
sult your SUBARU dealer for proper
adjustment of the headlight aim.. It may be difficult to replace the
bulbs. Have your SUBARU dealer re-
place the bulbs if necessary. Maintenance and service
11-47
– CONTINUED –

11-48Maintenance and service

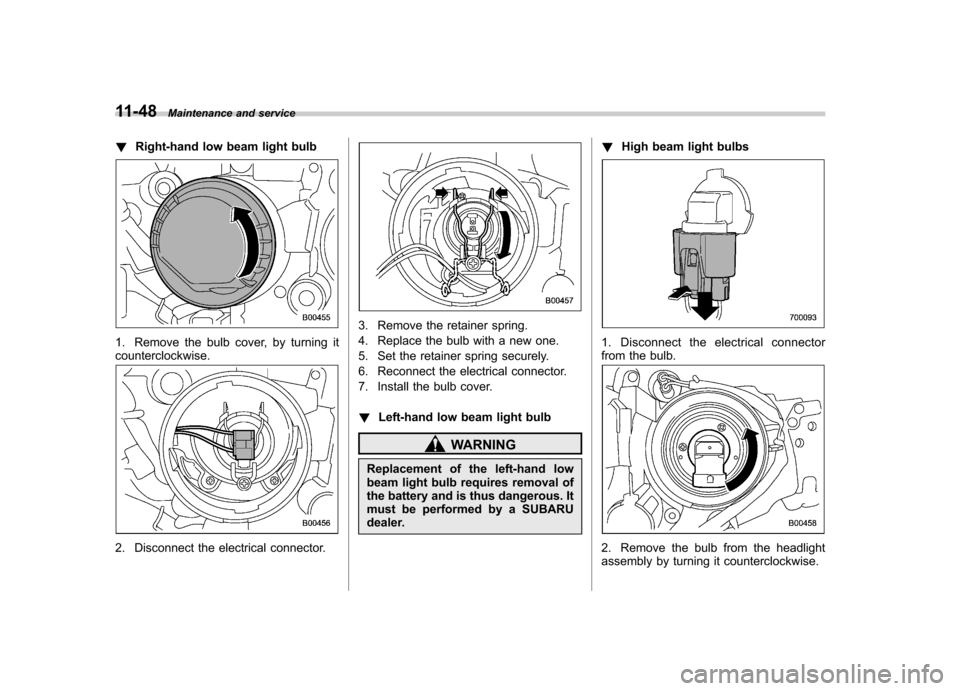

!Right-hand low beam light bulb
1. Remove the bulb cover, by turning it counterclockwise.
2. Disconnect the electrical connector.
3. Remove the retainer spring.
4. Replace the bulb with a new one.
5. Set the retainer spring securely.
6. Reconnect the electrical connector.
7. Install the bulb cover. !Left-hand low beam light bulb
WARNING
Replacement of the left-hand low
beam light bulb requires removal of
the battery and is thus dangerous. It
must be performed by a SUBARU
dealer. !
High beam light bulbs
1. Disconnect the electrical connector
from the bulb.
2. Remove the bulb from the headlight
assembly by turning it counterclockwise.

3. Replace the bulb with a new one.
4. Reconnect the electrical connector. At
this time, use care not to touch the bulbsurface.
5. To install the bulb to the headlight
assembly, turn it clockwise until it clicks. &Front turn signal light bulbs
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary. & Parking light
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary. & Front fog light
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary. &
Rear combination lights
! Sedan
1. Remove the clip from the rear trunk
trim with a screwdriver.
1) Tail light
2) Brake/tail light
3) Rear turn signal light
4) Backup light
2. Open the rear portion of the side trunk
trim panel.
3. Remove the bulb socket from the rear
combination light assembly by turning itcounterclockwise.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
6. Secure the rear trunk trim panel with
the clips. Maintenance and service
11-49
– CONTINUED –

11-50Maintenance and service
! Wagon
1. Using a Phillips screwdriver, remove
the upper and lower clips that secure the
side cover of the rear combination light
assembly.
2. Remove the side cover.
3. Remove the upper and lower bolts.
Then, slide the rear combination lamp
assembly to the rear and remove it from
the vehicle.1) Brake/tail light
2) Rear turn signal light
3) Backup light
4. Remove the bulb socket from the rear
combination light assembly by turning itcounterclockwise.
5. Pull the bulb out of the bulb socket and
replace it with a new one.
6. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.

7. Put the rear combination light assem-
bly into place while aligning the clip with
the guide on the vehicle and fasten thebolts.
8. Install the side cover and secure it with
the clips.&
License plate light
1. Remove the mounting screws using a
Phillips screwdriver.
2. Remove the lens.
3. Pull the bulb out of the socket. Install a
new bulb.
4. Reinstall the lens.
5. Tighten the mounting screws. &
Dome light, map light and
cargo area light
Maintenance and service 11-51
– CONTINUED –

11-52Maintenance and service

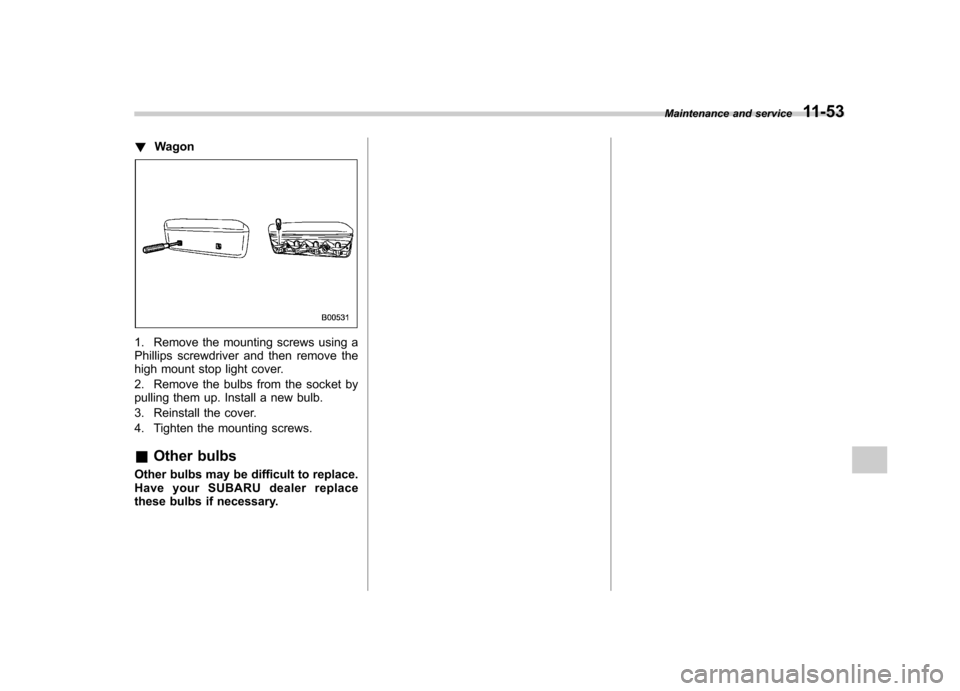

1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
2. Pull the bulb out of the socket. Install a
new bulb.
3. Reinstall the lens. &
Trunk light
1. Remove the cover by squeezing its
sides and pulling it.
2. Pull the bulb out of the socket. Install a
new bulb.
3. Reinstall the cover. &
High mount stop light
! Sedan
1. Remove the high mount stop light
cover by prying the edge with a screw-
driver.
2. Remove the bulb socket from the high
mount stop light assembly by turning itcounterclockwise.
3. Pull the bulb out of the socket. Install a
new bulb.
4. Reinstall the cover.

!Wagon
1. Remove the mounting screws using a
Phillips screwdriver and then remove the
high mount stop light cover.
2. Remove the bulbs from the socket by
pulling them up. Install a new bulb.
3. Reinstall the cover.
4. Tighten the mounting screws. &Other bulbs
Other bulbs may be difficult to replace.
Have your SUBARU dealer replace
these bulbs if necessary. Maintenance and service
11-53
