Ignition switch
WARNING
. Never turn the ignition switch to
“ LOCK” while the vehicle is
being driven or towed because
that will lock the steering wheel,
preventing steering control. And
when the engine is turned off, it
takes a much greater effort than
usual to steer.
. Before leaving the vehicle, al-
ways remove the key from the
ignition switch for safety and
never allow an unattended child
to remain in the vehicle. Failure
to follow this procedure could
result in injury to a child or
others. Children could operate
the power windows, the moon-
roof or other controls or even
make the vehicle move.
CAUTION
Do not attach a large key holder or
key case to either key. If it banged
against your knees or hands while
you are driving, it could turn the
ignition switch from the “ON ”posi- tion to the
“Acc ”or “LOCK ”posi-
tion, thereby stopping the engine.
Also, if the key is attached to a
keyholder or to a large bunch of
other keys, centrifugal force may act
on it as the vehicle moves, resulting
in unwanted turning of the ignition
switch.
The ignition switch has four positions:
LOCK, Acc, ON and START.NOTE. Keep the ignition switch in the
“ LOCK ”position when the engine is
not running.
. Using electrical accessories for a
long time with the ignition switch in the
“ ON ”or “Acc ”position can cause the battery to go dead.
.
If the ignition switch will not move
from the “LOCK ”position to the “Acc ”
position, turn the steering wheel
slightly to the left and right as you turn
the ignition switch.
& LOCKThe key can only be inserted or removed
in this position. The ignition switch will lock
the steering wheel when you remove the
key.
If turning the key is difficult, turn the
steering wheel slightly to the right and left
as you turn the key.
! AT models
Instruments and controls
3-3
–CONTINUED –
3

Black plate (126,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
3-4
Instruments and controls
The key can be turned from “Acc”to
“LOCK” only when the select lever is in the
“P ”position.
! MT modelsThe key can be turned from “Acc”to
“LOCK” only when the key is pushed in while turning it.
&
AccIn this position the electrical accessories
(audio, accessory power outlet, etc.) can
be used.&ONThis is the normal operating position after
the engine is started.&STARTThe engine is started in this position. The
starter cranks the engine to start it. When
the key is released (after the engine has
started), the key automatically returns to
the “ON ”position.
CAUTION
Do not turn the ignition switch to the
“START ”position while the engine
is running.
If your registered key fails to start the
engine, pull out the key once (the security
indicator light will blink), and then insert
the key in the ignition switch and turn it to
the “START ”position and again try to start
the engine.
NOTEThe engine may not start in the follow-
ing cases:. The key grip is touching another key
or a metallic key holder.. The key is near another key that

Black plate (127,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
contains an immobilizer transponder.
. The key is near or touching another
transmitter.& Key reminder chimeThe reminder chime sounds when the
driver ’s door is opened and the ignition
switch is in the “LOCK”or “Acc ”position.
The chime stops under the following
conditions.
. when the ignition switch is turned to the
“ON ”position
. when the key is removed from the
ignition switch
. when the driver ’s door is closed& Ignition switch lightFor easy access to the ignition switch in
the dark, the ignition switch light illumi-
nates when the driver ’s door is opened or
when the driver ’s door is unlocked using
the remote keyless entry transmitter.
The light remains illuminated for several
tens of seconds and then gradually turns
off under the following conditions.
. when the driver ’s door is closed
. when the doors are unlocked using the
remote keyless entry transmitter
The light turns off immediately under the following conditions.
.
when the ignition switch is turned to the
“ON ”position
. when all doors and the rear gate (5-
door) are locked using the remote keyless
entry transmitter
Hazard warning flasherThe hazard warning flasher is used to
warn other drivers when you have to park
your vehicle under emergency conditions.
The hazard warning flasher works regard-
less of the position of the ignition switch.
To turn on the hazard warning flasher,
push the hazard warning button on the
instrument panel. To turn off the flasher,
push the button again.NOTEWhen the hazard warning flasher is on,
the turn signals do not work.
Instruments and controls
3-5
3

Black plate (128,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
3-6
Instruments and controls
Meters and gaugesNOTELiquid-crystal displays are used in
some of the meters and gauges on
the combination meter. You will find
their indications hard to see if you wear
polarized glasses.& Combination meter illumina-
tionWhen the ignition switch is turned to the
“ON ”position, the various parts of the
combination meter are illuminated in the
following sequence:
Turbo models:
1. Warning lights, indicator lights, meter
needles and gauge needles illuminate.
2. Meter needles and gauge needles
each show MAX position.
3. Meter needles and gauge needles
each show MIN position.
4. Meter and gauge dials, odometer and
trip meter back light illuminate.
5. Regular illumination (for driving) be-
gins.
Non-turbo models:
1. Warning lights, indicator lights, meter
needles, gauge needles, odometer and trip meter back light illuminate.
2. Meter needles and gauge needles
each show MAX position.
3. Meter needles and gauge needles
each show MIN position.
4. Regular illumination (for driving) be-
gins.
&
Canceling the function for
meter/gauge needle move-
ment upon turning on the
ignition switchIt is possible to activate or deactivate the
movement of the meter needles and
gauge needles that takes place when the
ignition switch is turned to the “ON ”
position.
Turn the ignition switch to the “LOCK”or“Acc
”position.
Press the trip knob to show “
”or “
”
on the odometer and trip meter display.
The display can be switched as shown in
the following illustration by pressing the
trip knob.
*1: STI only
*2: “
” or “
”,and “
”or “
”
cannot be displayed when the ignition
switch is in the “ON”position.
*
3: Turbo models except STI
To change the current setting, press the
trip knob for at least 2 seconds.: Activated

Black plate (129,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

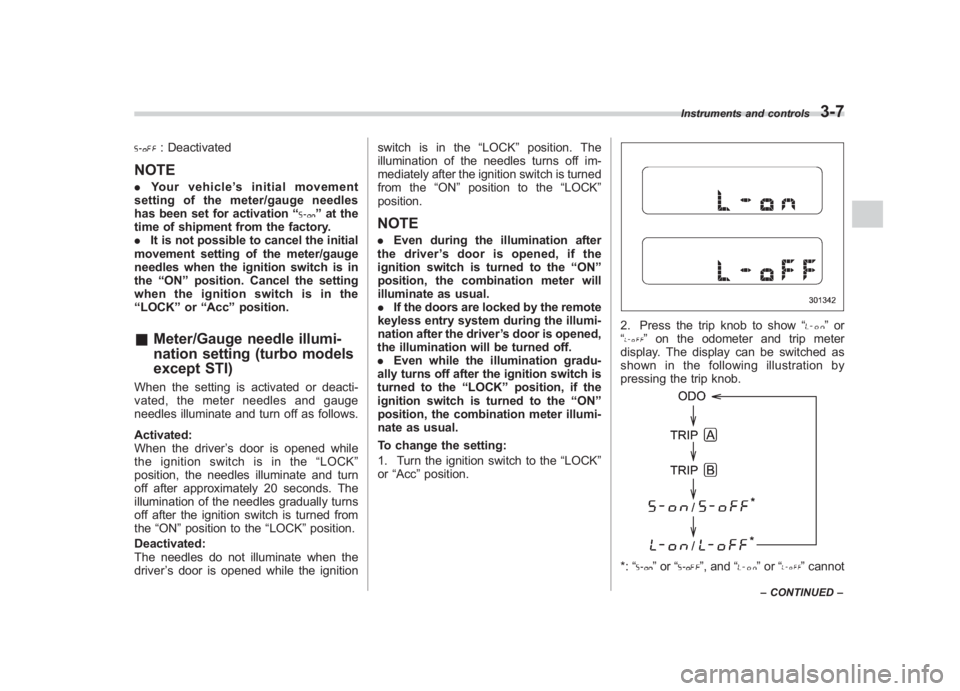

: Deactivated
NOTE. Your vehicle ’s initial movement
setting of the meter/gauge needles
has been set for activation “
”at the
time of shipment from the factory.
. It is not possible to cancel the initial
movement setting of the meter/gauge
needles when the ignition switch is in
the “ON ”position. Cancel the setting
whentheignitionswitchisinthe
“ LOCK ”or “Acc ”position.
& Meter/Gauge needle illumi-
nation setting (turbo models
except STI)When the setting is activated or deacti-
vated, the meter needles and gauge
needles illuminate and turn off as follows.
Activated:
When the driver ’s door is opened while
theignitionswitchisinthe “LOCK ”
position, the needles illuminate and turn
off after approximately 20 seconds. The
illumination of the needles gradually turns
off after the ignition switch is turned from
the “ON ”position to the “LOCK” position.
Deactivated:
The needles do not illuminate when the
driver ’s door is opened while the ignition switch is in the
“LOCK”position. The
illumination of the needles turns off im-
mediately after the ignition switch is turned
from the “ON”position to the “LOCK”
position.
NOTE. Even during the illumination after
the driver ’s door is opened, if the
ignition switch is turned to the “ON ”
position, the combination meter will
illuminate as usual.
. If the doors are locked by the remote
keyless entry system during the illumi-
nation after the driver ’s door is opened,
the illumination will be turned off.
. Even while the illumination gradu-
ally turns off after the ignition switch is
turned to the “LOCK ”position, if the
ignition switch is turned to the “ON ”
position, the combination meter illumi-
nate as usual.
To change the setting:
1. Turn the ignition switch to the “LOCK”
or “Acc ”position.
2. Press the trip knob to show “
”or
“
” on the odometer and trip meter
display. The display can be switched as
shown in the following illustration by
pressing the trip knob.
*: “
”or “
”, and “
”or “
”cannot
Instruments and controls
3-7
– CONTINUED –
3

Black plate (130,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
3-8
Instruments and controls
be displayed when the ignition switch is
in the “ON”position.
3. To change the current setting, press
the trip knob for at least 2 seconds.: Activated: Deactivated
NOTEThe initial illumination setting of the
meter/gauge needles of your vehicle
has been set for activation “
”at the
time of shipment from the factory.
& SpeedometerThe speedometer shows the vehicle
speed.
&Odometer/Trip meterTurbo modelsNon-turbo models
1) Trip knobThis meter displays the odometer and two
trip meters when the ignition switch is in the
“LOCK”, “Acc”or “ON ”position.
If you press the trip knob when the ignition
switch is in the “LOCK ”position, the
odometer/trip meter will light up. It is
possible to switch the indications while
the odometer/trip meter is lit up. If you do
not press the trip knob within 10 seconds
of illumination of the odometer/trip meter,
the odometer/trip meter will turn off.
The display can be switched as shown in
the following illustration by pressing the
trip knob.
*1: STI only
*2: “
” or “
”,and “
”or “
”
cannot be displayed when the ignition

Black plate (131,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

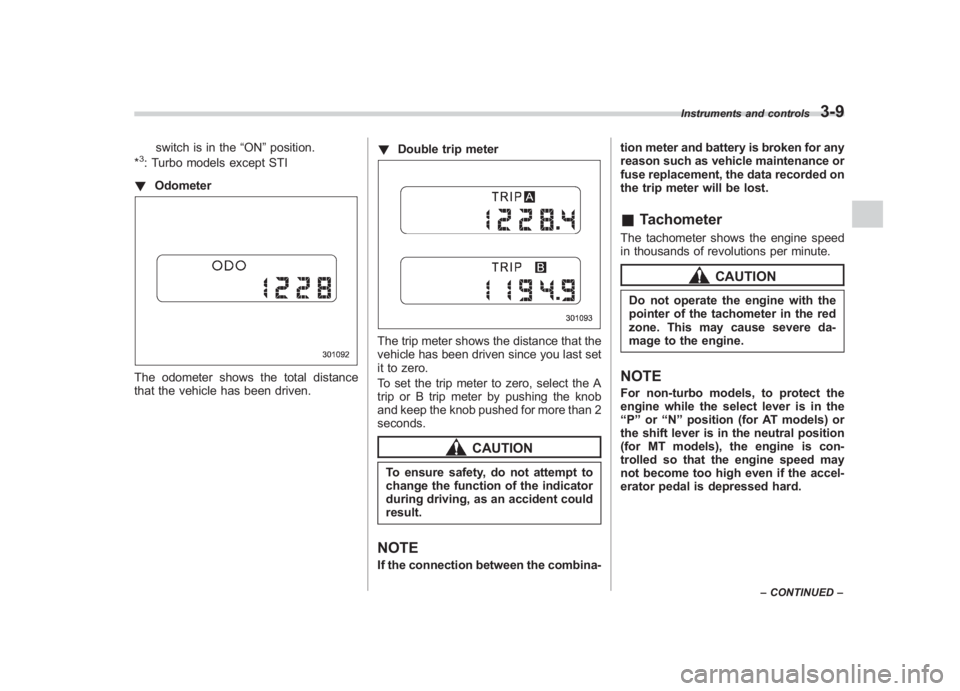

switch is in the “ON”position.
*
3: Turbo models except STI
! OdometerThe odometer shows the total distance
that the vehicle has been driven. !
Double trip meter
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.
To set the trip meter to zero, select the A
trip or B trip meter by pushing the knob
and keep the knob pushed for more than 2
seconds.
CAUTION
To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could
result.NOTEIf the connection between the combina- tion meter and battery is broken for any
reason such as vehicle maintenance or
fuse replacement, the data recorded on
the trip meter will be lost.
&
TachometerThe tachometer shows the engine speed
in thousands of revolutions per minute.
CAUTION
Do not operate the engine with the
pointer of the tachometer in the red
zone. This may cause severe da-
mage to the engine.NOTEFor non-turbo models, to protect the
engine while the select lever is in the
“P ” or “N ” position (for AT models) or
the shift lever is in the neutral position
(for MT models), the engine is con-
trolled so that the engine speed may
not become too high even if the accel-
erator pedal is depressed hard.
Instruments and controls
3-9
– CONTINUED –
3

Black plate (132,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
3-10
Instruments and controls

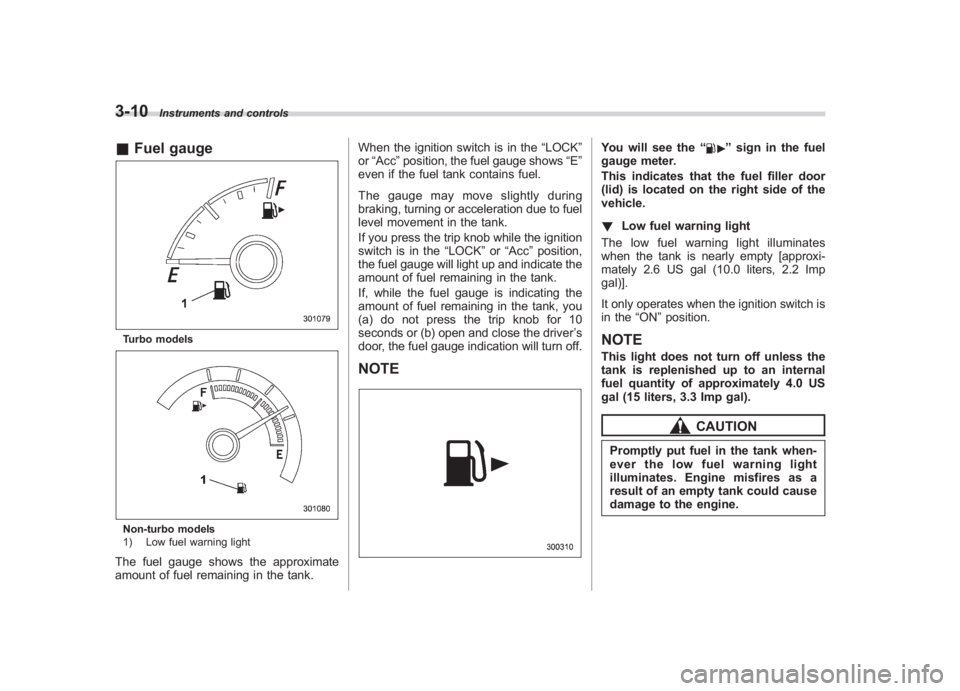

& Fuel gaugeTurbo modelsNon-turbo models
1) Low fuel warning lightThe fuel gauge shows the approximate
amount of fuel remaining in the tank. When the ignition switch is in the
“LOCK”
or “Acc ”position, the fuel gauge shows “E”
even if the fuel tank contains fuel.
The gauge may move slightly during
braking, turning or acceleration due to fuel
level movement in the tank.
If you press the trip knob while the ignition
switch is in the “LOCK”or “Acc ”position,
the fuel gauge will light up and indicate the
amount of fuel remaining in the tank.
If, while the fuel gauge is indicating the
amount of fuel remaining in the tank, you
(a) do not press the trip knob for 10
seconds or (b) open and close the driver ’s
door, the fuel gauge indication will turn off.
NOTE
You will see the “
”sign in the fuel
gauge meter.
This indicates that the fuel filler door
(lid) is located on the right side of the
vehicle.
! Low fuel warning light
The low fuel warning light illuminates
when the tank is nearly empty [approxi-
mately 2.6 US gal (10.0 liters, 2.2 Imp
gal)].
It only operates when the ignition switch is
in the “ON”position.
NOTEThis light does not turn off unless the
tank is replenished up to an internal
fuel quantity of approximately 4.0 US
gal (15 liters, 3.3 Imp gal).
CAUTION
Promptly put fuel in the tank when-
ever the low fuel warning light
illuminates. Engine misfires as a
result of an empty tank could cause
damage to the engine.
