SUBARU IMPREZA WRX STI 2011 Owners Manual

Black plate (447,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

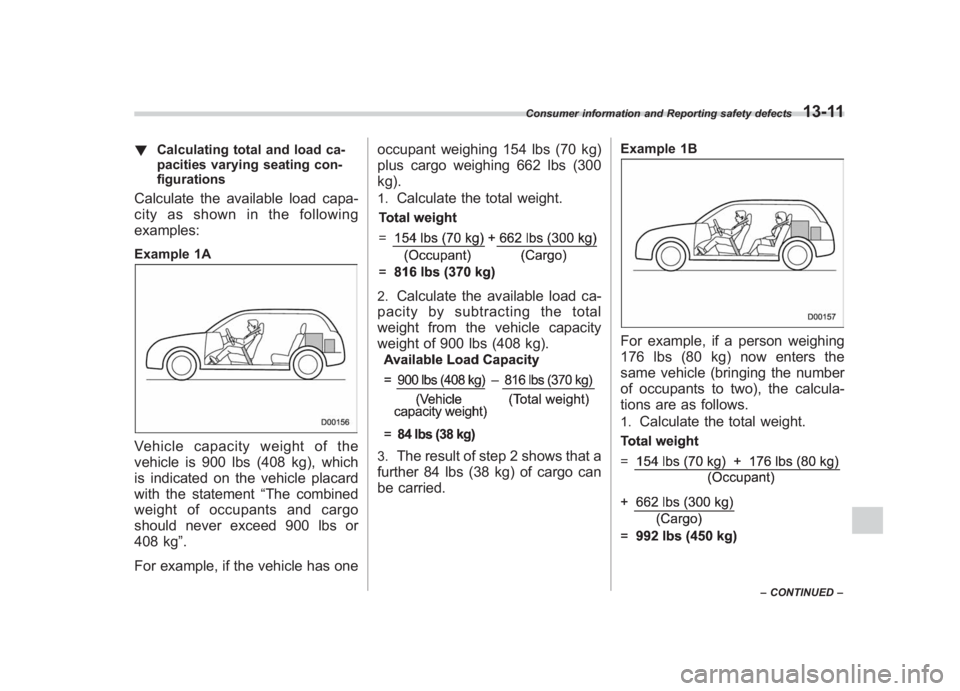

! Calculating total and load ca-
pacities varying seating con-
figurationsCalculate the available load capa-
city as shown in the following
examples:Example 1AVehicle capacity weight of the
vehicle is 900 lbs (408 kg), which
is indicated on the vehicle placard
with the statement “The combined
weight of occupants and cargo
should never exceed 900 lbs or
408 kg ”.
For example, if the vehicle has one occupant weighing 154 lbs (70 kg)
plus cargo weighing 662 lbs (300
kg).
1.
Calculate the total weight.
2.
Calculate the available load ca-
pacity by subtracting the total
weight from the vehicle capacity
weight of 900 lbs (408 kg).
3.
The result of step 2 shows that a
further 84 lbs (38 kg) of cargo can
be carried.
Example 1BFor example, if a person weighing
176 lbs (80 kg) now enters the
same vehicle (bringing the number
of occupants to two), the calcula-
tions are as follows.1.
Calculate the total weight.
Consumer information and Reporting safety defects
13-11
– CONTINUED –
13

Black plate (448,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

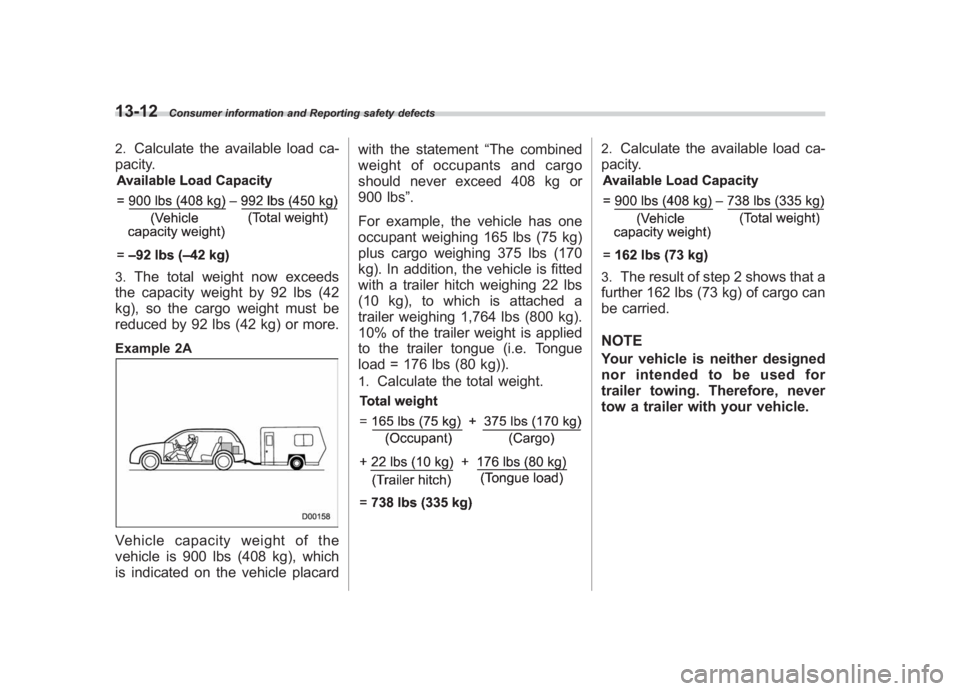

13-12
Consumer information and Reporting safety defects
2.
Calculate the available load ca-
pacity.
3.
The total weight now exceeds
the capacity weight by 92 lbs (42
kg), so the cargo weight must be
reduced by 92 lbs (42 kg) or more.
Example 2AVehicle capacity weight of the
vehicle is 900 lbs (408 kg), which
is indicated on the vehicle placard with the statement
“The combined
weight of occupants and cargo
should never exceed 408 kg or
900 lbs ”.
For example, the vehicle has one
occupant weighing 165 lbs (75 kg)
plus cargo weighing 375 lbs (170
kg). In addition, the vehicle is fitted
with a trailer hitch weighing 22 lbs
(10 kg), to which is attached a
trailer weighing 1,764 lbs (800 kg).
10% of the trailer weight is applied
to the trailer tongue (i.e. Tongue
load = 176 lbs (80 kg)).
1.
Calculate the total weight.
2.
Calculate the available load ca-
pacity.
3.
The result of step 2 shows that a
further 162 lbs (73 kg) of cargo can
be carried.
NOTEYour vehicle is neither designed
nor intended to be used for
trailer towing. Therefore, never
tow a trailer with your vehicle.

Black plate (449,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17

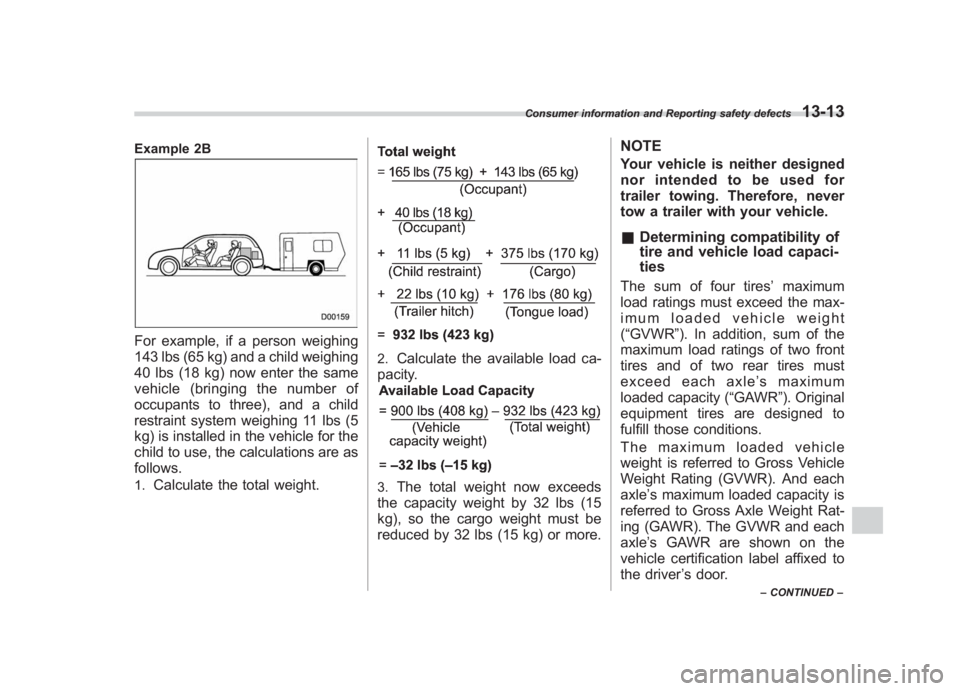

Example 2BFor example, if a person weighing
143 lbs (65 kg) and a child weighing
40 lbs (18 kg) now enter the same
vehicle (bringing the number of
occupants to three), and a child
restraint system weighing 11 lbs (5
kg) is installed in the vehicle for the
child to use, the calculations are as
follows.1.
Calculate the total weight.
2.
Calculate the available load ca-
pacity.
3.
The total weight now exceeds
the capacity weight by 32 lbs (15
kg), so the cargo weight must be
reduced by 32 lbs (15 kg) or more.
NOTEYour vehicle is neither designed
nor intended to be used for
trailer towing. Therefore, never
tow a trailer with your vehicle.& Determining compatibility of
tire and vehicle load capaci-
tiesThe sum of four tires ’maximum
load ratings must exceed the max-
imum loaded vehicle weight
( “GVWR ”). In addition, sum of the
maximum load ratings of two front
tires and of two rear tires must
exceed each axle ’smaximum
loaded capacity ( “GAWR ”). Original
equipment tires are designed to
fulfill those conditions.
The maximum loaded vehicle
weight is referred to Gross Vehicle
Weight Rating (GVWR). And each
axle ’s maximum loaded capacity is
referred to Gross Axle Weight Rat-
ing (GAWR). The GVWR and each
axle ’s GAWR are shown on the
vehicle certification label affixed to
the driver ’s door.
Consumer information and Reporting safety defects
13-13
– CONTINUED –
13

Black plate (450,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
13-14
Consumer information and Reporting safety defects

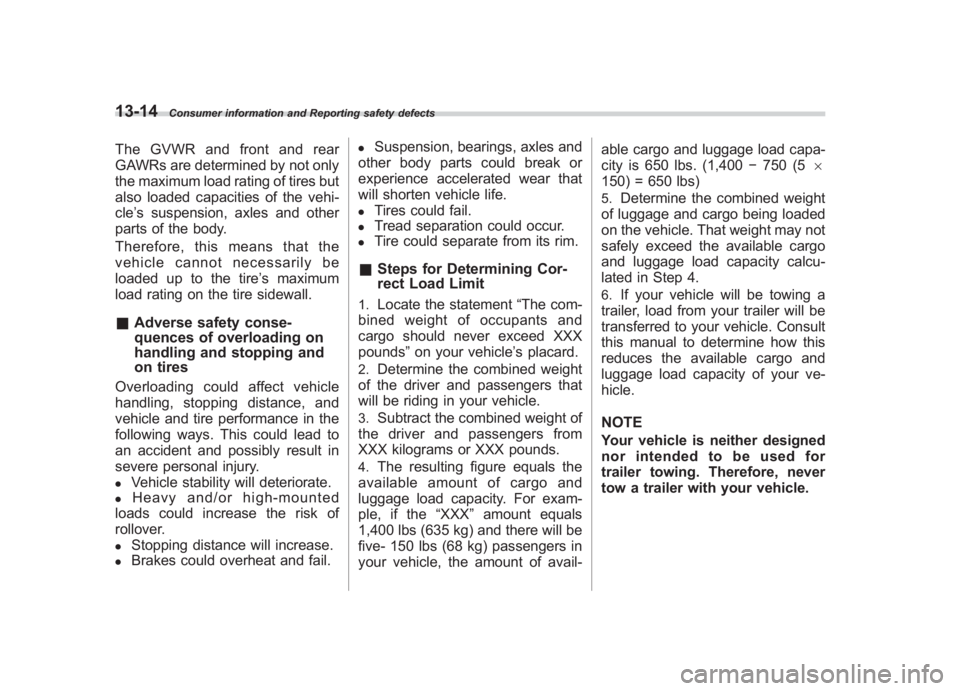

The GVWR and front and rear
GAWRs are determined by not only
the maximum load rating of tires but
also loaded capacities of the vehi-
cle ’s suspension, axles and other
parts of the body.
Therefore, this means that the
vehicle cannot necessarily be
loaded up to the tire ’s maximum
load rating on the tire sidewall.& Adverse safety conse-
quences of overloading on
handling and stopping and
on tiresOverloading could affect vehicle
handling, stopping distance, and
vehicle and tire performance in the
following ways. This could lead to
an accident and possibly result in
severe personal injury..
Vehicle stability will deteriorate.
.
Heavy and/or high-mounted
loads could increase the risk of
rollover.
.
Stopping distance will increase.
.
Brakes could overheat and fail.
.
Suspension, bearings, axles and
other body parts could break or
experience accelerated wear that
will shorten vehicle life.
.
Tires could fail.
.
Tread separation could occur.
.
Tire could separate from its rim.
& Steps for Determining Cor-
rect Load Limit1.
Locate the statement “The com-
bined weight of occupants and
cargo should never exceed XXX
pounds ”on your vehicle ’s placard.
2.
Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
3.
Subtract the combined weight of
the driver and passengers from
XXX kilograms or XXX pounds.
4.
The resulting figure equals the
available amount of cargo and
luggage load capacity. For exam-
ple, if the “XXX ”amount equals
1,400 lbs (635 kg) and there will be
five- 150 lbs (68 kg) passengers in
your vehicle, the amount of avail- able cargo and luggage load capa-
city is 650 lbs. (1,400
750 (5 6
150) = 650 lbs)
5.
Determine the combined weight
of luggage and cargo being loaded
on the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calcu-
lated in Step 4.
6.
If your vehicle will be towing a
trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your ve-
hicle.
NOTEYour vehicle is neither designed
nor intended to be used for
trailer towing. Therefore, never
tow a trailer with your vehicle.

Black plate (451,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
Uniform tire quality grading
standardsThis information indicates the rela-
tive performance of passenger car
tires in the area of treadwear,
traction, and temperature resis-
tance. This is to aid the consumer
in making an informed choice in the
purchase of tires.
Quality grades can be found where
applicable on the tire sidewall be-
tween tread shoulder and maxi-
mum section width. For example:Treadwear 200 Traction AA Tem-
perature AThe quality grades apply to new
pneumatic tires for use on passen-
ger cars. However, they do not
apply to deep tread, winter type
snow tires, space-saver or tempor-
ary use spare tires, tires with
nominal rim diameters of 12 inches
or less, or to some limited produc-
tion tires.
All passenger car tires must con- form to Federal Safety Require-
ments in addition to these grades.
&
TreadwearThe treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under con-
trolled conditions on a specified
government test course.
For example, a tire graded 150
would wear one and one-half (1-
1/2) times as well on the govern-
ment course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.&Traction AA, A, B, CThe traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tire ’s ability to
stop on wet pavement as measured
under controlled conditions on spe- cified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to
this tire is based on straight-
ahead braking traction tests,
and does not include accel-
eration, cornering, hydroplan-
ing, or peak traction charac-
teristics.&
Temperature A, B, CThe temperature grades are A (the
highest), B, and C, representing the
tire ’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled con-
ditions on a specified indoor labora-
tory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
Consumer information and Reporting safety defects
13-15
– CONTINUED –
13

Black plate (452,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
13-16
Consumer information and Reporting safety defects
grade C corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Vehicle Safety Stan-
dards No. 109. Grades B and A
represent higher levels of perfor-
mance on the laboratory test wheel
than the minimum required by law.
WARNING
The temperature grade for this
tire is established for a tire
that is properly inflated and
not overloaded. Excessive
speed, underinflation, or ex-
cessive loading, either sepa-
rately or in combination, can
cause heat buildup and possi-
ble tire failure.
Reporting safety defects
(U.S.A.)If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Subaru of
America, Inc.
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of vehi-
cles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Subaru of
America, Inc. To contact NHTSA,
you may call the Vehicle Safety
Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write
to: Administrator, NHTSA, 1200
New Jersey Avenue, SE, West Building, Washington, DC 20590.
You can also obtain other informa-
tion about motor vehicle safety
from http://www.safercar.gov.

Black plate (27,1)
北米Model "A1110BE-C" EDITED: 2010/ 11/ 17

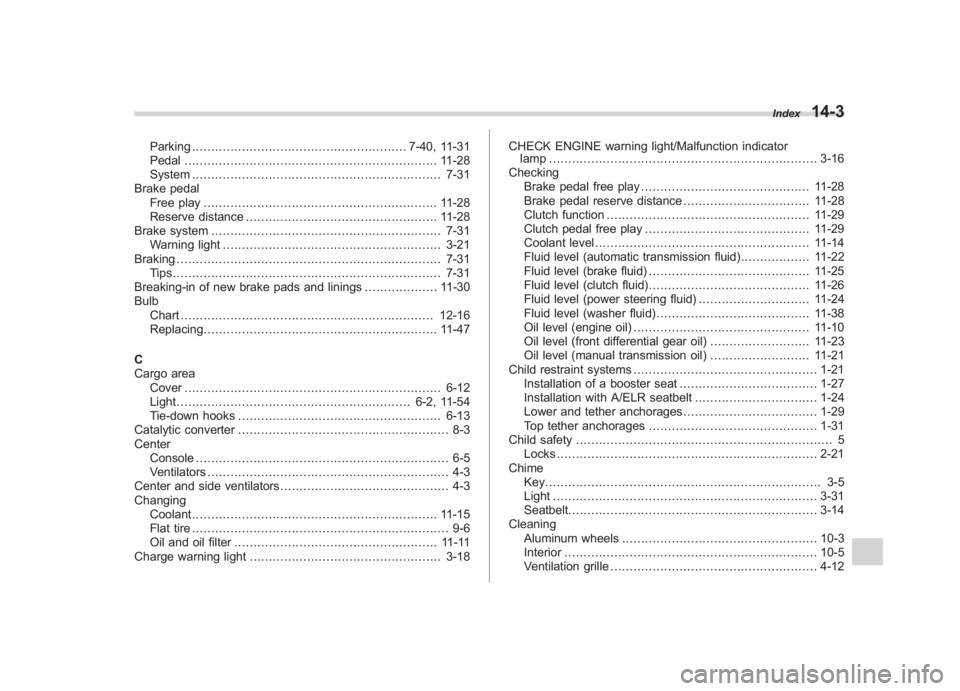

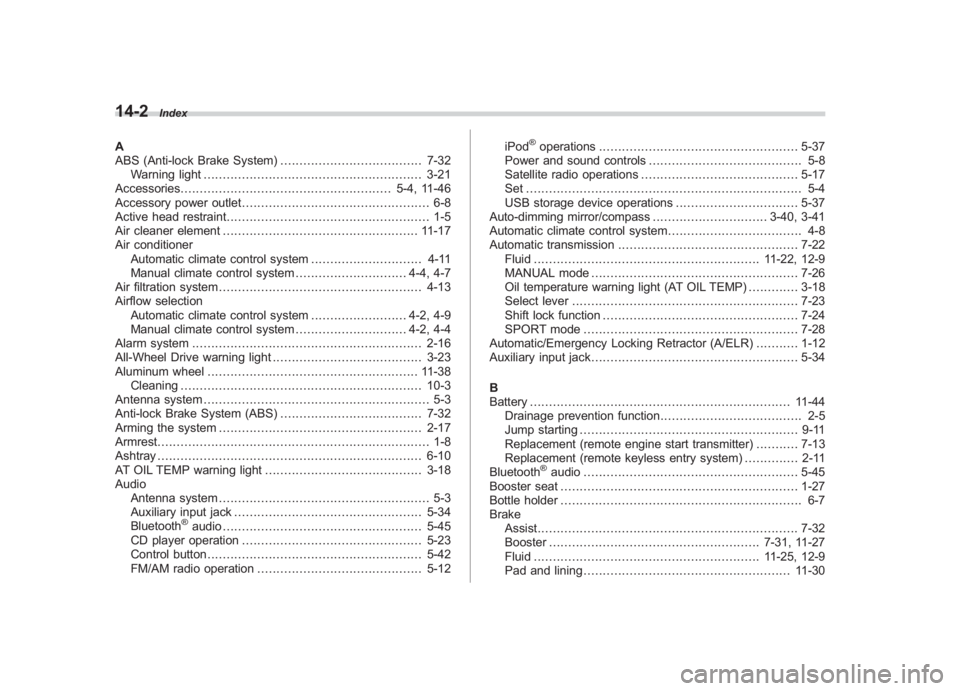

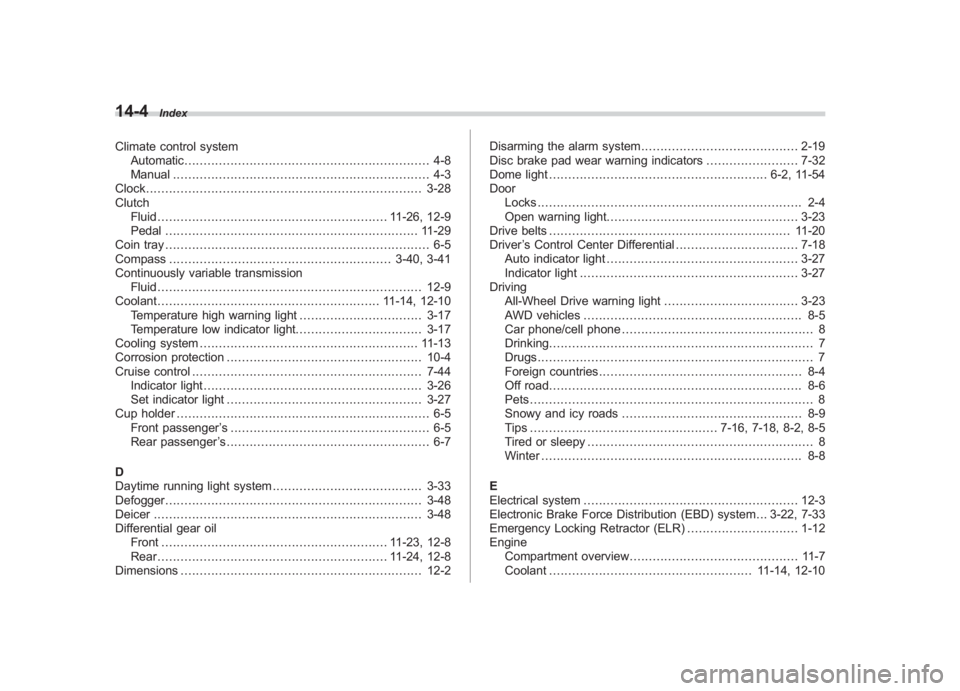

Index
14

Black plate (2,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
14-2
Index
A
ABS (Anti-lock Brake System) ..................................... 7-32
Warning light ......................................................... 3-21
Accessories ....................................................... 5-4, 11-46
Accessory power outlet ................................................. 6-8
Active head restraint ..................................................... 1-5
Air cleaner element ................................................... 11-17
Air conditioner Automatic climate control system ............................. 4-11
Manual climate control system ............................. 4-4, 4-7
Air filtration system ..................................................... 4-13
Airflow selection Automatic climate control system ......................... 4-2, 4-9
Manual climate control system ............................. 4-2, 4-4
Alarm system ............................................................ 2-16
All-Wheel Drive warning light ....................................... 3-23
Aluminum wheel ....................................................... 11-38
Cleaning ............................................................... 10-3
Antenna system ........................................................... 5-3
Anti-lock Brake System (ABS) ..................................... 7-32
Arming the system ..................................................... 2-17
Armrest ....................................................................... 1-8
Ashtray ..................................................................... 6-10
AT OIL TEMP warning light ......................................... 3-18
Audio Antenna system ....................................................... 5-3
Auxiliary input jack ................................................. 5-34
Bluetooth
®audio .................................................... 5-45
CD player operation ............................................... 5-23
Control button ........................................................ 5-42
FM/AM radio operation ........................................... 5-12 iPod
®operations
.................................................... 5-37
Power and sound controls ........................................ 5-8
Satellite radio operations ......................................... 5-17
Set ........................................................................\
5-4
USB storage device operations ................................ 5-37
Auto-dimming mirror/compass .............................. 3-40, 3-41
Automatic climate control system ................................... 4-8
Automatic transmission ............................................... 7-22
Fluid ........................................................... 11-22, 12-9
MANUAL mode ...................................................... 7-26
Oil temperature warning light (AT OIL TEMP) ............. 3-18
Select lever ........................................................... 7-23
Shift lock function ................................................... 7-24
SPORT mode ........................................................ 7-28
Automatic/Emergency Locking Retractor (A/ELR) ........... 1-12
Auxiliary input jack ...................................................... 5-34
B
Battery .................................................................... 11-44
Drainage prevention function ..................................... 2-5
Jump starting ......................................................... 9-11
Replacement (remote engine start transmitter) ........... 7-13
Replacement (remote keyless entry system) .............. 2-11
Bluetooth®audio ........................................................ 5-45
Booster seat .............................................................. 1-27
Bottle holder ............................................................... 6-7
Brake Assist .................................................................... 7-32
Booster ....................................................... 7-31, 11-27
Fluid ........................................................... 11-25, 12-9
Pad and lining ...................................................... 11-30

Black plate (3,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
Parking ........................................................ 7-40, 11-31
Pedal .................................................................. 11-28
System ................................................................. 7-31
Brake pedal Free play ............................................................. 11-28
Reserve distance .................................................. 11-28
Brake system ............................................................ 7-31
Warning light ......................................................... 3-21
Braking ..................................................................... 7-31
Tips...................................................................... 7-31
Breaking-in of new brake pads and linings ................... 11-30
Bulb Chart .................................................................. 12-16
Replacing ............................................................. 11-47
C
Cargo area Cover ................................................................... 6-12
Light ............................................................. 6-2, 11-54
Tie-down hooks ..................................................... 6-13
Catalytic converter ....................................................... 8-3
Center Console .................................................................. 6-5
Ventilators ............................................................... 4-3
Center and side ventilators ............................................ 4-3
Changing Coolant ................................................................ 11-15
Flat tire ................................................................... 9-6
Oil and oil filter ..................................................... 11-11
Charge warning light .................................................. 3-18 CHECK ENGINE warning light/Malfunction indicator
lamp ...................................................................... 3-16
Checking
Brake pedal free play ............................................ 11-28
Brake pedal reserve distance ................................. 11-28
Clutch function ..................................................... 11-29
Clutch pedal free play ........................................... 11-29
Coolant level ........................................................ 11-14
Fluid level (automatic transmission fluid) .................. 11-22
Fluid level (brake fluid) .......................................... 11-25
Fluid level (clutch fluid) .......................................... 11-26
Fluid level (power steering fluid) .. ........................... 11-24
Fluid level (washer fluid) ........................................ 11-38
Oil level (engine oil) .............................................. 11-10
Oil level (front differential gear oil) .......................... 11-23
Oil level (manual transmission oil) .......................... 11-21
Child restraint systems ................................................ 1-21
Installation of a booster seat .................................... 1-27
Installation with A/ELR seatbelt ... ............................. 1-24
Lower and tether anchorages ................................... 1-29
Top tether anchorages ............................................ 1-31
Child safety ................................................................... 5
Locks .................................................................... 2-21
Chime Key........................................................................\
3-5
Light ..................................................................... 3-31
Seatbelt. ................................................................ 3-14
Cleaning Aluminum wheels ................................................... 10-3
Interior .................................................................. 10-5
Ventilation grille ...................................................... 4-12
Index
14-3

Black plate (4,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
14-4
Index
Climate control system
Automatic ................................................................ 4-8
Manual ................................................................... 4-3
Clock ........................................................................\
3-28
Clutch Fluid ............................................................ 11-26, 12-9
Pedal .................................................................. 11-29
Coin tray ..................................................................... 6-5
Compass .......................................................... 3-40, 3-41
Continuously variable transmission Fluid ..................................................................... 12-9
Coolant .......................................................... 11-14, 12-10
Temperature high warning light ................................ 3-17
Temperature low indicator light. ................................ 3-17
Cooling system ......................................................... 11-13
Corrosion protection ................................................... 10-4
Cruise control ............................................................ 7-44
Indicator light ......................................................... 3-26
Set indicator light ................................................... 3-27
Cup holder .................................................................. 6-5
Front passenger ’s .................................................... 6-5
Rear passenger ’s..................................................... 6-7
D
Daytime running light system ....................................... 3-33
Defogger ................................................................... 3-48
Deicer ...................................................................... 3-48
Differential gear oil Front ........................................................... 11-23, 12-8
Rear ............................................................ 11-24, 12-8
Dimensions ............................................................... 12-2 Disarming the alarm system
......................................... 2-19
Disc brake pad wear warning indicators ........................ 7-32
Dome light ......................................................... 6-2, 11-54
Door Locks ..................................................................... 2-4
Open warning light. ................................................. 3-23
Drive belts ............................................................... 11-20
Driver ’s Control Center Differential ................................ 7-18
Auto indicator light .................................................. 3-27
Indicator light ......................................................... 3-27
Driving All-Wheel Drive warning light ................................... 3-23
AWD vehicles ......................................................... 8-5
Car phone/cell phone .................................................. 8
Drinking. .................................................................... 7
Drugs ........................................................................\
7
Foreign countries ..................................................... 8-4
Off road .................................................................. 8-6
Pets ........................................................................\
.. 8
Snowy and icy roads ............................................... 8-9
Tips ................................................. 7-16, 7-18, 8-2, 8-5
Tired or sleepy ........................................................... 8
Winter .................................................................... 8-8
E
Electrical system ........................................................ 12-3
Electronic Brake Force Distribution (EBD) system... 3-22, 7-33
Emergency Locking Retractor (ELR) ............................. 1-12
Engine Compartment overview ............................................ 11-7
Coolant ..................................................... 11-14, 12-10
