SUBARU LEGACY 1995 Service Repair Manual

OBD0003B

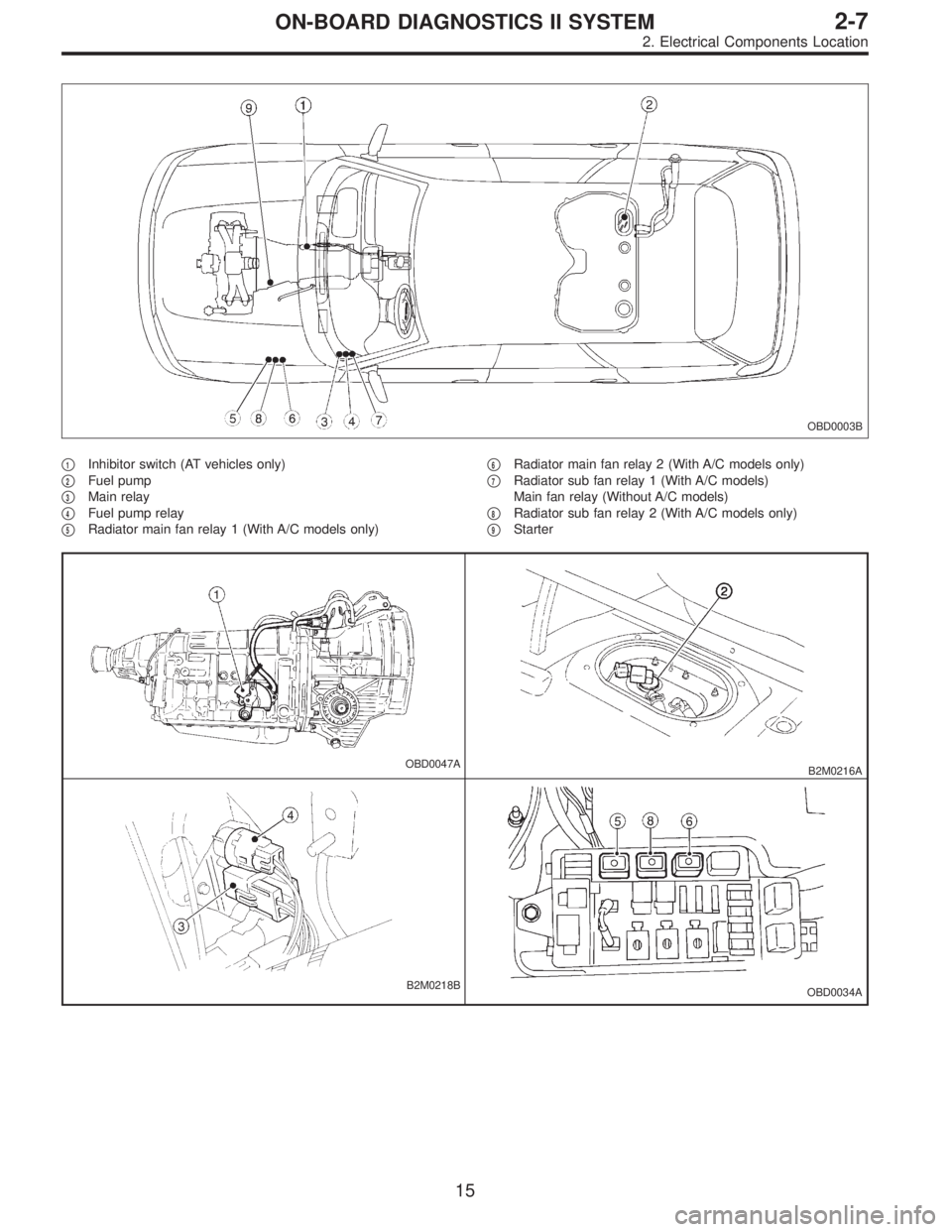

1Inhibitor switch (AT vehicles only)

2Fuel pump

3Main relay

4Fuel pump relay

5Radiator main fan relay 1 (With A/C models only)
6Radiator main fan relay 2 (With A/C models only)

7Radiator sub fan relay 1 (With A/C models)
Main fan relay (Without A/C models)

8Radiator sub fan relay 2 (With A/C models only)

9Starter
OBD0047AB2M0216A
B2M0218BOBD0034A
15
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

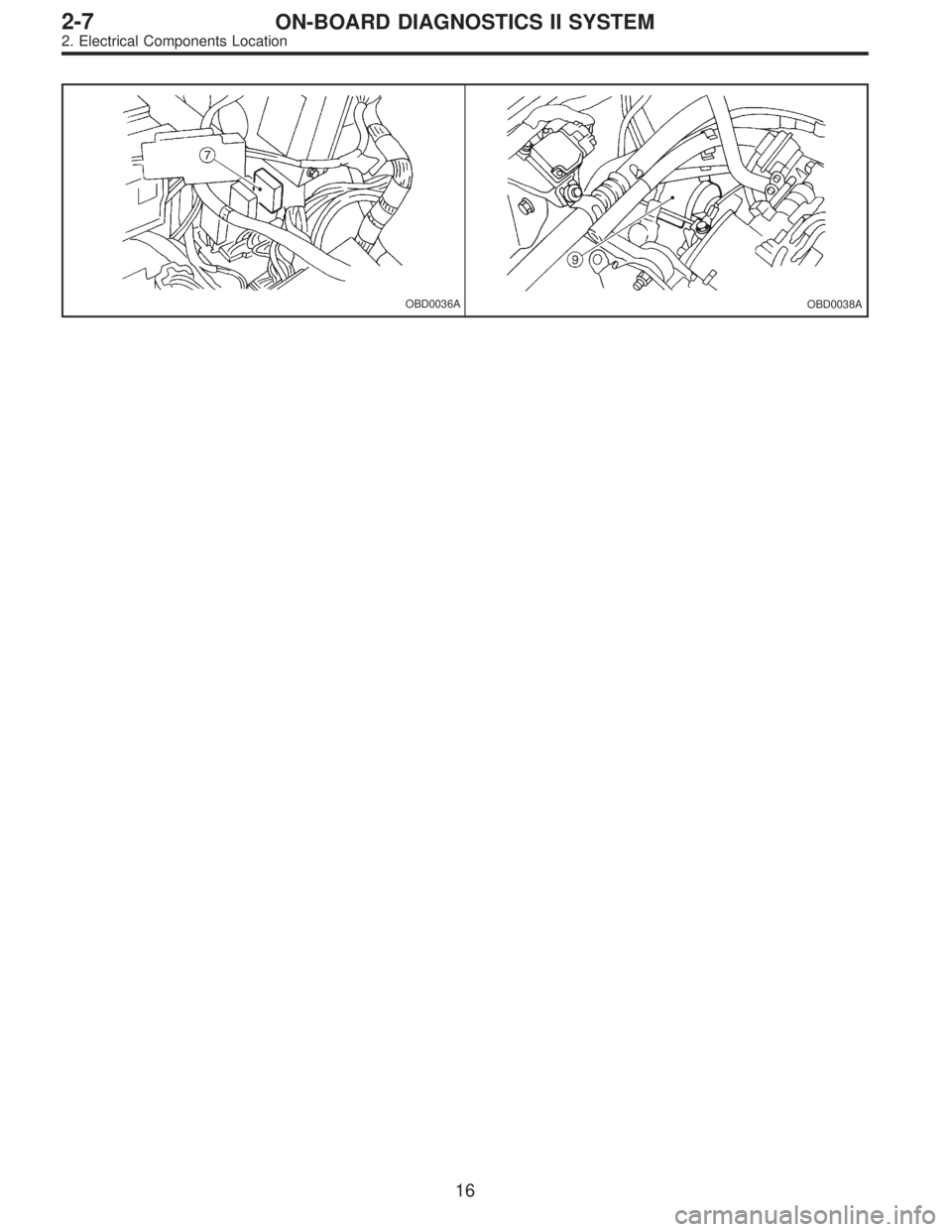

OBD0036AOBD0038A
16
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

5. SOLENOID VALVE, EMISSION CONTROL SYSTEM
PARTS AND IGNITION SYSTEM PARTS (RHD MODEL)
EPA0086
1Pressure sources switching solenoid valve

2Idle air control solenoid valve

3EGR valve

4EGR control solenoid valve
5Purge control solenoid valve

6Ignitor

7Ignition coil
OBD0021AOBD0022A
17
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

OBD0023AOBD0024A
OBD0025AOBD0026A
B6M0160A
18
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

B2M0430B

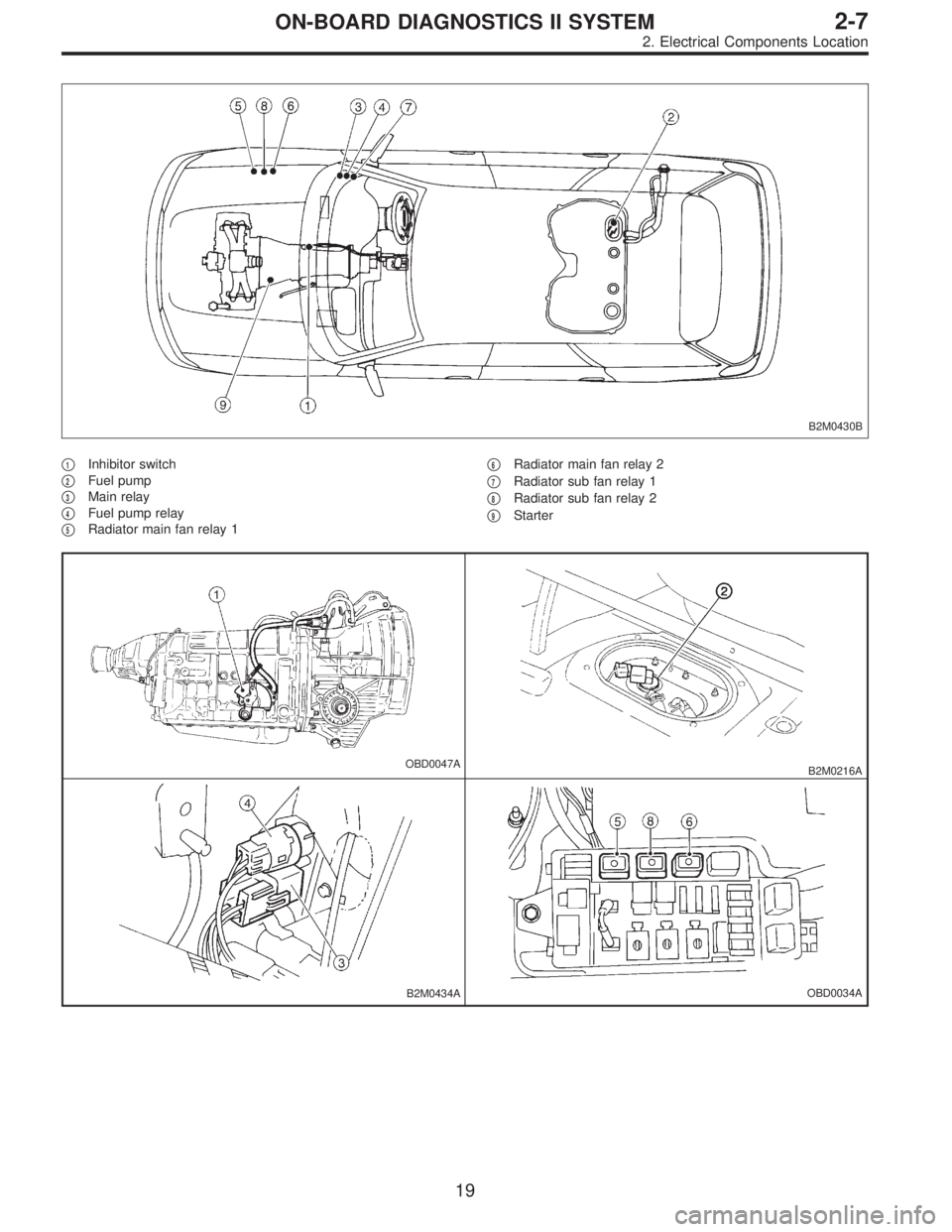

1Inhibitor switch

2Fuel pump

3Main relay

4Fuel pump relay

5Radiator main fan relay 1
6Radiator main fan relay 2

7Radiator sub fan relay 1

8Radiator sub fan relay 2

9Starter
OBD0047AB2M0216A
B2M0434AOBD0034A
19
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

OBD0036AOBD0038A
20
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

B: TRANSMISSION
1. MODULE (LHD MODEL)
OBD0039A

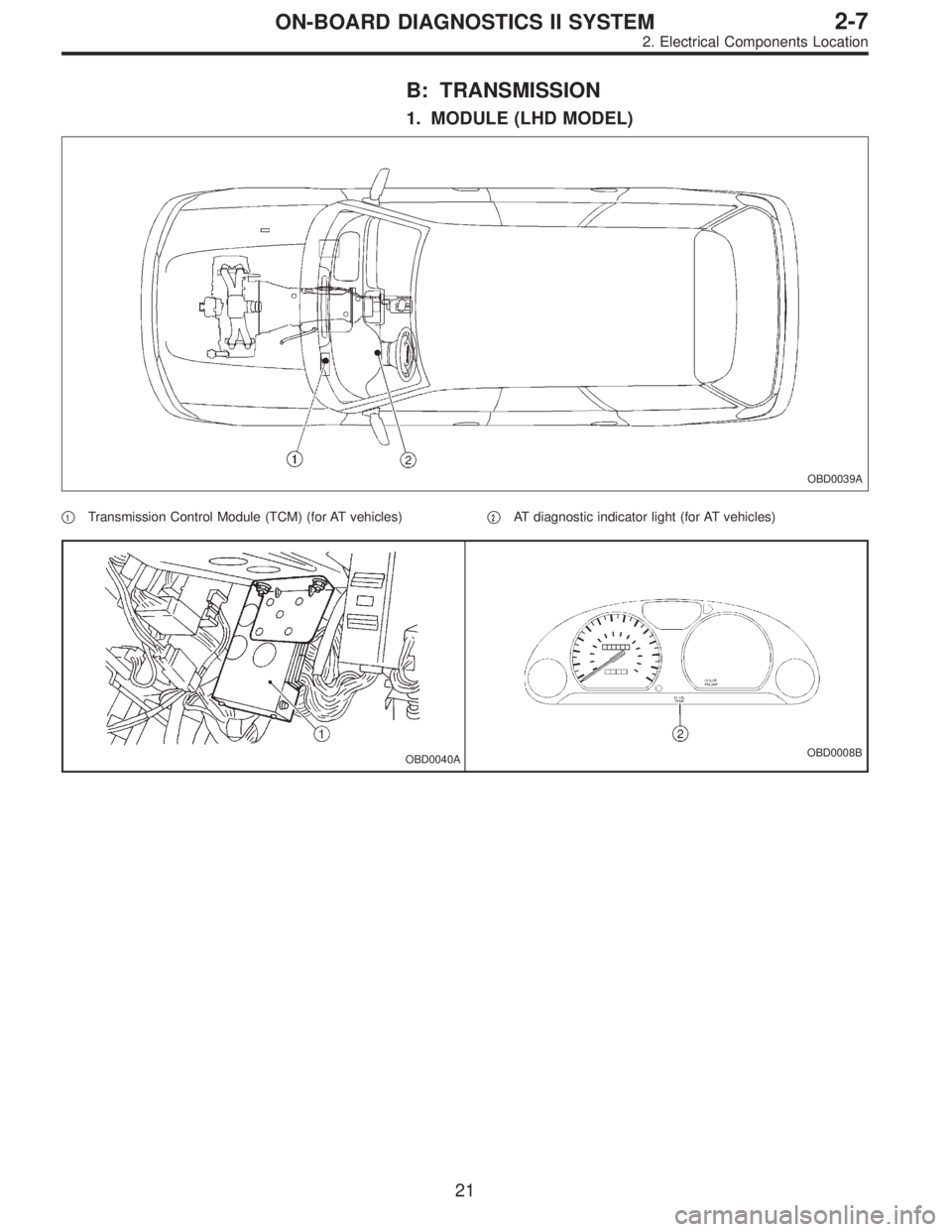

1Transmission Control Module (TCM) (for AT vehicles)2AT diagnostic indicator light (for AT vehicles)
OBD0040AOBD0008B
21
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

2. MODULE (RHD MODEL)
B2M0430C

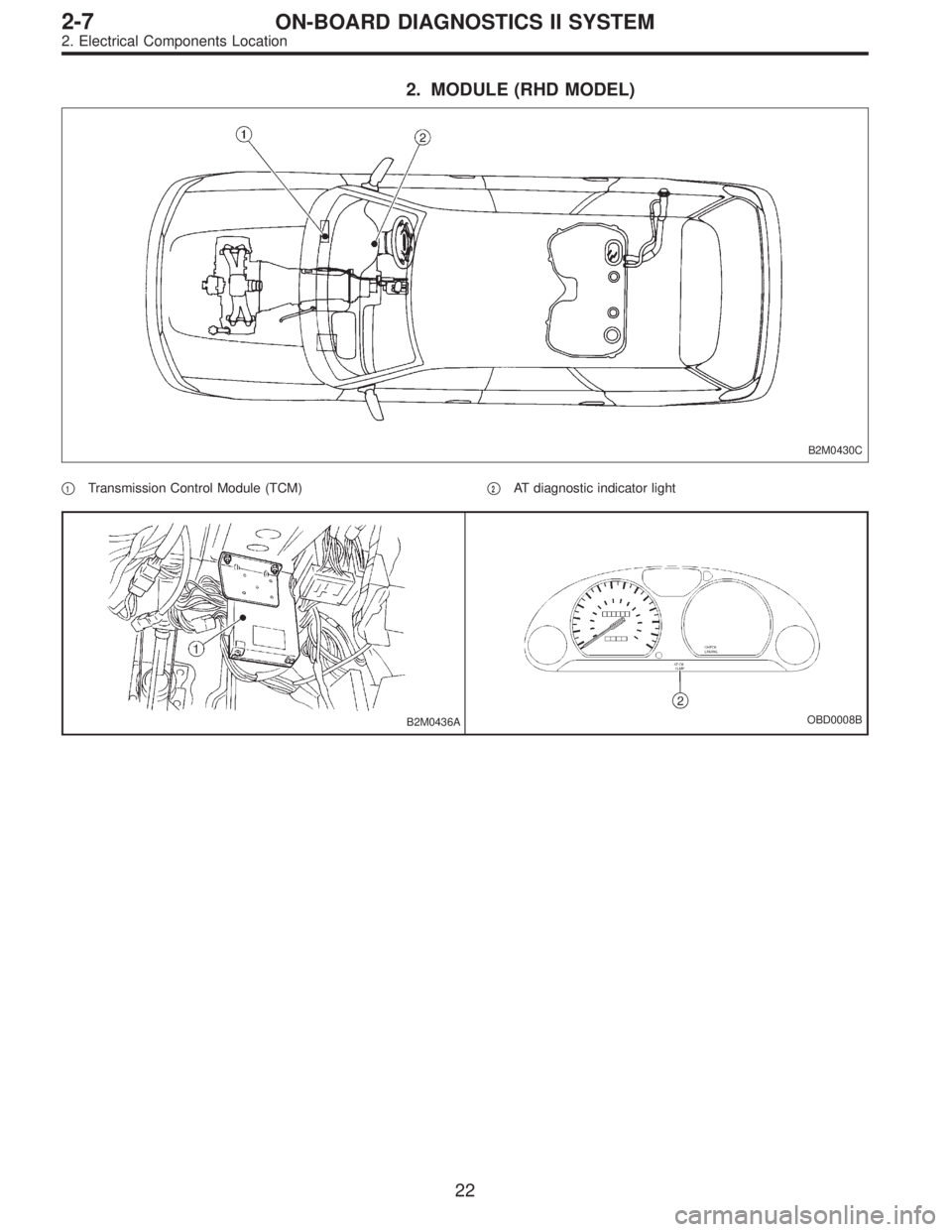

1Transmission Control Module (TCM)2AT diagnostic indicator light
B2M0436AOBD0008B
22
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

3. SENSOR (LHD MODEL)
OBD0041AOBD0042A
OBD0043AOBD0044A
H2M1145COBD0653A
1Vehicle speed sensor 1 (for AT FWD vehicles)

2Vehicle speed sensor 1 (for AT AWD vehicles)

3Vehicle speed sensor 2 (for MT vehicles)
4Vehicle speed sensor 2 (for AT vehicles)

5ATF temperature sensor (for AT vehicles)

6Brake light switch
23
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location

4. SENSOR (RHD MODEL)
OBD0042BOBD0044B
B2M0464AB2M0437A

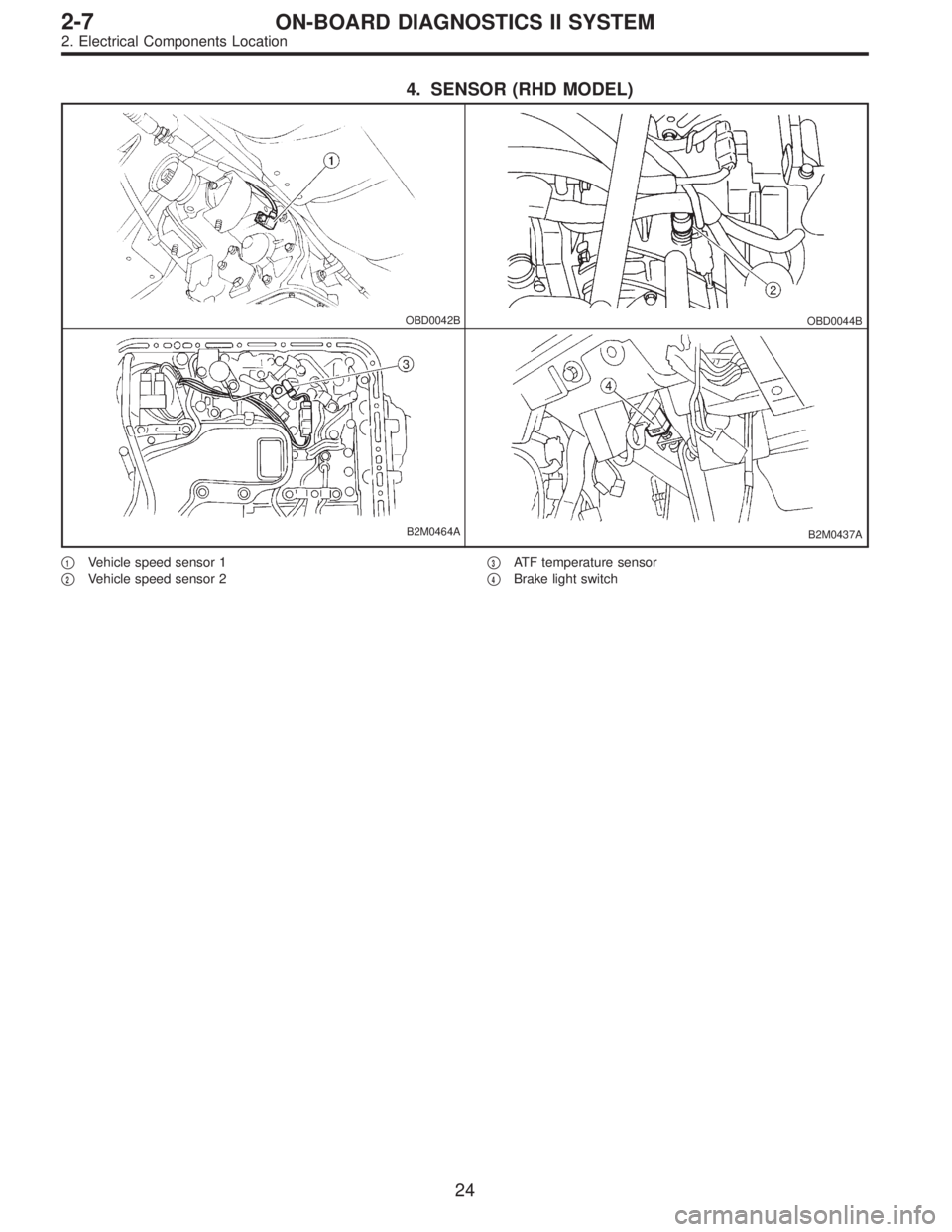

1Vehicle speed sensor 1

2Vehicle speed sensor 2
3ATF temperature sensor

4Brake light switch
24
2-7ON-BOARD DIAGNOSTICS II SYSTEM
2. Electrical Components Location
