2. FRONT WIRING HARNESS AND GROUND POINT (RHD MODEL)
11 5

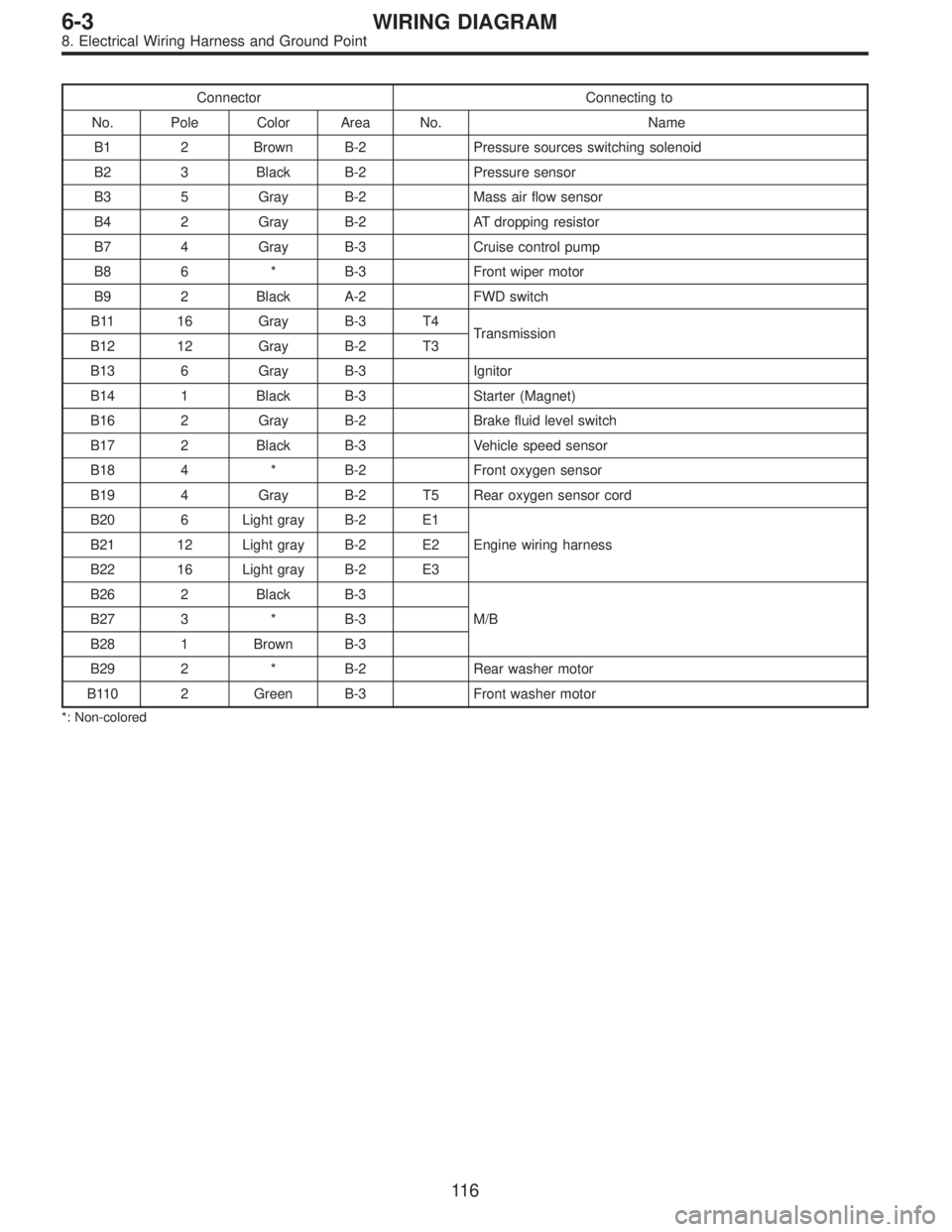

6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Connector Connecting to
No. Pole Color Area No. Name
B1 2 Brown B-2 Pressure sources switching solenoid
B2 3 Black B-2 Pressure sensor
B3 5 Gray B-2 Mass air flow sensor
B4 2 Gray B-2 AT dropping resistor
B7 4 Gray B-3 Cruise control pump
B8 6 * B-3 Front wiper motor
B9 2 Black A-2 FWD switch
B11 16 Gray B-3 T4
Transmission
B12 12 Gray B-2 T3
B13 6 Gray B-3 Ignitor
B14 1 Black B-3 Starter (Magnet)
B16 2 Gray B-2 Brake fluid level switch
B17 2 Black B-3 Vehicle speed sensor
B18 4 * B-2 Front oxygen sensor
B19 4 Gray B-2 T5 Rear oxygen sensor cord
B20 6 Light gray B-2 E1
Engine wiring harness B21 12 Light gray B-2 E2
B22 16 Light gray B-2 E3
B26 2 Black B-3
M/B B27 3 * B-3
B28 1 Brown B-3
B29 2 * B-2 Rear washer motor
B110 2 Green B-3 Front washer motor
*: Non-colored
11 6
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

3. BULKHEAD WIRING HARNESS AND GROUND POINT (IN ENGINE ROOM) (LHD MODEL)
B6M0256A

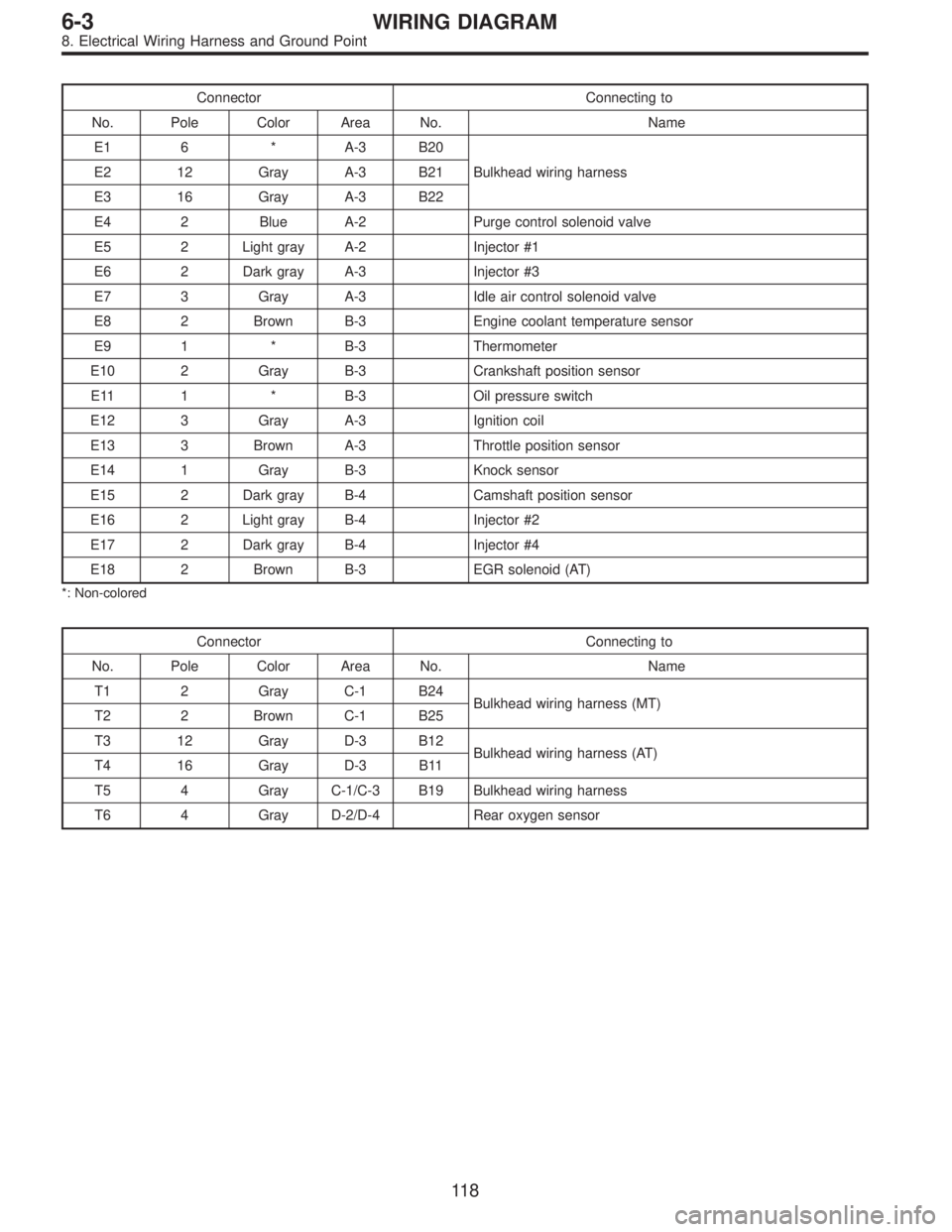

11 7
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Connector Connecting to
No. Pole Color Area No. Name
E1 6 * A-3 B20
Bulkhead wiring harness E2 12 Gray A-3 B21
E3 16 Gray A-3 B22
E4 2 Blue A-2 Purge control solenoid valve
E5 2 Light gray A-2 Injector #1
E6 2 Dark gray A-3 Injector #3
E7 3 Gray A-3 Idle air control solenoid valve
E8 2 Brown B-3 Engine coolant temperature sensor
E9 1 * B-3 Thermometer
E10 2 Gray B-3 Crankshaft position sensor
E11 1 * B-3 Oil pressure switch
E12 3 Gray A-3 Ignition coil
E13 3 Brown A-3 Throttle position sensor
E14 1 Gray B-3 Knock sensor
E15 2 Dark gray B-4 Camshaft position sensor
E16 2 Light gray B-4 Injector #2
E17 2 Dark gray B-4 Injector #4
E18 2 Brown B-3 EGR solenoid (AT)
*: Non-colored
Connector Connecting to
No. Pole Color Area No. Name
T1 2 Gray C-1 B24
Bulkhead wiring harness (MT)
T2 2 Brown C-1 B25
T3 12 Gray D-3 B12
Bulkhead wiring harness (AT)
T4 16 Gray D-3 B11
T5 4 Gray C-1/C-3 B19 Bulkhead wiring harness
T6 4 Gray D-2/D-4 Rear oxygen sensor
11 8
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

4. BULKHEAD WIRING HARNESS AND GROUND POINT (IN ENGINE ROOM) (RHD MODEL)

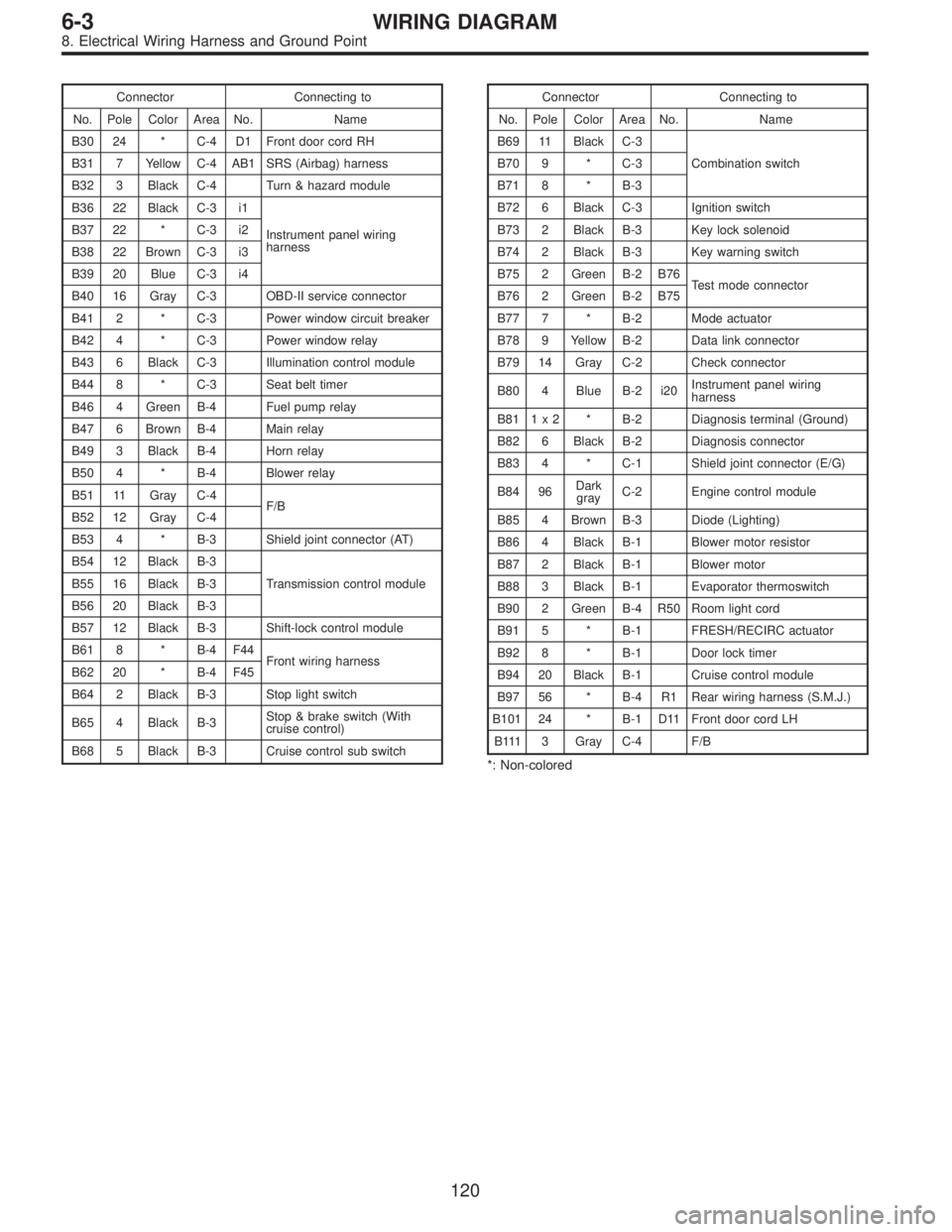

11 9
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Connector Connecting to
No. Pole Color Area No. Name
B30 24 * C-4 D1 Front door cord RH
B31 7 Yellow C-4 AB1 SRS (Airbag) harness
B32 3 Black C-4 Turn & hazard module
B36 22 Black C-3 i1
Instrument panel wiring
harness B37 22 * C-3 i2
B38 22 Brown C-3 i3
B39 20 Blue C-3 i4
B40 16 Gray C-3 OBD-II service connector
B41 2 * C-3 Power window circuit breaker
B42 4 * C-3 Power window relay
B43 6 Black C-3 Illumination control module
B44 8 * C-3 Seat belt timer
B46 4 Green B-4 Fuel pump relay
B47 6 Brown B-4 Main relay
B49 3 Black B-4 Horn relay
B50 4 * B-4 Blower relay
B51 11 Gray C-4
F/B
B52 12 Gray C-4
B53 4 * B-3 Shield joint connector (AT)
B54 12 Black B-3
Transmission control module B55 16 Black B-3
B56 20 Black B-3
B57 12 Black B-3 Shift-lock control module
B61 8 * B-4 F44
Front wiring harness
B62 20 * B-4 F45
B64 2 Black B-3 Stop light switch
B65 4 Black B-3Stop & brake switch (With
cruise control)
B68 5 Black B-3 Cruise control sub switchConnector Connecting to
No. Pole Color Area No. Name
B69 11 Black C-3
Combination switch B70 9 * C-3
B71 8 * B-3
B72 6 Black C-3 Ignition switch
B73 2 Black B-3 Key lock solenoid
B74 2 Black B-3 Key warning switch
B75 2 Green B-2 B76
Test mode connector
B76 2 Green B-2 B75
B77 7 * B-2 Mode actuator
B78 9 Yellow B-2 Data link connector
B79 14 Gray C-2 Check connector
B80 4 Blue B-2 i20Instrument panel wiring
harness
B81 1 x 2 * B-2 Diagnosis terminal (Ground)
B82 6 Black B-2 Diagnosis connector
B83 4 * C-1 Shield joint connector (E/G)
B84 96Dark
grayC-2 Engine control module
B85 4 Brown B-3 Diode (Lighting)
B86 4 Black B-1 Blower motor resistor
B87 2 Black B-1 Blower motor
B88 3 Black B-1 Evaporator thermoswitch
B90 2 Green B-4 R50 Room light cord
B91 5 * B-1 FRESH/RECIRC actuator
B92 8 * B-1 Door lock timer
B94 20 Black B-1 Cruise control module
B97 56 * B-4 R1 Rear wiring harness (S.M.J.)
B101 24 * B-1 D11 Front door cord LH
B111 3 Gray C-4 F/B
*: Non-colored
120
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

5. ENGINE WIRING HARNESS, TRANSMISSION CORD AND GROUND POINT
EPA0033
121
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Connector Connecting to
No. Pole Color Area No. Name
B30 24 * C-1 D1 Front door cord LH
B31 7 Yellow C-1 AB1 SRS (Airbag) harness
B32 3 Black C-1 Turn & hazard module
B33 4 Brown B-1 Diode (T.C.S.)
B34 3 * B-1 Diode (Door warning)
B35 2 Black B-1 Diode (Step light)
B36 22 Black C-1 i1
Instrument panel wiring
harness B37 22 * C-1 i2
B38 22 Brown C-1 i3
B39 20 Blue C-1 i4
B40 16 Gray C-2 OBD-II service connector
B41 2 * C-2 Power window circuit breaker
B42 4 * C-2Power window and sunroof
relay
B43 6 Black C-2 Illumination control module
B44 8 * C-2 Seat belt timer
B45 4 * B-1 R53 Sunroof cord
B46 4 Green B-1 Fuel pump relay
B47 6 Brown B-1 Main relay
B48 4 Blue B-1 Front fog light relay
B49 3 Black B-1 Horn relay
B50 4 * B-1 Blower relay
B51 11 Gray B-1
F/B
B52 12 Gray B-1
B53 4 * B-2 Shield joint connector (AT)
B54 12 Black B-2
Transmission control module B55 16 Black B-2
B56 20 Black B-2
B57 12 Black B-2 Shift-lock control module
B58 5 Black B-1Headlight alarm relay
(Security)
B59 5 Black B-1 Interrupt relay (Security)
B60 4 * B-2Shield joint connector (A.B.S.
and T.C.S.)
B61 8 * B-2 F44
Front wiring harness
B62 20 * B-1 F45
B6314 * B-1 P10 Floor harness (A.B.S.)
40 Gray B-1 P10 Floor harness (T.C.S.)
B64 2 Black B-2 Stop light switch
B65 4 Black B-2Stop & brake switch (With
cruise control)
B66 3 Black B-2 Pedal stroke sensor (T.C.S.)
B67 4 Black B-2 Pedal stroke switch (T.C.S.)
B68 5 Black B-3 Slip ring
B69 11 Black B-3
Combination switch B70 9 * B-3
B71 8 * B-3
B72 6 Black B-3 Ignition switchConnector Connecting to
No. Pole Color Area No. Name
B73 2 Black B-3 Key lock solenoid (AT)
B74 2 Black B-3 Key warning switch
B75 2 Green C-2 B76
Test mode connector
B76 2 Green C-3 B75
B77 10 Brown B-2 Mode actuator
B78 9 Yellow C-2 Data link connector
B79 14 Gray C-2 Check connector
B80 4 Blue B-2 i20Instrument panel wiring
harness
B81 1 x 2 * C-2 Diagnosis terminal (Ground)
B82 6 Black C-2 Diagnosis connector
B83 4 * C-3 Shield joint connector (E/G)
B84 96Dark
grayB-3 Engine control module
B85 2 Black B-3 Diode (Lighting)
B86 4 * B-3 Blower motor resistor
B87 2 * B-3 Blower motor
B88 3 Black B-3 Evaporator thermoswitch
B89 4 Brown B-3 Diode (Security)
B90 4 B-4 R50 Room light cord
B91 4 * B-4 FRESH/RECIRC actuator
B92 8 * B-4 Door lock timer
B93 16 Black B-4 Security control module
B94 20 Black B-4 Cruise control module
B95 2 Black B-4 Diode (Daytime running light)
B96 10 * B-4Daytime running light control
module
B97 8 * B-4 R1
Rear wiring harness B98 16 Black B-4 R2
B99 24 * B-4 R3
B100 3 * B-4 F2Front wiring harness (A.B.S.
and T.C.S.)
B101 24 * B-4 D11 Front door cord RH
B102 5 Black B-4 Daytime running light relay
B103 4 Blue B-4High-beam relay (Daytime
running light)
B104 4 Pink B-4 Rear power supply relay
B105 4 Blue B-1 Starter interlock relay (MT)
B106 2 * B-1 Clutch switch (MT)
B107 2 Blue B-1 Clutch switch (Cruise control)
B108 2 Black B-2 F46Front wiring harness
(Outback)
B109 4 Black C-1 Fuse holder (Outback)
*: Non-colored
Connector Connecting to
No. Pole Color Area No. Name
S1 3 White D-3 Cruise control sub switch
122
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

6. BULKHEAD WIRING HARNESS (IN COMPARTMENT) (LHD MODEL)
B6M0544

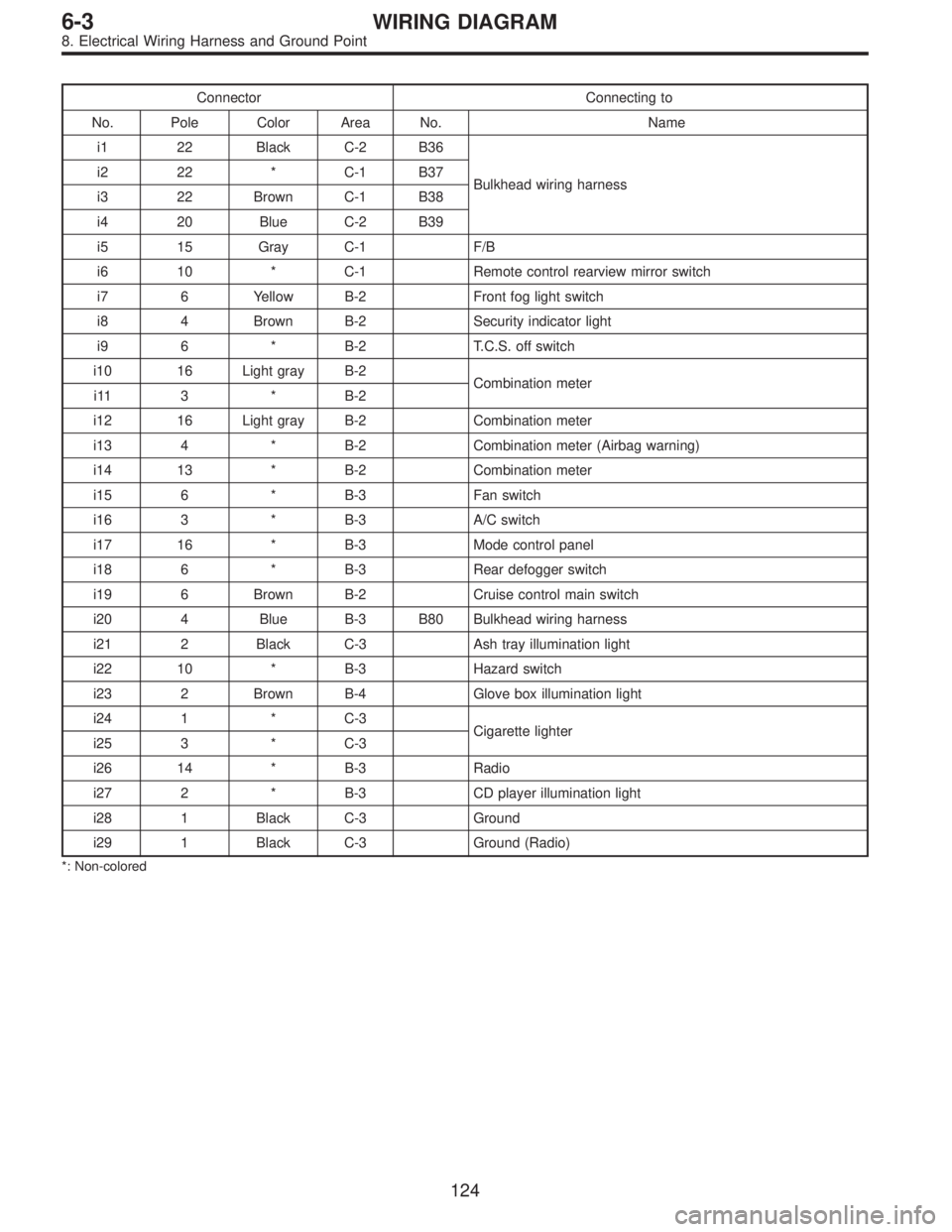

123
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Connector Connecting to
No. Pole Color Area No. Name
i1 22 Black C-2 B36
Bulkhead wiring harness i2 22 * C-1 B37
i3 22 Brown C-1 B38
i4 20 Blue C-2 B39
i5 15 Gray C-1 F/B
i6 10 * C-1 Remote control rearview mirror switch
i7 6 Yellow B-2 Front fog light switch
i8 4 Brown B-2 Security indicator light
i9 6 * B-2 T.C.S. off switch
i10 16 Light gray B-2
Combination meter
i11 3 * B-2
i12 16 Light gray B-2 Combination meter
i13 4 * B-2 Combination meter (Airbag warning)
i14 13 * B-2 Combination meter
i15 6 * B-3 Fan switch
i16 3 * B-3 A/C switch
i17 16 * B-3 Mode control panel
i18 6 * B-3 Rear defogger switch
i19 6 Brown B-2 Cruise control main switch
i20 4 Blue B-3 B80 Bulkhead wiring harness
i21 2 Black C-3 Ash tray illumination light
i22 10 * B-3 Hazard switch
i23 2 Brown B-4 Glove box illumination light
i24 1 * C-3
Cigarette lighter
i25 3 * C-3
i26 14 * B-3 Radio
i27 2 * B-3 CD player illumination light
i28 1 Black C-3 Ground
i29 1 Black C-3 Ground (Radio)
*: Non-colored
124
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
