SUBARU LEGACY 1995 Service Repair Manual

B5M0304
15. Roof Rack (Wagon only, if
equipped)
A: REMOVAL
1) Remove roof trim, rear quarter trim, pillar trim, etc.

2) Remove flange bolts.
3) Remove flange nuts.
4) Remove roof rail.
B: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To prevent deformation, be sure to install roof rail in
steps 4), 3), 2) and 1), in that order.
B5M0307A
16. Sunroof
A: REMOVAL
1. GLASS LID ASSEMBLY
1) Completely open sun shade. (Push it back far.)
2) Remove a clip and detach guide rail cover.
3) Remove six nuts from the left and right lid bracket.
4) Working inside, slightly raise glass lid assembly until it
is disengaged from lid bracket.
5) Hold both ends of glass lid assembly and remove it at
an angle.
B5M0308B
2. SUNROOF MOTOR AND RELAY
1) Remove center pillar trim upper.
2) Remove front pillar trim upper.
3) Remove assist grip on left side.
4) Remove sunvisor with hook.
5) Remove sunroof switch.
6) Remove rearview mirror.
7) While rolling up roof trim, disconnect harness clips and
connector.
8) While rolling up roof trim, remove spot lamp bracket and
sunroof motor.
51
5-1SERVICE PROCEDURE
15. Roof Rack (Wagon only, if equipped) - 16. Sunroof

B5M0304

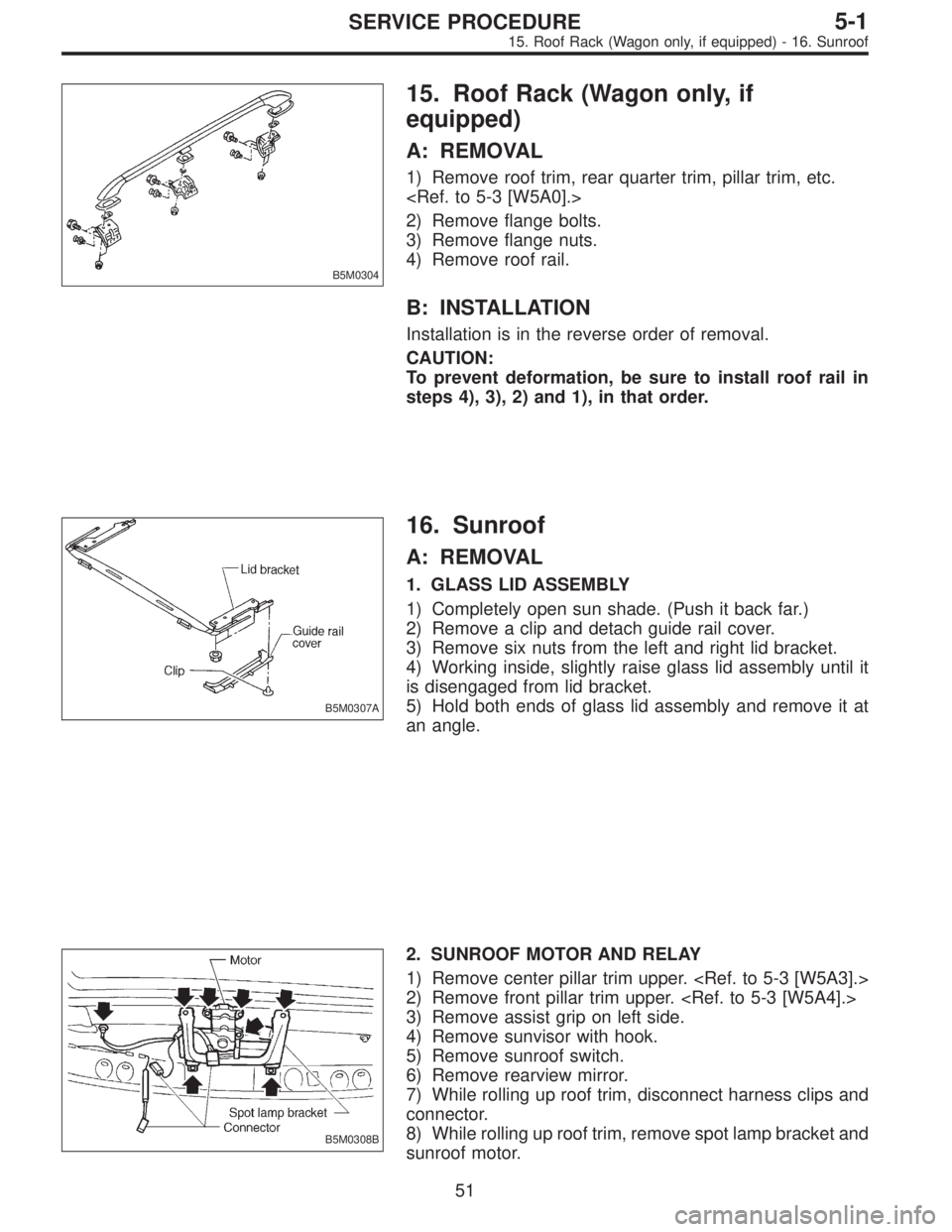

15. Roof Rack (Wagon only, if
equipped)
A: REMOVAL
1) Remove roof trim, rear quarter trim, pillar trim, etc.

2) Remove flange bolts.
3) Remove flange nuts.
4) Remove roof rail.
B: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To prevent deformation, be sure to install roof rail in
steps 4), 3), 2) and 1), in that order.
B5M0307A
16. Sunroof
A: REMOVAL
1. GLASS LID ASSEMBLY
1) Completely open sun shade. (Push it back far.)
2) Remove a clip and detach guide rail cover.
3) Remove six nuts from the left and right lid bracket.
4) Working inside, slightly raise glass lid assembly until it
is disengaged from lid bracket.
5) Hold both ends of glass lid assembly and remove it at
an angle.
B5M0308B
2. SUNROOF MOTOR AND RELAY
1) Remove center pillar trim upper.
2) Remove front pillar trim upper.
3) Remove assist grip on left side.
4) Remove sunvisor with hook.
5) Remove sunroof switch.
6) Remove rearview mirror.
7) While rolling up roof trim, disconnect harness clips and
connector.
8) While rolling up roof trim, remove spot lamp bracket and
sunroof motor.
51
5-1SERVICE PROCEDURE
15. Roof Rack (Wagon only, if equipped) - 16. Sunroof

B5M0310A

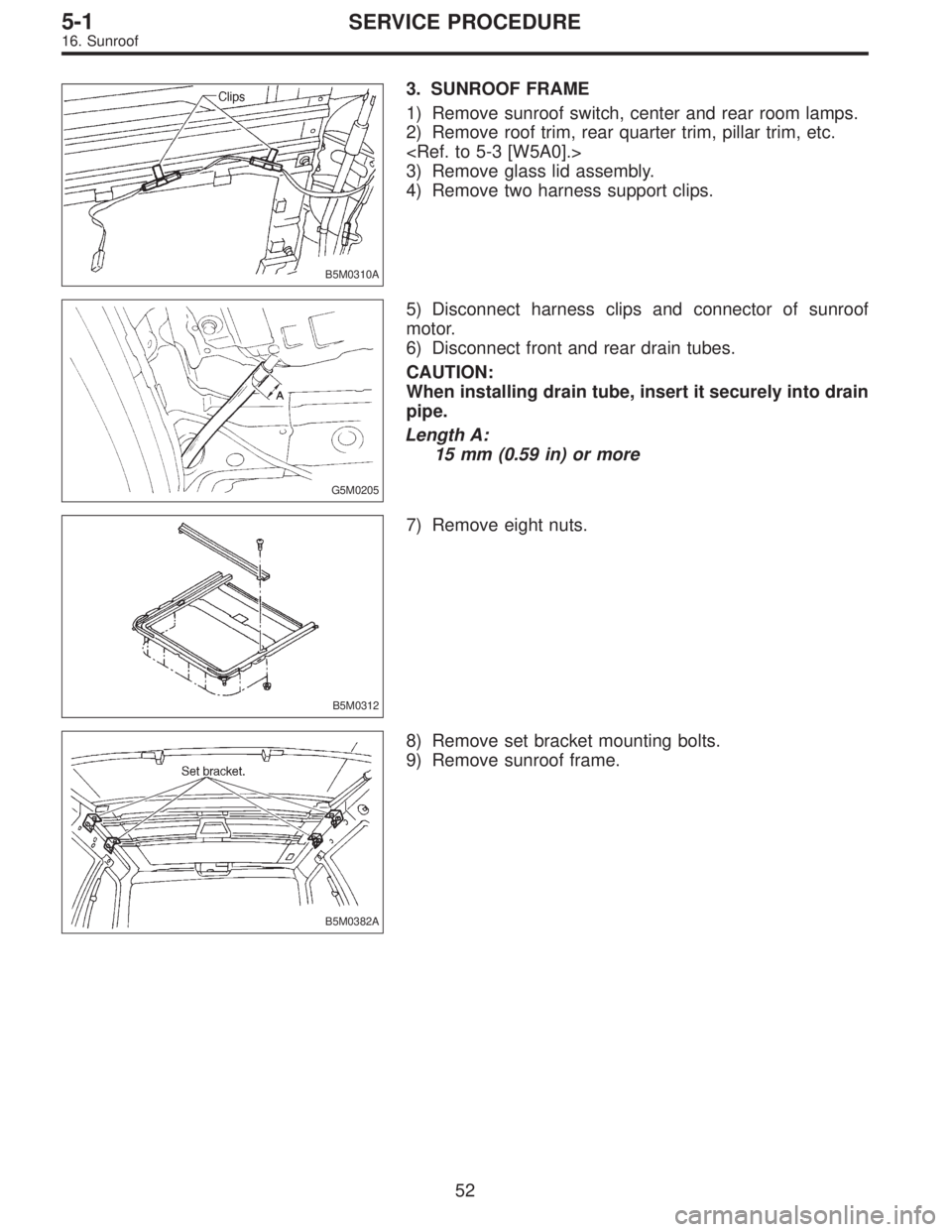

3. SUNROOF FRAME
1) Remove sunroof switch, center and rear room lamps.
2) Remove roof trim, rear quarter trim, pillar trim, etc.

3) Remove glass lid assembly.
4) Remove two harness support clips.
G5M0205
5) Disconnect harness clips and connector of sunroof
motor.
6) Disconnect front and rear drain tubes.
CAUTION:
When installing drain tube, insert it securely into drain
pipe.
Length A:
15 mm (0.59 in) or more
B5M0312
7) Remove eight nuts.
B5M0382A
8) Remove set bracket mounting bolts.
9) Remove sunroof frame.
52
5-1SERVICE PROCEDURE
16. Sunroof

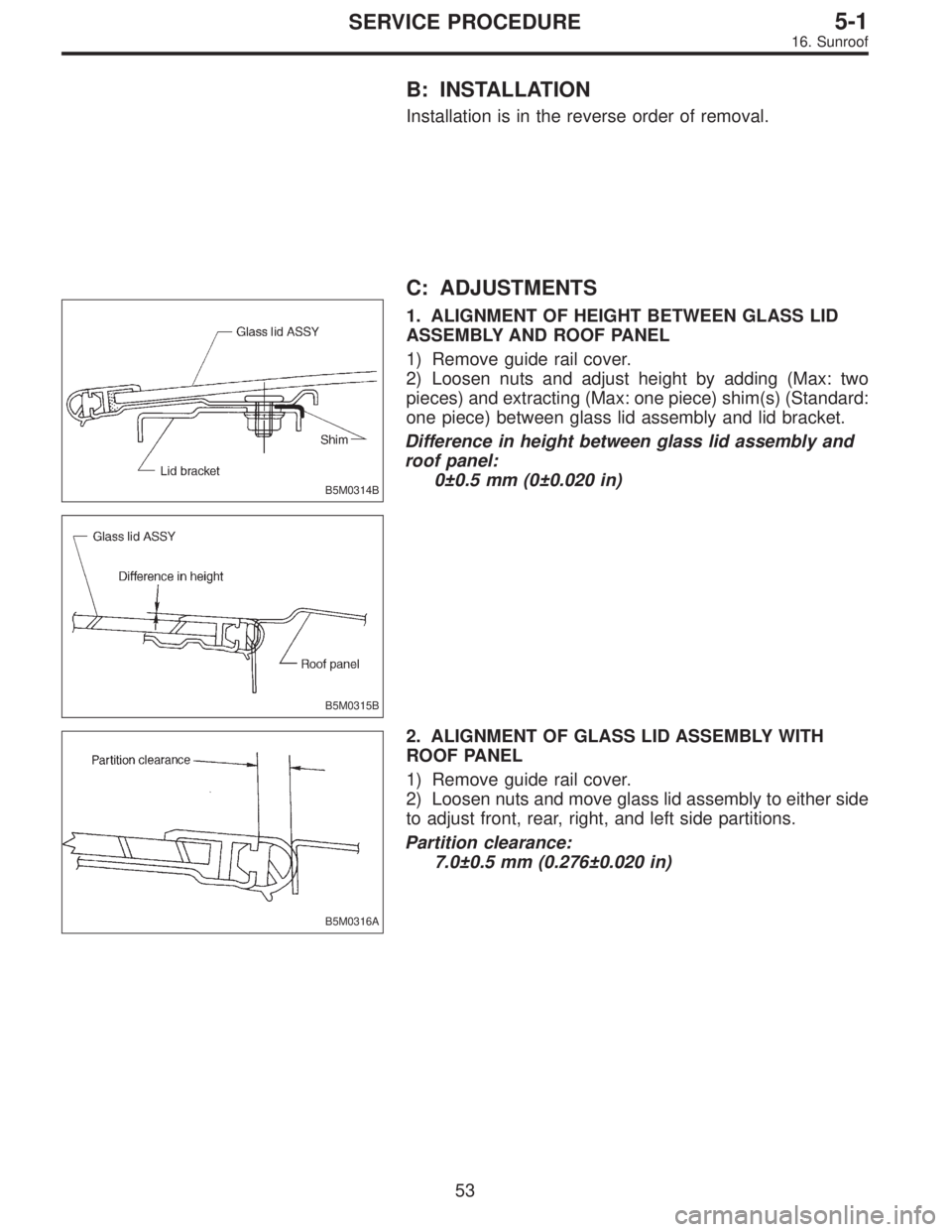

B: INSTALLATION
Installation is in the reverse order of removal.
B5M0314B
B5M0315B
C: ADJUSTMENTS
1. ALIGNMENT OF HEIGHT BETWEEN GLASS LID
ASSEMBLY AND ROOF PANEL
1) Remove guide rail cover.
2) Loosen nuts and adjust height by adding (Max: two
pieces) and extracting (Max: one piece) shim(s) (Standard:
one piece) between glass lid assembly and lid bracket.
Difference in height between glass lid assembly and
roof panel:
0±0.5 mm (0±0.020 in)
B5M0316A
2. ALIGNMENT OF GLASS LID ASSEMBLY WITH
ROOF PANEL
1) Remove guide rail cover.
2) Loosen nuts and move glass lid assembly to either side
to adjust front, rear, right, and left side partitions.
Partition clearance:
7.0±0.5 mm (0.276±0.020 in)
53
5-1SERVICE PROCEDURE
16. Sunroof

B5M0317

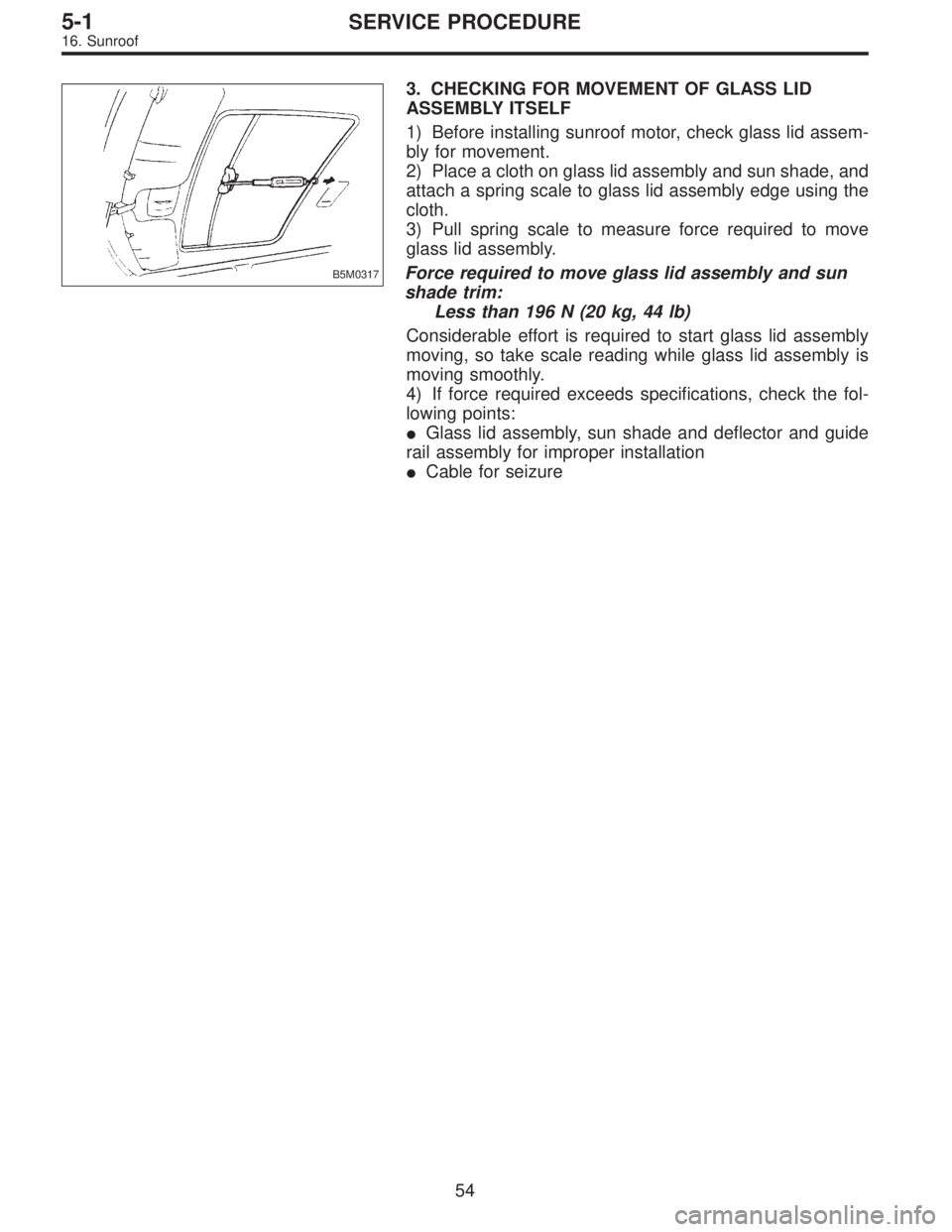

3. CHECKING FOR MOVEMENT OF GLASS LID
ASSEMBLY ITSELF
1) Before installing sunroof motor, check glass lid assem-
bly for movement.
2) Place a cloth on glass lid assembly and sun shade, and
attach a spring scale to glass lid assembly edge using the
cloth.
3) Pull spring scale to measure force required to move
glass lid assembly.
Force required to move glass lid assembly and sun
shade trim:
Less than 196 N (20 kg, 44 lb)
Considerable effort is required to start glass lid assembly
moving, so take scale reading while glass lid assembly is
moving smoothly.
4) If force required exceeds specifications, check the fol-
lowing points:

Glass lid assembly, sun shade and deflector and guide
rail assembly for improper installation

Cable for seizure
54
5-1SERVICE PROCEDURE
16. Sunroof

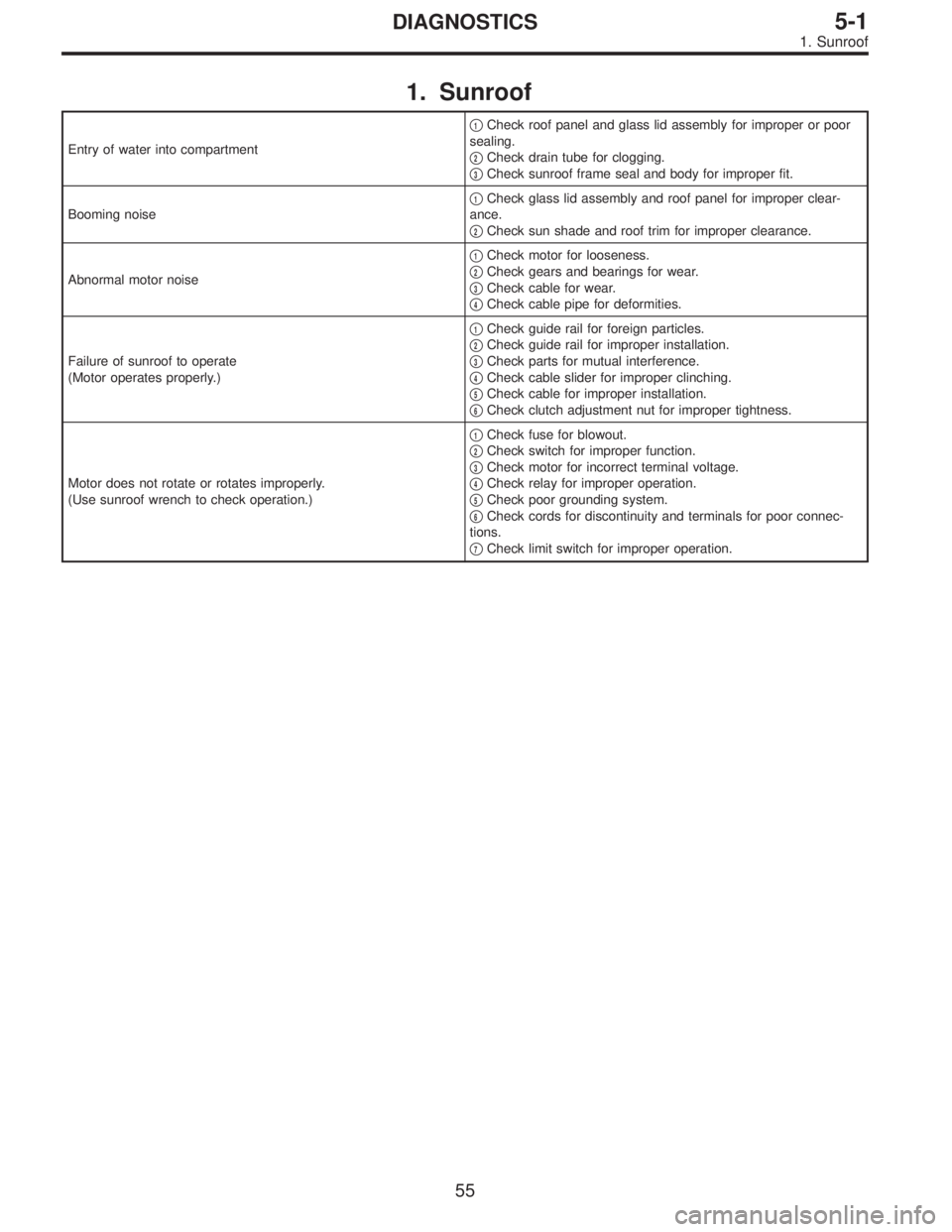

1. Sunroof
Entry of water into compartment
1Check roof panel and glass lid assembly for improper or poor
sealing.

2Check drain tube for clogging.

3Check sunroof frame seal and body for improper fit.
Booming noise
1Check glass lid assembly and roof panel for improper clear-
ance.

2Check sun shade and roof trim for improper clearance.
Abnormal motor noise
1Check motor for looseness.

2Check gears and bearings for wear.

3Check cable for wear.

4Check cable pipe for deformities.
Failure of sunroof to operate
(Motor operates properly.)
1Check guide rail for foreign particles.

2Check guide rail for improper installation.

3Check parts for mutual interference.

4Check cable slider for improper clinching.

5Check cable for improper installation.

6Check clutch adjustment nut for improper tightness.
Motor does not rotate or rotates improperly.
(Use sunroof wrench to check operation.)
1Check fuse for blowout.

2Check switch for improper function.

3Check motor for incorrect terminal voltage.

4Check relay for improper operation.

5Check poor grounding system.

6Check cords for discontinuity and terminals for poor connec-
tions.

7Check limit switch for improper operation.
55
5-1DIAGNOSTICS
1. Sunroof

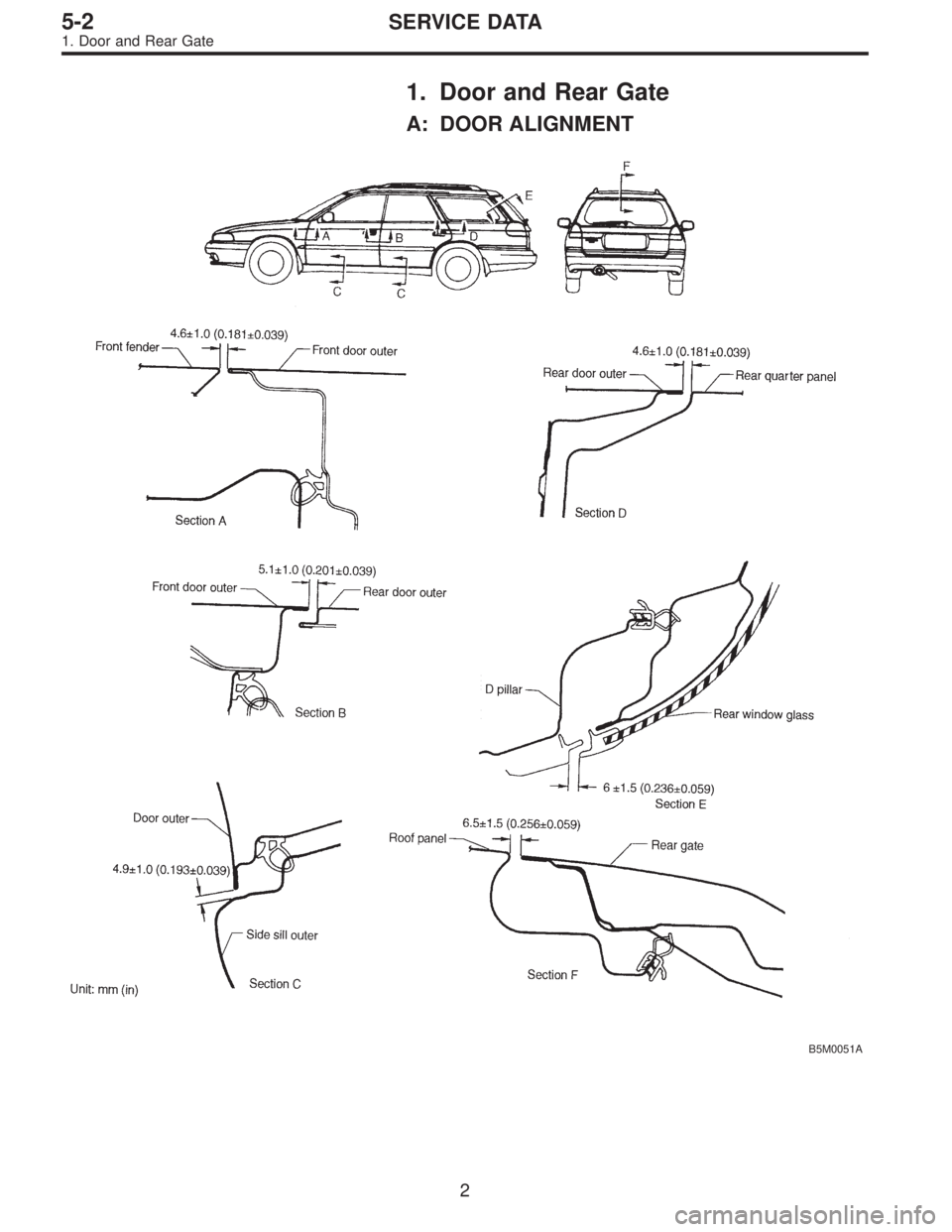

1. Door and Rear Gate
A: DOOR ALIGNMENT
B5M0051A
2
5-2SERVICE DATA
1. Door and Rear Gate

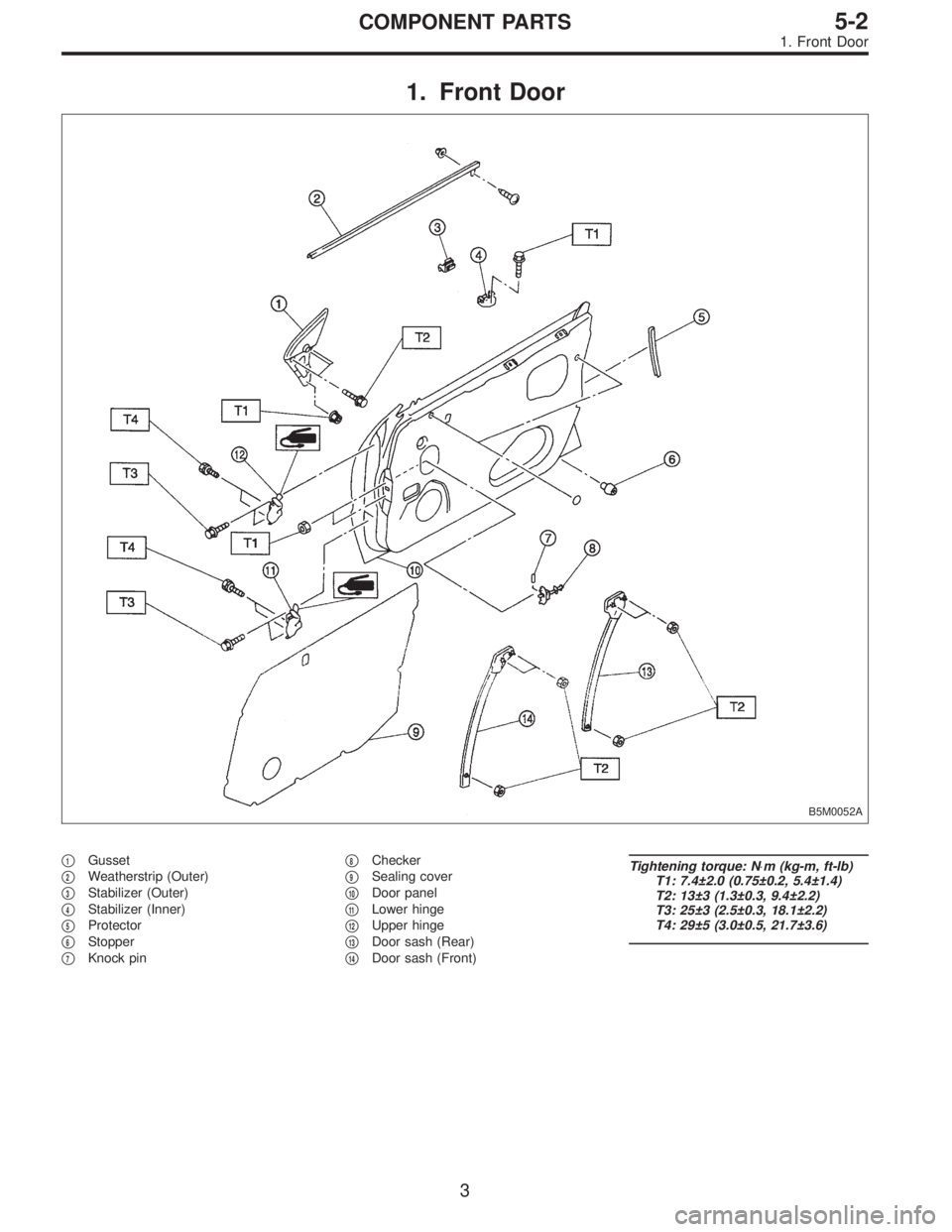

1. Front Door
B5M0052A

1Gusset


2Weatherstrip (Outer)


3Stabilizer (Outer)


4Stabilizer (Inner)


5Protector


6Stopper


7Knock pin

8Checker


9Sealing cover


10Door panel


11Lower hinge


12Upper hinge


13Door sash (Rear)


14Door sash (Front)
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T2: 13±3 (1.3±0.3, 9.4±2.2)
T3: 25±3 (2.5±0.3, 18.1±2.2)
T4: 29±5 (3.0±0.5, 21.7±3.6)
3
5-2COMPONENT PARTS
1. Front Door

2. Rear Door
B5M0053A

1Weatherstrip (Outer)


2Stabilizer (Outer)


3Stabilizer (Inner)


4Stopper


5Knock pin


6Checker

7Seating cover


8Door panel


9Lower hinge


10Upper hinge


11Door sash (Rear)


12Door sash (Front)
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T2: 14±4 (1.4±0.4, 10.1±2.9)
T3: 25±3 (2.5±0.3, 18.1±2.2)
T4: 29±5 (3.0±0.5, 21.7±3.6)
4
5-2COMPONENT PARTS
2. Rear Door

3. Front Door Glass
B5M0054A

1Glass


2Regulator and motor ASSY


3Regulator handle (Except power window)


4Retainer spring


5Regulator ASSY
Tightening torque: N⋅m (kg-m, ft-lb)
T: 7.4±2.0 (0.75±0.2, 5.4±1.4)
5
5-2COMPONENT PARTS
3. Front Door Glass
