SUBARU LEGACY 1996 Service Repair Manual

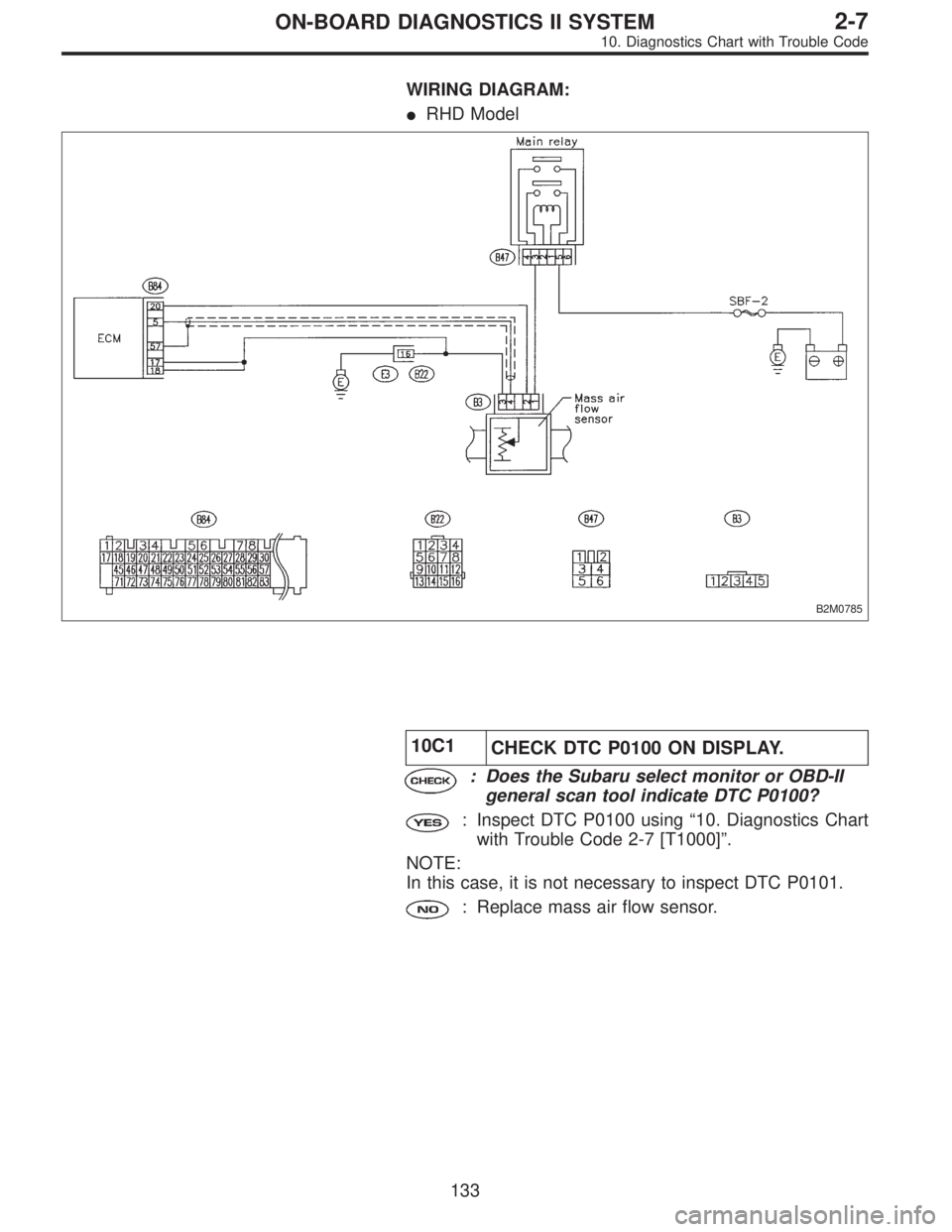

WIRING DIAGRAM:

RHD Model
B2M0785
10C1
CHECK DTC P0100 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0100?
: Inspect DTC P0100 using“10. Diagnostics Chart
with Trouble Code 2-7 [T1000]”.
NOTE:
In this case, it is not necessary to inspect DTC P0101.
: Replace mass air flow sensor.
133
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0154

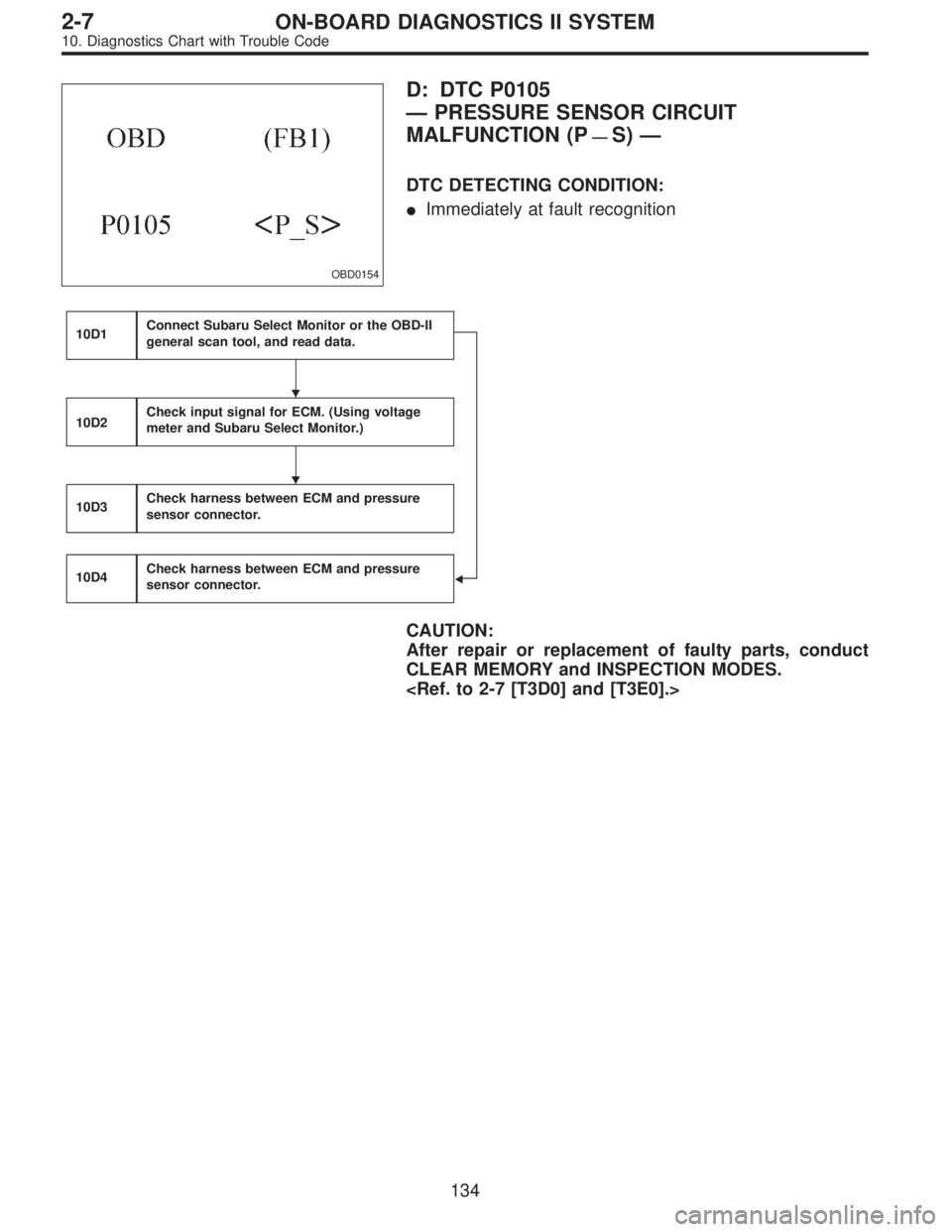

D: DTC P0105
—PRESSURE SENSOR CIRCUIT
MALFUNCTION (P
—S)—
DTC DETECTING CONDITION:

Immediately at fault recognition
10D1Connect Subaru Select Monitor or the OBD-II
general scan tool, and read data.

10D2Check input signal for ECM. (Using voltage
meter and Subaru Select Monitor.)
10D3Check harness between ECM and pressure
sensor connector.
10D4Check harness between ECM and pressure
sensor connector.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.



134
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

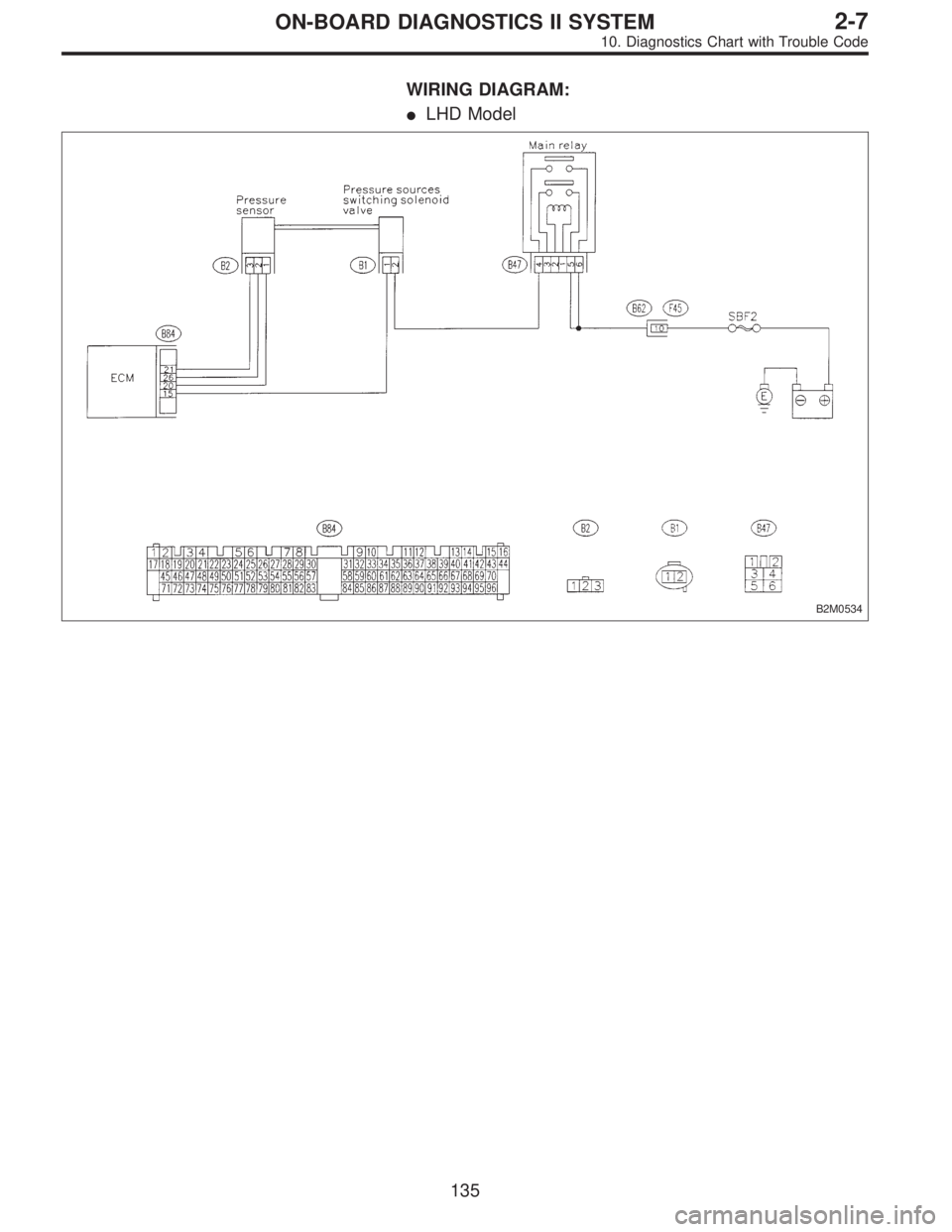

WIRING DIAGRAM:

LHD Model
B2M0534
135
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

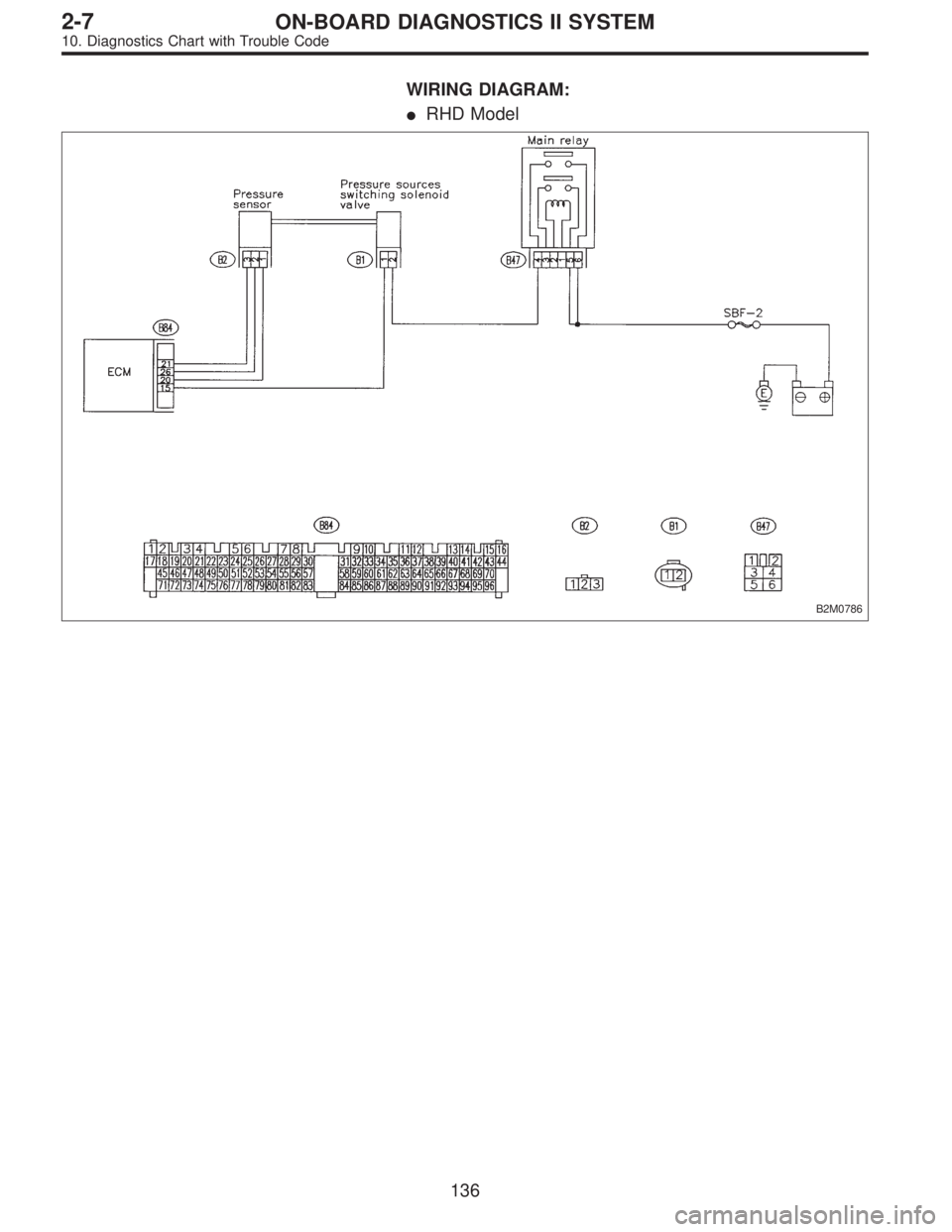

WIRING DIAGRAM:

RHD Model
B2M0786
136
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0145A

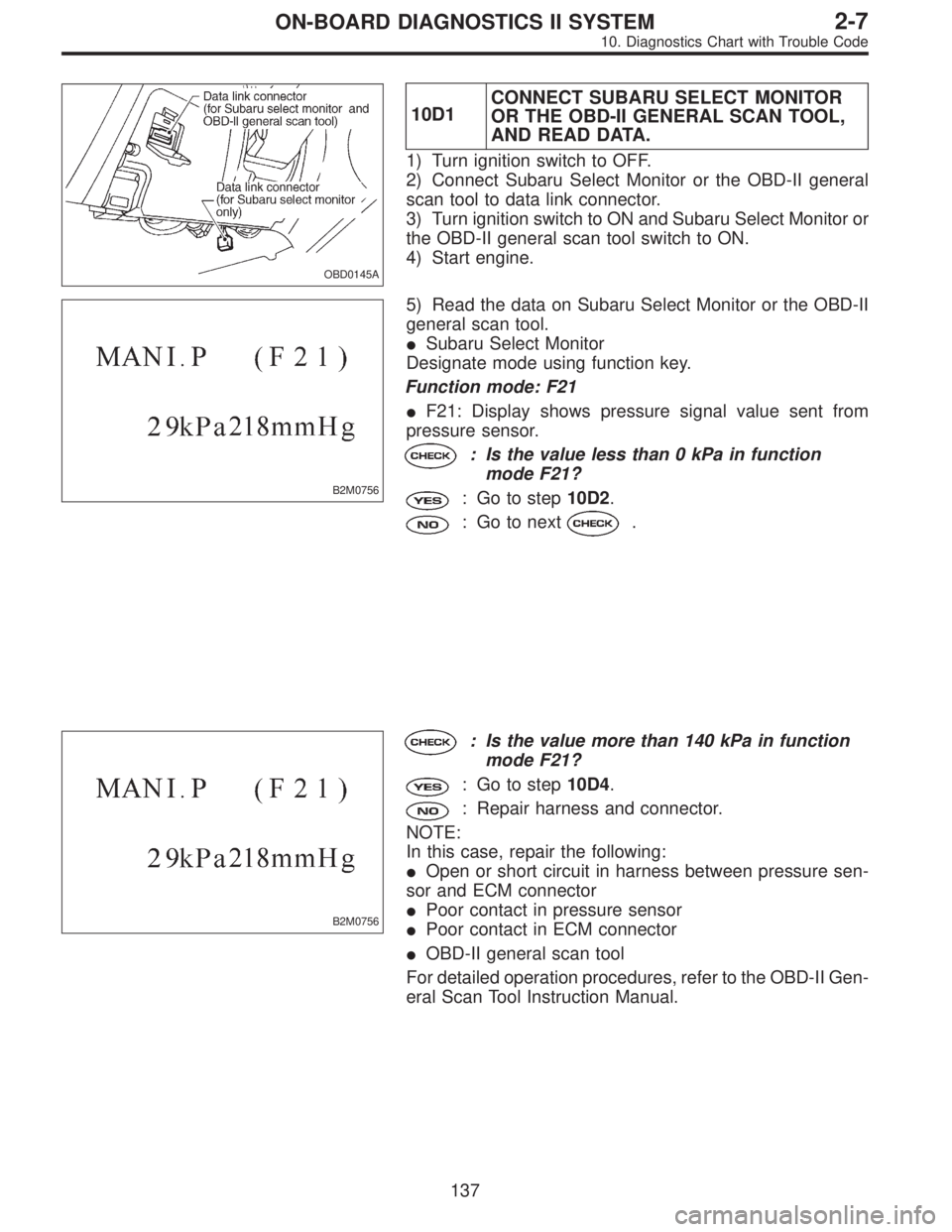

10D1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
3) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
4) Start engine.
B2M0756
5) Read the data on Subaru Select Monitor or the OBD-II
general scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F21

F21: Display shows pressure signal value sent from
pressure sensor.
: Is the value less than 0 kPa in function
mode F21?
: Go to step10D2.
: Go to next.
B2M0756
: Is the value more than 140 kPa in function
mode F21?
: Go to step10D4.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open or short circuit in harness between pressure sen-
sor and ECM connector

Poor contact in pressure sensor

Poor contact in ECM connector

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
137
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0535A

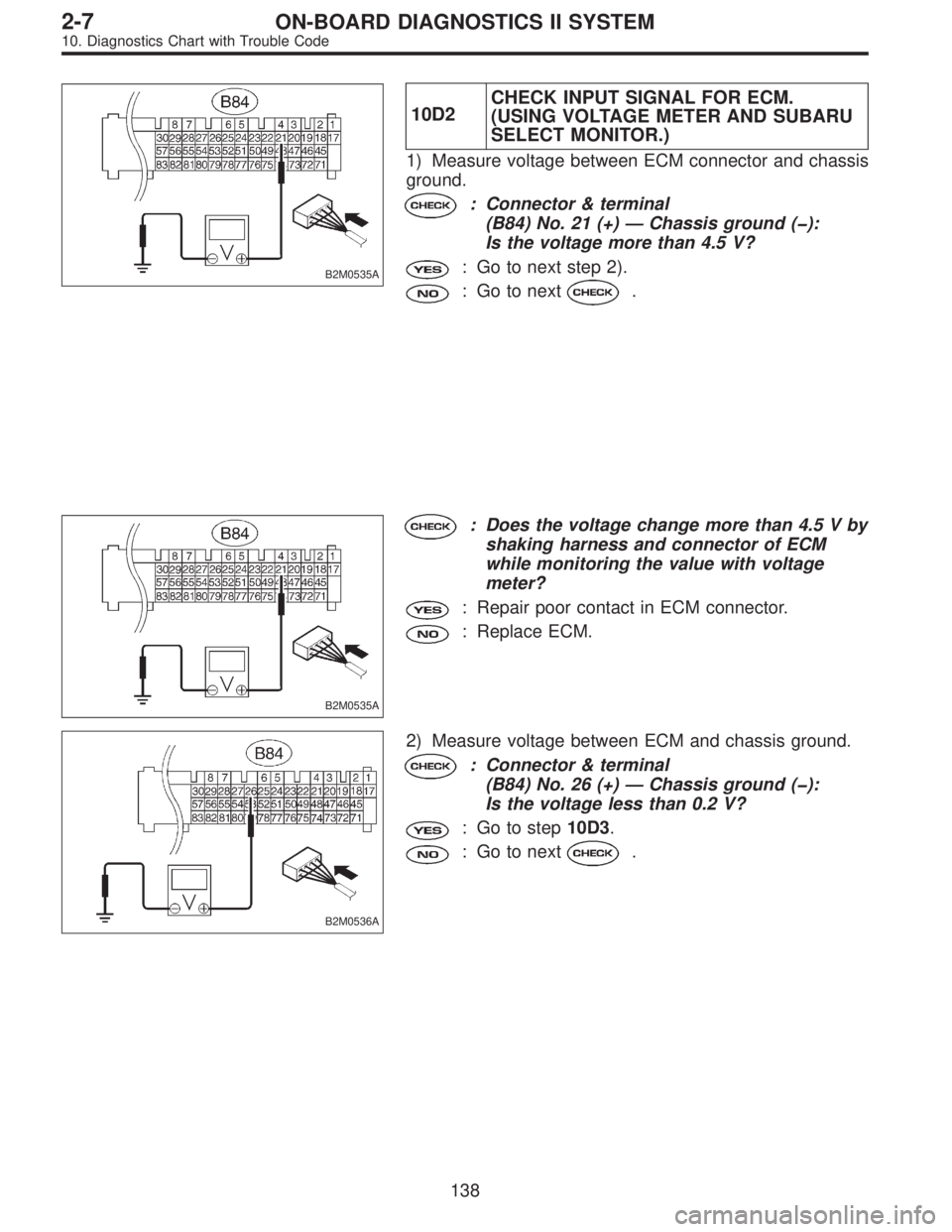

10D2CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 21 (+)—Chassis ground ():
Is the voltage more than 4.5 V?
: Go to next step 2).
: Go to next.
B2M0535A
: Does the voltage change more than 4.5 V by
shaking harness and connector of ECM
while monitoring the value with voltage
meter?
: Repair poor contact in ECM connector.
: Replace ECM.
B2M0536A
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 26 (+)—Chassis ground ():
Is the voltage less than 0.2 V?
: Go to step10D3.
: Go to next.
138
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0755

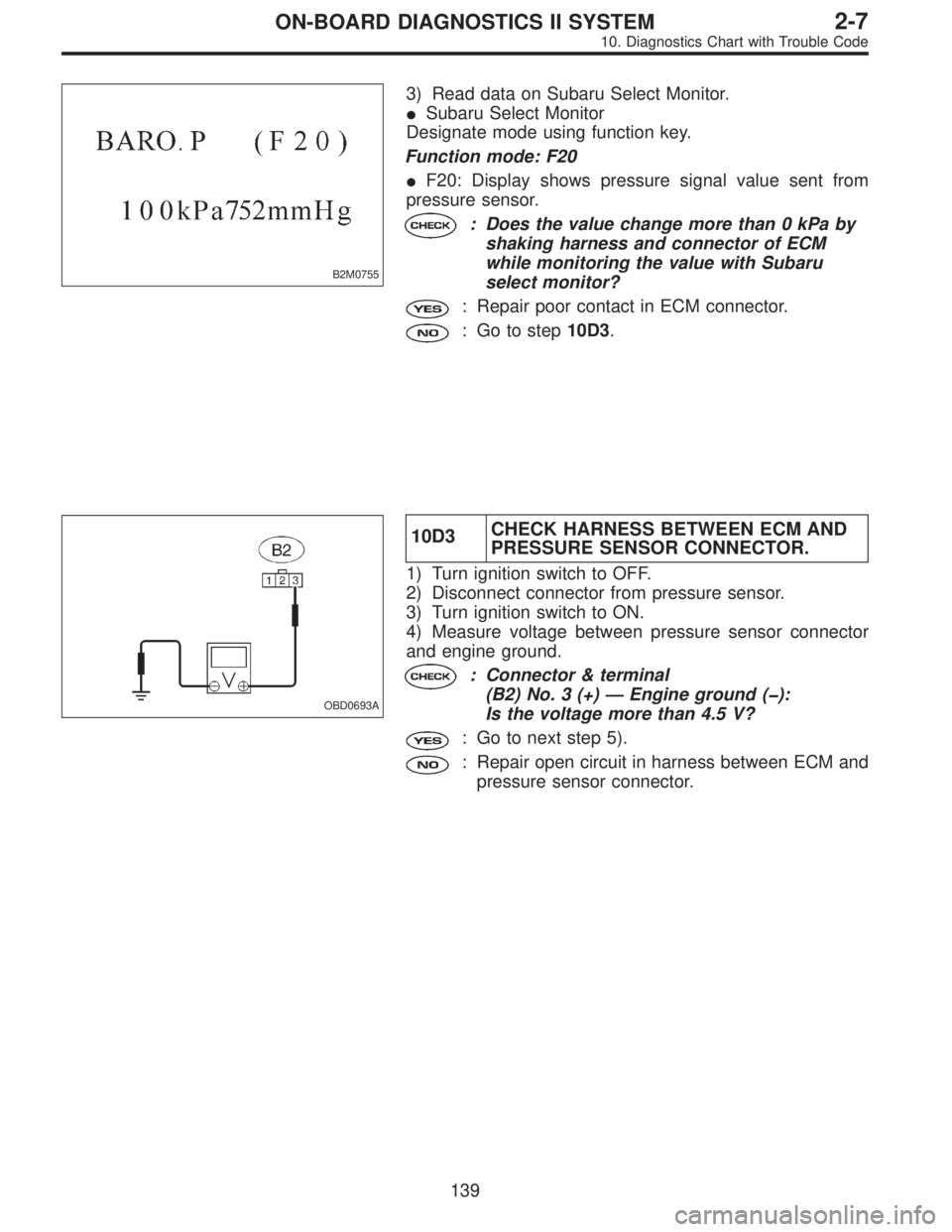

3) Read data on Subaru Select Monitor.

Subaru Select Monitor
Designate mode using function key.
Function mode: F20

F20: Display shows pressure signal value sent from
pressure sensor.
: Does the value change more than 0 kPa by
shaking harness and connector of ECM
while monitoring the value with Subaru
select monitor?
: Repair poor contact in ECM connector.
: Go to step10D3.
OBD0693A
10D3CHECK HARNESS BETWEEN ECM AND
PRESSURE SENSOR CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from pressure sensor.
3) Turn ignition switch to ON.
4) Measure voltage between pressure sensor connector
and engine ground.
: Connector & terminal
(B2) No. 3 (+)—Engine ground ():
Is the voltage more than 4.5 V?
: Go to next step 5).
: Repair open circuit in harness between ECM and
pressure sensor connector.
139
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0537A

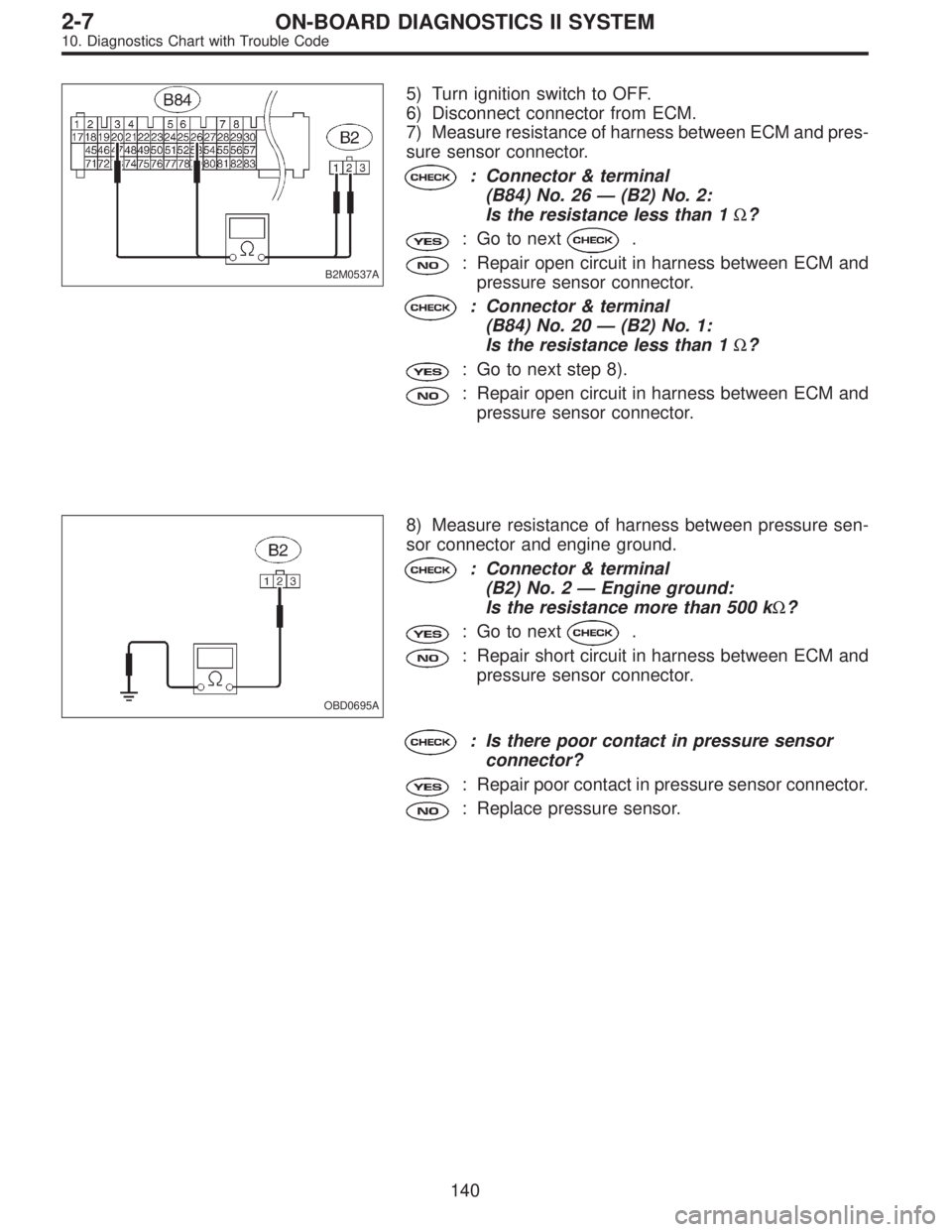

5) Turn ignition switch to OFF.
6) Disconnect connector from ECM.
7) Measure resistance of harness between ECM and pres-
sure sensor connector.
: Connector & terminal
(B84) No. 26—(B2) No. 2:
Is the resistance less than 1Ω?
: Go to next.
: Repair open circuit in harness between ECM and
pressure sensor connector.
: Connector & terminal
(B84) No. 20—(B2) No. 1:
Is the resistance less than 1Ω?
: Go to next step 8).
: Repair open circuit in harness between ECM and
pressure sensor connector.
OBD0695A
8) Measure resistance of harness between pressure sen-
sor connector and engine ground.
: Connector & terminal
(B2) No. 2—Engine ground:
Is the resistance more than 500 kΩ?
: Go to next.
: Repair short circuit in harness between ECM and
pressure sensor connector.
: Is there poor contact in pressure sensor
connector?
: Repair poor contact in pressure sensor connector.
: Replace pressure sensor.
140
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0756

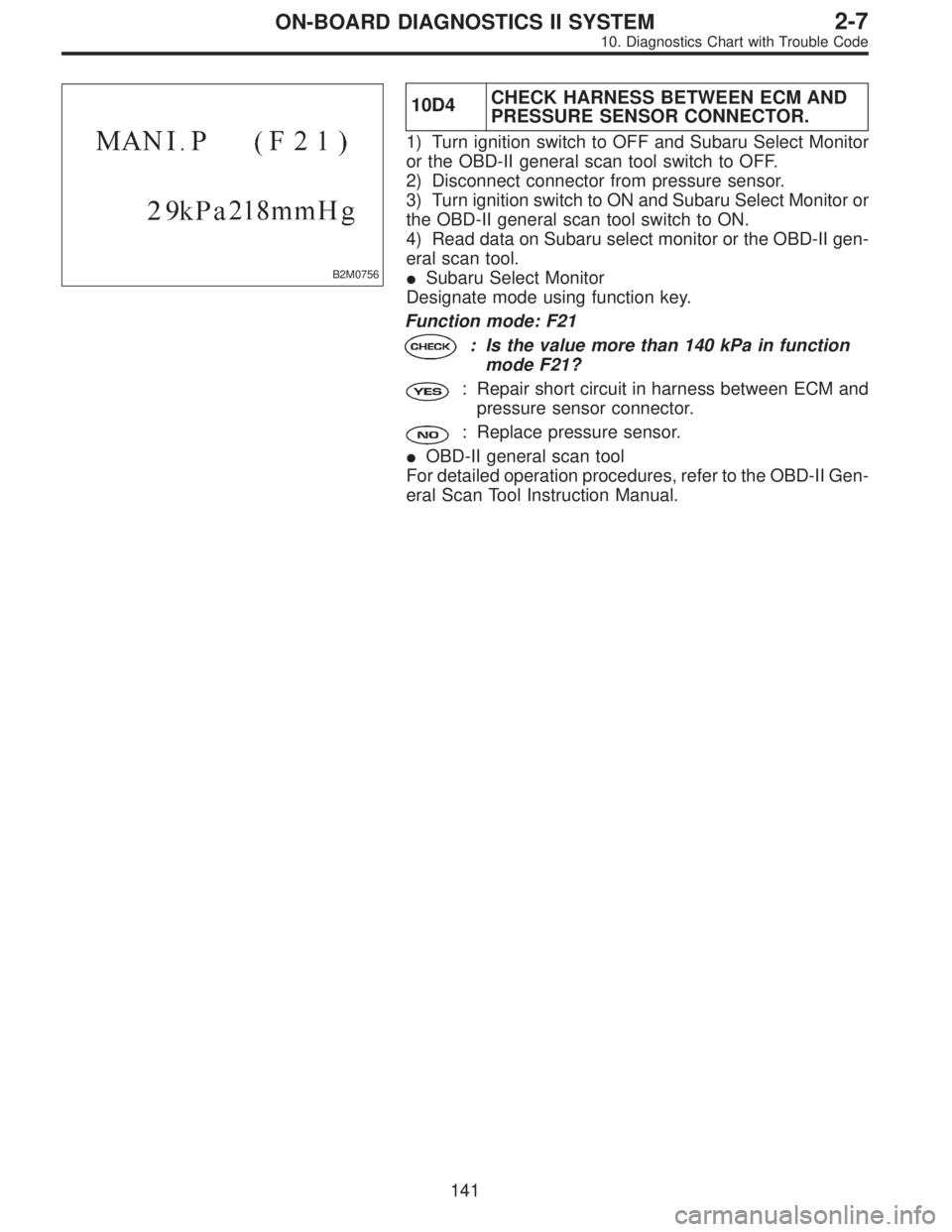

10D4CHECK HARNESS BETWEEN ECM AND
PRESSURE SENSOR CONNECTOR.
1) Turn ignition switch to OFF and Subaru Select Monitor
or the OBD-II general scan tool switch to OFF.
2) Disconnect connector from pressure sensor.
3) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
4) Read data on Subaru select monitor or the OBD-II gen-
eral scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F21
: Is the value more than 140 kPa in function
mode F21?
: Repair short circuit in harness between ECM and
pressure sensor connector.
: Replace pressure sensor.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
141
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0654

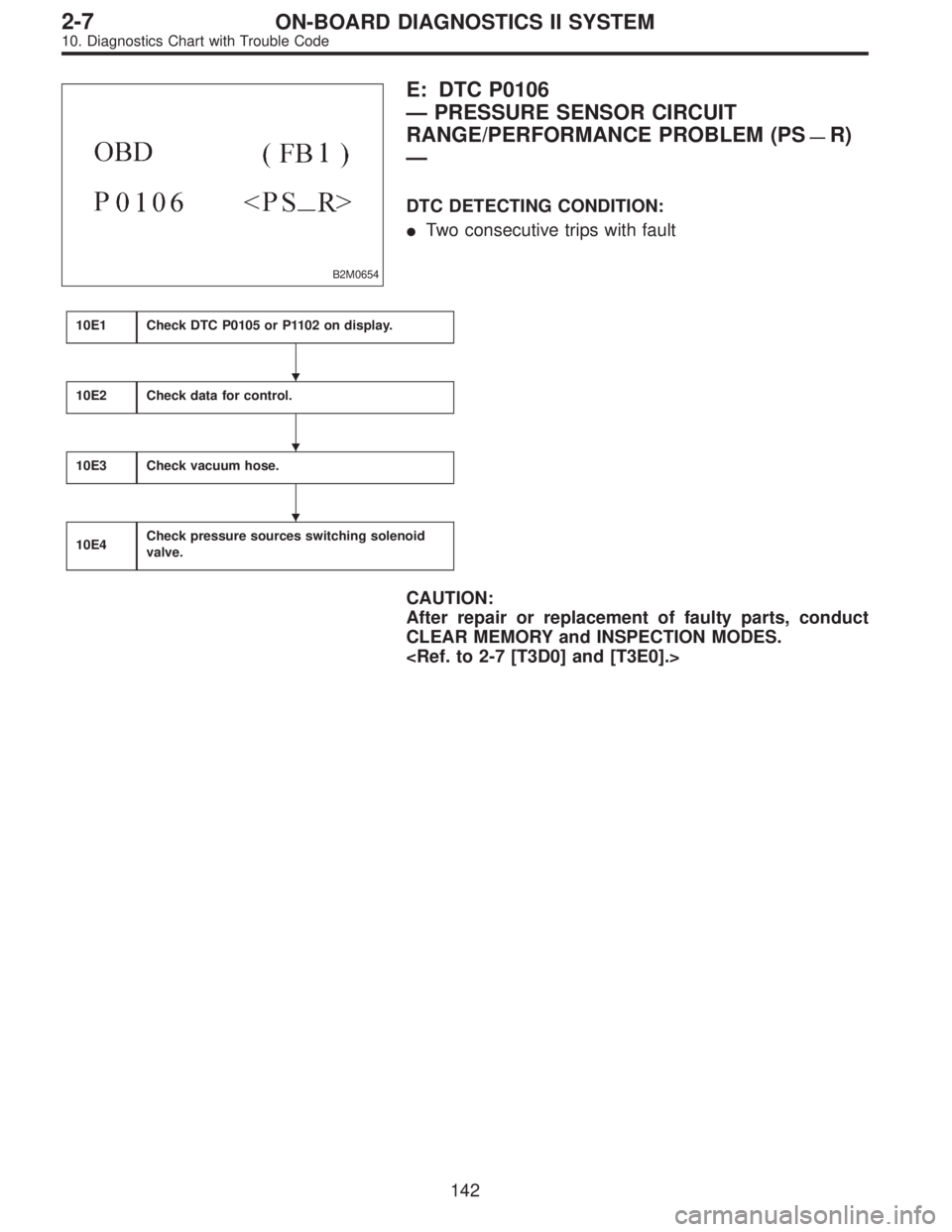

E: DTC P0106
—PRESSURE SENSOR CIRCUIT
RANGE/PERFORMANCE PROBLEM (PS
—R)
—
DTC DETECTING CONDITION:

Two consecutive trips with fault
10E1Check DTC P0105 or P1102 on display.
10E2Check data for control.
10E3Check vacuum hose.
10E4Check pressure sources switching solenoid
valve.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.




142
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
