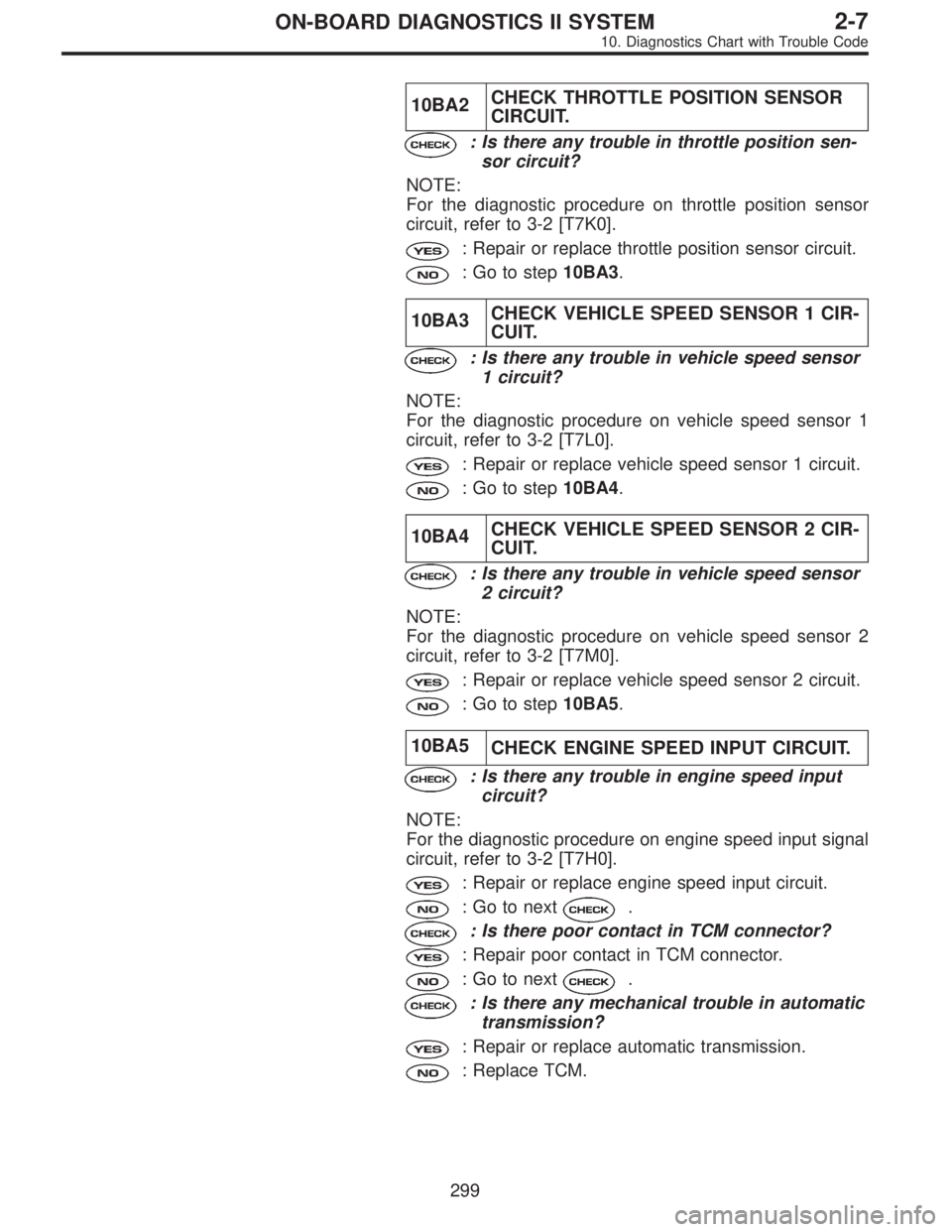

10BA2CHECK THROTTLE POSITION SENSOR
CIRCUIT.
: Is there any trouble in throttle position sen-
sor circuit?
NOTE:
For the diagnostic procedure on throttle position sensor
circuit, refer to 3-2 [T7K0].
: Repair or replace throttle position sensor circuit.
: Go to step10BA3.
10BA3CHECK VEHICLE SPEED SENSOR 1 CIR-
CUIT.
: Is there any trouble in vehicle speed sensor
1 circuit?
NOTE:
For the diagnostic procedure on vehicle speed sensor 1
circuit, refer to 3-2 [T7L0].
: Repair or replace vehicle speed sensor 1 circuit.
: Go to step10BA4.
10BA4CHECK VEHICLE SPEED SENSOR 2 CIR-
CUIT.
: Is there any trouble in vehicle speed sensor
2 circuit?
NOTE:
For the diagnostic procedure on vehicle speed sensor 2
circuit, refer to 3-2 [T7M0].
: Repair or replace vehicle speed sensor 2 circuit.
: Go to step10BA5.
10BA5
CHECK ENGINE SPEED INPUT CIRCUIT.
: Is there any trouble in engine speed input
circuit?
NOTE:
For the diagnostic procedure on engine speed input signal
circuit, refer to 3-2 [T7H0].
: Repair or replace engine speed input circuit.
: Go to next.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Go to next.
: Is there any mechanical trouble in automatic
transmission?
: Repair or replace automatic transmission.
: Replace TCM.
299
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0661

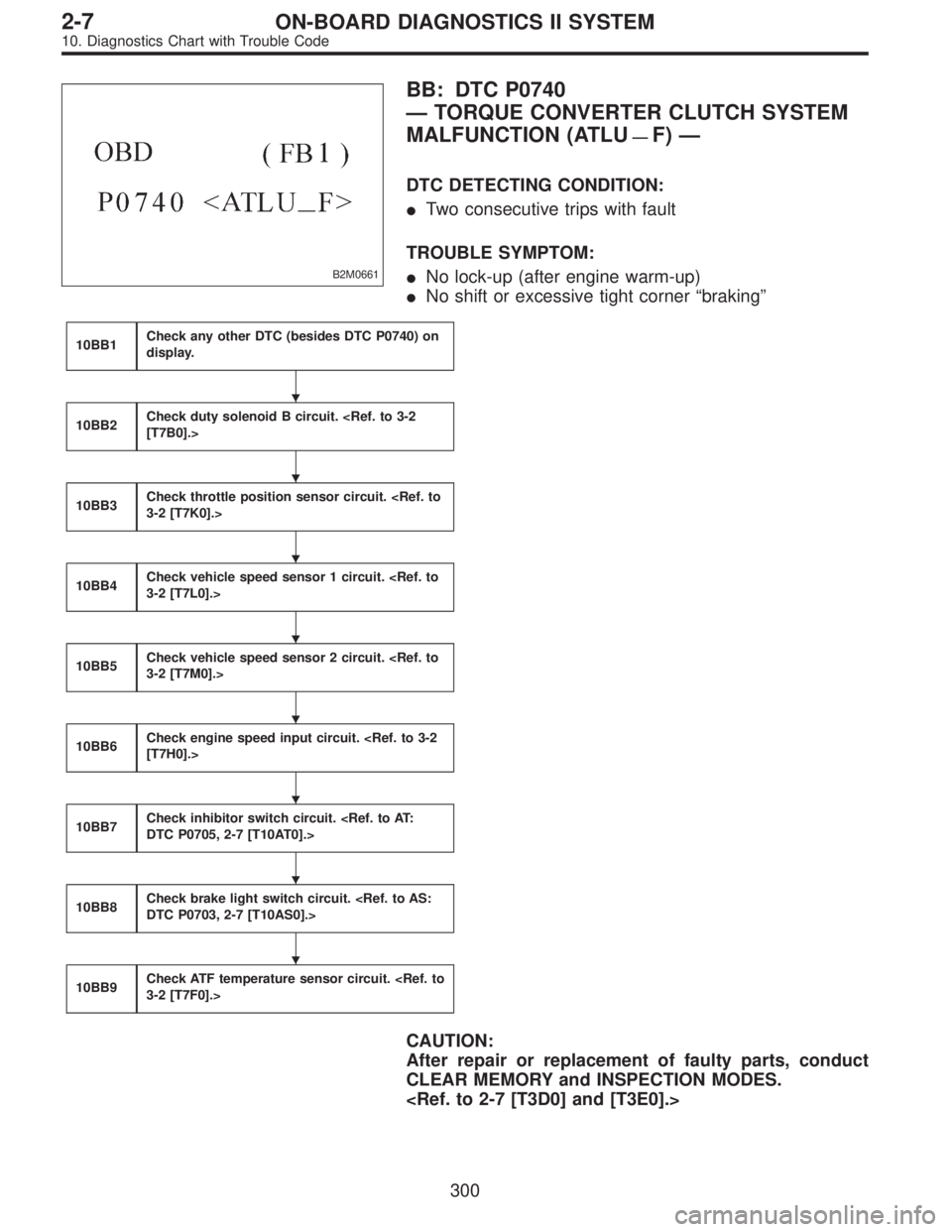

BB: DTC P0740
—TORQUE CONVERTER CLUTCH SYSTEM
MALFUNCTION (ATLU
—F)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

No lock-up (after engine warm-up)

No shift or excessive tight corner“braking”
10BB1Check any other DTC (besides DTC P0740) on
display.
10BB2Check duty solenoid B circuit. [T7B0].>
10BB3Check throttle position sensor circuit. 3-2 [T7K0].>
10BB4Check vehicle speed sensor 1 circuit. 3-2 [T7L0].>
10BB5Check vehicle speed sensor 2 circuit. 3-2 [T7M0].>
10BB6Check engine speed input circuit. [T7H0].>
10BB7Check inhibitor switch circuit. DTC P0705, 2-7 [T10AT0].>
10BB8Check brake light switch circuit. DTC P0703, 2-7 [T10AS0].>
10BB9Check ATF temperature sensor circuit. 3-2 [T7F0].>
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.









300
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

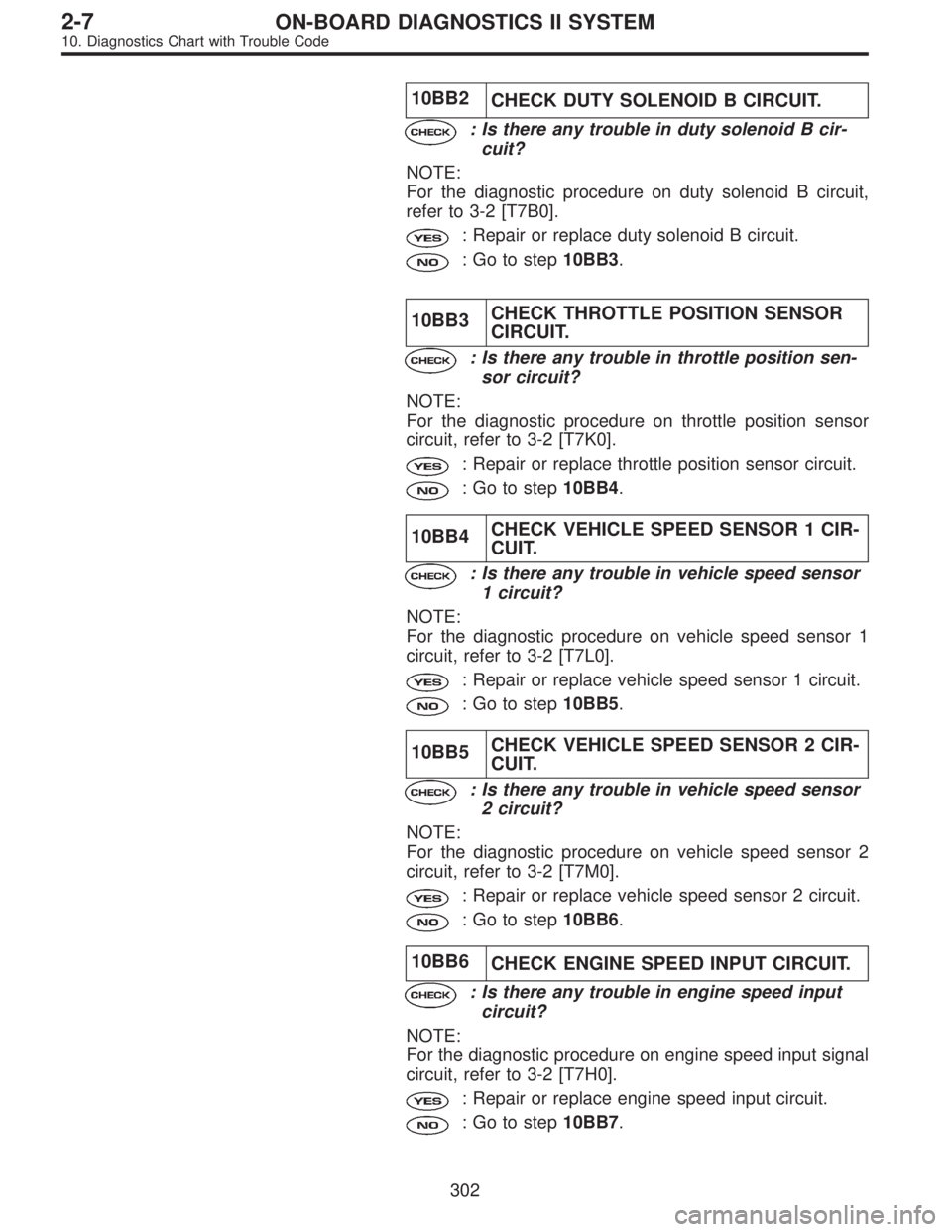

10BB2
CHECK DUTY SOLENOID B CIRCUIT.
: Is there any trouble in duty solenoid B cir-
cuit?
NOTE:
For the diagnostic procedure on duty solenoid B circuit,
refer to 3-2 [T7B0].
: Repair or replace duty solenoid B circuit.
: Go to step10BB3.
10BB3CHECK THROTTLE POSITION SENSOR
CIRCUIT.
: Is there any trouble in throttle position sen-
sor circuit?
NOTE:
For the diagnostic procedure on throttle position sensor
circuit, refer to 3-2 [T7K0].
: Repair or replace throttle position sensor circuit.
: Go to step10BB4.
10BB4CHECK VEHICLE SPEED SENSOR 1 CIR-
CUIT.
: Is there any trouble in vehicle speed sensor
1 circuit?
NOTE:
For the diagnostic procedure on vehicle speed sensor 1
circuit, refer to 3-2 [T7L0].
: Repair or replace vehicle speed sensor 1 circuit.
: Go to step10BB5.
10BB5CHECK VEHICLE SPEED SENSOR 2 CIR-
CUIT.
: Is there any trouble in vehicle speed sensor
2 circuit?
NOTE:
For the diagnostic procedure on vehicle speed sensor 2
circuit, refer to 3-2 [T7M0].
: Repair or replace vehicle speed sensor 2 circuit.
: Go to step10BB6.
10BB6
CHECK ENGINE SPEED INPUT CIRCUIT.
: Is there any trouble in engine speed input
circuit?
NOTE:
For the diagnostic procedure on engine speed input signal
circuit, refer to 3-2 [T7H0].
: Repair or replace engine speed input circuit.
: Go to step10BB7.
302
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

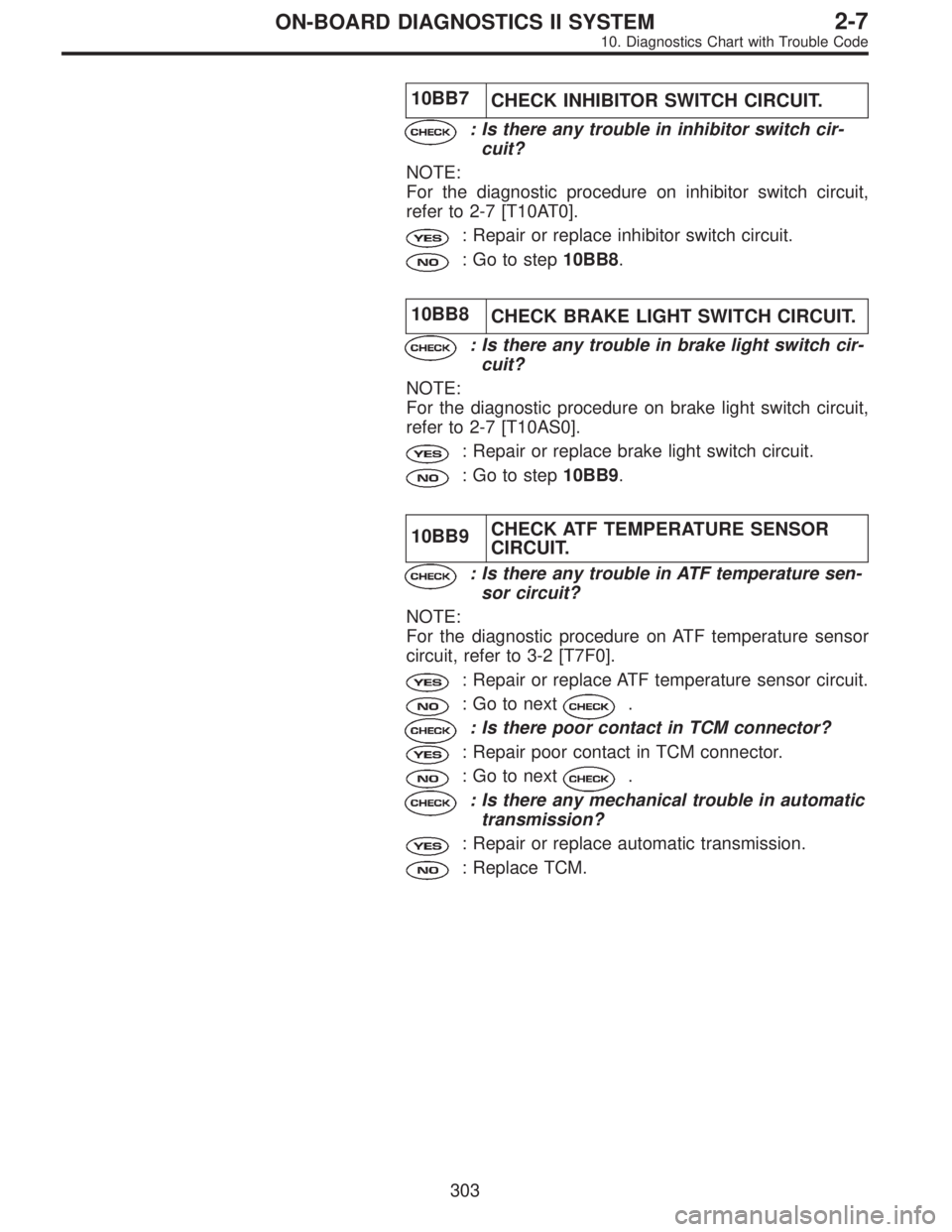

10BB7
CHECK INHIBITOR SWITCH CIRCUIT.
: Is there any trouble in inhibitor switch cir-
cuit?
NOTE:
For the diagnostic procedure on inhibitor switch circuit,
refer to 2-7 [T10AT0].
: Repair or replace inhibitor switch circuit.
: Go to step10BB8.
10BB8
CHECK BRAKE LIGHT SWITCH CIRCUIT.
: Is there any trouble in brake light switch cir-
cuit?
NOTE:
For the diagnostic procedure on brake light switch circuit,
refer to 2-7 [T10AS0].
: Repair or replace brake light switch circuit.
: Go to step10BB9.
10BB9CHECK ATF TEMPERATURE SENSOR
CIRCUIT.
: Is there any trouble in ATF temperature sen-
sor circuit?
NOTE:
For the diagnostic procedure on ATF temperature sensor
circuit, refer to 3-2 [T7F0].
: Repair or replace ATF temperature sensor circuit.
: Go to next.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Go to next.
: Is there any mechanical trouble in automatic
transmission?
: Repair or replace automatic transmission.
: Replace TCM.
303
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

H2M1411

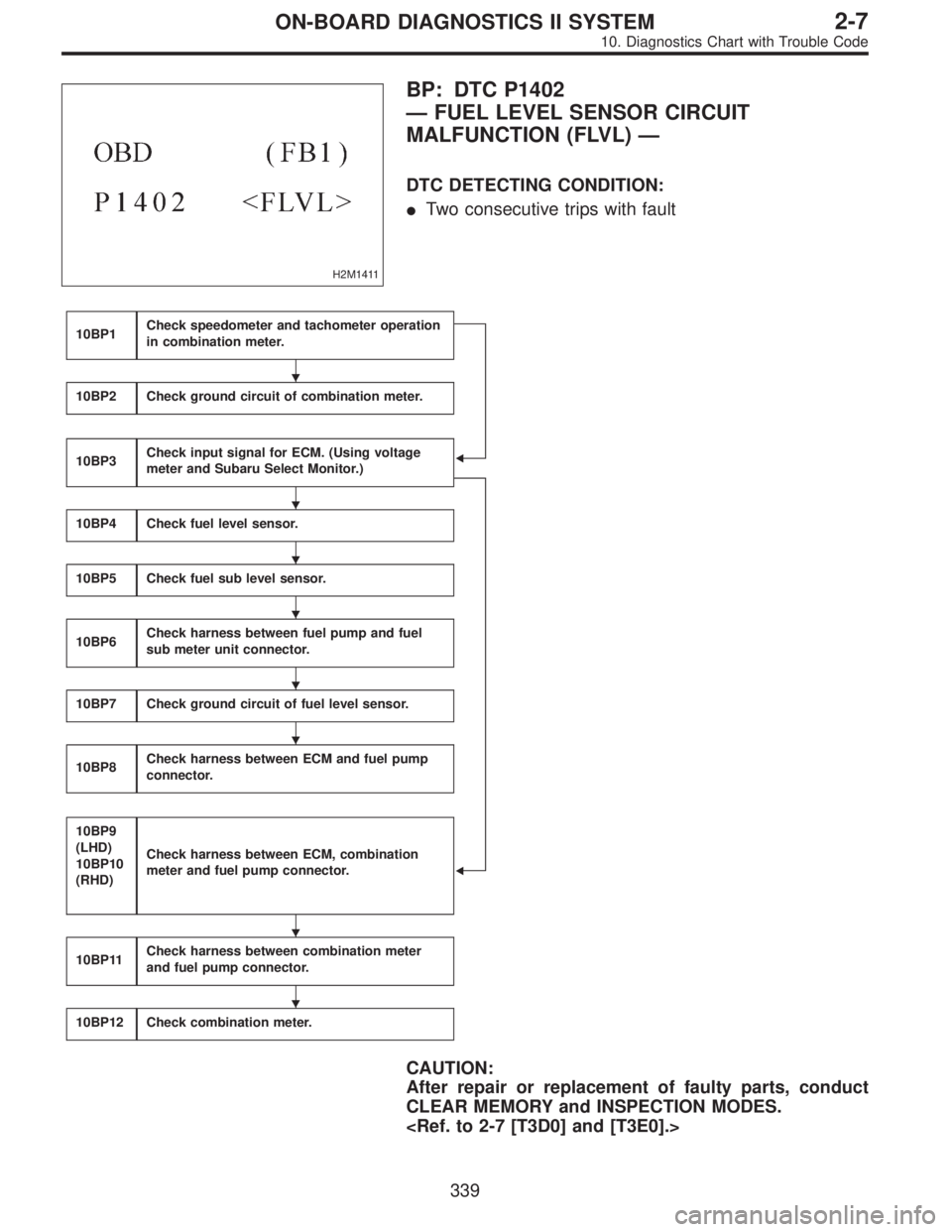

BP: DTC P1402
—FUEL LEVEL SENSOR CIRCUIT
MALFUNCTION (FLVL)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
10BP1Check speedometer and tachometer operation
in combination meter.


10BP2Check ground circuit of combination meter.
10BP3Check input signal for ECM. (Using voltage
meter and Subaru Select Monitor.)
10BP4Check fuel level sensor.
10BP5Check fuel sub level sensor.
10BP6Check harness between fuel pump and fuel
sub meter unit connector.
10BP7Check ground circuit of fuel level sensor.
10BP8Check harness between ECM and fuel pump
connector.
10BP9
(LHD)
10BP10
(RHD)
Check harness between ECM, combination
meter and fuel pump connector.
10BP11Check harness between combination meter
and fuel pump connector.
10BP12Check combination meter.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.









339
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

H2M1327

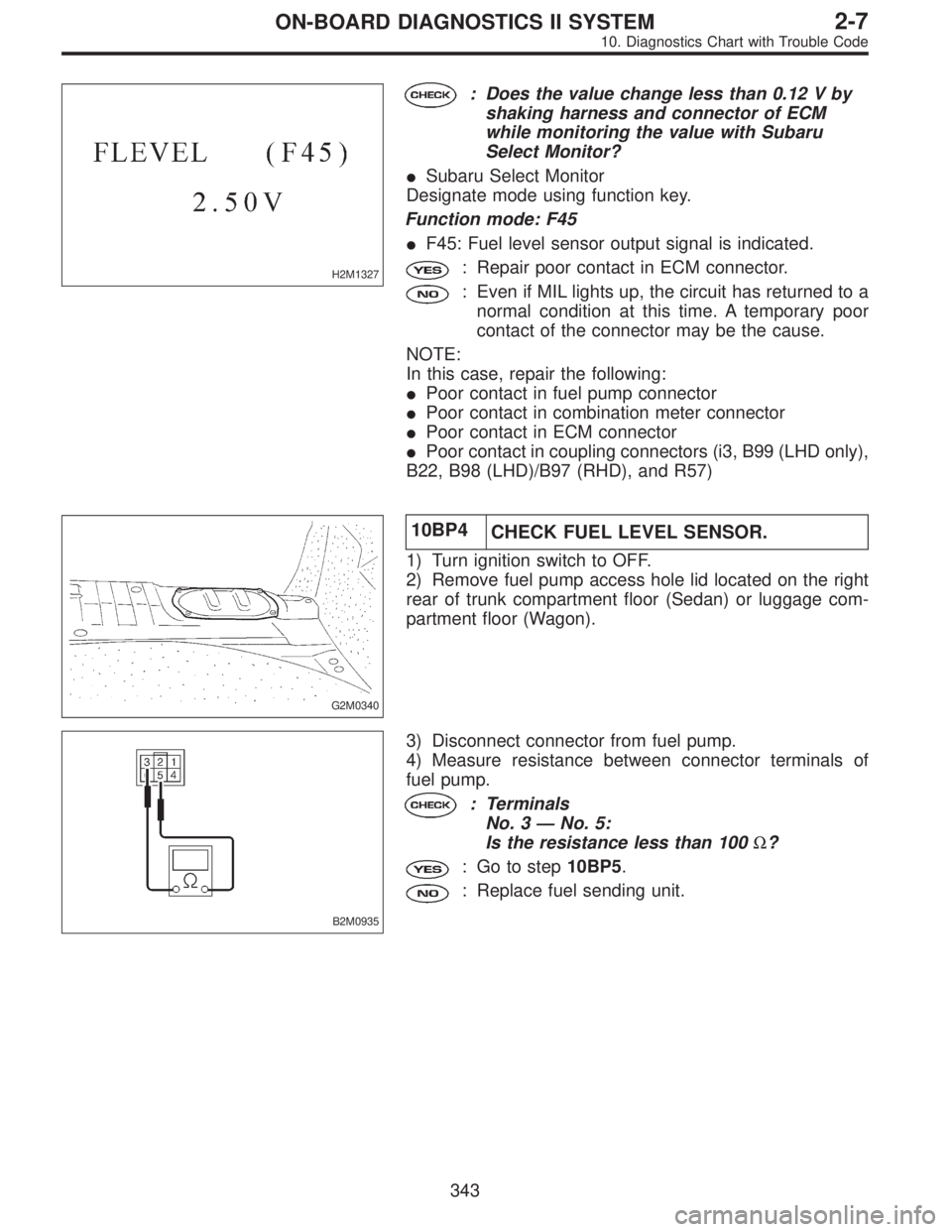

: Does the value change less than 0.12 V by
shaking harness and connector of ECM
while monitoring the value with Subaru
Select Monitor?

Subaru Select Monitor
Designate mode using function key.
Function mode: F45

F45: Fuel level sensor output signal is indicated.
: Repair poor contact in ECM connector.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time. A temporary poor
contact of the connector may be the cause.
NOTE:
In this case, repair the following:

Poor contact in fuel pump connector

Poor contact in combination meter connector

Poor contact in ECM connector

Poor contact in coupling connectors (i3, B99 (LHD only),
B22, B98 (LHD)/B97 (RHD), and R57)
G2M0340
10BP4
CHECK FUEL LEVEL SENSOR.
1) Turn ignition switch to OFF.
2) Remove fuel pump access hole lid located on the right
rear of trunk compartment floor (Sedan) or luggage com-
partment floor (Wagon).
B2M0935
3) Disconnect connector from fuel pump.
4) Measure resistance between connector terminals of
fuel pump.
: Terminals
No. 3—No. 5:
Is the resistance less than 100Ω?
: Go to step10BP5.
: Replace fuel sending unit.
343
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

G2M0863

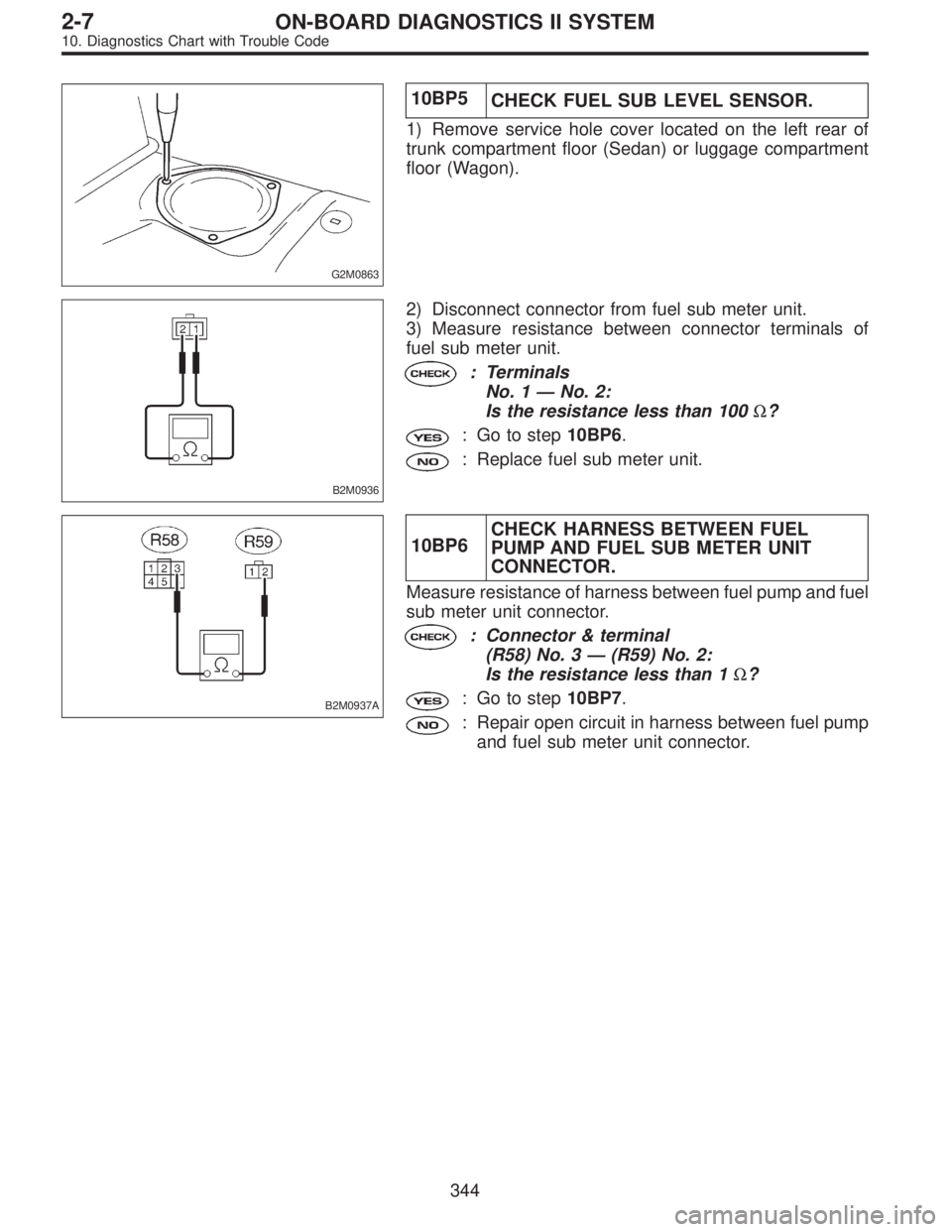

10BP5
CHECK FUEL SUB LEVEL SENSOR.
1) Remove service hole cover located on the left rear of
trunk compartment floor (Sedan) or luggage compartment
floor (Wagon).
B2M0936
2) Disconnect connector from fuel sub meter unit.
3) Measure resistance between connector terminals of
fuel sub meter unit.
: Terminals
No. 1—No. 2:
Is the resistance less than 100Ω?
: Go to step10BP6.
: Replace fuel sub meter unit.
B2M0937A
10BP6CHECK HARNESS BETWEEN FUEL
PUMP AND FUEL SUB METER UNIT
CONNECTOR.
Measure resistance of harness between fuel pump and fuel
sub meter unit connector.
: Connector & terminal
(R58) No. 3—(R59) No. 2:
Is the resistance less than 1Ω?
: Go to step10BP7.
: Repair open circuit in harness between fuel pump
and fuel sub meter unit connector.
344
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0938A

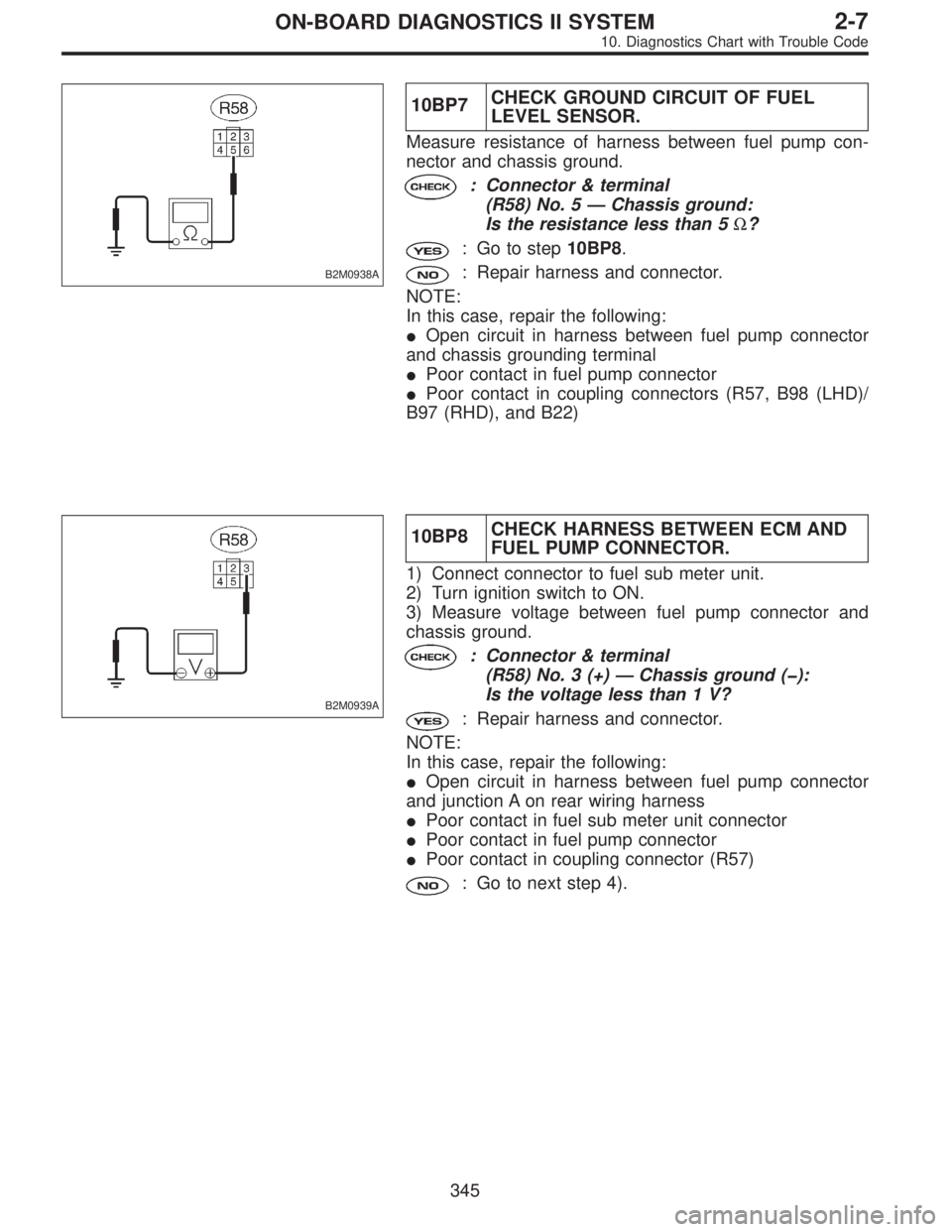

10BP7CHECK GROUND CIRCUIT OF FUEL
LEVEL SENSOR.
Measure resistance of harness between fuel pump con-
nector and chassis ground.
: Connector & terminal
(R58) No. 5—Chassis ground:
Is the resistance less than 5Ω?
: Go to step10BP8.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between fuel pump connector
and chassis grounding terminal

Poor contact in fuel pump connector

Poor contact in coupling connectors (R57, B98 (LHD)/
B97 (RHD), and B22)
B2M0939A
10BP8CHECK HARNESS BETWEEN ECM AND
FUEL PUMP CONNECTOR.
1) Connect connector to fuel sub meter unit.
2) Turn ignition switch to ON.
3) Measure voltage between fuel pump connector and
chassis ground.
: Connector & terminal
(R58) No. 3 (+)—Chassis ground ():
Is the voltage less than 1 V?
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between fuel pump connector
and junction A on rear wiring harness

Poor contact in fuel sub meter unit connector

Poor contact in fuel pump connector

Poor contact in coupling connector (R57)
: Go to next step 4).
345
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0501

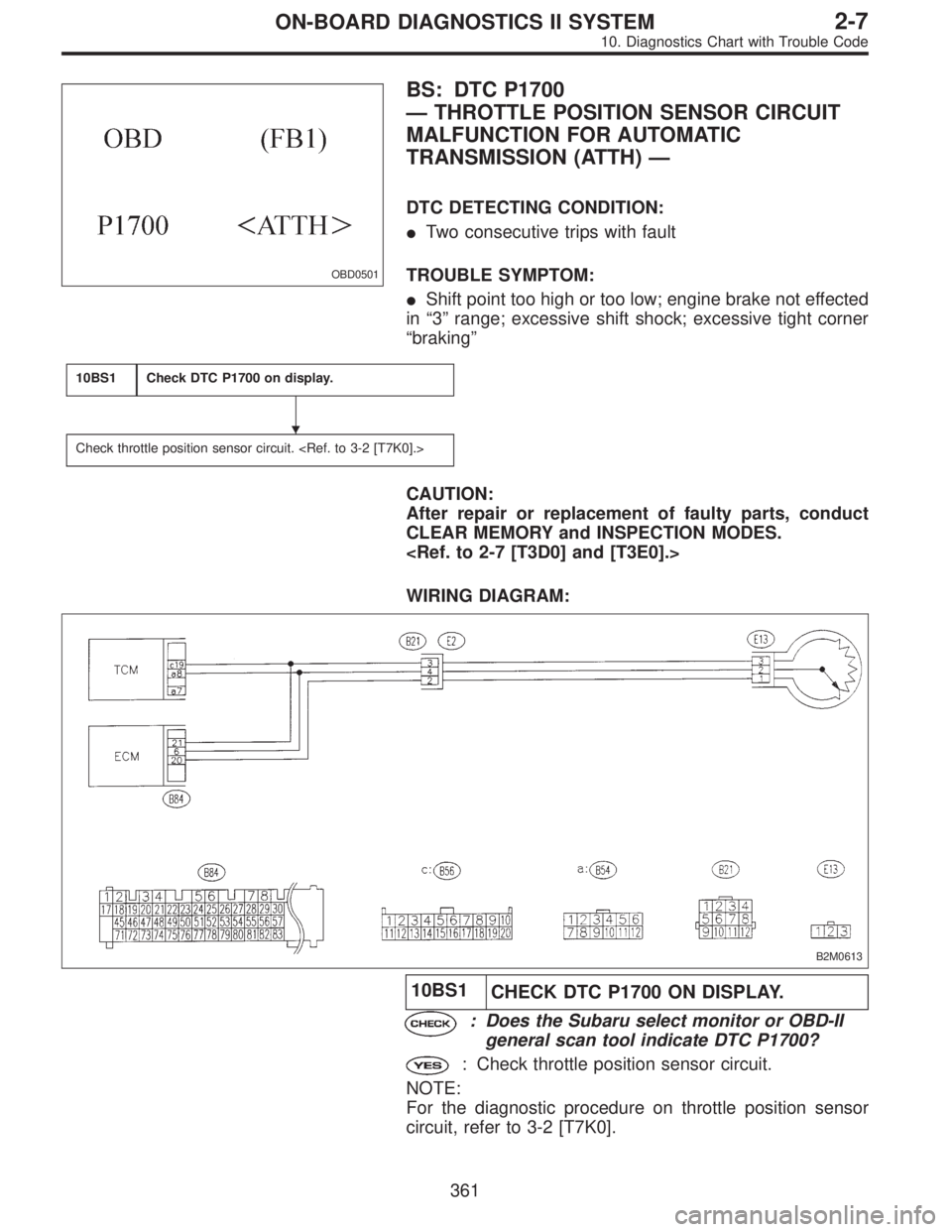

BS: DTC P1700
—THROTTLE POSITION SENSOR CIRCUIT
MALFUNCTION FOR AUTOMATIC
TRANSMISSION (ATTH)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

Shift point too high or too low; engine brake not effected
in“3”range; excessive shift shock; excessive tight corner
“braking”
10BS1Check DTC P1700 on display.
Check throttle position sensor circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
B2M0613
10BS1
CHECK DTC P1700 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P1700?
: Check throttle position sensor circuit.
NOTE:
For the diagnostic procedure on throttle position sensor
circuit, refer to 3-2 [T7K0].

361
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0947

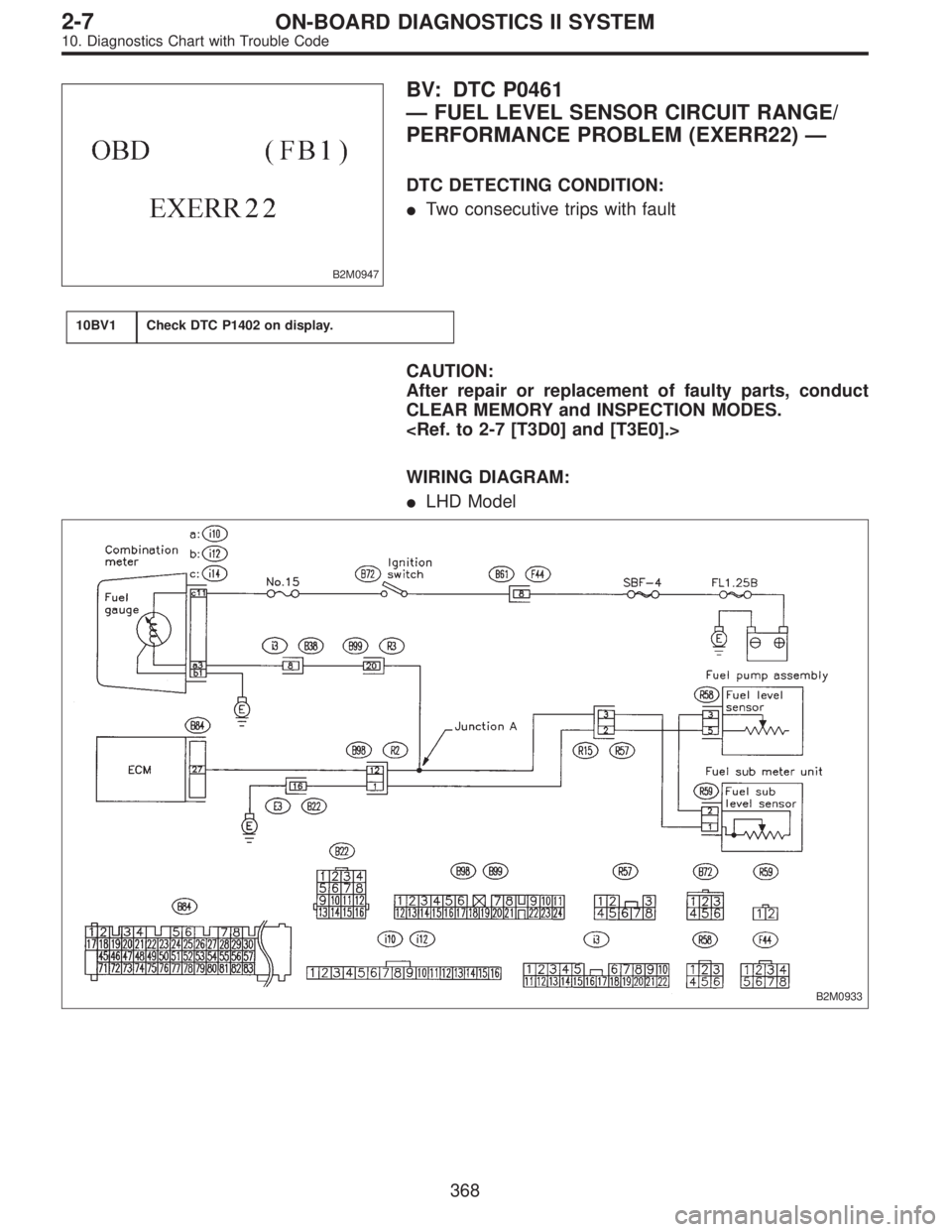

BV: DTC P0461
—FUEL LEVEL SENSOR CIRCUIT RANGE/
PERFORMANCE PROBLEM (EXERR22)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
10BV1Check DTC P1402 on display.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:

LHD Model
B2M0933
