SUBARU LEGACY 1997 Service Repair Manual

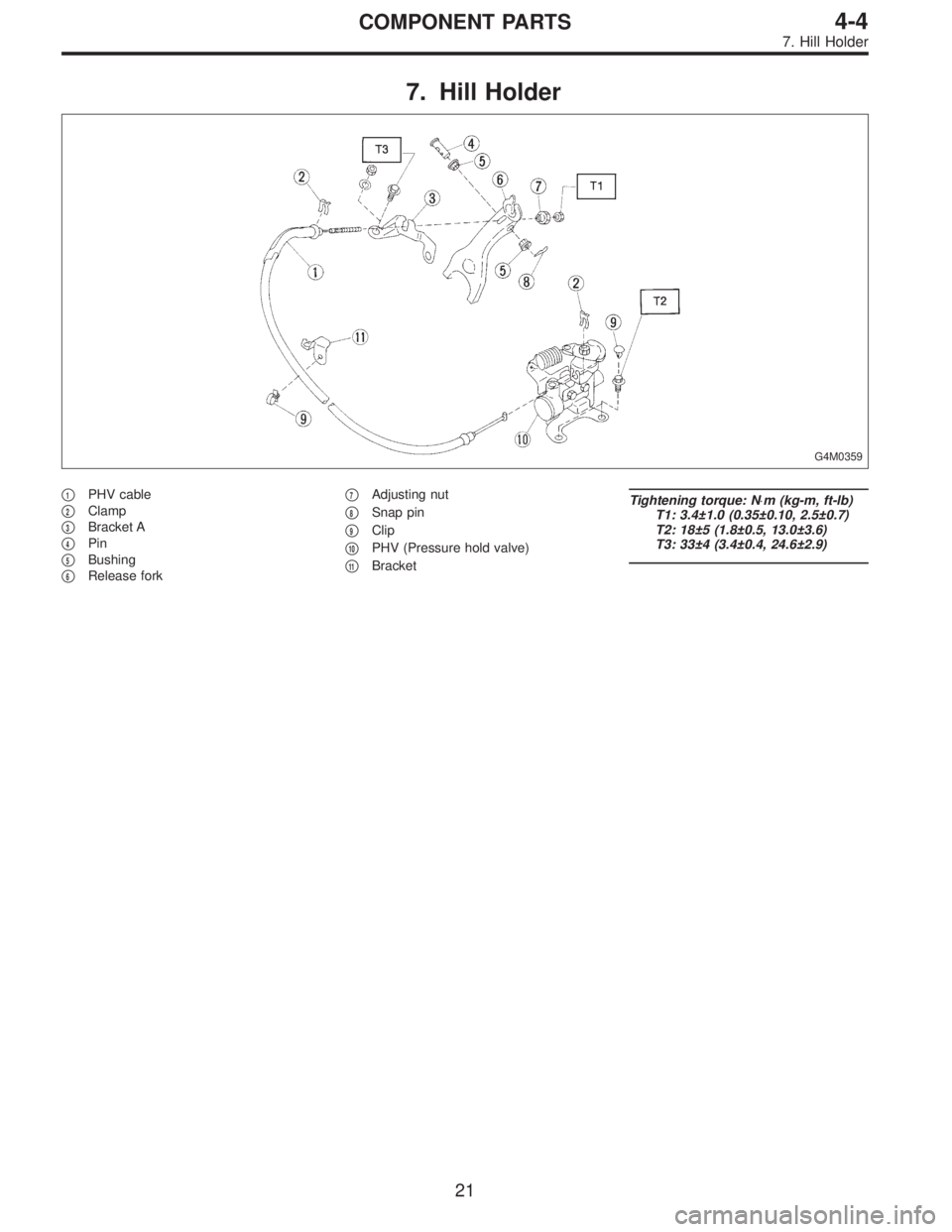

7. Hill Holder
G4M0359
1PHV cable

2Clamp

3Bracket A

4Pin

5Bushing

6Release fork
7Adjusting nut

8Snap pin

9Clip

10PHV (Pressure hold valve)

11Bracket
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 3.4±1.0 (0.35±0.10, 2.5±0.7)
T2: 18±5 (1.8±0.5, 13.0±3.6)
T3: 33±4 (3.4±0.4, 24.6±2.9)
21
4-4COMPONENT PARTS
7. Hill Holder

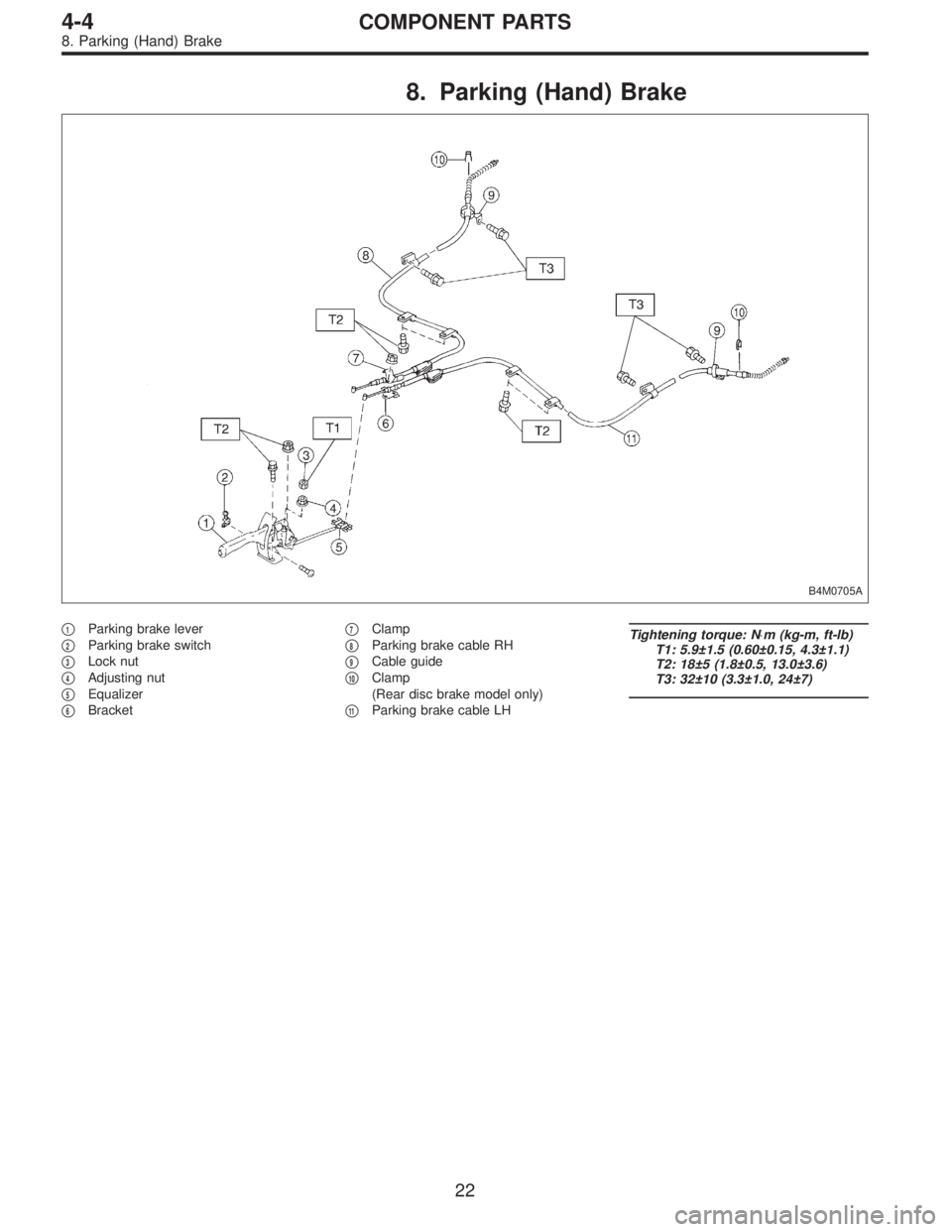

8. Parking (Hand) Brake
B4M0705A
1Parking brake lever

2Parking brake switch

3Lock nut

4Adjusting nut

5Equalizer

6Bracket
7Clamp

8Parking brake cable RH

9Cable guide

10Clamp
(Rear disc brake model only)

11Parking brake cable LH
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 5.9±1.5 (0.60±0.15, 4.3±1.1)
T2: 18±5 (1.8±0.5, 13.0±3.6)
T3: 32±10 (3.3±1.0, 24±7)
22
4-4COMPONENT PARTS
8. Parking (Hand) Brake

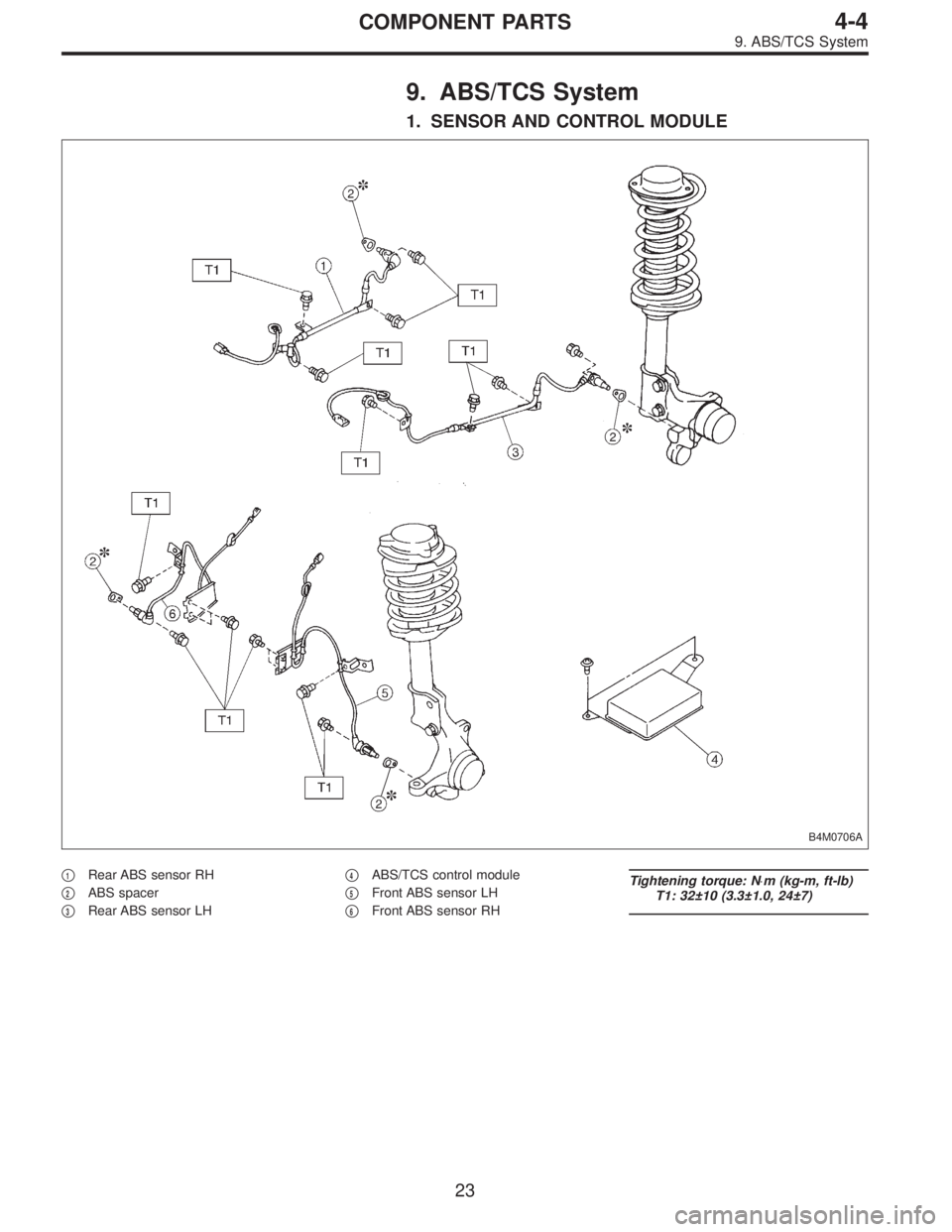

9. ABS/TCS System
1. SENSOR AND CONTROL MODULE
B4M0706A
1Rear ABS sensor RH

2ABS spacer

3Rear ABS sensor LH
4ABS/TCS control module

5Front ABS sensor LH

6Front ABS sensor RH
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 32±10 (3.3±1.0, 24±7)
23
4-4COMPONENT PARTS
9. ABS/TCS System

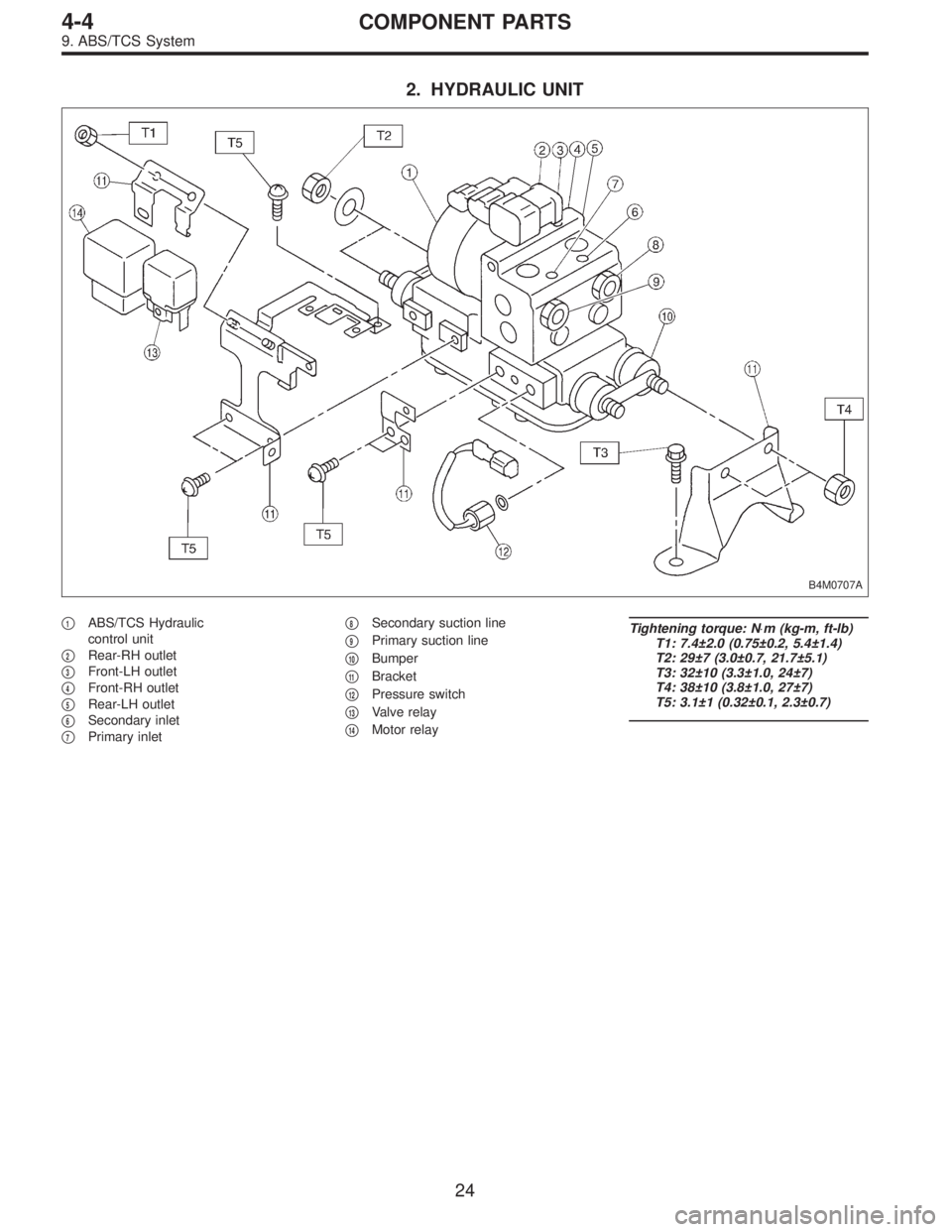

2. HYDRAULIC UNIT
B4M0707A
1ABS/TCS Hydraulic
control unit

2Rear-RH outlet

3Front-LH outlet

4Front-RH outlet

5Rear-LH outlet

6Secondary inlet

7Primary inlet
8Secondary suction line

9Primary suction line

10Bumper

11Bracket

12Pressure switch

13Valve relay

14Motor relay
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T2: 29±7 (3.0±0.7, 21.7±5.1)
T3: 32±10 (3.3±1.0, 24±7)
T4: 38±10 (3.8±1.0, 27±7)
T5: 3.1±1 (0.32±0.1, 2.3±0.7)
24
4-4COMPONENT PARTS
9. ABS/TCS System

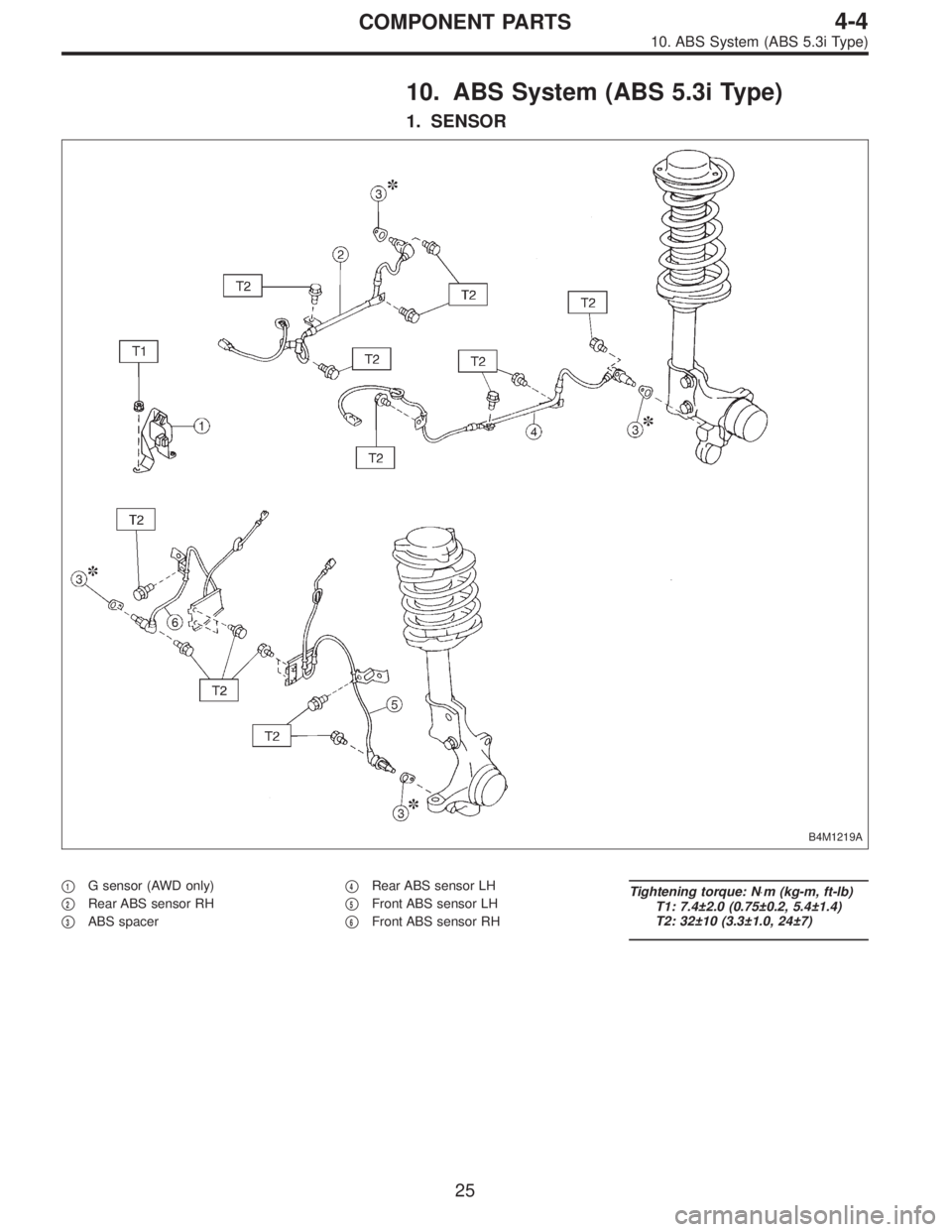

10. ABS System (ABS 5.3i Type)
1. SENSOR
B4M1219A
1G sensor (AWD only)

2Rear ABS sensor RH

3ABS spacer
4Rear ABS sensor LH

5Front ABS sensor LH

6Front ABS sensor RH
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T2: 32±10 (3.3±1.0, 24±7)
25
4-4COMPONENT PARTS
10. ABS System (ABS 5.3i Type)

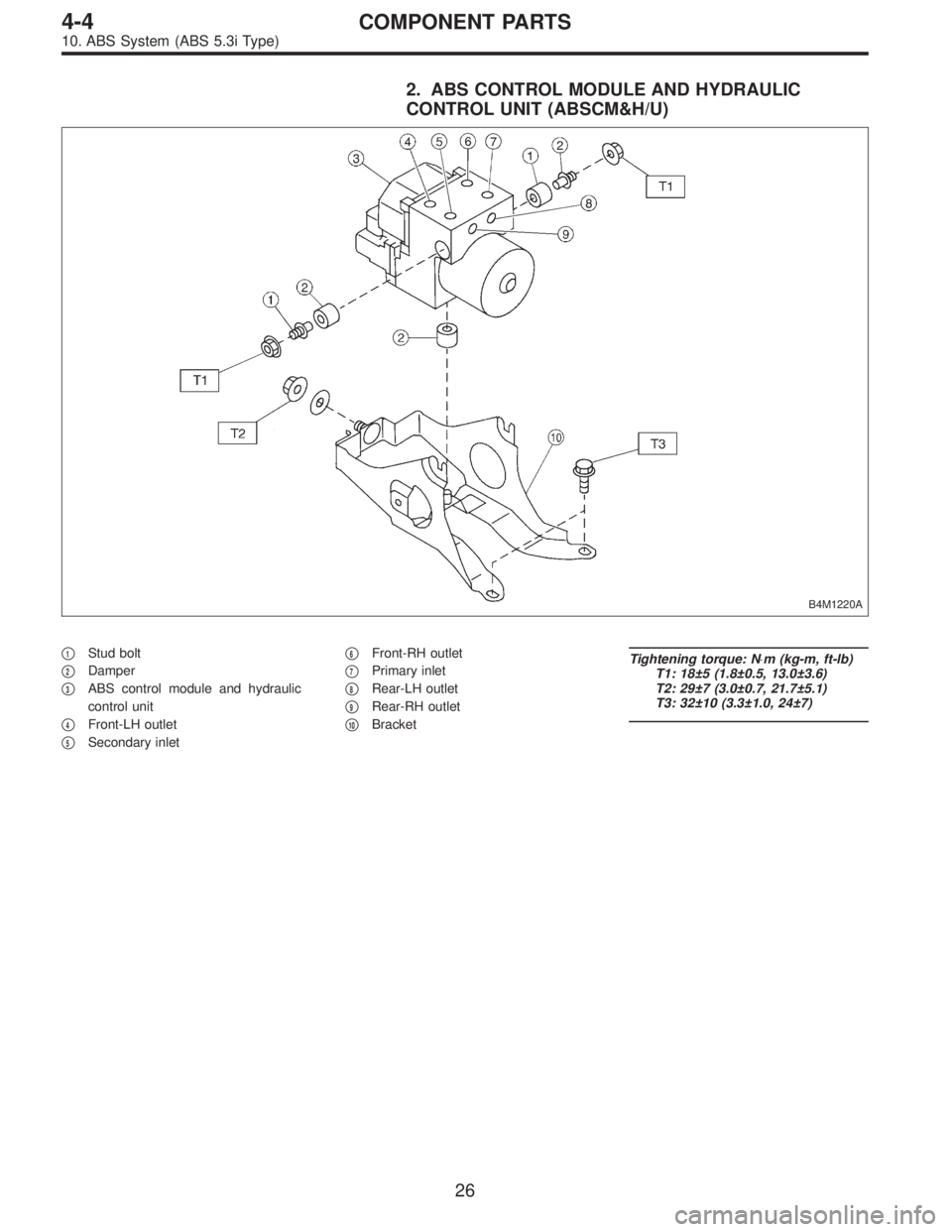

2. ABS CONTROL MODULE AND HYDRAULIC
CONTROL UNIT (ABSCM&H/U)
B4M1220A
1Stud bolt

2Damper

3ABS control module and hydraulic
control unit

4Front-LH outlet

5Secondary inlet
6Front-RH outlet

7Primary inlet

8Rear-LH outlet

9Rear-RH outlet

10Bracket
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 18±5 (1.8±0.5, 13.0±3.6)
T2: 29±7 (3.0±0.7, 21.7±5.1)
T3: 32±10 (3.3±1.0, 24±7)
26
4-4COMPONENT PARTS
10. ABS System (ABS 5.3i Type)

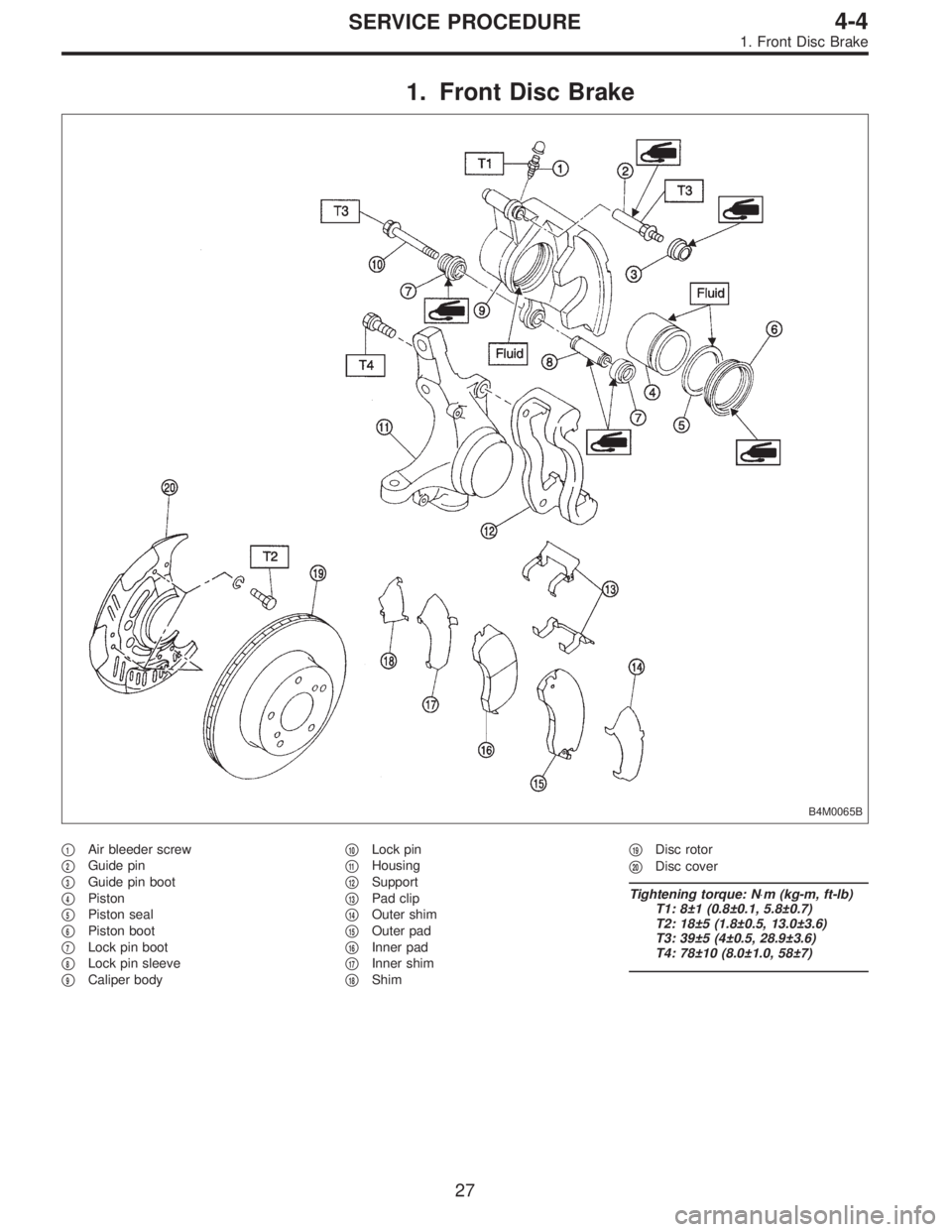

1. Front Disc Brake
B4M0065B
1Air bleeder screw

2Guide pin

3Guide pin boot

4Piston

5Piston seal

6Piston boot

7Lock pin boot

8Lock pin sleeve

9Caliper body
10Lock pin

11Housing

12Support

13Pad clip

14Outer shim

15Outer pad

16Inner pad

17Inner shim

18Shim
19Disc rotor

20Disc cover
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 8±1 (0.8±0.1, 5.8±0.7)
T2: 18±5 (1.8±0.5, 13.0±3.6)
T3: 39±5 (4±0.5, 28.9±3.6)
T4: 78±10 (8.0±1.0, 58±7)
27
4-4SERVICE PROCEDURE
1. Front Disc Brake

B4M1167
A: ON-CAR SERVICE
1. PAD
1) Remove lock pin.
2) Raise caliper body.
3) Remove pad.
B4M1168A
4) Check pad thickness A.
Pad thickness
(including back metal)
mm (in)Standard value 17 (0.67)
Wear limit 7.5 (0.295)
CAUTION:

Always replace the pads for both the left and right
wheels at the same time. Also replace pad clips if they
are twisted or worn.

A wear indicator is provided on the inner disc brake
pad. If the pad wears down to such an extent that the
end of the wear indicator contacts the disc rotor, a
squeaking sound is produced as the wheel rotates. If
this sound is heard, replace the pad.

Replace pad if there is oil or grease on it.
B4M1169A
5) Apply thin coat of PBC GREASE (Part No. 003607000)
to the frictional portion between pad and pad clip.
6) Install pads on support.
7) Install caliper body on support.
NOTE:
If it is difficult to push piston during pad replacement,
loosen air bleeder to facilitate work.
G4M0364
2. DISC ROTOR
1) Install disc rotor by tightening the five wheel nuts.
2) Set a dial gauge on the disc rotor. Turn disc rotor to
check runout.
NOTE:
Make sure that dial gauge is set 5 mm (0.20 in) inward of
rotor outer perimeter.
Disc rotor runout limit:
0.075 mm (0.0030 in)
28
4-4SERVICE PROCEDURE
1. Front Disc Brake

G4M0365

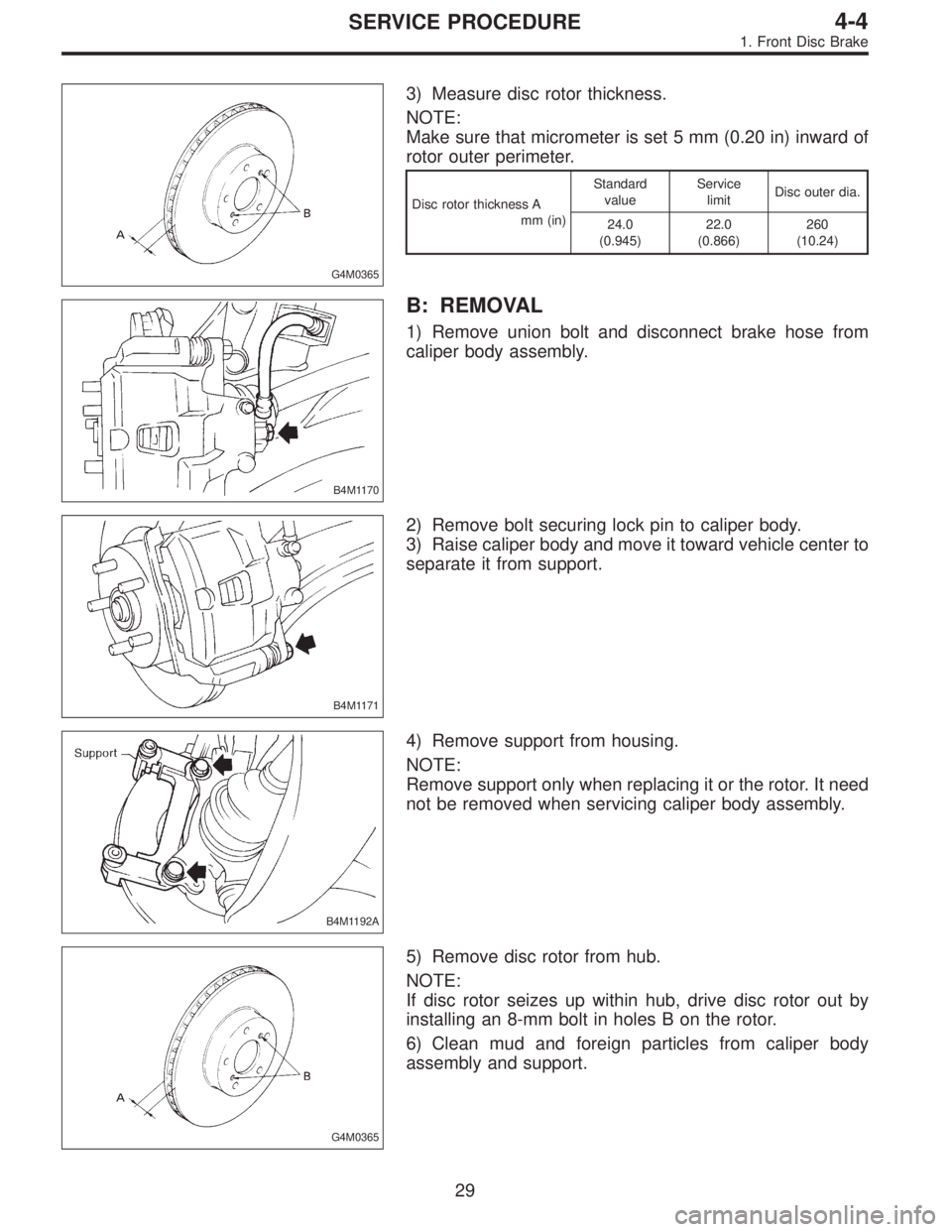

3) Measure disc rotor thickness.
NOTE:
Make sure that micrometer is set 5 mm (0.20 in) inward of
rotor outer perimeter.
Disc rotor thickness A
mm (in)Standard
valueService
limitDisc outer dia.
24.0
(0.945)22.0
(0.866)260
(10.24)
B4M1170
B: REMOVAL
1) Remove union bolt and disconnect brake hose from
caliper body assembly.
B4M1171
2) Remove bolt securing lock pin to caliper body.
3) Raise caliper body and move it toward vehicle center to
separate it from support.
B4M1192A
4) Remove support from housing.
NOTE:
Remove support only when replacing it or the rotor. It need
not be removed when servicing caliper body assembly.
G4M0365
5) Remove disc rotor from hub.
NOTE:
If disc rotor seizes up within hub, drive disc rotor out by
installing an 8-mm bolt in holes B on the rotor.
6) Clean mud and foreign particles from caliper body
assembly and support.
29
4-4SERVICE PROCEDURE
1. Front Disc Brake

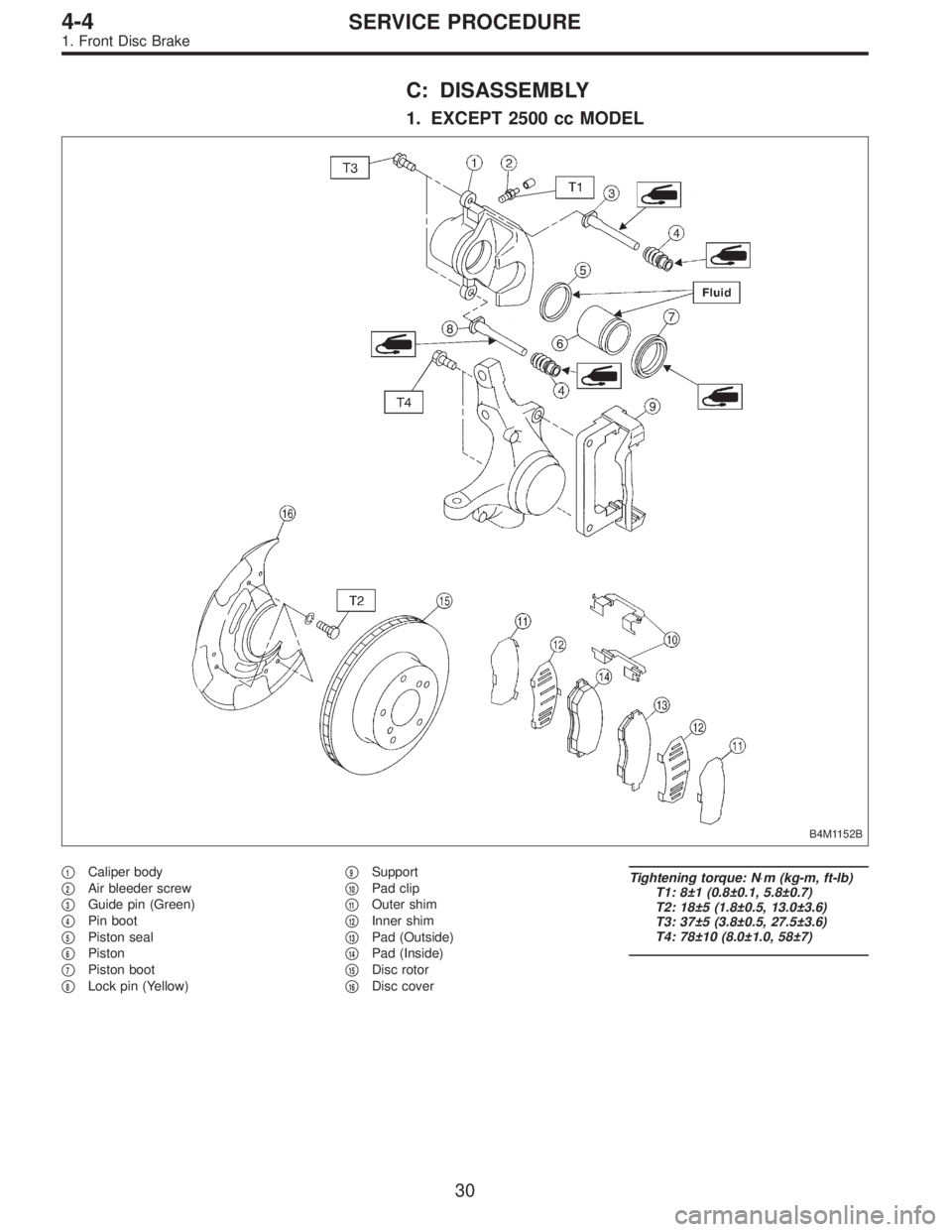

C: DISASSEMBLY
1. EXCEPT 2500 cc MODEL
B4M1152B
1Caliper body

2Air bleeder screw

3Guide pin (Green)

4Pin boot

5Piston seal

6Piston

7Piston boot

8Lock pin (Yellow)
9Support

10Pad clip

11Outer shim

12Inner shim

13Pad (Outside)

14Pad (Inside)

15Disc rotor

16Disc cover
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 8±1 (0.8±0.1, 5.8±0.7)
T2: 18±5 (1.8±0.5, 13.0±3.6)
T3: 37±5 (3.8±0.5, 27.5±3.6)
T4: 78±10 (8.0±1.0, 58±7)
30
4-4SERVICE PROCEDURE
1. Front Disc Brake
