SUBARU LEGACY 1997 Service Repair Manual

B4M0861A
10AB4

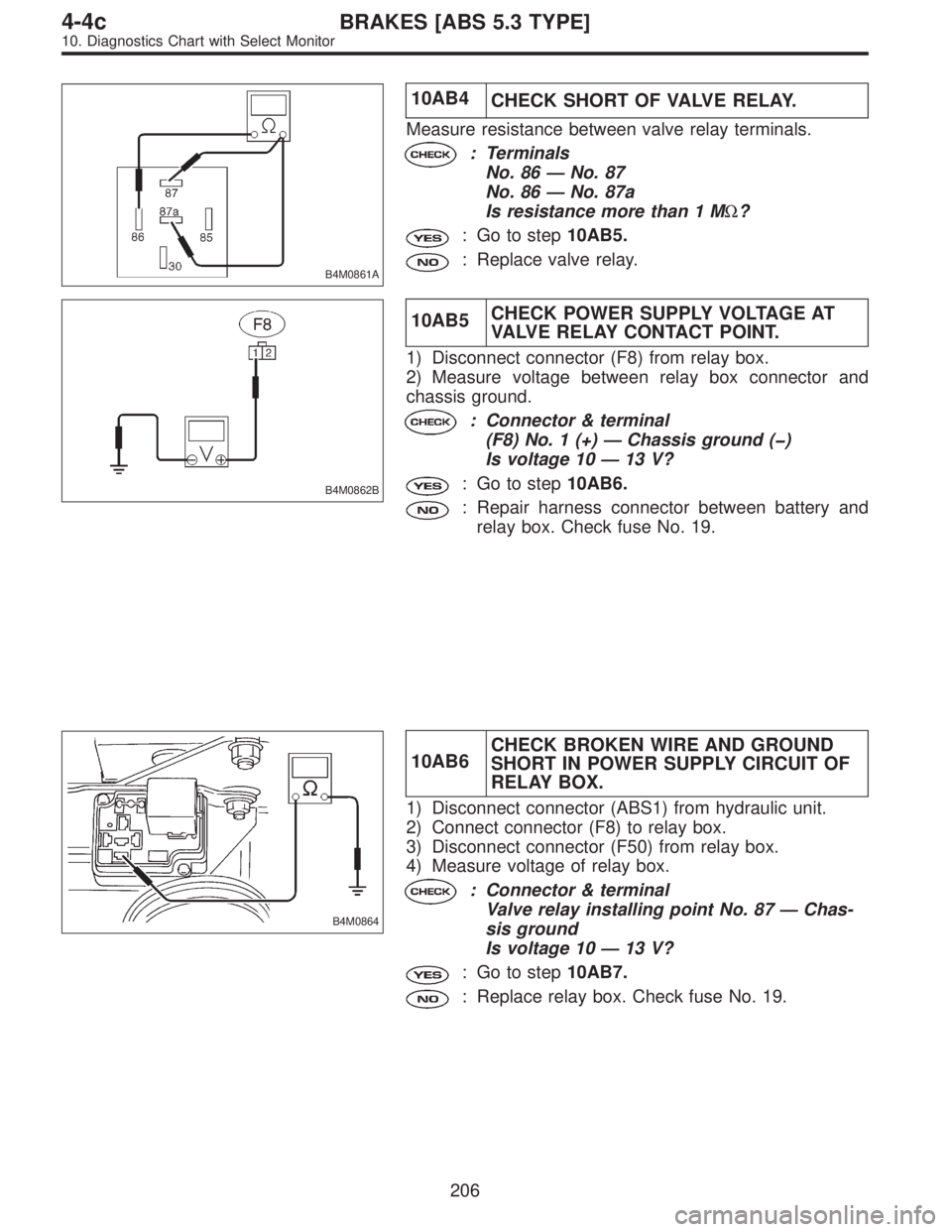

CHECK SHORT OF VALVE RELAY.
Measure resistance between valve relay terminals.
: Terminals
No. 86—No. 87
No. 86—No. 87a
Is resistance more than 1 MΩ?
: Go to step10AB5.
: Replace valve relay.
B4M0862B
10AB5CHECK POWER SUPPLY VOLTAGE AT
VALVE RELAY CONTACT POINT.
1) Disconnect connector (F8) from relay box.
2) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
(F8) No. 1 (+)—Chassis ground ()
Is voltage 10—13 V?
: Go to step10AB6.
: Repair harness connector between battery and
relay box. Check fuse No. 19.
B4M0864
10AB6CHECK BROKEN WIRE AND GROUND
SHORT IN POWER SUPPLY CIRCUIT OF
RELAY BOX.
1) Disconnect connector (ABS1) from hydraulic unit.
2) Connect connector (F8) to relay box.
3) Disconnect connector (F50) from relay box.
4) Measure voltage of relay box.
: Connector & terminal
Valve relay installing point No. 87—Chas-
sis ground
Is voltage 10—13 V?
: Go to step10AB7.
: Replace relay box. Check fuse No. 19.
206
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

B4M0865A

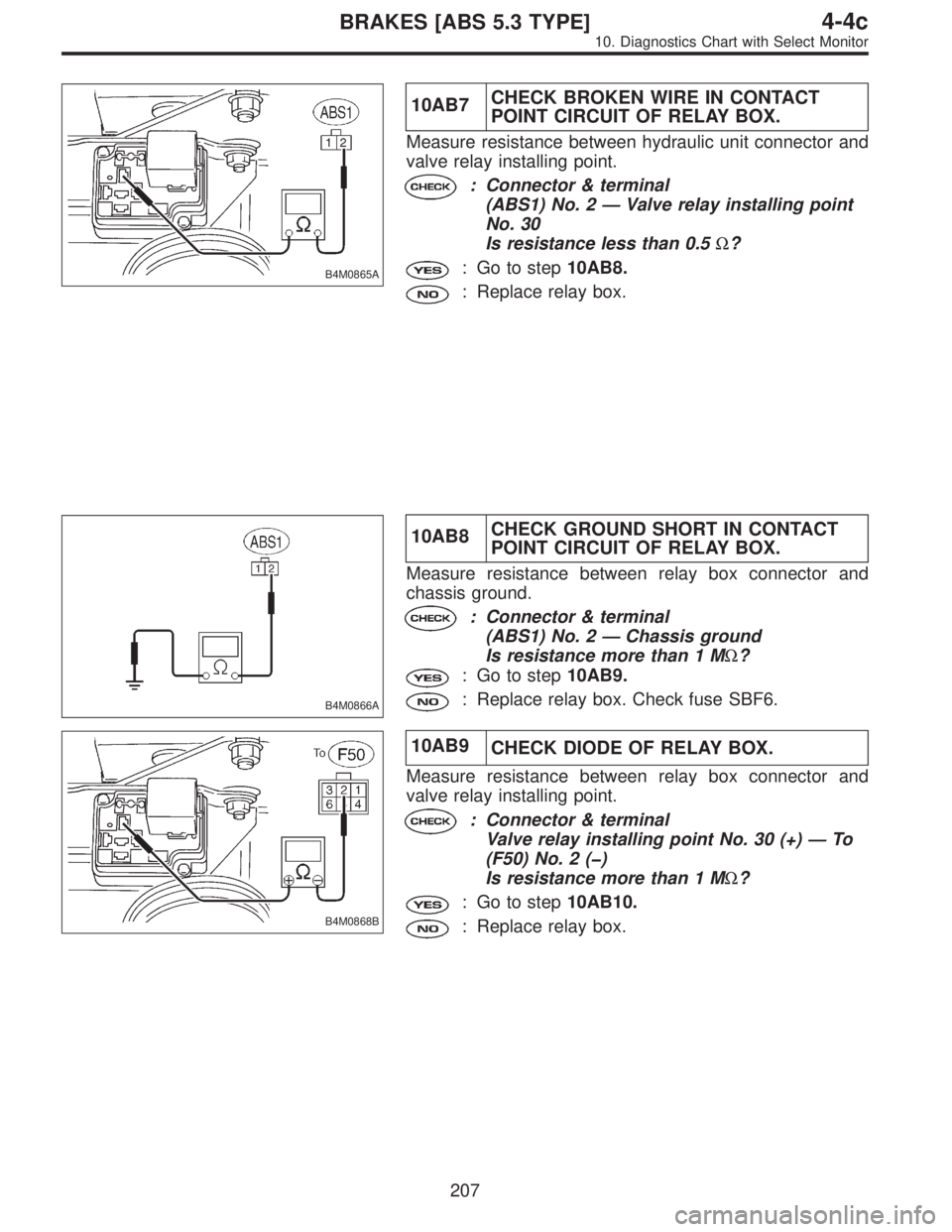

10AB7CHECK BROKEN WIRE IN CONTACT
POINT CIRCUIT OF RELAY BOX.
Measure resistance between hydraulic unit connector and
valve relay installing point.
: Connector & terminal
(ABS1) No. 2—Valve relay installing point
No. 30
Is resistance less than 0.5Ω?
: Go to step10AB8.
: Replace relay box.
B4M0866A
10AB8CHECK GROUND SHORT IN CONTACT
POINT CIRCUIT OF RELAY BOX.
Measure resistance between relay box connector and
chassis ground.
: Connector & terminal
(ABS1) No. 2—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB9.
: Replace relay box. Check fuse SBF6.
B4M0868B
10AB9
CHECK DIODE OF RELAY BOX.
Measure resistance between relay box connector and
valve relay installing point.
: Connector & terminal
Valve relay installing point No. 30 (+)—To
(F50) No. 2 ()
Is resistance more than 1 MΩ?
: Go to step10AB10.
: Replace relay box.
207
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

B4M0870B

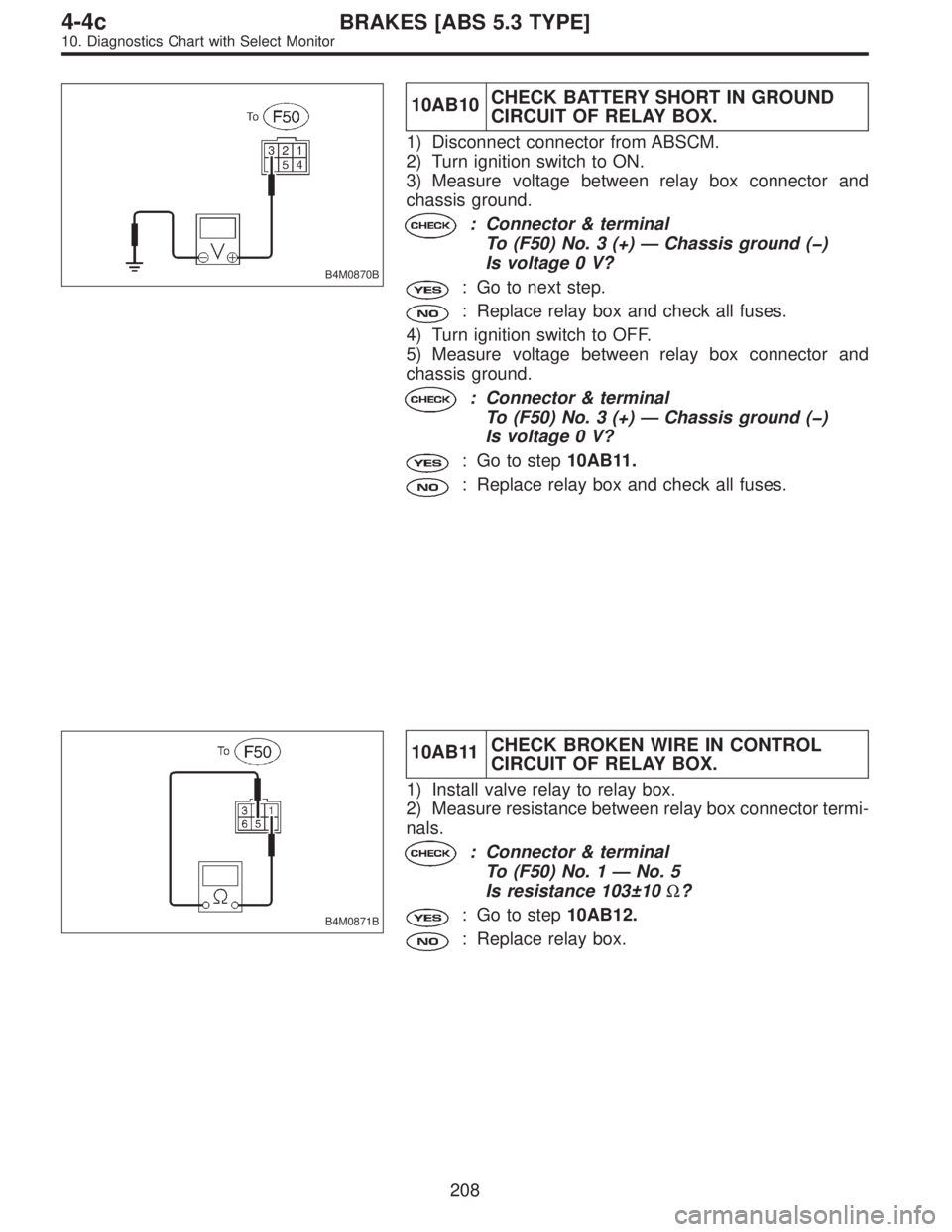

10AB10CHECK BATTERY SHORT IN GROUND
CIRCUIT OF RELAY BOX.
1) Disconnect connector from ABSCM.
2) Turn ignition switch to ON.
3) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 3 (+)—Chassis ground ()
Is voltage 0 V?
: Go to next step.
: Replace relay box and check all fuses.
4) Turn ignition switch to OFF.
5) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 3 (+)—Chassis ground ()
Is voltage 0 V?
: Go to step10AB11.
: Replace relay box and check all fuses.
B4M0871B
10AB11CHECK BROKEN WIRE IN CONTROL
CIRCUIT OF RELAY BOX.
1) Install valve relay to relay box.
2) Measure resistance between relay box connector termi-
nals.
: Connector & terminal
To (F50) No. 1—No. 5
Is resistance 103±10Ω?
: Go to step10AB12.
: Replace relay box.
208
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

B4M0872B

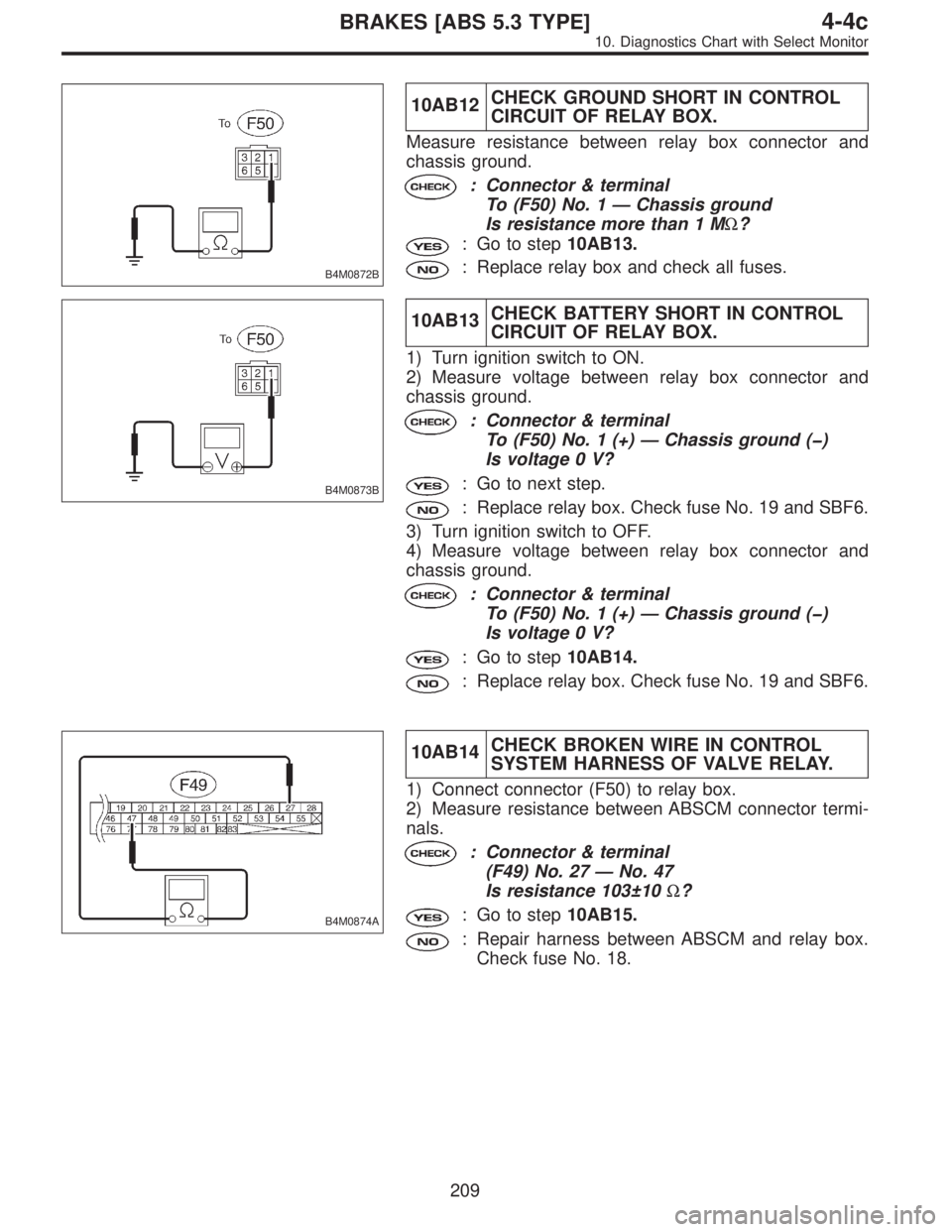

10AB12CHECK GROUND SHORT IN CONTROL
CIRCUIT OF RELAY BOX.
Measure resistance between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 1—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB13.
: Replace relay box and check all fuses.
B4M0873B
10AB13CHECK BATTERY SHORT IN CONTROL
CIRCUIT OF RELAY BOX.
1) Turn ignition switch to ON.
2) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 1 (+)—Chassis ground ()
Is voltage 0 V?
: Go to next step.
: Replace relay box. Check fuse No. 19 and SBF6.
3) Turn ignition switch to OFF.
4) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 1 (+)—Chassis ground ()
Is voltage 0 V?
: Go to step10AB14.
: Replace relay box. Check fuse No. 19 and SBF6.
B4M0874A
10AB14CHECK BROKEN WIRE IN CONTROL
SYSTEM HARNESS OF VALVE RELAY.
1) Connect connector (F50) to relay box.
2) Measure resistance between ABSCM connector termi-
nals.
: Connector & terminal
(F49) No. 27—No. 47
Is resistance 103±10Ω?
: Go to step10AB15.
: Repair harness between ABSCM and relay box.
Check fuse No. 18.
209
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

B4M0875A

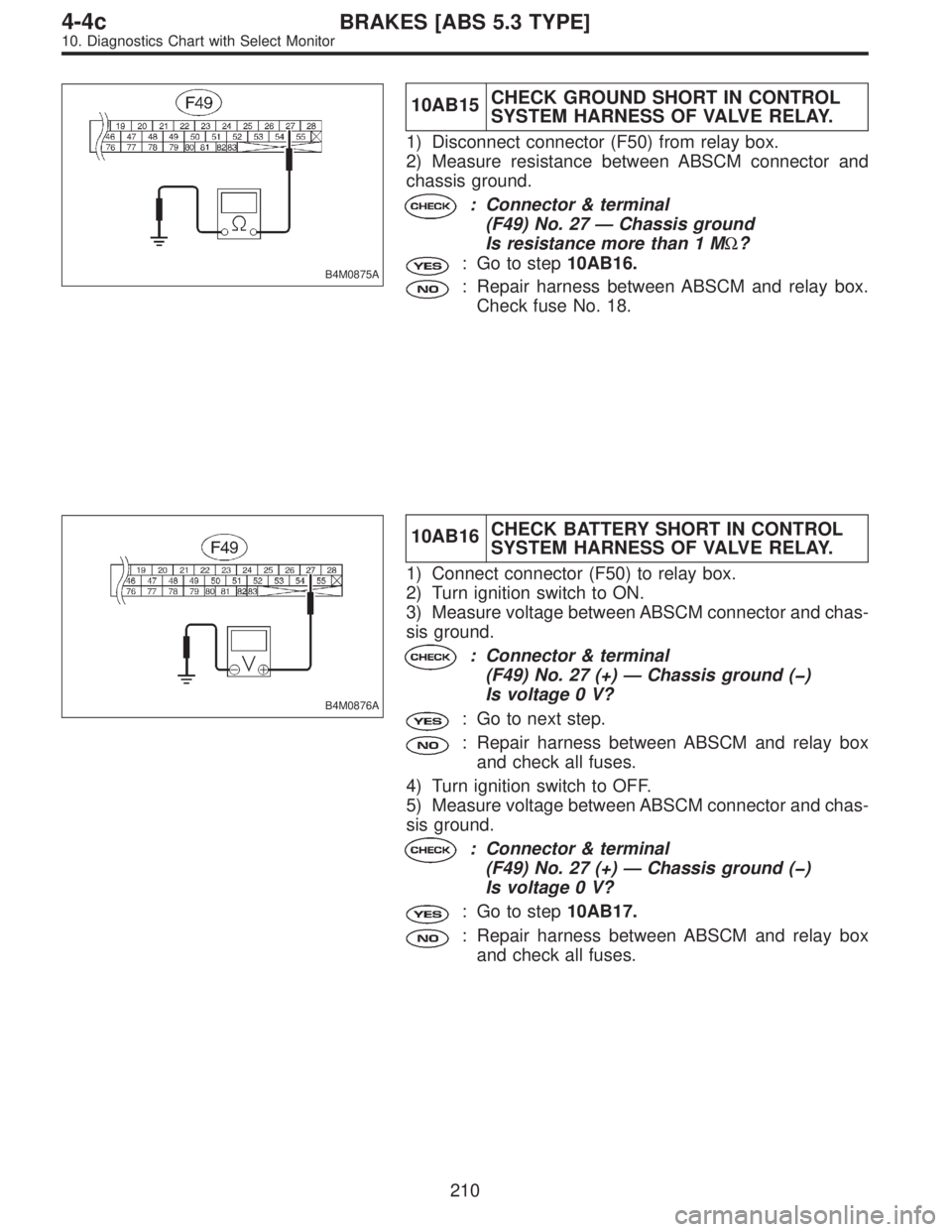

10AB15CHECK GROUND SHORT IN CONTROL
SYSTEM HARNESS OF VALVE RELAY.
1) Disconnect connector (F50) from relay box.
2) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 27—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB16.
: Repair harness between ABSCM and relay box.
Check fuse No. 18.
B4M0876A
10AB16CHECK BATTERY SHORT IN CONTROL
SYSTEM HARNESS OF VALVE RELAY.
1) Connect connector (F50) to relay box.
2) Turn ignition switch to ON.
3) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 27 (+)—Chassis ground ()
Is voltage 0 V?
: Go to next step.
: Repair harness between ABSCM and relay box
and check all fuses.
4) Turn ignition switch to OFF.
5) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 27 (+)—Chassis ground ()
Is voltage 0 V?
: Go to step10AB17.
: Repair harness between ABSCM and relay box
and check all fuses.
210
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

B4M0824B

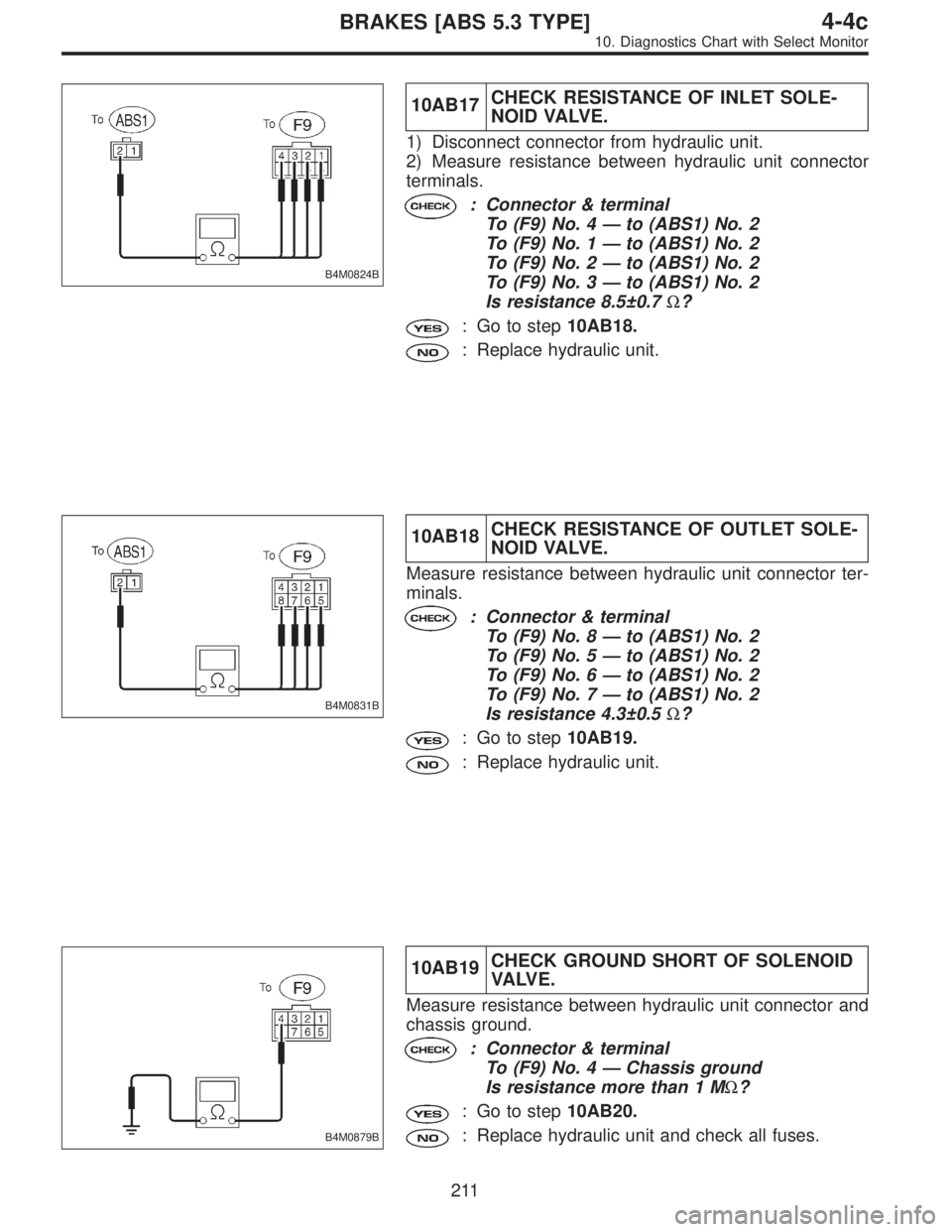

10AB17CHECK RESISTANCE OF INLET SOLE-
NOID VALVE.
1) Disconnect connector from hydraulic unit.
2) Measure resistance between hydraulic unit connector
terminals.
: Connector & terminal
To (F9) No. 4—to (ABS1) No. 2
To (F9) No. 1—to (ABS1) No. 2
To (F9) No. 2—to (ABS1) No. 2
To (F9) No. 3—to (ABS1) No. 2
Is resistance 8.5±0.7Ω?
: Go to step10AB18.
: Replace hydraulic unit.
B4M0831B
10AB18CHECK RESISTANCE OF OUTLET SOLE-
NOID VALVE.
Measure resistance between hydraulic unit connector ter-
minals.
: Connector & terminal
To (F9) No. 8—to (ABS1) No. 2
To (F9) No. 5—to (ABS1) No. 2
To (F9) No. 6—to (ABS1) No. 2
To (F9) No. 7—to (ABS1) No. 2
Is resistance 4.3±0.5Ω?
: Go to step10AB19.
: Replace hydraulic unit.
B4M0879B
10AB19CHECK GROUND SHORT OF SOLENOID
VA LV E .
Measure resistance between hydraulic unit connector and
chassis ground.
: Connector & terminal
To (F9) No. 4—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB20.
: Replace hydraulic unit and check all fuses.
211
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

B4M0882A

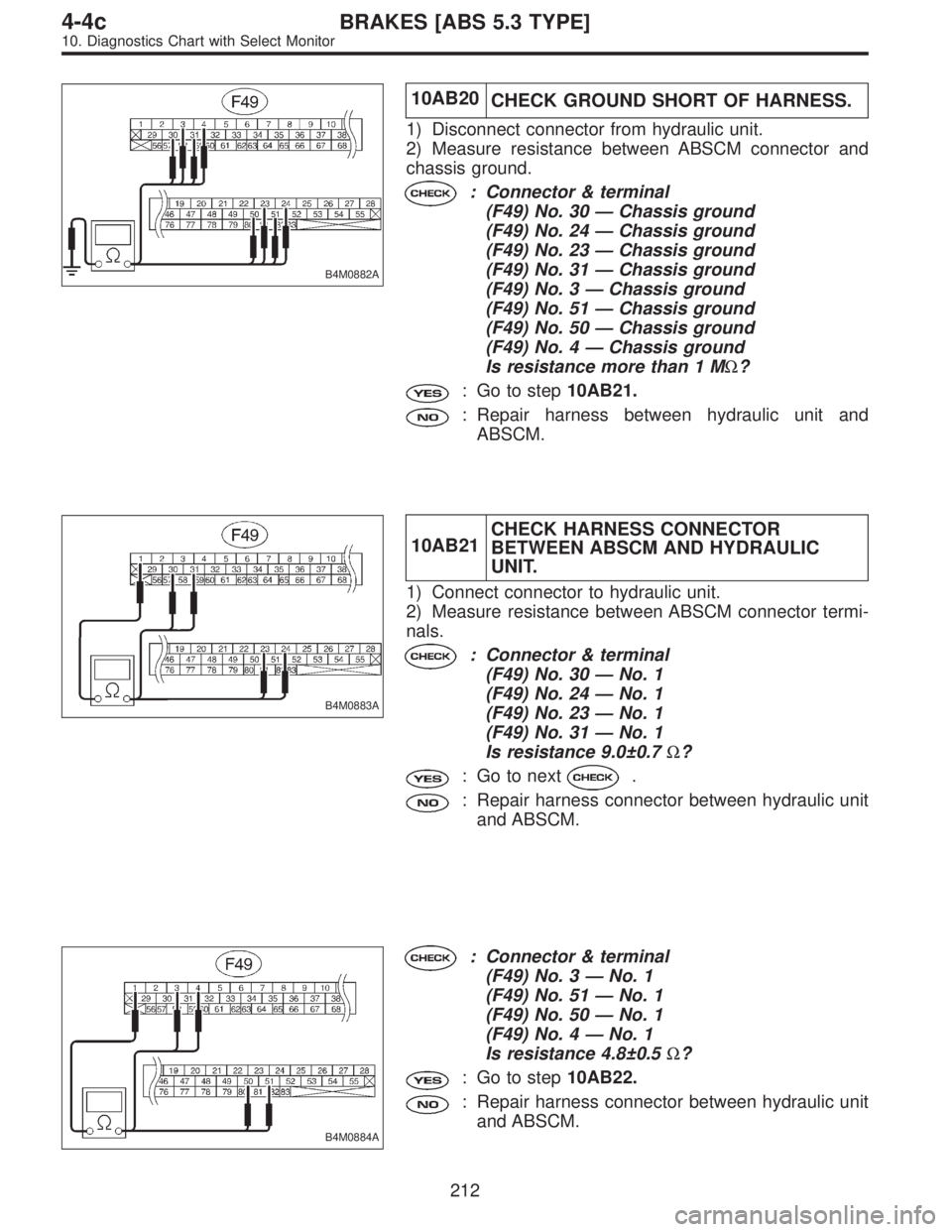

10AB20
CHECK GROUND SHORT OF HARNESS.
1) Disconnect connector from hydraulic unit.
2) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 30—Chassis ground
(F49) No. 24—Chassis ground
(F49) No. 23—Chassis ground
(F49) No. 31—Chassis ground
(F49) No. 3—Chassis ground
(F49) No. 51—Chassis ground
(F49) No. 50—Chassis ground
(F49) No. 4—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB21.
: Repair harness between hydraulic unit and
ABSCM.
B4M0883A
10AB21CHECK HARNESS CONNECTOR
BETWEEN ABSCM AND HYDRAULIC
UNIT.
1) Connect connector to hydraulic unit.
2) Measure resistance between ABSCM connector termi-
nals.
: Connector & terminal
(F49) No. 30—No. 1
(F49) No. 24—No. 1
(F49) No. 23—No. 1
(F49) No. 31—No. 1
Is resistance 9.0±0.7Ω?
: Go to next.
: Repair harness connector between hydraulic unit
and ABSCM.
B4M0884A
: Connector & terminal
(F49) No. 3—No. 1
(F49) No. 51—No. 1
(F49) No. 50—No. 1
(F49) No. 4—No. 1
Is resistance 4.8±0.5Ω?
: Go to step10AB22.
: Repair harness connector between hydraulic unit
and ABSCM.
212
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

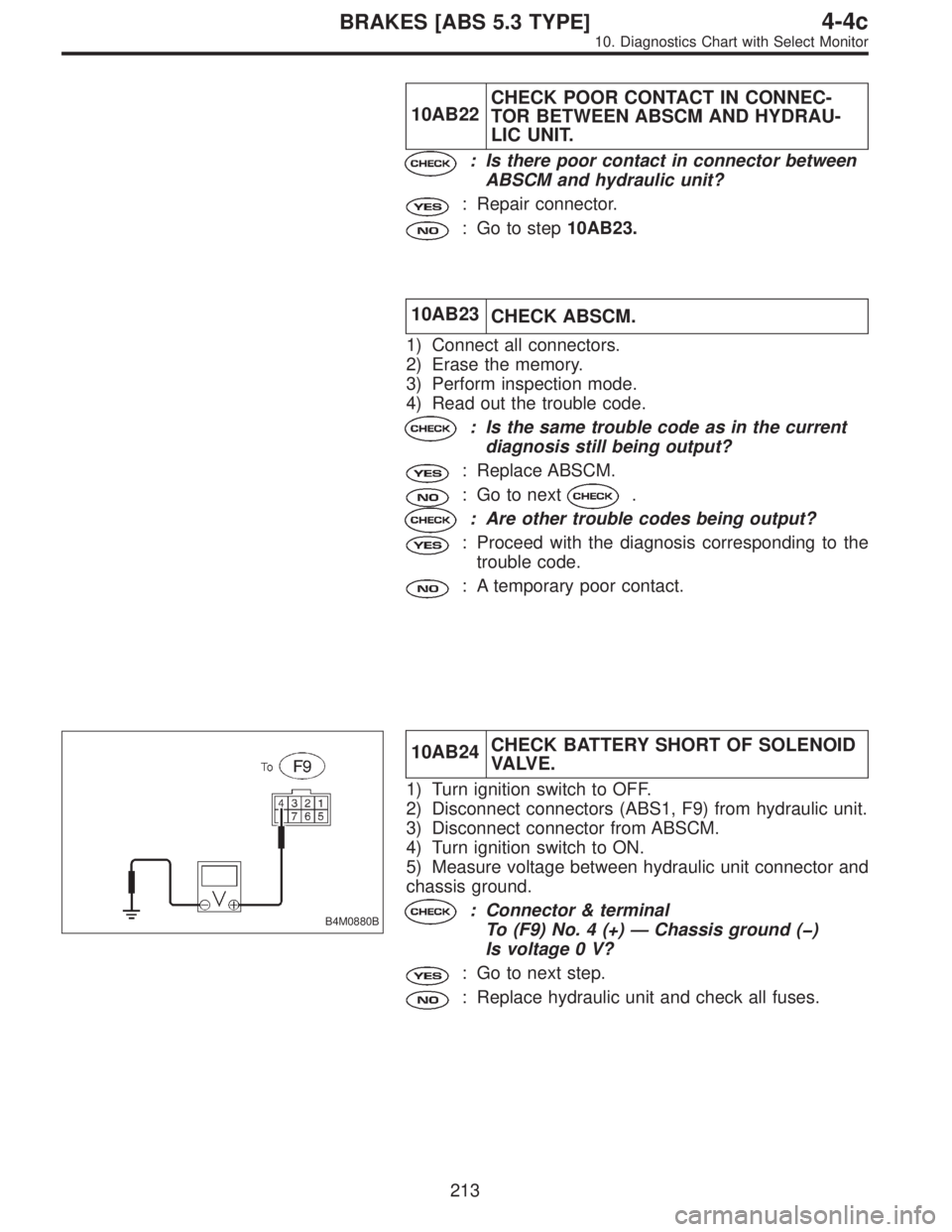

10AB22CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND HYDRAU-
LIC UNIT.
: Is there poor contact in connector between
ABSCM and hydraulic unit?
: Repair connector.
: Go to step10AB23.
10AB23
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
B4M0880B
10AB24CHECK BATTERY SHORT OF SOLENOID
VA LV E .
1) Turn ignition switch to OFF.
2) Disconnect connectors (ABS1, F9) from hydraulic unit.
3) Disconnect connector from ABSCM.
4) Turn ignition switch to ON.
5) Measure voltage between hydraulic unit connector and
chassis ground.
: Connector & terminal
To (F9) No. 4 (+)—Chassis ground ()
Is voltage 0 V?
: Go to next step.
: Replace hydraulic unit and check all fuses.
213
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

6) Turn ignition switch to OFF.
7) Measure voltage between hydraulic unit connector and
chassis ground.
: Connector & terminal
To (F63) No. 4 (+)—Chassis ground ()
Is voltage 0 V?
: Go to step10AB25.
: Replace hydraulic unit and check all fuses.
B4M0881A
10AB25
CHECK BATTERY SHORT OF HARNESS.
1) Turn ignition switch to ON.
2) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 30 (+)—Chassis ground ()
(F49) No. 24 (+)—Chassis ground ()
(F49) No. 23 (+)—Chassis ground ()
(F49) No. 31 (+)—Chassis ground ()
(F49) No. 3 (+)—Chassis ground ()
(F49) No. 51 (+)—Chassis ground ()
(F49) No. 50 (+)—Chassis ground ()
(F49) No. 4 (+)—Chassis ground ()
Is voltage 0 V?
: Go to next step.
: Repair harness between hydraulic unit and
ABSCM and check all fuses.
3) Turn ignition switch to OFF.
4) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 30 (+)—Chassis ground ()
(F49) No. 24 (+)—Chassis ground ()
(F49) No. 23 (+)—Chassis ground ()
(F49) No. 31 (+)—Chassis ground ()
(F49) No. 3 (+)—Chassis ground ()
(F49) No. 51 (+)—Chassis ground ()
(F49) No. 50 (+)—Chassis ground ()
(F49) No. 4 (+)—Chassis ground ()
Is voltage 0 V?
: Go to step10AB26.
: Repair harness between hydraulic unit and
ABSCM and check all fuses.
214
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

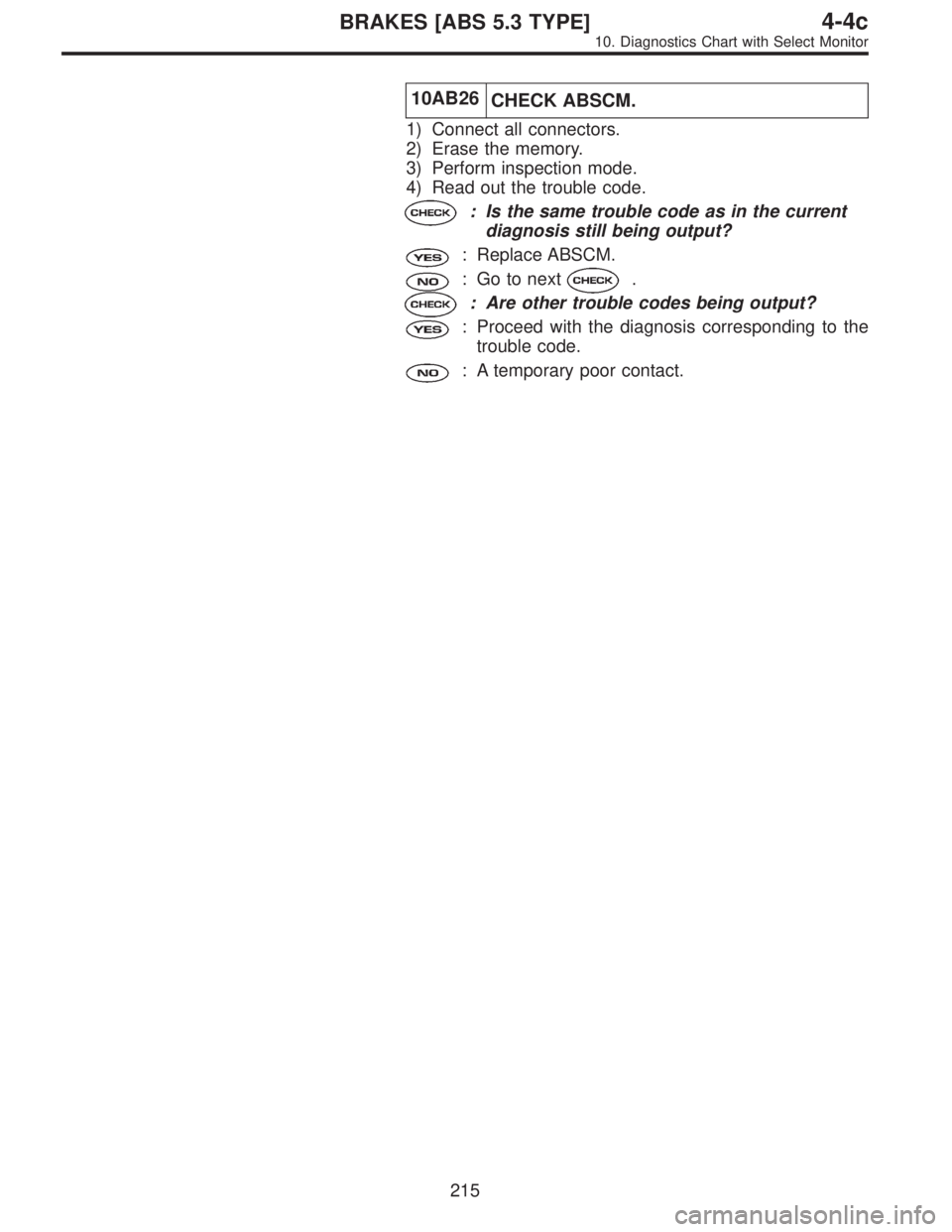

10AB26
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
215
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
