SUBARU LEGACY 1997 Service Repair Manual

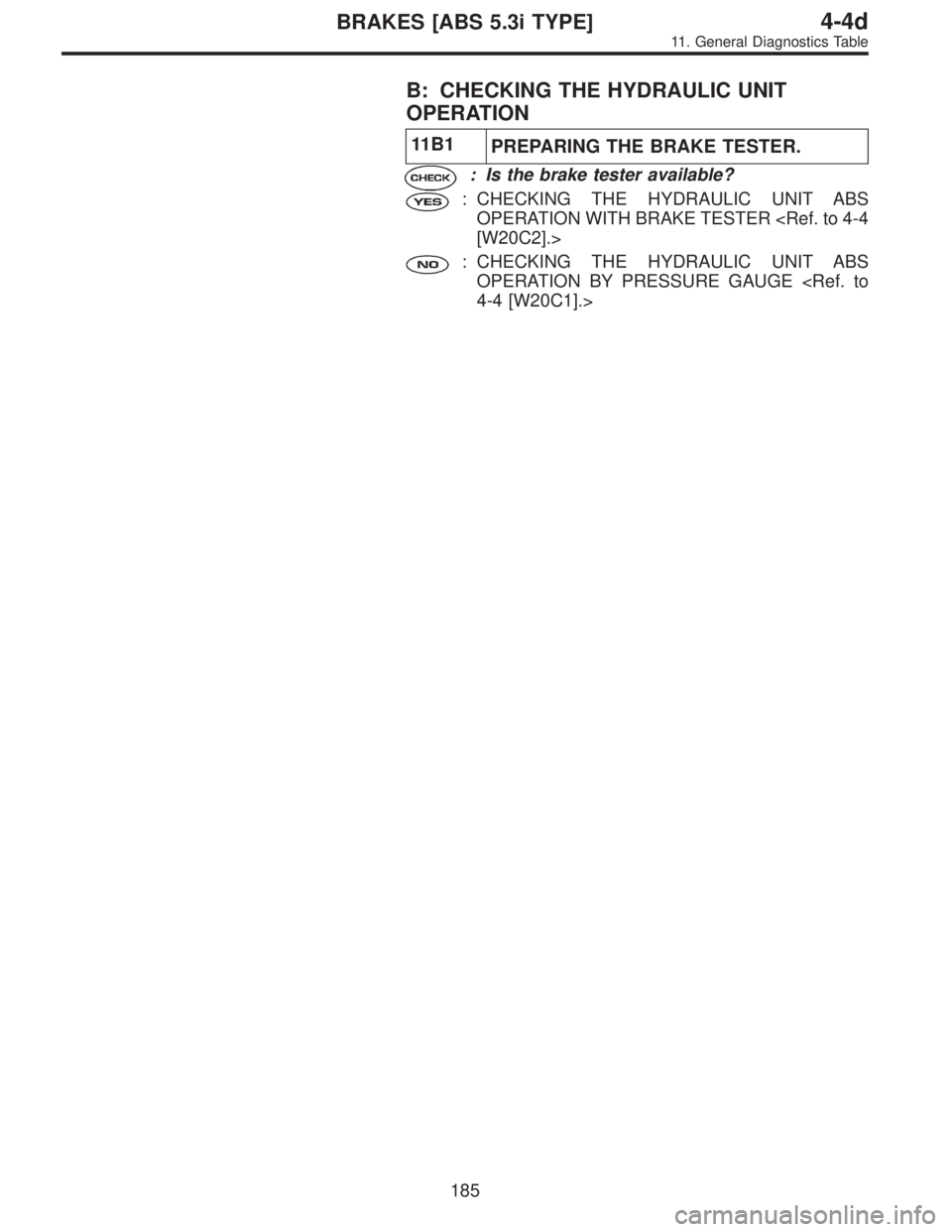

B: CHECKING THE HYDRAULIC UNIT
OPERATION
11B1
PREPARING THE BRAKE TESTER.
: Is the brake tester available?
: CHECKING THE HYDRAULIC UNIT ABS
OPERATION WITH BRAKE TESTER [W20C2].>
: CHECKING THE HYDRAULIC UNIT ABS
OPERATION BY PRESSURE GAUGE 4-4 [W20C1].>
185
4-4dBRAKES [ABS 5.3i TYPE]
11. General Diagnostics Table

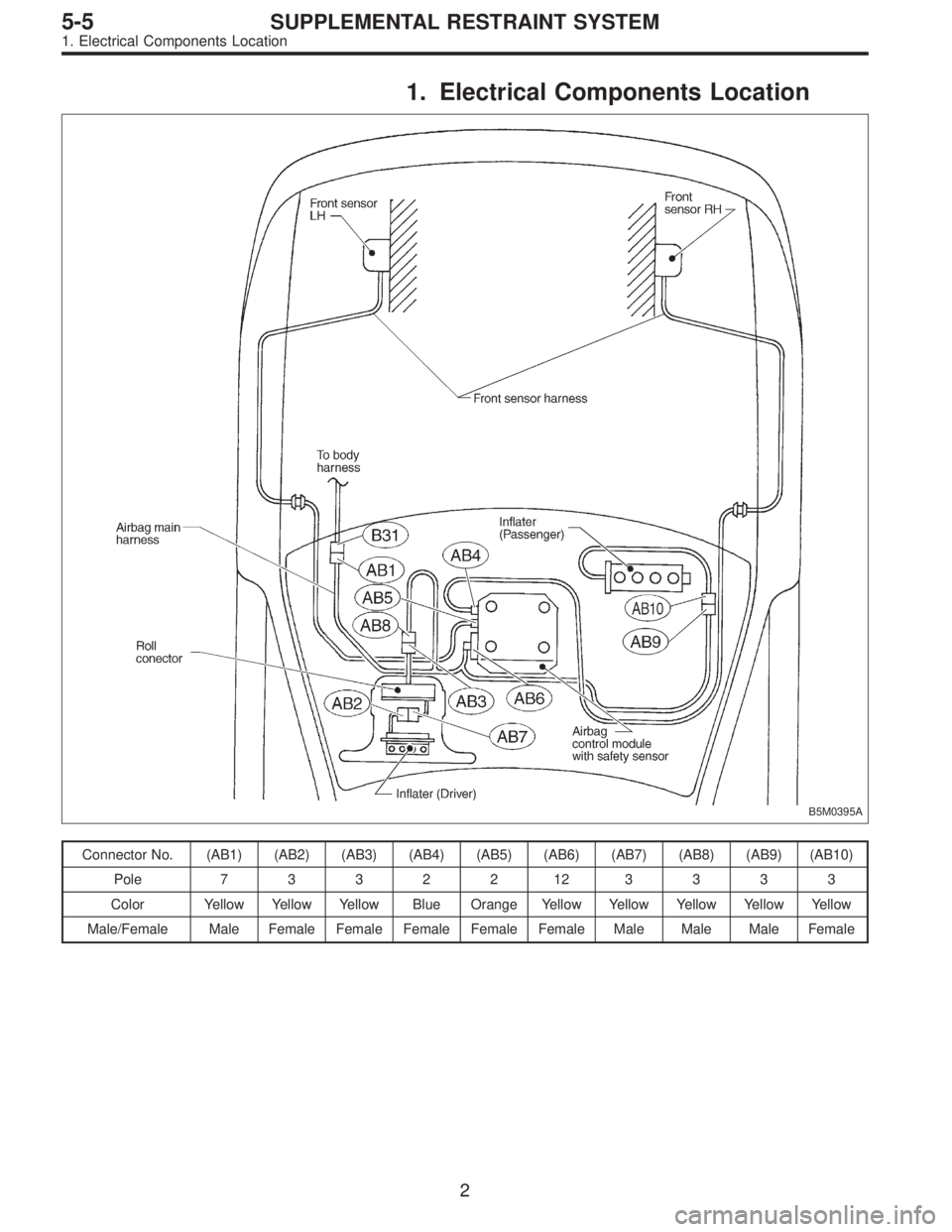

1. Electrical Components Location
B5M0395A
Connector No. (AB1) (AB2) (AB3) (AB4) (AB5) (AB6) (AB7) (AB8) (AB9) (AB10)
Pole73322123333
Color Yellow Yellow Yellow Blue Orange Yellow Yellow Yellow Yellow Yellow
Male/Female Male Female Female Female Female Female Male Male Male Female
2
5-5SUPPLEMENTAL RESTRAINT SYSTEM
1. Electrical Components Location

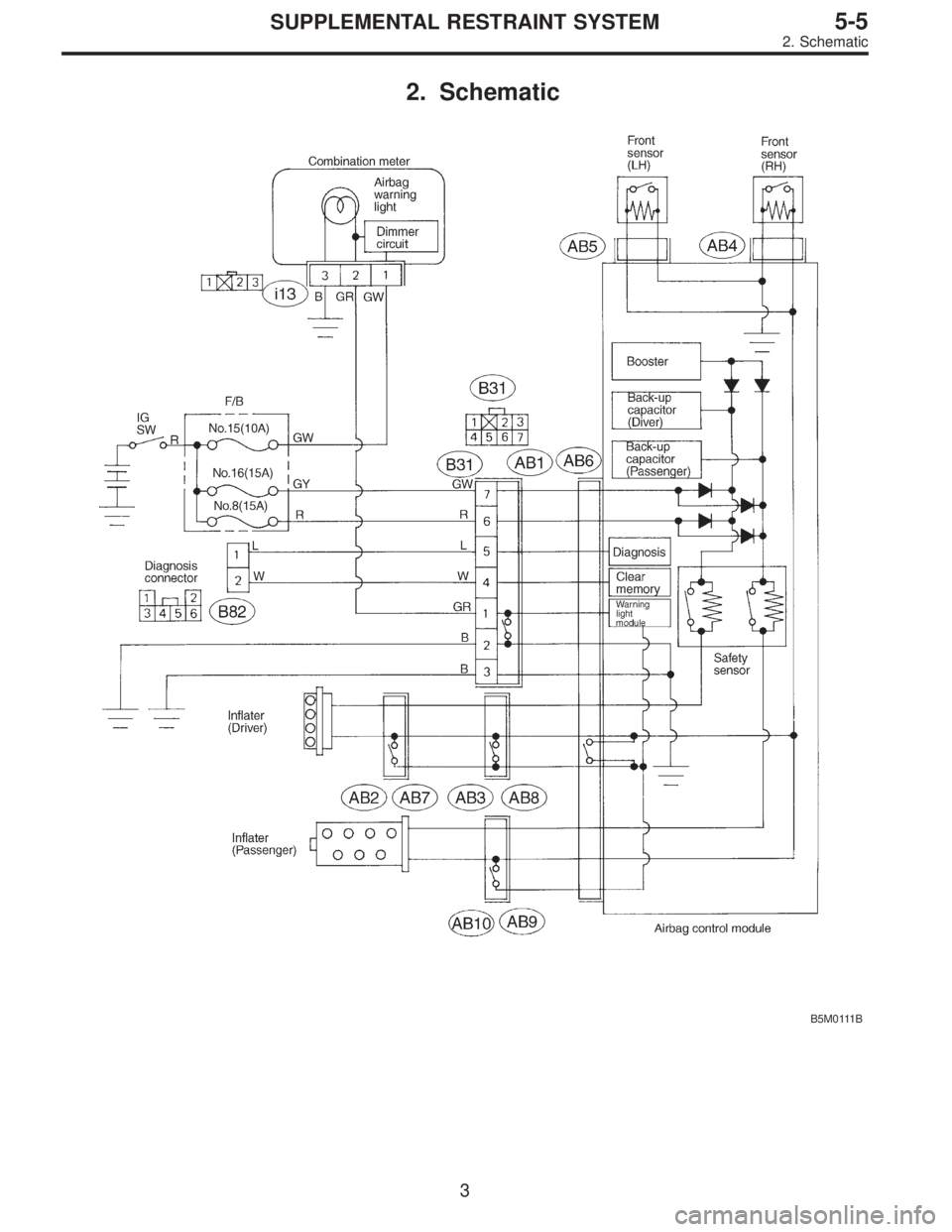

2. Schematic
B5M0111B
3
5-5SUPPLEMENTAL RESTRAINT SYSTEM
2. Schematic

3. Tools for Diagnostics
CAUTION:
Be sure to use specified test harness A, B or C when
measuring voltage, resistance, etc. of AIRBAG system
component parts.

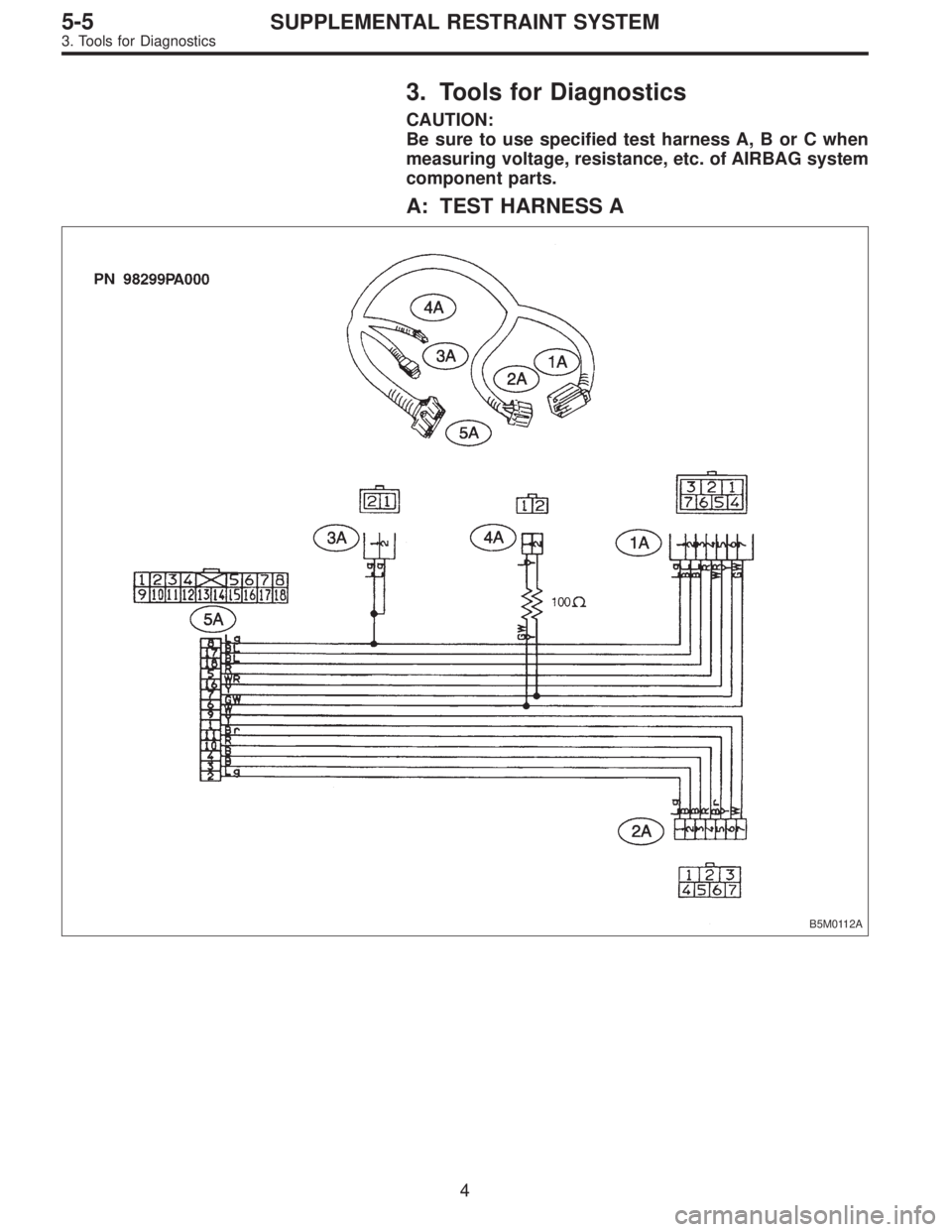

A: TEST HARNESS A
B5M0112A
4
5-5SUPPLEMENTAL RESTRAINT SYSTEM
3. Tools for Diagnostics

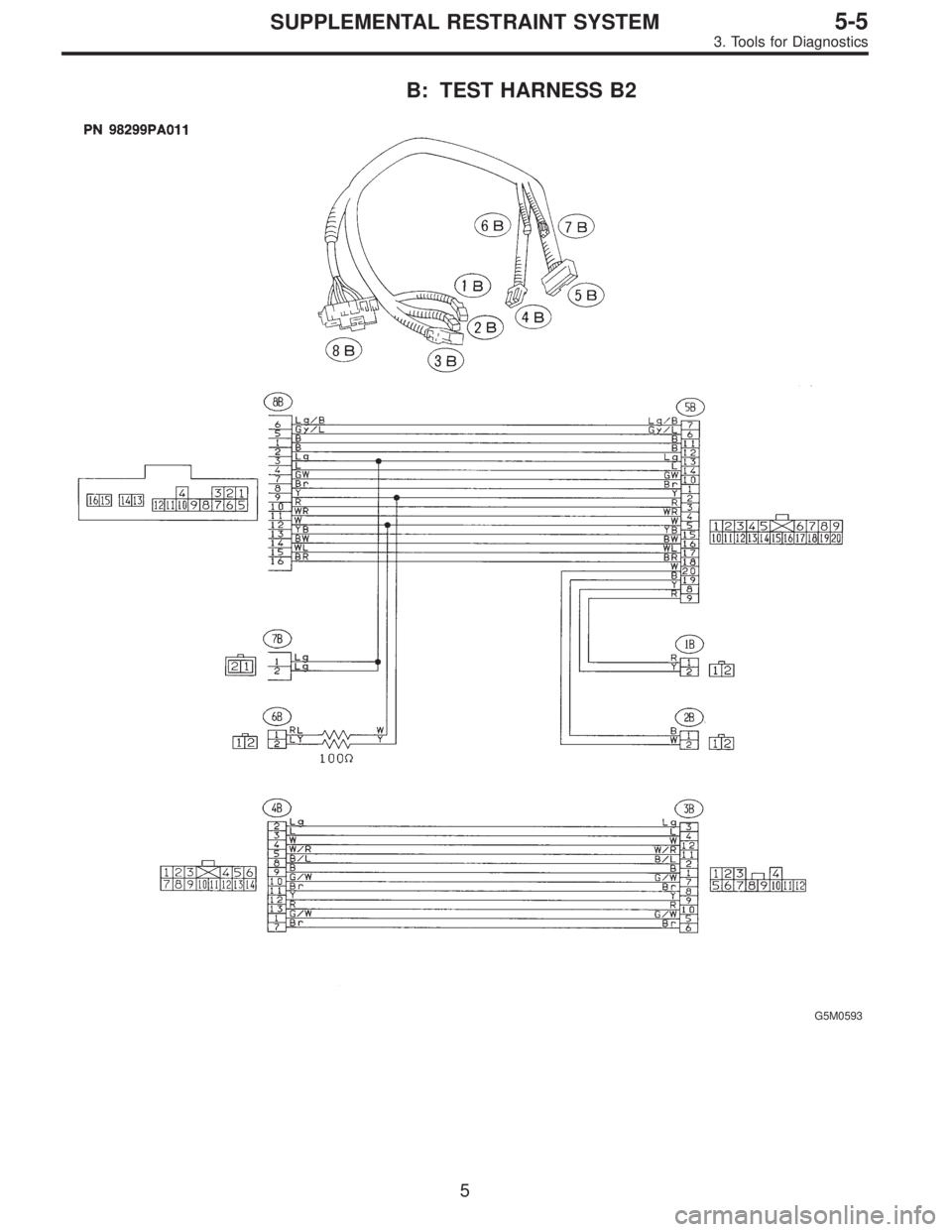

B: TEST HARNESS B2
G5M0593
5
5-5SUPPLEMENTAL RESTRAINT SYSTEM
3. Tools for Diagnostics

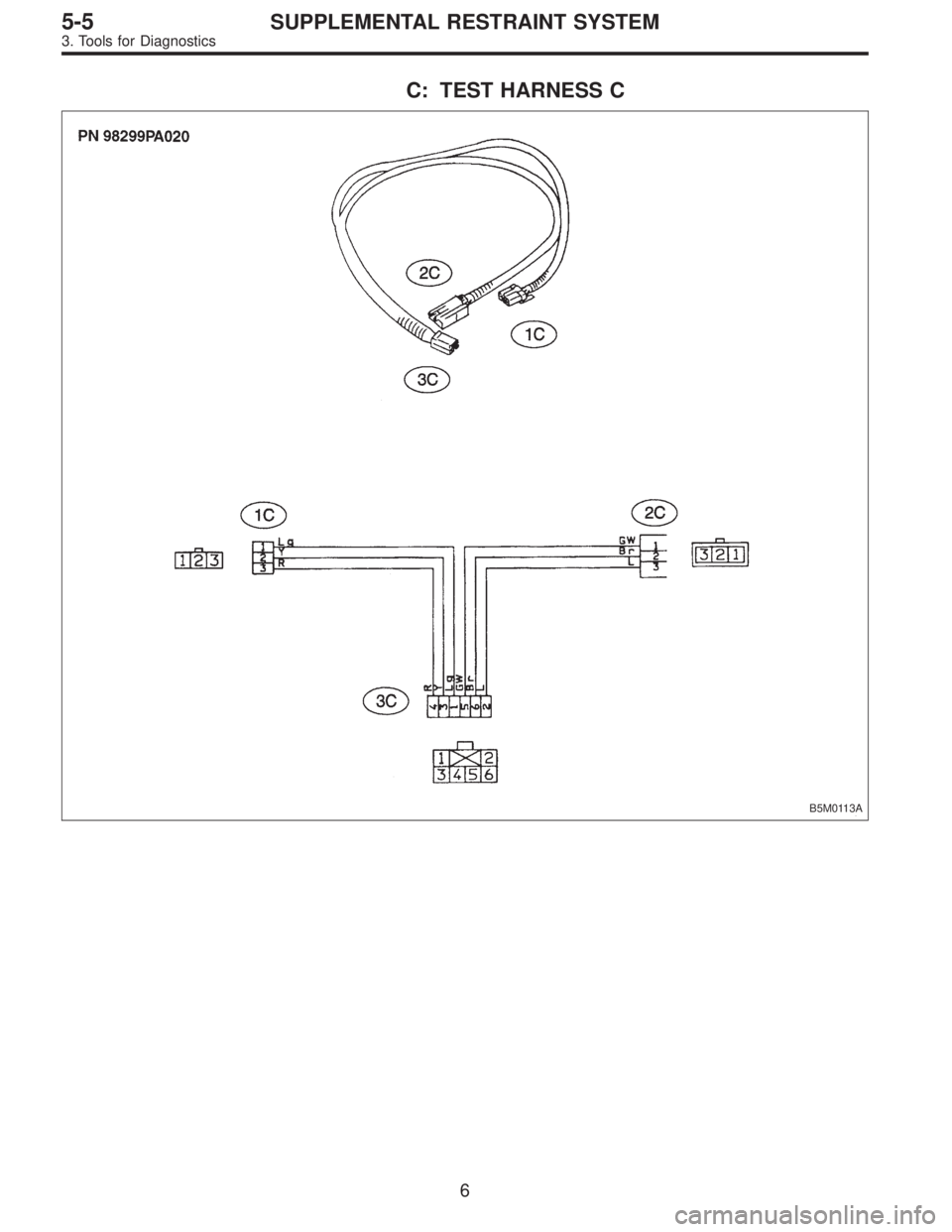

C: TEST HARNESS C
B5M0113A
6
5-5SUPPLEMENTAL RESTRAINT SYSTEM
3. Tools for Diagnostics

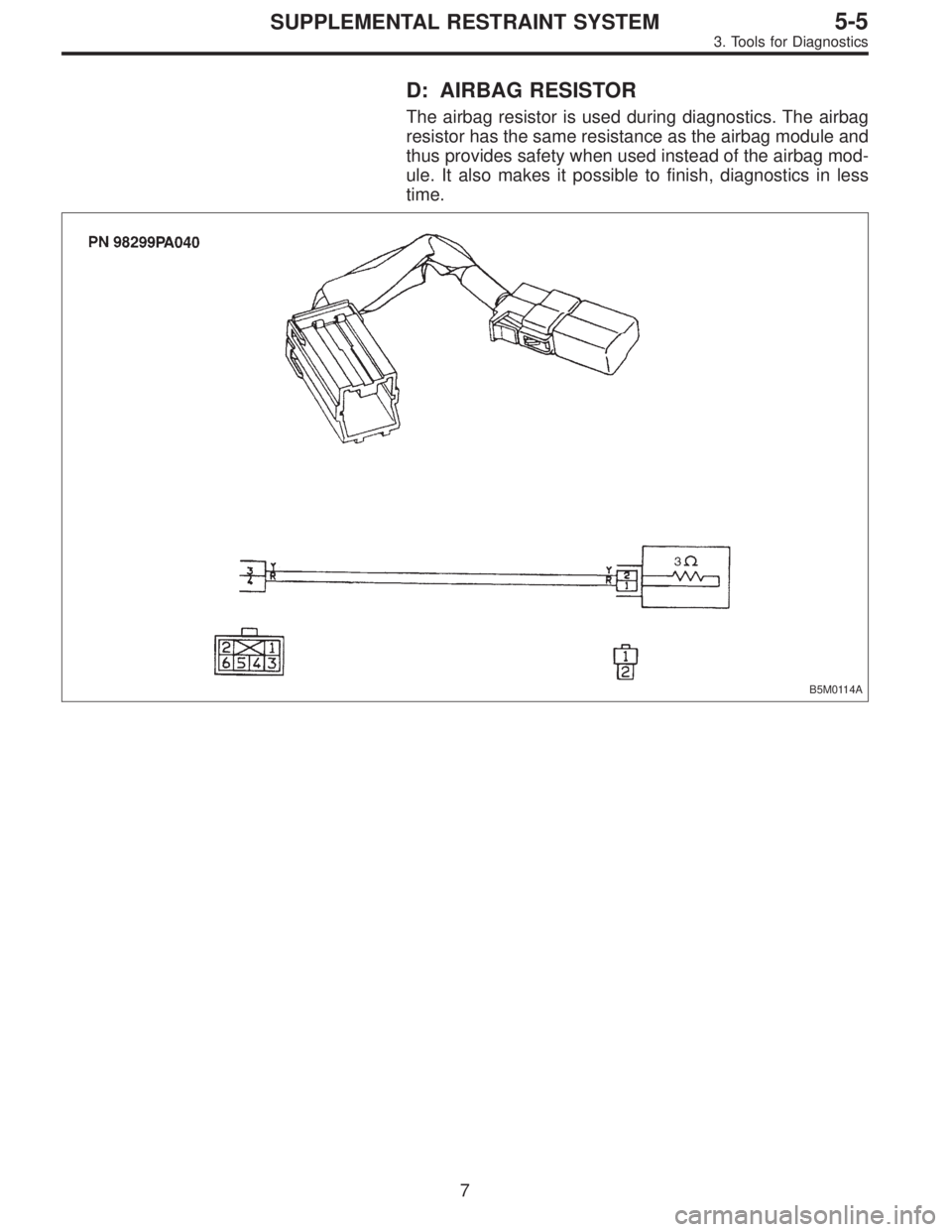

D: AIRBAG RESISTOR
The airbag resistor is used during diagnostics. The airbag
resistor has the same resistance as the airbag module and
thus provides safety when used instead of the airbag mod-
ule. It also makes it possible to finish, diagnostics in less
time.
B5M0114A
7
5-5SUPPLEMENTAL RESTRAINT SYSTEM
3. Tools for Diagnostics

4. Diagnostics Chart for On-board
Diagnostic System
A: BASIC DIAGNOSTICS PROCEDURE
8
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System

B5M0115B

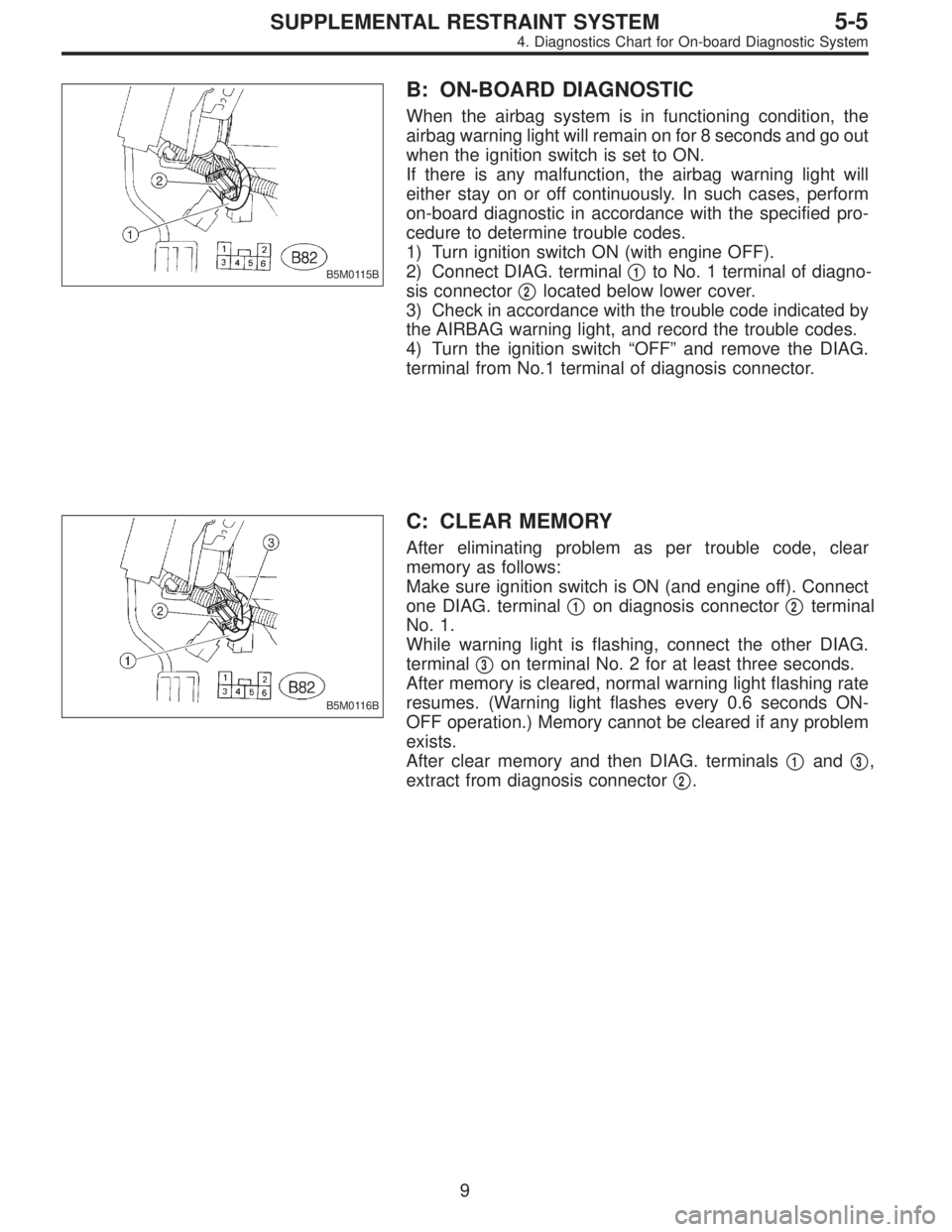

B: ON-BOARD DIAGNOSTIC
When the airbag system is in functioning condition, the
airbag warning light will remain on for 8 seconds and go out
when the ignition switch is set to ON.
If there is any malfunction, the airbag warning light will
either stay on or off continuously. In such cases, perform
on-board diagnostic in accordance with the specified pro-
cedure to determine trouble codes.
1) Turn ignition switch ON (with engine OFF).
2) Connect DIAG. terminal

1to No. 1 terminal of diagno-
sis connector

2located below lower cover.
3) Check in accordance with the trouble code indicated by
the AIRBAG warning light, and record the trouble codes.
4) Turn the ignition switch “OFF” and remove the DIAG.
terminal from No.1 terminal of diagnosis connector.
B5M0116B
C: CLEAR MEMORY
After eliminating problem as per trouble code, clear
memory as follows:
Make sure ignition switch is ON (and engine off). Connect
one DIAG. terminal

1on diagnosis connector
2terminal
No. 1.
While warning light is flashing, connect the other DIAG.
terminal

3on terminal No. 2 for at least three seconds.
After memory is cleared, normal warning light flashing rate
resumes. (Warning light flashes every 0.6 seconds ON-
OFF operation.) Memory cannot be cleared if any problem
exists.
After clear memory and then DIAG. terminals

1and
3,
extract from diagnosis connector

2.
9
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System

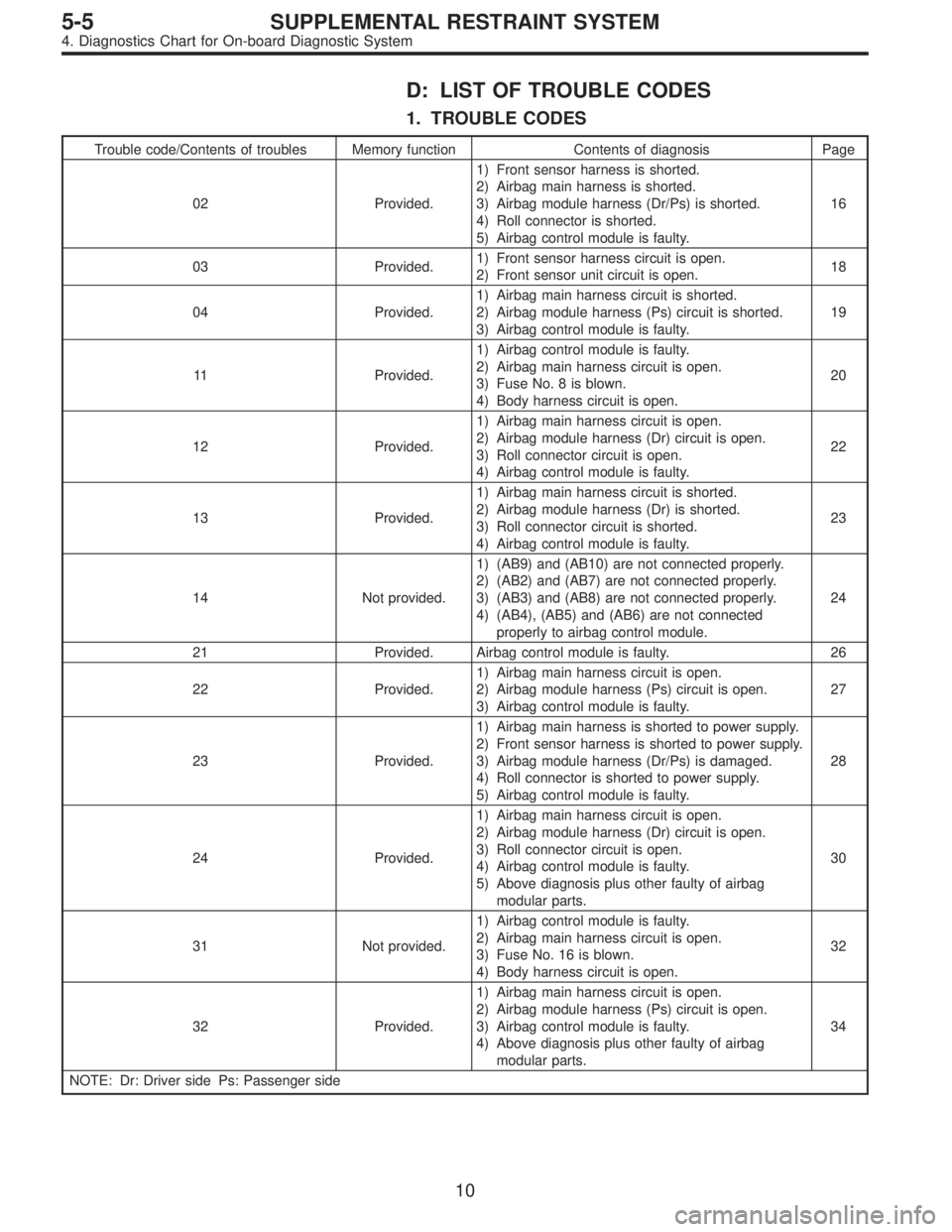

D: LIST OF TROUBLE CODES
1. TROUBLE CODES
Trouble code/Contents of troubles Memory function Contents of diagnosis Page
02 Provided.1) Front sensor harness is shorted.
2) Airbag main harness is shorted.
3) Airbag module harness (Dr/Ps) is shorted.
4) Roll connector is shorted.
5) Airbag control module is faulty.16
03 Provided.1) Front sensor harness circuit is open.
2) Front sensor unit circuit is open.18
04 Provided.1) Airbag main harness circuit is shorted.
2) Airbag module harness (Ps) circuit is shorted.
3) Airbag control module is faulty.19
11 Provided.1) Airbag control module is faulty.
2) Airbag main harness circuit is open.
3) Fuse No. 8 is blown.
4) Body harness circuit is open.20
12 Provided.1) Airbag main harness circuit is open.
2) Airbag module harness (Dr) circuit is open.
3) Roll connector circuit is open.
4) Airbag control module is faulty.22
13 Provided.1) Airbag main harness circuit is shorted.
2) Airbag module harness (Dr) is shorted.
3) Roll connector circuit is shorted.
4) Airbag control module is faulty.23
14 Not provided.1) (AB9) and (AB10) are not connected properly.
2) (AB2) and (AB7) are not connected properly.
3) (AB3) and (AB8) are not connected properly.
4) (AB4), (AB5) and (AB6) are not connected
properly to airbag control module.24
21 Provided. Airbag control module is faulty. 26
22 Provided.1) Airbag main harness circuit is open.
2) Airbag module harness (Ps) circuit is open.
3) Airbag control module is faulty.27
23 Provided.1) Airbag main harness is shorted to power supply.
2) Front sensor harness is shorted to power supply.
3) Airbag module harness (Dr/Ps) is damaged.
4) Roll connector is shorted to power supply.
5) Airbag control module is faulty.28
24 Provided.1) Airbag main harness circuit is open.
2) Airbag module harness (Dr) circuit is open.
3) Roll connector circuit is open.
4) Airbag control module is faulty.
5) Above diagnosis plus other faulty of airbag
modular parts.30
31 Not provided.1) Airbag control module is faulty.
2) Airbag main harness circuit is open.
3) Fuse No. 16 is blown.
4) Body harness circuit is open.32
32 Provided.1) Airbag main harness circuit is open.
2) Airbag module harness (Ps) circuit is open.
3) Airbag control module is faulty.
4) Above diagnosis plus other faulty of airbag
modular parts.34
NOTE: Dr: Driver side Ps: Passenger side
10
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System
