SUBARU LEGACY 1997 Service Repair Manual

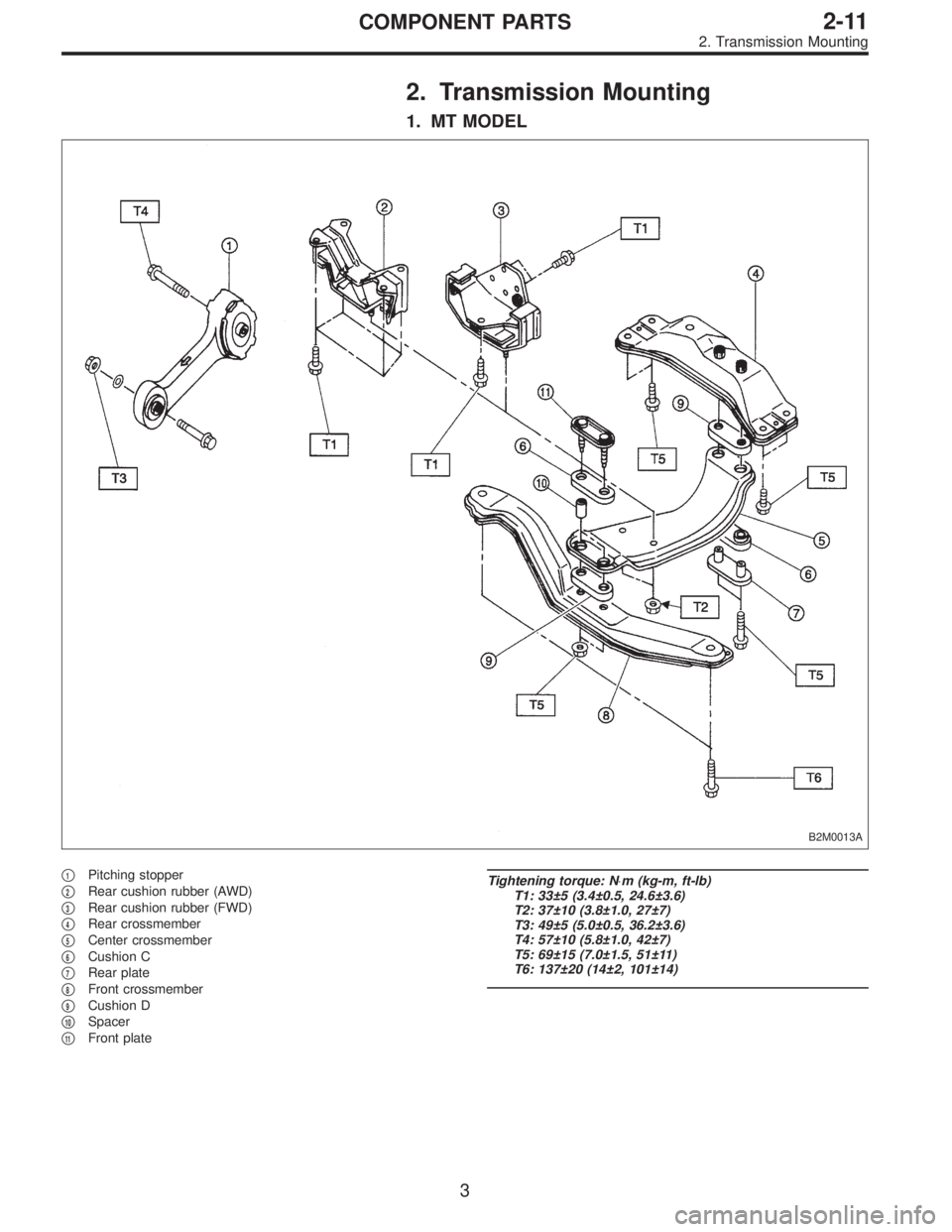

2. Transmission Mounting
1. MT MODEL
B2M0013A

1Pitching stopper


2Rear cushion rubber (AWD)


3Rear cushion rubber (FWD)


4Rear crossmember


5Center crossmember


6Cushion C


7Rear plate


8Front crossmember


9Cushion D


10Spacer


11Front plate
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 33±5 (3.4±0.5, 24.6±3.6)
T2: 37±10 (3.8±1.0, 27±7)
T3: 49±5 (5.0±0.5, 36.2±3.6)
T4: 57±10 (5.8±1.0, 42±7)
T5: 69±15 (7.0±1.5, 51±11)
T6: 137±20 (14±2, 101±14)
3
2-11COMPONENT PARTS
2. Transmission Mounting

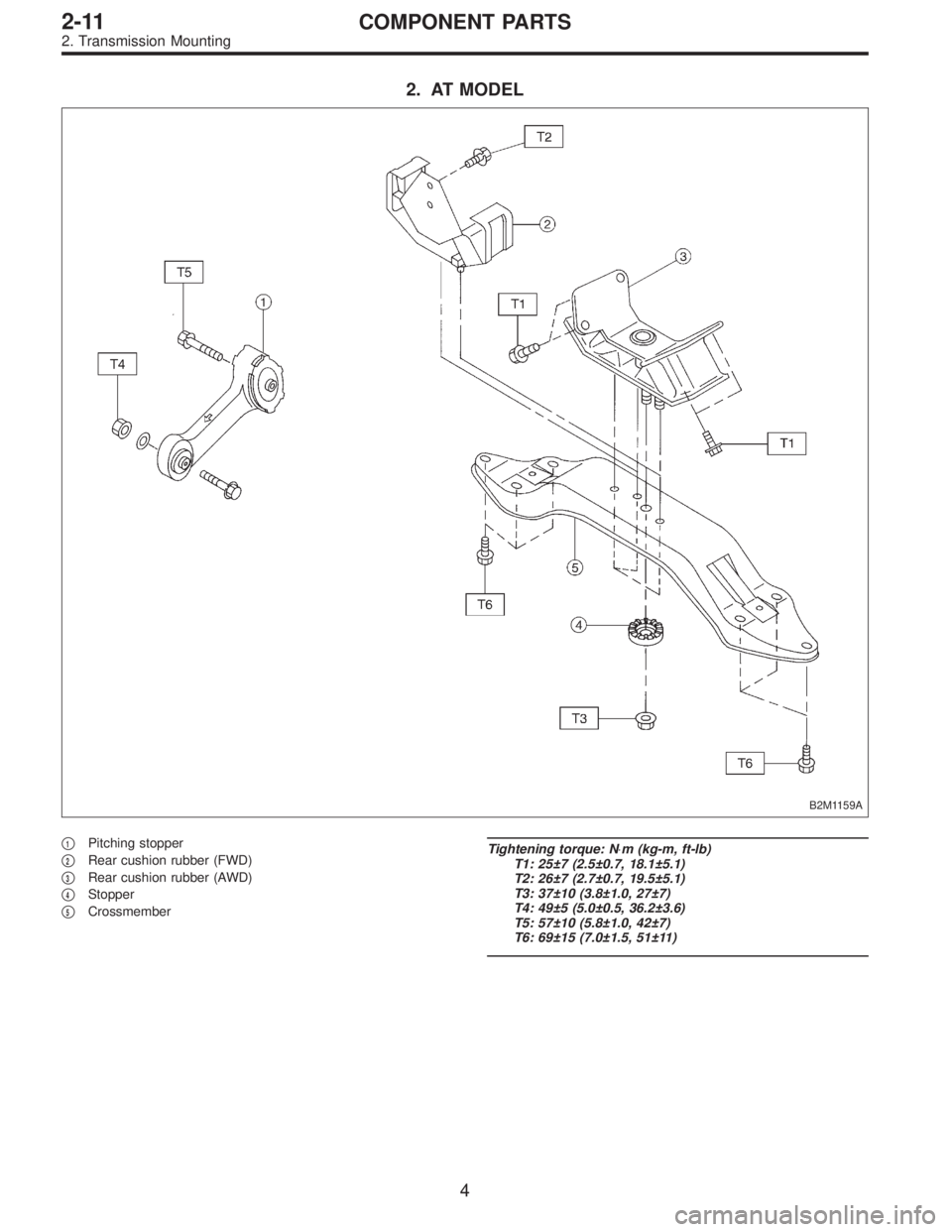

2. AT MODEL
B2M1159A

1Pitching stopper


2Rear cushion rubber (FWD)


3Rear cushion rubber (AWD)


4Stopper


5Crossmember
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 25±7 (2.5±0.7, 18.1±5.1)
T2: 26±7 (2.7±0.7, 19.5±5.1)
T3: 37±10 (3.8±1.0, 27±7)
T4: 49±5 (5.0±0.5, 36.2±3.6)
T5: 57±10 (5.8±1.0, 42±7)
T6: 69±15 (7.0±1.5, 51±11)
4
2-11COMPONENT PARTS
2. Transmission Mounting

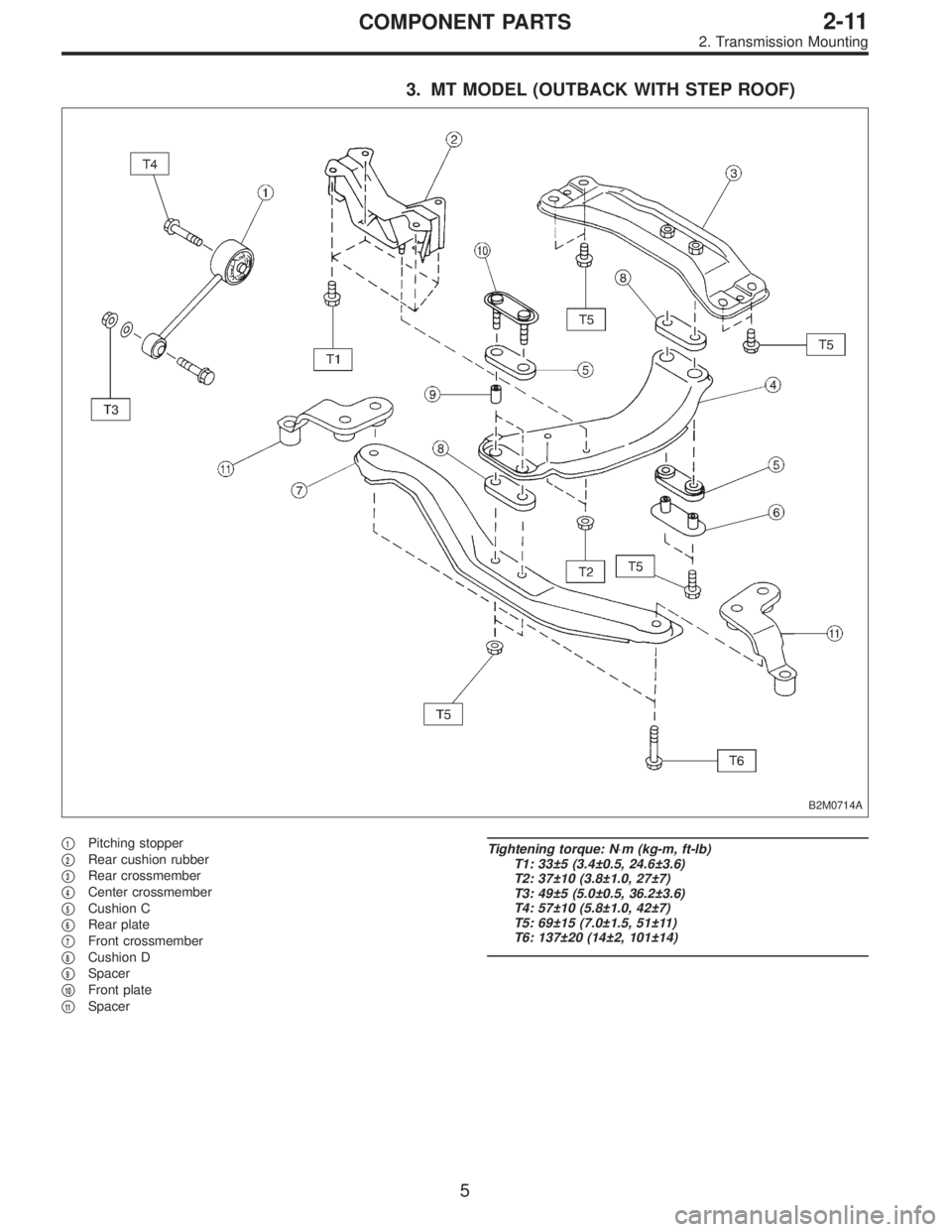

3. MT MODEL (OUTBACK WITH STEP ROOF)
B2M0714A

1Pitching stopper


2Rear cushion rubber


3Rear crossmember


4Center crossmember


5Cushion C


6Rear plate


7Front crossmember


8Cushion D


9Spacer


10Front plate


11Spacer
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 33±5 (3.4±0.5, 24.6±3.6)
T2: 37±10 (3.8±1.0, 27±7)
T3: 49±5 (5.0±0.5, 36.2±3.6)
T4: 57±10 (5.8±1.0, 42±7)
T5: 69±15 (7.0±1.5, 51±11)
T6: 137±20 (14±2, 101±14)
5
2-11COMPONENT PARTS
2. Transmission Mounting

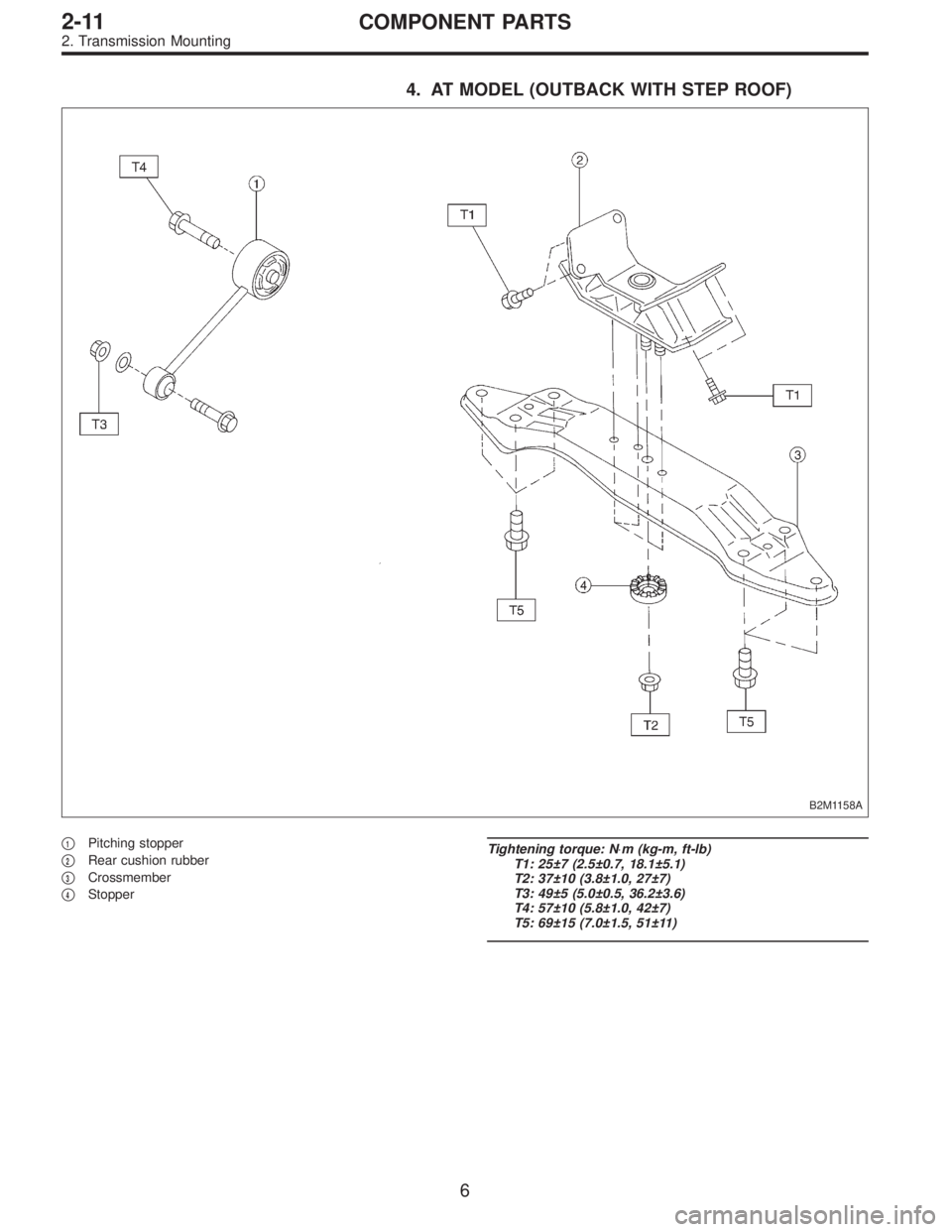

4. AT MODEL (OUTBACK WITH STEP ROOF)
B2M1158A

1Pitching stopper


2Rear cushion rubber


3Crossmember


4Stopper
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 25±7 (2.5±0.7, 18.1±5.1)
T2: 37±10 (3.8±1.0, 27±7)
T3: 49±5 (5.0±0.5, 36.2±3.6)
T4: 57±10 (5.8±1.0, 42±7)
T5: 69±15 (7.0±1.5, 51±11)
6
2-11COMPONENT PARTS
2. Transmission Mounting

1. General Precaution
1) Remove or install engine and transmission in an area
where chain hoists, lifting devices, etc. are available for
ready use.
2) Be sure not to damage coated surfaces of body panels
with tools or stain seats and windows with coolant or oil.
Place a cover over fenders, as required, for protection.
3) Prior to starting work, prepare the following:
Service tools, clean cloth, containers to catch coolant and
oil, wire ropes, chain hoist, transmission jacks, etc.
4) Lift-up or lower the vehicle when necessary. Make sure
to support the correct positions. (Refer to Chapter 1-3
“General Information”.)
7
2-11SERVICE PROCEDURE
1. General Precaution

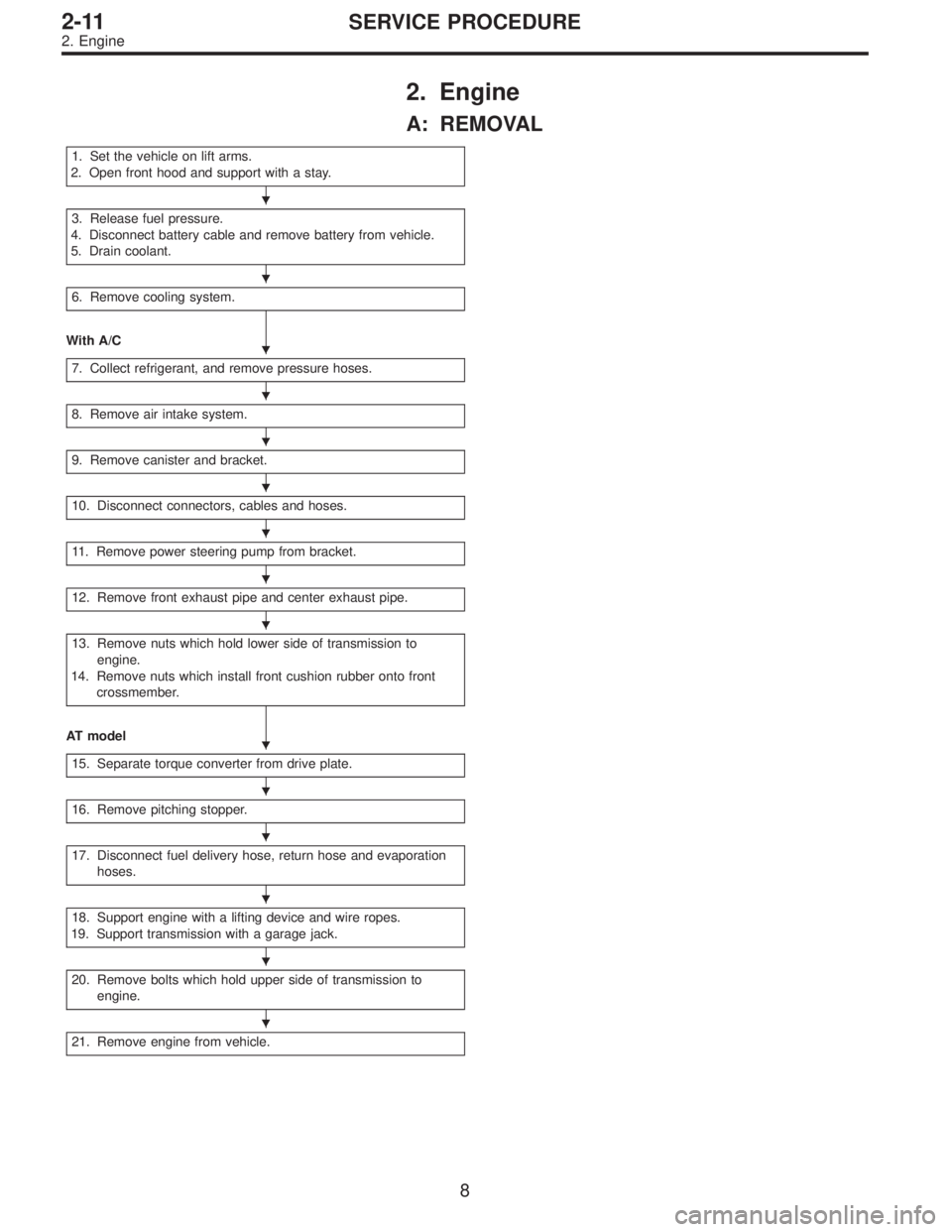

2. Engine
A: REMOVAL
1. Set the vehicle on lift arms.
2. Open front hood and support with a stay.
3. Release fuel pressure.
4. Disconnect battery cable and remove battery from vehicle.
5. Drain coolant.
6. Remove cooling system.
With A/C
7. Collect refrigerant, and remove pressure hoses.
8. Remove air intake system.
9. Remove canister and bracket.
10. Disconnect connectors, cables and hoses.
11. Remove power steering pump from bracket.
12. Remove front exhaust pipe and center exhaust pipe.
13. Remove nuts which hold lower side of transmission to
engine.
14. Remove nuts which install front cushion rubber onto front
crossmember.
AT model
15. Separate torque converter from drive plate.
16. Remove pitching stopper.
17. Disconnect fuel delivery hose, return hose and evaporation
hoses.
18. Support engine with a lifting device and wire ropes.
19. Support transmission with a garage jack.
20. Remove bolts which hold upper side of transmission to
engine.
21. Remove engine from vehicle.















8
2-11SERVICE PROCEDURE
2. Engine

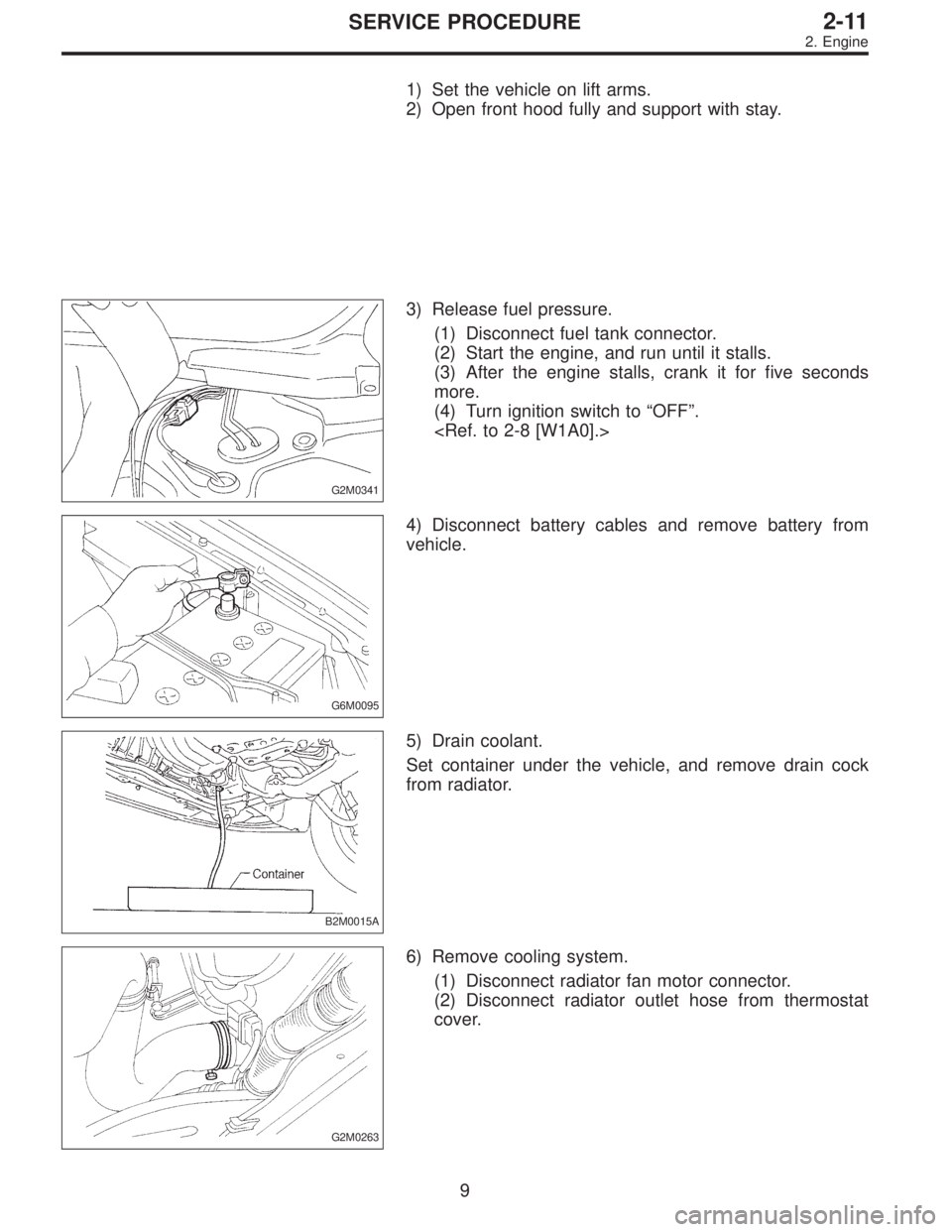

1) Set the vehicle on lift arms.
2) Open front hood fully and support with stay.
G2M0341
3) Release fuel pressure.
(1) Disconnect fuel tank connector.
(2) Start the engine, and run until it stalls.
(3) After the engine stalls, crank it for five seconds
more.
(4) Turn ignition switch to“OFF”.

G6M0095
4) Disconnect battery cables and remove battery from
vehicle.
B2M0015A
5) Drain coolant.
Set container under the vehicle, and remove drain cock
from radiator.
G2M0263
6) Remove cooling system.
(1) Disconnect radiator fan motor connector.
(2) Disconnect radiator outlet hose from thermostat
cover.
9
2-11SERVICE PROCEDURE
2. Engine

B2M0016A

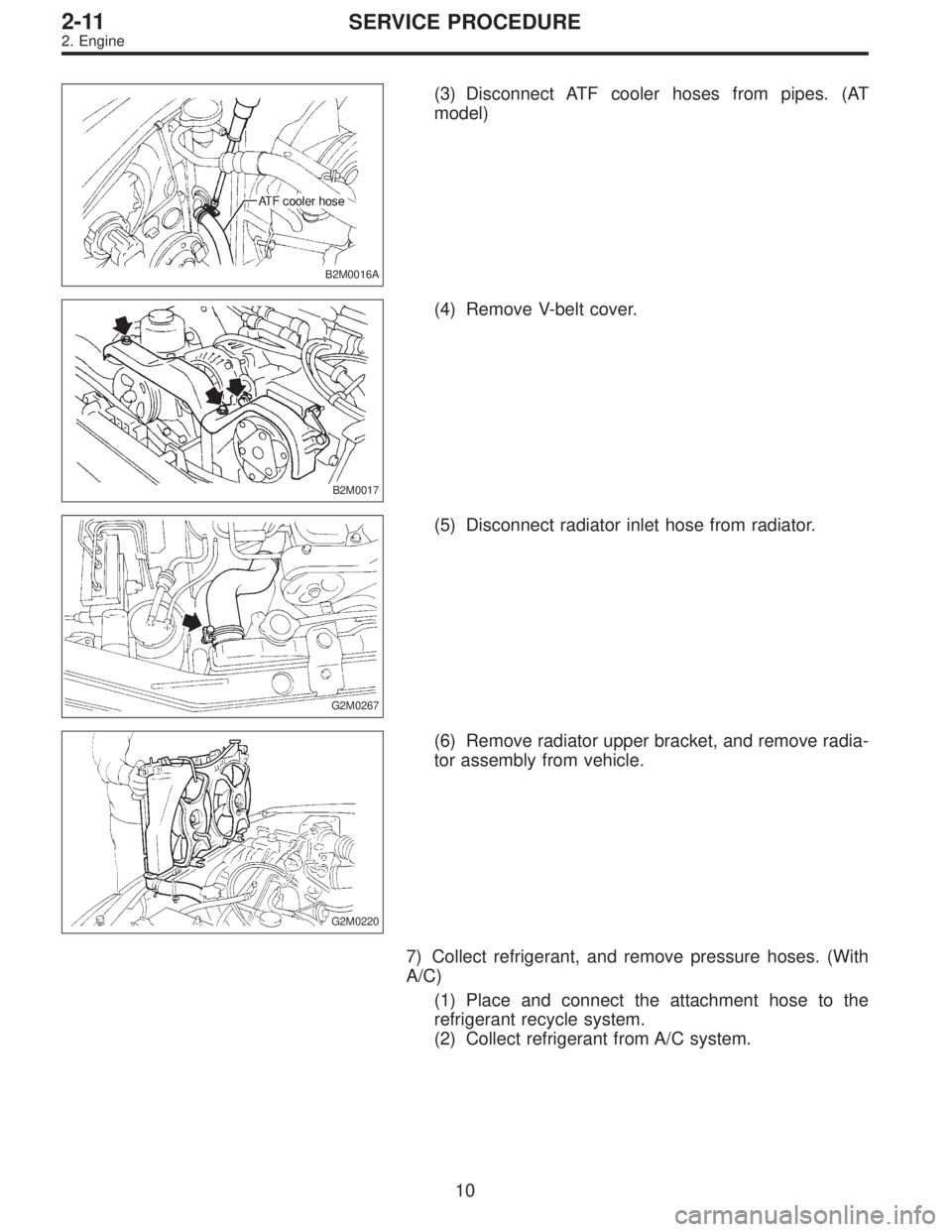

(3) Disconnect ATF cooler hoses from pipes. (AT
model)
B2M0017
(4) Remove V-belt cover.
G2M0267
(5) Disconnect radiator inlet hose from radiator.
G2M0220
(6) Remove radiator upper bracket, and remove radia-
tor assembly from vehicle.
7) Collect refrigerant, and remove pressure hoses. (With
A/C)
(1) Place and connect the attachment hose to the
refrigerant recycle system.
(2) Collect refrigerant from A/C system.
10
2-11SERVICE PROCEDURE
2. Engine

G2M0270

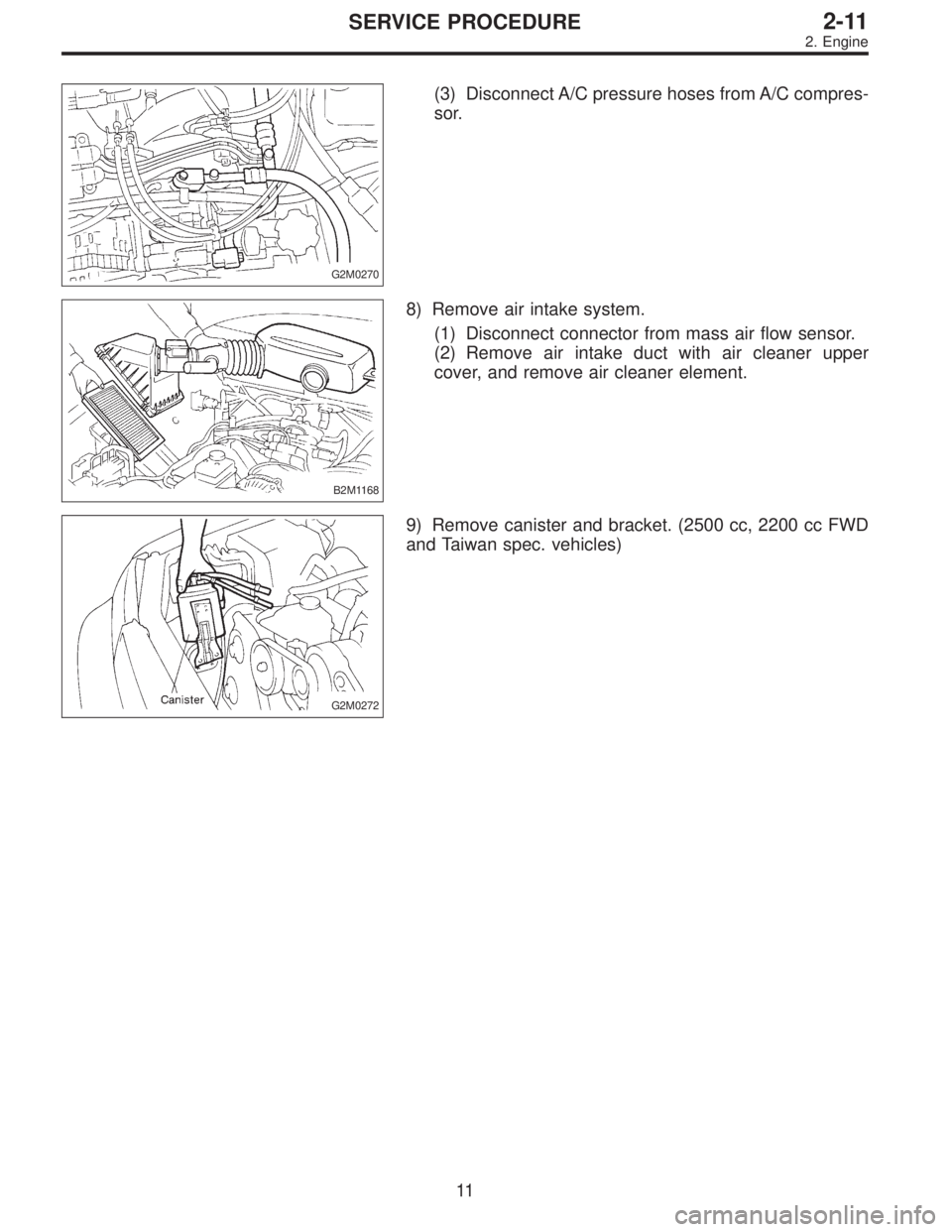

(3) Disconnect A/C pressure hoses from A/C compres-
sor.
B2M1168
8) Remove air intake system.
(1) Disconnect connector from mass air flow sensor.
(2) Remove air intake duct with air cleaner upper
cover, and remove air cleaner element.
G2M0272
9) Remove canister and bracket. (2500 cc, 2200 cc FWD
and Taiwan spec. vehicles)
11
2-11SERVICE PROCEDURE
2. Engine

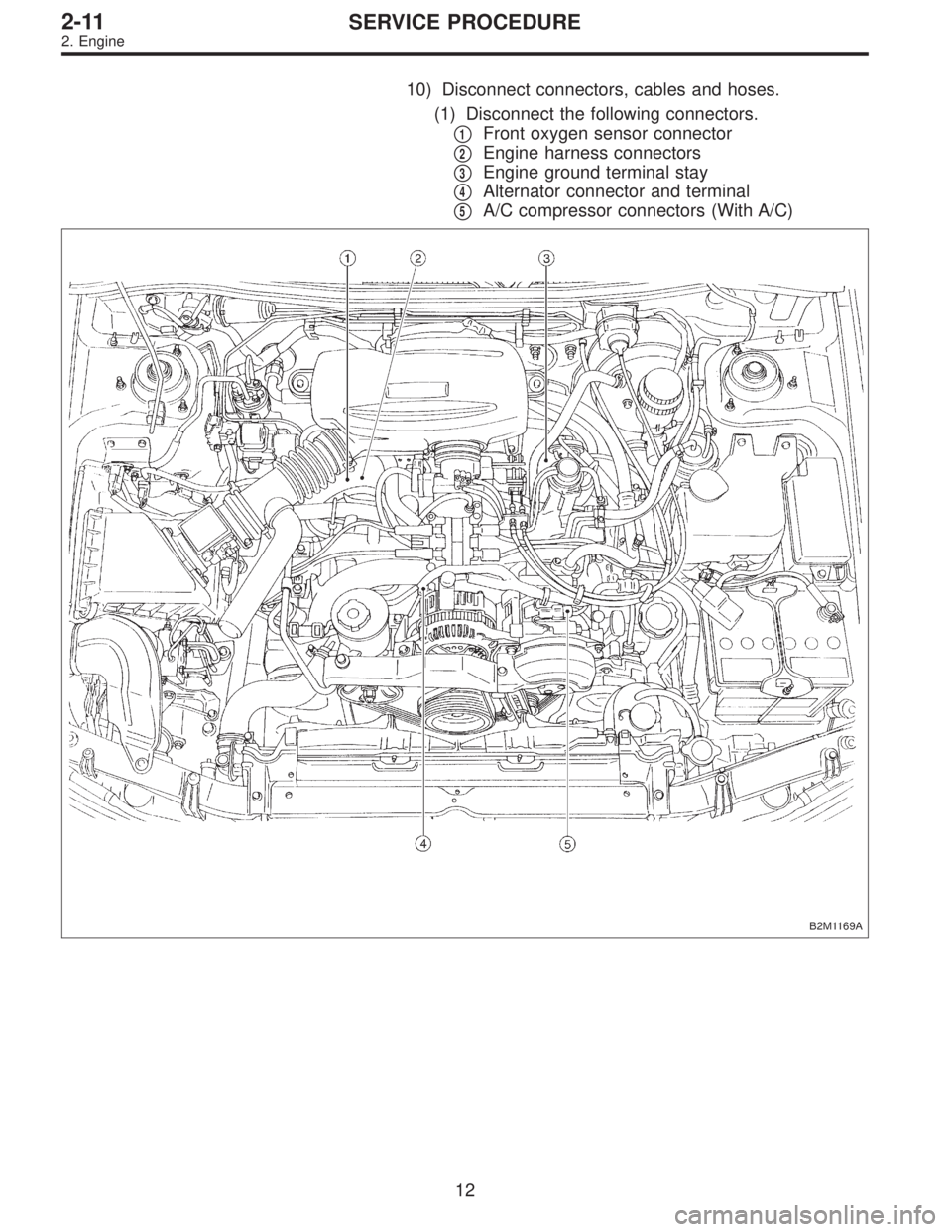

10) Disconnect connectors, cables and hoses.
(1) Disconnect the following connectors.


1Front oxygen sensor connector


2Engine harness connectors


3Engine ground terminal stay


4Alternator connector and terminal


5A/C compressor connectors (With A/C)
B2M1169A
12
2-11SERVICE PROCEDURE
2. Engine
