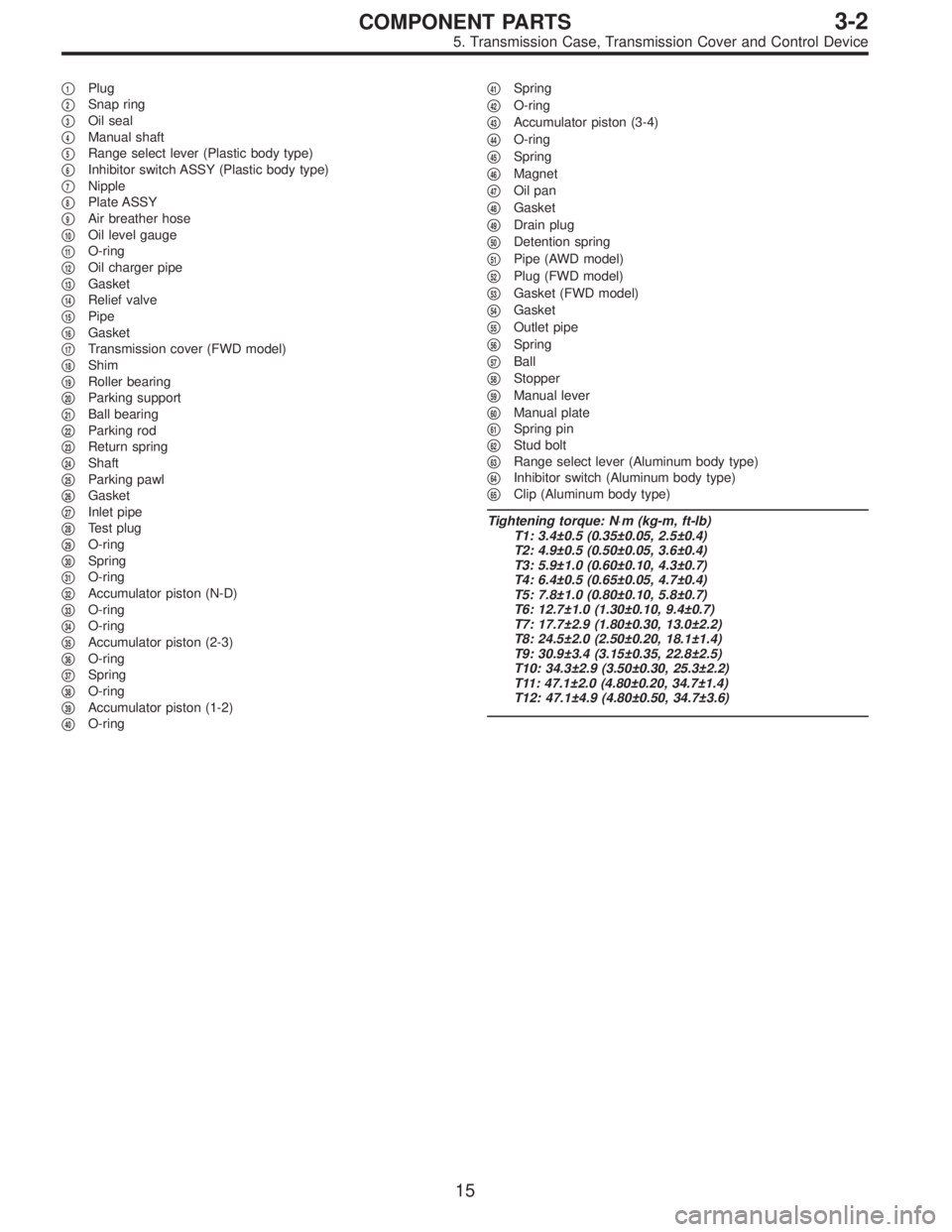

SUBARU LEGACY 1997 Service Repair Manual

1Plug


2Snap ring


3Oil seal


4Manual shaft


5Range select lever (Plastic body type)


6Inhibitor switch ASSY (Plastic body type)


7Nipple


8Plate ASSY


9Air breather hose


10Oil level gauge


11O-ring


12Oil charger pipe


13Gasket


14Relief valve


15Pipe


16Gasket


17Transmission cover (FWD model)


18Shim


19Roller bearing


20Parking support


21Ball bearing


22Parking rod


23Return spring


24Shaft


25Parking pawl


26Gasket


27Inlet pipe


28Test plug


29O-ring


30Spring


31O-ring


32Accumulator piston (N-D)


33O-ring


34O-ring


35Accumulator piston (2-3)


36O-ring


37Spring


38O-ring


39Accumulator piston (1-2)


40O-ring

41Spring


42O-ring


43Accumulator piston (3-4)


44O-ring


45Spring


46Magnet


47Oil pan


48Gasket


49Drain plug


50Detention spring


51Pipe (AWD model)


52Plug (FWD model)


53Gasket (FWD model)


54Gasket


55Outlet pipe


56Spring


57Ball


58Stopper


59Manual lever


60Manual plate


61Spring pin


62Stud bolt


63Range select lever (Aluminum body type)


64Inhibitor switch (Aluminum body type)


65Clip (Aluminum body type)
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 3.4±0.5 (0.35±0.05, 2.5±0.4)
T2: 4.9±0.5 (0.50±0.05, 3.6±0.4)
T3: 5.9±1.0 (0.60±0.10, 4.3±0.7)
T4: 6.4±0.5 (0.65±0.05, 4.7±0.4)
T5: 7.8±1.0 (0.80±0.10, 5.8±0.7)
T6: 12.7±1.0 (1.30±0.10, 9.4±0.7)
T7: 17.7±2.9 (1.80±0.30, 13.0±2.2)
T8: 24.5±2.0 (2.50±0.20, 18.1±1.4)
T9: 30.9±3.4 (3.15±0.35, 22.8±2.5)
T10: 34.3±2.9 (3.50±0.30, 25.3±2.2)
T11: 47.1±2.0 (4.80±0.20, 34.7±1.4)
T12: 47.1±4.9 (4.80±0.50, 34.7±3.6)
15
3-2COMPONENT PARTS
5. Transmission Case, Transmission Cover and Control Device

6. Reverse Clutch and Band Brake
B3M0408A

1Brake band


2Reverse clutch drum


3Lip seal


4Piston


5Lathe cut seal ring


6Spring


7Spring retainer


8Snap ring


9Dish plate


10Driven plate


11Drive plate


12Retaining plate


13Snap ring

14Lock nut


15Brake band adjusting screw


16Strut


17Band servo piston stem


18Spring


19Lathe cut seal ring


20Band servo piston (1-2)


21O-ring


22Retainer


23O-ring


24Spring


25Retainer


26Circlip

27Lathe cut seal ring


28Band servo piston (3-4)


29O-ring


30O.D. servo retainer


31Snap ring


32Lathe cut seal ring


33O-ring


34Washer
Tightening torque: N⋅m (kg-m, ft-lb)
T: 26±2 (2.7±0.2, 19.5±1.4)
16

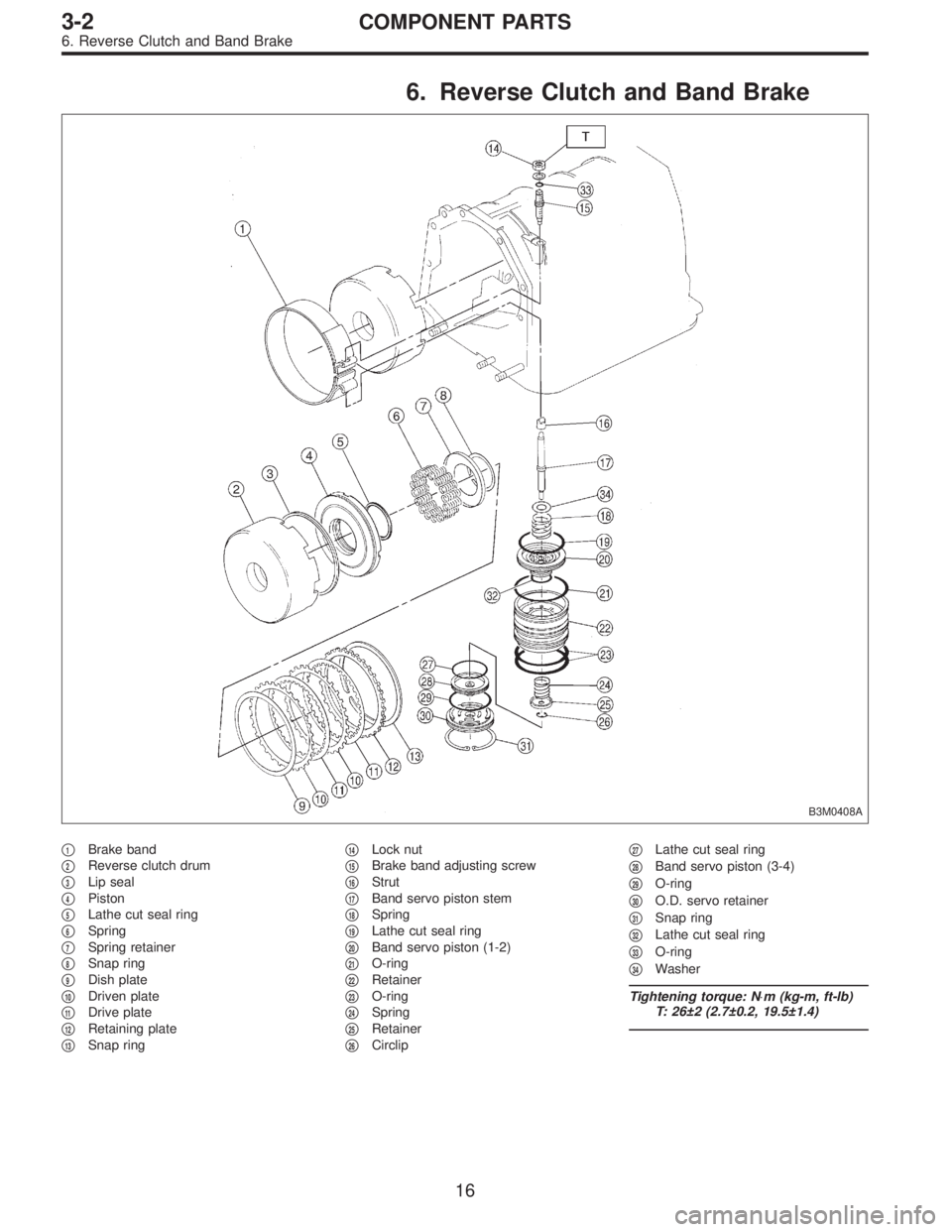

3-2COMPONENT PARTS
6. Reverse Clutch and Band Brake

7. High Clutch and Planetary Gear
B3M0374A

1High clutch drum


2Lathe cut seal ring


3Piston


4Lathe cut seal ring


5Spring retainer


6Snap ring


7Driven plate


8Drive plate


9Retaining plate


10Snap ring


11Thrust needle bearing


12High clutch hub


13Thrust needle bearing


14Front sun gear

15Thrust needle bearing


16Front planetary carrier


17Thrust needle bearing


18Rear sun gear


19Thrust needle bearing


20Rear planetary carrier


21Thrust needle bearing


22Rear internal gear


23Thrust washer


24Snap ring


25One-way clutch (3-4)


26One-way clutch outer race (3-4)


27Overrunning clutch hub
17

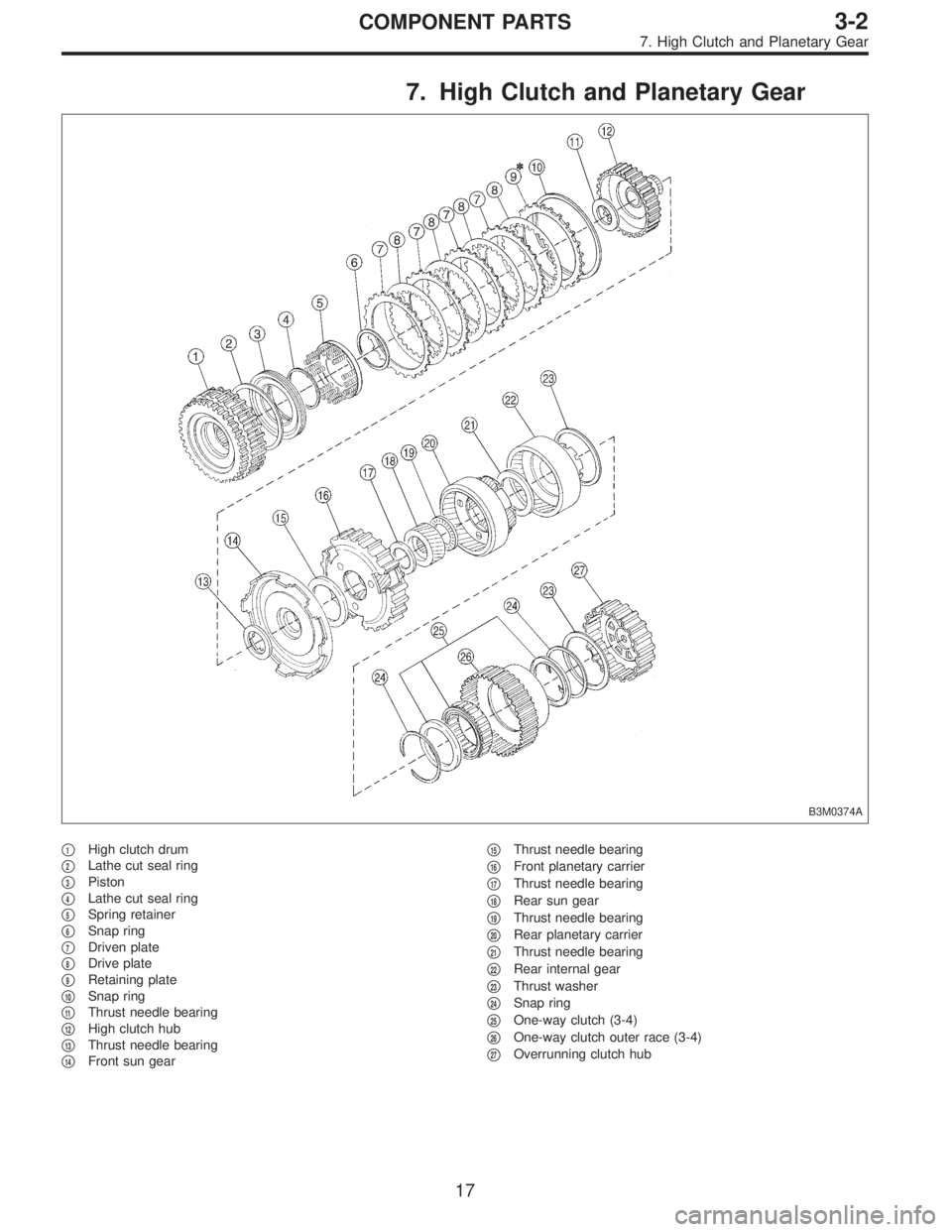

3-2COMPONENT PARTS
7. High Clutch and Planetary Gear

8. Forward Clutch and Low & Reverse
Brake
B3M0401A

1Snap ring


2Retaining plate


3Drive plate (5)


4Driven plate (5)


5Dish plate


6Snap ring


7Retaining plate


8Drive plate


9Driven plate


10Dish plate


11Snap ring


12Spring retainer


13Spring


14Lathe cut seal ring


15Overrunning piston

16Lathe cut seal ring


17Forward piston


18Lip seal


19Lathe cut seal ring


20Forward clutch drum


21Needle bearing


22Snap ring


23One-way clutch (1-2)


24Snap ring


25Snap ring


26Retaining plate


27Drive plate (6)


28Driven plate (6)


29Dish plate


30Thrust needle bearing

31Needle bearing


32Seal ring


33Thrust washer


34One-way clutch inner race (1-2)


35Spring retainer


36Socket bolt


37Low & reverse piston


38Lathe cut seal ring


39Lathe cut seal ring
Tightening torque: N⋅m (kg-m, ft-lb)
T: 25±2 (2.5±0.2, 18.1±1.4)
18

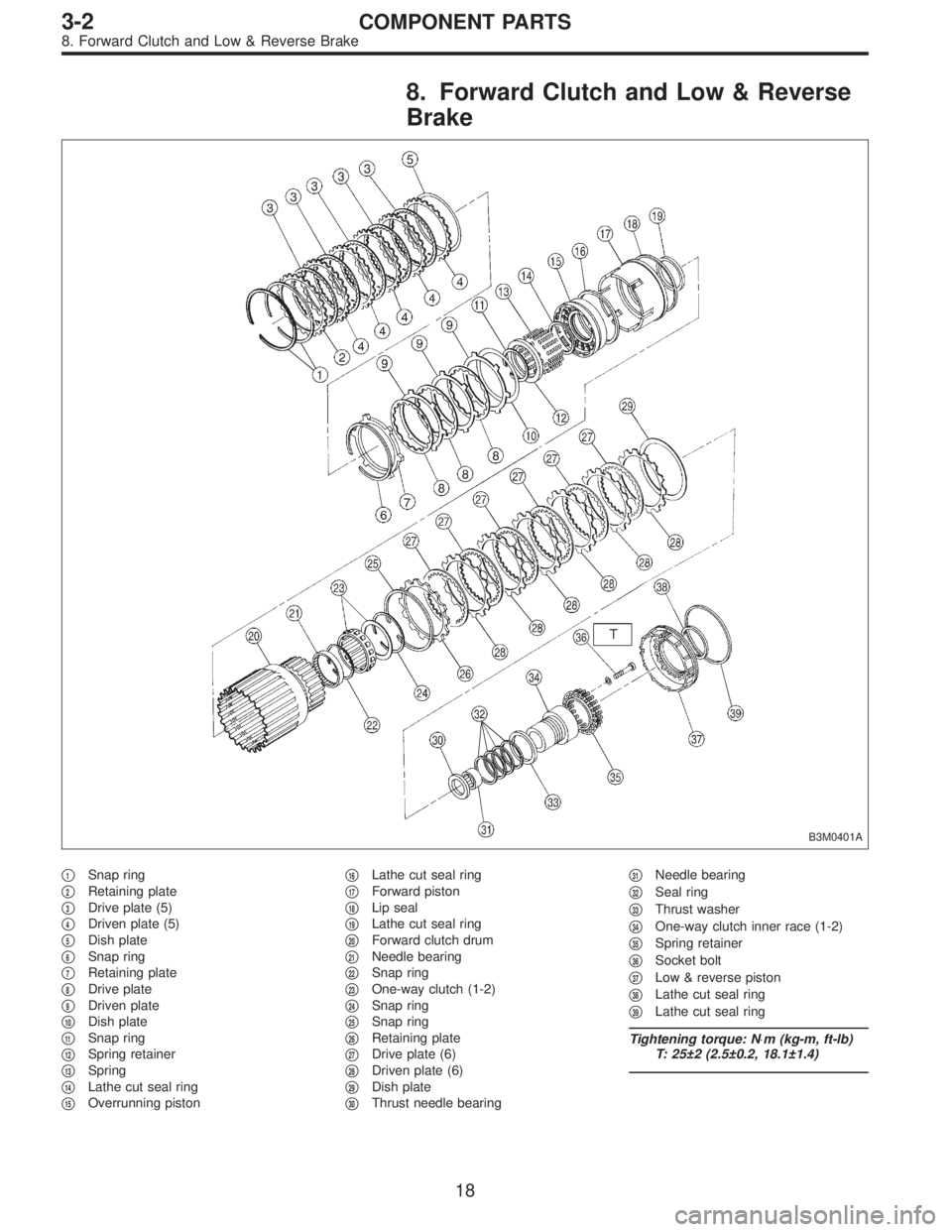

3-2COMPONENT PARTS
8. Forward Clutch and Low & Reverse Brake

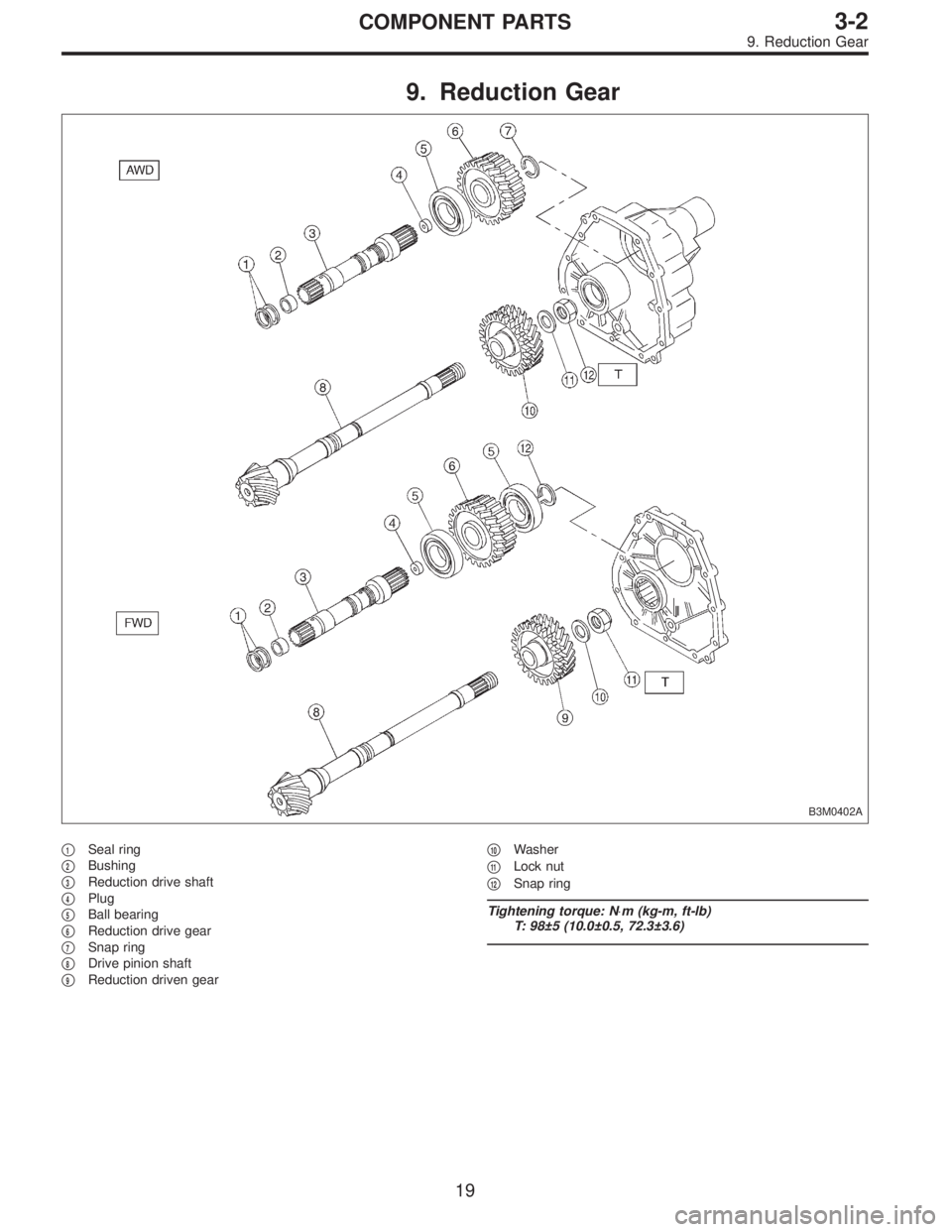

9. Reduction Gear
B3M0402A

1Seal ring


2Bushing


3Reduction drive shaft


4Plug


5Ball bearing


6Reduction drive gear


7Snap ring


8Drive pinion shaft


9Reduction driven gear

10Washer


11Lock nut


12Snap ring
Tightening torque: N⋅m (kg-m, ft-lb)
T: 98±5 (10.0±0.5, 72.3±3.6)
19
3-2COMPONENT PARTS
9. Reduction Gear

10. Transfer and Extension
B3M0375A

1Snap ring


2Pressure plate


3Drive plate


4Driven plate


5Thrust needle bearing


6Snap ring


7Spring retainer


8Lathe cut seal ring


9Transfer clutch piston


10Lathe cut seal ring


11Needle bearing


12Rear drive shaft


13Ball bearing

14Seal ring


15Vehicle speed sensor 1 (AWD only)


16Transfer clutch pipe


17Duty sol. C (Transfer clutch)


18Gasket


19Plate


20Filter


21Gasket


22Roller bearing


23Extension case


24Oil seal


25Dust seal


26Seal transfer piston

27O-ring


28Test plug


29O-ring


30Clip


31Transfer valve body


32Clip


33Stay
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7±1 (0.7±0.1, 5.1±0.7)
T2: 8±1 (0.8±0.1, 5.8±0.7)
T3: 13±1 (1.3±0.1, 9.4±0.7)
T4: 25±2 (2.5±0.2, 18.1±1.4)
20

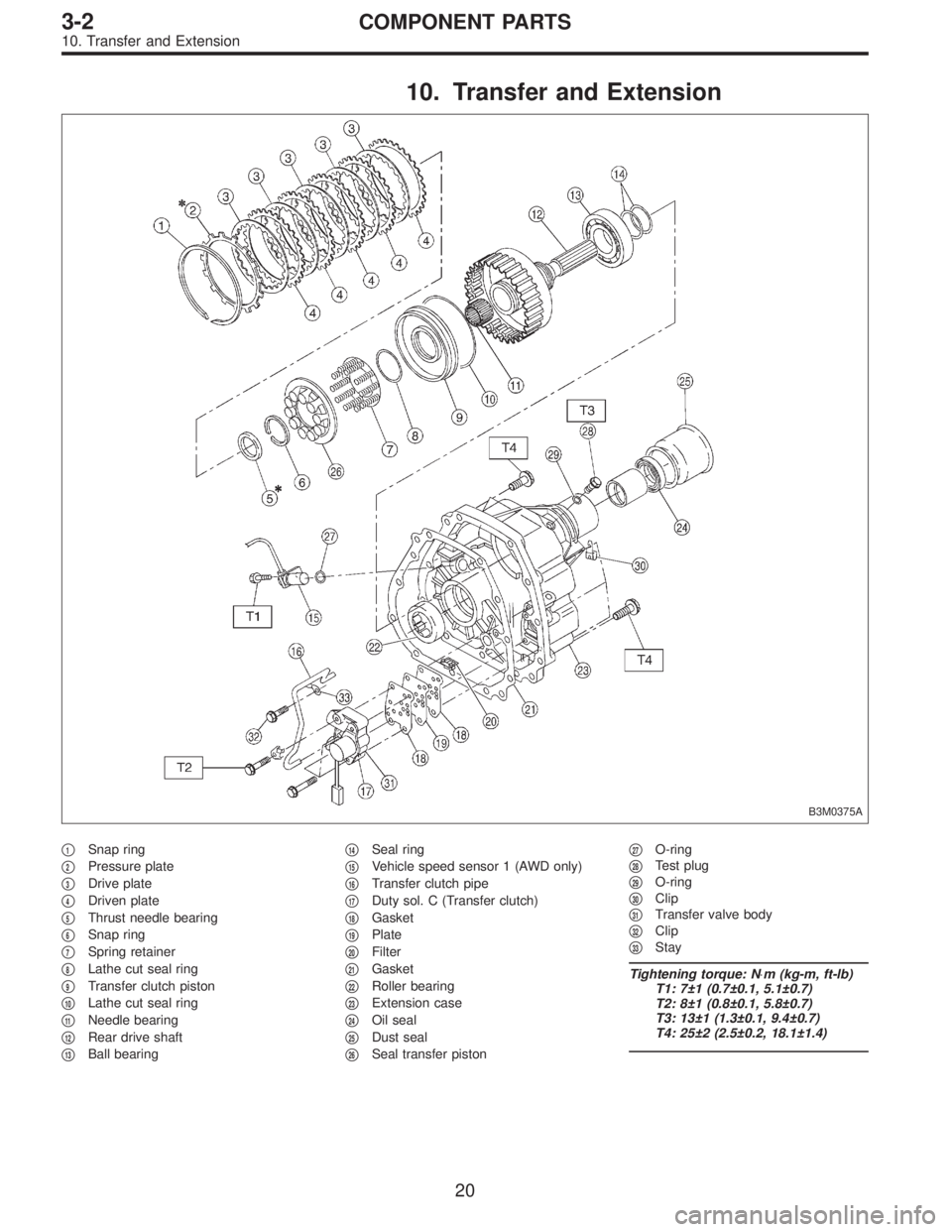

3-2COMPONENT PARTS
10. Transfer and Extension

G3M0854

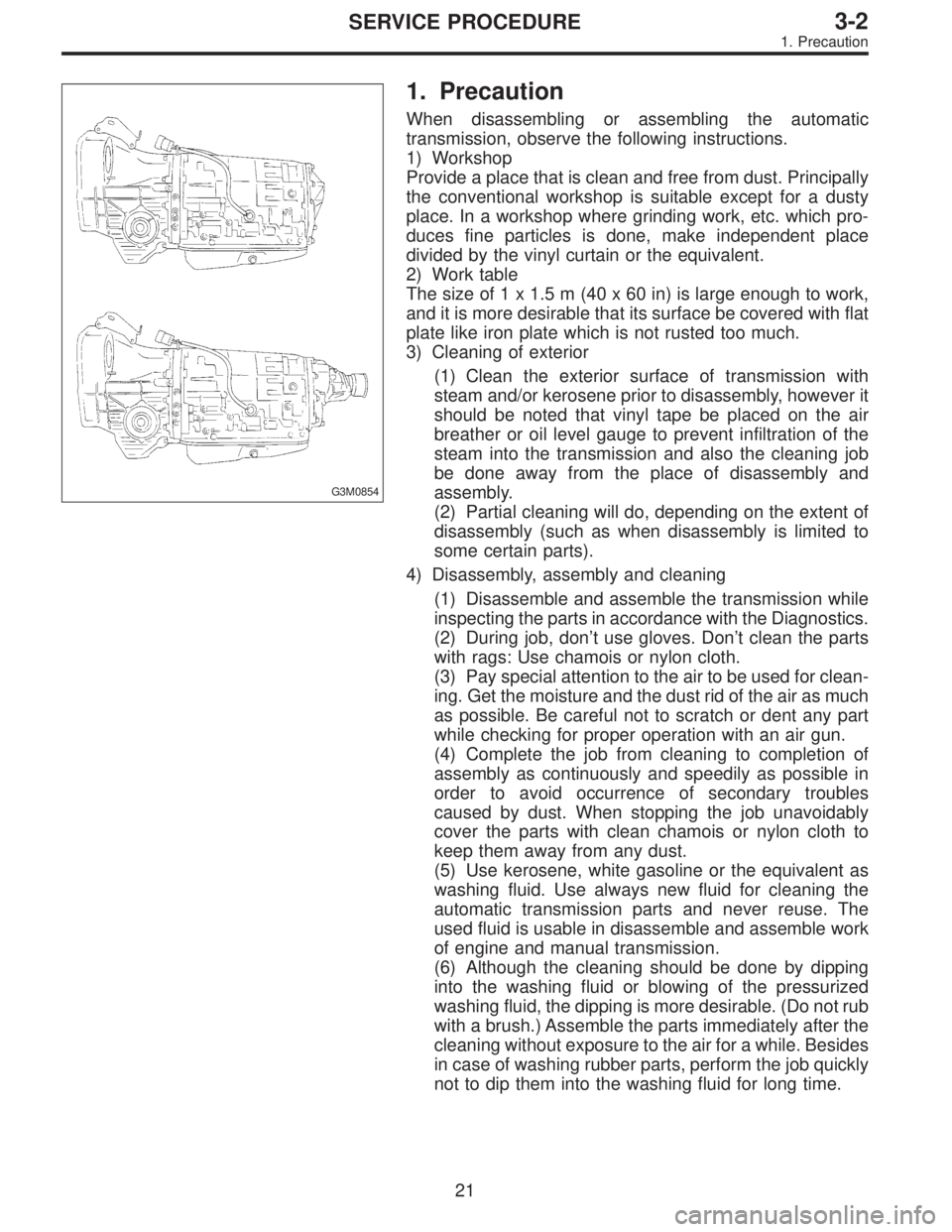

1. Precaution
When disassembling or assembling the automatic
transmission, observe the following instructions.
1) Workshop
Provide a place that is clean and free from dust. Principally
the conventional workshop is suitable except for a dusty
place. In a workshop where grinding work, etc. which pro-
duces fine particles is done, make independent place
divided by the vinyl curtain or the equivalent.
2) Work table
The size of 1 x 1.5 m (40 x 60 in) is large enough to work,
and it is more desirable that its surface be covered with flat
plate like iron plate which is not rusted too much.
3) Cleaning of exterior
(1) Clean the exterior surface of transmission with
steam and/or kerosene prior to disassembly, however it
should be noted that vinyl tape be placed on the air
breather or oil level gauge to prevent infiltration of the
steam into the transmission and also the cleaning job
be done away from the place of disassembly and
assembly.
(2) Partial cleaning will do, depending on the extent of
disassembly (such as when disassembly is limited to
some certain parts).
4) Disassembly, assembly and cleaning
(1) Disassemble and assemble the transmission while
inspecting the parts in accordance with the Diagnostics.
(2) During job, don’t use gloves. Don’t clean the parts
with rags: Use chamois or nylon cloth.
(3) Pay special attention to the air to be used for clean-
ing. Get the moisture and the dust rid of the air as much
as possible. Be careful not to scratch or dent any part
while checking for proper operation with an air gun.
(4) Complete the job from cleaning to completion of
assembly as continuously and speedily as possible in
order to avoid occurrence of secondary troubles
caused by dust. When stopping the job unavoidably
cover the parts with clean chamois or nylon cloth to
keep them away from any dust.
(5) Use kerosene, white gasoline or the equivalent as
washing fluid. Use always new fluid for cleaning the
automatic transmission parts and never reuse. The
used fluid is usable in disassemble and assemble work
of engine and manual transmission.
(6) Although the cleaning should be done by dipping
into the washing fluid or blowing of the pressurized
washing fluid, the dipping is more desirable. (Do not rub
with a brush.) Assemble the parts immediately after the
cleaning without exposure to the air for a while. Besides
in case of washing rubber parts, perform the job quickly
not to dip them into the washing fluid for long time.
21
3-2SERVICE PROCEDURE
1. Precaution

G3M0854

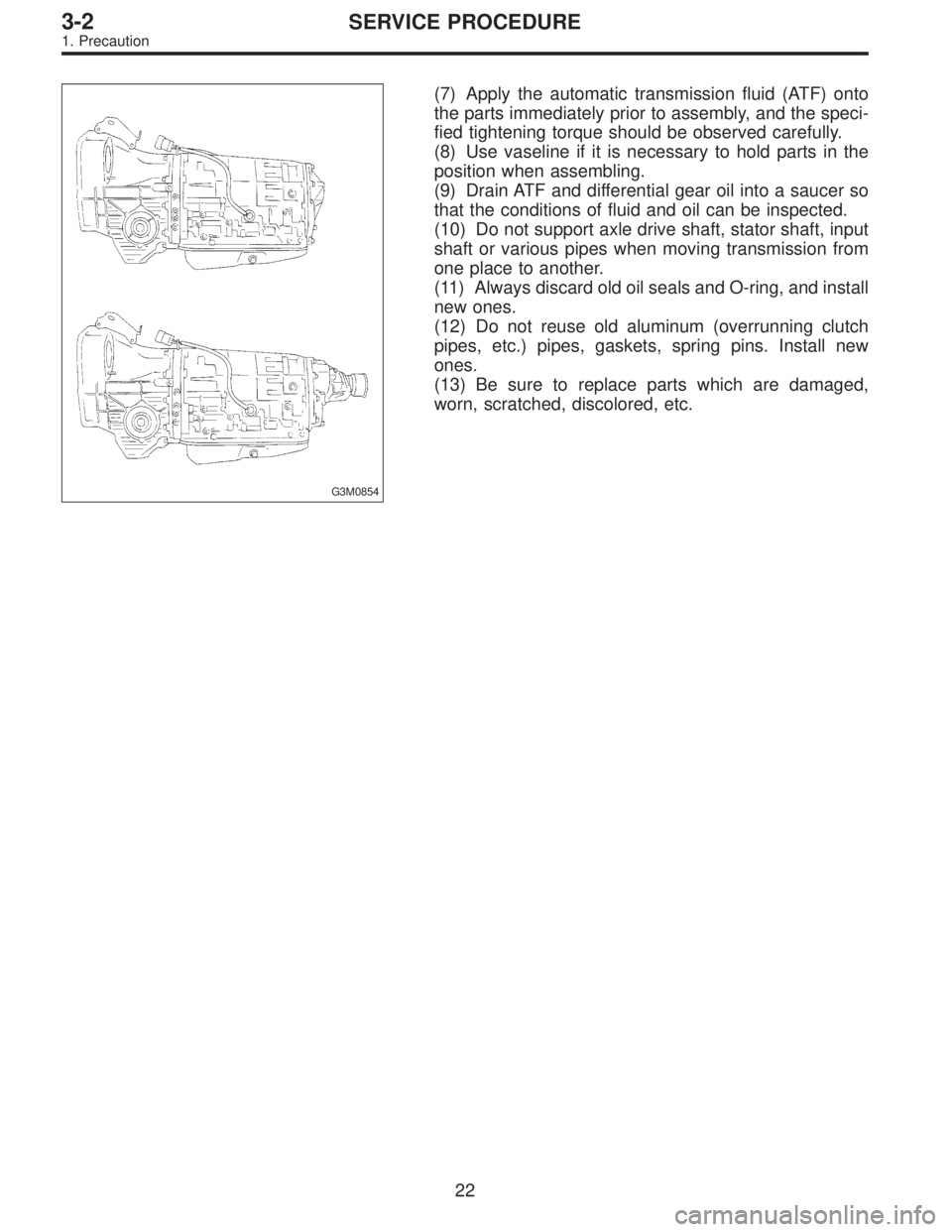

(7) Apply the automatic transmission fluid (ATF) onto
the parts immediately prior to assembly, and the speci-
fied tightening torque should be observed carefully.
(8) Use vaseline if it is necessary to hold parts in the
position when assembling.
(9) Drain ATF and differential gear oil into a saucer so
that the conditions of fluid and oil can be inspected.
(10) Do not support axle drive shaft, stator shaft, input
shaft or various pipes when moving transmission from
one place to another.
(11) Always discard old oil seals and O-ring, and install
new ones.
(12) Do not reuse old aluminum (overrunning clutch
pipes, etc.) pipes, gaskets, spring pins. Install new
ones.
(13) Be sure to replace parts which are damaged,
worn, scratched, discolored, etc.
22
3-2SERVICE PROCEDURE
1. Precaution

G3M0282
2. On-Car Service
A: INSPECTION
1. ATF LEVEL
1) Raise ATF temperature to 60 to 80°C (140 to 176°F)
from 40 to 60°C (104 to 140°F) (when cold) by driving a
distance of 5 to 10 km (3 to 6 miles).
NOTE:
The level of ATF varies with fluid temperature. Pay atten-
tion to the fluid temperature when checking oil level.
2) Make sure the vehicle is level. After selecting all posi-
tions (P, R, N, D, 3, 2, 1), set the selector leveler in“P”
range. Measure fluid level with the engine idling.
NOTE:
After running, idle the engine for one or two minutes before
measurement.
3) If the fluid level is below the center between upper and
lower marks, add the recommended ATF until the fluid level
is found within the specified range (above the center
between upper and lower marks). When the transmission
is hot, the level should be above the center of upper and
lower marks, and when it is cold, the level should be found
below the center of these two marks.
CAUTION:
Use care not to exceed the upper limit level.
ATF level varies with temperature. Remember that
the addition of fluid to the upper limit mark when the
transmission is cold will result in the overfilling of
fluid.
4) Fluid temperature rising speed
By idling the engine
Time for temperature rise to 60°C (140°F) with atmo-
spheric temperature of 0°C (32°F): More than 25 minutes

Time for temperature rise to 30°C (86°F) with atmo-
spheric temperature of 0°C (32°F): Approx. 8 minutes
By running the vehicle
Time for temperature rise to 60°C (140°F) with atmo-
spheric temperature of 0°C (32°F): More than 10 minutes
5) Method for checking fluid level upon delivery or at peri-
odic inspection
Check fluid level after a warm-up run of approx. 10 min-
utes. During the warm-up period, the automatic transmis-
sion functions can also be checked.
23
3-2SERVICE PROCEDURE
2. On-Car Service

G3M0283

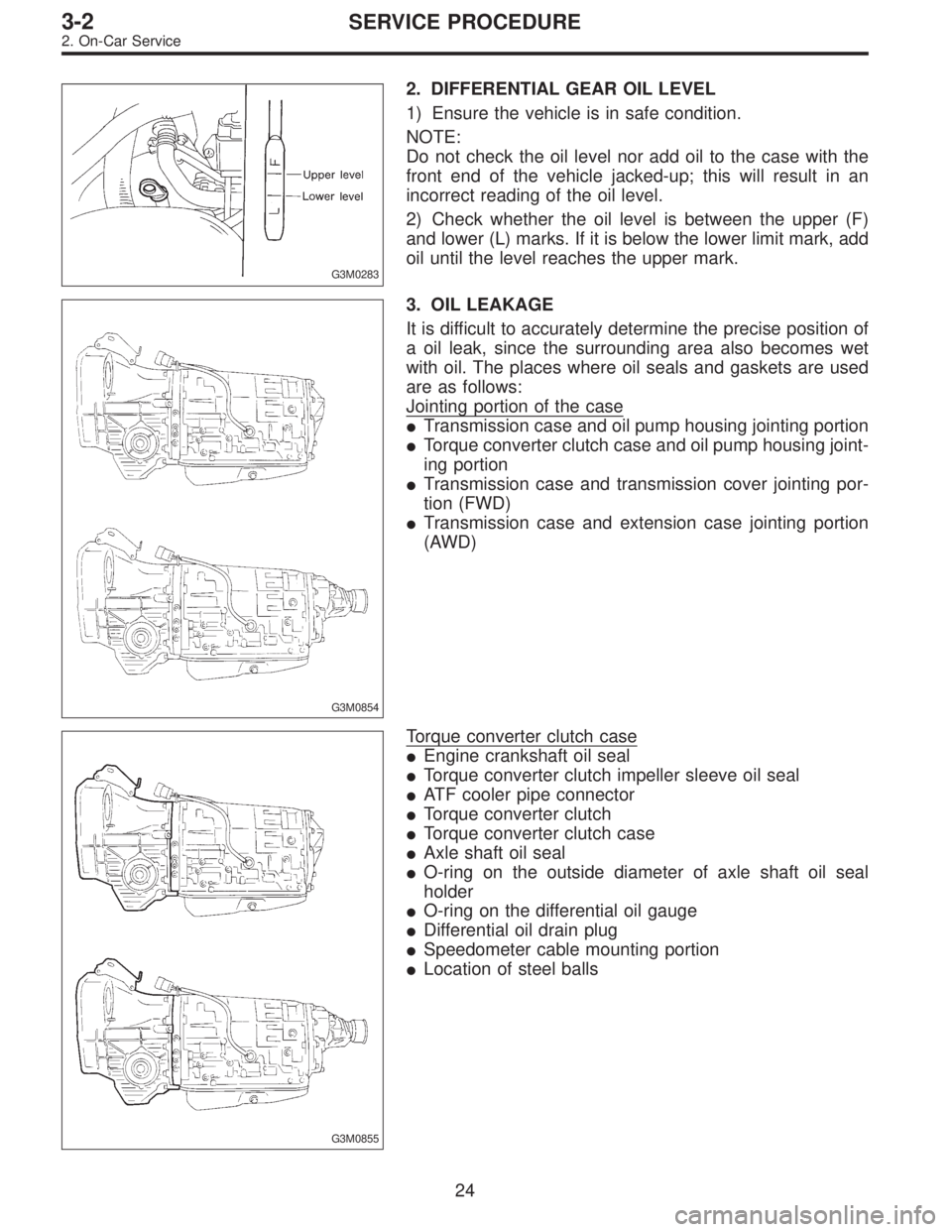

2. DIFFERENTIAL GEAR OIL LEVEL
1) Ensure the vehicle is in safe condition.
NOTE:
Do not check the oil level nor add oil to the case with the
front end of the vehicle jacked-up; this will result in an
incorrect reading of the oil level.
2) Check whether the oil level is between the upper (F)
and lower (L) marks. If it is below the lower limit mark, add
oil until the level reaches the upper mark.
G3M0854
3. OIL LEAKAGE
It is difficult to accurately determine the precise position of
a oil leak, since the surrounding area also becomes wet
with oil. The places where oil seals and gaskets are used
are as follows:
Jointing portion of the case
Transmission case and oil pump housing jointing portion
Torque converter clutch case and oil pump housing joint-
ing portion
Transmission case and transmission cover jointing por-
tion (FWD)
Transmission case and extension case jointing portion
(AWD)
G3M0855
Torque converter clutch case
Engine crankshaft oil seal
Torque converter clutch impeller sleeve oil seal
ATF cooler pipe connector
Torque converter clutch
Torque converter clutch case
Axle shaft oil seal
O-ring on the outside diameter of axle shaft oil seal
holder
O-ring on the differential oil gauge
Differential oil drain plug
Speedometer cable mounting portion
Location of steel balls
24
3-2SERVICE PROCEDURE
2. On-Car Service
