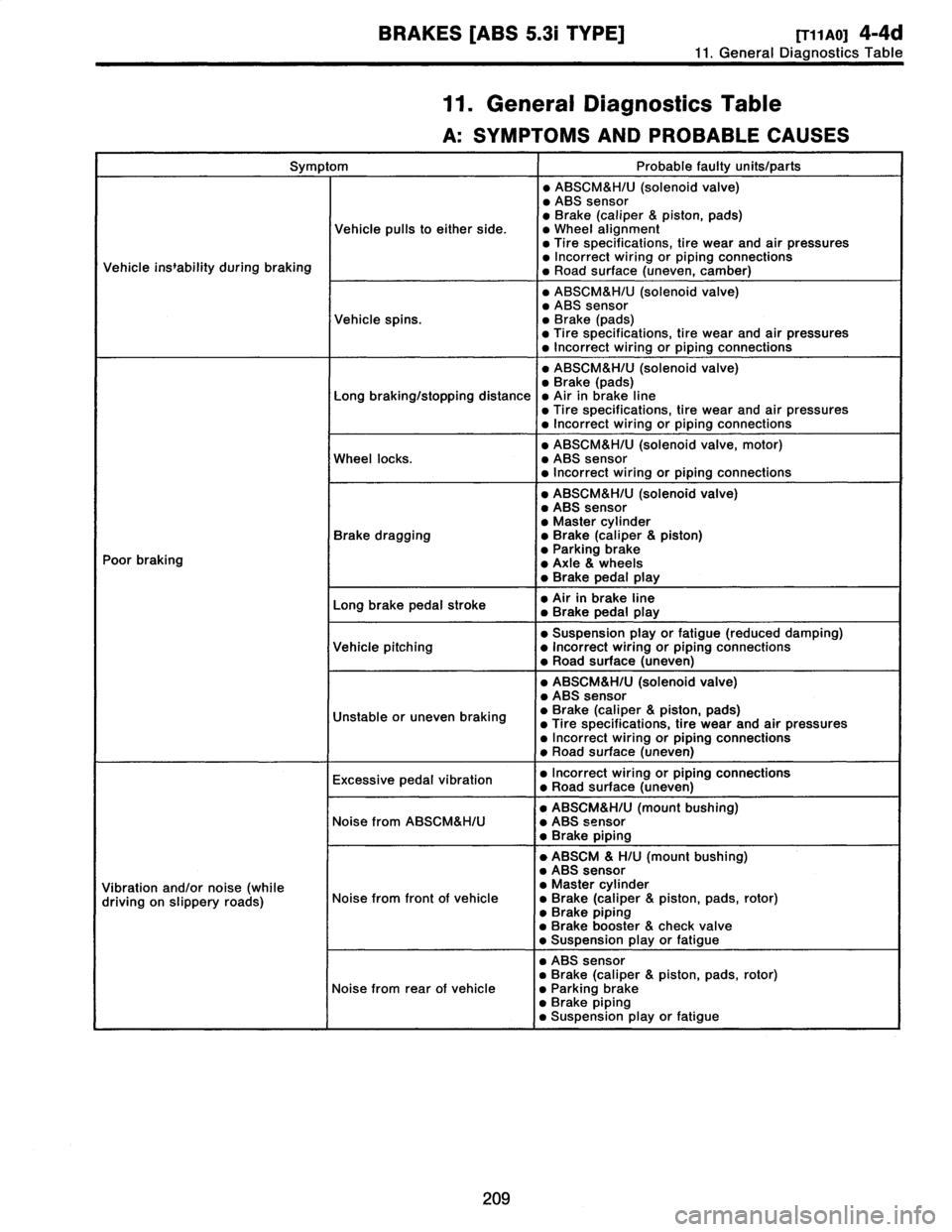

General
Diagnostics
Table

11
.
General
Diagnostics
Table

A
:
SYMPTOMSAND
PROBABLE
CAUSES

Symptom
Probable
faulty
units/parts

9
ABSCM&H/U
(solenoid
valve)
e
ABS
sensor
e
Brake
(caliper
&
piston,
pads)
Vehicle
pulls
to
either
side
.
*
Wheel
alignment
e
Tire
specifications,
tire
wear
and
air
pressures
9
Incorrect
wiringorpiping
connections
Vehicle
instability
during
braking
9Road
surface(uneven,
camber)

e
ABSCM&H/U
(solenoid
valve)
e
ABS
sensor
Vehicle
spins
.
*
Brake
(pads)
9
Tire
specifications,
tire
wear
and
air
pressures
9
Incorrect
wiring
orpiping
connections

9
ABSCM&H/U
(solenoid
valve)
Brake
(pads)
Long
braking/stopping
distance
*
Air
in
brake
line
9Tire
specifications,
tire
wear
and
air
pressures
a
Incorrect
wiringor
piping
connections

9
ABSCM&H/U
(solenoid
valve,
motor)
Wheel
locks
.
*
ABS
sensor
*
Incorrect
wiringorpiping
connections

9
ABSCM&H/U
(solenoidvalve)9
ABS
sensor
Master
cylinder
Brake
dragging
*
Brake
(caliper
8
piston)
Parking
brake
Poor
braking
*
Axle
&
wheels
Brake
pedal
play

Long
brake
pedal
stroke
9
Air
in
brake
line
Brake
pedal
play

*
Suspension
play
or
fatigue
(reduced
damping)
Vehicle
pitching
*
Incorrect
wiring
or
piping
connections
Road
surface
(uneven)

9
ABSCM&H/U
(solenoid
valve)
9
ABS
sensor

Unstable
or
uneven
braking
~
Brake
(caliper
&
piston,
pads)
~Tire
specifications,
tire
wear
and
air
pressures
e
Incorrect
wiring
orpiping
connections
*
Road
surface
(uneven)

Excessive
pedal
vibration
*
Incorrect
wiring
or
piping
connections
Road
surface
(uneven)

*
ABSCM&H/U
(mount
bushing)
Noise
from
ABSCM&H/U
*
ABS
sensor
Brake
piping

a
RBSCM&
H/U
(mount
bushing)
e
ABS
sensor

Vibration
and/or
noise
(while
*
Master
cylinder

driving
on
slippery
roads)
Noise
from
front
of
vehiclee
Brake
(caliper
&
piston,
pads,
rotor)
Brake
piping
e
Brake
booster
&
check
valve
*
Suspension
playor
fatigue

e
ABS
sensor
a
Brake
(caliper
&
piston,
pads,
rotor)
Noise
from
rear
of
vehicle
9
Parking
brake
Brake
piping
e
Suspension
playor
fatigue

209

1. Suspension
A: SPECIFICATIONS
1. STABILIZER
ModelBar dia. mm (in)
Front Rear
Sedan2200 cc 19 (0.75) 15 (0.59)
2500 cc 20 (0.79) 16 (0.63)
Wagon2200 cc 19 (0.75) 15 (0.59)
2500 cc 20 (0.79) 16 (0.63)
OUTBACK2200 cc 20 (0.79) 18 (0.71)
2500 cc 20 (0.79) 18 (0.71)
B: WHEEL ALIGNMENT
Sedan Wagon OUTBACK
FWD AWD FWD AWD AWD
FrontCamber
(tolerance: ±0°30′)0°05′0°05′0°05′0°05′0°20′
Caster
(tolerance: ±1°)3°05′3°05′3°05′3°05′2°50′
Toe-in mm (in) 0±3 (0±0.12) Total toe angle: 0°±20′
Kingpin angle (tolerance: ±1°) 14°15′14°15′14°15′14°15′13°30′
Wheel arch height
[tolerance:
+12
24mm (+0.47
0.94in)] mm (in)385 (15.16) 385 (15.16) 385 (15.16) 385 (15.16) 420 (16.54)
RearCamber
(tolerance: ±0°45′)0°55′1° 0°45′0°55′0°35′
Toe-in mm (in) 0±3 (0±0.12) Total toe angle: 0°±20′
Wheel arch height
[tolerance:
+12
24mm (+0.47
0.94in)] mm (in)369 (14.53) 369 (14.53) 379 (14.92) 379 (14.92) 419 (16.50)
Thrust angle 0°±20′
2
4-1SPECIFICATIONS AND SERVICE DATA
1. Suspension

B4M0182A
NOTE:

Front and rear toe-ins and front camber can be adjusted.
If toe-in or front camber tolerance exceeds specifications,
adjust toe-in and camber to the specification.

The other items indicated in the specification table can-
not be adjusted. If the other items exceeds specifications,
check suspension parts and joint portions of body suspen-
sion parts for deformities; and replace with new ones as
required.
3
4-1SPECIFICATIONS AND SERVICE DATA
1. Suspension

1. Conventional Suspension
1. FRONT SUSPENSION
B4M1148A
1Front crossmember

2Bolt ASSY
3Housing
4Washer
5Stopper rubber (Rear)
6Rear bushing
7Stopper rubber (Front)
8Ball joint
9Transverse link
10Cotter pin
11Front bushing
12Stabilizer link
13Clamp (2200 cc model)
14Bushing (2200 cc model)
15Stabilizer
16Jack-up plate
(Except 2500 cc MT model)

17Dust seal
18Strut mount

19Spacer
20Upper spring seat
21Rubber seat
22Dust cover
23Helper
24Coil spring
25Damper strut
26Adjusting bolt
27Castle nut
28Self-locking nut
29Adapter front crossmember
(OUTBACK model)

30Clip (OUTBACK model)
31Bushing (2500 cc model)
32Clamp (2500 cc model)
33Dynamic damper
(2500 cc MT model)

34Jack-up plate (2500 cc MT model)
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 18±5 (1.8±0.5, 13.0±3.6)
T2: 20±6 (2.0±0.6, 14.5±4.3)
T3: 25±4 (2.5±0.4, 18.1±2.9)
T4: 29±5 (3.0±0.5, 21.7±3.6)
T5: 39 (4, 29)
T6: 44±6 (4.5±0.6, 32.5±4.3)
T7: 49±10 (5.0±1.0, 36±7)
T8: 54±5 (5.5±0.5, 39.8±3.6)
T9: 98±15 (10.0±1.5, 72±11)
T10:152±20 (15.5±2.0, 112±14)
T11:186±10 (19.0±1.0, 137±7)
T12:245±49 (25.0±5.0, 181±36)
4
4-1COMPONENT PARTS
1. Conventional Suspension

2. REAR SUSPENSION (AWD MODEL)
B4M0766A
1Stabilizer

2Stabilizer bracket

3Stabilizer bushing

4Clamp

5Floating bushing

6Stopper

7Stabilizer link

8Rear lateral link

9Bushing (C)

10Bushing (A)

11Front lateral link

12Bushing (B)

13Trailing link rear bushing

14Trailing link

15Trailing link front bushing
16Trailing link bracket

17Cap (Protection)

18Washer

19Rear crossmember

20Strut mount cap

21Strut mount

22Rubber seat upper

23Dust cover

24Coil spring

25Helper

26Rubber seat lower

27Damper strut

28Self-locking nut

29Crossmember reinforcement
lower (Sedan model)

30Adapter rear crossmember (OUT-
BACK model)
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 20±6 (2.0±0.6, 14.5±4.3)
T2: 25±7 (2.5±0.7, 18.1±5.1)
T3: 44±6 (4.5±0.6, 32.5±4.3)
T4: 59±10 (6.0±1.0, 43±7)
T5: 98±15 (10.0±1.5, 72±11)
T6: 98±20 (10.0±2.0, 72±14)
T7: 113±15 (11.5±1.5, 83±11)
T8: 127±20 (13.0±2.0, 94±14)
T9: 137±20 (14.0±2.0, 101±14)
T10:196
+39
10(20.0+4.0
1.0, 145+29
7)
5
4-1COMPONENT PARTS
1. Conventional Suspension

3. REAR SUSPENSION (FWD MODEL)
B4M0185A
1Stabilizer

2Stabilizer bracket

3Stabilizer bushing

4Clamp

5Stabilizer link

6Adjusting bolt

7Adjusting wheel

8Rear lateral link

9Bushing (D)

10Bushing (A)

11Front lateral link

12Self-locking nut

13Washer

14Cap (Protection)
15Trailing link rear bushing

16Trailing link

17Trailing link front bushing

18Trailing link bracket

19Crossmember

20Strut mount cap

21Strut mount

22Rubber seat upper

23Dust cover

24Coil spring

25Helper

26Rubber seat lower

27Damper strut
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 20±6 (2.0±0.6, 14.5±4.3)
T2: 25±7 (2.5±0.7, 18.1±5.1)
T3: 44±6 (4.5±0.6, 32.5±4.3)
T4: 59±10 (6.0±1.0, 43±7)
T5: 98±20 (10.0±2.0, 72±14)
T6: 113±15 (11.5±1.5, 83±11)
T7: 127±20 (13.0±2.0, 94±14)
T8: 137±20 (14.0±2.0, 101±14)
T9: 196
+39
10(20.0+4.0
1.0, 145+29
7)
6
4-1COMPONENT PARTS
1. Conventional Suspension

G4M0488
6. THRUST ANGLE

Inspection
1) Position vehicle on a level surface.
2) Move vehicle 3 to 4 meters directly forward.
3) Determine locus of both front and rear axles.
4) Measure distance“L”between center line of loci of the
axles.

Thrust angle is less than 20’when“L”is equal to or less
than 15 mm (0.59 in).

Adjustment
Make thrust angle adjustments by turning toe-in adjusting
bolts of rear suspension equally in the same direction.
NOTE:
On FWD models, turn adjusting wheels one by one, by the
some amount in the opposite direction of the adjusting
bolts.

When one rear wheel is adjusted in a toe-in direction,
adjust the other rear wheel equally in toe-out direction, in
order to make thrust angle adjustment.
When left and right adjusting bolts are turned incremen-
tally by one graduation in the same direction, the thrust
angle of the AWD model will change approximately 10’[“L”
is almost equal to 7.5 mm (0.295 in)] and the thrust angle
of the FWD model will change approximately 12’[“L”is
almost equal to 9 mm (0.35 in)].
Thrust angle:
0°±20′
B4M0193A
NOTE:
Thrust angle refers to a mean value of left and right rear
wheel toe angles in relation to vehicle body center line.
Vehicle is driven straight in the thrust angle direction while
swinging in the oblique direction depending on the degree
of the mean thrust angle.
B4M0194A
Thrust angle: r
r=αβ2
α: Right rear wheel toe angle
β: Left rear wheel toe angle
NOTE:
Here, use only positive toe-in values from each wheel to
substitute forαandβin the equation.
14
4-1SERVICE PROCEDURE
1. On-car Services
