SUBARU LEGACY 2001 3.G Owner's Guide

1-8
HBS011AA
1. Slid e the front seat forward as far as p ossib le.
2. Pull off the head restraint while p ressing the release b utton.
3. Rec line the seatb ac k rearward up to the lowest p o sition. Remem-
b er to reinstall the head restraint whenever the se atb ac k is raised
b ac k. Lumbar support (if equipped)
HB1059BA
Pull the lever forward or b ac kward .
Pulling the lever forward will inc rease the amount of sup p ort for your
lower b ac k.

Seat, seatbelt and SRS airbags1-9
–
CONTINUED –
Seat heater (if equipped)
CAUTION
Use of the seat heater for a long period of time while the
engine is not running can cause battery discharge. Do not put anything on the seat which insulates against heat,
such as a blanket, cushion, or similar items. This may cause theseat heater to overheat. When cleaning the seat, do not use benzine, paint thinner, or
any similar materials.
The seat heater op erates when the ig nition switc h i s either in the “ACC ”
or “ON ” p osition.
HB1073BB
HB1019BB
To turn on the seat heater, p ush the “LO ” or “HI ” p osition on the switc h,
as d esired , d ep end ing on the temp erature. LO: Normal heating
HI: Rap id heating
The ind ic ator loc ated on the switc h c omes on when t he seat heater is in
op eration. When the vehic le ’s interior is warmed enoug h or b efore you
leave the vehic le, b e sure to turn the switc h off.

1-10Rear seats

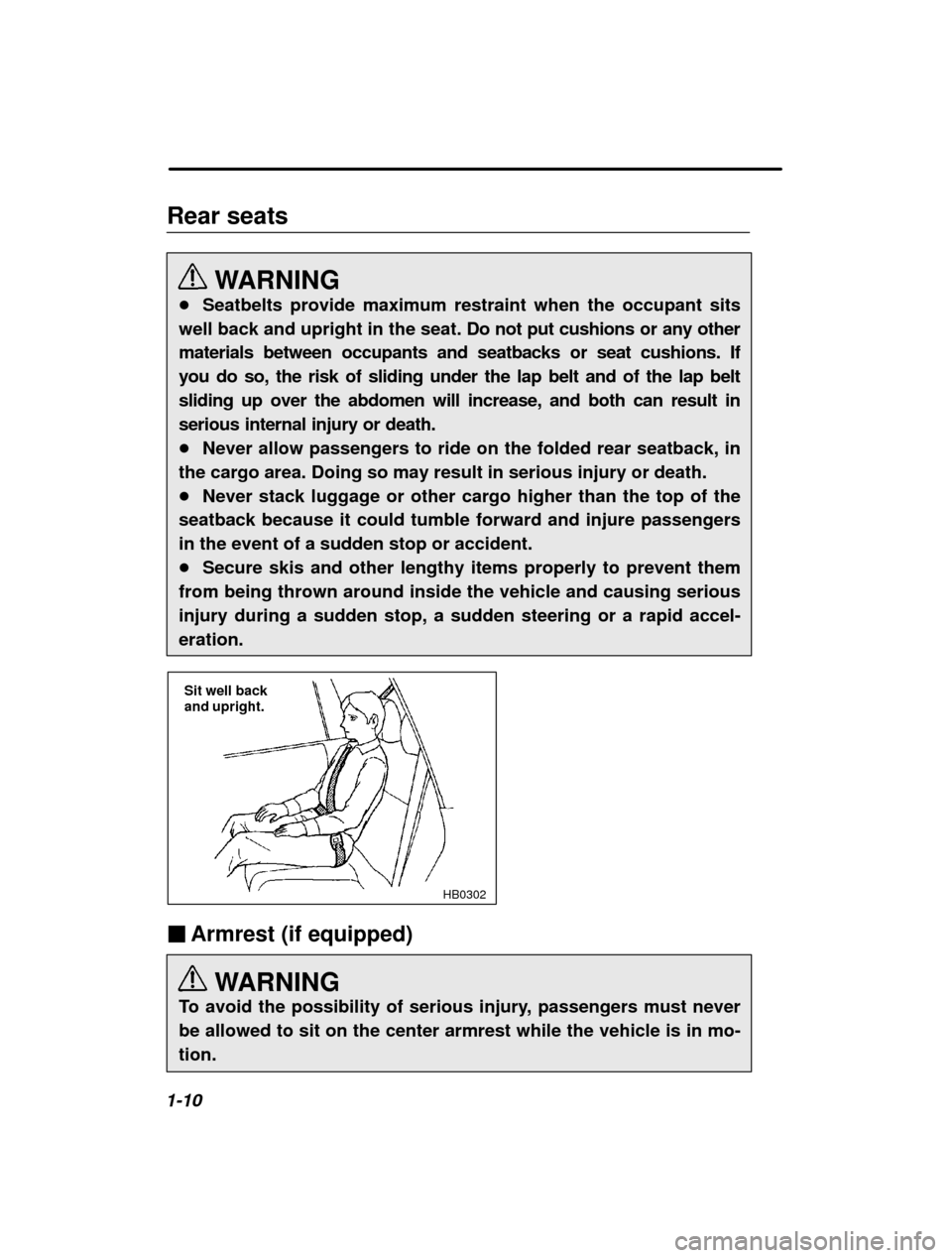

WARNING
Seatbelts provide maximum restraint when the occupant sits
well back and upright in the seat. Do not put cushions or any other
materials between occupants and seatbacks or seat cushions. If
you do so, the risk of sliding under the lap belt and of the lap belt
sliding up over the abdomen will increase, and both can result in
serious internal injury or death. Never allow passengers to ride on the folded rear seatback, in
the cargo area. Doing so may result in serious injury or death. Never stack luggage or other cargo higher than the top of the
seatback because it could tumble forward and injure passengersin the event of a sudden stop or accident. Secure skis and other lengthy items properly to prevent them
from being thrown around inside the vehicle and causing serious
injury during a sudden stop, a sudden steering or a rapid accel-eration.
HB0302
Sit well back and upright.
Armrest (if equipped)
WARNING
To avoid the possibility of serious injury, passengers must never be allowed to sit on the center armrest while the vehicle is in mo-tion.

Seat, seatbelt and SRS airbags1-11
–
CONTINUED –
HB1068BA
To lower the armrest, p ull on the top ed g e of the a rmrest.
Loading long objects

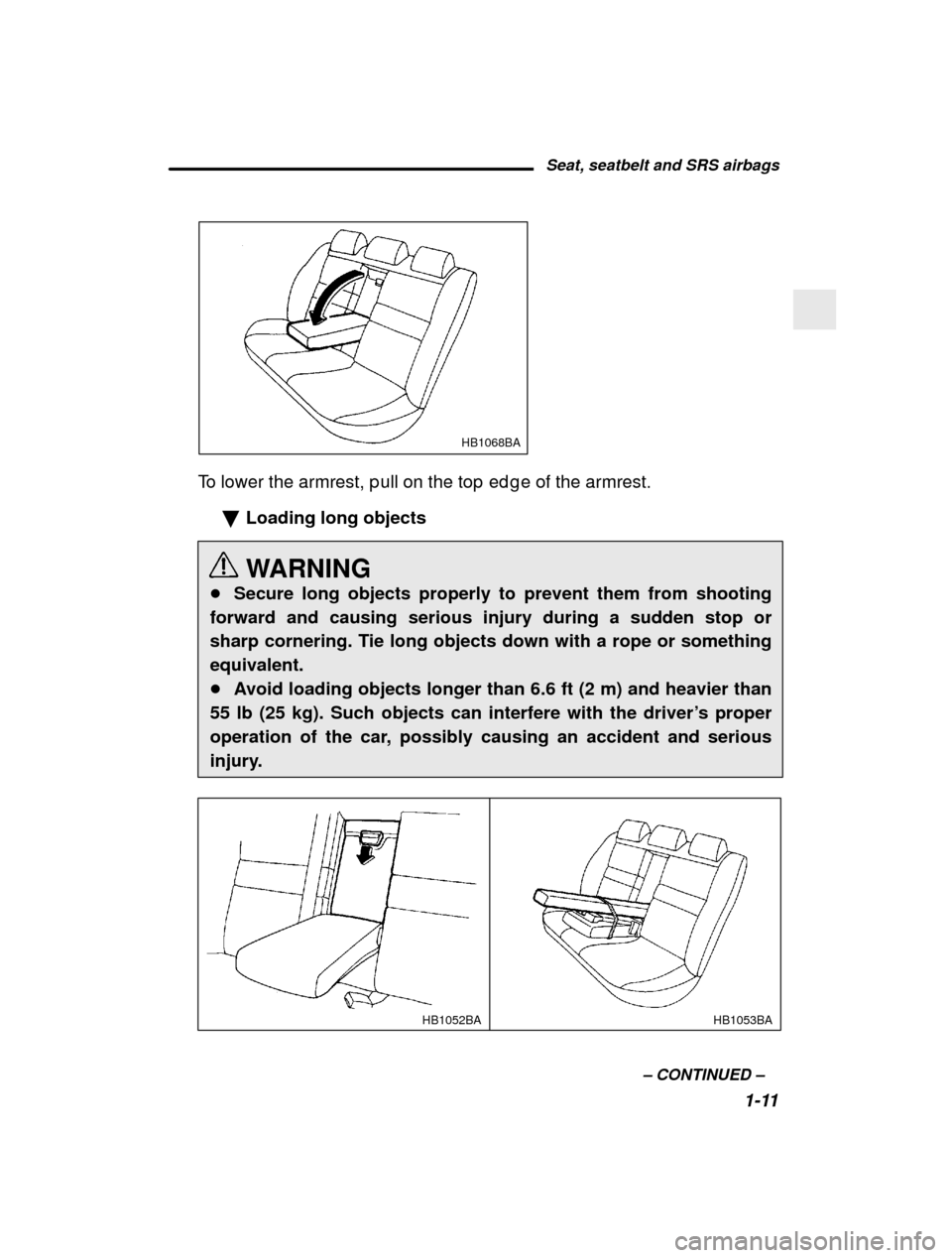

WARNING
Secure long objects properly to prevent them from shooting
forward and causing serious injury during a sudden stop or
sharp cornering. Tie long objects down with a rope or somethingequivalent. Avoid loading objects longer than 6.6 ft (2 m) and heavier than
55 lb (25 kg). Such objects can interfere with the driver ’s proper
operation of the car, possibly causing an accident and serious
injury.
HB1053BA
HB1052BA

1-12Fold ing d own the armrest and op ening the seatb ac k p
anel afford s a
load ing sp ac e for long ob jec ts.
To op en the seatb ac k p anel, p ull the p anel d own whi le p ressing the
release tab d own.
Folding down the rear seat — Station wagon

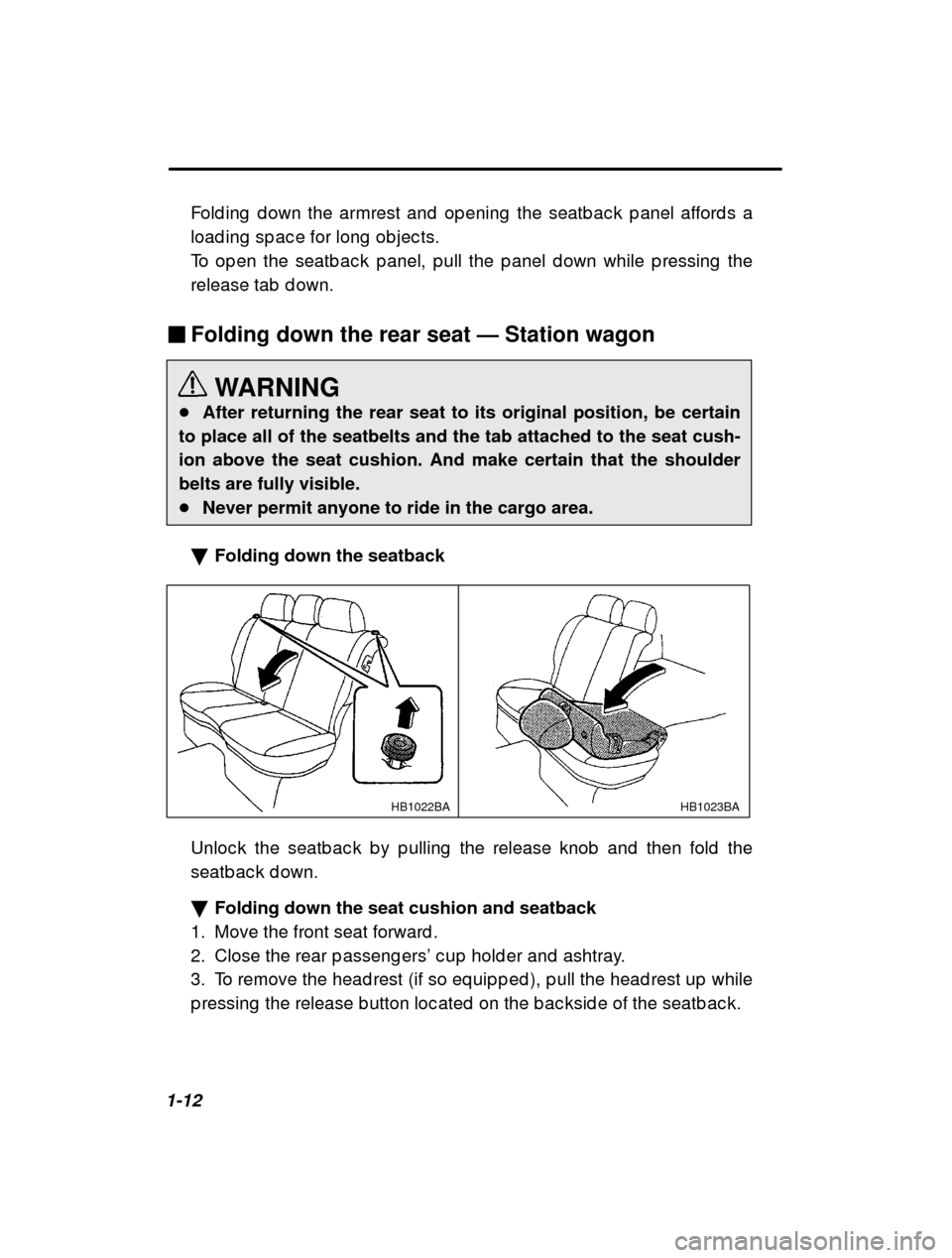

WARNING
After returning the rear seat to its original position, be certain
to place all of the seatbelts and the tab attached to the seat cush-ion above the seat cushion. And make certain that the shoulderbelts are fully visible. Never permit anyone to ride in the cargo area.
Folding down the seatback
HB1023BA
HB1022BA
Unloc k the seatb ac k b y p ulling the release knob and then fold the
seatb ac k d own. Folding down the seat cushion and seatback
1. Move the front seat forward .
2. Close the rear p asseng ers ’ c up hold er and ashtray.
3. To remove the head rest (if so eq uip p ed ), p ull the head rest up while
p ressing the release b utton loc ated on the b ac ksid e of the seatb ac k.

Seat, seatbelt and SRS airbags1-13
–
CONTINUED –
HB1024BA
4. Store the seatb elts in the seatb elt p oc ket to p re vent them from fal-
ling b elow the c ushion.
HB1074BB
HB1076BB
5. Raise the seat c ushion b y p ulling up the tab .
Make c ertain that the rear p asseng er ’s c up hold er is fully retrac ted

1-14b efore raising the seat c ushion.
HB1025BA
6. Unloc k the seatb ac k b y p ulling the release knob a
nd fold the seat-
b ac k d own. Confirm that the p in loc ated at the b ott om of the seat
c ushion is inserted into the slot at the top of the seatb ac k.
HB1027BA
7. Install the head rest (if so eq uip p ed ) onto the b a c ksid e of the seat-
b ac k.

Seat, seatbelt and SRS airbags1-15
–
CONTINUED –
HB1028BA
To return the rear seat to its orig inal p osition, r aise the seatb ac k and seat
c ushion until they loc k into p lac e and make sure th at they are sec urely
loc ked .
Make sure that the rear seatb elts are not und er the seat c ushion or seat-
b ac k.
Plac e the head rests (if so eq uip p ed ) b ac k in their normal p osition.
Seatbelts Seatbelt safety tips

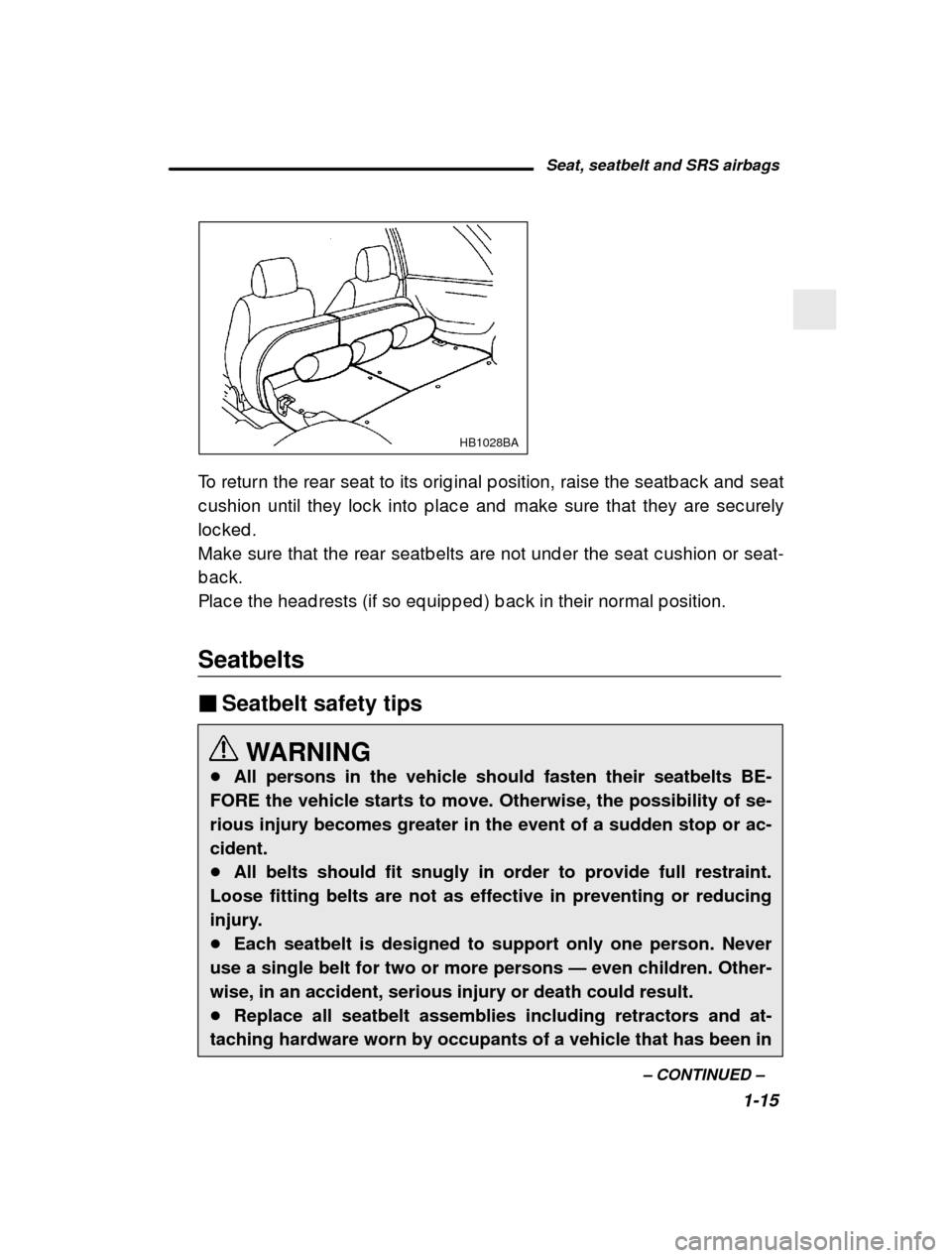

WARNING
All persons in the vehicle should fasten their seatbelts BE-
FORE the vehicle starts to move. Otherwise, the possibility of se-
rious injury becomes greater in the event of a sudden stop or ac-cident. All belts should fit snugly in order to provide full restraint.
Loose fitting belts are not as effective in preventing or reducing
injury. Each seatbelt is designed to support only one person. Never
use a single belt for two or more persons — even children. Other-
wise, in an accident, serious injury or death could result. Replace all seatbelt assemblies including retractors and at-
taching hardware worn by occupants of a vehicle that has been in

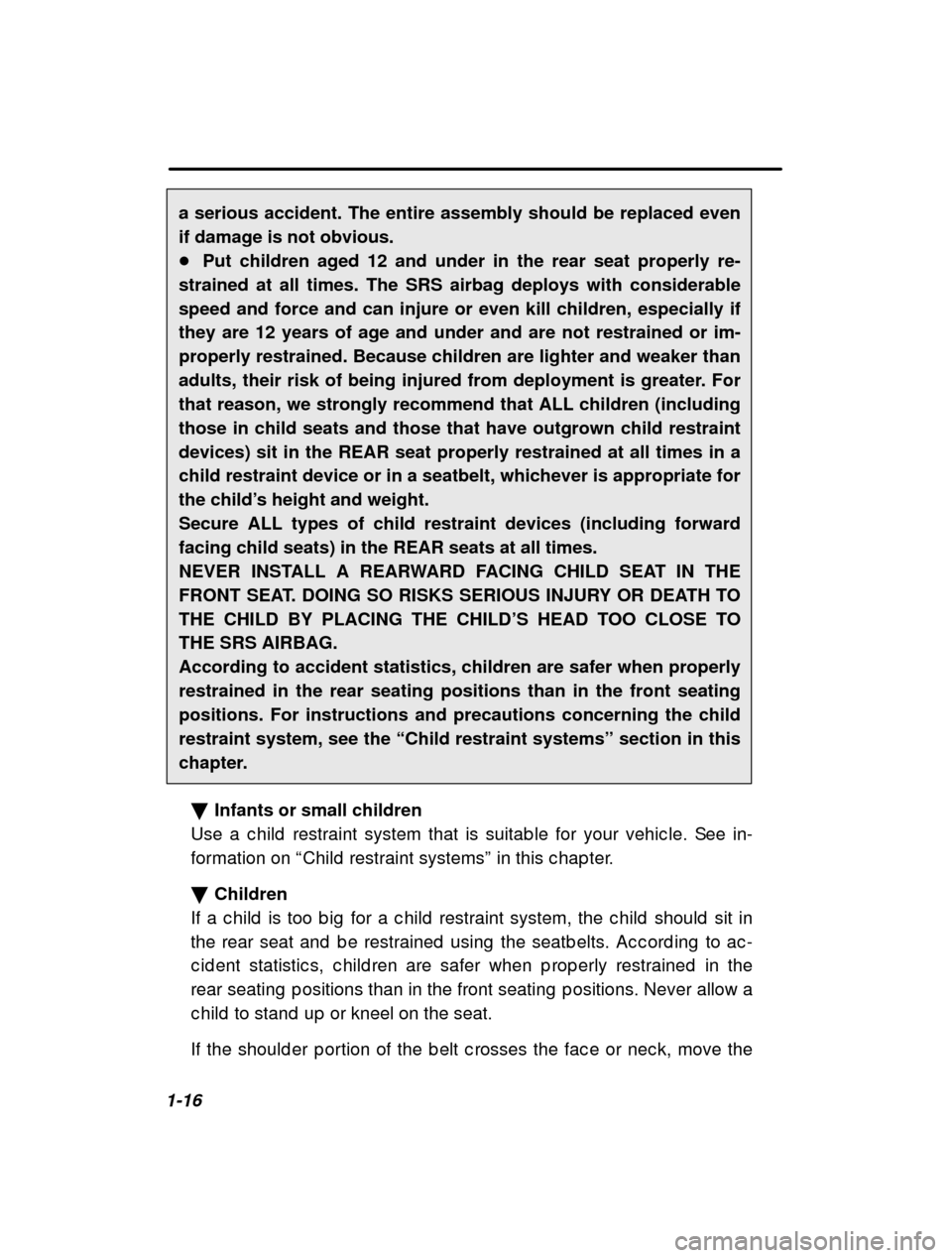

1-16a serious accident. The entire assembly should be replaced even if damage is not obvious.
Put children aged 12 and under in the rear seat properly re-
strained at all times. The SRS airbag deploys with considerablespeed and force and can injure or even kill children, especially ifthey are 12 years of age and under and are not restrained or im-properly restrained. Because children are lighter and weaker than
adults, their risk of being injured from deployment is greater. Forthat reason, we strongly recommend that ALL children (includingthose in child seats and those that have outgrown child restraint
devices) sit in the REAR seat properly restrained at all times in achild restraint device or in a seatbelt, whichever is appropriate forthe child ’s height and weight.
Secure ALL types of child restraint devices (including forwardfacing child seats) in the REAR seats at all times.
NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE
FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TOTHE CHILD BY PLACING THE CHILD ’S HEAD TOO CLOSE TO
THE SRS AIRBAG. According to accident statistics, children are safer when properlyrestrained in the rear seating positions than in the front seatingpositions. For instructions and precautions concerning the childrestraint system, see the “Child restraint systems ” section in this
chapter.
Infants or small children
Use a c hild restraint system that is suitab le for y our vehic le. See in-
formation on “Child restraint systems ” in this c hap ter.
Children
If a c hild is too b ig for a c hild restraint system, the c hild should sit in
the rear seat and b e restrained using the seatb elts . Ac c ord ing to ac -
c id ent statistic s, c hild ren are safer when p rop erly restrained in the
rear seating p ositions than in the front seating p o sitions. Never allow a
c hild to stand up or kneel on the seat.
If the should er p ortion of the b elt c rosses the fac e or nec k, move the

Seat, seatbelt and SRS airbags1-17
–
CONTINUED –
c hild c loser to the b elt b uc kle to help p rovid e a g
ood should er b elt fit.
Care must b e taken to sec urely p lac e the lap b elt a s low as p ossib le
on the hip s and not on the c hild ’s waist. If the should er p ortion of the
b elt c annot b e p rop erly p ositioned , a c hild restrai nt system should b e
used . Never p lac e the should er b elt und er the c hild ’s arm or b ehind
the c hild ’s b ac k.
Expectant mothers
Exp ec tant mothers also need to use the seatb elts. T hey should c on-
sult their d oc tor for sp ec ific rec ommend ations. The lap b elt should b e
worn sec urely and as low as p ossib le over the hip s, not over the
waist.
Emergency Locking Retractor (ELR)
The d river ’s seatb elt has an Emerg enc y Loc king Retrac tor (ELR) .
The emerg enc y loc king retrac tor allows normal b od y movement b ut the
retrac tor loc ks automatic ally d uring a sud d en stop , imp ac t or if you p ull
the b elt very q uic kly out of the retrac tor. Automatic/Emergency Locking Retractor (A/ELR)
Eac h p asseng er ’s seatb elt has an Automatic /Emerg enc y Loc king Re-
trac tor (A/ELR). The Automatic /Emerg enc y Loc king Re trac tor normally
func tions as an Emerg enc y Loc king Retrac tor (ELR). The A/ELR has an
ad d itional loc king mod e “Automatic Loc king Retrac tor (ALR) mod e ” in-
tend ed to sec ure a c hild restraint system. When the seatb elt is onc e
d rawn out c omp letely and is then retrac ted even sli g htly, the retrac tor
loc ks the seatb elt in that p osition and the seatb el t c annot b e extend ed .
As the b elt is rewind ing , c lic ks will b e heard whic h ind ic ate the retrac tor
func tions as ALR. When the seatb elt is retrac ted fu lly, ALR mod e is re-
leased .
When sec uring a c hild restraint system on the p asse ng ers’ seats, the
seatb elt must b e c hang ed over to the Automatic Loc k ing Retrac tor (ALR)
mod e.
When the c hild restraint system is removed , make su re that the retrac tor
is restored to the Emerg enc y Loc king Retrac tor (ELR ) func tion b y allow-
ing the seatb elt to retrac t fully.
