SUBARU LEGACY 2002 3.G User Guide

viii

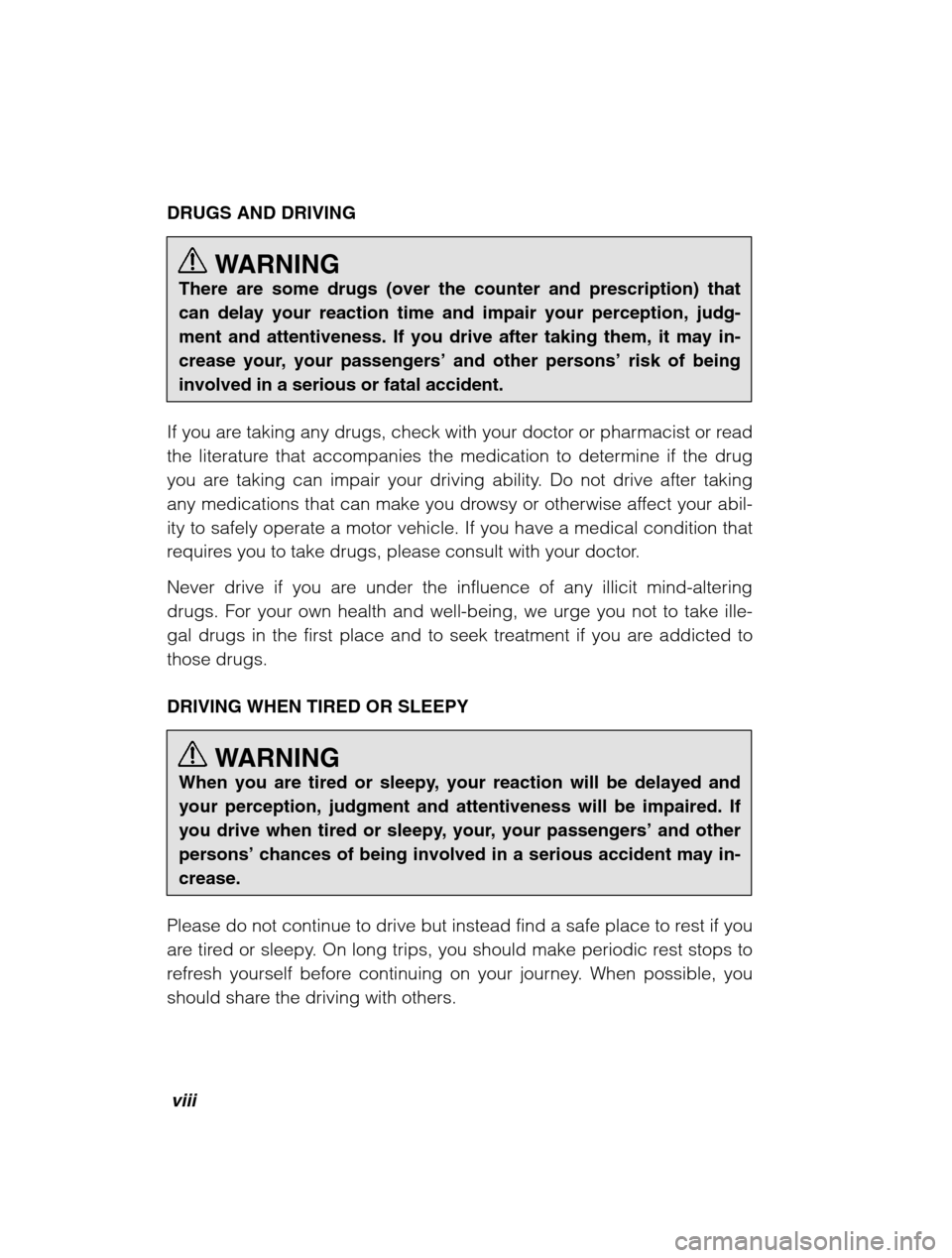

DRUGS AND DRIVINGWARNING
There are some drugs (over the counter and prescription) that can delay your reaction time and impair your perception, judg-ment and attentiveness. If you drive after taking them, it may in-
crease your, your passengers ’ and other persons ’ risk of being
involved in a serious or fatal accident.
If you are taking any drugs, check with your doctor or pharmacist or read
the literature that accompanies the medication to determine if the drug
you are taking can impair your driving ability. Do not drive after taking
any medications that can make you drowsy or otherwise affect your abil-
ity to safely operate a motor vehicle. If you have a medical condition that
requires you to take drugs, please consult with your doctor.
Never drive if you are under the influence of any illicit mind-altering drugs. For your own health and well-being, we urge you not to take ille-
gal drugs in the first place and to seek treatment if you are addicted tothose drugs. DRIVING WHEN TIRED OR SLEEPY
WARNING
When you are tired or sleepy, your reaction will be delayed and your perception, judgment and attentiveness will be impaired. If
you drive when tired or sleepy, your, your passengers ’ and other
persons’ chances of being involved in a serious accident may in-
crease.
Please do not continue to drive but instead find a safe place to rest if you
are tired or sleepy. On long trips, you should make periodic rest stops to
refresh yourself before continuing on your journey. When possible, you
should share the driving with others.

ix
–
CONTINUED –

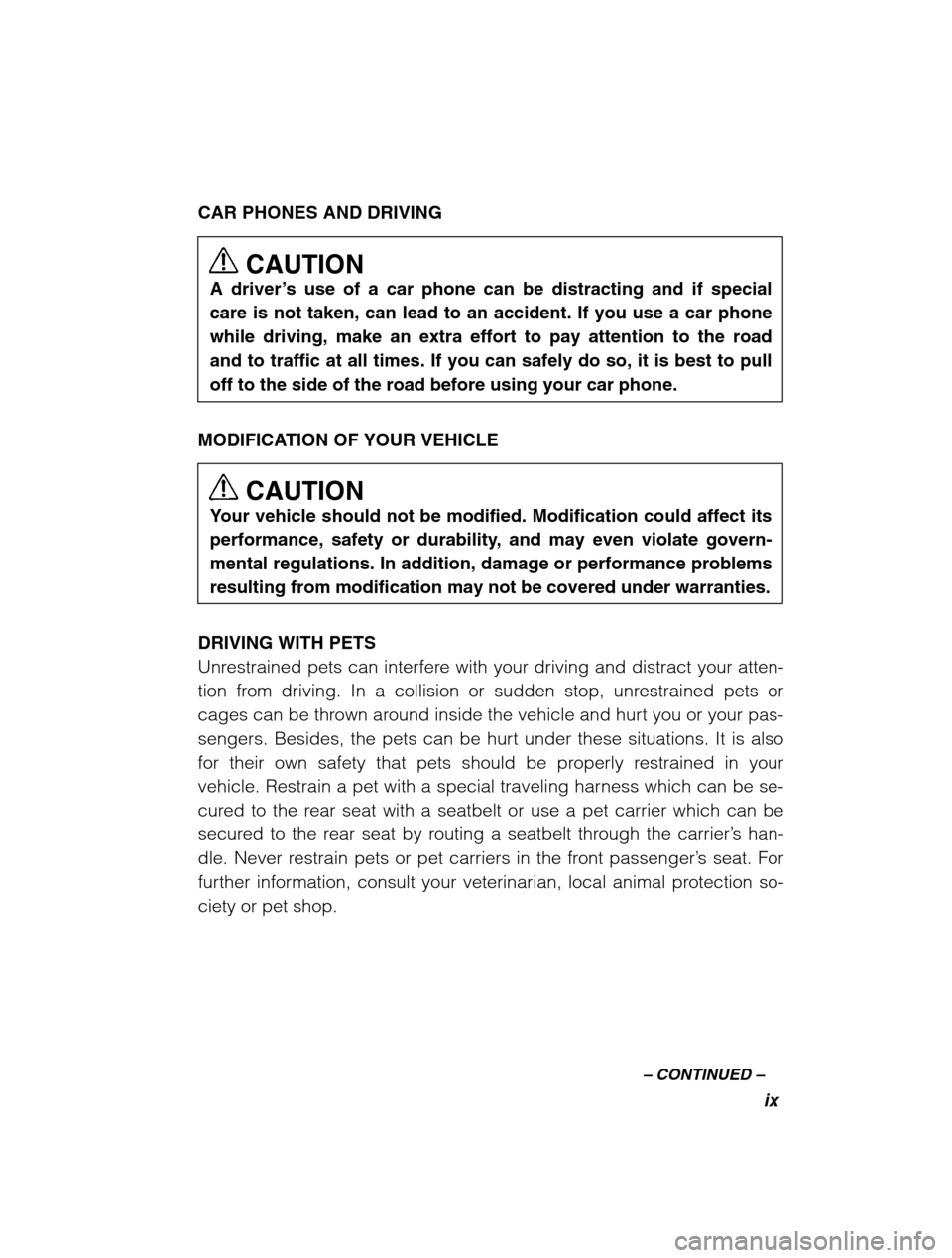

CAR PHONES AND DRIVING
CAUTION
A driver ’s use of a car phone can be distracting and if special
care is not taken, can lead to an accident. If you use a car phone while driving, make an extra effort to pay attention to the road
and to traffic at all times. If you can safely do so, it is best to pulloff to the side of the road before using your car phone.
MODIFICATION OF YOUR VEHICLE CAUTION
Your vehicle should not be modified. Modification could affect its
performance, safety or durability, and may even violate govern-mental regulations. In addition, damage or performance problemsresulting from modification may not be covered under warranties.
DRIVING WITH PETS
Unrestrained pets can interfere with your driving and distract your atten-
tion from driving. In a collision or sudden stop, unrestrained pets or
cages can be thrown around inside the vehicle and hurt you or your pas-
sengers. Besides, the pets can be hurt under these situations. It is also
for their own safety that pets should be properly restrained in your
vehicle. Restrain a pet with a special traveling harness which can be se-
cured to the rear seat with a seatbelt or use a pet carrier which can be
secured to the rear seat by routing a seatbelt through the carrier ’s han-
dle. Never restrain pets or pet carriers in the front passenger ’s seat. For
further information, consult your veterinarian, local animal protection so-ciety or pet shop.

x

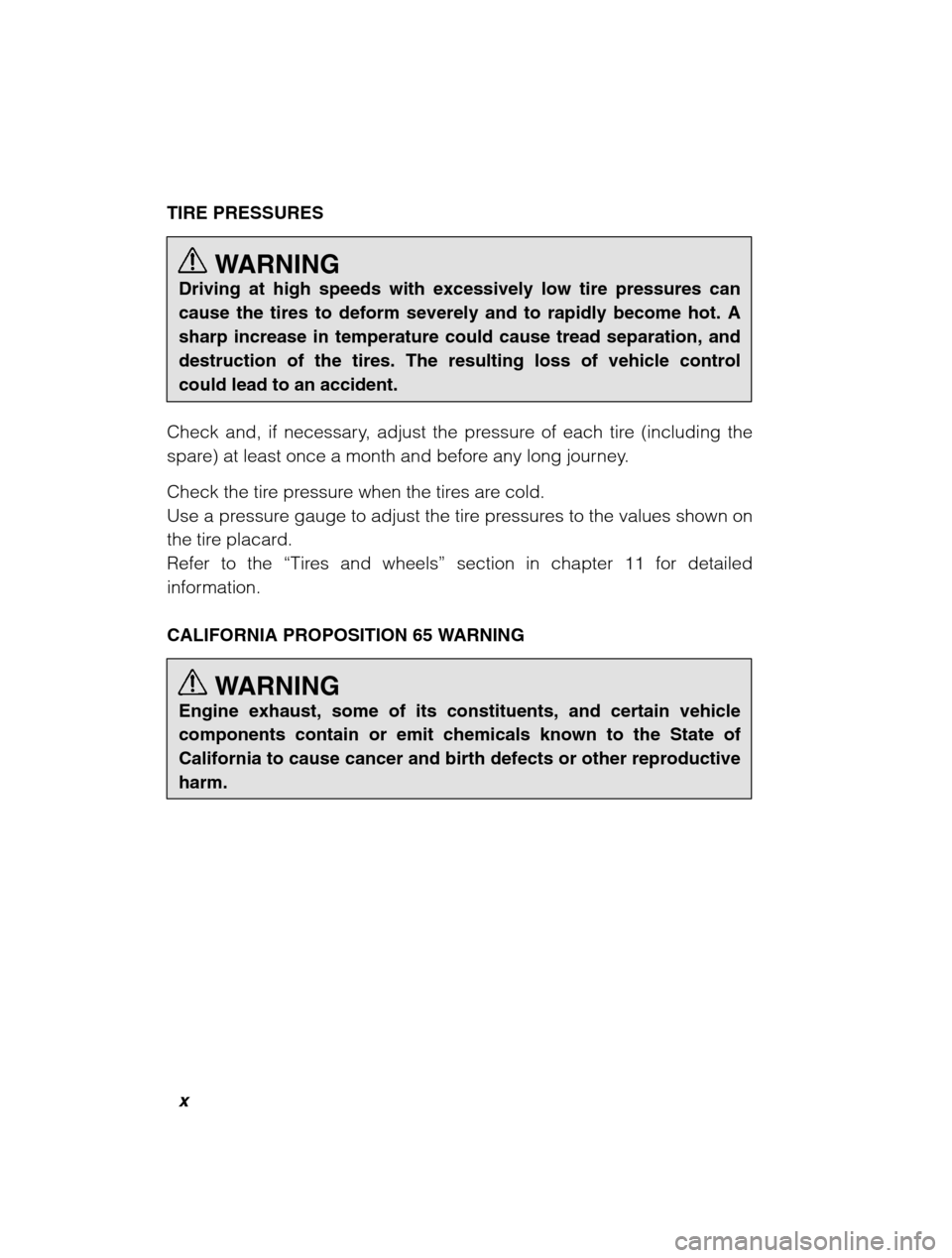

TIRE PRESSURESWARNING
Driving at high speeds with excessively low tire pressures can
cause the tires to deform severely and to rapidly become hot. Asharp increase in temperature could cause tread separation, and
destruction of the tires. The resulting loss of vehicle controlcould lead to an accident.
Check and, if necessary, adjust the pressure of each tire (including the
spare) at least once a month and before any long journey.
Check the tire pressure when the tires are cold.
Use a pressure gauge to adjust the tire pressures to the values shown on
the tire placard.Refer to the “Tires and wheels ” section in chapter 11 for detailed
information.
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State ofCalifornia to cause cancer and birth defects or other reproductiveharm.

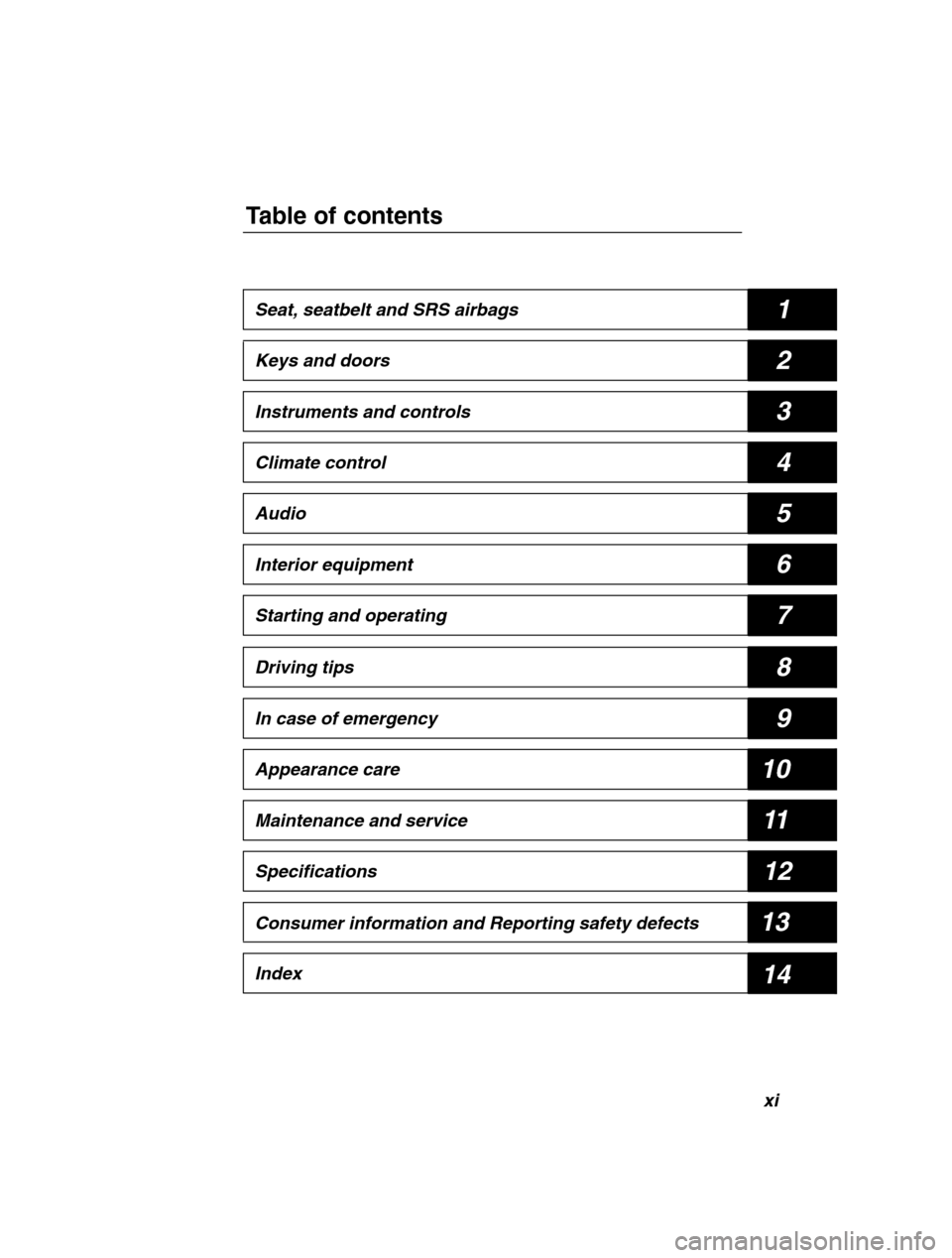

Seat, seatbelt and SRS airbags
Keys and doors
Instruments and controls
Climate control
2
3
4
Audio
Interior equipment
Starting and operating
In case of emergency
5 67 9
Appearance care
Maintenance and service
Specifications
Consumer information and Reporting safety defects13
Index14
10
11
12
1
Driving tips8
xi
–
CONTINUED –
Table of contents

1
Seat, seatbelt and SRS airbags Front seats1-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater (if equipped) 1-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seats 1-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Armrest (if equipped) 1-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headrest adjustment — Rear center seating position on Station wagon 1-12 . . . . . . . . . . . . . .
Folding down the rear seat — Station wagon 1-12 . . . . . . . . . . . . . . . . . . . . . .
Seatbelts 1-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seatbelt safety tips 1-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency Locking Retractor (ELR) 1-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic/Emergency Locking Retractor (A/ELR) 1-18 . . . . . . . . . . . . . . . .
Seatbelt warning light and chime 1-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fastening the seatbelt 1-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seatbelt maintenance 1-28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seatbelt pretensioners 1-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint systems 1-33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Top tether anchorages 1-40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag (Supplemental Restraint System airbag) 1-43 . . . . . . . .
Vehicle with driver ’s and front passenger ’s SRS airbags and
lap/shoulder restraints 1-43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS frontal airbag 1-48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbag (if equipped) 1-55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag system monitors 1-62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag system servicing 1-63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Precautions against vehicle modification 1-64 . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2

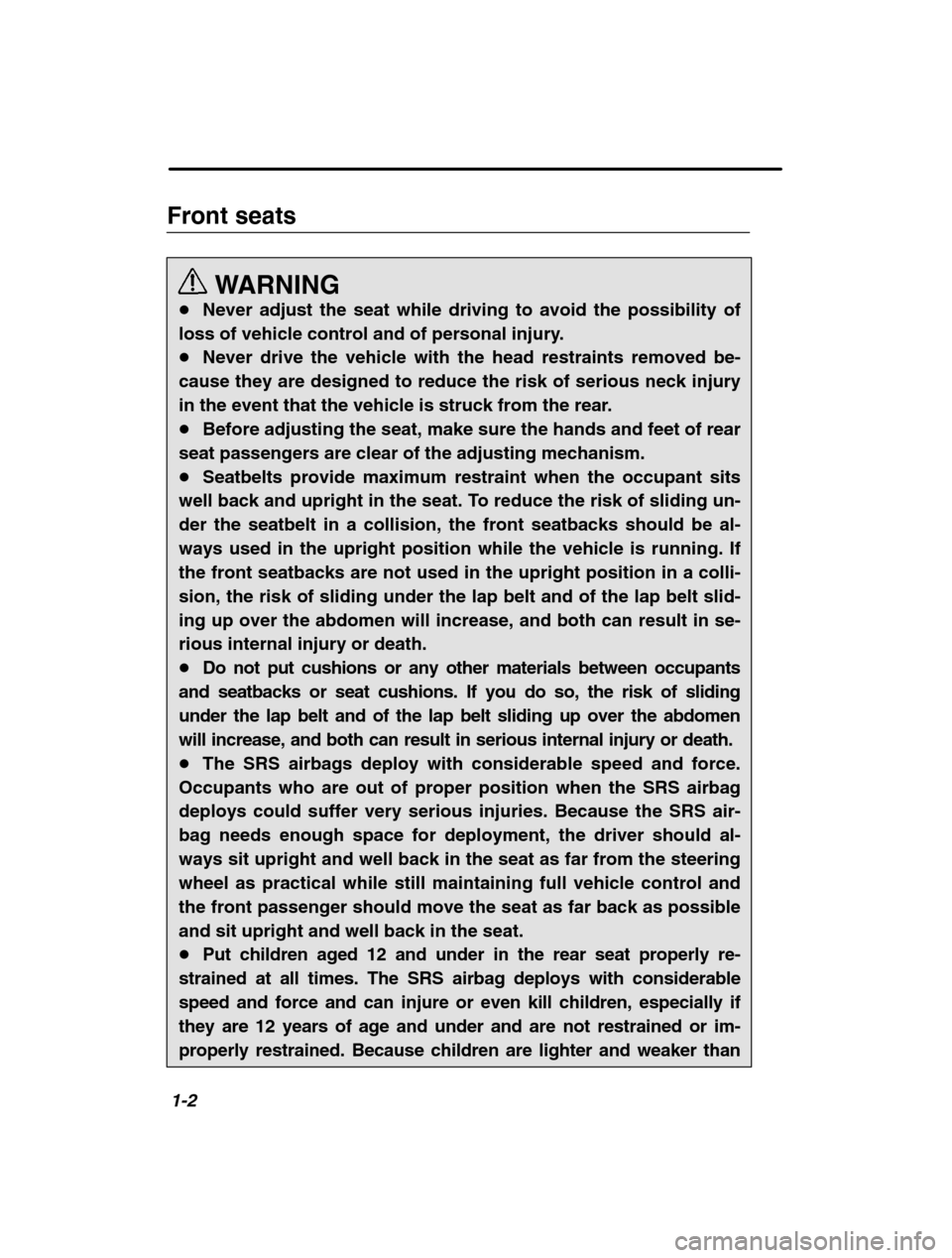

Front seatsWARNING
Never adjust the seat while driving to avoid the possibility of
loss of vehicle control and of personal injury. Never drive the vehicle with the head restraints removed be-
cause they are designed to reduce the risk of serious neck injury
in the event that the vehicle is struck from the rear. Before adjusting the seat, make sure the hands and feet of rear
seat passengers are clear of the adjusting mechanism. Seatbelts provide maximum restraint when the occupant sits
well back and upright in the seat. To reduce the risk of sliding un-der the seatbelt in a collision, the front seatbacks should be al-ways used in the upright position while the vehicle is running. Ifthe front seatbacks are not used in the upright position in a colli-
sion, the risk of sliding under the lap belt and of the lap belt slid-ing up over the abdomen will increase, and both can result in se-rious internal injury or death. Do not put cushions or any other materials between occupants
and seatbacks or seat cushions. If you do so, the risk of sliding
under the lap belt and of the lap belt sliding up over the abdomen
will increase, and both can result in serious internal injury or death. The SRS airbags deploy with considerable speed and force.
Occupants who are out of proper position when the SRS airbag
deploys could suffer very serious injuries. Because the SRS air-bag needs enough space for deployment, the driver should al-ways sit upright and well back in the seat as far from the steeringwheel as practical while still maintaining full vehicle control and
the front passenger should move the seat as far back as possibleand sit upright and well back in the seat. Put children aged 12 and under in the rear seat properly re-
strained at all times. The SRS airbag deploys with considerable
speed and force and can injure or even kill children, especially if
they are 12 years of age and under and are not restrained or im-
properly restrained. Because children are lighter and weaker than

Seat, seatbelt and SRS airbags1-3
–
CONTINUED –

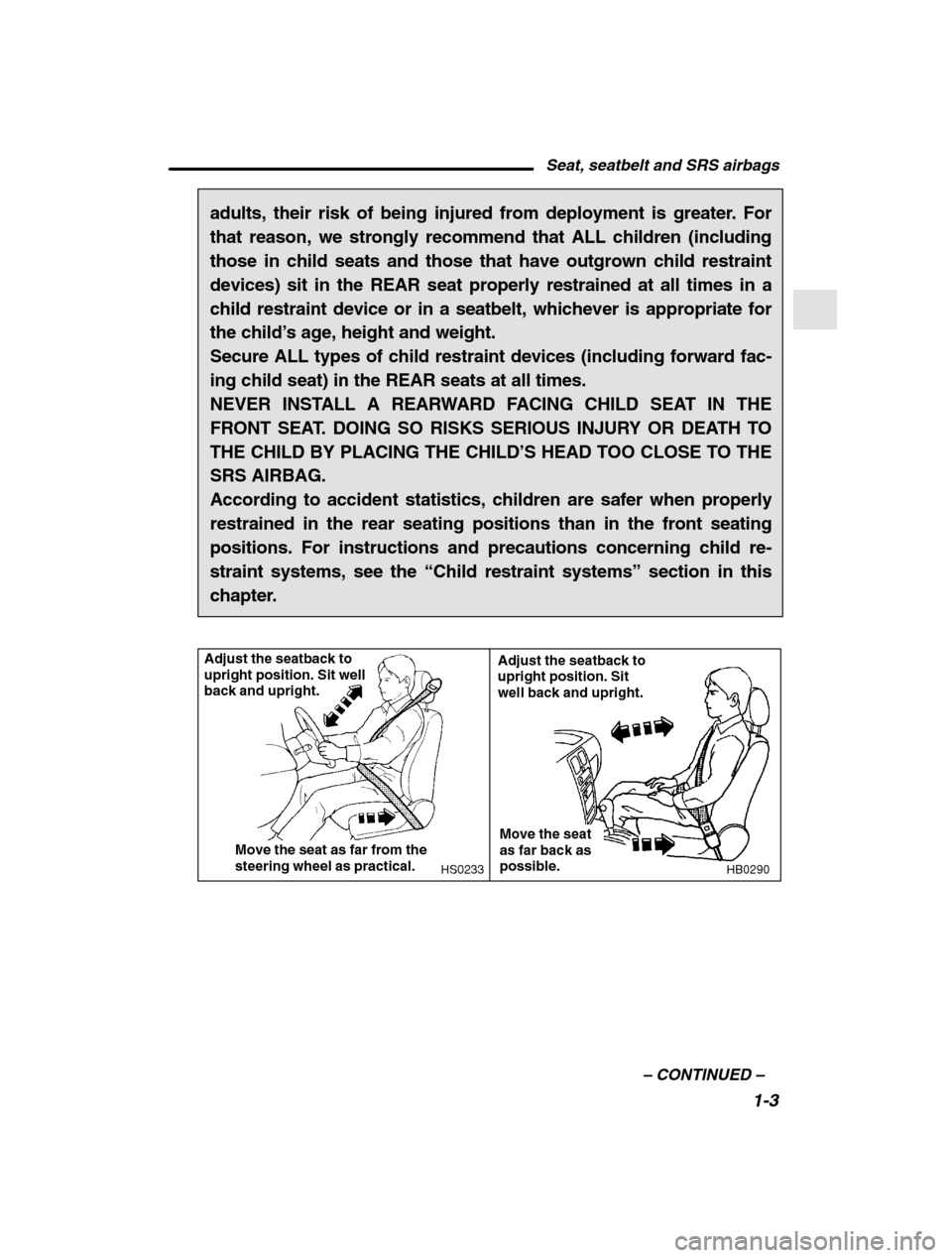

adults, their risk of being injured from deployment is greater. For
that reason, we strongly recommend that ALL children (including
those in child seats and those that have outgrown child restraint
devices) sit in the REAR seat properly restrained at all times in a
child restraint device or in a seatbelt, whichever is appropriate for
the child’s age, height and weight.
Secure ALL types of child restraint devices (including forward fac-
ing child seat) in the REAR seats at all times.
NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE
FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE CHILD ’S HEAD TOO CLOSE TO THE
SRS AIRBAG.
According to accident statistics, children are safer when properly
restrained in the rear seating positions than in the front seating
positions. For instructions and precautions concerning child re-
straint systems, see the “Child restraint systems ” section in this
chapter.
HB0290
HS0233
Adjust the seatback to upright position. Sit well back and upright.
Move the seat as far from the steering wheel as practical. Adjust the seatback toupright position. Sit well back and upright.Move the seat as far back as possible.

1-4
HS0247
HB0291

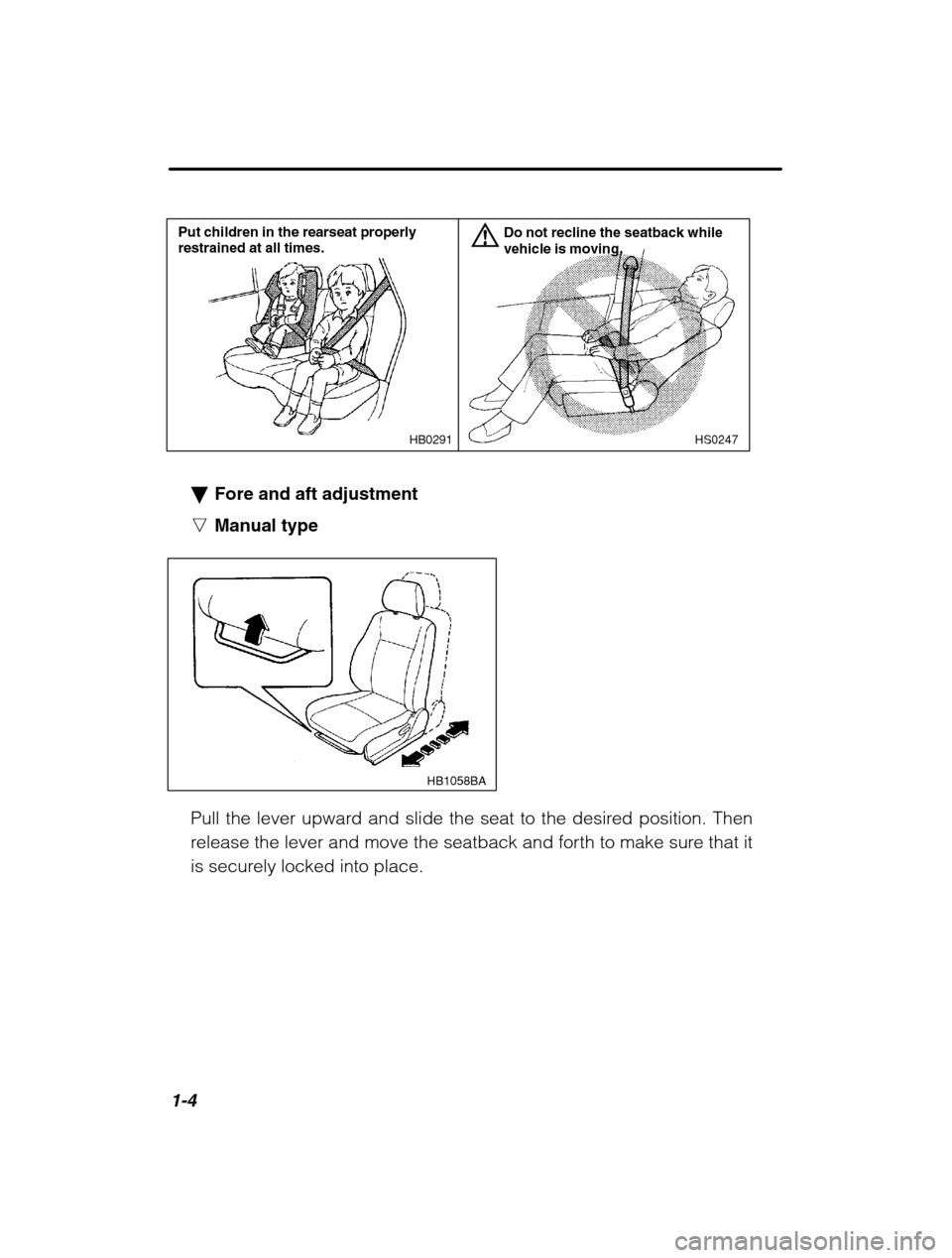

Put children in the rearseat properly restrained at all times. Do not recline the seatback whilevehicle is moving.

Fore and aft adjustment
n Manual type
HB1058BA
Pull the lever upward and slide the seat to the desired position. Then
release the lever and move the seatback and forth to make sure that it
is securely locked into place.

Seat, seatbelt and SRS airbags1-5
–
CONTINUED –

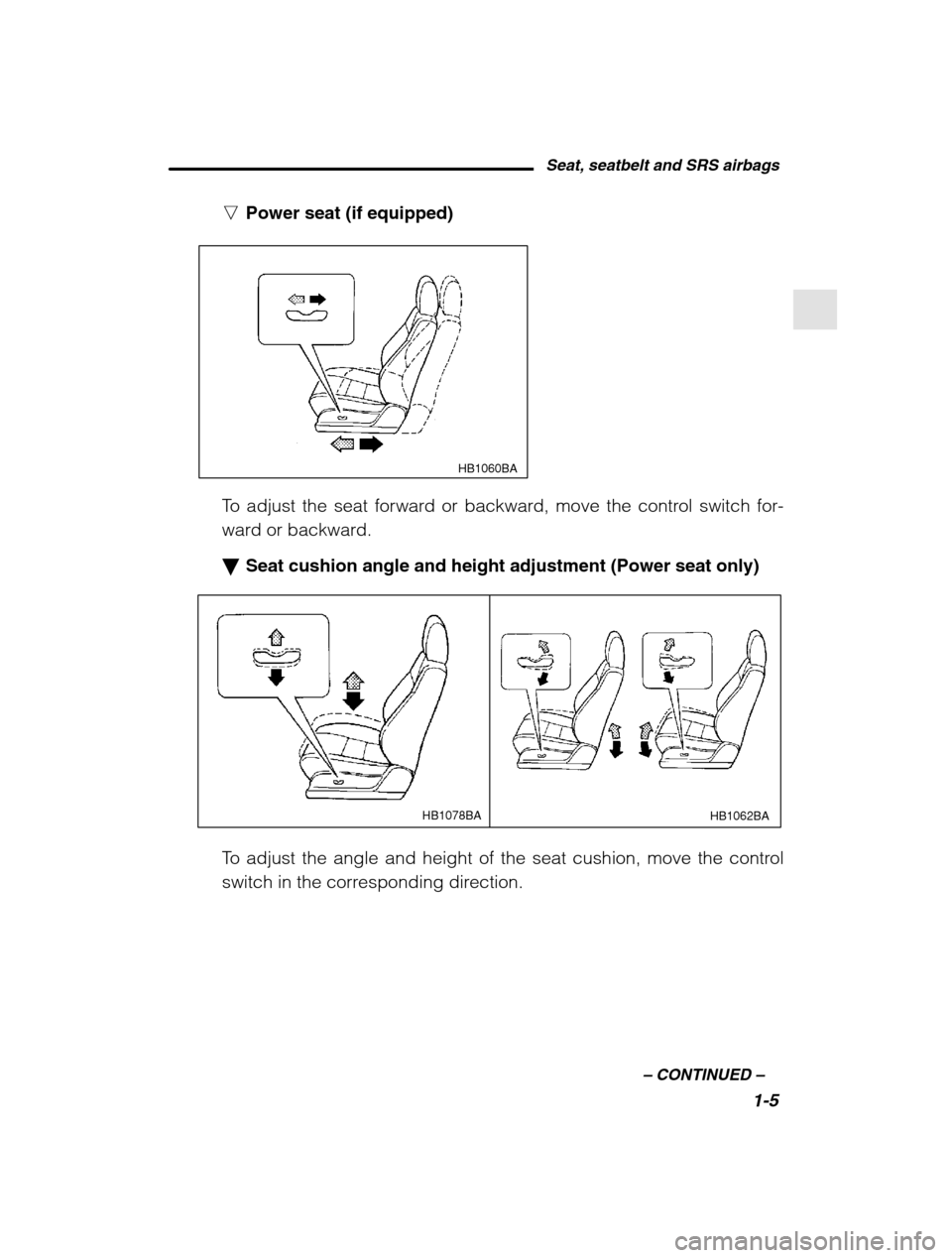

nPower seat (if equipped)
HB1060BA
To adjust the seat forward or backward, move the control switch for-
ward or backward. Seat cushion angle and height adjustment (Power seat only)
HB1062BA
HB1078BA
To adjust the angle and height of the seat cushion, move the control
switch in the corresponding direction.

1-6

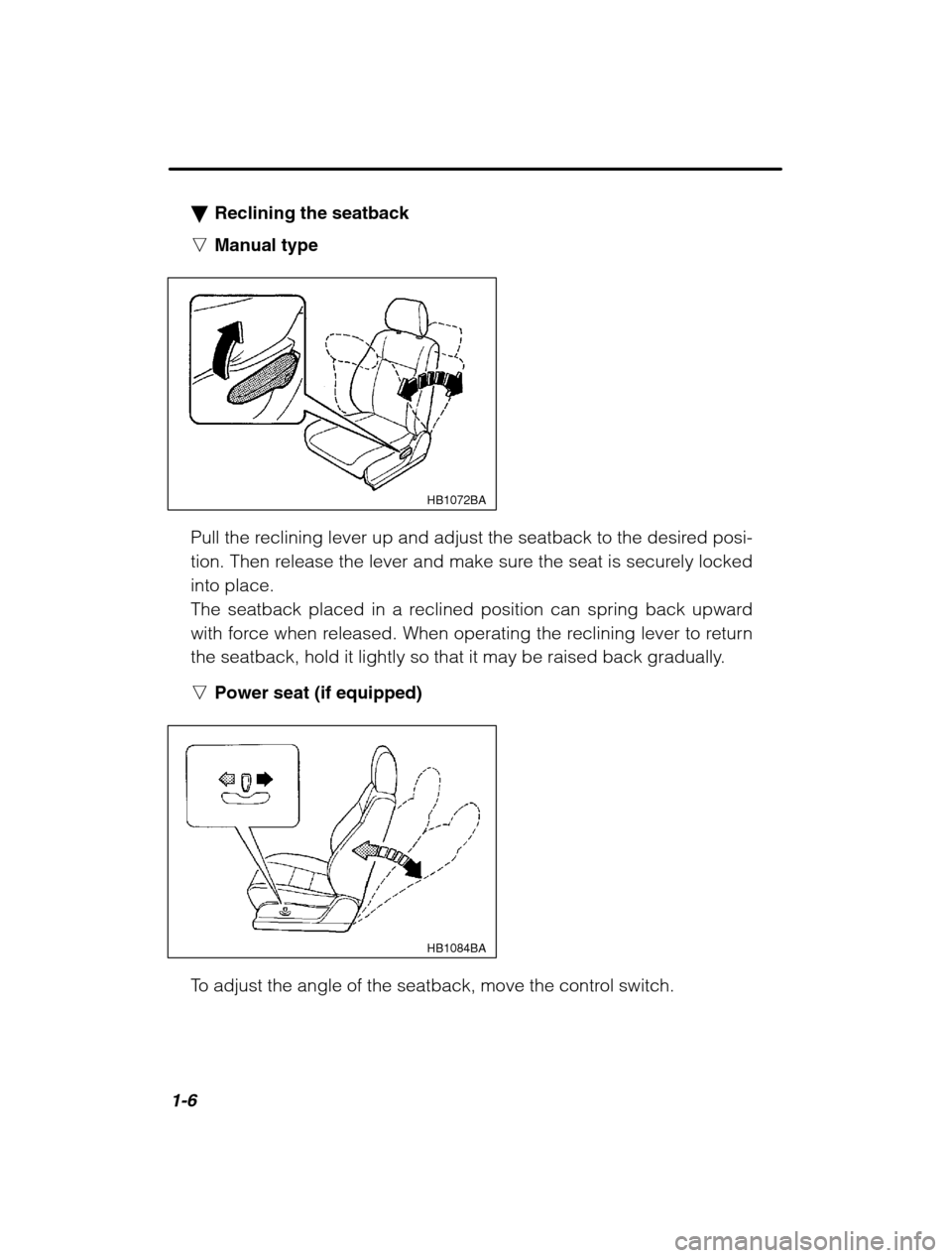

Reclining the seatback
n Manual type
HB1072BA
Pull the reclining lever up and adjust the seatback to the desired posi-
tion. Then release the lever and make sure the seat is securely locked
into place.
The seatback placed in a reclined position can spring back upward
with force when released. When operating the reclining lever to return
the seatback, hold it lightly so that it may be raised back gradually. nPower seat (if equipped)
HB1084BA
To adjust the angle of the seatback, move the control switch.
