SUBARU LEGACY 2002 3.G Owners Manual

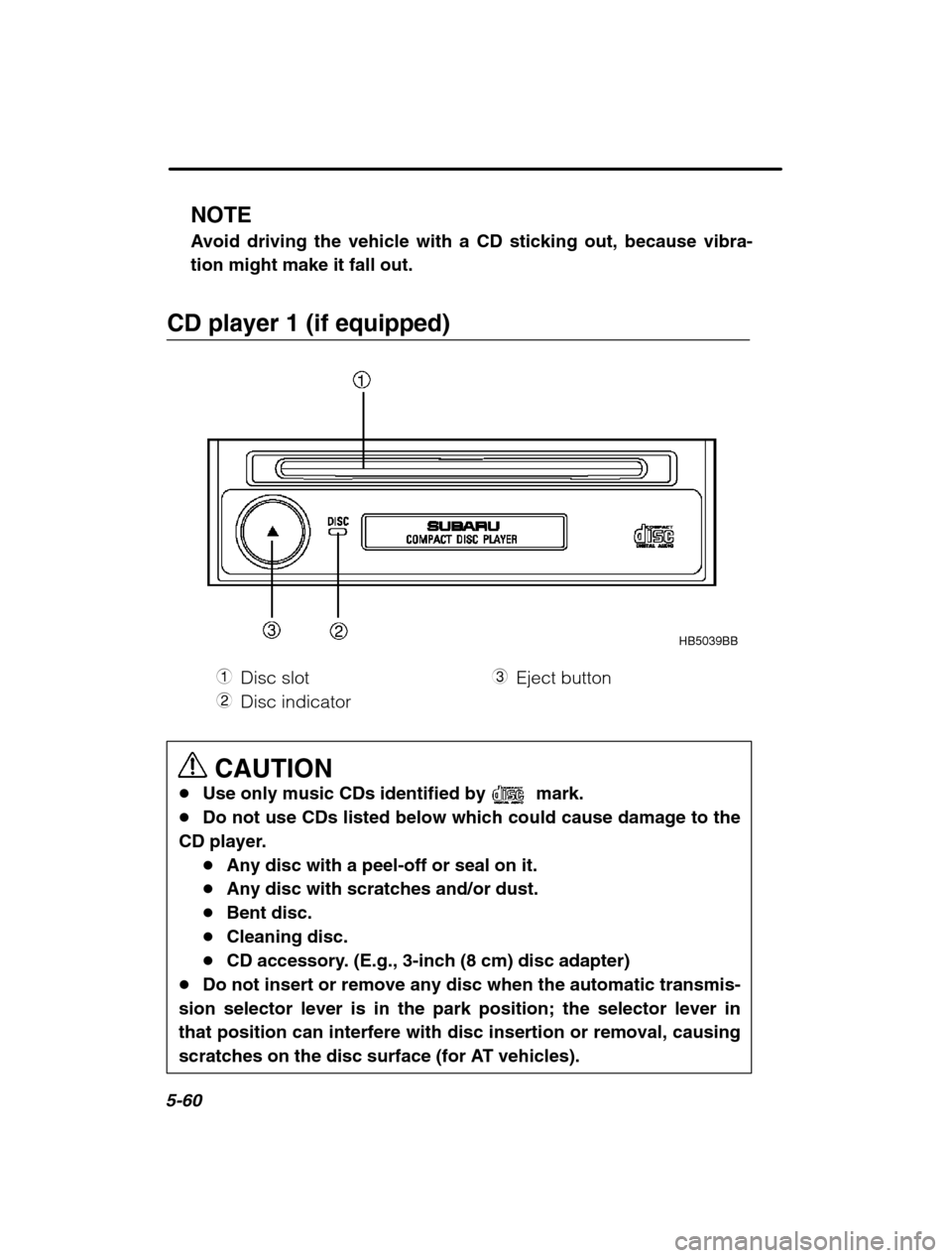

5-60
NOTE
Avoid driving the vehicle with a CD sticking out, because vibra- tion might make it fall out.
CD player 1 (if equipped)
HB5039BB
1 Disc slot
2 Disc indicator 3
Eject button
CAUTION
Use only music CDs identified by
mark.
Do not use CDs listed below which could cause damage to the
CD player. Any disc with a peel-off or seal on it.
Any disc with scratches and/or dust.
Bent disc.
Cleaning disc.
CD accessory. (E.g., 3-inch (8 cm) disc adapter)
Do not insert or remove any disc when the automatic transmis-
sion selector lever is in the park position; the selector lever in that position can interfere with disc insertion or removal, causing
scratches on the disc surface (for AT vehicles).

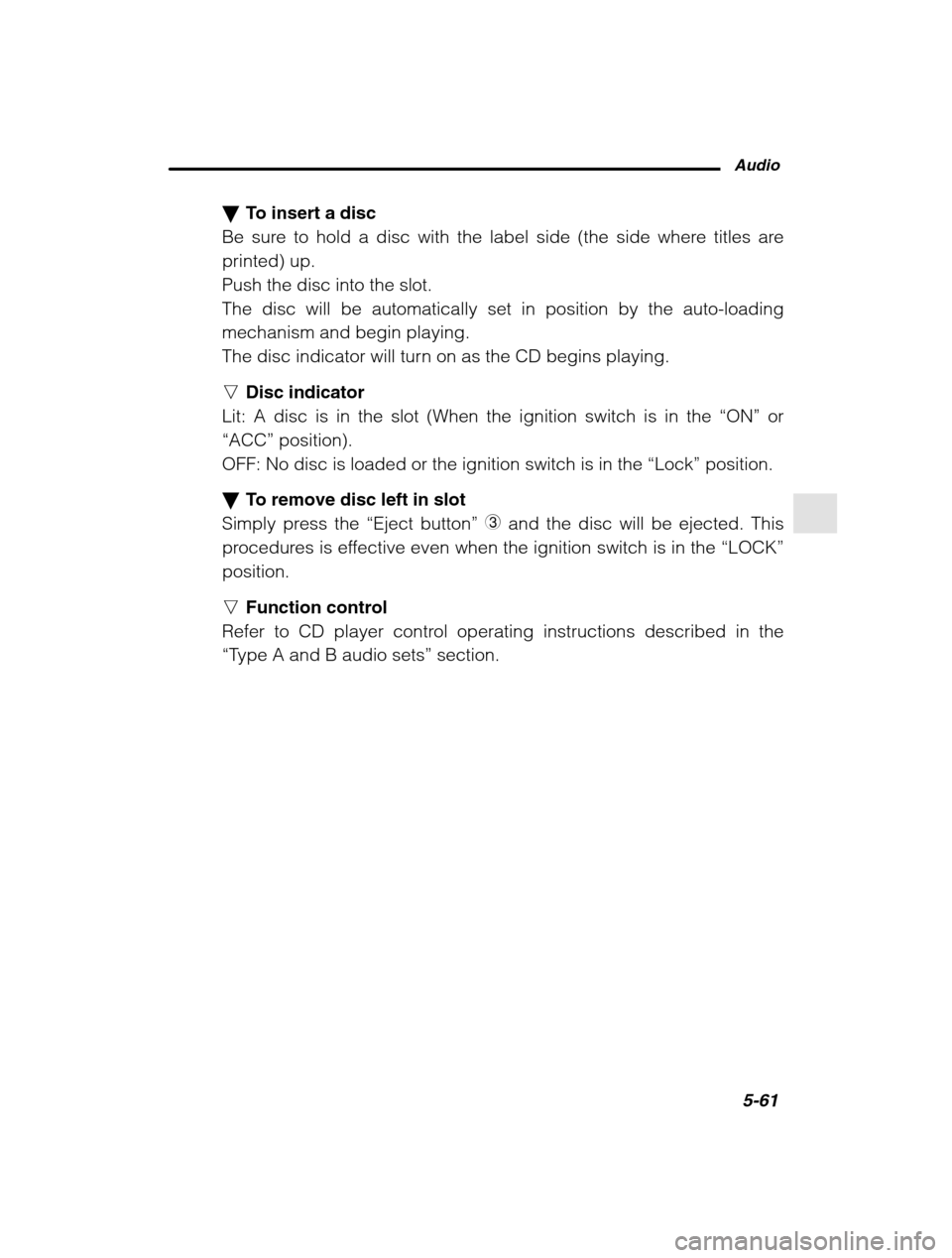

Audio5-61
–
CONTINUED –
To insert a disc
Be sure to hold a disc with the label side (the side where titles are printed) up.Push the disc into the slot.The disc will be automatically set in position by the auto-loading
mechanism and begin playing.
The disc indicator will turn on as the CD begins playing. n Disc indicator
Lit: A disc is in the slot (When the ignition switch is in the “ON” or
“ACC” position).
OFF: No disc is loaded or the ignition switch is in the “Lock” position.
To remove disc left in slot
Simply press the “Eject button ”
3 and the disc will be ejected. This
procedures is effective even when the ignition switch is in the “LOCK”
position.n Function control
Refer to CD player control operating instructions described in the “ Type A and B audio sets ” section.

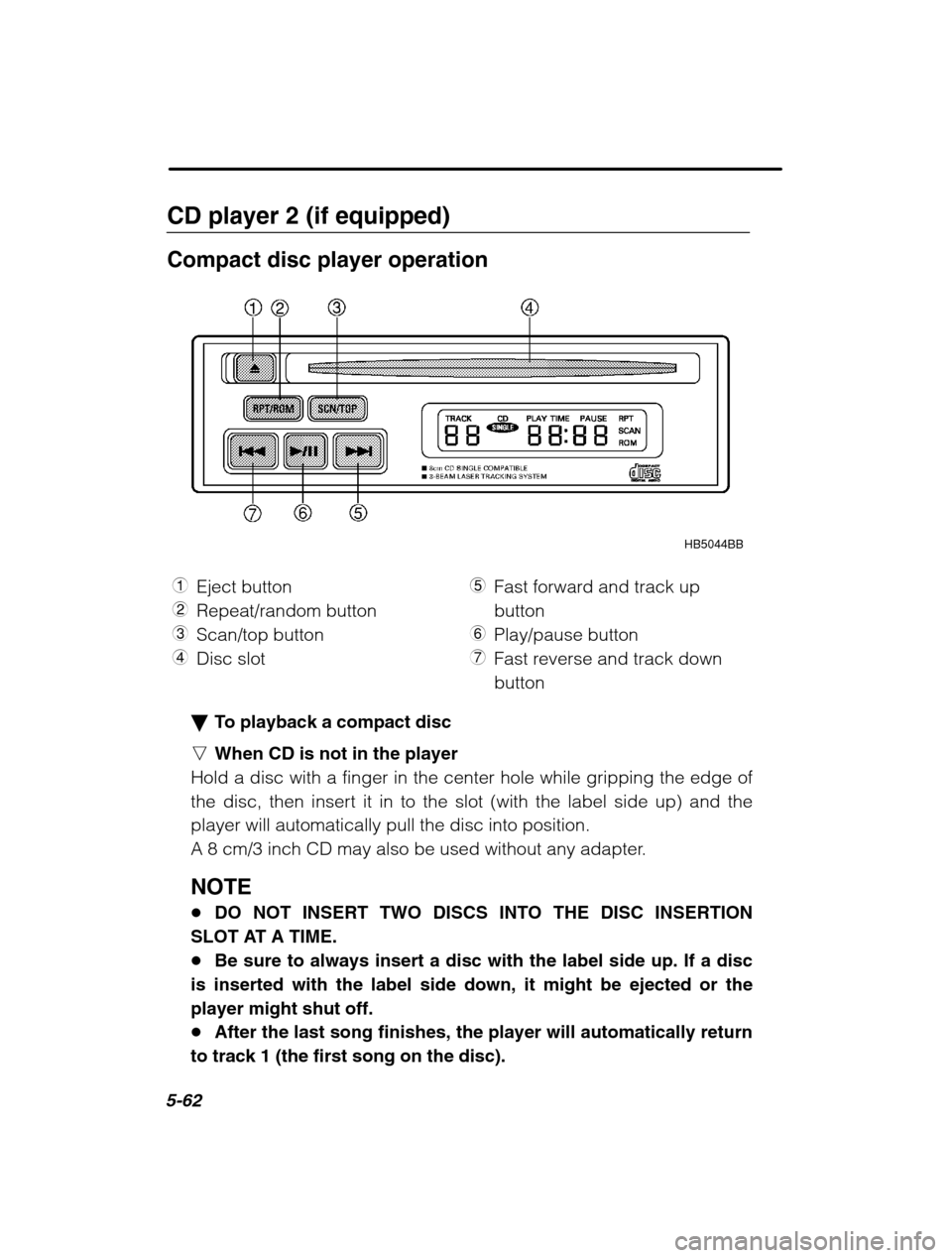

5-62
CD player 2 (if equipped)
Compact disc player operationHB5044BB
1 Eject button
2 Repeat/random button
3 Scan/top button
4 Disc slot 5
Fast forward and track up button
6 Play/pause button
7 Fast reverse and track downbutton
To playback a compact disc
n When CD is not in the player
Hold a disc with a finger in the center hole while gripping the edge of
the disc, then insert it in to the slot (with the label side up) and theplayer will automatically pull the disc into position.
A 8 cm/3 inch CD may also be used without any adapter. NOTE DO NOT INSERT TWO DISCS INTO THE DISC INSERTION
SLOT AT A TIME. Be sure to always insert a disc with the label side up. If a disc
is inserted with the label side down, it might be ejected or theplayer might shut off. After the last song finishes, the player will automatically return
to track 1 (the first song on the disc).

Audio5-63
–
CONTINUED –

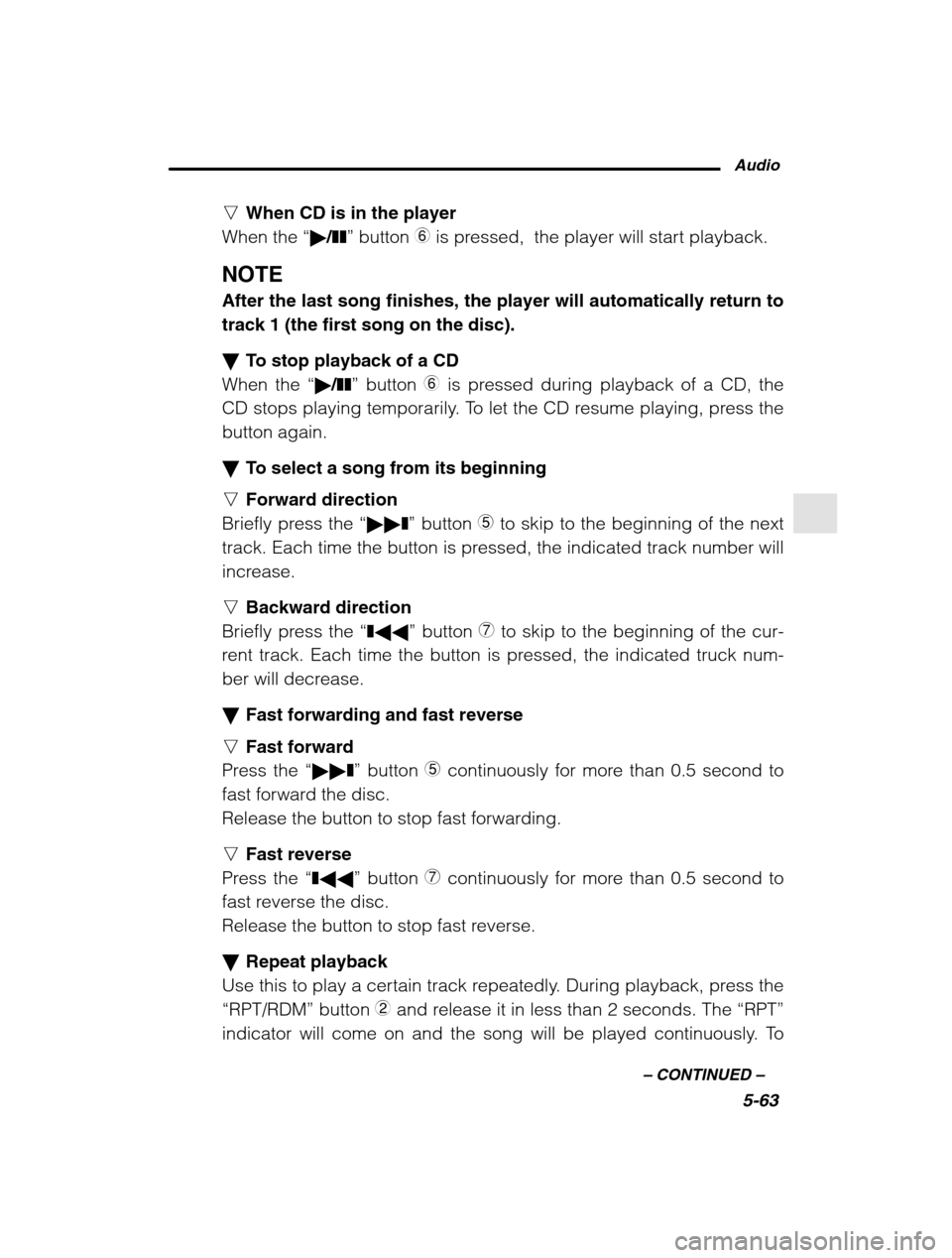

nWhen CD is in the player
When the “ /❚❚ ” button 6 is pressed, the player will start playback.
NOTE After the last song finishes, the player will automatically return to track 1 (the first song on the disc). To stop playback of a CD
When the “ /❚❚ ” button 6 is pressed during playback of a CD, the
CD stops playing temporarily. To let the CD resume playing, press the
button again. To select a song from its beginning
n Forward direction
Briefly press the “ ❚” button 5 to skip to the beginning of the next
track. Each time the button is pressed, the indicated track number will
increase. n Backward direction
Briefly press the “❚ ” button 7 to skip to the beginning of the cur-
rent track. Each time the button is pressed, the indicated truck num-
ber will decrease. Fast forwarding and fast reverse
n Fast forward
Press the “ ❚” button 5 continuously for more than 0.5 second to
fast forward the disc.
Release the button to stop fast forwarding. n Fast reverse
Press the “❚ ” button
7 continuously for more than 0.5 second to
fast reverse the disc.
Release the button to stop fast reverse. Repeat playback
Use this to play a certain track repeatedly. During playback, press the
“RPT/RDM” button
2 and release it in less than 2 seconds. The “RPT”
indicator will come on and the song will be played continuously. To

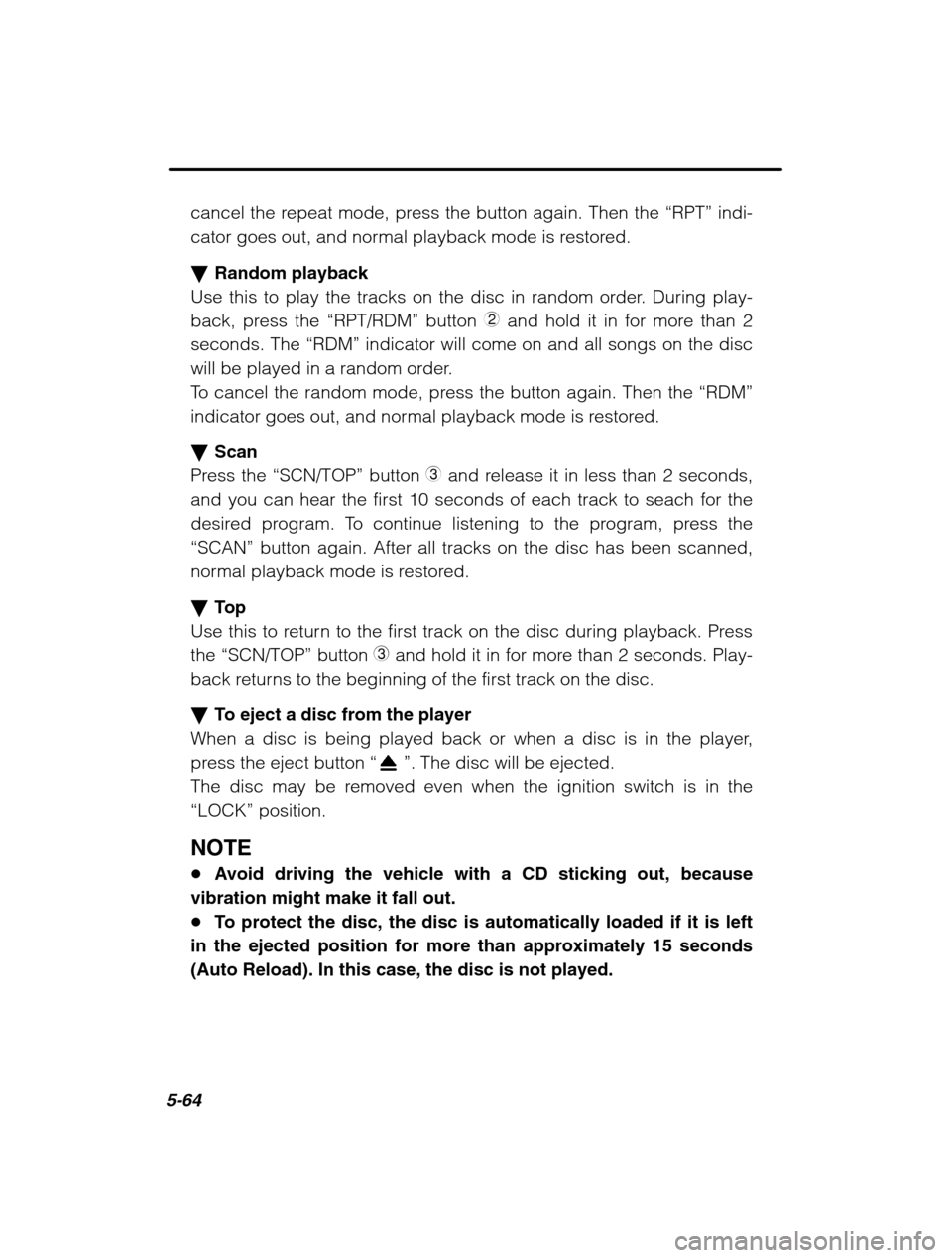

5-64
cancel the repeat mode, press the button again. Then the “RPT” indi-
cator goes out, and normal playback mode is restored. Random playback
Use this to play the tracks on the disc in random order. During play-
back, press the “RPT/RDM” button
2 and hold it in for more than 2
seconds. The “RDM” indicator will come on and all songs on the disc
will be played in a random order.
To cancel the random mode, press the button again. Then the “RDM”
indicator goes out, and normal playback mode is restored. Scan
Press the “SCN/TOP” button
3 and release it in less than 2 seconds,
and you can hear the first 10 seconds of each track to seach for the
desired program. To continue listening to the program, press the
“SCAN” button again. After all tracks on the disc has been scanned,
normal playback mode is restored. To p
Use this to return to the first track on the disc during playback. Press the “SCN/TOP” button
3 and hold it in for more than 2 seconds. Play-
back returns to the beginning of the first track on the disc. To eject a disc from the player
When a disc is being played back or when a disc is in the player,
press the eject button “
”. The disc will be ejected.
The disc may be removed even when the ignition switch is in the
“LOCK” position.
NOTE Avoid driving the vehicle with a CD sticking out, because
vibration might make it fall out. To protect the disc, the disc is automatically loaded if it is left
in the ejected position for more than approximately 15 seconds(Auto Reload). In this case, the disc is not played.

Audio5-65
–
CONTINUED –

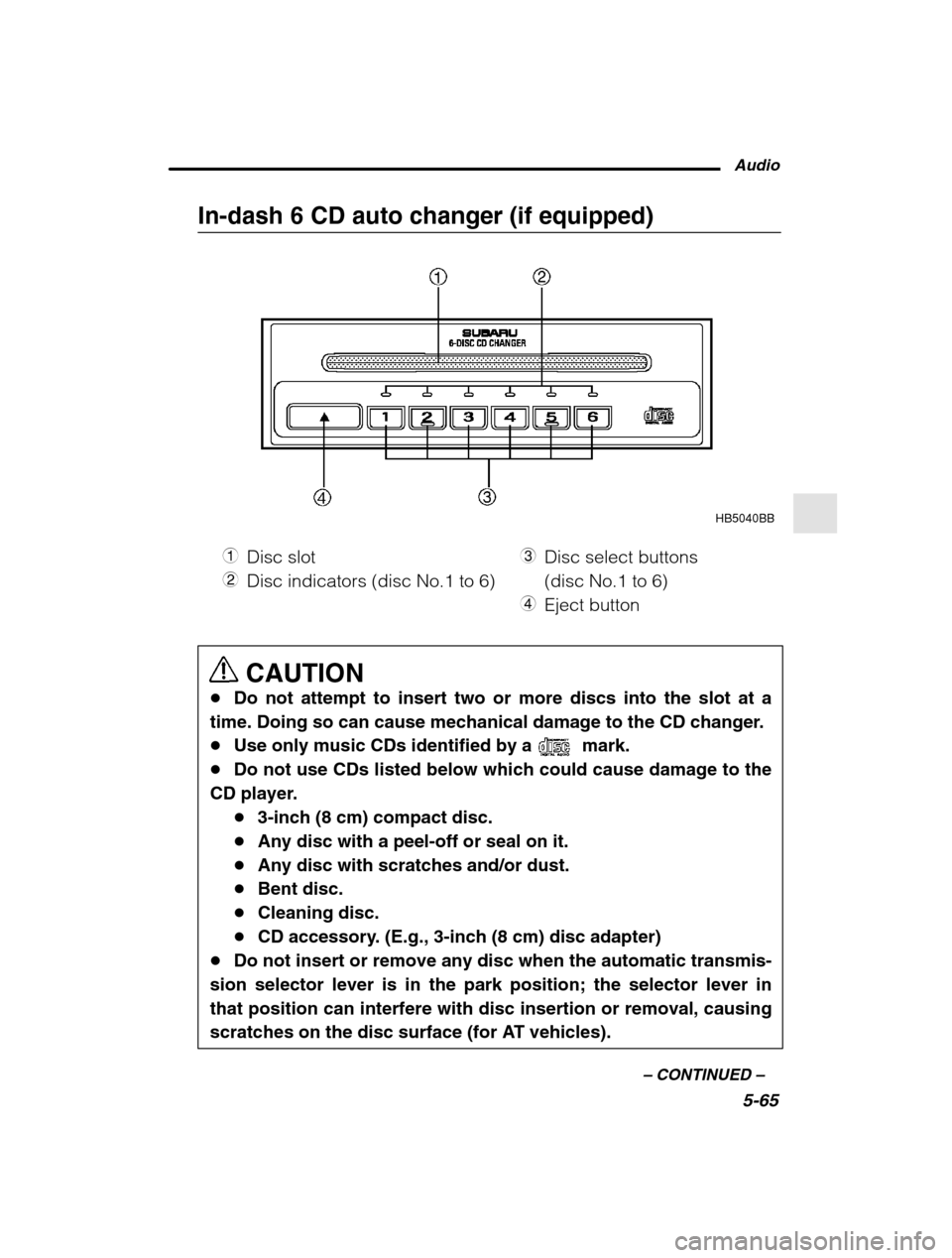

In-dash 6 CD auto changer (if equipped)
HB5040BB
1 Disc slot
2 Disc indicators (disc No.1 to 6) 3
Disc select buttons (disc No.1 to 6)
4 Eject button
CAUTION
Do not attempt to insert two or more discs into the slot at a
time. Doing so can cause mechanical damage to the CD changer. Use only music CDs identified by a
mark.
Do not use CDs listed below which could cause damage to the
CD player.
3-inch (8 cm) compact disc.
Any disc with a peel-off or seal on it.
Any disc with scratches and/or dust.
Bent disc.
Cleaning disc.
CD accessory. (E.g., 3-inch (8 cm) disc adapter)
Do not insert or remove any disc when the automatic transmis-
sion selector lever is in the park position; the selector lever in that position can interfere with disc insertion or removal, causing
scratches on the disc surface (for AT vehicles).

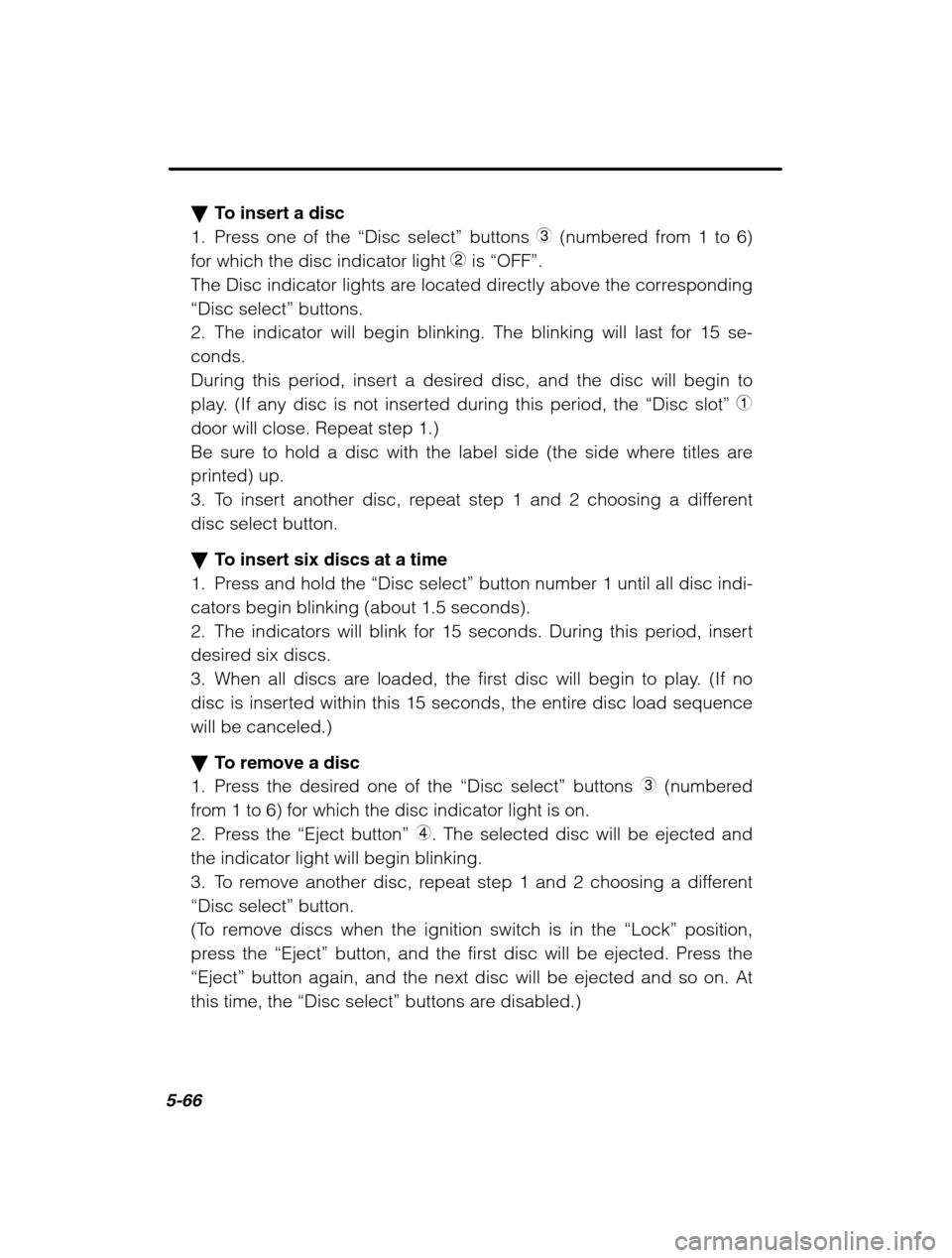

5-66
To insert a disc
1. Press one of the “Disc select ” buttons 3 (numbered from 1 to 6)
for which the disc indicator light 2 is “OFF”.
The Disc indicator lights are located directly above the corresponding “ Disc select ” buttons.
2. The indicator will begin blinking. The blinking will last for 15 se-conds.
During this period, insert a desired disc, and the disc will begin to
play. (If any disc is not inserted during this period, the “Disc slot ”
1
door will close. Repeat step 1.)
Be sure to hold a disc with the label side (the side where titles areprinted) up.
3. To insert another disc, repeat step 1 and 2 choosing a differentdisc select button. To insert six discs at a time
1. Press and hold the “Disc select ” button number 1 until all disc indi-
cators begin blinking (about 1.5 seconds).
2. The indicators will blink for 15 seconds. During this period, insert
desired six discs.
3. When all discs are loaded, the first disc will begin to play. (If no
disc is inserted within this 15 seconds, the entire disc load sequencewill be canceled.) To remove a disc
1. Press the desired one of the “Disc select ” buttons
3 (numbered
from 1 to 6) for which the disc indicator light is on.
2. Press the “Eject button ”
4 . The selected disc will be ejected and
the indicator light will begin blinking.
3. To remove another disc, repeat step 1 and 2 choosing a different“ Disc select ” button.
(To remove discs when the ignition switch is in the “Lock” position,
press the “Eject” button, and the first disc will be ejected. Press the
“Eject” button again, and the next disc will be ejected and so on. At
this time, the “Disc select ” buttons are disabled.)

Audio5-67
–
CONTINUED –

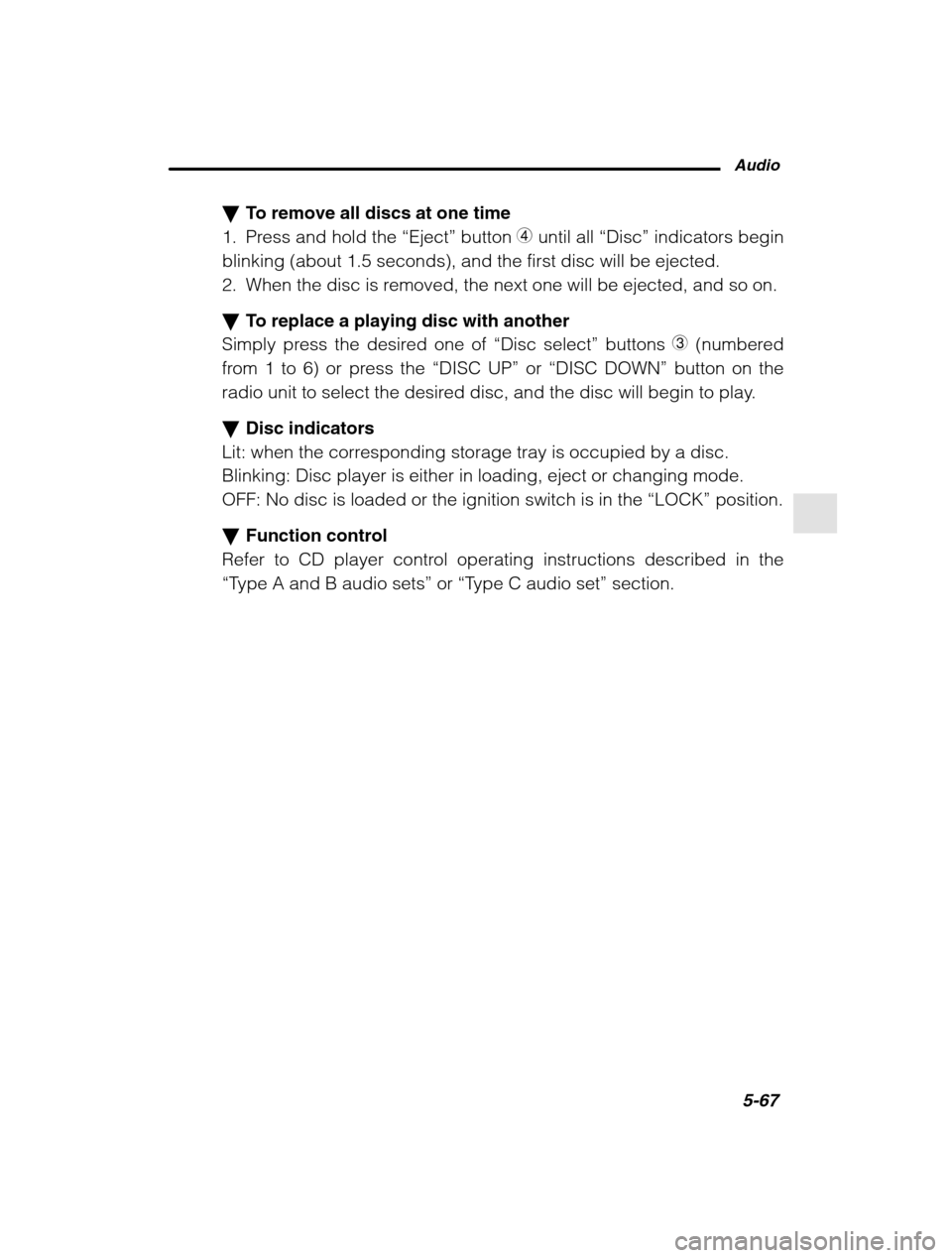

To remove all discs at one time
1. Press and hold the “Eject” button 4 until all “Disc” indicators begin
blinking (about 1.5 seconds), and the first disc will be ejected.
2. When the disc is removed, the next one will be ejected, and so on. To replace a playing disc with another
Simply press the desired one of “Disc select ” buttons
3 (numbered
from 1 to 6) or press the “DISC UP ” or “DISC DOWN ” button on the
radio unit to select the desired disc, and the disc will begin to play. Disc indicators
Lit: when the corresponding storage tray is occupied by a disc. Blinking: Disc player is either in loading, eject or changing mode.OFF: No disc is loaded or the ignition switch is in the “LOCK” position.
Function control
Refer to CD player control operating instructions described in the“ Type A and B audio sets ” or “Type C audio set ” section.

5-68

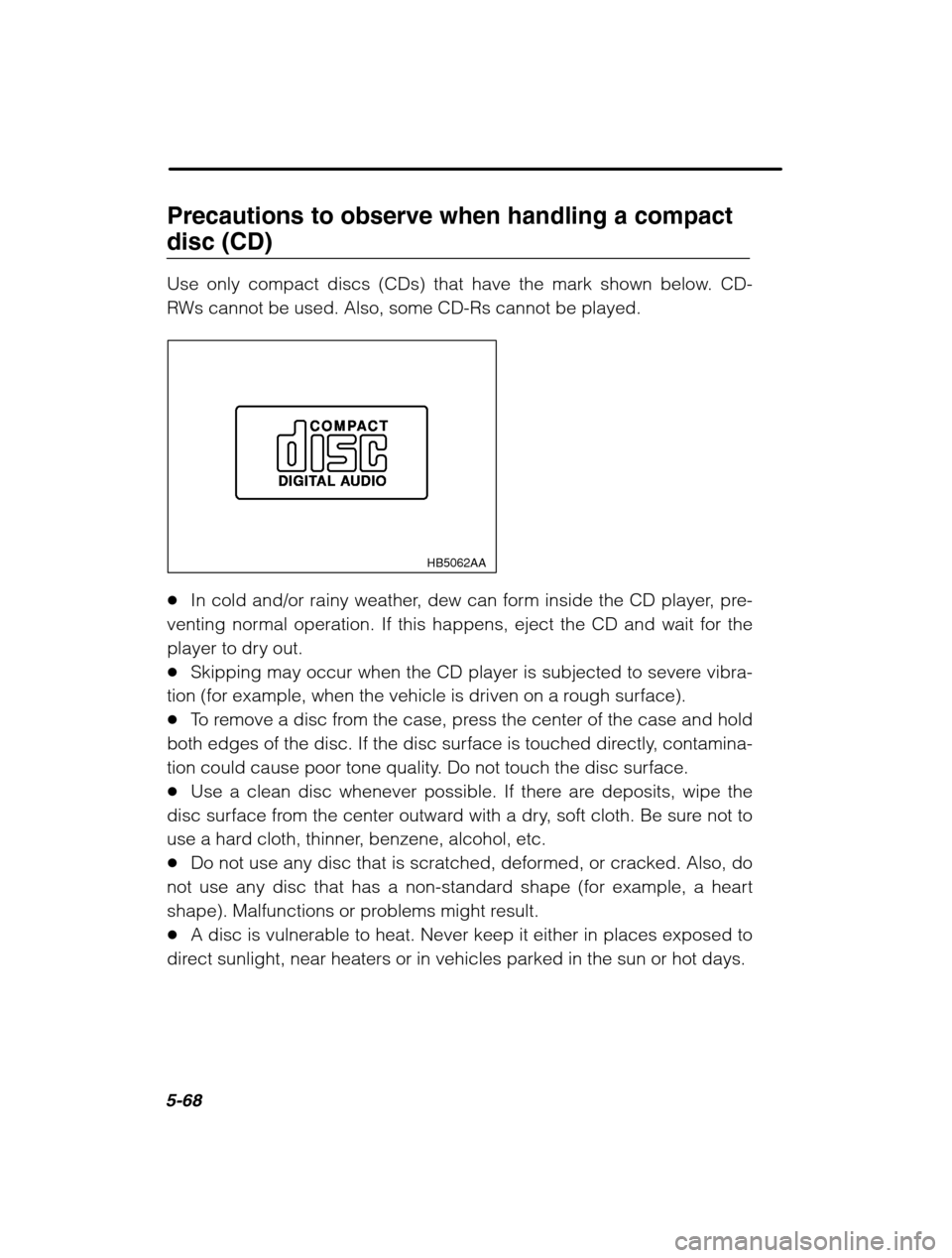

Precautions to observe when handling a compact disc (CD)
Use only compact discs (CDs) that have the mark shown below. CD-
RWs cannot be used. Also, some CD-Rs cannot be played.
HB5062AA
In cold and/or rainy weather, dew can form inside the CD player, pre-
venting normal operation. If this happens, eject the CD and wait for the
player to dry out. Skipping may occur when the CD player is subjected to severe vibra-
tion (for example, when the vehicle is driven on a rough surface). To remove a disc from the case, press the center of the case and hold
both edges of the disc. If the disc surface is touched directly, contamina-
tion could cause poor tone quality. Do not touch the disc surface. Use a clean disc whenever possible. If there are deposits, wipe the
disc surface from the center outward with a dry, soft cloth. Be sure not to
use a hard cloth, thinner, benzene, alcohol, etc. Do not use any disc that is scratched, deformed, or cracked. Also, do
not use any disc that has a non-standard shape (for example, a heart
shape). Malfunctions or problems might result. A disc is vulnerable to heat. Never keep it either in places exposed to
direct sunlight, near heaters or in vehicles parked in the sun or hot days.

Audio5-69
–
CONTINUED –

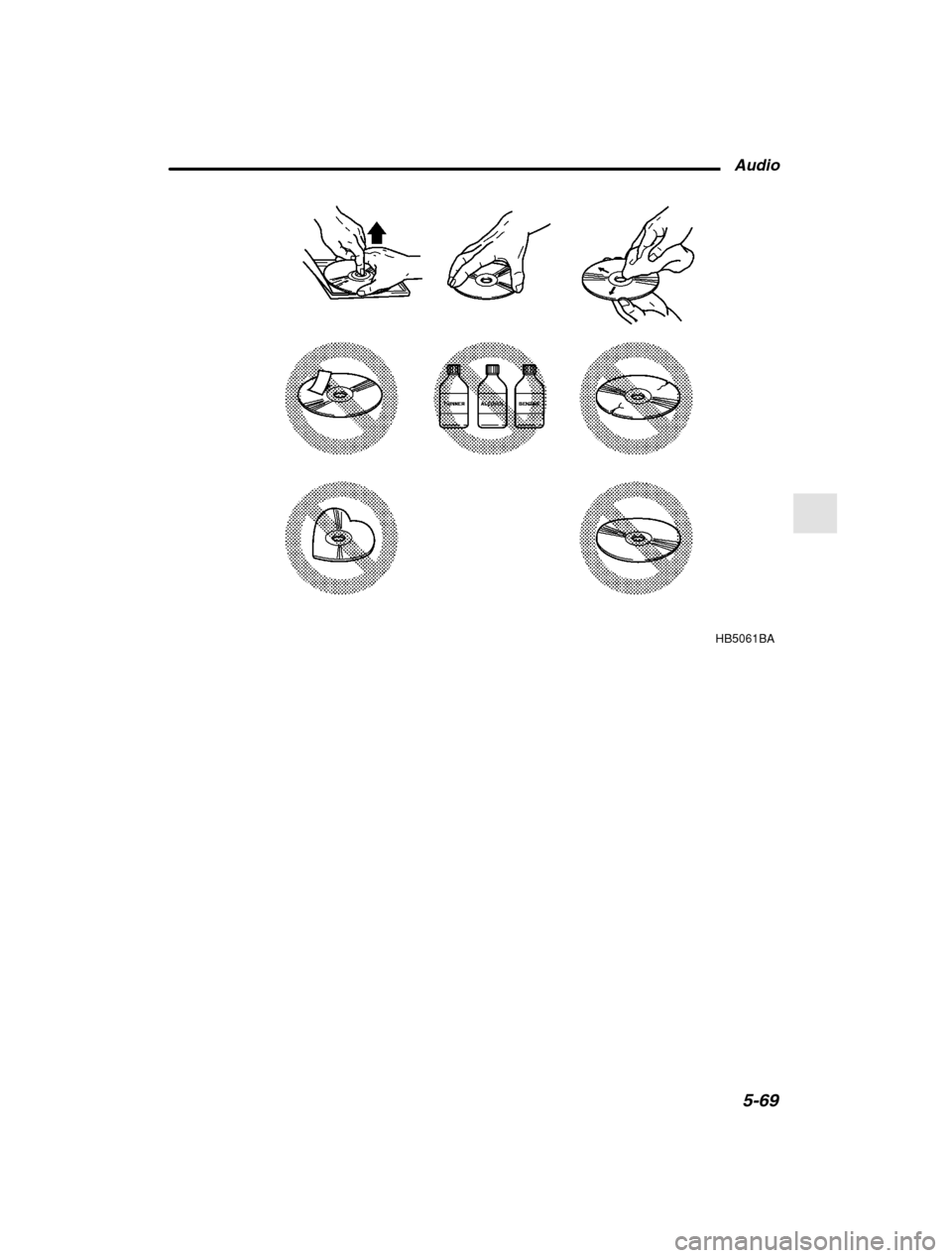

HB5061BA
