SUBARU LEGACY 2004 4.G Owners Manual

11 - 8 0
2Maintenance and service
T
Station wagon

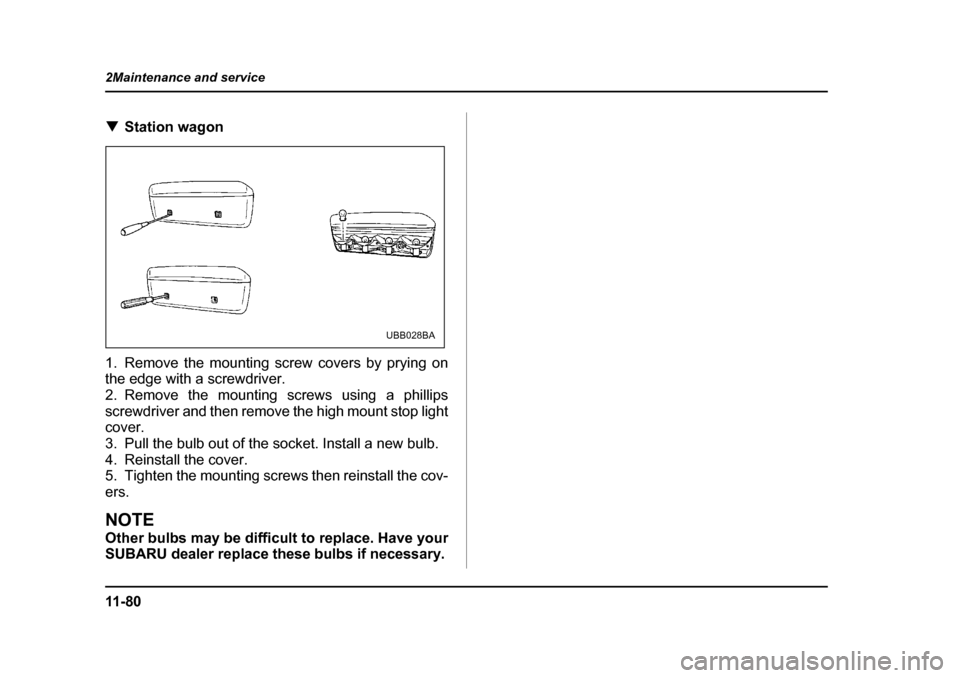

1. Remove the mounting screw covers by prying on
the edge with a screwdriver.
2. Remove the mounting screws using a phillips
screwdriver and then remove the high mount stop light cover.
3. Pull the bulb out of the socket. Install a new bulb.
4. Reinstall the cover.
5. Tighten the mounting screws then reinstall the cov- ers.
NOTE
Other bulbs may be difficult to replace. Have your
SUBARU dealer replace these bulbs if necessary.
UBB028BA

12-1
12
Specifications
Specifications ................................................ 12-2 Dimensions ....................................................... 12-2
Engine ................................................................ 12-3
Electrical system .............................................. 12-3
Capacities .......................................................... 12-4
Tires ................................................................... 12-5
Wheel alignment ............................................... 12-5
Fuses and circuits ........................................ 12-6 Fuse panel located behind the coin tray ........ 12-6
Fuse panel located in the engine compartment .................................................. 12-9
Bulb chart ...................................................... 12-12
Vehicle identification .................................... 12-13

12-2
Specifications
SpecificationsSpecifications
These specifications are subject to change without notice. „

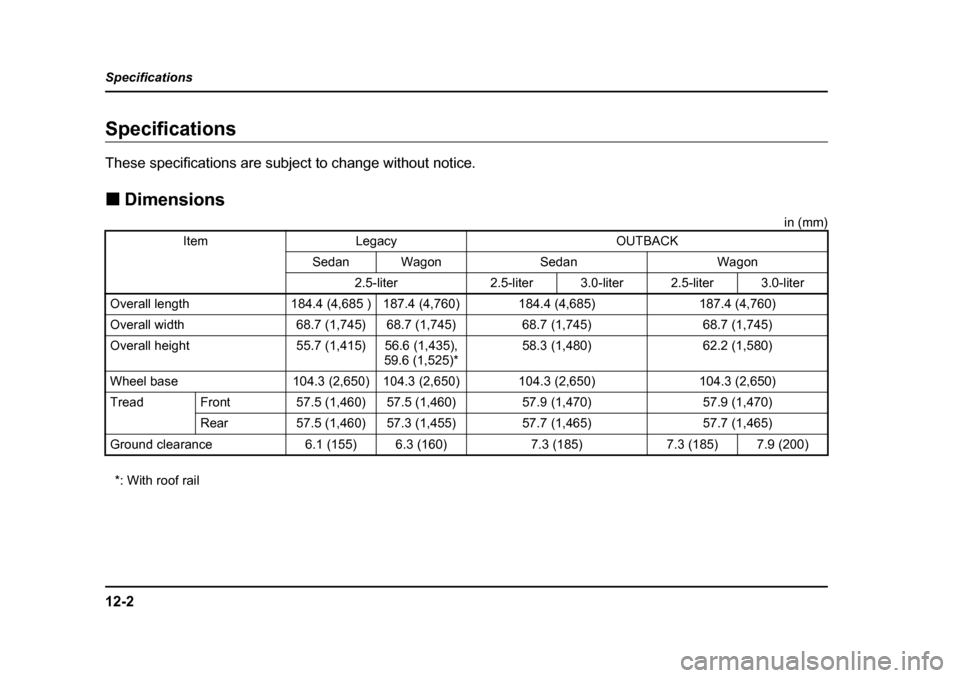

Dimensions
in (mm)
*: With roof rail
ItemLegacy OUTBACK
SedanWagon SedanWagon
2.5-liter2.5-liter3.0-liter2.5-liter3.0-liter
Overall length184.4 (4,685 )187.4 (4,760)184.4 (4,685)187.4 (4,760)
Overall width68.7 (1,745)68.7 (1,745)68.7 (1,745)68.7 (1,745)
Overall height55.7 (1,415)56.6 (1,435),
59.6 (1,525)*58.3 (1,480)62.2 (1,580)
Wheel base104.3 (2,650)104.3 (2,650)104.3 (2,650)104.3 (2,650)
TreadFront57.5 (1,460)57.5 (1,460)57.9 (1,470)57.9 (1,470)
Rear57.5 (1,460)57.3 (1,455)57.7 (1,465)57.7 (1,465)
Ground clearance6.1 (155)6.3 (160)7.3 (185)7.3 (185)7.9 (200)

12-3
Specifications
– CONTINUED –

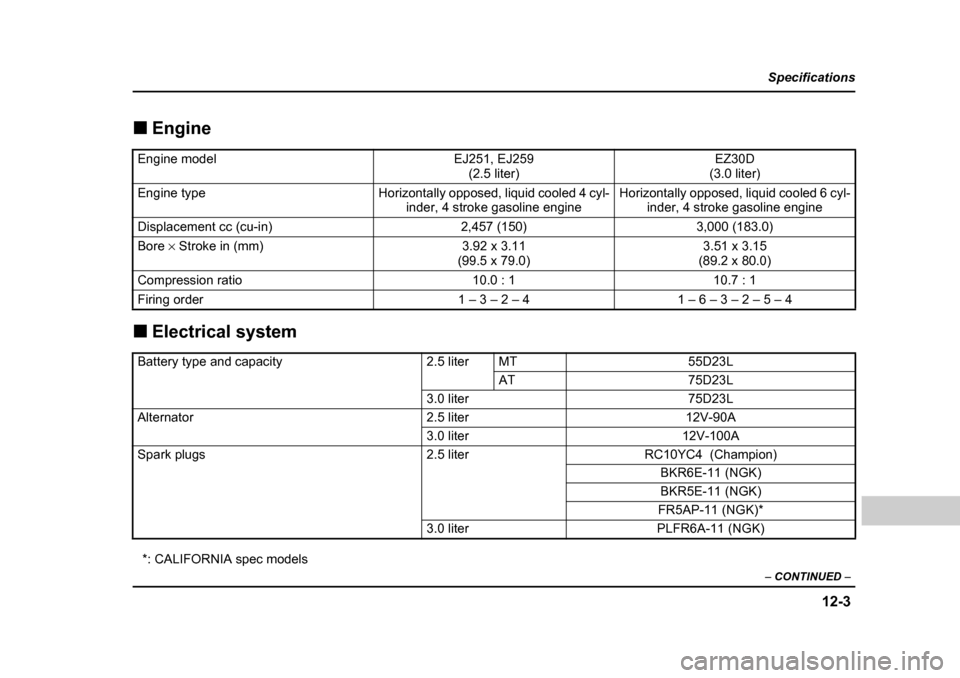

„Engine
„ Electrical system
*: CALIFORNIA spec models
Engine modelEJ251, EJ259 (2.5 liter)EZ30D
(3.0 liter)
Engine typeHorizontally opposed, liquid cooled 4 cyl- inder, 4 stroke gasoline engineHorizontally opposed, liquid cooled 6 cyl-inder, 4 stroke gasoline engine
Displacement cc (cu-in)2,457 (150)3,000 (183.0)
Bore × Stroke in (mm)3.92 x 3.11
(99.5 x 79.0)3.51 x 3.15
(89.2 x 80.0)
Compression ratio10.0 : 110.7 : 1
Firing order1 – 3 – 2 – 41 – 6 – 3 – 2 – 5 – 4
Battery type and capacity2.5 literMT55D23L
AT75D23L
3.0 liter75D23L
Alternator2.5 liter12V-90A
3.0 liter12V-100A
Spark plugs2.5 literRC10YC4 (Champion)
BKR6E-11 (NGK)
BKR5E-11 (NGK)
FR5AP-11 (NGK)*
3.0 literPLFR6A-11 (NGK)

12-4
Specifications „

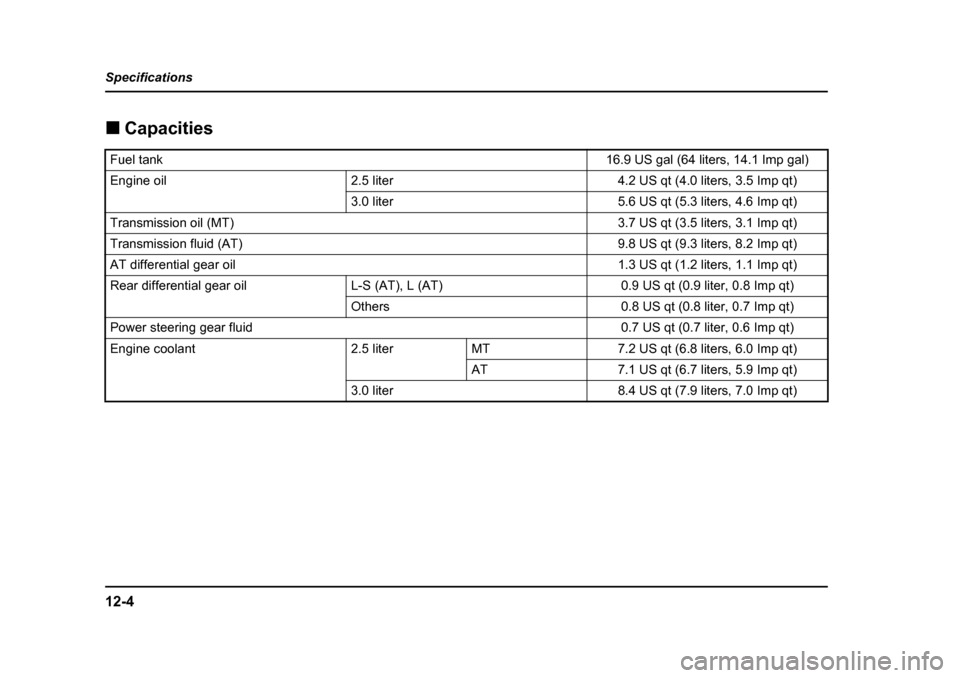

Capacities
Fuel tank16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil2.5 liter4.2 US qt (4.0 liters, 3.5 Imp qt)
3.0 liter5.6 US qt (5.3 liters, 4.6 Imp qt)
Transmission oil (MT)3.7 US qt (3.5 liters, 3.1 Imp qt)
Transmission fluid (AT)9.8 US qt (9.3 liters, 8.2 Imp qt)
AT differential gear oil1.3 US qt (1.2 liters, 1.1 Imp qt)
Rear differential gear oilL-S (AT), L (AT)0.9 US qt (0.9 liter, 0.8 Imp qt)
Others0.8 US qt (0.8 liter, 0.7 Imp qt)
Power steering gear fluid0.7 US qt (0.7 liter, 0.6 Imp qt)
Engine coolant2.5 literMT7.2 US qt (6.8 liters, 6.0 Imp qt)
AT7.1 US qt (6.7 liters, 5.9 Imp qt)
3.0 liter8.4 US qt (7.9 liters, 7.0 Imp qt)

12-5
Specifications
– CONTINUED –

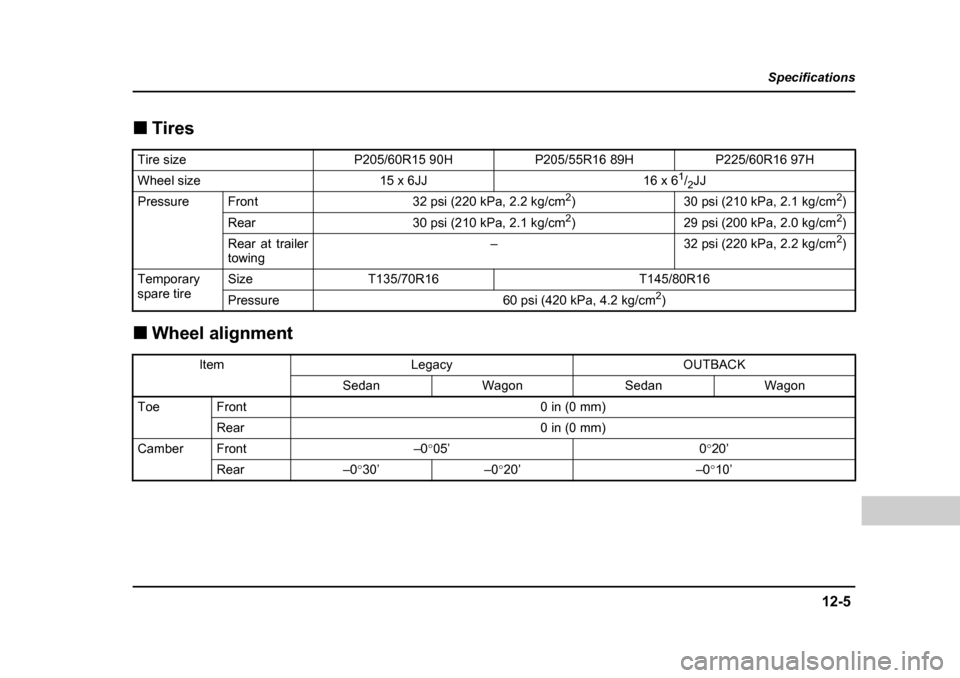

„Tires
„ Wheel alignment
Tire sizeP205/60R15 90HP205/55R16 89HP225/60R16 97H
Wheel size15 x 6JJ16 x 6 1
/2 JJ
PressureFront32 psi (220 kPa, 2.2 kg/cm 2
)30 psi (210 kPa, 2.1 kg/cm 2
)
Rear30 psi (210 kPa, 2.1 kg/cm 2
)29 psi (200 kPa, 2.0 kg/cm 2
)
Rear at trailer
towing–32 psi (220 kPa, 2.2 kg/cm 2
)
Temporary
spare tireSizeT135/70R16T145/80R16
Pressure60 psi (420 kPa, 4.2 kg/cm 2
)
ItemLegacyOUTBACK
SedanWagonSedanWagon
ToeFront0 in (0 mm)
Rear0 in (0 mm)
CamberFront–0 °05’0 °20’
Rear–0 °30’–0 °20’–0 °10’

12-6
Specifications
Fuses and circuits „

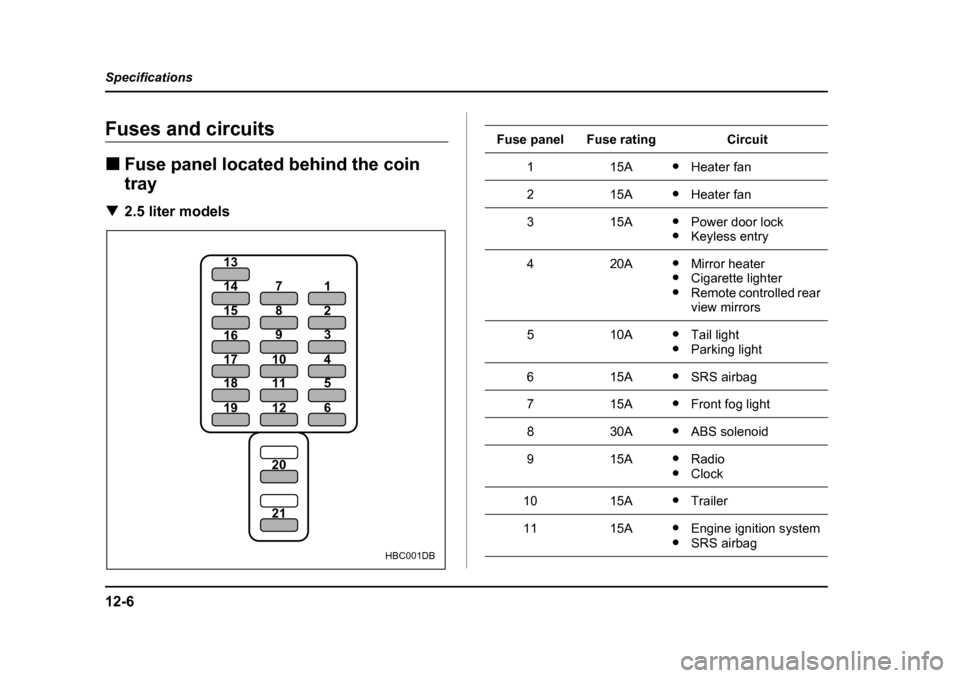

Fuse panel located behind the coin tray
T 2.5 liter models
19
18
17
16
20 21
15
14
12
11
10 9
8
7
6
5
4
3
2
1
13
HBC001DB
Fuse panelFuse ratingCircuit
115Ay
Heater fan
215AyHeater fan
315AyPower door lock
y Keyless entry
420AyMirror heater
y Cigarette lighter
y Remote controlled rear
view mirrors
510AyTail light
y Parking light
615AySRS airbag
715AyFront fog light
830AyABS solenoid
915AyRadio
y Clock
1015AyTrailer
1115AyEngine ignition system
y SRS airbag

12-7
Specifications
– CONTINUED –

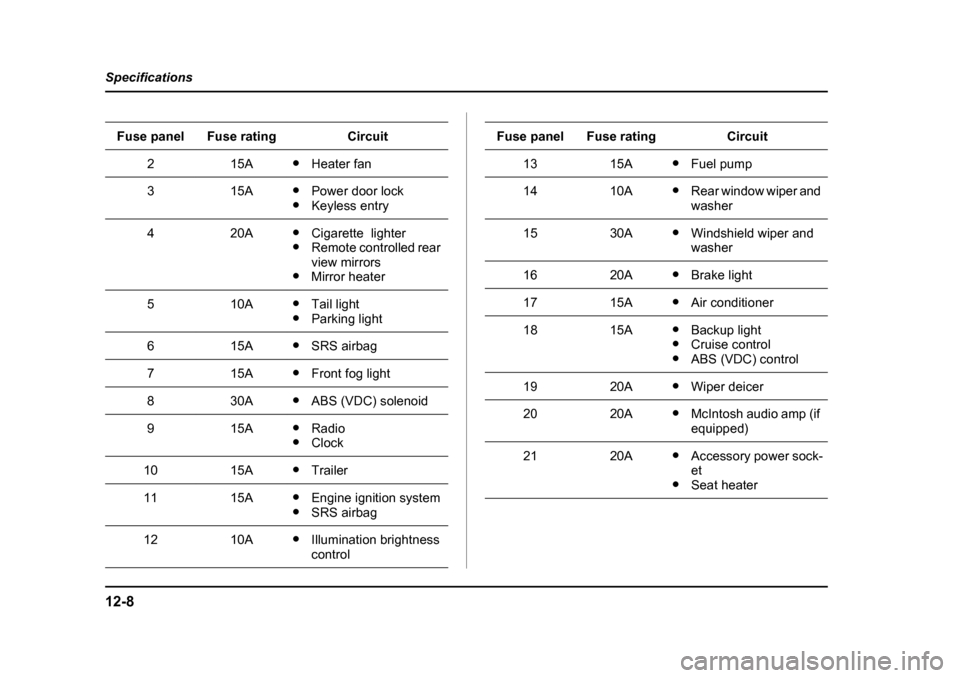

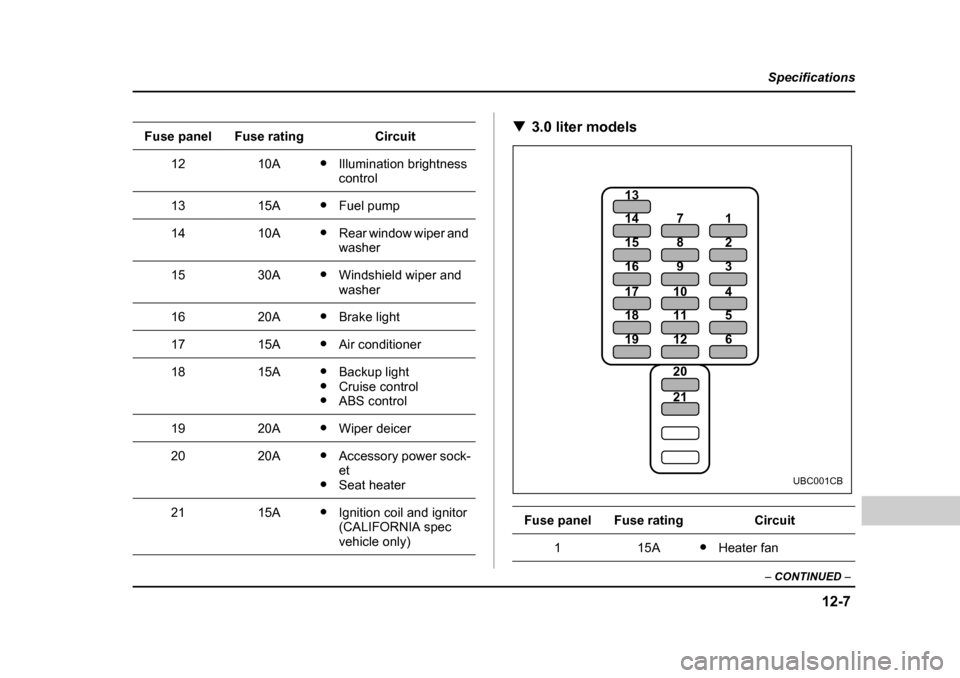

T3.0 liter models
1210AyIllumination brightness
control
1315AyFuel pump
1410AyRear window wiper and
washer
1530AyWindshield wiper and
washer
1620AyBrake light
1715AyAir conditioner
1815AyBackup light
y Cruise control
y ABS control
1920AyWiper deicer
2020AyAccessory power sock- et
y Seat heater
2115AyIgnition coil and ignitor
(CALIFORNIA spec vehicle only)
Fuse panelFuse ratingCircuit
Fuse panelFuse ratingCircuit
115AyHeater fan
19
18
17
16
21
20
15
14
12
11
10 9
8
7
6
5
4
3
2
1
13
UBC001CB

12-8
Specifications
215Ay
Heater fan
315AyPower door lock
y Keyless entry
420AyCigarette lighter
y Remote controlled rear
view mirrors
y Mirror heater
510AyTail light
y Parking light
615AySRS airbag
715AyFront fog light
830AyABS (VDC) solenoid
915AyRadio
y Clock
1015AyTrailer
1115AyEngine ignition system
y SRS airbag
1210AyIllumination brightness control
Fuse panelFuse ratingCircuit
1315AyFuel pump
1410AyRear window wiper and
washer
1530AyWindshield wiper and
washer
1620AyBrake light
1715AyAir conditioner
1815AyBackup light
y Cruise control
y ABS (VDC) control
1920AyWiper deicer
2020AyMcIntosh audio amp (if
equipped)
2120AyAccessory power sock- et
y Seat heater
Fuse panelFuse ratingCircuit

12-9
Specifications
– CONTINUED –

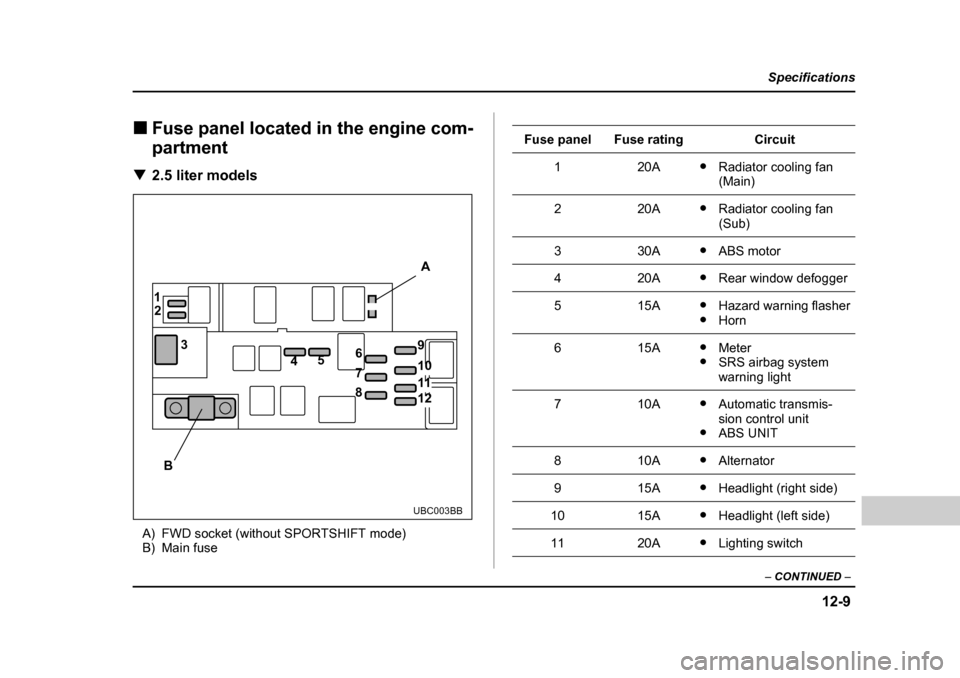

„Fuse panel located in the engine com- partment
T 2.5 liter models
A) FWD socket (without SPORTSHIFT mode)
B) Main fuse
A
B
1
2
3 45 6 7 8 9 10 11 12
UBC003BB
Fuse panelFuse ratingCircuit
120Ay
Radiator cooling fan (Main)
220AyRadiator cooling fan (Sub)
330AyABS motor
420AyRear window defogger
515AyHazard warning flasher
y Horn
615AyMeter
y SRS airbag system
warning light
710AyAutomatic transmis-
sion control unit
y ABS UNIT
810AyAlternator
915AyHeadlight (right side)
1015AyHeadlight (left side)
1120AyLighting switch
