Page 21 of 627
18
1
14 13 121110 9 8 23 456
7

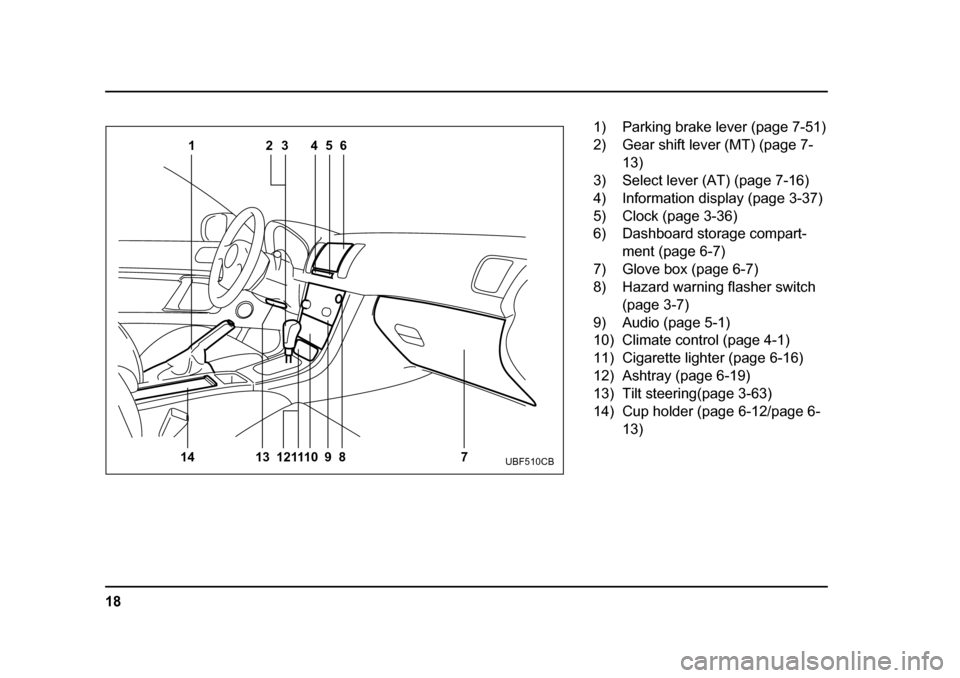

UBF510CB
1) Parking brake lever (page 7-51)
2) Gear shift lever (MT) (page 7-13)
3) Select lever (AT) (page 7-16)
4) Information display (page 3-37)
5) Clock (page 3-36)
6) Dashboard storage compart-
ment (page 6-7)
7) Glove box (page 6-7)
8) Hazard warning flasher switch
(page 3-7)
9) Audio (page 5-1)
10) Climate control (page 4-1)
11) Cigarette lighter (page 6-16)
12) Ashtray (page 6-19)
13) Tilt steering(page 3-63)
14) Cup holder (page 6-12/page 6- 13)
Page 22 of 627
19
–
CONTINUED –

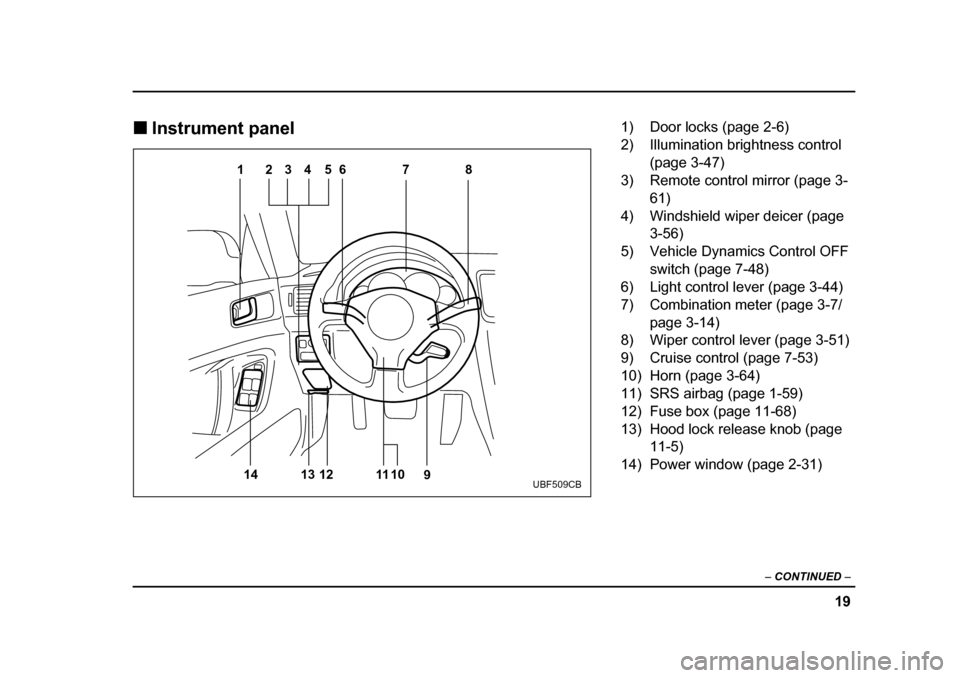

!Instrument panel
123456 7 8
9
10
11
12
13
14
UBF509CB
1) Door locks (page 2-6)
2) Illumination brightness control
(page 3-47)
3) Remote control mirror (page 3-
61)
4) Windshield wiper deicer (page
3-56)
5) Vehicle Dynamics Control OFF switch (page 7-48)
6) Light control lever (page 3-44)
7) Combination meter (page 3-7/ page 3-14)
8) Wiper control lever (page 3-51)
9) Cruise control (page 7-53)
10) Horn (page 3-64)
11) SRS airbag (page 1-59)
12) Fuse box (page 11-68)
13) Hood lock release knob (page 11-5)
14) Power window (page 2-31)
Page 23 of 627
20
!
Light control and wiper control levers/switches
1
6
7
11
10
9
8 2
3
4
5
UBF512CB
1) Parking light switch (page 3-49)
2) Windshield wiper (page 3-51)
3) Mist (page 3-53)
4) Windshield washer (page 3-52)
5) Rear window wiper and washer
switch (page 3-55)
6) Wiper control lever (page 3-52)
7) Light control lever (page 3-44)
8) Fog light switch (page 3-50)
9) Headlight ON/OFF (page 3-45)
10) Headlight flasher High/Low beam change (page 3-45)
11) Turn signal (page 3-47)
Page 24 of 627
21
–
CONTINUED –

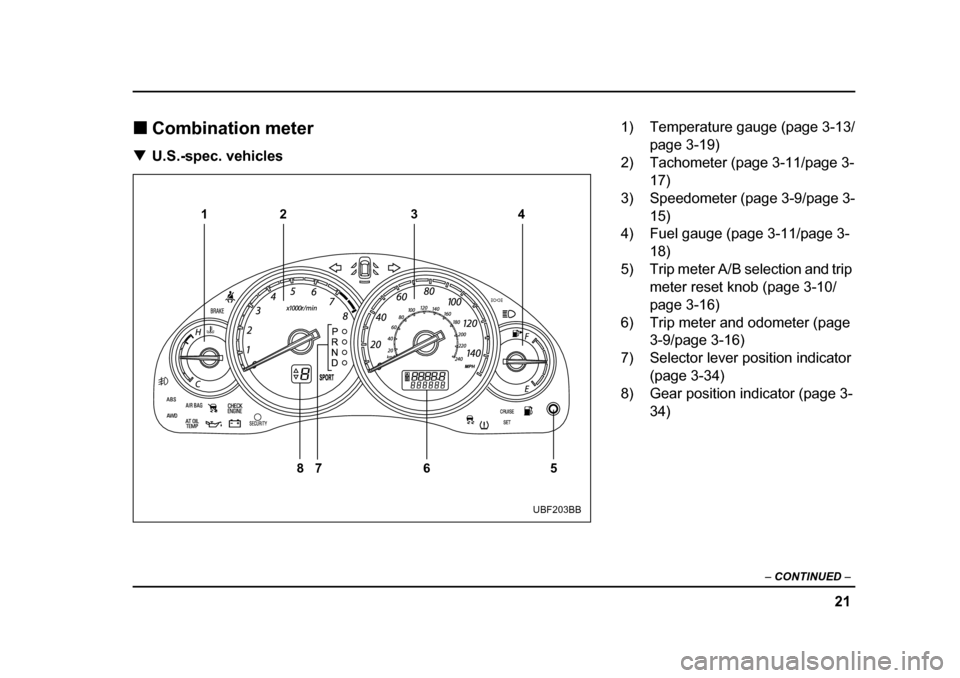

!Combination meter
! U.S.-spec. vehicles
12 3
5
6 4
87
UBF203BB
1) Temperature gauge (page 3-13/ page 3-19)
2) Tachometer (page 3-11/page 3- 17)
3) Speedometer (page 3-9/page 3- 15)
4) Fuel gauge (page 3-11/page 3-
18)
5) Trip meter A/B selection and trip meter reset knob (page 3-10/
page 3-16)
6) Trip meter and odometer (page 3-9/page 3-16)
7) Selector lever position indicator (page 3-34)
8) Gear position indicator (page 3-
34)
Page 25 of 627
22
!

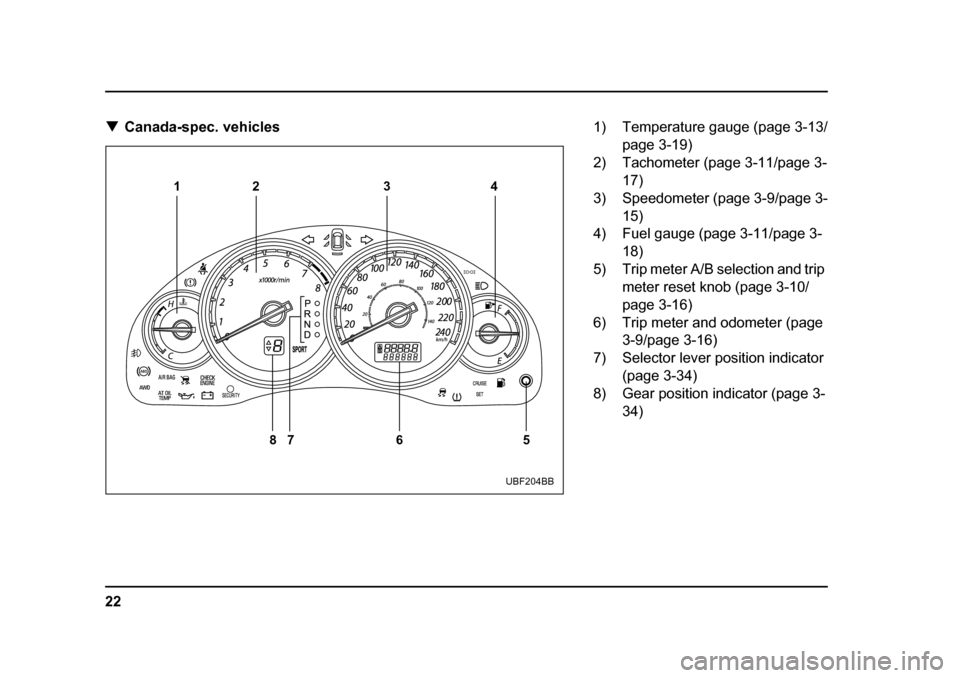

Canada-spec. vehicles
12 3
5
6 4
87
UBF204BB
1) Temperature gauge (page 3-13/ page 3-19)
2) Tachometer (page 3-11/page 3- 17)
3) Speedometer (page 3-9/page 3- 15)
4) Fuel gauge (page 3-11/page 3-
18)
5) Trip meter A/B selection and trip meter reset knob (page 3-10/
page 3-16)
6) Trip meter and odometer (page 3-9/page 3-16)
7) Selector lever position indicator (page 3-34)
8) Gear position indicator (page 3-
34)
Page 26 of 627
23
–
CONTINUED –
!Warning and indicator light
Mark Name Page
Seatbelt warning light 3-21
SRS airbag system warning light 3-24
CHECK ENGINE warning
light/Malfunction indicator lamp 3-25
Charge warning light 3-26
Oil pressure warning light 3-26
AT OIL temperature warn-
ing light (if equipped) 3-27
or ABS warning light 3-28
or Brake system warning light 3-29
Door open warning light 3-31
Low fuel warning light 3-30
All-wheel drive warning light (if equipped) 3-31
Vehicle Dynamics Control
operation indicator light (if equipped) 3-31
Vehicle Dynamics Control
warning light/Vehicle Dy-
namics Control OFF indica-tor light (if equipped) 3-32
Security indicator light 3-33
Turn signal indicator lights 3-34
High beam indicator light 3-35
Cruise control indicator light (if equipped) 3-35
Cruise control set indicator
light (if equipped) 3-35
Mark Name Page
Page 27 of 627
24
Light indicator light 3-35
Low tire pressure warning
light (if equipped)3-27
Passenger airbag ON indi-
cator light 3-24
Passenger airbag OFF indi-
cator light 3-24
SPORT mode indicator light (if equipped) 3-34
Mark Name Page
ON or
OFF or
Page 28 of 627
25
–
CONTINUED –

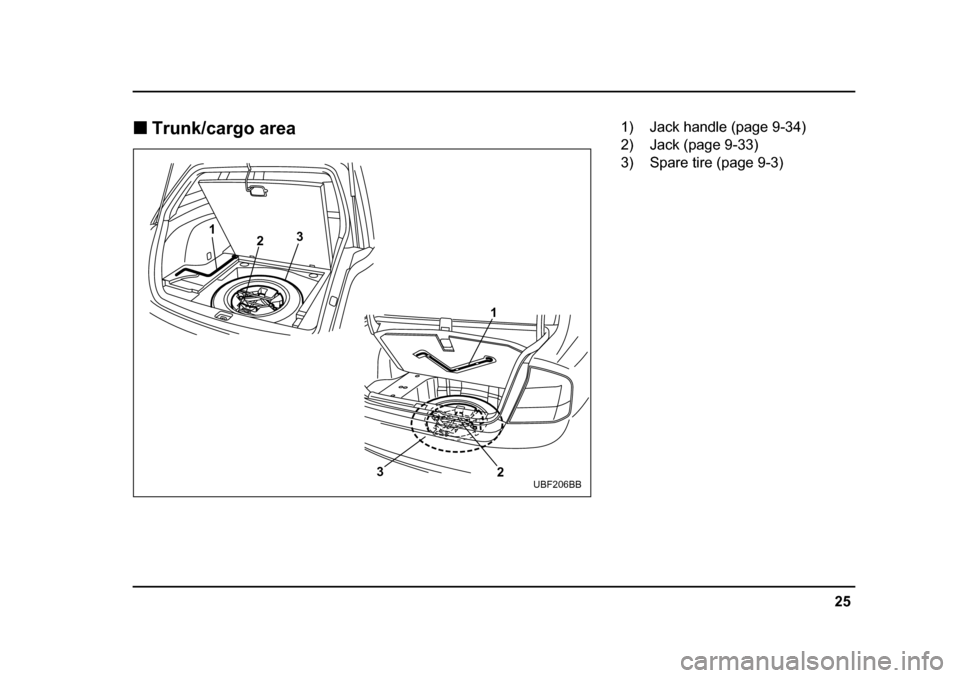

!Trunk/cargo area
1
3
2
2
3 1
UBF206BB
1) Jack handle (page 9-34)
2) Jack (page 9-33)
3) Spare tire (page 9-3)
Page 29 of 627
26
Function settings
A SUBARU dealer can change the settings of the functions shown below to meet your personal requirements. Con-
tact the nearest SUBARU dealer for details.Item Function Possible settings Default set- tingPage
Alarm system Alarm system Operation / Non-operation Operation 2-23 Monitoring start delay time (after
closure of doors) 0 second / 30 seconds 30 seconds 2-25
Impact sensor operation
(only vehicles with shock sensors
(dealer option)) Operation / Non-operation Non-opera-
tion2-29
Passive arming Operation / Non-operation Non-opera- tion2-27
Remote keyless entry sys-tem Hazard warning flasher Operation / Non-operation Operation 2-12
Audible signal Operation / Non-operation Operation 2-15
Key lock-in prevention Key lock-in prevention Operation / Non-operation Operation 2-11
Rear window defogger Rear window defogger Operation for 15 min. / Continuous operationOperation for
15 min.3-57
Page 30 of 627
27
–
CONTINUED –
Windshield wiper deicer (if
equipped) Windshield wiper deicer Operation for 15 min. / Continuous
operationOperation for15 min.3-56
Dome light Operation in interlock with remote keyless entry system OFF / Short / Normal / Long Normal 6-2
Battery drainage prevention
function Battery drainage prevention func-tion Operation / Non-operation Operation 2-9
Item Function Possible settings Default set-
tingPage
