Page 11 of 627
8
the lock switch when children are riding in the
vehicle. Failure to follow this procedure could
result in injury to a child operating the power
window. Refer to the “Power windows” section
in chapter 2."Never leave unattended children in the vehi-
cle. They could accidentally injure themselves
or others through inadvertent operation of the
vehicle. Also, on hot or sunny days, tempera-
ture in a closed vehicle could quickly become
high enough to cause severe or possibly fatal
injuries to them. " Help prevent young children from locking
themselves in the trunk. When leaving the vehi-
cle, either close all windows and lock all doors
or cancel the inside trunk lid release. Also make
certain that the trunk is closed. On hot or sunny
days, the temperature in a trunk could quickly
become high enough to cause death or serious
heat-related injuries including brain damage,
particularly for small children.
Carefully read the sections “Child restraint sys-
tems”,“*SRS airbag (Supplemental Restraint System
airbag)”, and “Seatbelts” in chapter 1 of this owner’s
manual for instructions and precautions concerning
the child restraint system, seatbelt system and SRS airbag system. !
Engine exhaust gas (carbon monox- ide)
"Never inhale engine exhaust gas. Engine ex-
haust gas contains carbon monoxide, a color-
less and odorless gas which is dangerous, or
even lethal, if inhaled. " Always properly maintain the engine exhaust
system to prevent engine exhaust gas from en-
tering the vehicle. " Never run the engine in a closed space, such
as a garage, except for the brief time needed to
drive the vehicle in or out of it. " Avoid remaining in a parked vehicle for a
lengthy time while the engine is running. If that
is unavoidable, then use the ventilation fan to
force fresh air into the vehicle. " Always keep the front ventilator inlet grille
free from snow, leaves or other obstructions to
ensure that the ventilation system always
works properly. " If at any time you suspect that exhaust fumes
are entering the vehicle, have the problem
Page 43 of 627
1-12
Seat, seatbelt and SRS airbags
!
Folding down the rear seat – Station wagon
"After returning the rear seat to its original po-
sition, be certain to place all of the seatbelts
and the tab attached to the seat cushion above
the seat cushion. And make certain that the
shoulder belts are fully visible. " Never allow passengers to ride on the folded
rear seatback or in the cargo area. Doing so
may result in serious injury or death. " Secure skis and other lengthy items properly
to prevent them from being thrown around in-
side the vehicle and causing serious injury dur-
ing a sudden stop, a sudden steering maneuver
or a rapid acceleration. Unlock the seatback by pushing the release button
and then fold the seatback down.
To return the seatback to its original position, raise the
seatback until it locks into place and make sure that it
is securely locked. !
Head restraint adjustment
Never drive the vehicle with the head restraints
removed because they are designed to reduce
the risk of serious neck injury in the event that
UB1534CA
Page 416 of 627
8-3
Driving tips
– CONTINUED –
Engine exhaust gas (Carbon monox-
ide)
"Never inhale engine exhaust gas. Engine ex-
haust gas contains carbon monoxide, a color-
less and odorless gas which is dangerous, or
even lethal, if inhaled." Always properly maintain the engine exhaust
system to prevent engine exhaust gas from en-
tering the vehicle." Never run the engine in a closed space, such
as a garage, except for the brief time needed to
drive the vehicle in or out of it." Avoid remaining in a parked vehicle for a
lengthy time while the engine is running. If that
is unavoidable, then use the ventilation fan to
force fresh air into the vehicle. " Always keep the front ventilator inlet grille
free from snow, leaves or other obstructions to
ensure that the ventilation system always
works properly. " If at any time you suspect that exhaust fumes
are entering the vehicle, have the problem
checked and corrected as soon as possible. If
you must drive under these conditions, drive only with all windows fully open."
Keep the trunk lid or rear gate closed while
driving to prevent exhaust gas from entering
the vehicle.
NOTE
Due to the expansion and contraction of the met-
als used in the manufacture of the exhaust sys-
tem, you may hear a crackling sound coming from
the exhaust system for a short time after the en-
gine has been shut off. This sound is normal.
Page 431 of 627
8-18
Driving tips
Loading your vehicle
Never allow passengers to ride on the folded
rear seatback, in the trunk or in the cargo area.
Doing so may result in serious injury.
"
Never stack luggage or other cargo higher
than the top of the seatback because it could
tumble forward and injure passengers in the event of a sudden stop or accident. Keep lug-
gage or cargo low, as close to the floor as pos-
sible. "
When you carry something inside the vehicle,
secure it whenever you can to prevent it from
being thrown around inside the vehicle during
sudden stops, sharp turns or in an accident. " Do not pile heavy loads on the roof. These
loads raise the vehicle’s center of gravity and
make it more prone to tip over. " Secure lengthy items properly to prevent
them from shooting forward and causing seri-
ous injury during a sudden stop. " Never exceed the maximum load limit. If you
do, some parts on your vehicle can break, or it
can change the way your vehicle handles. This
could result in loss of control and cause per-
sonal injury. Also, overloading can shorten the
life of your vehicle. " Do not place anything on the rear shelf be-
hind the rear seatback (for Sedan) or the ex-
tended luggage cover (for Station wagon). Such
items could tumble forward in the event of a
sudden stop or a collision. This could cause se-rious injury.
HS8005BA
Page 454 of 627
8-41
Driving tips
– CONTINUED –
"Sufficient time should be taken to learn the “feel” of
the vehicle/trailer combination before starting out on a
trip. In an area free of traffic, practice turning, stopping
and backing up. ! Driving with a trailer
" You should allow for considerably more stopping
distance when towing a trailer. Avoid sudden braking because it may result in skidding or jackknifing and
loss of control." Avoid abrupt starts and sudden accelerations. If
your vehicle has a manual transmission, always start
out in first gear and release the clutch at moderate en-
gine revolution. " Avoid uneven steering, sharp turns and rapid lane
changes. " Slow down before turning. Make a longer than nor-
mal turning radius because the trailer wheels will be
closer than the vehicle wheels to the inside of the turn.
In a tight turn, the trailer could hit your vehicle. " Crosswinds will adversely affect the handling of
your vehicle and trailer, causing sway. Crosswinds
can be due to weather conditions or the passing of large trucks or buses. If swaying occurs, firmly grip the
steering wheel and slow down immediately but gradu-
ally. " When passing other vehicles, considerable dis-
tance is required because of the added weight and length caused by attaching the trailer to your vehicle.
A) Left turn
B) Right turn
" Backing up with a trailer is difficult and takes prac-
tice. When backing up with a trailer, never accelerate
or steer rapidly. When turning back, grip the bottom of
the steering wheel with one hand and turn it to the left
for a left turn, and turn it to the right for a right turn. " If the ABS warning light illuminates while the vehicle
is in motion, stop towing the trailer and have repairs
performed immediately by the nearest SUBARU deal- er.
A B
UB8502BB

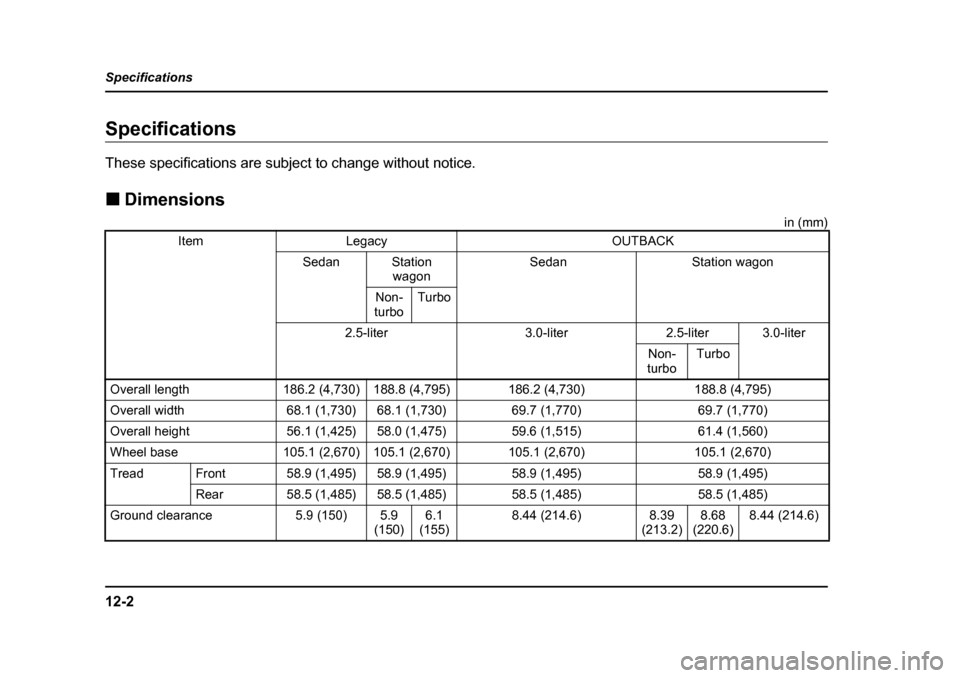

Page 587 of 627
12-2
Specifications
SpecificationsSpecifications
These specifications are subject to change without notice. !
Dimensions
in (mm)
ItemLegacy OUTBACK
SedanStation wagon SedanStation wagon
Non-
turboTurbo
2.5-liter3.0-liter2.5-liter3.0-liter
Non-
turboTurbo
Overall length186.2 (4,730)188.8 (4,795)186.2 (4,730)188.8 (4,795)
Overall width68.1 (1,730)68.1 (1,730)69.7 (1,770)69.7 (1,770)
Overall height56.1 (1,425)58.0 (1,475)59.6 (1,515)61.4 (1,560)
Wheel base105.1 (2,670)105.1 (2,670)105.1 (2,670)105.1 (2,670)
TreadFront58.9 (1,495)58.9 (1,495)58.9 (1,495)58.9 (1,495)
Rear58.5 (1,485)58.5 (1,485)58.5 (1,485)58.5 (1,485)
Ground clearance5.9 (150)5.9
(150)6.1
(155)8.44 (214.6)8.39
(213.2)8.68
(220.6)8.44 (214.6)
