SUBARU LEGACY 2006 4.G Owners Manual

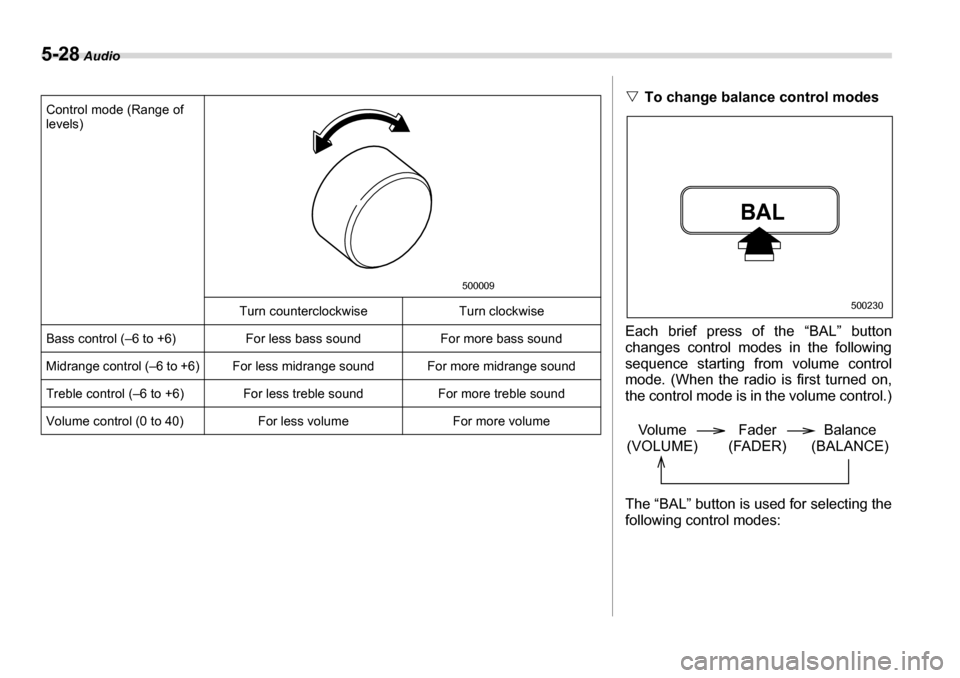

5-28 Audio
Control mode (Range of
levels)
Turn counterclockwise Turn clockwise
Bass control (–6 to +6) For less bass sound For more bass sound
Midrange control (–6 to +6) For less midrange sound For more midrange sound
Treble control (–6 to +6) For less treble sound For more treble sound
Volume control (0 to 40) For less volume For more volume
500009
V To change balance control modes
Each brief press of the “BAL” button
changes control modes in the following
sequence starting from volume control
mode. (When the radio is first turned on,
the control mode is in the volume control.)
The “BAL” button is used for selecting the
following control modes:
BAL
500230
Volume
(VOLUME) Balance
(BALANCE)
Fader
(FADER)

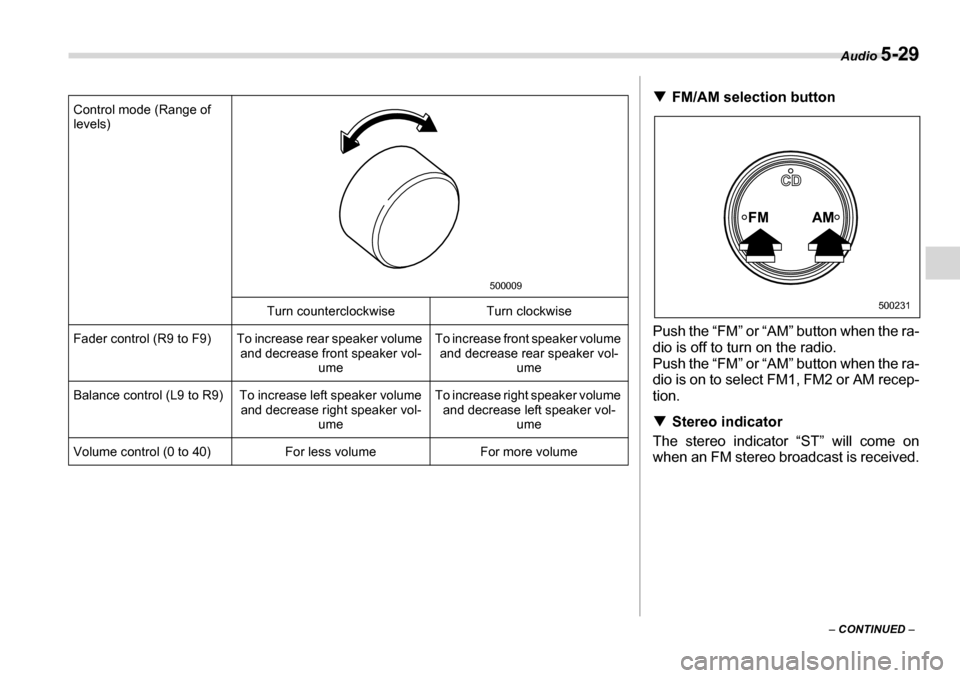

Audio 5-29
– CONTINUED –
Control mode (Range of
levels)
Turn counterclockwise Turn clockwise
Fader control (R9 to F9) To increase rear speaker volume and decrease front speaker vol-ume To increase front speaker volume
and decrease rear speaker vol- ume
Balance control (L9 to R9) To increase left speaker volume and decrease right speaker vol-ume To increase right speaker volume
and decrease left speaker vol- ume
Volume control (0 to 40) For less volume For more volume
500009
T FM/AM selection button
Push the “FM” or “AM” button when the ra-
dio is off to turn on the radio.
Push the “FM” or “AM” button when the ra-
dio is on to select FM1, FM2 or AM recep-
tion. T Stereo indicator
The stereo indicator “ST” will come on
when an FM stereo broadcast is received.
FM AM
CD
500231

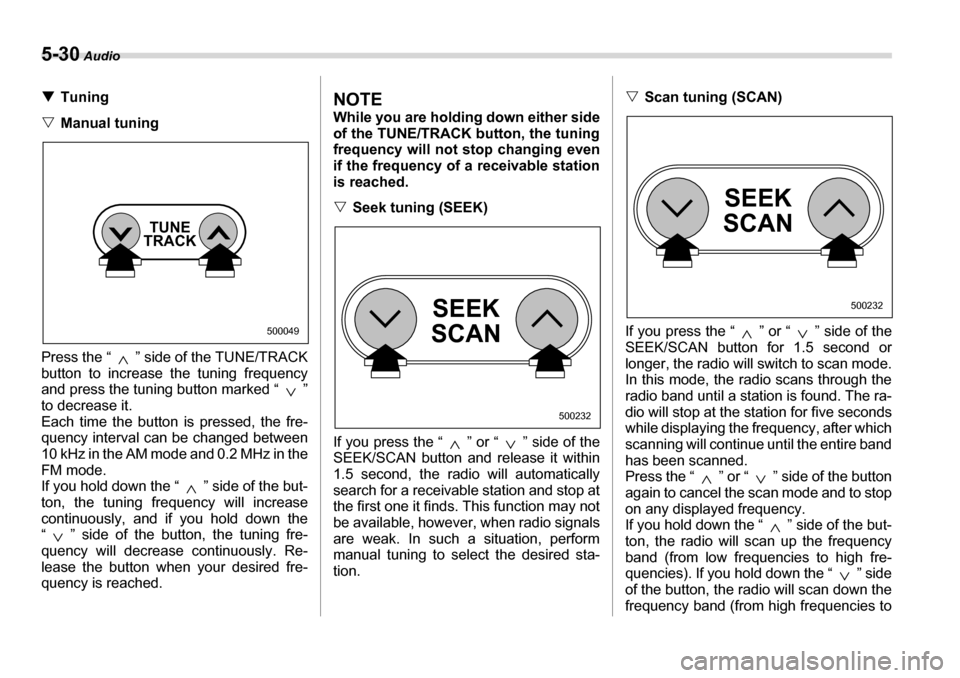

5-30 Audio
TTuning
V Manual tuning
Press the “ ” side of the TUNE/TRACK
button to increase the tuning frequency
and press the tuning button marked “ ”
to decrease it.
Each time the button is pressed, the fre-
quency interval can be changed between
10 kHz in the AM mode and 0.2 MHz in the
FM mode.
If you hold down the “ ” side of the but-
ton, the tuning frequency will increase
continuously, and if you hold down the
“ ” side of the button, the tuning fre-
quency will decrease continuously. Re-
lease the button when your desired fre-
quency is reached.NOTE
While you are holding down either side
of the TUNE/TRACK button, the tuning
frequency will not stop changing even
if the frequency of a receivable station
is reached. V Seek tuning (SEEK)
If you press the “ ” or “ ” side of the
SEEK/SCAN button and release it within
1.5 second, the radio will automatically
search for a receivable station and stop at
the first one it finds. This function may not
be available, however, when radio signals
are weak. In such a situation, perform
manual tuning to sele ct the desired sta-
tion. V
Scan tuning (SCAN)
If you press the “ ” or “ ” side of the
SEEK/SCAN button for 1.5 second or
longer, the radio will switch to scan mode.
In this mode, the radio scans through the
radio band until a station is found. The ra-
dio will stop at the st ation for five seconds
while displaying the frequency, after which
scanning will continue until the entire band
has been scanned.
Press the “ ” or “ ” side of the button
again to cancel the scan mode and to stop
on any displayed frequency.
If you hold down the “ ” side of the but-
ton, the radio will scan up the frequency
band (from low frequencies to high fre-
quencies). If you hold down the “ ” side
of the button, the radio will scan down the
frequency band (from high frequencies to
TUNE
TRACK
500049
SEEK
SCAN
500232
SEEK
SCAN
500232

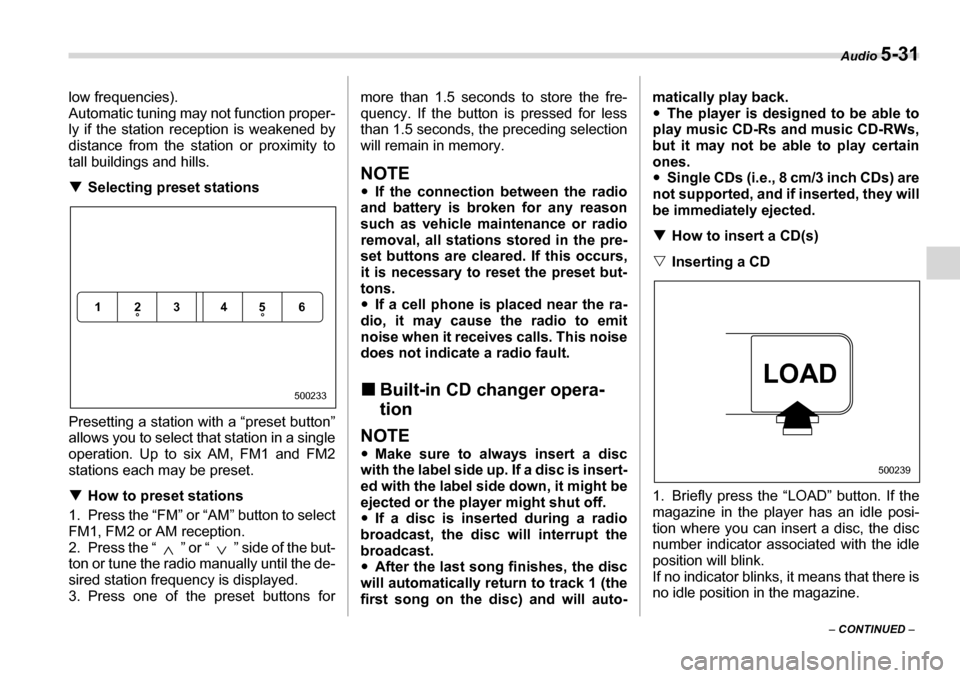

Audio 5-31
– CONTINUED –
low frequencies).
Automatic tuning may not function proper-
ly if the station re
ception is weakened by
distance from the station or proximity to
tall buildings and hills. T Selecting preset stations
Presetting a station with a “preset button”
allows you to select that station in a single
operation. Up to six AM, FM1 and FM2
stations each may be preset. T How to preset stations
1. Press the “FM” or “AM” button to select
FM1, FM2 or AM reception.
2. Press the “ ” or “ ” side of the but-
ton or tune the radio manually until the de-
sired station frequency is displayed.
3. Press one of the preset buttons for more than 1.5 seconds to store the fre-
quency. If the button is pressed for less
than 1.5 seconds, the preceding selection
will remain in memory.
NOTE y
If the connection between the radio
and battery is broken for any reason
such as vehicle maintenance or radio
removal, all stations stored in the pre-
set buttons are cleare d. If this occurs,
it is necessary to reset the preset but- tons. y If a cell phone is placed near the ra-
dio, it may cause the radio to emit
noise when it receives calls. This noise
does not indicate a radio fault.
„ Built-in CD changer opera- tion
NOTE yMake sure to always insert a disc
with the label side up. If a disc is insert-
ed with the label side down, it might be
ejected or the player might shut off. y If a disc is inserted during a radio
broadcast, the disc will interrupt the
broadcast. y After the last song finishes, the disc
will automatically return to track 1 (the
first song on the disc) and will auto- matically play back. y
The player is designed to be able to
play music CD-Rs and music CD-RWs,
but it may not be able to play certain
ones. y Single CDs (i.e., 8 cm/3 inch CDs) are
not supported, and if inserted, they will
be immediately ejected. T How to insert a CD(s)
V Inserting a CD
0
1. Briefly press the “LOAD” button. If the
magazine in the player has an idle posi-
tion where you can insert a disc, the disc
number indicator associated with the idle
position will blink.
If no indicator blinks, it means that there is
no idle position in the magazine.
123 456
500233
LOAD
500239

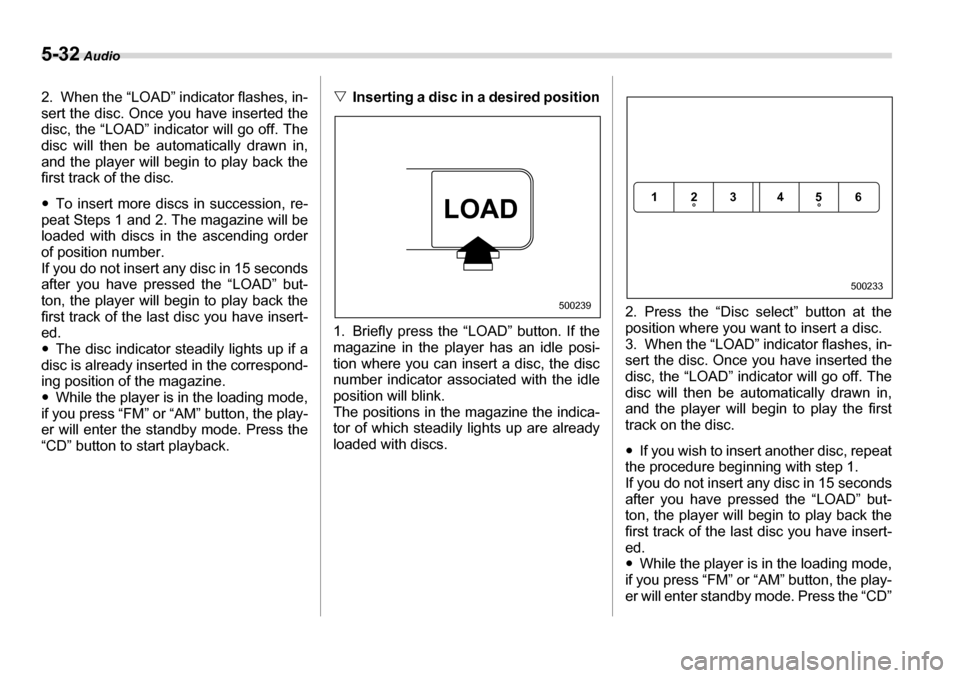

5-32 Audio
2. When the “LOAD” indicator flashes, in-
sert the disc. Once you have inserted the
disc, the “LOAD” indicator will go off. The
disc will then be automatically drawn in,
and the player will begin to play back the
first track of the disc. y To insert more discs in succession, re-
peat Steps 1 and 2. The magazine will be
loaded with discs in the ascending order
of position number.
If you do not insert any disc in 15 seconds
after you have pressed the “LOAD” but-
ton, the player will begin to play back the
first track of the last disc you have insert-
ed.y The disc indicator steadily lights up if a
disc is already inserted in the correspond-
ing position of the magazine. y While the player is in the loading mode,
if you press “FM” or “AM” button, the play-
er will enter the standby mode. Press the
“CD” button to start playback. V
Inserting a disc in a desired position0
1. Briefly press the “LOAD” button. If the
magazine in the player has an idle posi-
tion where you can insert a disc, the disc
number indicator associated with the idle
position will blink.
The positions in the magazine the indica-
tor of which steadily lights up are already
loaded with discs. 2. Press the “Disc select” button at the
position where you want to insert a disc.
3. When the “LOAD” indicator flashes, in-
sert the disc. Once
you have inserted the
disc, the “LOAD” indicator will go off. The
disc will then be automatically drawn in,
and the player will begin to play the first
track on the disc. y If you wish to insert another disc, repeat
the procedure beginning with step 1.
If you do not insert any disc in 15 seconds
after you have pressed the “LOAD” but-
ton, the player will begin to play back the
first track of the last disc you have insert- ed.y While the player is in the loading mode,
if you press “FM” or “AM” button, the play-
er will enter standby mode. Press the “CD”
LOAD
500239
123 456
500233

Audio 5-33
– CONTINUED –
button to start playback. V
Loading all the magazine (Full disc
loading mode)
0
1. If you continue to press the “LOAD”
button for more than 1.5 seconds, the
player will produce beep sound and will
enter the full disc loading mode.
2. When the disc number indicator and
“ALL LOAD” indicator start flashing, insert a disc within 15 seconds. If a disc is suc-
cessfully loaded during this period, the
disc number indicator will stop blinking
and will steadily light.
3. When the loading of a disc is complete,
the next disc number indicator will blink.
Then repeat Step 2.
4. When the magazine is filled with discs
by repeating Steps 2 and 3, the player will start playback of the discs, beginning with
the one inserted first.
If you fail to insert any disc during each 15
seconds interval, the full disc loading
mode will be canceled, and the player will
start playback of the disc inserted first. T
How to play back a CD or make a
pause
V When there is no CD inserted:
Insert a CD by referring to “How to insert a
CD(s)”.
When a CD is loaded, the player will start
playback of the CD, beginning with thefirst track. V When there are CDs loaded:
Press a desired one of the “Disc select” buttons the disc number indicator of which
steadily lights up. The player will then start
playback of the selected CD, beginning
with the first track.
If a disc that the player cannot read has
been loaded, the player will eject that disc
and proceed to the next disc. T
To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the TUNE/
TRACK button to skip to the beginning of the next track/file (track). Each time the
button is pressed, t he indicated track/file
(track) number will increase.
NOTE
In an MP3 folder, skipping past the last
track/file (track) will take you back to
LOAD
500239
123 456
500233
TUNE
TRACK
500056

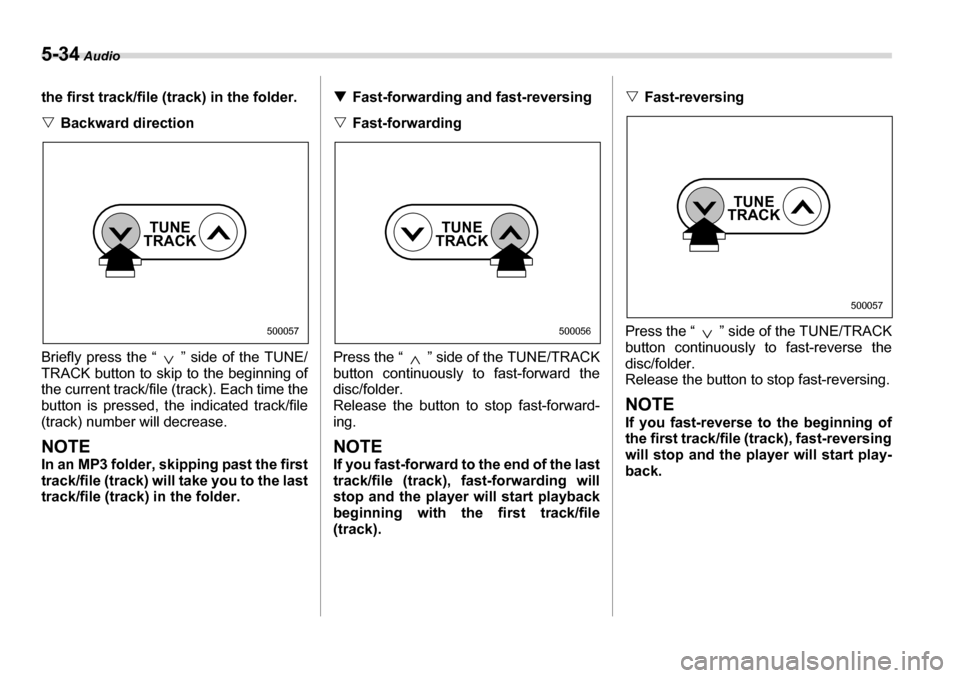

5-34 Audio
the first track/file (t rack) in the folder.
V Backward direction
Briefly press the “ ” side of the TUNE/
TRACK button to skip to the beginning of
the current track/file (track). Each time the
button is pressed, t he indicated track/file
(track) number will decrease.
NOTE
In an MP3 folder, skipping past the first
track/file (track) will take you to the last
track/file (track ) in the folder. T
Fast-forwarding and fast-reversing
V Fast-forwarding
Press the “ ” side of the TUNE/TRACK
button continuously to fast-forward the
disc/folder.
Release the button to stop fast-forward-
ing.NOTE If you fast-forward to the end of the last
track/file (track), fast-forwarding will
stop and the player will start playback
beginning with the first track/file(track). V
Fast-reversing
Press the “ ” side of the TUNE/TRACK
button continuously to fast-reverse the
disc/folder.
Release the button to stop fast-reversing.
NOTE
If you fast-reverse to the beginning of
the first track/file (track), fast-reversing
will stop and the player will start play-
back.
TUNE
TRACK
500057
TUNE
TRACK
500056
TUNE
TRACK
500057

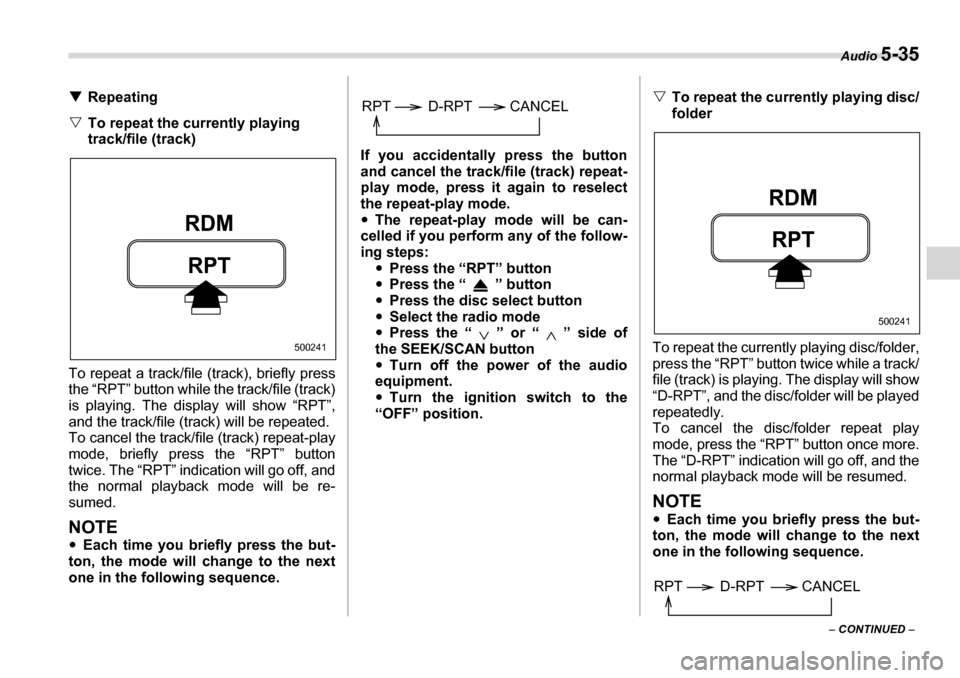

Audio 5-35
– CONTINUED –
T
Repeating
V To repeat the currently playing
track/file (track)
To repeat a track/file (track), briefly press
the “RPT” button while the track/file (track)
is playing. The display will show “RPT”,
and the track/file (t rack) will be repeated.
To cancel the track/file (track) repeat-play
mode, briefly press the “RPT” button
twice. The “RPT” indication will go off, and
the normal playback mode will be re-
sumed.
NOTE y Each time you briefly press the but-
ton, the mode will change to the next
one in the following sequence. If you accidentally press the button
and cancel the track/file (track) repeat-
play mode, press it again to reselect
the repeat-play mode. y
The repeat-play mode will be can-
celled if you perform any of the follow-
ing steps: yPress the “RPT” button
y Press the “ ” button
y Press the disc select button
y Select the radio mode
y Press the “ ” or “ ” side of
the SEEK/SCAN buttony Turn off the powe r of the audio
equipment.y Turn the ignition switch to the
“OFF” position. V
To repeat the currently playing disc/ folder
To repeat the currently playing disc/folder,
press the “RPT” button twice while a track/
file (track) is playin g. The display will show
“D-RPT”, and the disc/folder will be played
repeatedly.
To cancel the disc/folder repeat play
mode, press the “RPT” button once more.
The “D-RPT” indication will go off, and the
normal playback mode will be resumed.
NOTE y Each time you brie fly press the but-
ton, the mode will change to the next
one in the following sequence.
RPT
RDM
500241
RPT D-RPT CANCEL
RPT
RDM
500241
RPT D-RPT CANCEL

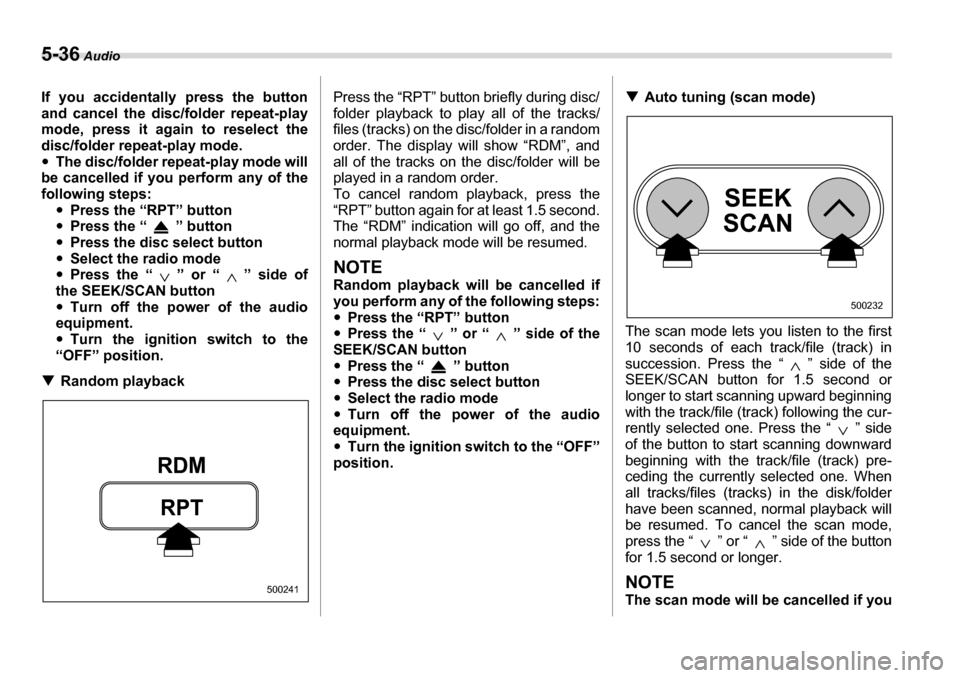

5-36 Audio
If you accidentally press the button
and cancel the disc/folder repeat-play
mode, press it again to reselect the
disc/folder repeat-play mode. yThe disc/folder repeat-play mode will
be cancelled if you perform any of the
following steps: yPress the “RPT” button
y Press the “ ” button
y Press the disc select button
y Select the radio mode
y Press the “ ” or “ ” side of
the SEEK/SCAN button y Turn off the powe r of the audio
equipment. y Turn the ignition switch to the
“OFF” position.
T Random playback Press the “RPT” button briefly during disc/
folder playback to play all of the tracks/
files (tracks) on the di
sc/folder in a random
order. The display will show “RDM”, and all of the tracks on the disc/folder will be
played in a random order.
To cancel random playback, press the
“RPT” button again for at least 1.5 second.
The “RDM” indication will go off, and the
normal playback mode will be resumed.
NOTE
Random playback will be cancelled if
you perform any of the following steps: y Press the “RPT” button
y Press the “ ” or “ ” side of the
SEEK/SCAN buttony Press the “ ” button
y Press the disc select button
y Select the radio mode
y Turn off the power of the audio
equipment. y Turn the ignition sw itch to the “OFF”
position. T
Auto tuning (scan mode)
The scan mode lets you listen to the first
10 seconds of each track/file (track) in
succession. Press the “ ” side of the
SEEK/SCAN button for 1.5 second or
longer to start scanning upward beginning
with the track/file (track) following the cur-
rently selected one. Press the “ ” side
of the button to start scanning downward
beginning with the track/file (track) pre-
ceding the currently selected one. When
all tracks/files (tracks) in the disk/folder
have been scanned, normal playback will
be resumed. To cancel the scan mode,
press the “ ” or “ ” side of the button
for 1.5 second or longer.
NOTE
The scan mode will be cancelled if you
RPT
RDM
500241
SEEK
SCAN
500232

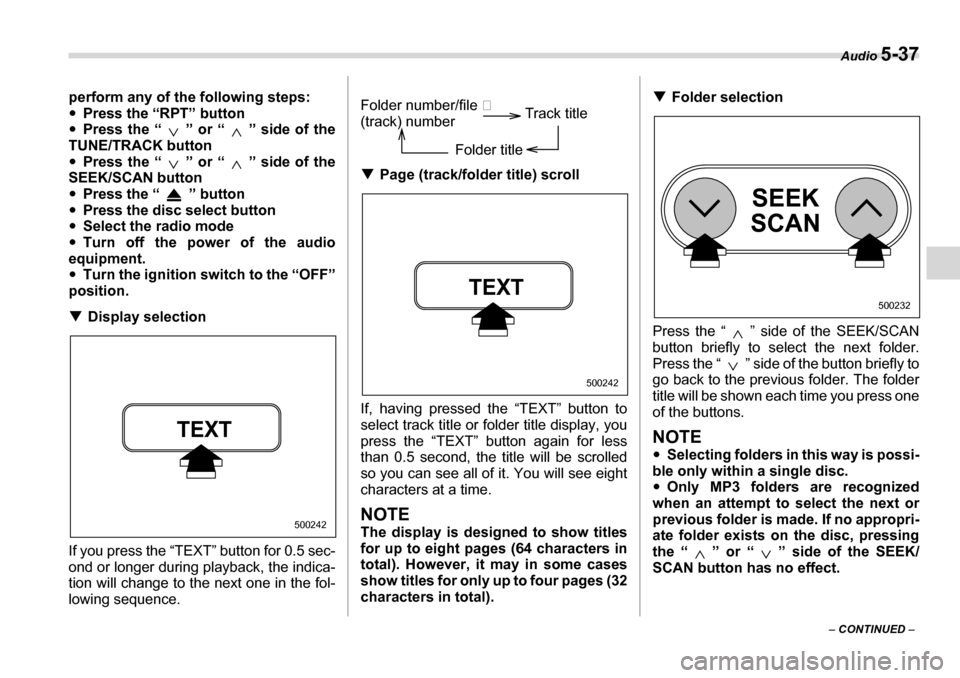

Audio 5-37
– CONTINUED –
perform any of the following steps: y
Press the “RPT” button
y Press the “ ” or “ ” side of the
TUNE/TRACK buttony Press the “ ” or “ ” side of the
SEEK/SCAN button y Press the “ ” button
y Press the disc select button
y Select the radio mode
y Turn off the power of the audio
equipment.y Turn the ignition switch to the “OFF”
position. T Display selection
If you press the “TEXT” button for 0.5 sec-
ond or longer during playback, the indica-
tion will change to the next one in the fol-
lowing sequence. T
Page (track/folder title) scroll
If, having pressed the “TEXT” button to
select track title or folder title display, you
press the “TEXT” button again for less
than 0.5 second, the title will be scrolled
so you can see all of it. You will see eight
characters at a time.
NOTE
The display is designed to show titles
for up to eight pages (64 characters in
total). However, it may in some cases
show titles for only up to four pages (32
characters in total). T
Folder selection
Press the “ ” side of the SEEK/SCAN
button briefly to se lect the next folder.
Press the “ ” side of the button briefly to
go back to the previous folder. The folder
title will be shown each time you press one
of the buttons.
NOTE y Selecting folders in this way is possi-
ble only within a single disc. y Only MP3 folders are recognized
when an attempt to select the next or
previous folder is made. If no appropri-
ate folder exists on the disc, pressing
the “ ” or “ ” side of the SEEK/
SCAN button has no effect.TEXT
500242
Folder number/file  (track) number Track title
Folder title
TEXT
500242
SEEK
SCAN
500232
