SUBARU LEGACY 2007 User Guide

Black plate (10,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

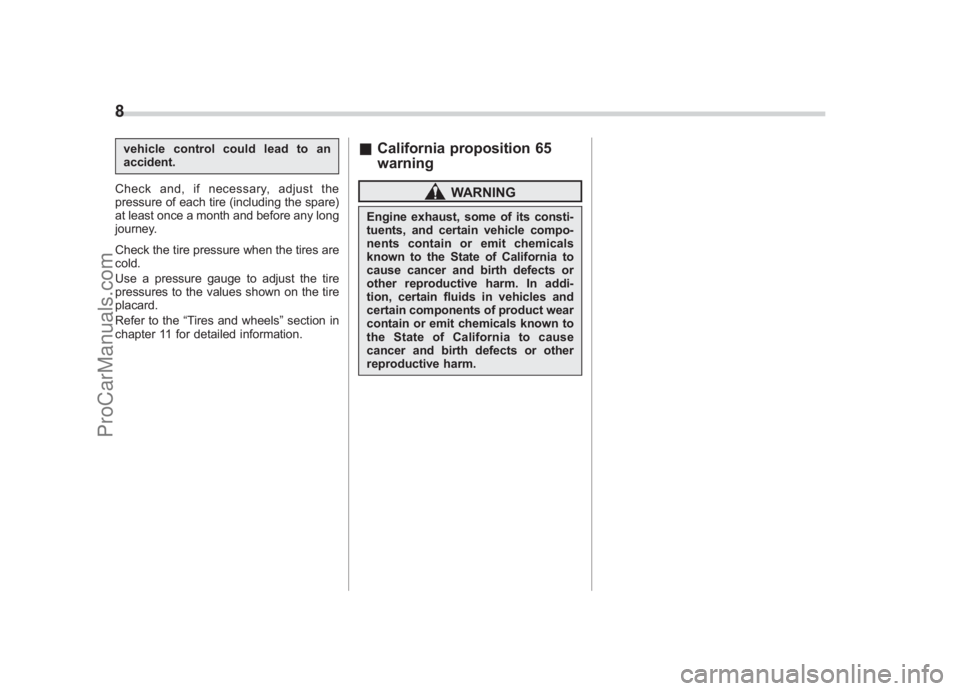

8vehicle control could lead to an
accident.
Check and, if necessary, adjust the
pressure of each tire (including the spare)
at least once a month and before any long
journey.
Check the tire pressure when the tires are
cold.
Use a pressure gauge to adjust the tire
pressures to the values shown on the tire
placard.
Refer to the “Tires and wheels” section in
chapter 11 for detailed information.
& California proposition 65
warning
WARNING
Engine exhaust, some of its consti-
tuents, and certain vehicle compo-
nents contain or emit chemicals
known to the State of California to
cause cancer and birth defects or
other reproductive harm. In addi-
tion, certain fluids in vehicles and
certain components of product wear
contain or emit chemicals known to
the State of California to cause
cancer and birth defects or other
reproductive harm.
ProCarManuals.com

Black plate (1,1)

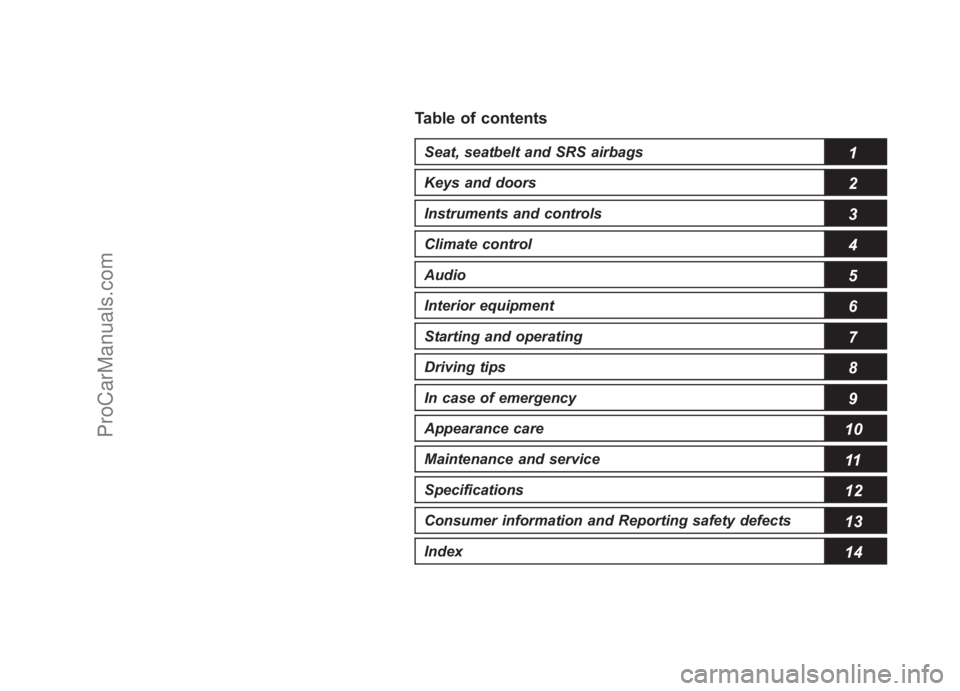

Table of contentsSeat, seatbelt and SRS airbags
1
Keys and doors
2
Instruments and controlsClimate control
4
Audio
5
Interior equipment
6
Starting and operating
7
Driving tips
8
In case of emergency
9
Appearance care
10
Maintenance and service
11
Specifications
12
Consumer information and Reporting safety defects
13
Index
143
Model "A2420BE-B" Edited: 2006/ 7/ 25
ProCarManuals.com

Black plate (12,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

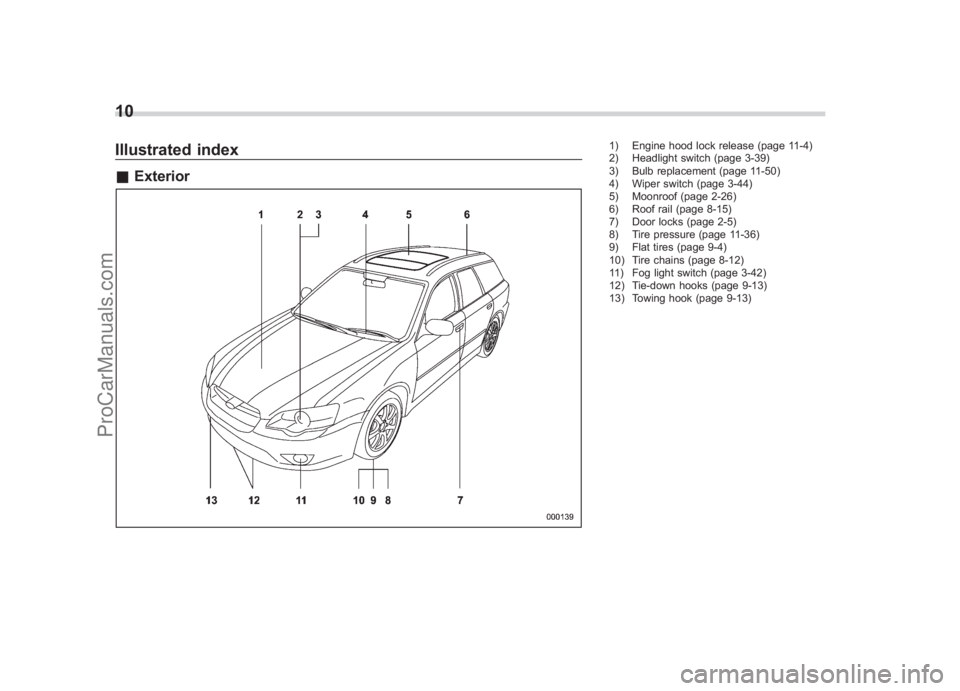

10Illustrated index& Exterior
1) Engine hood lock release (page 11-4)
2) Headlight switch (page 3-39)
3) Bulb replacement (page 11-50)
4) Wiper switch (page 3-44)
5) Moonroof (page 2-26)
6) Roof rail (page 8-15)
7) Door locks (page 2-5)
8) Tire pressure (page 11-36)
9) Flat tires (page 9-4)
10) Tire chains (page 8-12)
11) Fog light switch (page 3-42)
12) Tie-down hooks (page 9-13)
13) Towing hook (page 9-13)
ProCarManuals.com

Black plate (13,1)

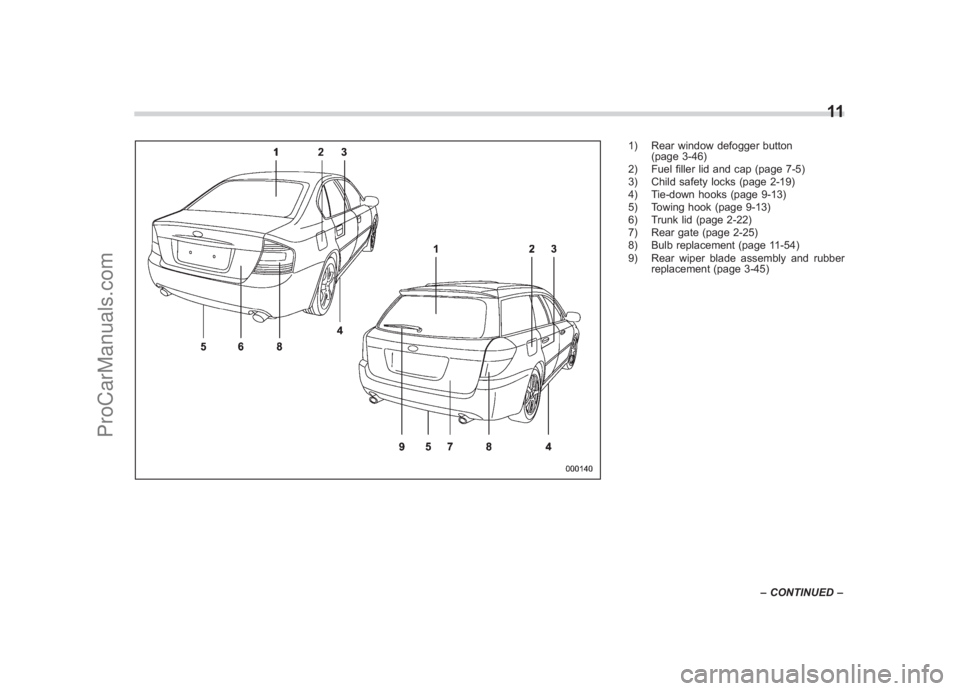

北米Model "A2420BE-B" EDITED: 2006/ 7/ 261) Rear window defogger button
(page 3-46)
2) Fuel filler lid and cap (page 7-5)
3) Child safety locks (page 2-19)
4) Tie-down hooks (page 9-13)
5) Towing hook (page 9-13)
6) Trunk lid (page 2-22)
7) Rear gate (page 2-25)
8) Bulb replacement (page 11-54)
9) Rear wiper blade assembly and rubber replacement (page 3-45)
11
–CONTINUED –
0
ProCarManuals.com

Black plate (14,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

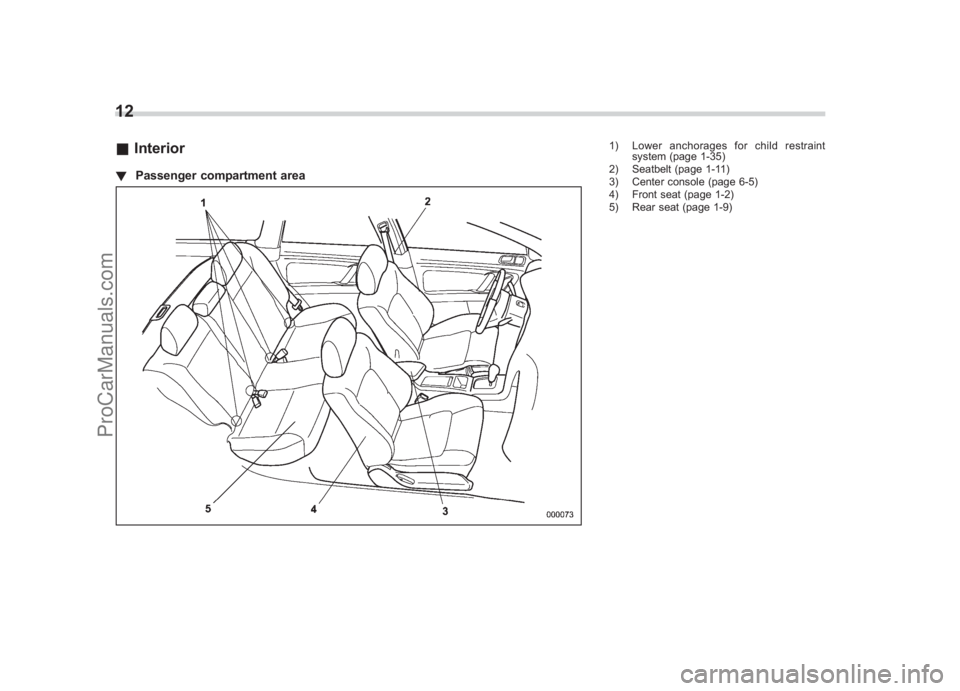

12& Interior! Passenger compartment area
1) Lower anchorages for child restraint
system (page 1-35)
2) Seatbelt (page 1-11)
3) Center console (page 6-5)
4) Front seat (page 1-2)
5) Rear seat (page 1-9)
ProCarManuals.com

Black plate (15,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 261) Top tether anchorages (page 1-37)
2) Dome lights (page 6-2)
3) Sun visors (page 6-3)
4) Cargo area light (page 6-2)
5) Rear center seatbelt (page 1-19)
6) Cargo area cover (page 6-12)
13
–CONTINUED –
0
ProCarManuals.com

Black plate (16,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
14
1) Parking brake lever (page 7-44)
2) Gear shift lever (MT) (page 7-15)
3) Select lever (AT) (page 7-24)
4) Information display (page 3-34)
5) Clock (page 3-34)
6) Dashboard storage compartment
(page 6-4)
7) Navigation system (if equipped) (See navigation system instruction manual.)
8) Glove box (page 6-5)
9) Hazard warning flasher switch (page 3-5)
10) Audio (page 5-1)
11) Climate control (page 4-1)
12) Pocket (page 6-7)
13) Accessory power outlet (page 6-8)
14) Tilt steering (page 3-51)
15) Cup holder (page 6-8/page 6-8)
ProCarManuals.com

Black plate (17,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

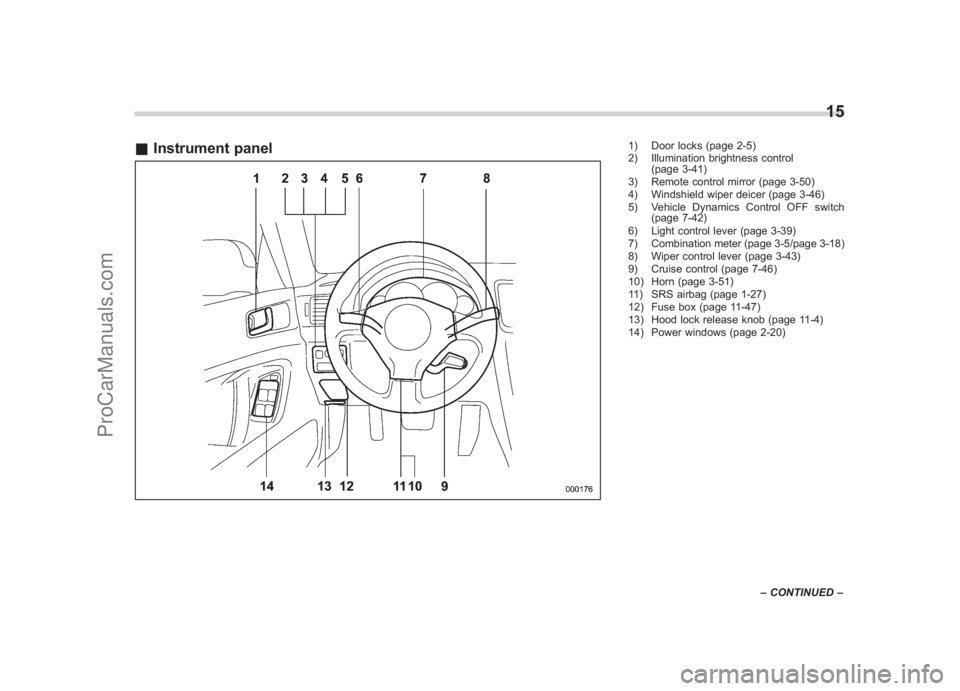

& Instrument panel
1) Door locks (page 2-5)
2) Illumination brightness control
(page 3-41)
3) Remote control mirror (page 3-50)
4) Windshield wiper deicer (page 3-46)
5) Vehicle Dynamics Control OFF switch (page 7-42)
6) Light control lever (page 3-39)
7) Combination meter (page 3-5/page 3-18)
8) Wiper control lever (page 3-43)
9) Cruise control (page 7-46)
10) Horn (page 3-51)
11) SRS airbag (page 1-27)
12) Fuse box (page 11-47)
13) Hood lock release knob (page 11-4)
14) Power windows (page 2-20)
15
– CONTINUED –
0
ProCarManuals.com

Black plate (18,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

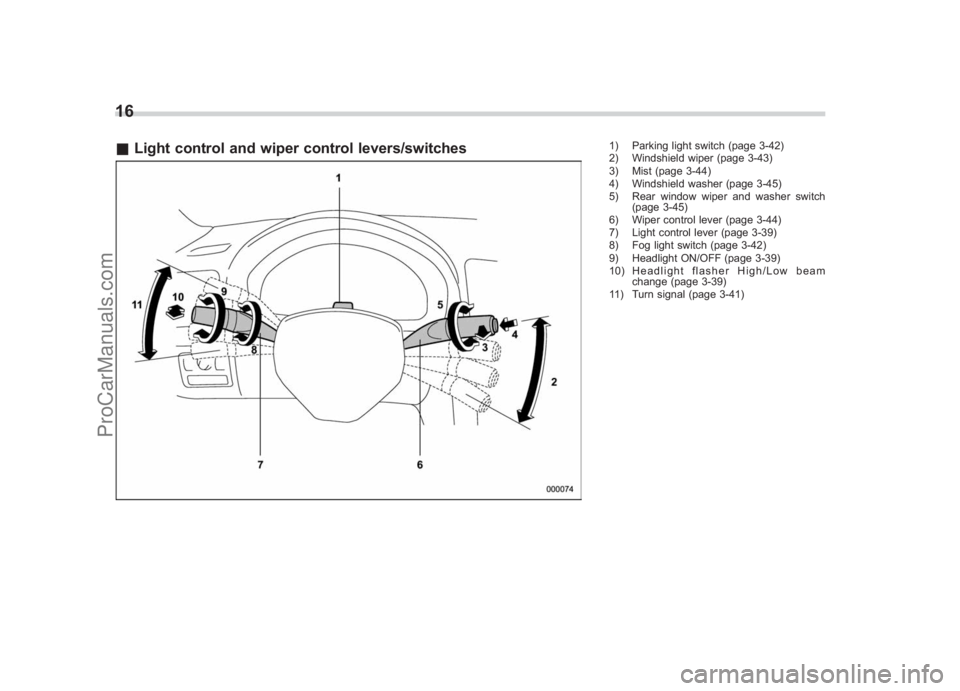

16& Light control and wiper control levers/switches
1) Parking light switch (page 3-42)
2) Windshield wiper (page 3-43)
3) Mist (page 3-44)
4) Windshield washer (page 3-45)
5) Rear window wiper and washer switch
(page 3-45)
6) Wiper control lever (page 3-44)
7) Light control lever (page 3-39)
8) Fog light switch (page 3-42)
9) Headlight ON/OFF (page 3-39)
10) Headlight flasher High/Low beam change (page 3-39)
11) Turn signal (page 3-41)
ProCarManuals.com

Black plate (19,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
& Combination meter! U.S.-spec. vehicles (Turbo models)
1) Temperature gauge (page 3-7)
2) Tachometer (page 3-6)
3) Speedometer (page 3-6)
4) Fuel gauge (page 3-6)
5) Multi-information display toggle button
(page 3-8)
6) ECO gauge (page 3-8)
7) Selector lever position indicator (AT vehicles) (page 3-33)
8) Multi-information display (page 3-8)
17
– CONTINUED –
0
