11-48
Maintenance and service

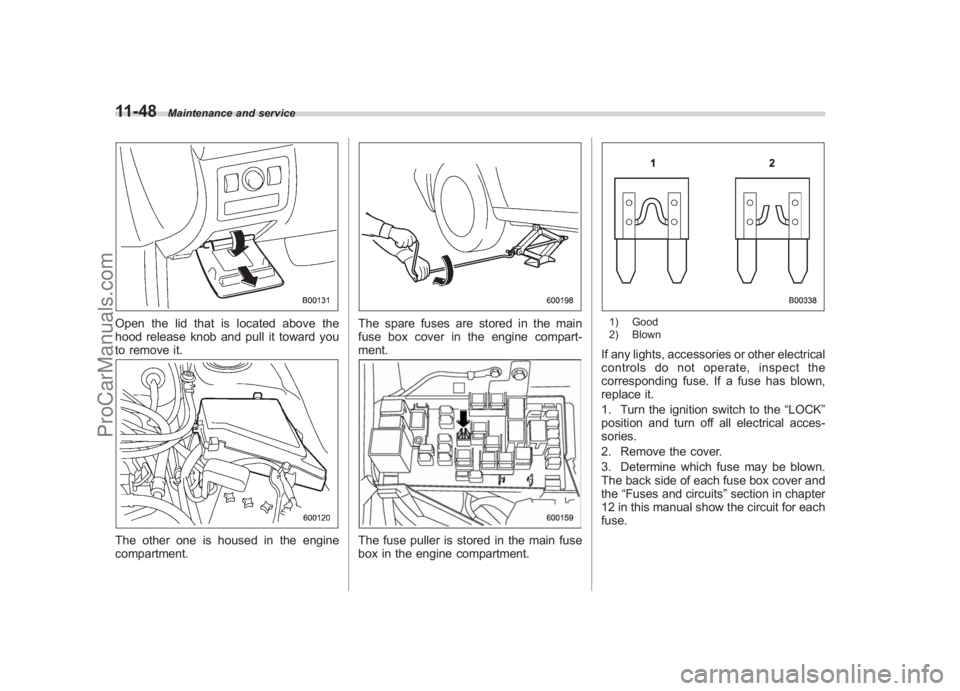

Open the lid that is located above the
hood release knob and pull it toward you
to remove it.The other one is housed in the engine
compartment.
The spare fuses are stored in the main
fuse box cover in the engine compart-
ment.The fuse puller is stored in the main fuse
box in the engine compartment.
1) Good
2) BlownIf any lights, accessories or other electrical
controls do not operate, inspect the
corresponding fuse. If a fuse has blown,
replace it.
1. Turn the ignition switch to the “LOCK”
position and turn off all electrical acces-
sories.
2. Remove the cover.
3. Determine which fuse may be blown.
The back side of each fuse box cover and
the “Fuses and circuits ”section in chapter
12 in this manual show the circuit for each
fuse.
ProCarManuals.com

Black plate (397,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

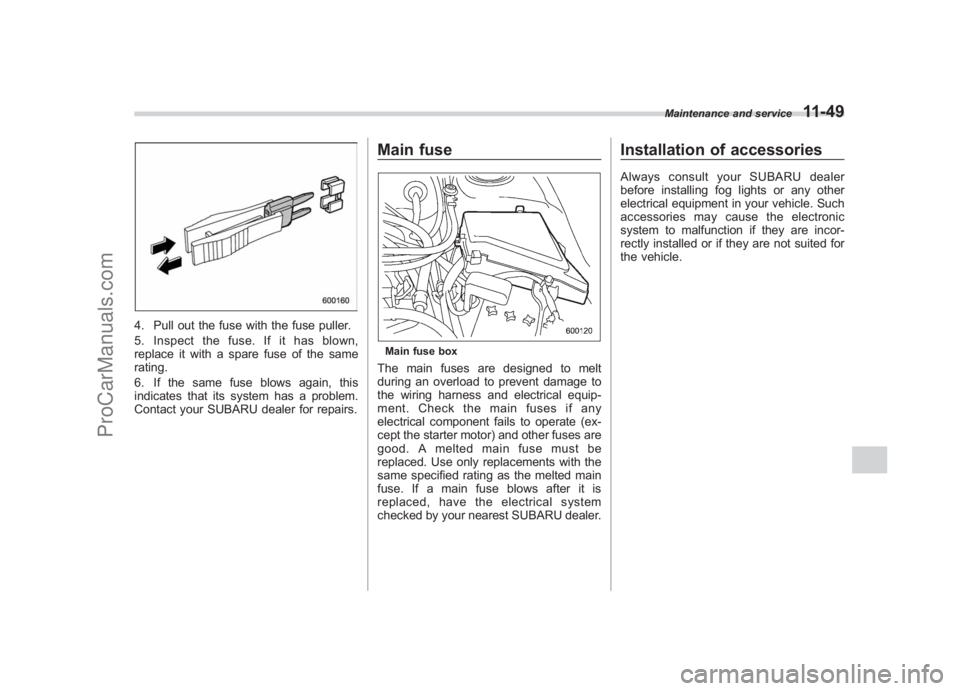

4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown,
replace it with a spare fuse of the same
rating.
6. If the same fuse blows again, this
indicates that its system has a problem.
Contact your SUBARU dealer for repairs.
Main fuseMain fuse boxThe main fuses are designed to melt
during an overload to prevent damage to
the wiring harness and electrical equip-
ment. Check the main fuses if any
electrical component fails to operate (ex-
cept the starter motor) and other fuses are
good. A melted main fuse must be
replaced. Use only replacements with the
same specified rating as the melted main
fuse. If a main fuse blows after it is
replaced, have the electrical system
checked by your nearest SUBARU dealer.
Installation of accessoriesAlways consult your SUBARU dealer
before installing fog lights or any other
electrical equipment in your vehicle. Such
accessories may cause the electronic
system to malfunction if they are incor-
rectly installed or if they are not suited for
the vehicle.
Maintenance and service
11-49
11
ProCarManuals.com

Black plate (398,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
11-50
Maintenance and service

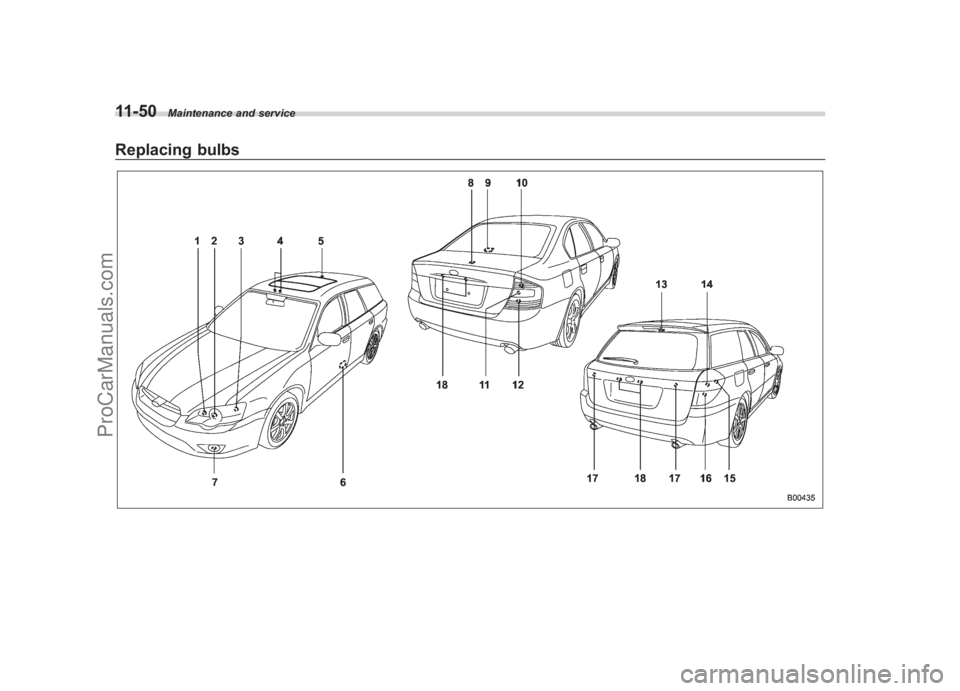

Replacing bulbs
ProCarManuals.com

Black plate (399,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

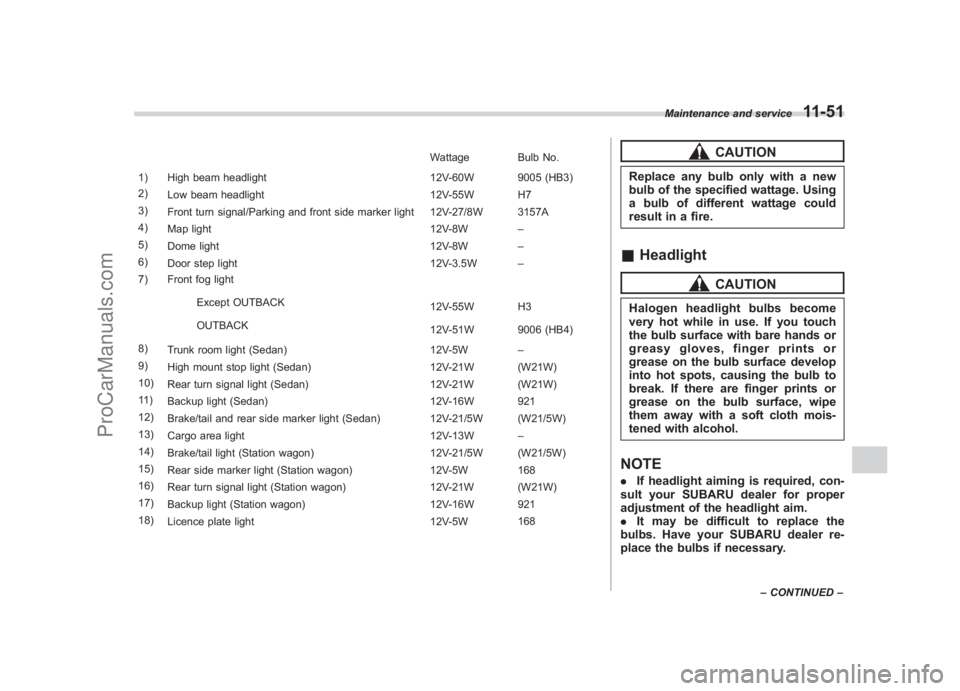

Wattage Bulb No.
1) High beam headlight 12V-60W 9005 (HB3)
2) Low beam headlight 12V-55W H7
3) Front turn signal/Parking and front side marker light 12V-27/8W 3157A
4) Map light 12V-8W –
5) Dome light 12V-8W –
6) Door step light 12V-3.5W –
7) Front fog light
Except OUTBACK 12V-55W H3
OUTBACK 12V-51W 9006 (HB4)
8) Trunk room light (Sedan) 12V-5W –
9) High mount stop light (Sedan) 12V-21W (W21W)
10) Rear turn signal light (Sedan) 12V-21W (W21W)
11 ) Backup light (Sedan) 12V-16W 921
12) Brake/tail and rear side marker light (Sedan) 12V-21/5W (W21/5W)
13) Cargo area light 12V-13W –
14) Brake/tail light (Station wagon) 12V-21/5W (W21/5W)
15) Rear side marker light (Station wagon) 12V-5W 168
16) Rear turn signal light (Station wagon) 12V-21W (W21W)
17) Backup light (Station wagon) 12V-16W 921
18) Licence plate light 12V-5W 168
CAUTION
Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.&
Headlight
CAUTION
Halogen headlight bulbs become
very hot while in use. If you touch
the bulb surface with bare hands or
greasy gloves, finger prints or
grease on the bulb surface develop
into hot spots, causing the bulb to
break. If there are finger prints or
grease on the bulb surface, wipe
them away with a soft cloth mois-
tened with alcohol.NOTE. If headlight aiming is required, con-
sult your SUBARU dealer for proper
adjustment of the headlight aim.
. It may be difficult to replace the
bulbs. Have your SUBARU dealer re-
place the bulbs if necessary.
Maintenance and service
11-51
– CONTINUED –
11
ProCarManuals.com

Black plate (400,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
11-52
Maintenance and service

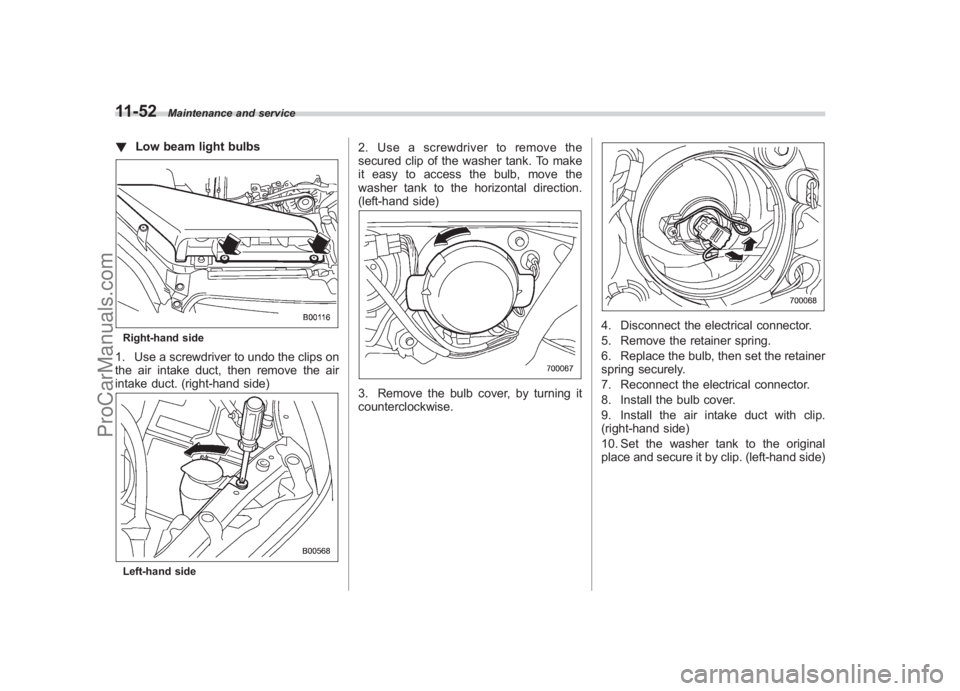

! Low beam light bulbsRight-hand side1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air
intake duct. (right-hand side)Left-hand side
2. Use a screwdriver to remove the
secured clip of the washer tank. To make
it easy to access the bulb, move the
washer tank to the horizontal direction.
(left-hand side)3. Remove the bulb cover, by turning it
counterclockwise.
4. Disconnect the electrical connector.
5. Remove the retainer spring.
6. Replace the bulb, then set the retainer
spring securely.
7. Reconnect the electrical connector.
8. Install the bulb cover.
9. Install the air intake duct with clip.
(right-hand side)
10. Set the washer tank to the original
place and secure it by clip. (left-hand side)
ProCarManuals.com

Black plate (401,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

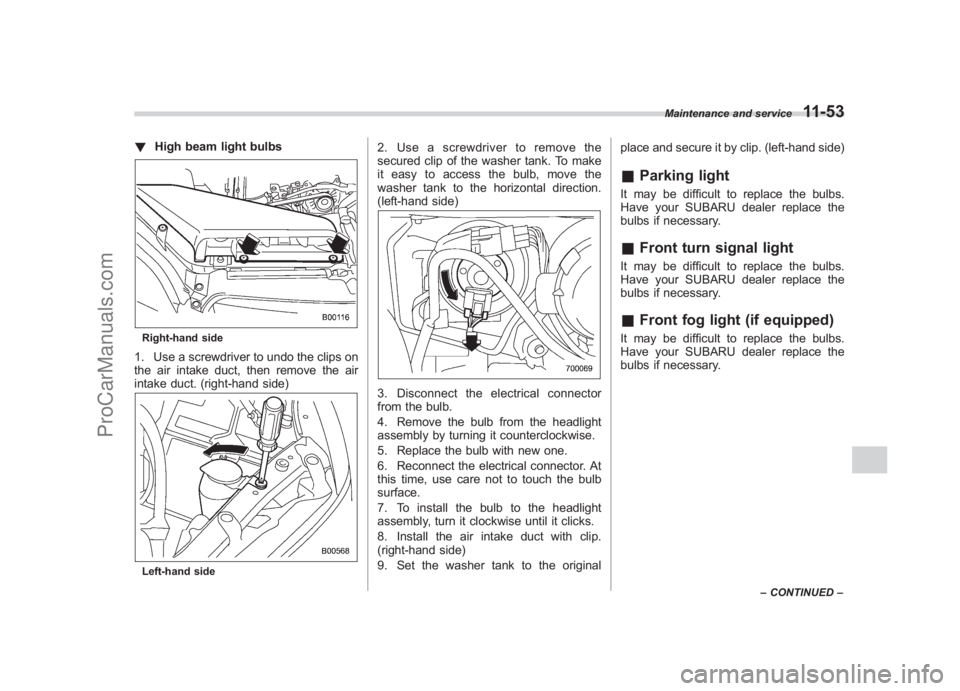

! High beam light bulbsRight-hand side1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air
intake duct. (right-hand side)Left-hand side
2. Use a screwdriver to remove the
secured clip of the washer tank. To make
it easy to access the bulb, move the
washer tank to the horizontal direction.
(left-hand side)3. Disconnect the electrical connector
from the bulb.
4. Remove the bulb from the headlight
assembly by turning it counterclockwise.
5. Replace the bulb with new one.
6. Reconnect the electrical connector. At
this time, use care not to touch the bulb
surface.
7. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
8. Install the air intake duct with clip.
(right-hand side)
9. Set the washer tank to the original place and secure it by clip. (left-hand side)
&
Parking lightIt may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary.&Front turn signal lightIt may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary.&Front fog light (if equipped)It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary.
Maintenance and service
11-53
–CONTINUED –
11
ProCarManuals.com

Black plate (402,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
11-54
Maintenance and service

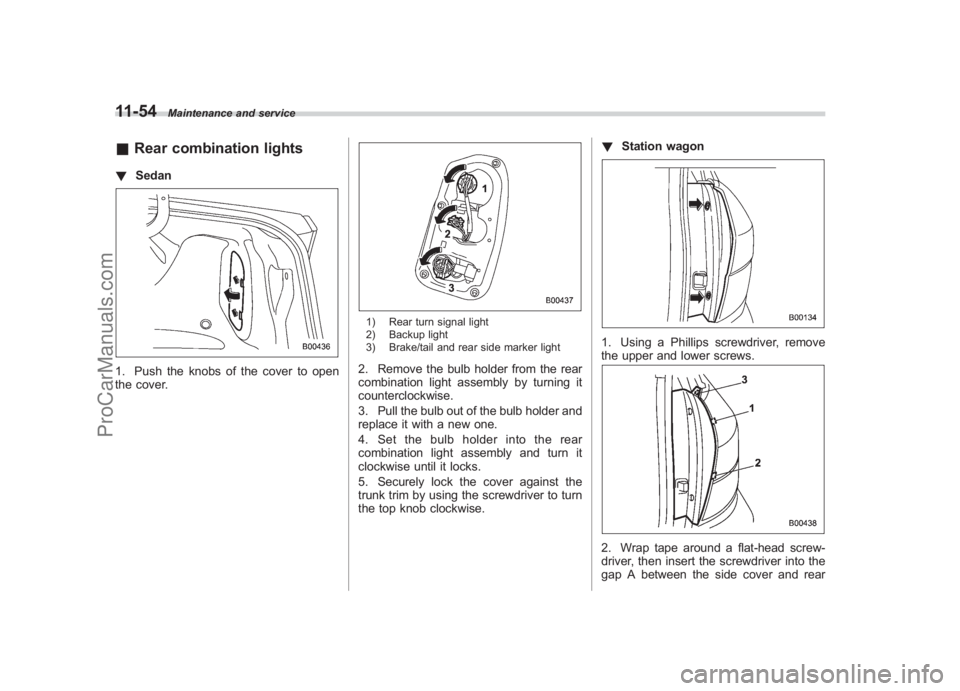

& Rear combination lights! Sedan1. Push the knobs of the cover to open
the cover.
1) Rear turn signal light
2) Backup light
3) Brake/tail and rear side marker light2. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
3. Pull the bulb out of the bulb holder and
replace it with a new one.
4. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
5. Securely lock the cover against the
trunk trim by using the screwdriver to turn
the top knob clockwise. !
Station wagon
1. Using a Phillips screwdriver, remove
the upper and lower screws.2. Wrap tape around a flat-head screw-
driver, then insert the screwdriver into the
gap A between the side cover and rear
ProCarManuals.com

Black plate (403,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

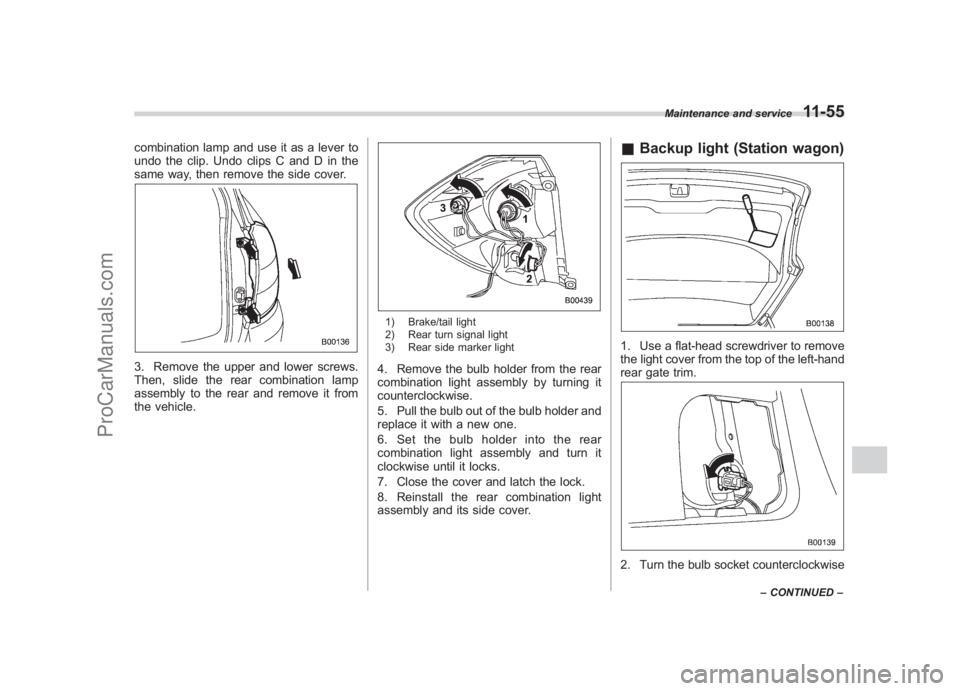

combination lamp and use it as a lever to
undo the clip. Undo clips C and D in the
same way, then remove the side cover.3. Remove the upper and lower screws.
Then, slide the rear combination lamp
assembly to the rear and remove it from
the vehicle.
1) Brake/tail light
2) Rear turn signal light
3) Rear side marker light4. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
5. Pull the bulb out of the bulb holder and
replace it with a new one.
6. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
7. Close the cover and latch the lock.
8. Reinstall the rear combination light
assembly and its side cover.
& Backup light (Station wagon)1. Use a flat-head screwdriver to remove
the light cover from the top of the left-hand
rear gate trim.2. Turn the bulb socket counterclockwise
Maintenance and service
11-55
–CONTINUED –
11
ProCarManuals.com

Black plate (404,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
11-56
Maintenance and service

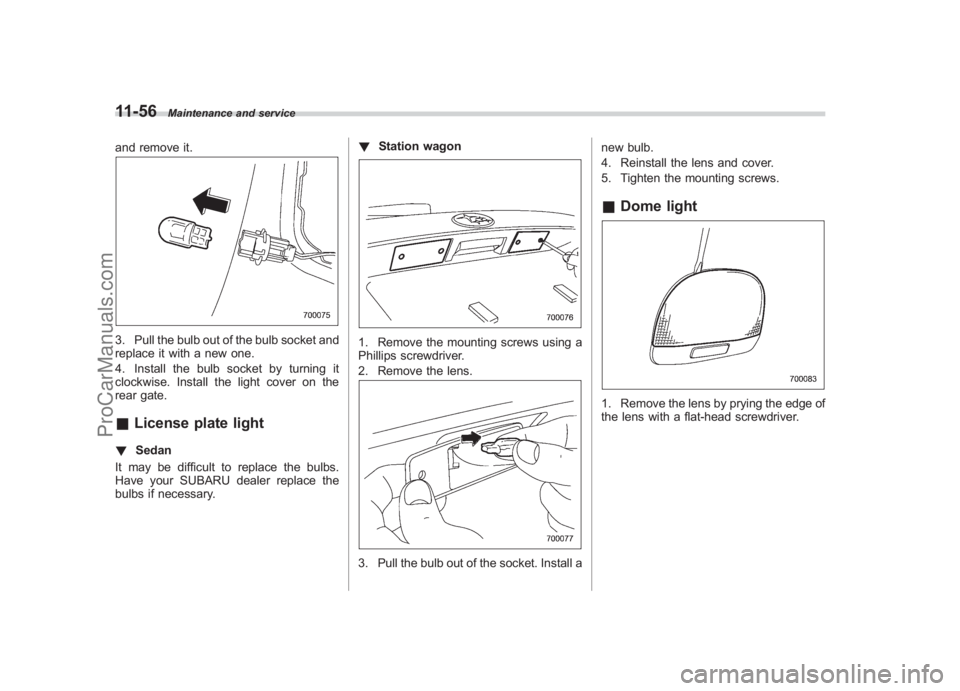

and remove it.3. Pull the bulb out of the bulb socket and
replace it with a new one.
4. Install the bulb socket by turning it
clockwise. Install the light cover on the
rear gate.& License plate light! Sedan
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary. !
Station wagon
1. Remove the mounting screws using a
Phillips screwdriver.
2. Remove the lens.3. Pull the bulb out of the socket. Install a new bulb.
4. Reinstall the lens and cover.
5. Tighten the mounting screws.
&
Dome light1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
ProCarManuals.com

Black plate (405,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
2. Turn the bulb until the flat surfaces at
its ends are aligned vertically. Pull the bulb
straight downward to remove it. Install a
new bulb.
3. Reinstall the lens.
& Map light1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.2. Turn the bulb until the flat surfaces at
its ends are aligned vertically. Pull the bulb straight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.
&
Door step light1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
