Black plate (25,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
Function settingsA SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact
the nearest SUBARU dealer for details. If your vehicle is equipped with navigation system, the settings for some of these functions can
be changed using the monitor. For details, please refer to the Owner ’s Manual supplement for the monitor.Item Function Possible settingsDefault settingPage
Alarm system Alarm system Operation / Non-operation Operation 2-14
Monitoring start delay time (after
closure of doors) 0 second / 30 seconds 30 seconds
2-16
Impact sensor operation (only vehi-
cles with shock sensors (dealer
option)) Operation / Non-operation Non-operation
2-19
Passive arming Operation / Non-operation Non-operation 2-17
Remote keyless entry system Hazard warning flasher Operation / Non-operation Operation2-8
Audible signal Operation / Non-operation Operation 2-10
Key lock-in prevention Key lock-in prevention Operation / Non-operation Operation2-7
Remote engine start system
(dealer option) Horn chirp confirmation
ON/OFFON7-11
Rear window defogger Rear window defogger Operation for 15 minutes / Con-
tinuous operation Operation for 15 minutes 3-47
Windshield wiper deicer (if
equipped) Windshield wiper deicer
Operation for 15 minutes / Con-
tinuous operation Operation for 15 minutes 3-46
Dome light Operation in interlock with remote
keyless entry system OFF / Short / Normal / Long Normal
6-2
Battery drainage prevention
function Battery drainage prevention function Operation / Non-operation Operation
2-6
23
0
ProCarManuals.com

Black plate (98,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
2-6
Keys and doors
& Locking and unlocking from
the inside
WARNING
Keep all doors locked when you
drive, especially when small chil-
dren are in your vehicle.
Along with the proper use of seat-
belts and child restraints, locking
the doors reduces the chance of
being thrown out of the vehicle in an
accident.
It also helps prevent passengers
from falling out if a door is acciden-
tally opened, and intruders from
unexpectedly opening doors and
entering your vehicle.
To lock the door from the inside, rotate the
lock lever rearward.To unlock the door from the inside, rotate
the lock lever forward.
The red mark on the lock lever appears
when the door is unlocked.
Pull the inside door handle to open an
unlocked door.
Always make sure that all doors and the
rear gate (Station wagon) are closed and
locked before starting to drive.&Battery drainage prevention
functionWhen a door or the rear gate (Station
wagon) is not completely closed and the
dome light, ignition switch light, and door
open warning light remain illuminated as a result, the lights are automatically turned
off by the battery drainage prevention
function after 10 minutes of illumination
to prevent the battery from going dead.
The operational/non-operational setting of
this function can be changed by a
SUBARU dealer. Contact the nearest
SUBARU dealer if you would like to
change the setting.
NOTE.
When leaving the vehicle, please
make sure that all doors and the rear
gate (Station wagon) are completely
closed.
. The battery drainage prevention
function does not operate while the
key is in the ignition switch.
ProCarManuals.com

Black plate (102,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
2-10
Keys and doors
when the “
”button is pressed. This light
stays illuminated for approximately 30
seconds if any of the doors or the rear
gate (Station wagon) is not opened.
If the “
”button is pressed before 30
seconds have elapsed, this light will go
out. The interior light must be set to the
middle position in order for this function
to operate.
A SUBARU dealer can change the illumi-
nation period setting of the interior light in
accordance with your preference. Contact
the nearest SUBARU dealer for details.
& Vehicle finder functionUse this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30 feet
(10 meters) of the vehicle, pressing the “
”
button three times in a five-second period
will cause your vehicle’ s horn to sound
once and its turn signal lights to flash three
times.
NOTEIf the interval between presses is too
short when you press the “
”button
three times, the system may not re-
spond to the signals from the remote
transmitter.
& Sounding a panic alarmA“PANIC ”button is located on the back of
the transmitter.
To activate the alarm, press the “PANIC”
button once.
The horn will sound and the turn signal
lights will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. Unless a
button on the remote is pressed, the alarm
will be deactivated after approximately 30
seconds.& Selecting audible signal op-
erationUsing an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn the audible signal off.
Do the following to deactivate the audible
signal. You can also use the same steps
to restore the function.
1. Sit in the driver
’s seat and shut all
doors and the rear gate.
2. Hold down the UNLOCK side of the
power door locking switch.
3. While holding down the “UNLOCK”
side of the power door locking switch, pull
the key out and re-insert it into the ignition
switch at least 6 times within 10 seconds
after Step 2.
4. Open and close the driver ’s door once
within 10 seconds after Step 3.
5. The turn signal lights flash 3 times to
indicate completion of the setting.
You may have the above settings done by
your SUBARU dealer.
& Replacing the battery
CAUTION
Do not let dust, oil or water get on or
in the transmitter when replacing
the battery.
When the transmitter battery begins to get
weak, transmitter range will begin to
decrease. Replace the battery as soon
ProCarManuals.com

Black plate (109,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
. The 30-second standby time can be
eliminated if you prefer. Have it per-
formed by your SUBARU dealer.
. If your vehicle is a Sedan and you
unlock the trunk using the remote
transmitter ’s “
”button with the
alarm system armed, the system will
be temporarily placed in a standby
state. The system will go back to the
surveillance state upon locking the
trunk.
. The system is in the standby mode
for a 30-second period after locking the
doors with the remote transmitter. The
security indicator light will flash at
short intervals during this period.
. If any of the following actions is
done during the standby period, the
system will not switch to the surveil-
lance state.
.Doors are unlocked using the
remote transmitter.
. Any door (including the rear gate
of a Station wagon or the trunk of a
Sedan) is opened.
. Ignition switch is turned to the
“ ON ”position.
& Disarming the systemBriefly press the “
”button (for less than
two seconds) on the remote transmitter.
The driver ’s door will unlock, an electronic
chirp will sound twice, the turn signal lights
will flash twice and the indicator light will
go off.
To unlock all other doors and the rear gate
(Station wagon), briefly press the “
”
button a second time within 5 seconds.
NOTEIf the interval between the first and
second presses of the “
”button (for
unlocking of all of the doors and the
rear gate) is extremely short, the sys-
tem may not respond.
Or the system can be disarmed by the
following method, too.
. Insert the key in the door lock of the
driver ’s door and turn it to the unlock
position.
! Emergency disarming
If you cannot disarm the system using the
transmitter (i.e. the transmitter is lost,
broken or the transmitter battery is too
weak), you can disarm the system without
using the transmitter.
The system can be disarmed if you turn
the ignition switch from the “LOCK” to the “ON
”position with a registered key.
Insert the key in the door lock of the
driver ’s door and turn it to the unlock
position.
& Valet modeWhen you choose the valet mode, the
alarm system does not operate. In valet
mode, the remote transmitter is used only
for locking and unlocking the doors and
rear gate (Station wagon) and panic
activation.
To enter the valet mode, change the
setting of your vehicle’ s alarm system for
deactivation mode. (Refer to “Activating
and deactivating the alarm system ”in this
section.) The security indicator light will
continue to flash once every three sec-
onds indicating that the system is in the
valet mode.
To exit valet mode, change the setting of
your vehicle’ s alarm system for activation
mode. (Refer to “Activating and deactivat-
ing the alarm system ”in this section.)& Passive armingWhen passive arming mode has been
programmed by the dealer, arming of the
system is automatically accomplished
without using the remote transmitter. Note
Keys and doors
2-17
–CONTINUED –
2
ProCarManuals.com

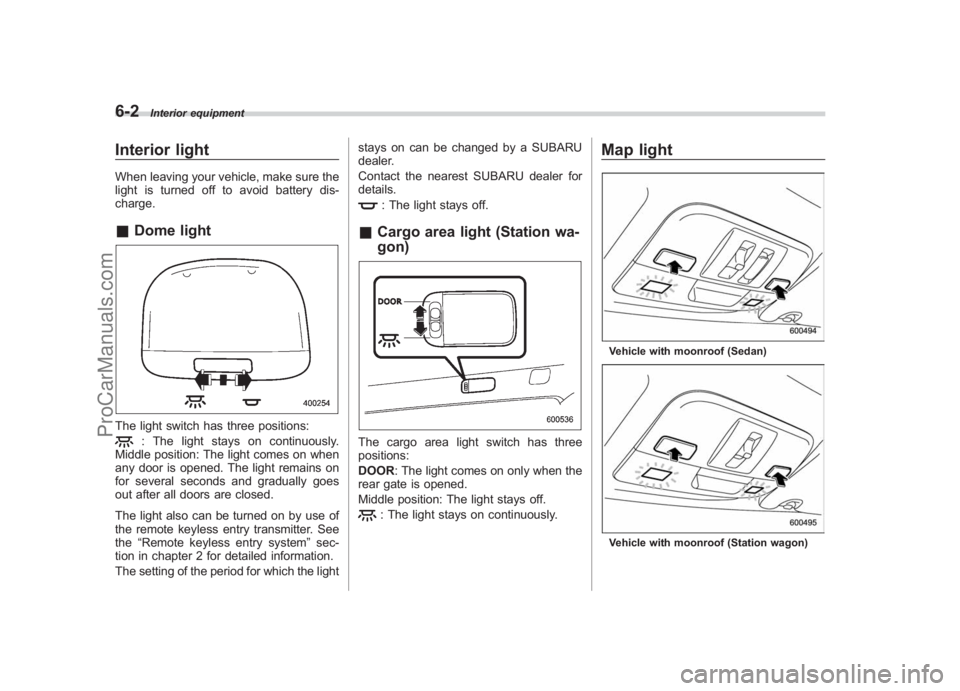

Black plate (222,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
6-2
Interior equipment
Interior lightWhen leaving your vehicle, make sure the
light is turned off to avoid battery dis-
charge.& Dome lightThe light switch has three positions:
: The light stays on continuously.
Middle position: The light comes on when
any door is opened. The light remains on
for several seconds and gradually goes
out after all doors are closed.
The light also can be turned on by use of
the remote keyless entry transmitter. See
the “Remote keyless entry system ”sec-
tion in chapter 2 for detailed information.
The setting of the period for which the light stays on can be changed by a SUBARU
dealer.
Contact the nearest SUBARU dealer for
details.
: The light stays off.
&
Cargo area light (Station wa-
gon)The cargo area light switch has three
positions:
DOOR : The light comes on only when the
rear gate is opened.
Middle position: The light stays off.
: The light stays on continuously.
Map lightVehicle with moonroof (Sedan)Vehicle with moonroof (Station wagon)
ProCarManuals.com

Black plate (256,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
7-14
Starting and operating
the brake pedal repeatedly will toggle the
feature ON or OFF each time.
7. To exit the remote transmitter and
feature programming mode, turn the igni-
tion switch to the “OFF”position, remove
the key from the ignition switch and test
operation of the remote transmitter(s) and
horn confirmation feature.& System maintenance! Changing the remote control bat-
teries
The two 3-volt lithium batteries (model
CR-1220) supplied in your remote control
should last approximately three years,
depending on usage. When the batteries
begin to weaken, you will notice a
decrease in range (distance from the
vehicle that your remote control operates).
Follow the instructions below to change
the remote control batteries.
1. Carefully pry the remote control halves
apart using a small flathead screwdriver.
2. Remove the circuit board from the
bottom half of the case and slide the white
plastic battery holder out from under the
battery tab releasing the batteries. Re-
move the old batteries and replace with
new ones. Be sure to observe the (+) sign
