display SUBARU LEGACY 2011 5.G Navigation Manual

16 NavigationBefore Use
WA R N I N G
READ THIS MANUAL FIRSTRead this supplement carefully before using the navigation
system. We are not liable for accidents or other problems
resulting from failure to follow the instructions in this sup-
plement.
OBEY LOCAL ROAD SIGNS AND REGULATIONSAlways obey local road signs and regulations while following
instructions given by the navi gation system. Some of the
data on the DVD-ROM disc may be outdated due to changes
in local road signs and regulations. Furthermore, the data on
the DVD-ROM disc does not take into account variable fac-
tors such as the weather, road congestion at different times
of the day, temporary road closures due to road construc-
tion, and special events. Local road signs and regulations
always take precedence over directions given by the system.
Failure to obey them could place you in physical danger or in
violation of the law.
DRIVE SAFELY• Before following an instruction (for example, in the case of
changing direction) given by the system, check that the action
would be safe to take in the current traffic conditions. Continue
to pay attention to safety while following any instruction.
• Do not be distracted by the navigation screen.
Failure to keep your attention on the road could lead to an acci-
dent. When you need to look at the screen while driving, do so
for the shortest time possible and avoid staring at the screen.
•You must stop the vehicle in a safe place before operating
the navigation system. For safety's sake, some of the naviga-
tion system's controls and functions cannot be used unless
the vehicle is stationary.
• When you need to look at the navigation screen, do so for
the shortest time possible. Looking away from the road for
too long could lead to an accident.
• Use this system only in locations where it is legal to do so.
Some states/provinces may have laws prohibiting video
screens within sight of the driver.
• If you stare at the display with too much enthusiasm or oper -
ate the switches of the system while in driving, the naviga-
tion system could cause your attention to be distracted from
the current traffic conditions. Please be sure to input in the
system as much information as possible before taking your
departure. And also please be sure to bring your car to a
stop in a safe place if yo u need to input information.
• The buttons for the touch screen that cannot be used are
greyed out.Operating the navigation system while in driving could cause
your attention to be distracted from the current traffic condi-
tions. And in consequence, this could result in a severe or fatal
accident. Follow the descriptions of all operations and the
instructions for safety given in this manual without fail.
VOLUME LEVEL• Keep the system's volume level low enough for you to be
able to hear outside sounds while driving. To do otherwise
may prevent you from reacting appropriately to traffic con-
ditions and could result in an accident.
Legacy_B2462BE-A.book Page 16 Wednesday, April 22, 2009 5:32 PM

Navigation 17
Before Use
NOTE• For safety reasons, the use of some functions may be una vailable while
in driving. The button for a touch screen that cannot be us ed will be
greyed out.
• Liquid crystal displays may be diffic ult to read when wearing polarized
glasses.
CAUTION
FOREIGN OBJECTS
Do not allow foreign objects to enter the disc insertion slot,
including your fingers.
Foreign objects inside the system's main unit could cause an
electric shock or a fire. If the main unit emits smoke or an
unusual smell, stop using the system immediately and con-
tact the nearest SUBARU dealer.
NEVER DISASSEMBLE OR MODIFY THE SYSTEMAny attempt to disassemble or modify any part of the system c ould
lead to an electric shock or a fire , or some other type of accident.Do not continue using the navigation system if it malfunctions If the system shows any sign of malfunctioning (for example,
the navigation system gives no picture), stop using it imme-
diately and contact the nearest SUBARU dealer.
Continuing to use the system could lead to a fire, an electric
shock, or some other type of accident.
CAUTION
If the navigation system gets contaminated, emits smoke or an
odd smell, stop using it If a foreign object gets inside the system, liquid is spilled
onto the system, or the system emits smoke or an unusual
smell, stop using it immediately and contact the nearest
SUBARU dealer. Continuing to use the system could lead to a
fire, an electric shock, or some other type of accident.
Legacy_B2462BE-A.book Page 17 Wednesday, April 22, 2009 5:32 PM

18 NavigationBefore Use■Points to note before useStarting the engine before using the systemThe navigation system can be used with the ignition key in either th e
ON position or the ACC position. To preserve the battery, however, it
should be used with the engine running whenever possible. Using
the system for a long time with the engine off can cause the battery
to run down.
Delay before display of current positionThe system will not immediately display a correct indication of your
vehicle's current position after being switched on for the first time or
after the battery has been disconnected for a long time. It will displa y
a correct current position indication as soon as it receives Global Po si-
tioning System (GPS) signals.
Program reloading after battery disconnectionThe navigation program will be erased from the system's memory if
the battery is disconnected. If th is happens, load the provided DVD-
ROM disc in the system's main unit and turn the ignition switch to
the ON or ACC position. The system will automatically reload the pro-
gram and start operating normally again.
Incorrect operation on rough roadsThe system may operate incorrectly or be unable to read the data on
the DVD-ROM disc when subjected to severe vibration caused by
driving on rough roads.
Handling the GPS antennaDo not paint the antenna. Doing so could impair or prevent signal
reception. Disabled switches
Some switches are disabled during operation of the system. These
switches are displayed in fainter colors and no messages are dis-
played for them.
Risk of damage to the main unitBe mindful of the occupant compartment temperature. Using the
system when the occupant compar tment temperature is extremely
high or low can damage it or cause it to malfunction. Also, note that
the system's main unit can be da maged by strong vibration and by
any metallic object or water that gets inside.
CondensationCondensation can form on the lens inside the main unit when there
is a rapid change in occupant compartment temperature (for exam-
ple, when the heater is switched on in cold weather). Such condensa-
tion can cause the system to operate abnormally. If you wait an hour
or so for the condensation to di sappear, the system should start
working normally again. If normal op eration is still not restored after
several hours, we recommend that you contact the nearest SUBARU
dealer.
Replacing the DVD-ROM discIf you need to replace the DVD-ROM disc, make sure the replacement
disc is compatible with your system's main unit. Inserting an incom-
patible disc could damage the unit.
Legacy_B2462BE-A.book Page 18 Wednesday, April 22, 2009 5:32 PM

20 NavigationNavigation System Controls
(1)This button is used to display the current map screen.
During route guidance, this button is used to repeat the last
voice guidance.
(2) This button is used to displa y the destination entry screen.
(3) This button is used to display the menu screen.
(4) This button is used to display the information screen. (5) [VOL / POWER]
This button is used to turn the system on or off.
(6) This button is used to display the SCREEN function in which
setting adjustments can be made to the screen.
(7) [MAP DISC EJECT ] This button is used to eject a map disc for the navigation sys-
tem. (1(2(5
(3(4
(6)
(9)
(10)
(11)
(8)
(7)
Legacy_B2462BE-A.book Page 20 Wednesday, April 22, 2009 5:32 PM

Navigation 21
Navigation System Controls
(8)This button is used to revert all settings performed on the
system to the default settings. This button is located on
behind the map disc slot cover.
(9) Map disc drive loading slot Insert a map disc here.
(10) Display screen Multi function screens appear here.
(11) This button is used to enter the voice recognition mode.
Legacy_B2462BE-A.book Page 21 Wednesday, April 22, 2009 5:32 PM

Navigation 23
Starting Up the Navigation SystemUse the following procedure to start up the navigation system and dis-
play the current map screen.1
Start the engine.
2
Press the [VOL/POWER] button while the system is off.The CAUTION screen will appear, followed by the opening screen.
NOTE
• When the system is started, a loading status bar will appe ar on the screen
while the system loads the programs from the map disc.
• When the system is started without the map disc loaded, th e functions of the
system will be restricted.
3
Carefully read the instructions on the CAUTION screen
(shown below), then select (agree).
NOTE • The CAUTION screen remains on the display unless you sele ct

(agree).
• Selecting the button allows you to change the lang uage displayed
in the navigation system. (See Page 72)
CAUTION
Make selections only when vehicle is stopped.
Watching screen while driving can lead to a serious accident.
Some map data may be incorrect.
Use judgment and obey traffic rules.
See Owner's Manual for complete operating instructions.
Legacy_B2462BE-A.book Page 23 Wednesday, April 22, 2009 5:32 PM

24 NavigationStarting Up the Navigation System4
The current map screen will appear.To make a selection, touch the desired key that is displayed on the
screen.
NOTE• When you use the navigation system for the first time, Ce ntral Time will be
displayed. Adjust the system's clock to the local time using the clock setting
screen ("SET CLOCK") described on Page 74.Legacy_B2462BE-A.book Page 24 Wednesday, April 22, 2009 5:32 PM

Navigation 25

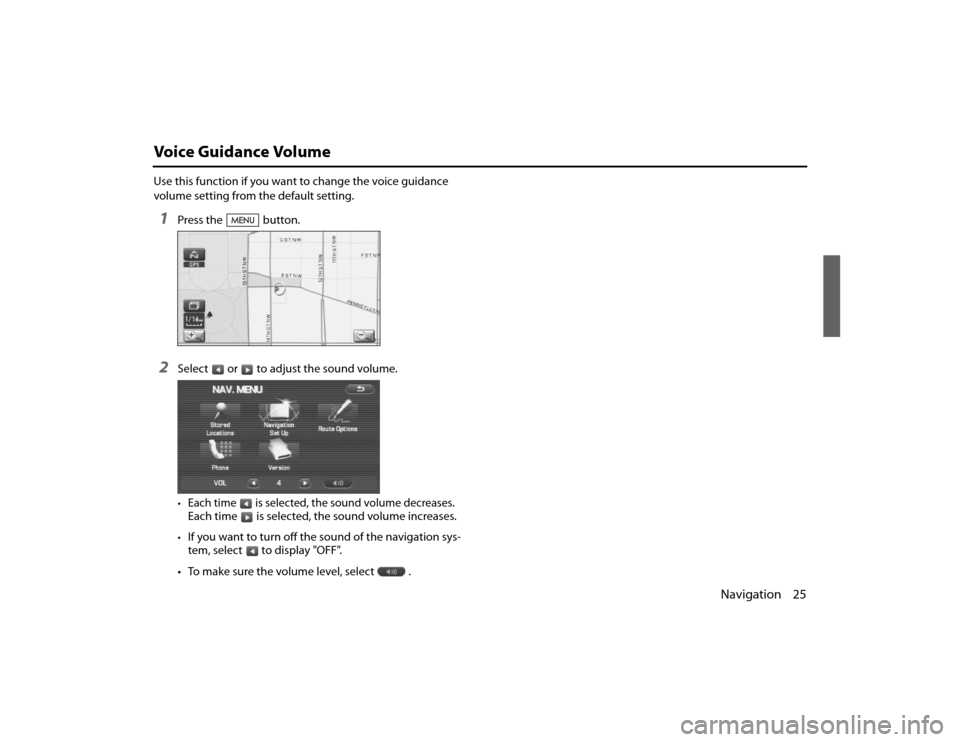

Voice Guidance VolumeUse this function if you want to change the voice guidance
volume setting from the default setting.1
Press the button.
2
Select or to adjust the sound volume.•Each time is selected, the sound volume decreases.Each time is selected, the sound volume increases.•If you want to turn off the sound of the navigation sys-
tem, select to display "OFF".
• To make sure the volume level, select .
Legacy_B2462BE-A.book Page 25 Wednesday, April 22, 2009 5:32 PM

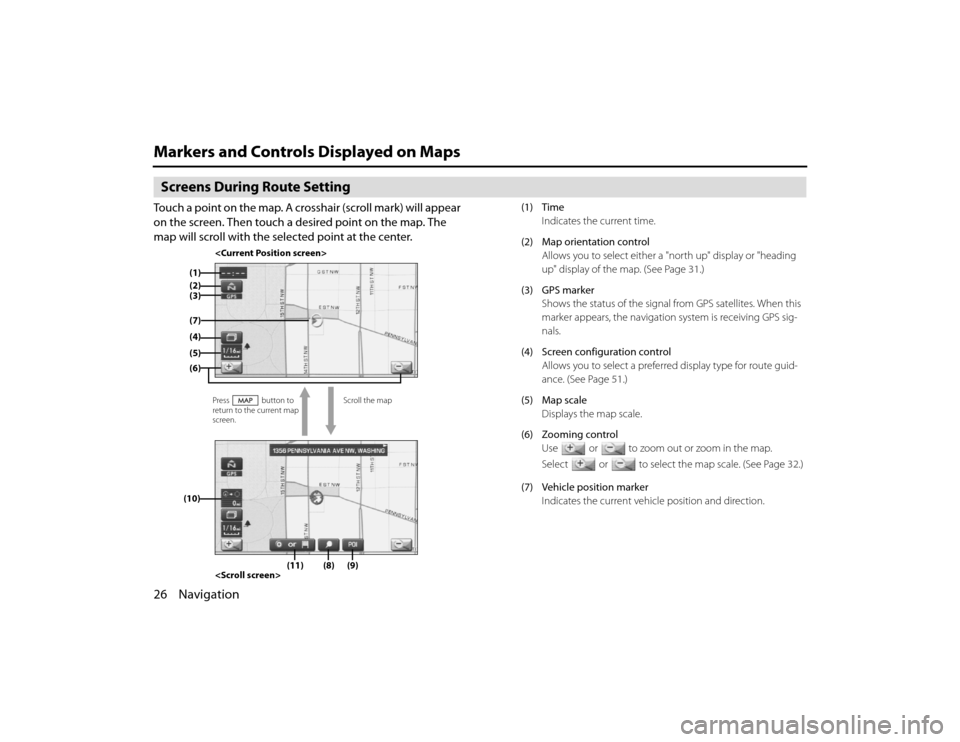

26 NavigationMarkers and Controls Displayed on MapsScreens During Route SettingTouch a point on the map. A crosshair (scroll mark) will appear
on the screen. Then touch a desired point on the map. The
map will scroll with the selected point at the center.
(1) TimeIndicates the current time.
(2) Map orientation control Allows you to select either a "north up" display or "heading
up" display of the map. (See Page 31.)
(3) GPS marker Shows the status of the signal from GPS satellites. When this
marker appears, the navigation system is receiving GPS sig-
nals.
(4) Screen configuration control Allows you to select a preferred display type for route guid-
ance. (See Page 51.)
(5) Map scale Displays the map scale.
(6) Zooming control Use or to zoom out or zoom in the map.
Select or to select the map scale. (See Page 32.)
(7) Vehicle position marker Indicates the current vehicle position and direction.
(4)
Scroll the map

Press button to
return to the current map
screen.
(1)
(2)(6)(7)(5)(10)
(9)
(8)
(11)(3)
Legacy_B2462BE-A.book Page 26 Wednesday, April 22, 2009 5:32 PM

Navigation 27
Markers and Controls Displayed on Maps
(8) "Store memory point" keyStores the marked position on the map as a memory point.
(9) Point of interest (POI) key Allows you to display the POI selection screen (See Page 87).
On the screen, you can program POIs to appear on a map as
markers.
(10) Distance from current position Indicates the distance from th e current vehicle position to
the position marked by .
(11) Destination/waypoint key Programs a destination or wayp oint at the position marked
by on a scroll screen.
