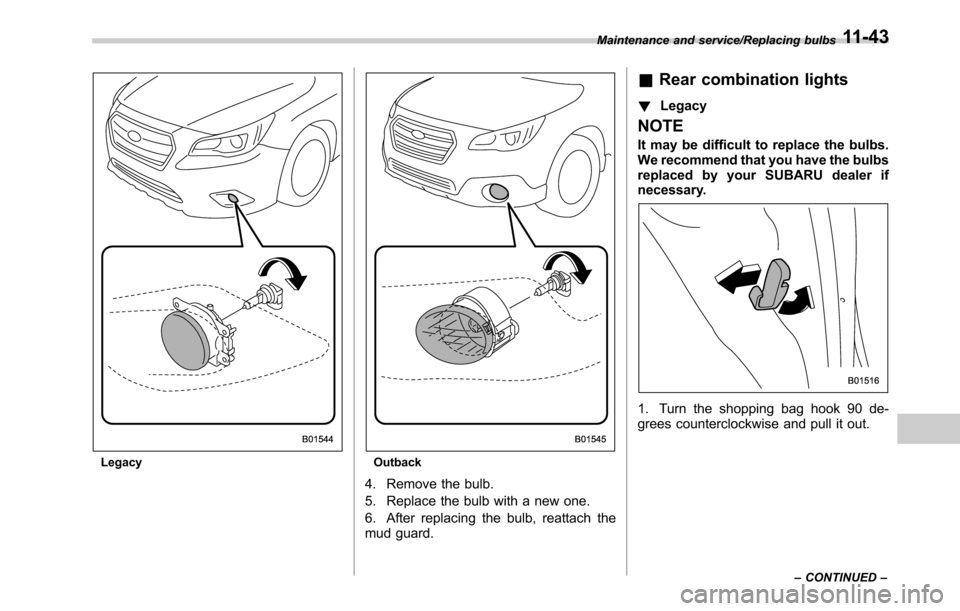

4. Remove the bulb.
5. Replace the bulb with a new one.
6. After replacing the bulb, reattach the
mud guard.
&Rear combination lights
!Legacy
NOTE
It may be difficult to replace the bulbs.
We recommend that you have the bulbs
replaced by your SUBARU dealer if
necessary.
1. Turn the shopping bag hook 90 de-
grees counterclockwise and pull it out.
Maintenance and service/Replacing bulbs
–CONTINUED–11-43

Maintenance and service/Replacing bulbs
2. Turn over the trunk trim panel.

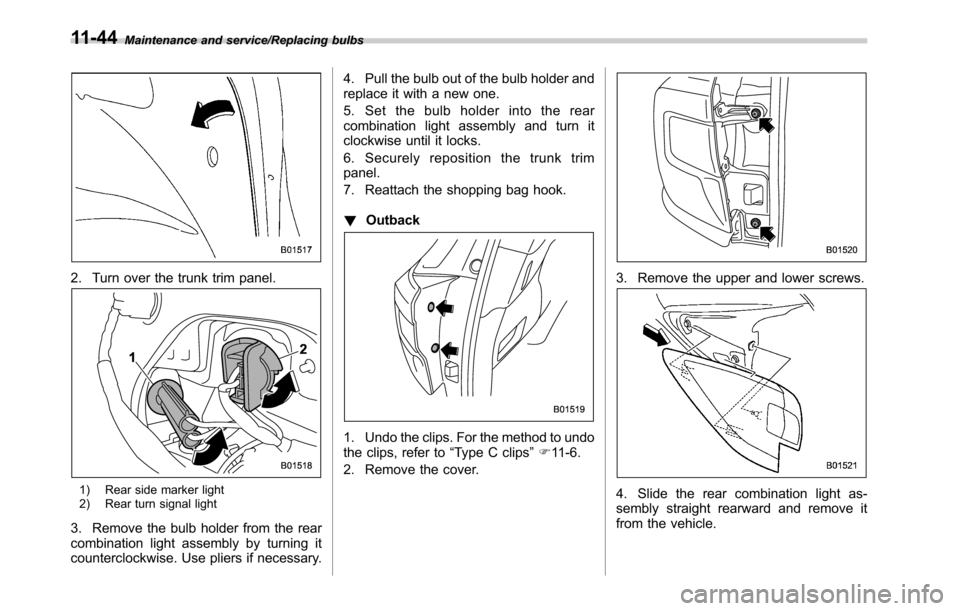

1) Rear side marker light
2) Rear turn signal light
3. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise. Use pliers if necessary.4. Pull the bulb out of the bulb holder and
replace it with a new one.
5. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
6. Securely reposition the trunk trim
panel.
7. Reattach the shopping bag hook.
!Outback
1. Undo the clips. For the method to undo
the clips, refer to“Type C clips”F11-6.
2. Remove the cover.
3. Remove the upper and lower screws.
4. Slide the rear combination light as-
sembly straight rearward and remove it
from the vehicle.
11-44

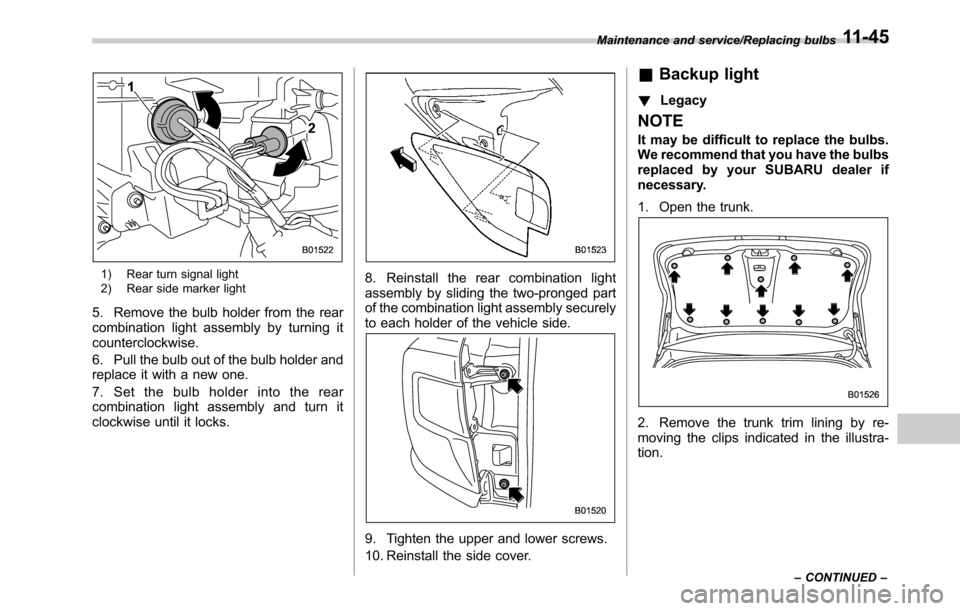

1) Rear turn signal light
2) Rear side marker light
5. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
6. Pull the bulb out of the bulb holder and
replace it with a new one.
7. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
8. Reinstall the rear combination light
assembly by sliding the two-pronged part
of the combination light assembly securely
to each holder of the vehicle side.
9. Tighten the upper and lower screws.
10. Reinstall the side cover.
&Backup light
!Legacy
NOTE
It may be difficult to replace the bulbs.
We recommend that you have the bulbs
replaced by your SUBARU dealer if
necessary.
1. Open the trunk.
2. Remove the trunk trim lining by re-
moving the clips indicated in the illustra-
tion.
Maintenance and service/Replacing bulbs
–CONTINUED–11-45

Maintenance and service/Replacing bulbs
3. Turn the bulb socket counterclockwise
and remove it.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Install the bulb socket by turning it
clockwise.
6. Reconnect the electrical connector.
7. Reinstall the trunk trim lining.!Outback
1. Apply a flat-head screwdriver to the
light cover as shown in the illustration, and
pry the light cover off from the rear gate
trim.
2. Turn the bulb socket counterclockwise
and remove it.
3. Pull the bulb out of the bulb socket and
replace it with a new one.
4. Install the bulb socket by turning it
clockwise.
11-46

5. Install the light cover on the rear gate.
&License plate light
!Legacy
NOTE
It may be difficult to replace the bulbs.
We recommend that you have the bulbs
replaced by your SUBARU dealer if
necessary.
1. Open the trunk.
2. Remove the trunk trim lining by re-
moving the clips indicated in the illustra-
tion.
3. Turn the bulb socket counterclockwise
and remove it.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Install the bulb socket by turning it
clockwise.
6. Reconnect the electrical connector.
7. Reinstall the trunk trim lining.!Outback
1. To remove the right-hand side license
plate light cover, insert a finger into the
right side of the cover, and then press
once to the left and pull it out. To remove
the left-hand side license plate light cover,
insert a finger into the left side of the
cover, and then press once to the right
and pull it out.
Maintenance and service/Replacing bulbs
–CONTINUED–11-47

Maintenance and service/Replacing bulbs
2. Turn the bulb socket counterclockwise
and pull out the socket.
3. Pull the bulb out of the socket.
4. Install a new bulb.
5. Reinstall the bulb socket and the
license plate light cover.
&Dome light
1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
2. Turn the bulb until the flat surfaces at
its ends are aligned vertically.3. Pull the bulb straight downward to
remove it.
4. Install a new bulb.
5. Reinstall the lens.
&Map light
CAUTION
Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.
&Door step light
CAUTION
Replacing the bulb could cause a
short circuit. Have the bulb replaced
by your SUBARU dealer.
11-48

&Cargo area light (Outback)
1. Remove the lens by prying the edge of
the lens with a flat-head screwdriver.
2. Pull the bulb out of the socket.
3. Install a new bulb.4. Reinstall the lens.
&Trunk light (Legacy)
CAUTION
Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.
&Other bulbs
It may be difficult to replace the bulbs.
We recommend that you have the bulbs
replaced by your SUBARU dealer if
necessary.
Replacing battery
The access key / transmitter battery may
be discharged under the following condi-
tions.
.The operation of the keyless access
function is unstable
.The operating distance of the remote
keyless entry system is unstable
.The transmitter does not operate prop-
erly when used within the standard dis-
tance
Replace the battery with a new one.
CAUTION
.Do not let dust, oil or water get on
or in the access key/transmitter
when replacing battery.
.Be careful not to damage the
printed circuit board in the ac-
cess key/transmitter when repla-
cing the battery.
.Be careful not to allow children to
touch the battery and any re-
moved parts; children could
swallow them.
.There is a danger of an explosion
if the battery is incorrectly re-
placed. Replace only with the
Maintenance and service/Replacing battery
–CONTINUED–11-49

Maintenance and service/Replacing battery
same or equivalent type of the
battery.
.Batteries shall not be exposed to
excessive heat such as bright
sunlight, fire or the like.
NOTE
.Replace only with the same or
equivalent type of battery recom-
mended by the manufacturer.
.Dispose of used batteries according
to the local laws.
.Mount the battery in the correct
orientation to prevent fluid leakage.
Be careful not to bend the terminals. It
may result in a malfunction.
.It is recommended that the battery
should be replaced by a SUBARU
dealer.
.Use a new battery.
.After replacing the battery, confirm
that the access key/transmitter func-
tions properly.
&Replacing battery of access
key
CAUTION
When removing or fitting the access
key cover, make sure that the plastic
part does not come off or become
misaligned.
Battery: Button battery CR2032

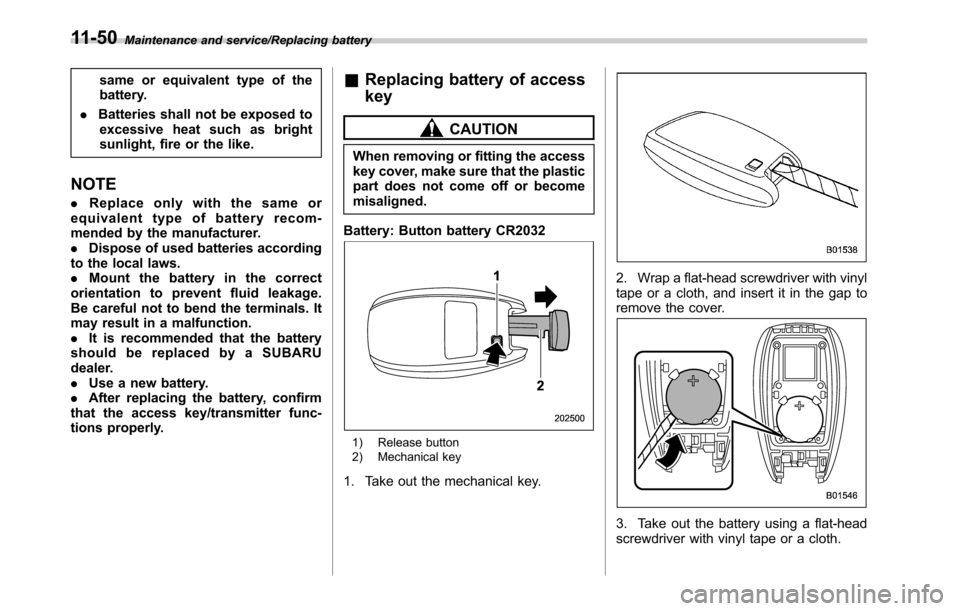

1) Release button
2) Mechanical key
1. Take out the mechanical key.
2. Wrap a flat-head screwdriver with vinyl
tape or a cloth, and insert it in the gap to
remove the cover.

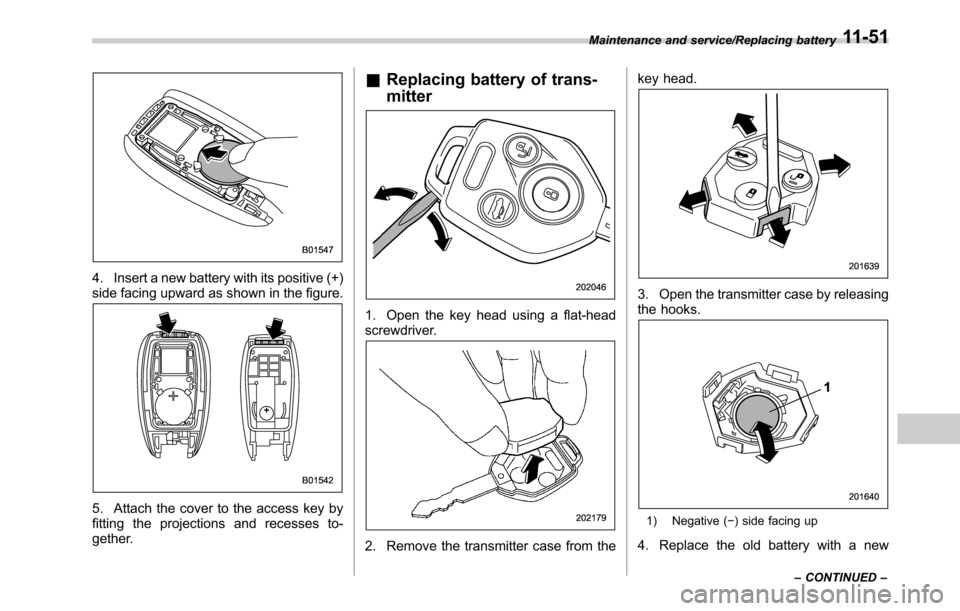

3. Take out the battery using a flat-head
screwdriver with vinyl tape or a cloth.
11-50

4. Insert a new battery with its positive (+)
side facing upward as shown in the figure.
5. Attach the cover to the access key by
fitting the projections and recesses to-
gether.
&Replacing battery of trans-
mitter
1. Open the key head using a flat-head
screwdriver.
2. Remove the transmitter case from thekey head.
3. Open the transmitter case by releasing
the hooks.
1) Negative (−) side facing up
4. Replace the old battery with a new
Maintenance and service/Replacing battery
–CONTINUED–11-51

Maintenance and service/Replacing battery
battery (TypeCR1620or equivalent)
making sure to install the new battery with
the negative (−) side facing up.
5. Put together the transmitter case by
fitting the hooks on the case.
6. Reinstall the transmitter case in the
key head.
7. Refit the removed half of the key head.
After the battery is replaced, the trans-
mitter must be synchronized with the
remote keyless entry system’s control
unit. Press either the“
”or“”button
six times to synchronize the unit.
