SUBARU LEGACY 2017 6.G Multimedia System Manual

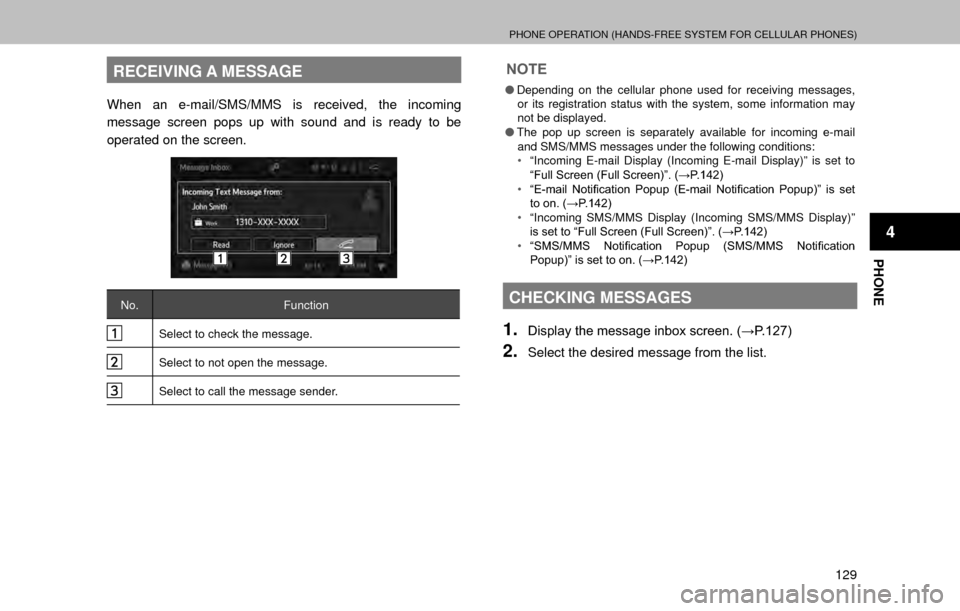

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
129
PHONE
4
RECEIVING A MESSAGE
When an e-mail/SMS/MMS is received, the incoming
message screen pops up with sound and is ready to be
operated on the screen.
No.Function
Select to check the message.
Select to not open the message.
Select to call the message sender.
NOTE
ODepending on the cellular phone used for receiving messages,
or its registration status with the system, some information may
not be displayed.
O The pop up screen is separately available for incoming e-mail
and SMS/MMS messages under the following conditions:
‡ “Incoming E-mail Display (Incoming E-mail Display)” is set to

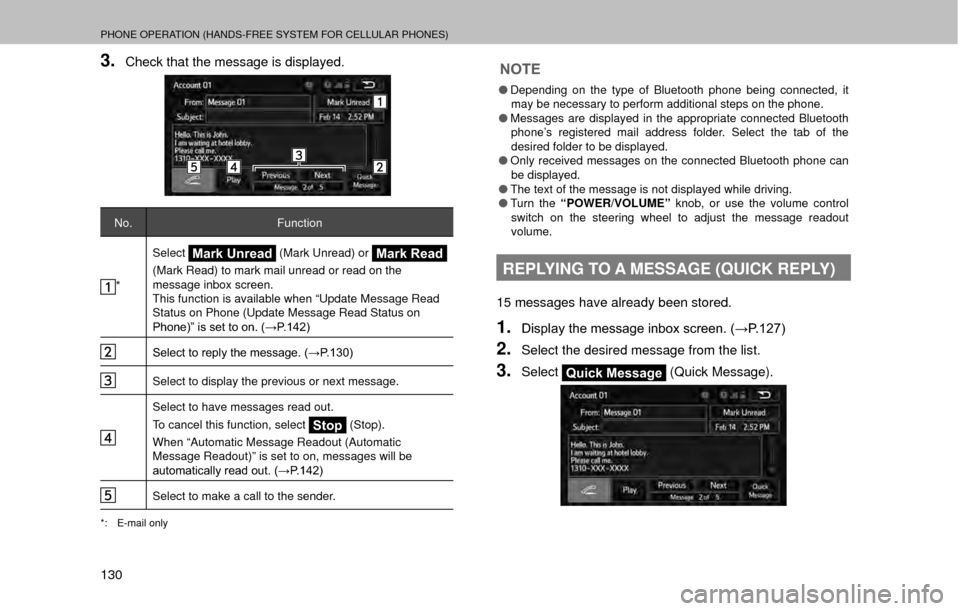

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
130
3.Check that the message is displayed.
No.Function
*Select
Mark Unread (Mark Unread) or Mark Read
(Mark Read) to mark mail unread or read on the
message inbox screen.
This function is available when “Update Message Read
Status on Phone (Update Message Read Status on
3KRQH

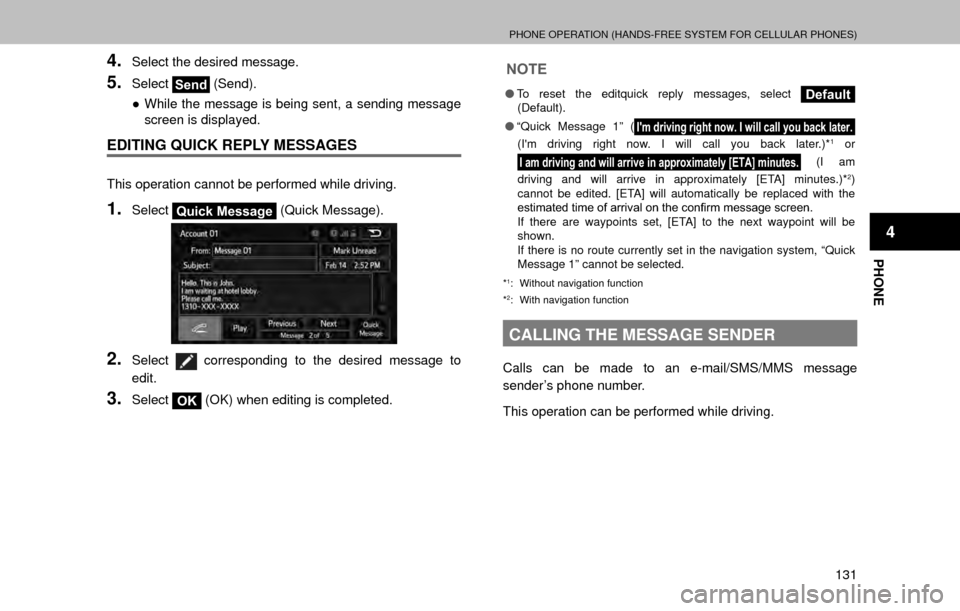

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
131
PHONE
4
4.Select the desired message.
5.SelectSend (Send).

” While the message is being sent, a sending message
screen is displayed.
EDITING QUICK REPLY MESSAGES
This operation cannot be performed while driving.
1.SelectQuick Message (Quick Message).
2.Select corresponding to the desired message to
edit.
3.SelectOK (OK) when editing is completed.
NOTE
O
To reset the editquick reply messages, select Default(Default).
O “Quick Message 1” (
I'm driving right now. I will call you back later.
(I'm driving right now. I will call you back later.)*1 or
I am driving and will arrive in approximately [ETA] minutes. (I am
driving and will arrive in approximately [ETA] minutes.)*2)
cannot be edited. [ETA] will automatically be replaced with the
HVWLPDWHGWLPHRIDUULYDORQWKHFRQ¿UPPHVVDJHVFUHHQ
If there are waypoints set, [ETA] to the next waypoint will be
shown.
If there is no route currently set in the navigation system, “Quick
Message 1” cannot be selected.
*1: Without navigation function
*2: With navigation function
CALLING THE MESSAGE SENDER
Calls can be made to an e-mail/SMS/MMS message
sender’s phone number.
This operation can be performed while driving.

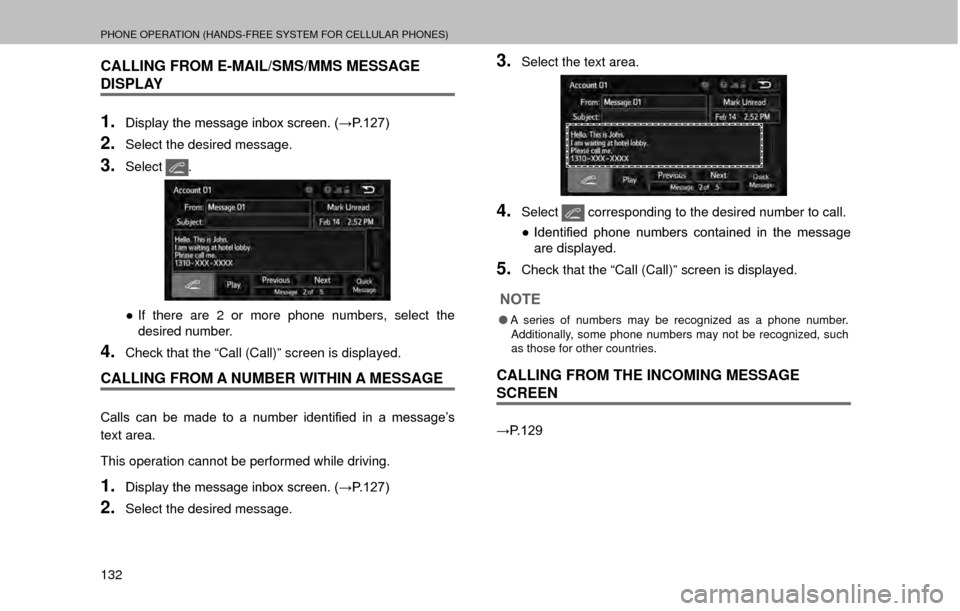

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
132
CALLING FROM E-MAIL/SMS/MMS MESSAGE
DISPLAY
1.'LVSOD\WKHPHVVDJHLQER[VFUHHQ
:3
2.Select the desired message.
3.Select.

”If there are 2 or more phone numbers, select the
desired number.
4.Check that the “Call (Call)” screen is displayed.
CALLING FROM A NUMBER WITHIN A MESSAGE
&DOOV FDQ EH PDGH WR D QXPEHU LGHQWL

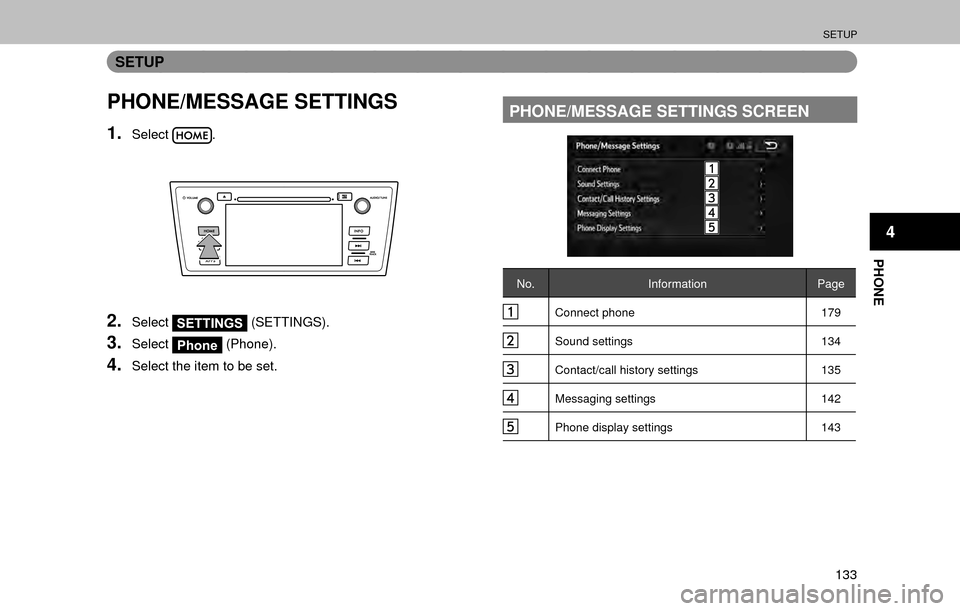

SETUP
133
PHONE
4
SETUP
PHONE/MESSAGE SETTINGS
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectPhone (Phone).
4.Select the item to be set.
PHONE/MESSAGE SETTINGS SCREEN
No.
Information Page
Connect phone 179
Sound settings134
Contact/call history settings135
Messaging settings 142
Phone display settings143

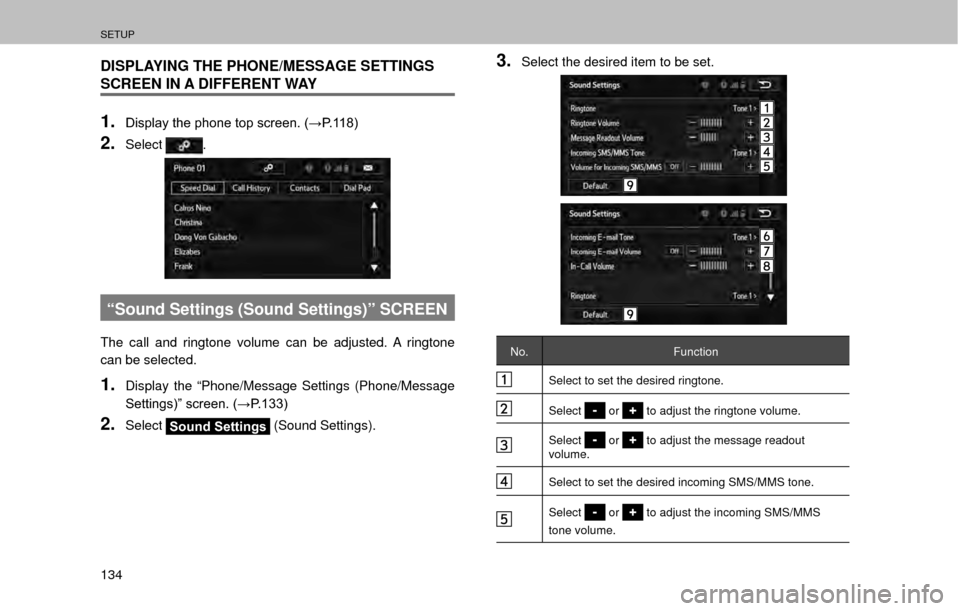

SETUP
134
DISPLAYING THE PHONE/MESSAGE SETTINGS
SCREEN IN A DIFFERENT WAY
1.'LVSOD\WKHSKRQHWRSVFUHHQ
:3
2.Select.
“Sound Settings (Sound Settings)” SCREEN
The call and ringtone volume can be adjusted. A ringtone
can be selected.
1.Display the “Phone/Message Settings (Phone/Message
6HWWLQJV

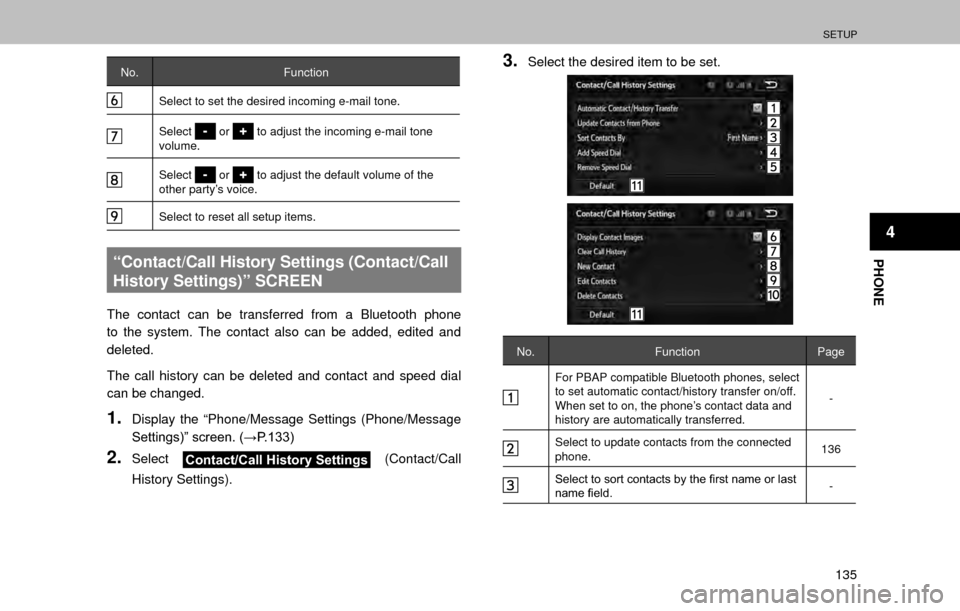

SETUP
135
PHONE
4
No.Function
Select to set the desired incoming e-mail tone.
Select or to adjust the incoming e-mail tone
volume.
Select or to adjust the default volume of the
other party’s voice.
Select to reset all setup items.
“Contact/Call History Settings (Contact/Call
History Settings)” SCREEN
The contact can be transferred from a Bluetooth phone
to the system. The contact also can be added, edited and
deleted.
The call history can be deleted and contact and speed dial
can be changed.
1.Display the “Phone/Message Settings (Phone/Message
6HWWLQJV

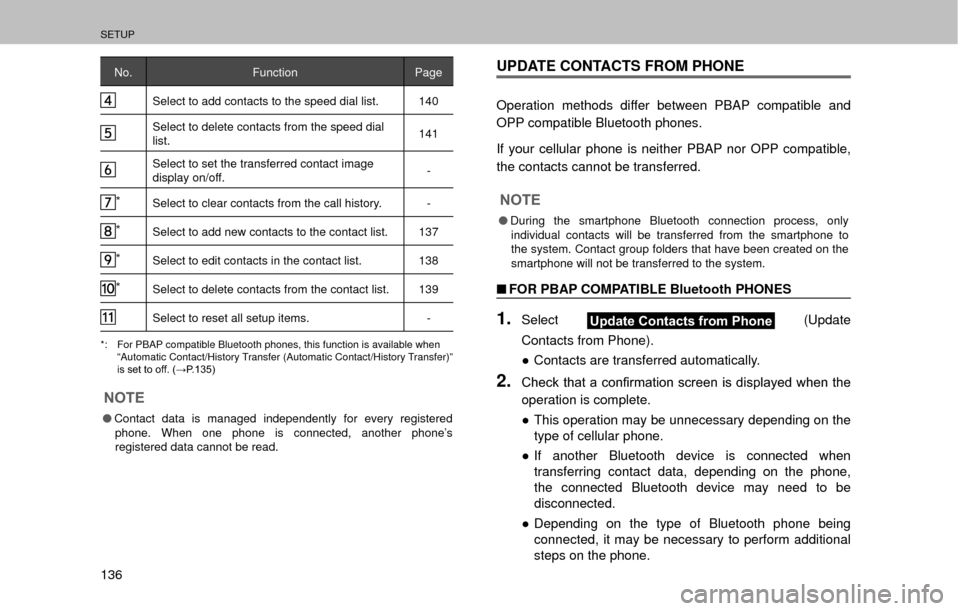

SETUP
136
No.Function Page
Select to add contacts to the speed dial list. 140
Select to delete contacts from the speed dial
list. 141
Select to set the transferred contact image
display on/off. -
*
Select to clear contacts from the call history. -
*Select to add new contacts to the contact list. 137
*Select to edit contacts in the contact list. 138
*Select to delete contacts from the contact list. 139
Select to reset all setup items. -
*: For PBAP compatible Bluetooth phones, this function is available when
“Automatic Contact/History Transfer (Automatic Contact/History Transfer)”
LVVHWWRRII
:3
NOTE
OContact data is managed independently for every registered
phone. When one phone is connected, another phone’s
registered data cannot be read.
UPDATE CONTACTS FROM PHONE
Operation methods differ between PBAP compatible and
OPP compatible Bluetooth phones.
If your cellular phone is neither PBAP nor OPP compatible,
the contacts cannot be transferred.
NOTE
O During the smartphone Bluetooth connection process, only
individual contacts will be transferred from the smartphone to
the system. Contact group folders that have been created on the
smartphone will not be transferred to the system.
Q FOR PBAP COMPATIBLE Bluetooth PHONES
1.SelectUpdate Contacts from Phone (Update
Contacts from Phone).

” Contacts are transferred automatically.
2.&KHFN WKDW D FRQ

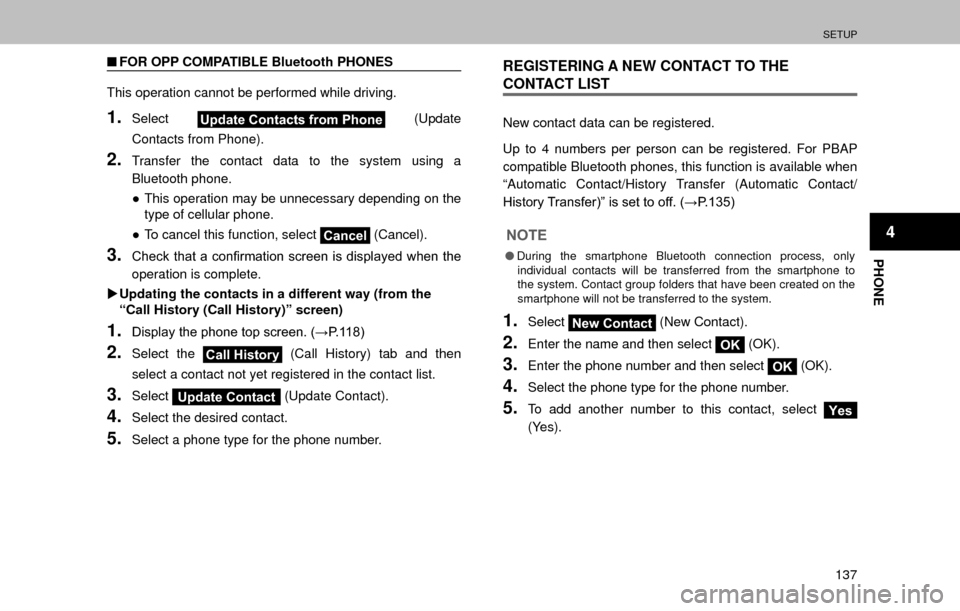

SETUP
137
PHONE
4
QFOR OPP COMPATIBLE Bluetooth PHONES
This operation cannot be performed while driving.
1.SelectUpdate Contacts from Phone (Update
Contacts from Phone).
2.Transfer the contact data to the system using a
Bluetooth phone.

” This operation may be unnecessary depending on the
type of cellular phone.

” To cancel this function, select
Cancel (Cancel).
3.&KHFN WKDW D FRQ

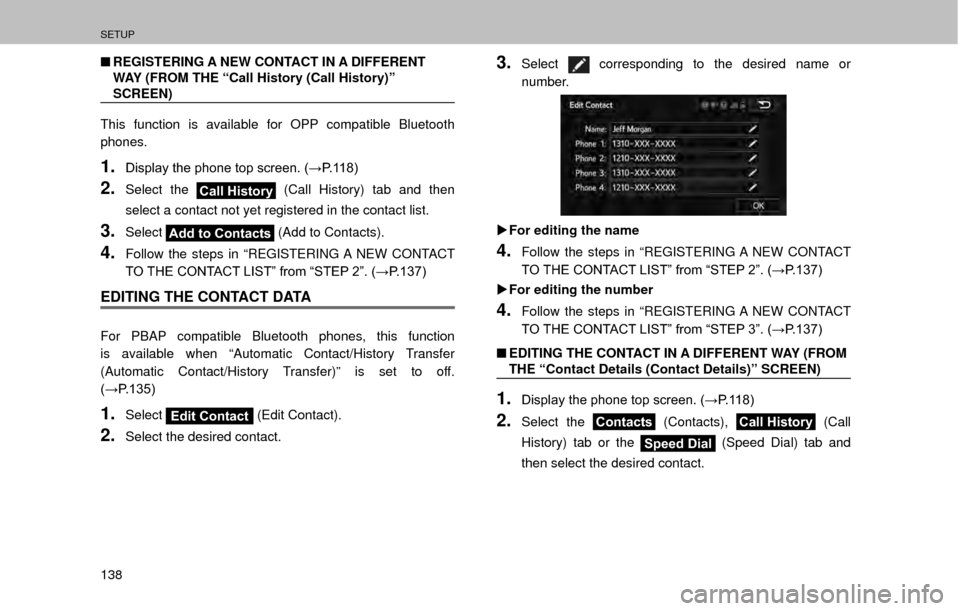

SETUP
138
QREGISTERING A NEW CONTACT IN A DIFFERENT
WAY (FROM THE “Call History (Call History)”
SCREEN)
This function is available for OPP compatible Bluetooth
phones.
1.'LVSOD\WKHSKRQHWRSVFUHHQ
:3
2.Select the Call History (Call History) tab and then
select a contact not yet registered in the contact list.
3.SelectAdd to Contacts (Add to Contacts).
4.Follow the steps in “REGISTERING A NEW CONTACT
727+(&217$&7/,67
