SUBARU LEGACY 2017 6.G Multimedia System Manual

19

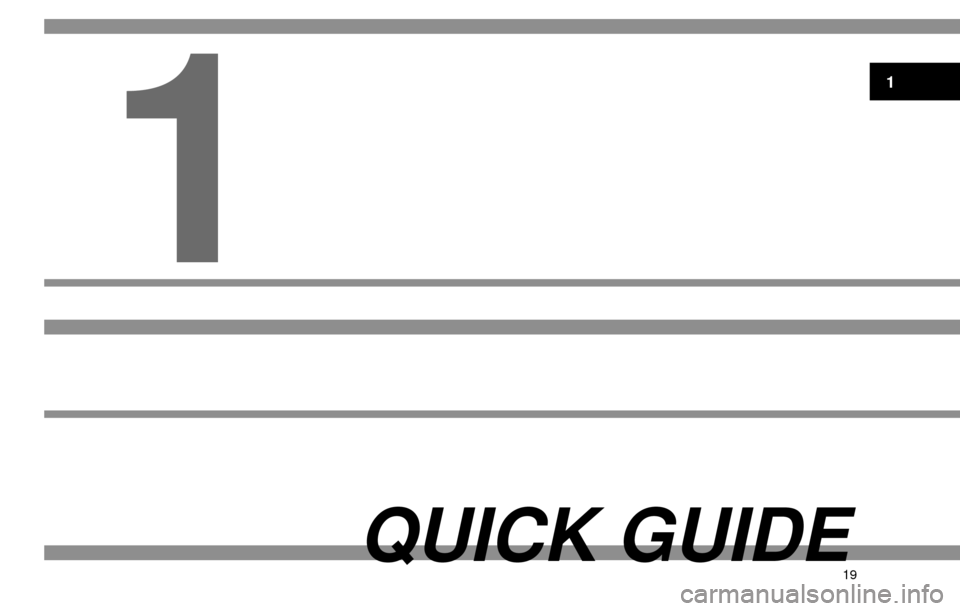

QUICK GUIDE
1
1

BASIC FUNCTION
20
BASIC FUNCTION
OVERVIEW BUTTONS
XWithout navigation function
XWith navigation function
No. Function Page
%\WRXFKLQJWKHVFUHHQZLWK\RXU

BASIC FUNCTION
21
1
QUICK GUIDE
No.Function Page
Select or to seek up or
down for a radio station or to access a
GHVLUHGWUDFN¿OH
Press and hold
or to
continuously seek for a radio station, or
WRIDVWIRUZDUGUHZLQG¿OHVRUWUDFNV 60, 69,
78, 81,
84, 87,
91,
152, 158
Select to display the “APPS (APPS)”
screen. 23
*1Select to access the Bluetooth hands-
free system.11 4
Select to display the “HOME (HOME)”
screen. 22
Press the
“POWER/VOLUME” knob to
turn the audio system on and off, and
turn it to adjust the volume.
Press and hold to turn the screen off. 54
Press to eject a disc.
41
No.Function Page
*2*3microSD card slot*4
Open the cover and insert an SD card
into this slot. 42
*2*3Select to display the navigation screen
(while the map SD card is inserted).
200
*1: Without navigation function
*2: With navigation function
*3: An “Unable to read the map SD data. Check the map SD. If necessary, consult your dealer.” message appears if the map SD card is not inserted,
or if an SD card containing no map data is inserted.
*
4: In this manual, microSD card is now referred to as SD card.

BASIC FUNCTION
22

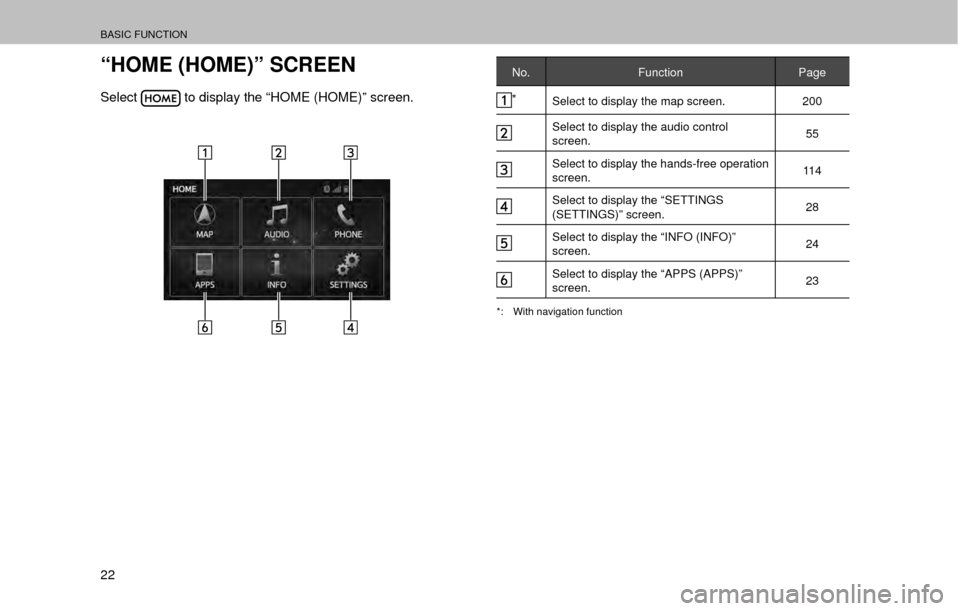

“HOME (HOME)” SCREEN
Select to display the “HOME (HOME)” screen.
No.Function Page
*
Select to display the map screen. 200
Select to display the audio control
screen. 55
Select to display the hands-free operation
screen.11 4
Select to display the “SETTINGS
(SETTINGS)” screen. 28
Select to display the “INFO (INFO)”
screen.24
Select to display the “APPS (APPS)”
screen.23
*: With navigation function

BASIC FUNCTION
23
1
QUICK GUIDE

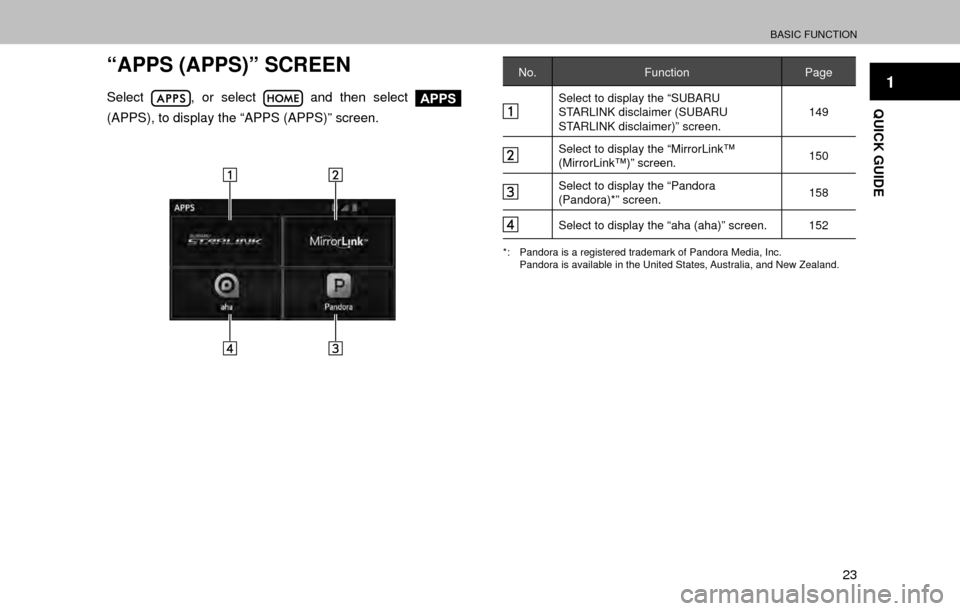

“APPS (APPS)” SCREEN
Select, or select and then select APPS
(APPS), to display the “APPS (APPS)” screen.
No. Function Page
Select to display the “SUBARU
STARLINK disclaimer (SUBARU
STARLINK disclaimer)” screen. 149
Select to display the “MirrorLink™
(MirrorLink™)” screen.
150
Select to display the “Pandora
(Pandora)*” screen.158
Select to display the “aha (aha)” screen. 152
*: Pandora is a registered trademark of Pandora Media, Inc.
Pandora is available in the United States, Australia, and New Zealand.

BASIC FUNCTION
24
“INFO (INFO)” SCREEN
This screen can be used to specify vehicle maintenance
settings, display photos, etc.
Select
, or select and then select INFO
(INFO), to display the “INFO (INFO)” screen.
No. Function Page
Select to display sports information. 162
Select to display weather information. 163
No.Function Page
Select to display stocks information. 167
*1Select to display fuel information. 168
Select to view pictures in the USB
memory connected to USB port 1. 81
Select to display the “Maintenance
(Maintenance)” screen.196
Select to display the “Eco Monitor (Eco
Monitor)” screen.170
Select to display the “Vehicle Monitor
(Vehicle Monitor)” screen.169
Select to view pictures in the USB
memory connected to USB port 2. 81
*2Select to view pictures in the SD card. 87
Select to reorder the menu icons.
47
*1: Service is not available in Canada.
*2: With navigation function

BASIC FUNCTION
25
1
QUICK GUIDE
SPLIT SCREEN
Press and hold the “AUDIO/TUNE” knob, to display the
split screen.
The split screen can display two information screens
simultaneously, such as the audio system screen and
hands-free screen or the hands-free screen and navigation*
screen. When hands-free mode is selected, it is possible
to make a call on the home screen if the desired telephone
number is registered to one of the 4 displayed buttons. In
order to register the contact, select and hold the desired
button and register the desired contact by obey displayed
PHVVDJHVRQWKHVFUHHQ
:3
*: With navigation function
When a screen is selected, the selected screen is switched
to a full-screen display. The split screen can be set to a two-
way split screen.
)RUGHWDLOVDERXWVHWWLQJWKHVSOLWVFUHHQ
:3No. Function Page
Select to display the “Customize Split
Screen (Customize Split Screen)” screen. 48

BASIC FUNCTION
26
STATUS DISPLAY
The status of the Bluetooth connection and so on is
displayed on the screen.
No. IndicatorsConditions
This icon is displayed when a disc has been
inserted.
This icon is displayed when audio is off or the steering switch is pressed.
No. IndicatorsConditions
This icon is displayed when the Bluetooth
connection is established.
An antenna for the Bluetooth connection is
built into the instrument panel. The condition
of the Bluetooth connection may deteriorate
and the system may not function when a
Bluetooth device is used in the following
conditions and/or places:
The Bluetooth device is obstructed by certain
objects (such as when it is behind the seat or
in the glove box or console box).
The Bluetooth device is touching or is
covered with metal materials.
Leave the Bluetooth device in a place where
the condition of the Bluetooth connection is
good.
The
level of
receptionPoor
Excellent
The level of reception does not always
correspond with the level displayed on the
cellular phone. The level of reception may not
be displayed depending on the phone you
have.
“Rm” is displayed when receiving in a
roaming area. While roaming, display “Rm”
top-left on the icon.
The receiving area may not be displayed
depending on the type of phone you have.

BASIC FUNCTION
27
1
QUICK GUIDE
No. IndicatorsConditions
The
amount
of battery
charge leftLow
Full
The amount displayed does not always
correspond with the amount displayed on the
Bluetooth device.
The amount of battery charge left may not
be displayed depending on the type of the
Bluetooth device connected.

QUICK REFERENCE
28
QUICK REFERENCE
“SETTINGS (SETTINGS)” SCREEN
The items shown on the “SETTINGS (SETTINGS)” screen
can be set. Select
and then select SETTINGS
(SETTINGS) to display the “SETTINGS (SETTINGS)”
screen.
No. Function Page
Select to turn the screen off. -
Select to change the selected language,
operation sound, automatic screen
change settings, etc.188
Select to customize the split screen.
48
Select to specify voice settings.193
Select to specify audio settings. 98
Select to specify phone sound, contacts,
message settings, etc.133
Select to set Bluetooth phones and
Bluetooth audio devices.179
Select to adjust the brightness, contrast,
tone and color of the screens. 51
Select to set vehicle customization.
194
Select to specify vehicle information
settings.171, 171,
172
