SUBARU LEGACY 2017 6.G Owners Manual

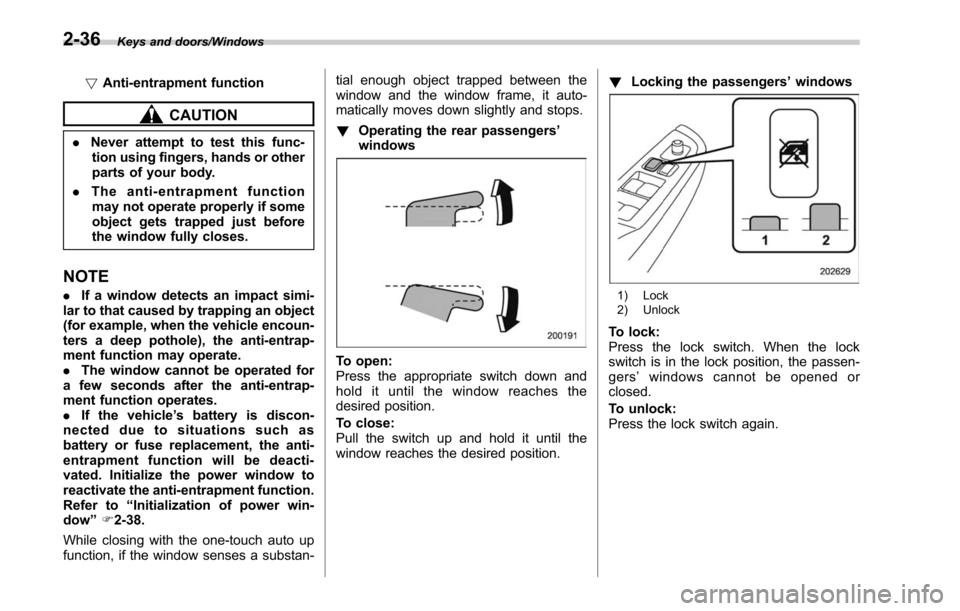

Keys and doors/Windows
!Anti-entrapment function
CAUTION
.Never attempt to test this func-
tion using fingers, hands or other
parts of your body.
. The anti-entrapment function
may not operate properly if some
object gets trapped just before
the window fully closes.
NOTE
. If a window detects an impact simi-
lar to that caused by trapping an object
(for example, when the vehicle encoun-
ters a deep pothole), the anti-entrap-
ment function may operate.
. The window cannot be operated for
a few seconds after the anti-entrap-
ment function operates.
. If the vehicle ’s battery is discon-
nected due to situations such as
battery or fuse replacement, the anti-
entrapment function will be deacti-
vated. Initialize the power window to
reactivate the anti-entrapment function.
Refer to “Initialization of power win-
dow ”F 2-38.
While closing with the one-touch auto up
function, if the window senses a substan- tial enough object trapped between the
window and the window frame, it auto-
matically moves down slightly and stops.
!
Operating the rear passengers ’
windows
To open:
Press the appropriate switch down and
hold it until the window reaches the
desired position.
To close:
Pull the switch up and hold it until the
window reaches the desired position. !
Locking the passengers ’windows
1) Lock
2) Unlock
To lock:
Press the lock switch. When the lock
switch is in the lock position, the passen-
gers ’windows cannot be opened or
closed.
To unlock:
Press the lock switch again.
2-36

&Power window operation by
passengers
! Passenger ’s side power window
switches
Each passenger window can be controlled
by the power window switch located on
the door. !
Operating the front passenger ’s
window
1) Automatically open/close (if equipped)
2) Open/close
To open:
Press the switch down lightly and hold it.
The window will open as long as the
switch is held.
For some models, this switch also has a
one-touch auto down function. To open
the window fully, press the switch down
until it clicks and then release it. To stop
the window halfway, pull the switch up
lightly.
To close:
Pull the switch up lightly and hold it. The
window will close as long as the switch is
held. For some models, this switch also has a
one-touch auto up function. To close the
window fully, pull the switch up until it
clicks and then release it. To stop the
window halfway, press the switch down
lightly.
NOTE
If the vehicle
’s battery is disconnected
due to situations such as battery or
fuse replacement, the one-touch auto
up/down function will be deactivated.
Initialize the power window to reacti-
vate the one-touch auto up/down func-
tion. Refer to “Initialization of power
window ”F 2-38.
! Anti-entrapment function (mod-
els with one-touch auto up/down
function)
Refer to “Anti-entrapment function ”F 2-
36.
Keys and doors/Windows
–CONTINUED –2-37

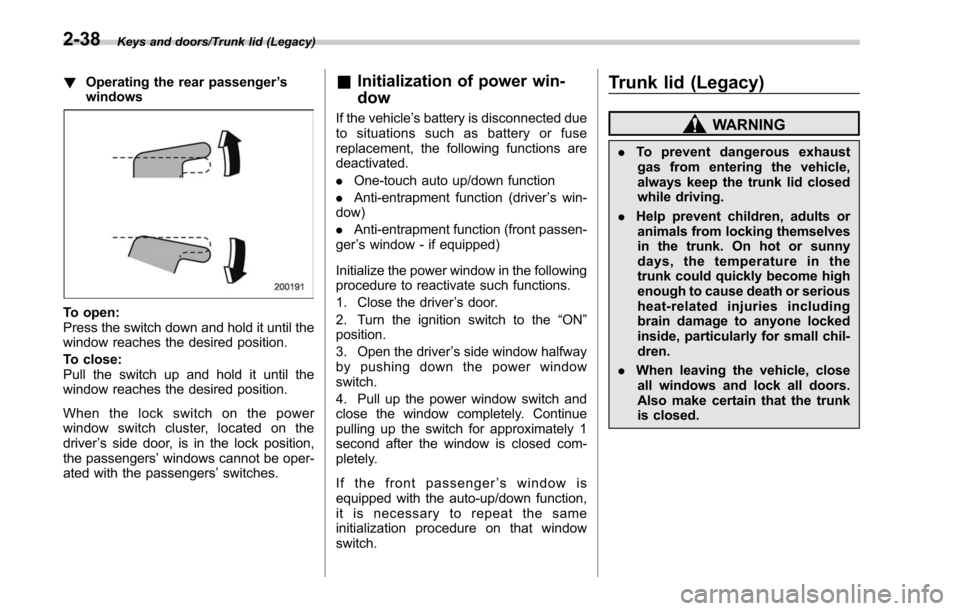

Keys and doors/Trunk lid (Legacy)
!Operating the rear passenger ’s
windows
To open:
Press the switch down and hold it until the
window reaches the desired position.
To close:
Pull the switch up and hold it until the
window reaches the desired position.
When the lock switch on the power
window switch cluster, located on the
driver ’s side door, is in the lock position,
the passengers’ windows cannot be oper-
ated with the passengers’ switches.
&Initialization of power win-
dow
If the vehicle’ s battery is disconnected due
to situations such as battery or fuse
replacement, the following functions are
deactivated.
. One-touch auto up/down function
. Anti-entrapment function (driver ’s win-
dow)
. Anti-entrapment function (front passen-
ger ’s window - if equipped)
Initialize the power window in the following
procedure to reactivate such functions.
1. Close the driver ’s door.
2. Turn the ignition switch to the “ON”
position.
3. Open the driver ’s side window halfway
by pushing down the power window
switch.
4. Pull up the power window switch and
close the window completely. Continue
pulling up the switch for approximately 1
second after the window is closed com-
pletely.
If the front passenger ’s window is
equipped with the auto-up/down function,
it is necessary to repeat the same
initialization procedure on that window
switch.
Trunk lid (Legacy)
WARNING
. To prevent dangerous exhaust
gas from entering the vehicle,
always keep the trunk lid closed
while driving.
. Help prevent children, adults or
animals from locking themselves
in the trunk. On hot or sunny
days, the temperature in the
trunk could quickly become high
enough to cause death or serious
heat-related injuries including
brain damage to anyone locked
inside, particularly for small chil-
dren.
. When leaving the vehicle, close
all windows and lock all doors.
Also make certain that the trunk
is closed.
2-38

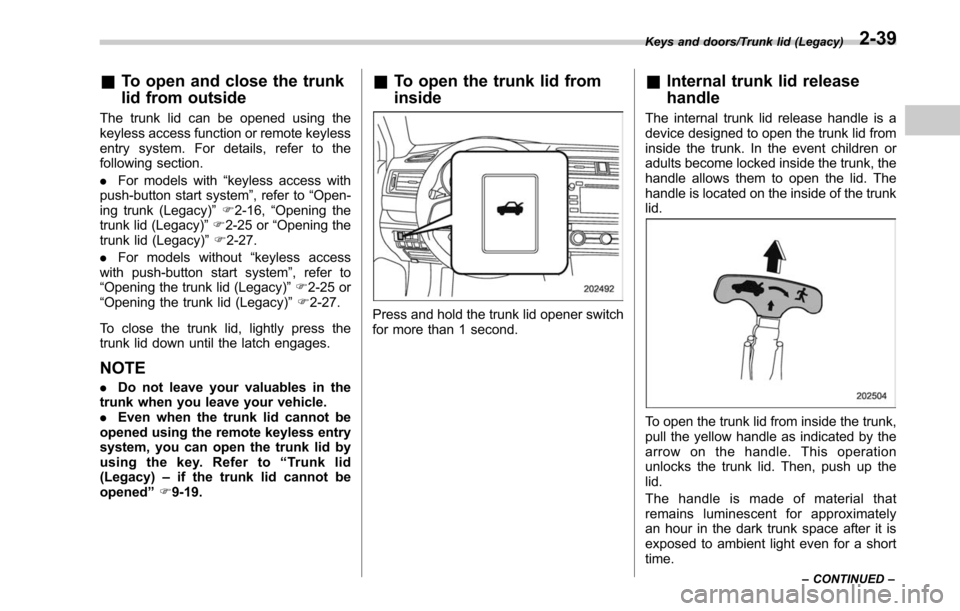

&To open and close the trunk
lid from outside
The trunk lid can be opened using the
keyless access function or remote keyless
entry system. For details, refer to the
following section.
. For models with “keyless access with
push-button start system ”, refer to“Open-
ing trunk (Legacy) ”F 2-16, “Opening the
trunk lid (Legacy) ”F 2-25 or “Opening the
trunk lid (Legacy) ”F 2-27.
. For models without “keyless access
with push-button start system ”, refer to
“Opening the trunk lid (Legacy) ”F 2-25 or
“Opening the trunk lid (Legacy) ”F 2-27.
To close the trunk lid, lightly press the
trunk lid down until the latch engages.
NOTE
. Do not leave your valuables in the
trunk when you leave your vehicle.
. Even when the trunk lid cannot be
opened using the remote keyless entry
system, you can open the trunk lid by
using the key. Refer to “Trunk lid
(Legacy) –if the trunk lid cannot be
opened ”F 9-19.
& To open the trunk lid from
inside
Press and hold the trunk lid opener switch
for more than 1 second.
&Internal trunk lid release
handle
The internal trunk lid release handle is a
device designed to open the trunk lid from
inside the trunk. In the event children or
adults become locked inside the trunk, the
handle allows them to open the lid. The
handle is located on the inside of the trunk
lid.
To open the trunk lid from inside the trunk,
pull the yellow handle as indicated by the
arrow on the handle. This operation
unlocks the trunk lid. Then, push up the
lid.
The handle is made of material that
remains luminescent for approximately
an hour in the dark trunk space after it is
exposed to ambient light even for a short
time.
Keys and doors/Trunk lid (Legacy)
–CONTINUED –2-39

Keys and doors/Trunk lid (Legacy)
WARNING
Never allow any child to get in the
trunk and play with the release
handle. If the driver starts the vehi-
cle without knowing that a child is
inside the trunk and the child opens
the lid using the release handle, the
child could fall out and be killed or
seriously injured.
CAUTION
.Do not close the lid while grip-
ping the release handle. The
handle may be damaged.
. Do not use the handle as a hook
to fasten straps or ropes to
secure your cargo in the trunk.
Such use may result in damage
of the handle.
. Load the trunk so that cargo
cannot strike the release handle.
If the cargo hits the handle while
the vehicle is being driven, the
handle may be pulled and the
trunk lid may open. That may
cause cargo to fall out of the
trunk, which could create a traffic
safety hazard. !

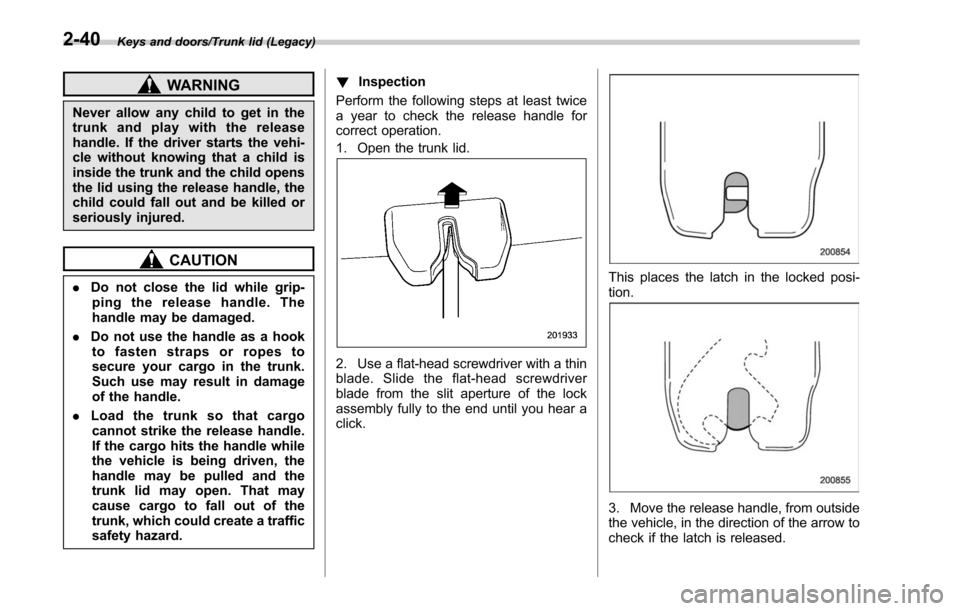

Inspection
Perform the following steps at least twice
a year to check the release handle for
correct operation.
1. Open the trunk lid.
2. Use a flat-head screwdriver with a thin
blade. Slide the flat-head screwdriver
blade from the slit aperture of the lock
assembly fully to the end until you hear a
click.
This places the latch in the locked posi-
tion.
3. Move the release handle, from outside
the vehicle, in the direction of the arrow to
check if the latch is released.
2-40

If the latch is not released, contact your
SUBARU dealer.
In that case, use the key to release the
latch, then close the trunk lid.
Also, if the movement of the release
handle feels restricted or not entirely
smooth during operation, or the handle
and/or handle base is cracked, contact

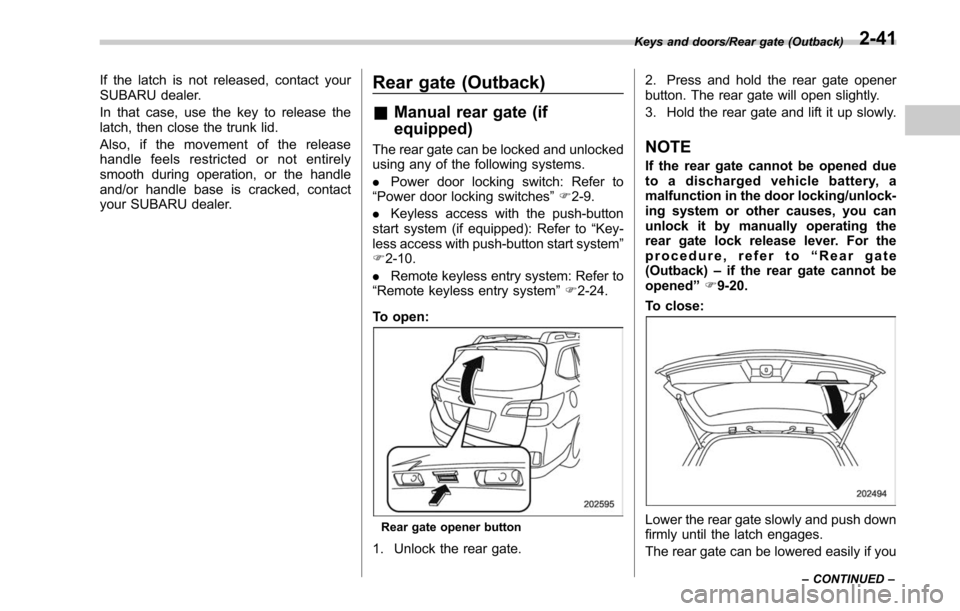

your SUBARU dealer.Rear gate (Outback)
&Manual rear gate (if
equipped)
The rear gate can be locked and unlocked
using any of the following systems.
. Power door locking switch: Refer to
“ Power door locking switches ”F 2-9.
. Keyless access with the push-button
start system (if equipped): Refer to “Key-
less access with push-button start system ”
F 2-10.
. Remote keyless entry system: Refer to
“ Remote keyless entry system ”F 2-24.
To open:
Rear gate opener button
1. Unlock the rear gate. 2. Press and hold the rear gate opener
button. The rear gate will open slightly.
3. Hold the rear gate and lift it up slowly.
NOTE
If the rear gate cannot be opened due
to a discharged vehicle battery, a
malfunction in the door locking/unlock-
ing system or other causes, you can
unlock it by manually operating the
rear gate lock release lever. For the
procedure, refer to
“Rear gate
(Outback) –if the rear gate cannot be
opened ”F 9-20.
To close:
Lower the rear gate slowly and push down
firmly until the latch engages.
The rear gate can be lowered easily if you
Keys and doors/Rear gate (Outback)
–CONTINUED –2-41

Keys and doors/Rear gate (Outback)
pull it down holding the handle.
WARNING
.To prevent dangerous exhaust
gas from entering the vehicle,
always keep the rear gate closed
while driving.
. Do not attempt to shut the rear
gate while holding the recessed
grip. Also do not close the rear
gate by pulling the handle from
inside the cargo space. There is a
danger of your hand being
caught and injured.
CAUTION
. Do not jam a plastic bag in or
place cellophane tape on the rear
gate stays or scratch the stays
while loading or unloading cargo.
That could cause leakage of gas
from the stays, which may result
in their inability to hold the rear
gate open.
. Be careful not to hit your head or
face on the rear gate when open-
ing or closing the rear gate and
when loading or unloading car-
go.
& Power rear gate (if equipped)
WARNING
. When operating the power rear
gate, observe the following pre-
cautions. Ignoring the precau-
tions may result in an injury (e.
g., anyone ’s body is hit against
the rear gate or is caught in the
rear gate, etc.)
– Make sure there are no people
around the rear gate.
– Never let anyone get close to
the rear gate.
. When closing the rear gate, be
extremely careful to prevent any-
one ’s fingers, arms, neck, head
or other objects from being
caught in the rear gate. Other-
wise, serious personal injury
may be caused by entrapment.
. After opening the rear gate on a
slope by using the power rear
gate feature, the rear gate may
close. Make sure that the rear
gate has stopped completely
after opening it.
. When leaving the vehicle, always
carry the key for safety and never
allow an unattended child to remain in the vehicle. Failure to
follow this procedure could re-
sult in injury to a child operating
the power rear gate.
. The driver should be aware of
and pay careful attention to his/
her responsibilities.
. Use the power rear gate only
when the area around the rear
gate is clearly visible and when
you have checked that there is
no danger of people being
caught in the gate.
CAUTION
. When closing the rear gate after
opening it, make sure to use the
power rear gate. If you close the
rear gate manually with extra
force, the power rear gate may
be damaged.
. Do not install any accessories
other than genuine SUBARU
parts on the rear gate. If the
weight of rear gate increases
excessively, the rear gate stay
cannot support the rear gate
sufficiently when opening the
rear gate. Also, the power rear
gate may not function properly or
2-42

may malfunction.
. Do not touch the driving rod.
Doing so may result in injury or
damage.
The power rear gate operates only when
all of the following conditions are satisfied.
. The vehicle is stopped completely.
. The outside temperature is within a
range from −22 8F to 1408 F (from−30 8Cto
60 8C).
. The ignition switch is in the “LOCK”/
“OFF ”or “ACC ”position. Or, the ignition
switch is in the “ON”position and the
parking brake is applied (MT models)/the
select lever is in the “P ” position (CVT
models).
We recommend using the power rear gate
function in most circumstances instead of
manual operation.
NOTE
. Do not press the power rear gate
button repeatedly while the power rear
gate is operating. Otherwise, the sys-
tem may ignore the button operation in
order to avoid being damaged.
. It is not possible to stop the rear
gate temporarily while opening be-
tween the completely closed position
and approximately 2 in (5 cm) open. If you press one of the power rear gate
buttons briefly during this range, the
rear gate will be closed.
.
If the vehicle starts to move while
the power rear gate is operating, the
system sounds a buzzer and closes the
rear gate automatically. At this time, if
the system detects jamming, it will
deactivate the power rear gate and the
rear gate will not be closed. If this
occurs, close the rear gate manually.
For details, refer to “Manual rear gate”
F 2-41.
. If you try to open the rear gate using
the power rear gate function immedi-
ately after closing the rear gate using
the power rear gate function, an elec-
tronic chirp will sound and the rear
gate will not open. Wait for a while
before trying to open the rear gate via
the power rear gate function.
. If either of the operating conditions
has not been satisfied while operating
the power rear gate, an electronic chirp
will sound and the power rear gate will
be deactivated. In this case, the rear
gate may stop opening or closing
suddenly. !
Operation
NOTE
.The rear gate will remain unlocked
even after closing it. Always lock the
rear gate when leaving the vehicle.
. If you cannot open/close the rear
gate by performing the operation de-
scribed here, a short electronic chirp
will sound three times (beep, beep,
beep).
!By the power rear gate button
(other than the buttons on the
rear gate)

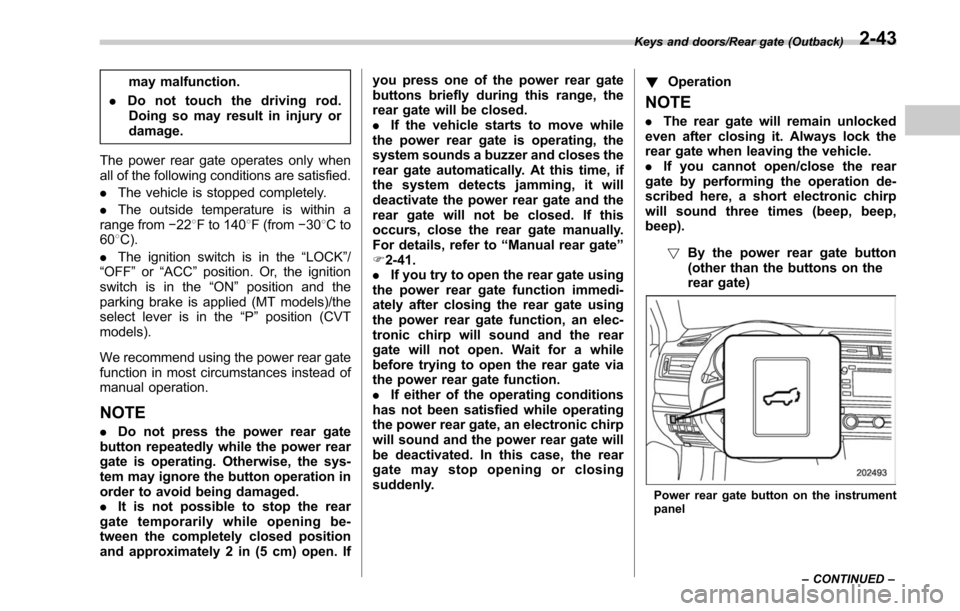

Power rear gate button on the instrument
panel
Keys and doors/Rear gate (Outback)
–CONTINUED –
2-43

Keys and doors/Rear gate (Outback)
Power rear gate button on the access key
Power rear gate button on the transmitter
To open the rear gate:
Press and hold the power rear gate button
when the rear gate is closed. The rear
gate will open automatically. Then anelectronic chirp and the hazard warning
flashers will operate as follows:
.
When operating the power rear gate
button on the instrument panel/transmitter:
sounds and flashes twice.
. When operating the power rear gate
button on the access key: sounds and
flashes four times.
NOTE
While the rear gate is locked, you
cannot open the rear gate by operating
the power rear gate button on the
instrument panel. In such a case,
unlock the rear gate before operating
the power rear gate button.
To stop the rear gate midway:
Briefly press the power rear gate button
while the rear gate is being opened. Then
an electronic chirp will sound twice and
the hazard warning flashers will flash
twice.
If you press the power rear gate button
again, the rear gate will close.
You can open the rear gate by pressing
the power rear gate button briefly while the
rear gate is being closed.
To close the rear gate:
Press and hold the power rear gate
button. Then an electronic chirp will sound twice and the hazard warning flashers will
flash twice. If you briefly press the power
rear gate button again, the rear gate will
open.
!By the buttons on the rear gate
NOTE
After performing the following proce-
dures, an electronic chirp will sound
twice and the hazard warning flashers
will flash twice.
Rear gate opener button
2-44

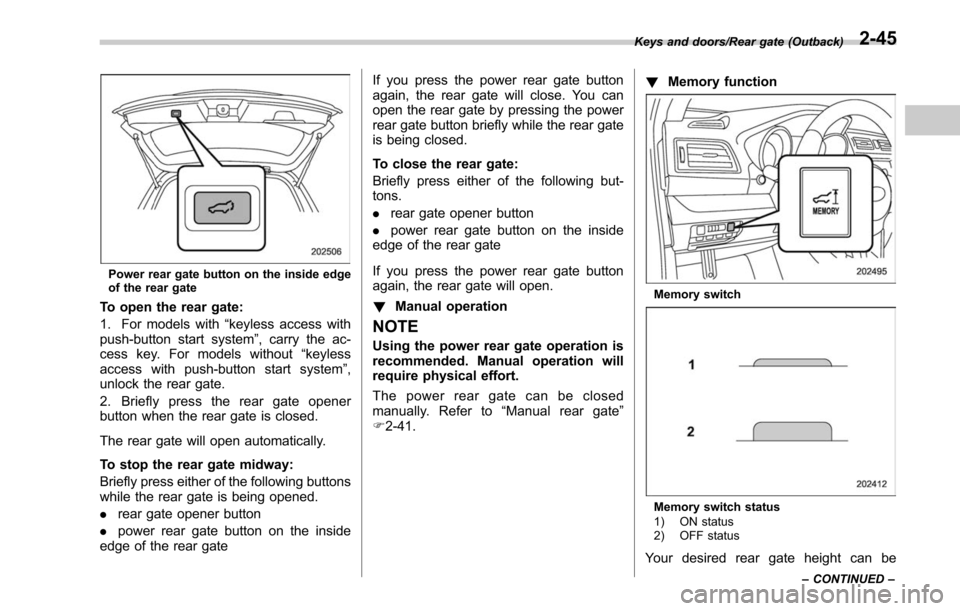

Power rear gate button on the inside edge
of the rear gate
To open the rear gate:
1. For models with“keyless access with
push-button start system ”, carry the ac-
cess key. For models without “keyless
access with push-button start system ”,
unlock the rear gate.
2. Briefly press the rear gate opener
button when the rear gate is closed.
The rear gate will open automatically.
To stop the rear gate midway:
Briefly press either of the following buttons
while the rear gate is being opened.
. rear gate opener button
. power rear gate button on the inside
edge of the rear gate If you press the power rear gate button
again, the rear gate will close. You can
open the rear gate by pressing the power
rear gate button briefly while the rear gate
is being closed.
To close the rear gate:
Briefly press either of the following but-
tons.
.
rear gate opener button
. power rear gate button on the inside
edge of the rear gate
If you press the power rear gate button
again, the rear gate will open.
! Manual operation
NOTE
Using the power rear gate operation is
recommended. Manual operation will
require physical effort.
The power rear gate can be closed
manually. Refer to “Manual rear gate ”
F 2-41. !
Memory function
Memory switch
Memory switch status
1) ON status
2) OFF status
Your desired rear gate height can be
Keys and doors/Rear gate (Outback)
–CONTINUED –2-45
