SUBARU LEGACY 2017 6.G Quick Reference Guide

11

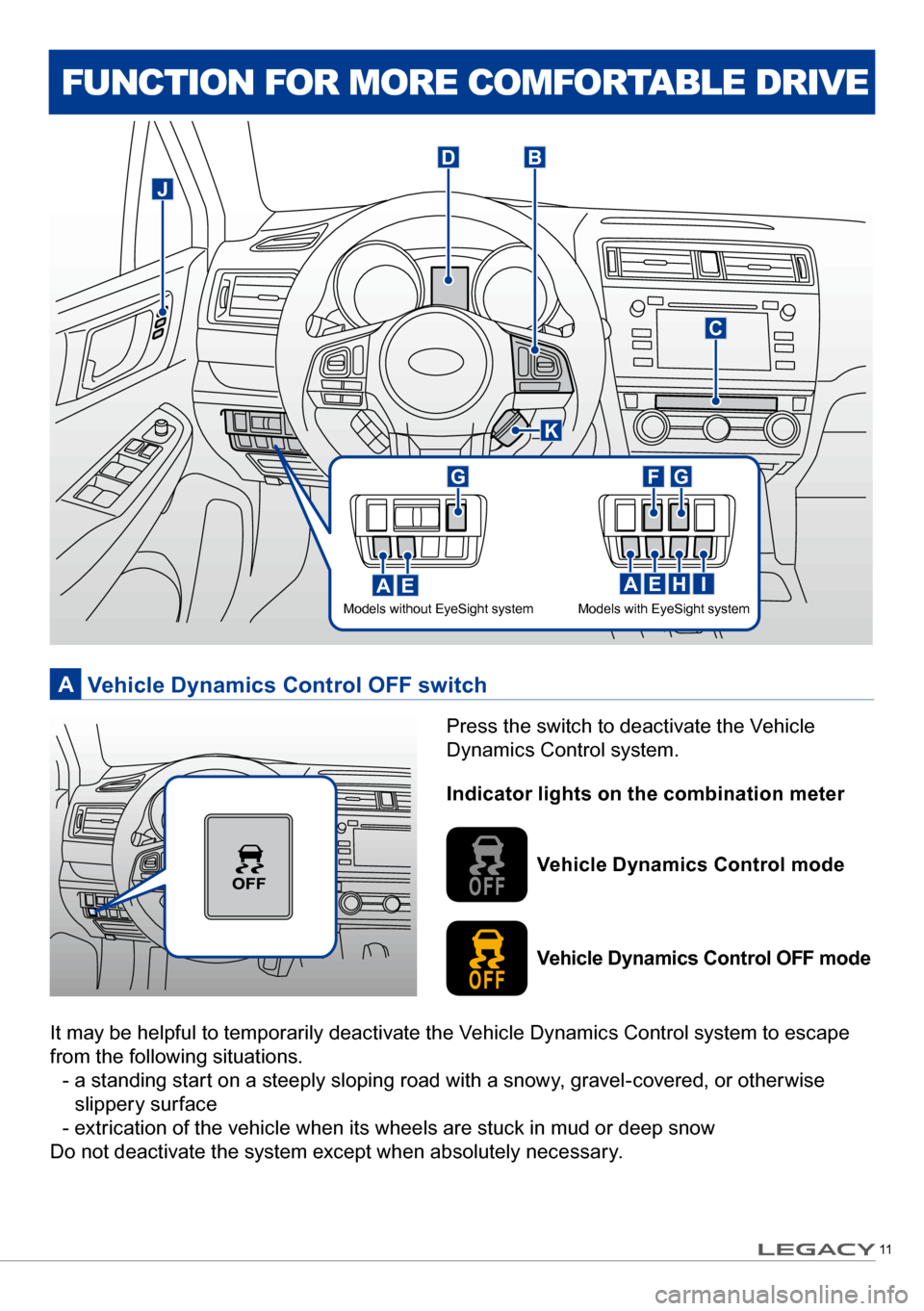

FUnction F oR M oRe co MFoRtab Le DR iVe
It may be helpful to temporarily deactivate the Vehicle Dynamics Control system to escape
from the following situations.
- a standing start on a steeply sloping road with a snowy, gravel-covered, or otherwise slippery surface
- extrication of the vehicle when its wheels are stuck in mud or deep snow
Do not deactivate the system except when absolutely necessary.
Vehicle Dynamics Control mode
Vehicle Dynamics Control OFF mode
Press the switch to deactivate the Vehicle
Dynamics Control system.
Indicator lights on the combination meter
Vehicle Dynamics Control OFF switchA
Models without EyeSight system Models with EyeSight system
AHEI
GFG
K
AE
D
C
J
B

12
1
Cruise control main button: To activate and
deactivate
2
RES/SET switch:
▲RES/+ side : To increase the speed/To resume
▼SET/- side : To set speed/To decrease the speed
3
CANCEL button: To temporarily cancel
1
(Lane Keep Assist) switch
2
(Following distance setting) switch
3
RES/+ switch
4
SET/- switch
5
(CRUISE) switch
Cruise control enables you to maintain a constant vehicle speed without holding your foot on
the accelerator pedal and it is operative when the vehicle speed is 40 km/h (25 mph) or more.
EyeSight is a driving support system that uses a range of functions to assist the driver in
making decisions in order to provide for more safe and comfortable driving and to reduce
driver fatigue.

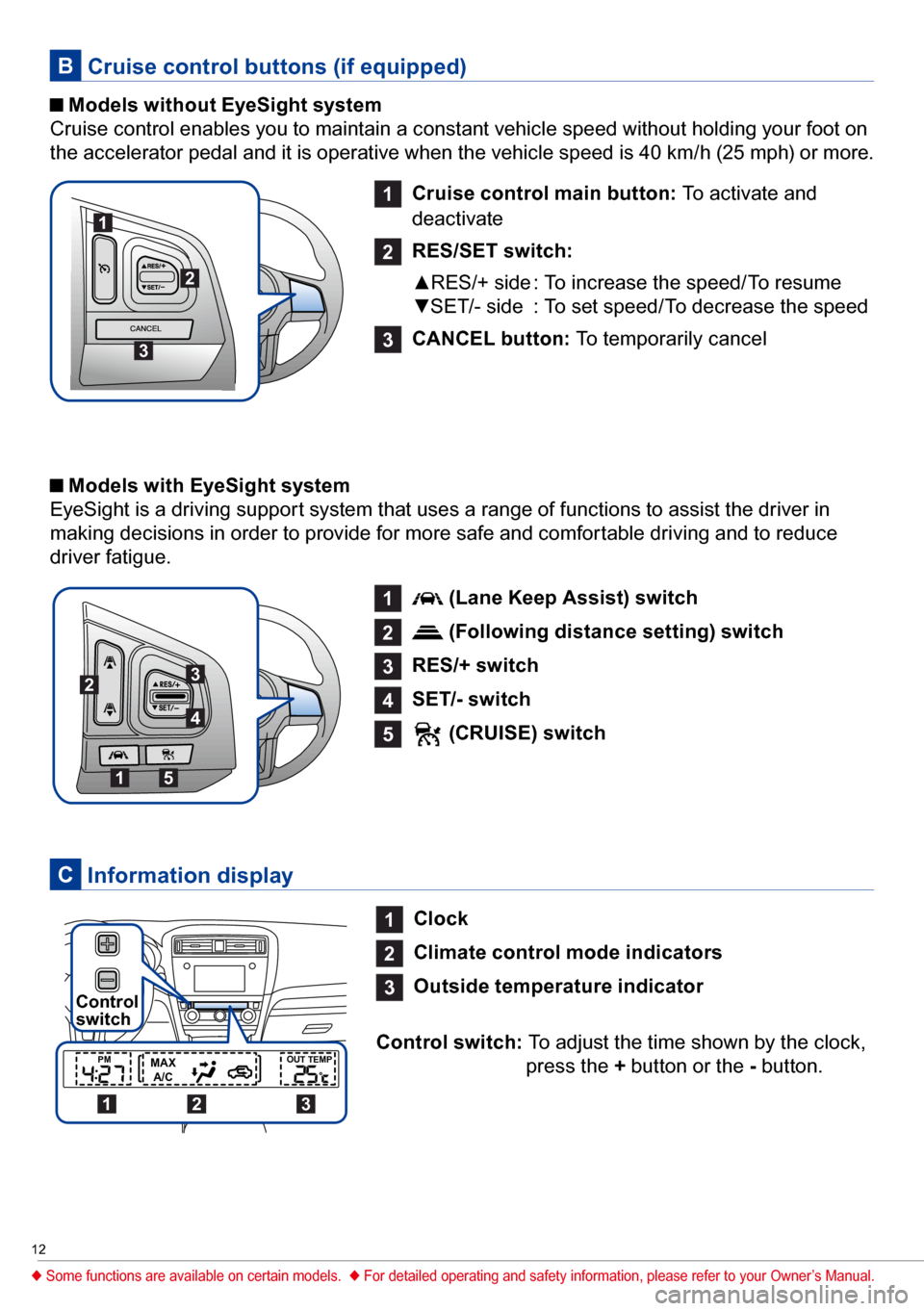

Cruise control buttons (if equipped)B
Information displayC
1
Clock
2
Climate control mode indicators
3
Outside temperature indicator
Control switch: To adjust the time shown by the clock,
press the + button or the - button.
OUT TEMP
PMMAX
A/C
Models without EyeSight system
Models with EyeSight system
1
1
23
4
5
2
3
123
Control
switch
u Some functions are available on certain models.
u For detailed operating and safety information, please refer to your Own\
er’s Manual.

13
1
ECO gauge
2
Basic screen
3
Cruise control information
4
Select lever/gear position indicator
5
Warning screen
6
Odometer/double trip meter
Control switch: By operating ▲ or ▼ of the control
switch, the screens and selection items
can be switched. When the
/SET
switch is pulled toward you, the item
can be selected and set.
km/h
km

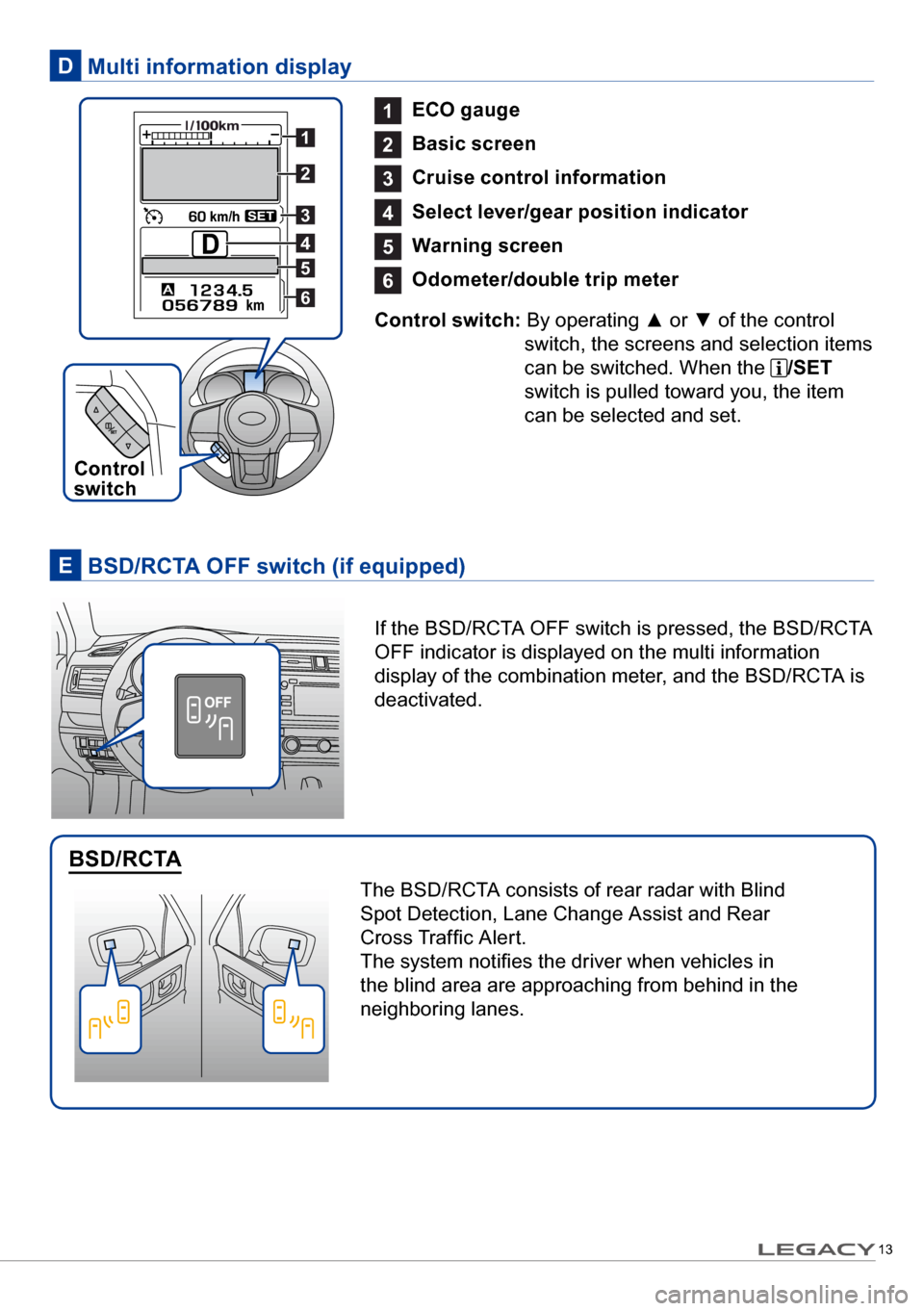

Multi information displayD
If the BSD/RCTA OFF switch is pressed, the BSD/RCTA
OFF indicator is displayed on the multi information
display of the combination meter, and the BSD/RCTA is
deactivated.
The BSD/RCTA consists of rear radar with Blind
Spot Detection, Lane Change Assist and Rear
Cross Traffic Alert.
The system notifies the driver when vehicles in
the blind area are approaching from behind in the
neighboring lanes.
B S D / R C TA
BSD/RCTA OFF switch (if equipped)E
Control
switch
1
2
3
4
6
5

14

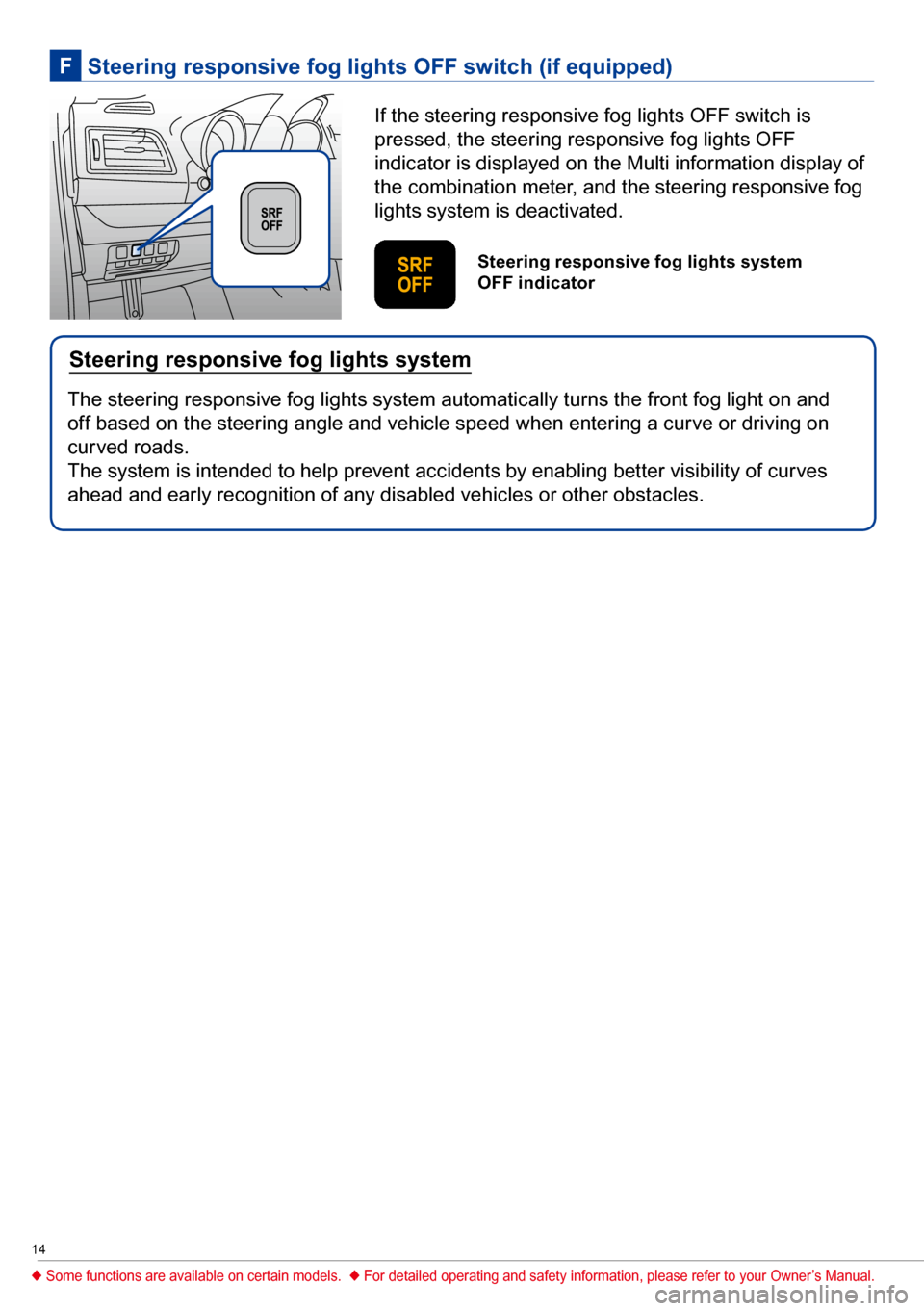

If the steering responsive fog lights OFF switch is
pressed, the steering responsive fog lights OFF
indicator is displayed on the Multi information display of
the combination meter, and the steering responsive fog
lights system is deactivated.
The steering responsive fog lights system automatically turns the front fog light on and
off based on the steering angle and vehicle speed when entering a curve or driving on
curved roads.
The system is intended to help prevent accidents by enabling better visibility of curves
ahead and early recognition of any disabled vehicles or other obstacles.
Steering responsive fog lights system
Steering responsive fog lights OFF switch (if equipped)F
Steering responsive fog lights system
OFF indicator
0058 Some functions are available on certain models.
00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.

15
When there is the risk of a rear-end collision with an obstacle in front, the EyeSight
system helps to minimize or prevent a collision by warning the driver. If the driver still
does not take evasive action to avoid a collision, the brakes can be automatically applied
just before the collision in order to reduce impact damage, or if possible, prevent the
collision. If the driver takes evasive action to avoid a collision, Pre-Collision Brake Assist
will operate in order to help the driver to prevent the collision.
Pre-Collision Braking System

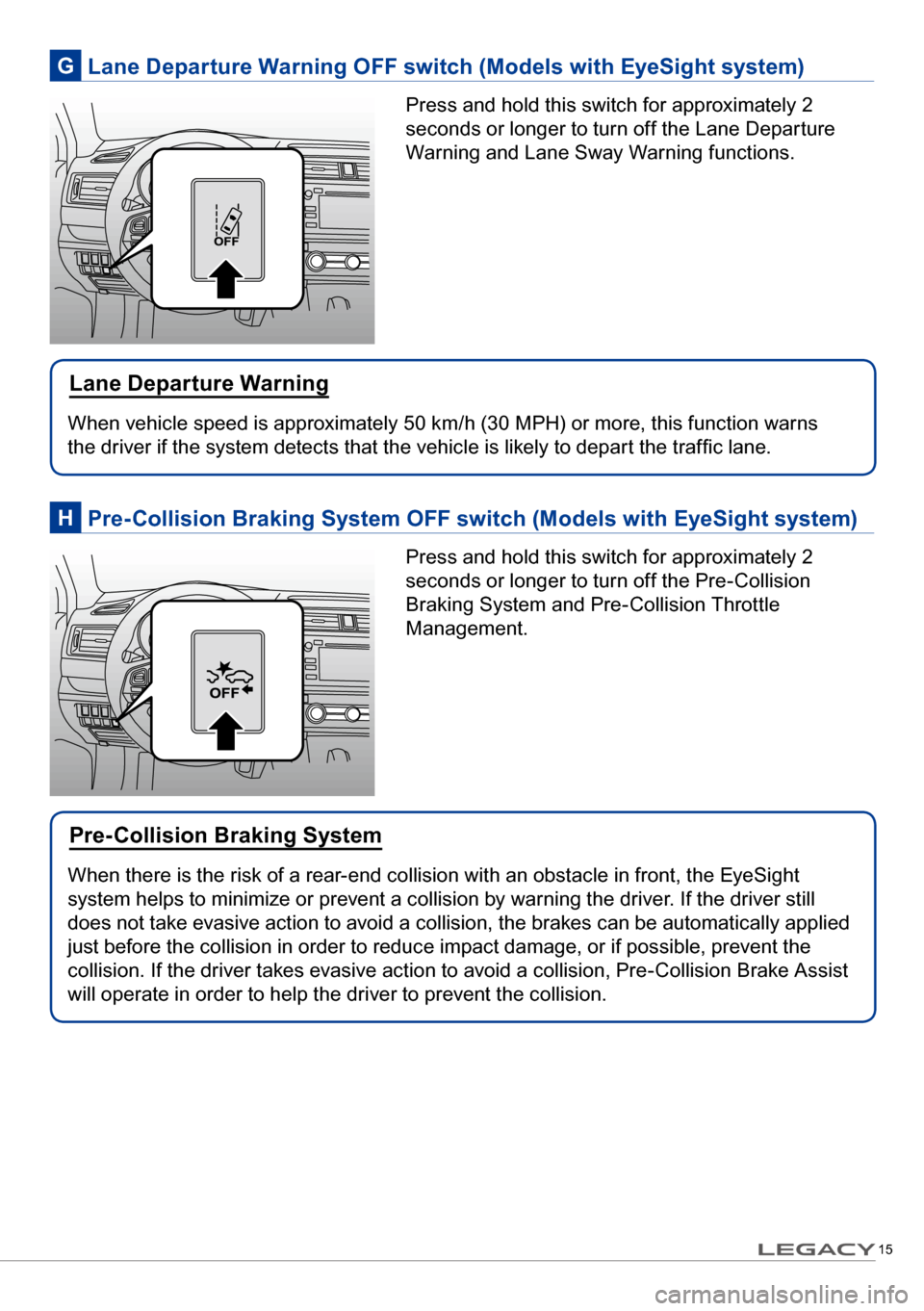

Lane Departure Warning OFF switch (Models with EyeSight system)G
Press and hold this switch for approximately 2
seconds or longer to turn off the Lane Departure
Warning and Lane Sway Warning functions.
Pre-Collision Braking System OFF switch (Models with EyeSight system)H
Press and hold this switch for approximately 2
seconds or longer to turn off the Pre-Collision
Braking System and Pre-Collision Throttle
Management.
When vehicle speed is approximately 50 km/h (30 MPH) or more, this function warns
the driver if the system detects that the vehicle is likely to depart the traffic lane.
Lane Departure Warning

16

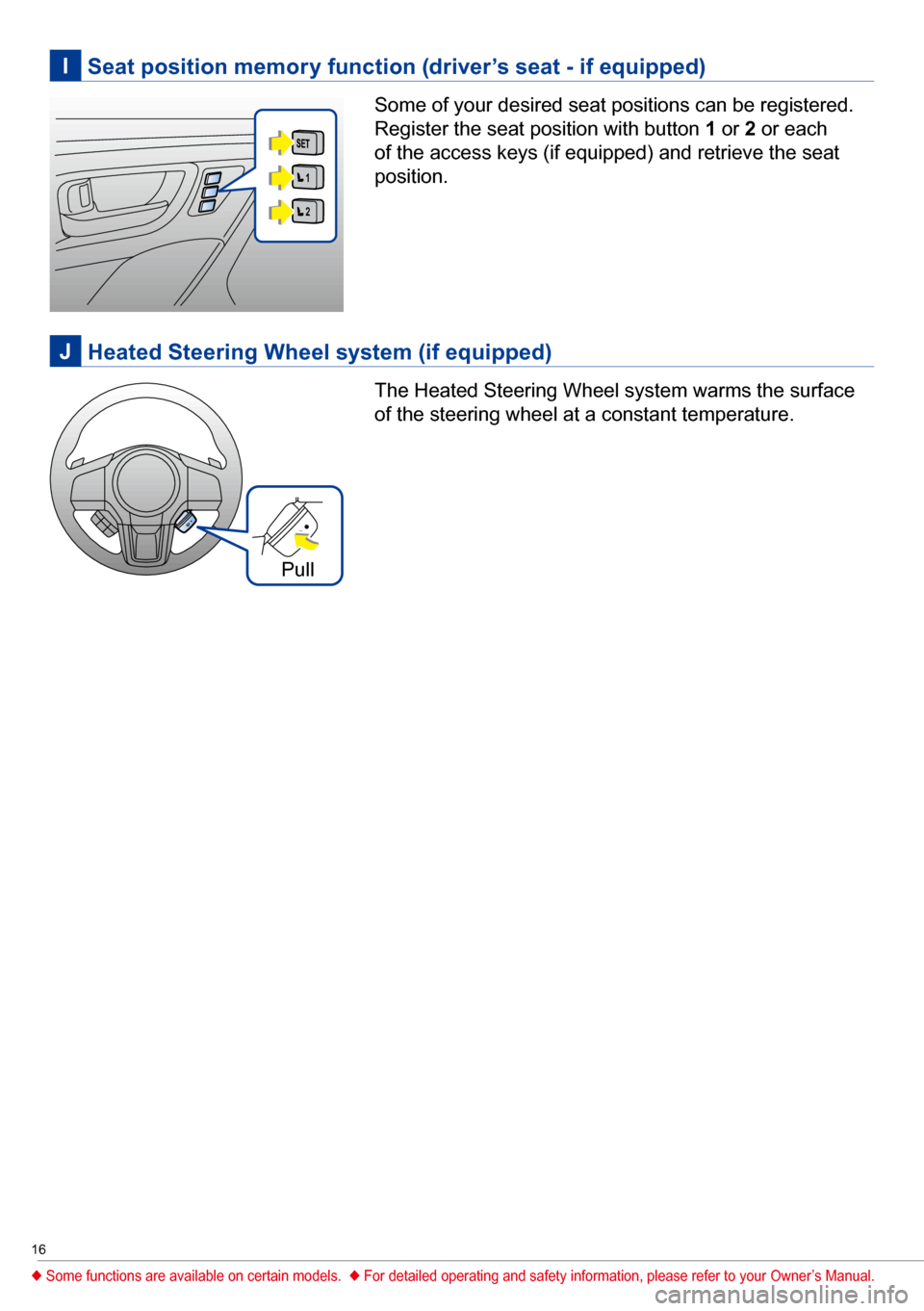

Some of your desired seat positions can be registered.
Register the seat position with button 1 or 2 or each
of the access keys (if equipped) and retrieve the seat
position.
The Heated Steering Wheel system warms the surface
of the steering wheel at a constant temperature.
1
2
Seat position memory function (driver’s seat - if equipped)I
Heated Steering Wheel system (if equipped)J
Pull
0058 Some functions are available on certain models.
00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.

17
Some warning/indicator lights illuminate for a few seconds in order to check themselves
when the ignition switch is turned ON.

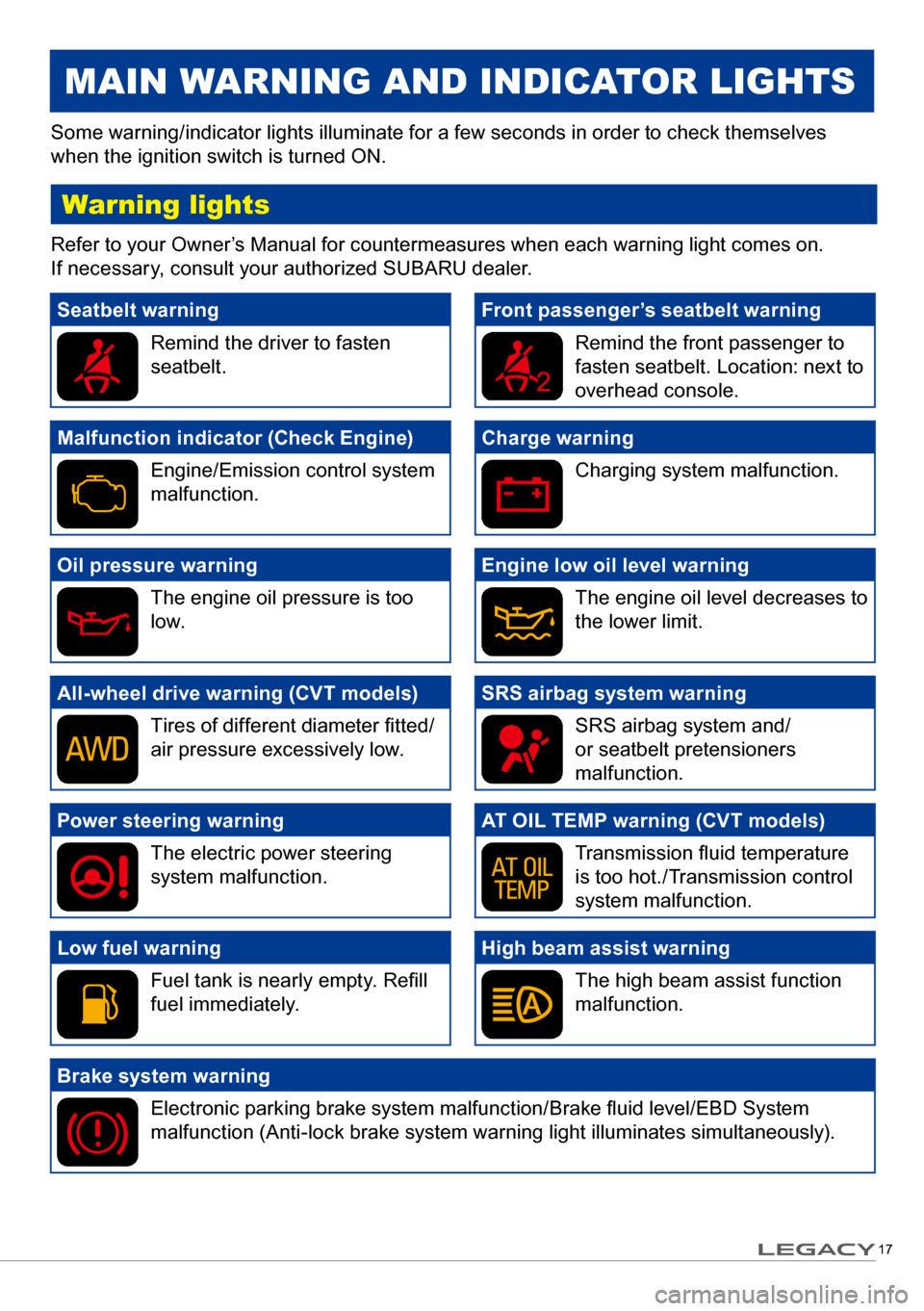

Main W aR ninG an D inDicato R LiGH ts
Warning lights
Refer to your Owner’s Manual for countermeasures when each warning light comes on.
If necessary, consult your authorized SUBARU dealer.
Seatbelt warning
Remind the driver to fasten
seatbelt.
Front passenger’s seatbelt warning
Remind the front passenger to
fasten seatbelt. Location: next to
overhead console.
Oil pressure warning
The engine oil pressure is too
low.
Engine low oil level warning
The engine oil level decreases to
the lower limit.
All-wheel drive warning (CVT models)
Tires of different diameter fitted/
air pressure excessively low.
SRS airbag system warning
SRS airbag system and/
or seatbelt pretensioners
malfunction.
Power steering warning
The electric power steering
system malfunction.
AT OIL TEMP warning (CVT models)
Transmission fluid temperature
is too hot./Transmission control
system malfunction.
Brake system warning
Electronic parking brake system malfunction/Brake fluid level/EBD System
malfunction (Anti-lock brake system warning light illuminates simultaneously).
Malfunction indicator (Check Engine)
Engine/Emission control system
malfunction.
Charge warning
Charging system malfunction.
Low fuel warning
Fuel tank is nearly empty. Refill
fuel immediately.
High beam assist warning
The high beam assist function
malfunction.

18

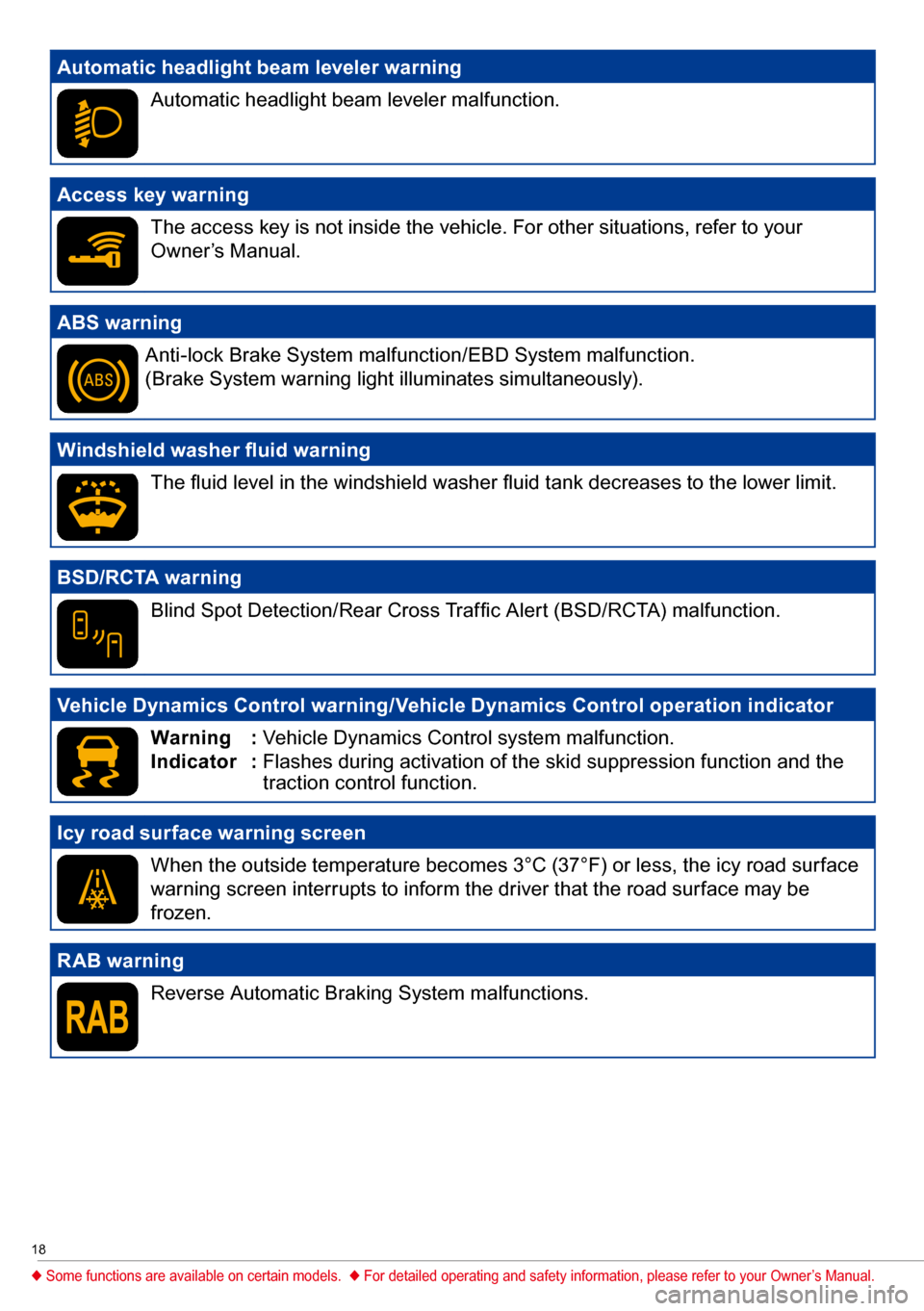

Automatic headlight beam leveler warning
Automatic headlight beam leveler malfunction.
Access key warning
The access key is not inside the vehicle. For other situations, refer to your
Owner’s Manual.
ABS warning
Anti-lock Brake System malfunction/EBD System malfunction.
(Brake System warning light illuminates simultaneously).
Windshield washer fluid warning
The fluid level in the windshield washer fluid tank decreases to the lower limit.
BSD/RCTA warning
Blind Spot Detection/Rear Cross Traffic Alert (BSD/RCTA) malfunction.
Vehicle Dynamics Control warning/Vehicle Dynamics Control operation indicator
Warning : Vehicle Dynamics Control system malfunction.
Indicator : Flashes during activation of the skid suppression function and the
traction control function.
Icy road surface warning screen
When the outside temperature becomes 3°C (37°F) or less, the icy road surface
warning screen interrupts to inform the driver that the road surface may be
frozen.
RAB warning
Reverse Automatic Braking System malfunctions.
u Some functions are available on certain models.
u For detailed operating and safety information, please refer to your Own\
er’s Manual.

19

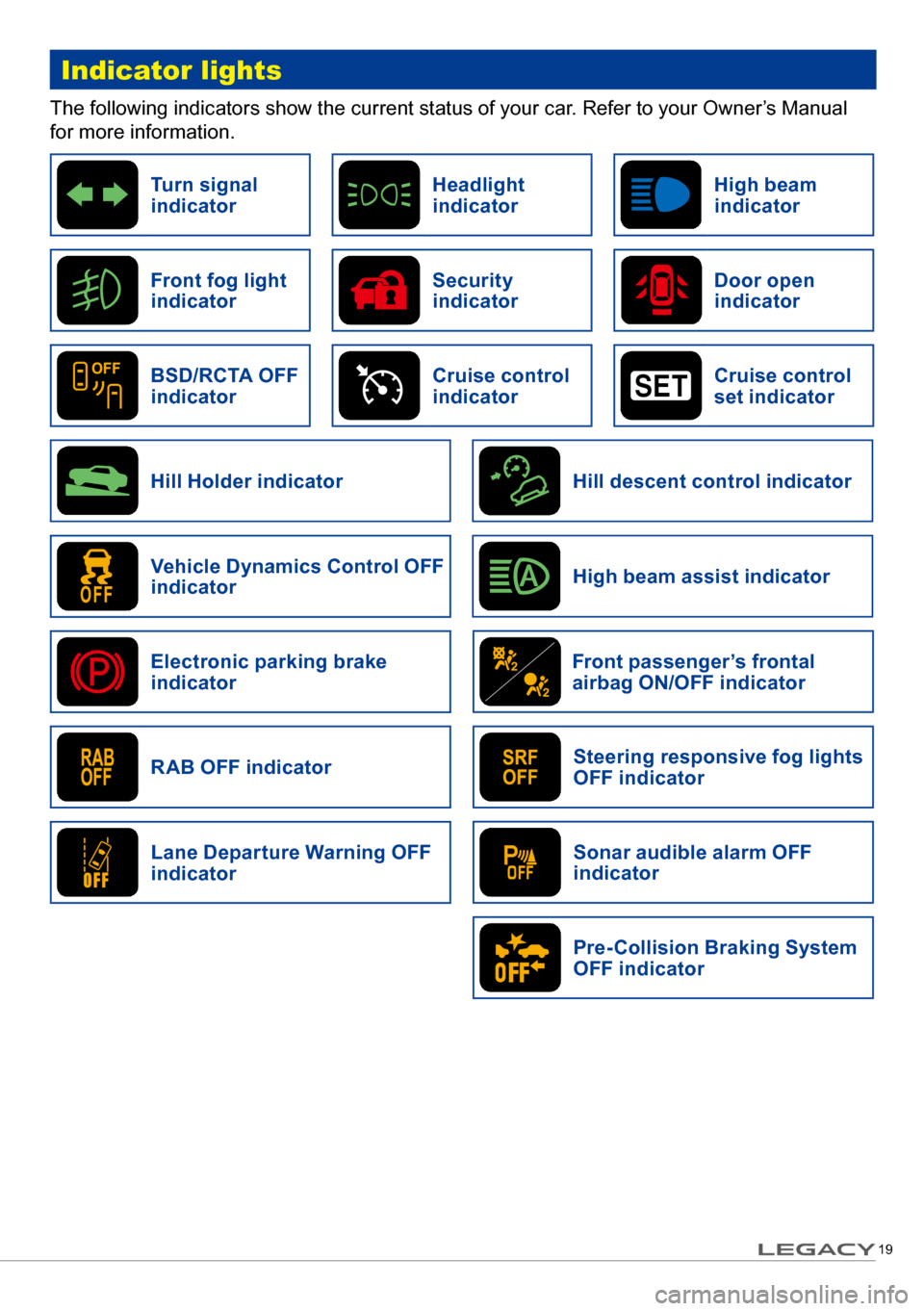

indicator lights
The following indicators show the current status of your car. Refer to your Owner’s Manual
for more information.
Turn signal
indicatorHeadlight
indicatorHigh beam
indicator
Front fog light
indicatorSecurity
indicatorDoor open
indicator
BSD/RCTA OFF
indicatorCruise control
indicatorCruise control
set indicator
Hill Holder indicatorHill descent control indicator
High beam assist indicator
Steering responsive fog lights
OFF indicator
Front passenger’s frontal
airbag ON/OFF indicator
Sonar audible alarm OFF
indicator
Pre-Collision Braking System
OFF indicator
Electronic parking brake
indicator
Vehicle Dynamics Control OFF
indicator
RAB OFF indicator
Lane Departure Warning OFF
indicator
