Gauges
Speedometer
Fuel gauge
Vehicle Dynamics Control/
Vehicle Dynamics Control
operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF (Located on overhead console)
Hill Holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
3645634_19b_Subaru_Legacy_QG_082818.indd 98/28/18 1:26 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

10

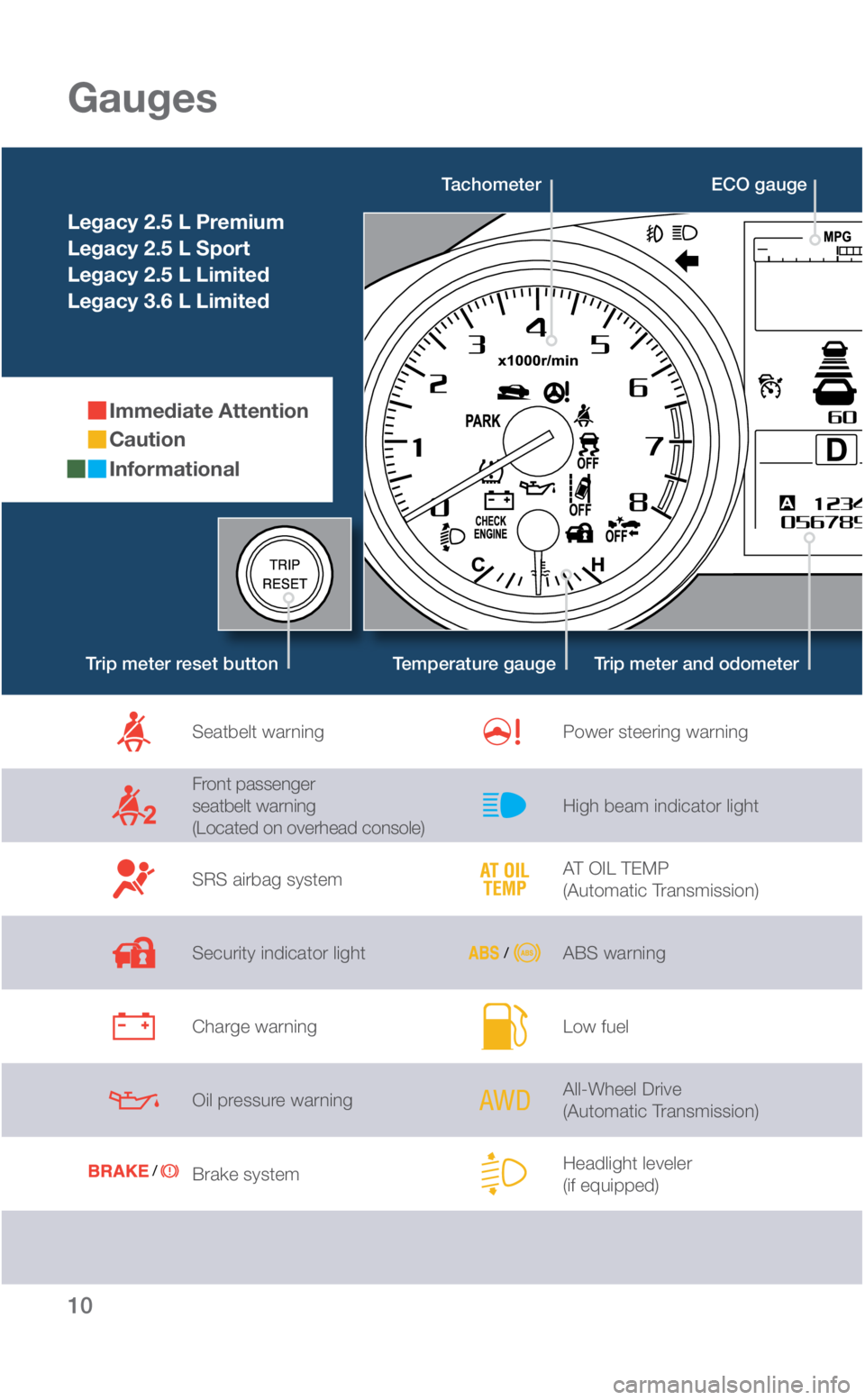

Gauges
Legacy 2.5 L Premium
Legacy 2.5 L Sport
Legacy 2.5 L Limited
Legacy 3.6 L Limited
Immediate Attention
Caution
Informational
Tachometer
Temperature gauge Trip meter and odometer
Trip meter reset buttonECO gauge
Seatbelt warning
Front passenger
seatbelt warning
(Located on overhead console)
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Brake system
Power steering warning
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Headlight leveler
(if equipped)
3645634_19b_Subaru_Legacy_QG_082818.indd 108/28/18 1:26 PM

11
Gauges
SpeedometerFuel gauge
Vehicle Dynamics Control/
Vehicle Dynamics Control
operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF (Located on overhead console)
Pre-Collision Braking System
OFF light
Lane Departure Warning OFF light
Hill Holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
3645634_19b_Subaru_Legacy_QG_082818.indd 118/28/18 1:26 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

12
Personalize

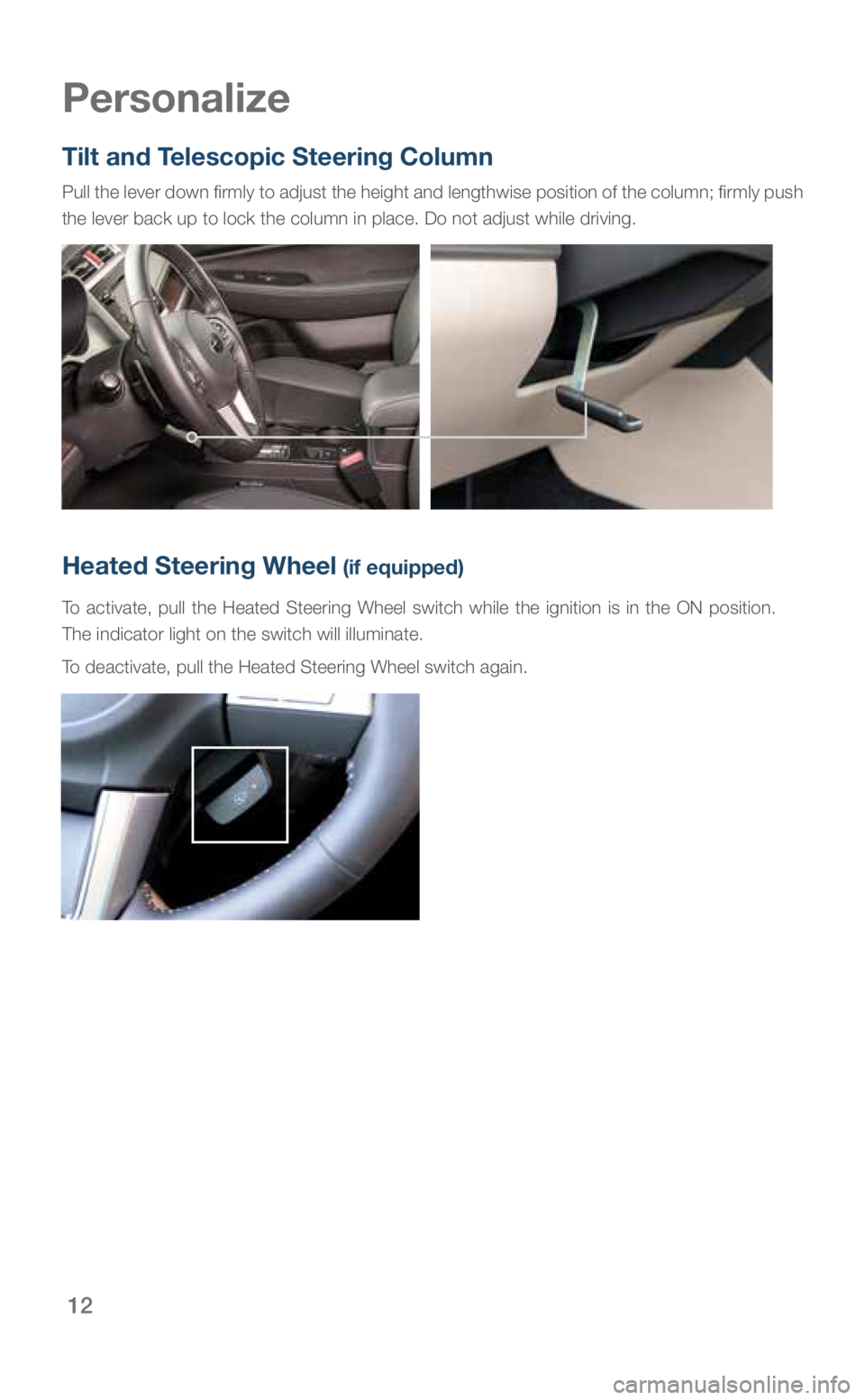

Tilt and Telescopic Steering Column
Pull the lever down firmly to adjust the height and lengthwise positio\
n of the column; firmly push
the lever back up to lock the column in place. Do not adjust while drivi\
ng.
Heated Steering Wheel (if equipped)
To activate, pull the Heated Steering Wheel switch while the ignition is \
in the ON position.
The indicator light on the switch will illuminate.
To deactivate, pull the Heated Steering Wheel switch again.
3645634_19b_Subaru_Legacy_QG_082818.indd 128/28/18 1:26 PM

13
Personalize
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust
the right-hand mirror. Move the knob in the direction you want to move the mirror.
Then return the knob to the neutral/center position.
i/SET Combination Meter Display Controls (if equipped)
Use the i/SET controls to display and switch selected items in the Combination Meter
Display located between the tachometer and odometer. Please refer to your Owner’s
Manual for details on these controls.
3645634_19b_Subaru_Legacy_QG_082818.indd 138/28/18 1:26 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

14
While the light switch is on, rotate the dial downward to dim the instrument panel illumination.
Rotate the dial upward to make the illumination brighter. When the dial is fully rotated upward
(dots aligned), the instrument panel illumination stays at full bright\
ness.
Controls

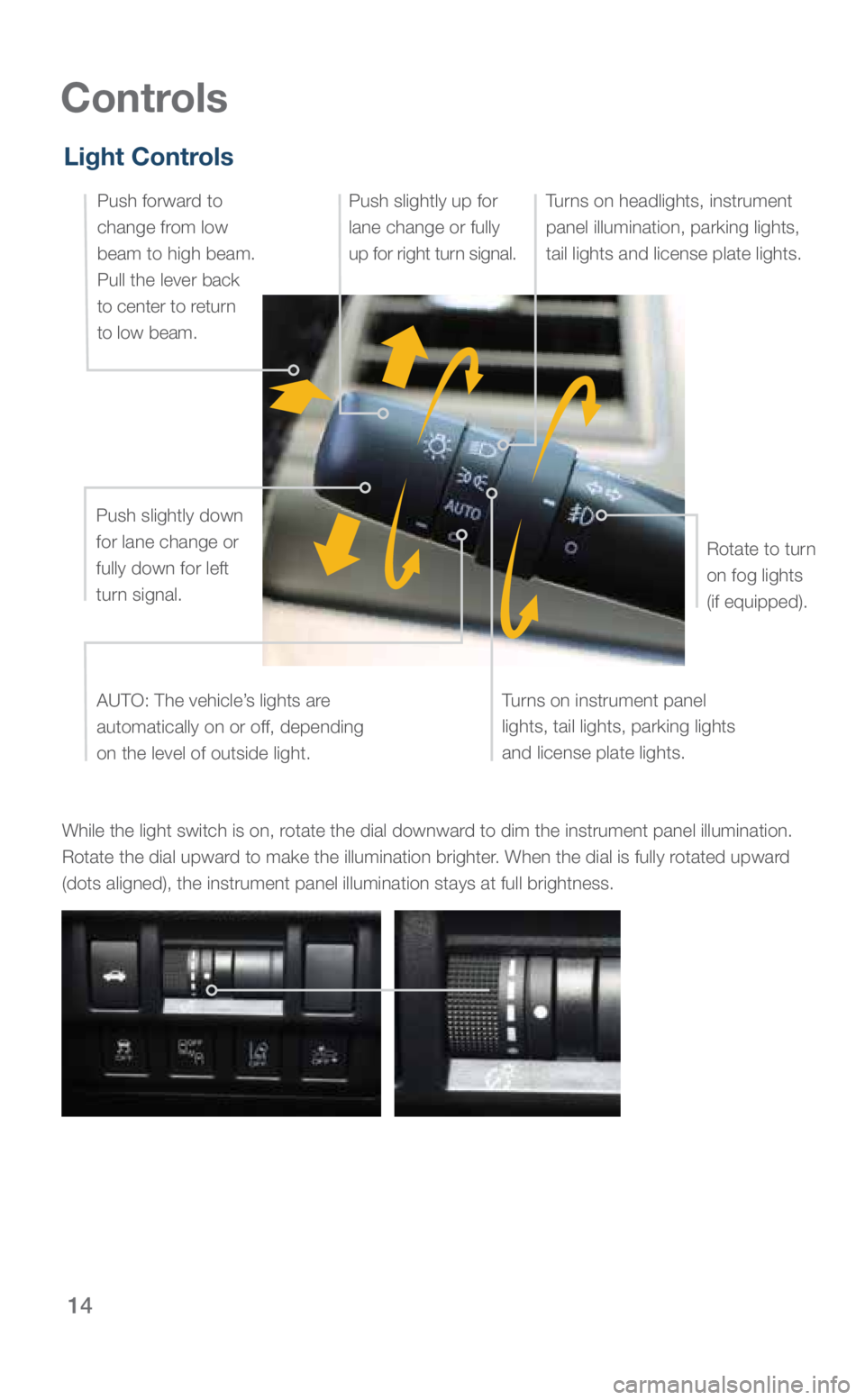

Light Controls
Push slightly up for
lane change or fully
up for right turn signal.
Push slightly down
for lane change or
fully down for left
turn signal.Push forward to
change from low
beam to high beam.
Pull the lever back
to center to return
to low beam.

Turns on instrument panel
lights, tail lights, parking lights
and license plate lights. Turns on headlights, instrument
panel illumination, parking lights,
tail lights and license plate lights.
Rotate to turn
on fog lights
(if equipped).
AUTO: The vehicle’s lights are
automatically on or off, depending
on the level of outside light.
3645634_19b_Subaru_Legacy_QG_082818.indd 148/28/18 1:27 PM

15
Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you. Rotate the dial to adjust the intermittent
wiper speed.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only the front daytime
running lights will be automatically turned on when the engine has started,
the parking brake is fully released and the light switch is in the “OFF”,
“AUTO” or “
” position. The brightness of the illumination of the high
beam headlights is reduced by the daytime running light system. You must
always switch on your headlights when it is dark outside by turning the light
switch to the “
” position or have the switch in the “AUTO” position.
1
2
3
INT.
LOW
HIGH OFF
Controls
3645634_19b_Subaru_Legacy_QG_082818.indd 158/28/18 1:27 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

16
Controls
5
2
316
4
7
Manual Climate Control (if equipped)
1 Fan Speed Control Dial
Rotate the fan speed control dial to
select the desired fan speed.
2 Air Conditioning Button
Press the “A/C” button to activate the air
conditioning. Press it again to turn off the
air conditioning.
3 Air Flow Mode Selection Button
Press the “MODE” button to select the
desired air flow mode. The selected air
flow mode – either ventilation, bi-level,
heat or heat-defrost – is shown on
the display.
4 Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment. If the
button is pushed in, press it again to draw
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN THE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME.



5 Temperature Control Dial
Rotate the temperature control dial from
blue for cool, to red for warm. Rotate the
dial all the way left for MAX A/C.
6 Defrost/Defog
To clear the windshield and front
door windows of fog or frost, press
the defrost button, set the temperature
control to the red position, and set the fan
speed control to the fastest speed.
While in defrost mode, the air inlet
selection and A/C will operate
automatically (although the A/C indicator
will illuminate if the button was depressed
prior to or during defrost mode).
7 Rear Window Defogger Button
Press the rear window defogger button
to turn on the defogger. The defogger
will automatically shut off after about
15 minutes. If the window clears before
that time, you can press the button again
to turn it off.
3645634_19b_Subaru_Legacy_QG_082818.indd 168/28/18 1:27 PM

17
122
3
457
89106
Dual Zone Automatic Climate Control System (if equipped)
1 Automatic On and Off
This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2 Temperature Control Dial
Rotate the dial clockwise to increase
the temperature or rotate the dial
counterclockwise to decrease the
temperature. The temperature is
displayed digitally on the screen.
Separate temperature settings can
be adjusted for the driver’s side and
passenger’s side.
3 SYNC Button
Press the button to synchronize both
the driver’s side and passenger’s
side temperatures using the driver’s
side temperature control.
Operation in Manual Mode
4 Air Conditioner Button
Press the “A/C” button to activate
the air conditioning. Press it again to
turn off the air conditioning.
5 MAX Air Conditioner Button
For quicker cooling, press the MAX
A/C button.
6
Air Flow Mode Selection Button
Press the button to select the
desired air flow mode. The selected
air flow mode – either ventilation,
bi-level, heat, heat-defrost or
defrost – is shown on the display.

7 Fan Speed Control Buttons
Press the fan speed control buttons
to select the desired fan speed.

8 Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN
THE RECIRCULATED MODE FOR
AN EXTENDED PERIOD OF TIME.

9 Defroster Button
Press the button to defrost or
dehumidify the windshield and front
door windows.

10 Rear Window Defogger Button
Press the button to turn on the
defogger. It will automatically shut
off after about 15 minutes. If the
window clears before that time, you
can press the button again to turn
it off. If equipped, the outside mirror
defogger and windshield wiper
deicer will also activate.
Controls
3645634_19b_Subaru_Legacy_QG_082818.indd 178/28/18 1:27 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

18
Controls
Power Moonroof (if equipped)
With the moonroof in the fully closed position, press the switch 1 to tilt the rear of the
moonroof up. Press the switch
2 to lower the moonroof. Press the switch 3 to open the
moonroof most of the way; press it again to fully open it. Press the switch
4 to close the
moonroof. To stop the moonroof in a midway position while opening or closing, momentarily
press the switch to the
3 side or 4 side.
2
1
4
3
HomeLink® 5 Accessory Mirror (if equipped)
The HomeLink 5 accessory mirror provides
three buttons to replace up to three
hand-held radio frequency remotes used
to activate devices such as garage door
openers, gate openers, entry door locks,
security systems and home lighting. Please
see your Owner’s Manual for
programming instructions or visit
www.subaru.com/homelink to
view a how-to video.
3645634_19b_Subaru_Legacy_QG_082818.indd 188/28/18 1:27 PM
