SUBARU OUTBACK 2002 3.G Owners Manual

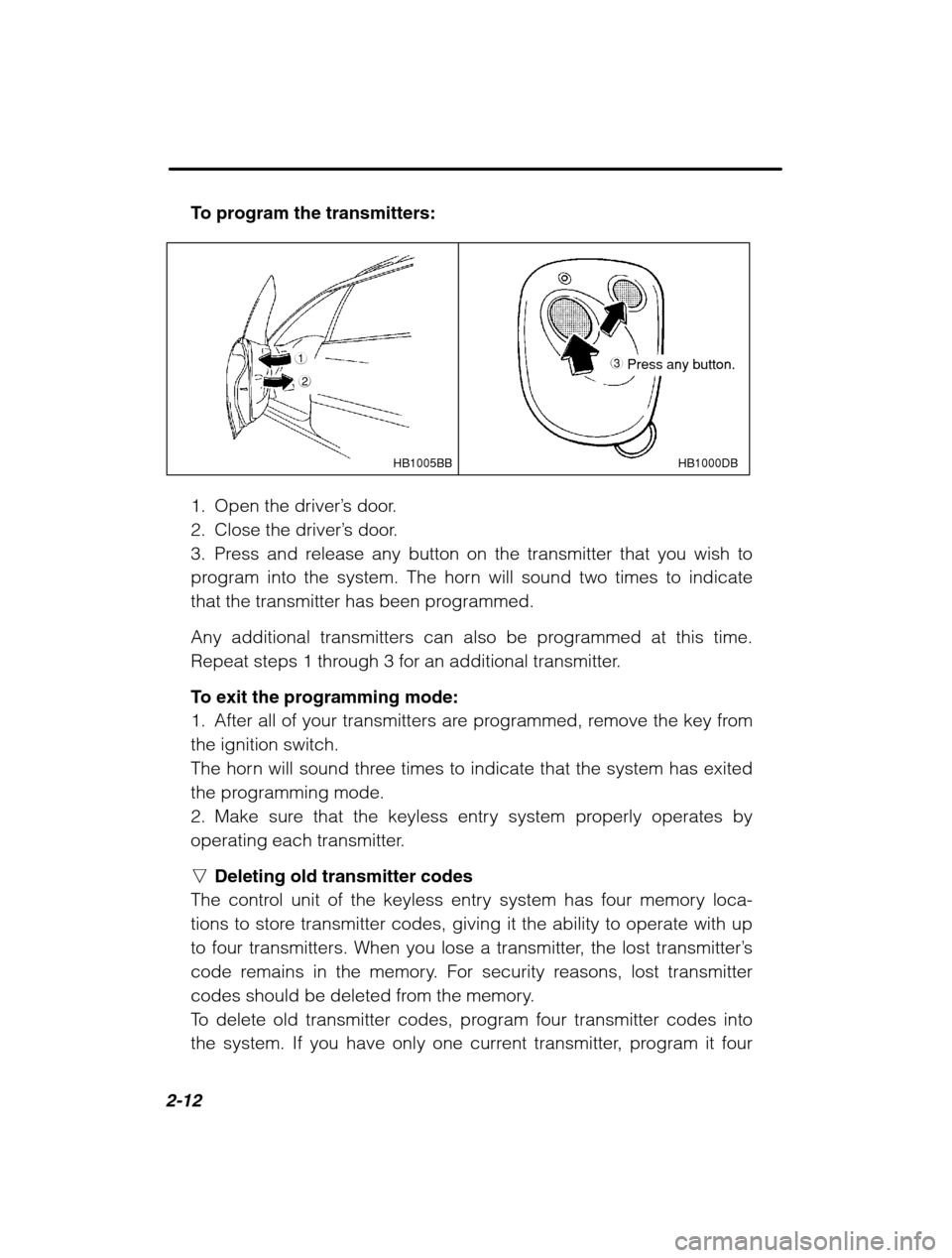

2-12
To program the transmitters:
HB1000DB
1
2HB1005BB3 Press any button.
1. Open the driver ’s door.
2. Close the driver ’s door.
3. Press and release any button on the transmitter that you wish to
program into the system. The horn will sound two times to indicate
that the transmitter has been programmed.
Any additional transmitters can also be programmed at this time.
Repeat steps 1 through 3 for an additional transmitter.
To exit the programming mode:
1. After all of your transmitters are programmed, remove the key fromthe ignition switch.
The horn will sound three times to indicate that the system has exited
the programming mode.
2. Make sure that the keyless entry system properly operates by
operating each transmitter. n Deleting old transmitter codes
The control unit of the keyless entry system has four memory loca-
tions to store transmitter codes, giving it the ability to operate with up
to four transmitters. When you lose a transmitter, the lost transmitter ’s
code remains in the memory. For security reasons, lost transmitter
codes should be deleted from the memory.
To delete old transmitter codes, program four transmitter codes into
the system. If you have only one current transmitter, program it four

Keys and doors2-13
–
CONTINUED –
times. If you have two current transmitters, program each one twice. If
you have three current transmitters, program two of them once and
the third one twice. This process will leave only current transmittercodes in the system ’s memory.
NOTE
Make sure no one else is operating their keyless entry system within range of your vehicle when programming transmitters. If
someone else were to operate their remote transmitter while youare programming your transmitters, it is possible that their trans-mitter code will be programmed into your system, allowing themunauthorized access to your vehicle.
Security system (if equipped)
The security system helps to protect your vehicle and valuables from
theft. The horn sounds and the parking lights flash if someone attempts
to break into your vehicle. The starter motor is also interrupted to prevent
starting the vehicle without a key.
The system can be armed and disarmed with the remote transmitter.
The system does not operate when the key is inserted into the ignitionswitch. System operation
The security system will give the following alarm indications when trig-
gered: The parking lights will flash and the horn will sound intermittently.
In addition, the starter motor will not operate. The alarm automatically resets after 30 seconds; however, the
alarm will reactivate if the vehicle is tampered with again. The alarmwill continue for six times if any sensor continues to be activated.
The alarm is triggered by: Opening a door, the rear gate or trunk lid.
Application of physical shock to the vehicle (e.g. breaking glass or
forced entry). Note that there are two alarm levels for shock: warning

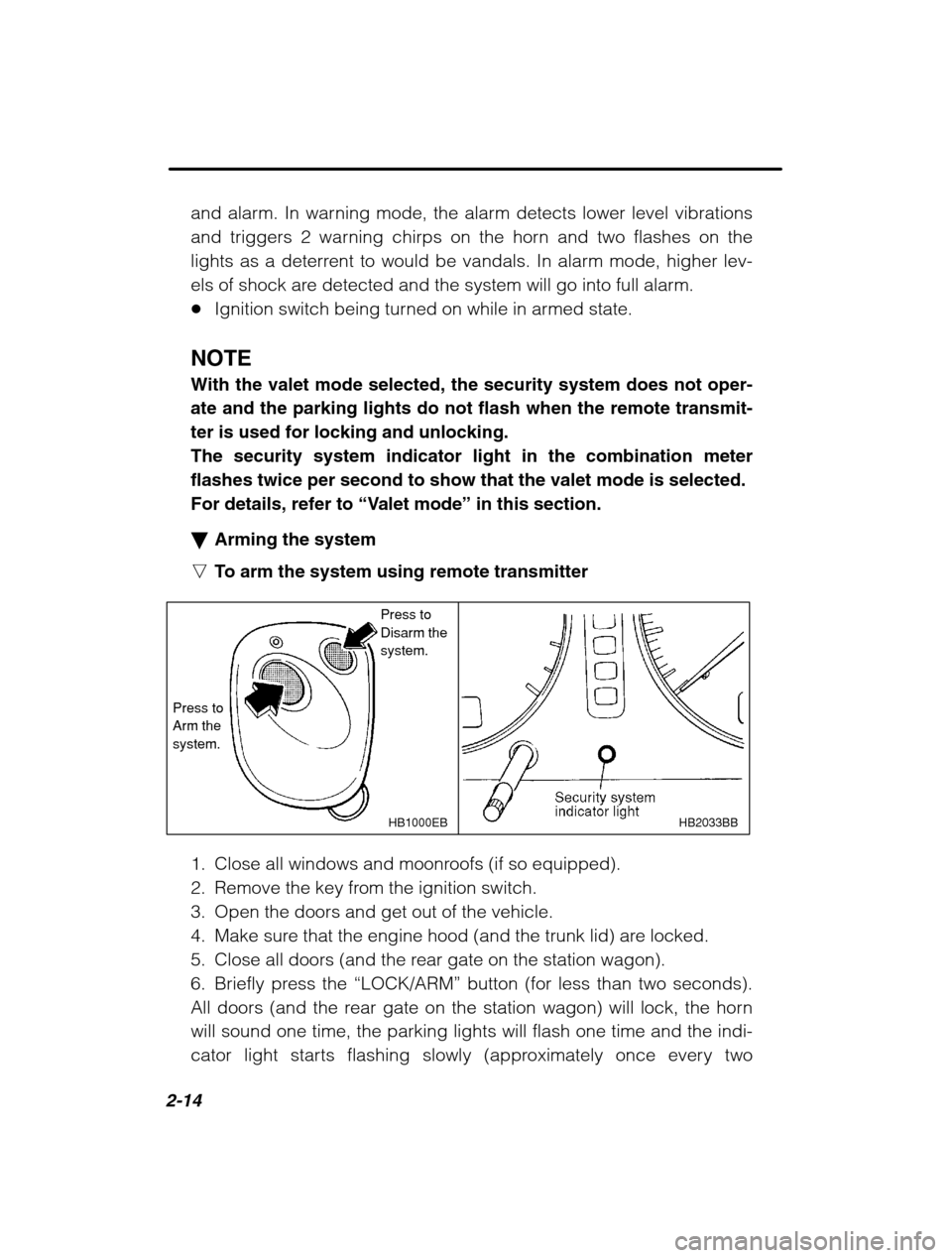

2-14
and alarm. In warning mode, the alarm detects lower level vibrations
and triggers 2 warning chirps on the horn and two flashes on the
lights as a deterrent to would be vandals. In alarm mode, higher lev-
els of shock are detected and the system will go into full alarm.Ignition switch being turned on while in armed state.
NOTE
With the valet mode selected, the security system does not oper-
ate and the parking lights do not flash when the remote transmit-ter is used for locking and unlocking.The security system indicator light in the combination meter
flashes twice per second to show that the valet mode is selected.For details, refer to “Valet mode ” in this section.
Arming the system
n To arm the system using remote transmitter
HB2033BB
Press to Arm the system. Press to Disarm the system.
HB1000EB
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close all doors (and the rear gate on the station wagon).
6. Briefly press the “LOCK/ARM” button (for less than two seconds).
All doors (and the rear gate on the station wagon) will lock, the hornwill sound one time, the parking lights will flash one time and the indi-
cator light starts flashing slowly (approximately once every two

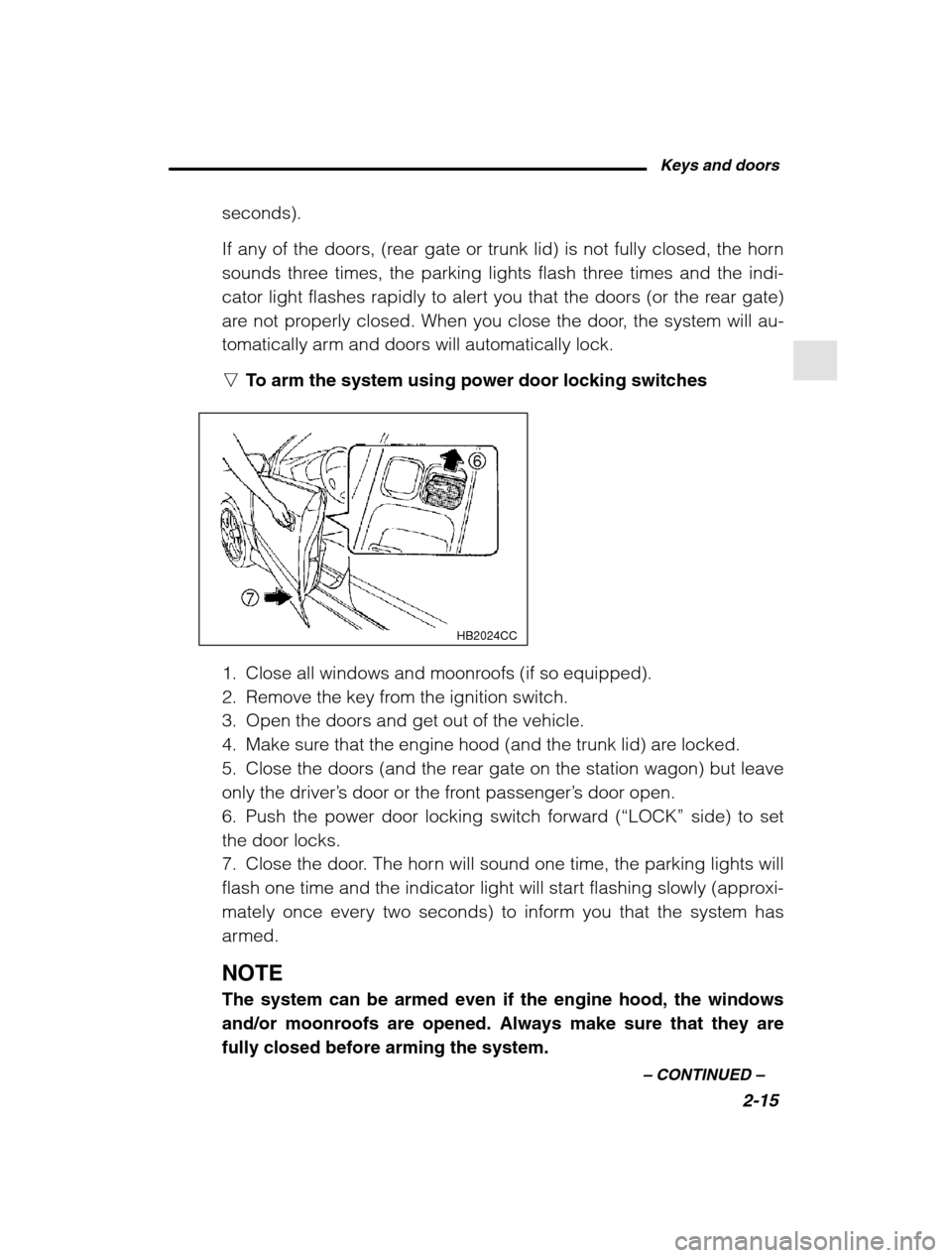

Keys and doors2-15
–
CONTINUED –
seconds).
If any of the doors, (rear gate or trunk lid) is not fully closed, the horn
sounds three times, the parking lights flash three times and the indi-
cator light flashes rapidly to alert you that the doors (or the rear gate)
are not properly closed. When you close the door, the system will au-
tomatically arm and doors will automatically lock. nTo arm the system using power door locking switches
HB2024CC
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close the doors (and the rear gate on the station wagon) but leaveonly the driver ’s door or the front passenger ’s door open.
6. Push the power door locking switch forward ( “LOCK” side) to set
the door locks.
7. Close the door. The horn will sound one time, the parking lights will
flash one time and the indicator light will start flashing slowly (approxi-
mately once every two seconds) to inform you that the system has
armed. NOTE The system can be armed even if the engine hood, the windows and/or moonroofs are opened. Always make sure that they arefully closed before arming the system.

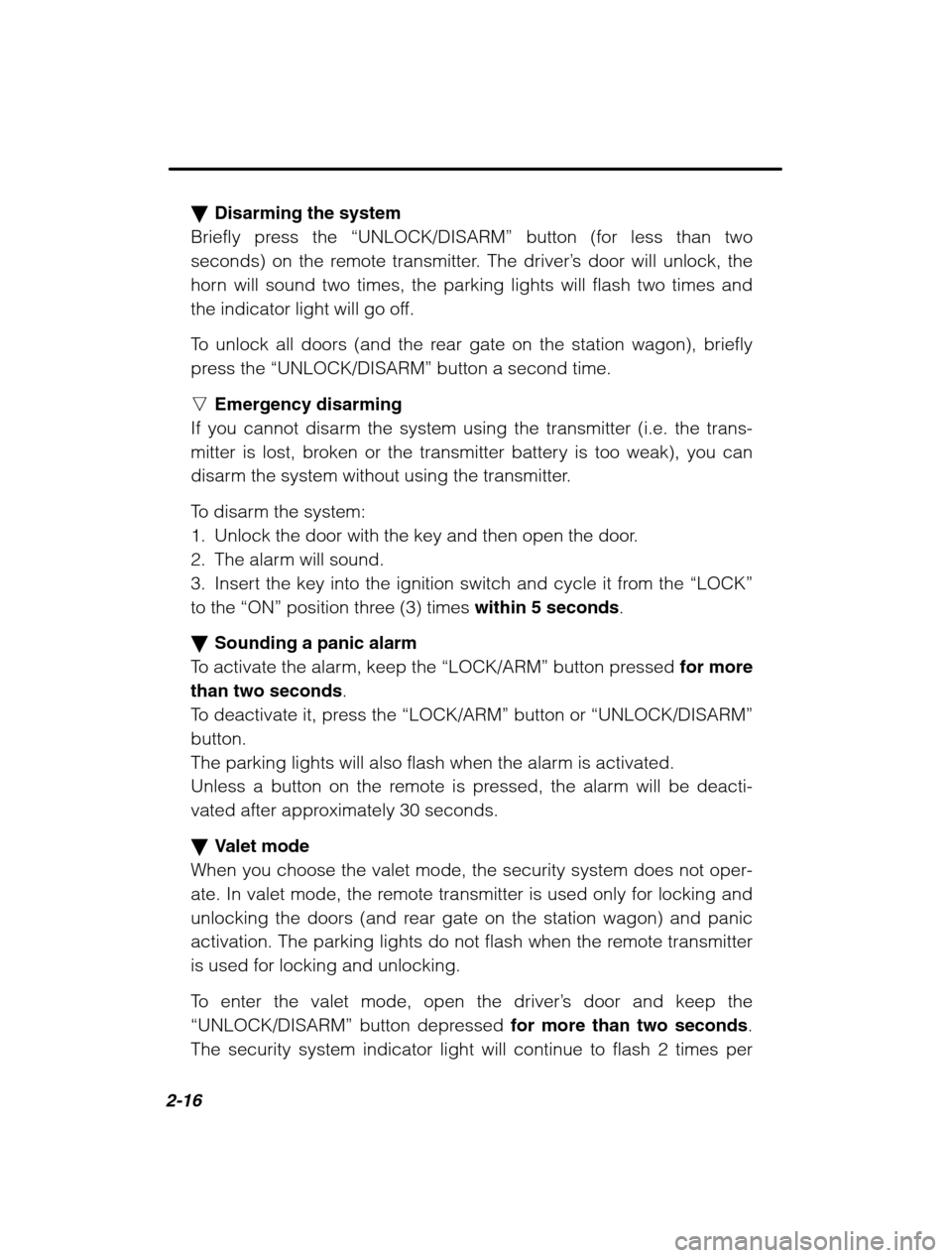

2-16
Disarming the system
Briefly press the “UNLOCK/DISARM” button (for less than two
seconds) on the remote transmitter. The driver ’s door will unlock, the
horn will sound two times, the parking lights will flash two times and
the indicator light will go off.
To unlock all doors (and the rear gate on the station wagon), briefly
press the “UNLOCK/DISARM” button a second time.
n Emergency disarming
If you cannot disarm the system using the transmitter (i.e. the trans-
mitter is lost, broken or the transmitter battery is too weak), you can
disarm the system without using the transmitter.
To disarm the system:
1. Unlock the door with the key and then open the door.
2. The alarm will sound.
3. Insert the key into the ignition switch and cycle it from the “LOCK”
to the “ON” position three (3) times within 5 seconds.
Sounding a panic alarm
To activate the alarm, keep the “LOCK/ARM” button pressed for more
than two seconds .
To deactivate it, press the “LOCK/ARM” button or “UNLOCK/DISARM”
button.
The parking lights will also flash when the alarm is activated.
Unless a button on the remote is pressed, the alarm will be deacti-
vated after approximately 30 seconds. Valet mode
When you choose the valet mode, the security system does not oper-
ate. In valet mode, the remote transmitter is used only for locking and
unlocking the doors (and rear gate on the station wagon) and panic
activation. The parking lights do not flash when the remote transmitteris used for locking and unlocking.
To enter the valet mode, open the driver ’s door and keep the
“UNLOCK/DISARM” button depressed for more than two seconds .
The security system indicator light will continue to flash 2 times per

Keys and doors2-17
–
CONTINUED –
second indicating that the system is in the valet mode.
To exit valet mode, open the driver ’s door and keep the “UNLOCK/
DISARM” button pressed for more than two seconds. The indicator
will stop flashing. Passive arming
When passive arming mode has been programmed by the dealer,
arming of the system is automatically accomplished without using the
remote transmitter. Note that in this mode, DOORS MUST BE MANU-
ALLY LOCKED. n To enter the passive mode
WARNING
Do not disconnect or tamper with any yellow connector and/or any harness covered with yellow insulation and/or tape.Doing so could result in accidental inflation of the SRS airbag orcould make the SRS airbag system inoperative, which may result
in serious injury.
HB2038BB
HB2036BA
1. Remove the side sill cover on the driver ’s side.
1) Open the driver ’s door.
2) Remove the two clips fastening the front portion of the cover
with a screwdriver.
3) Remove the side sill cover by pulling it up.

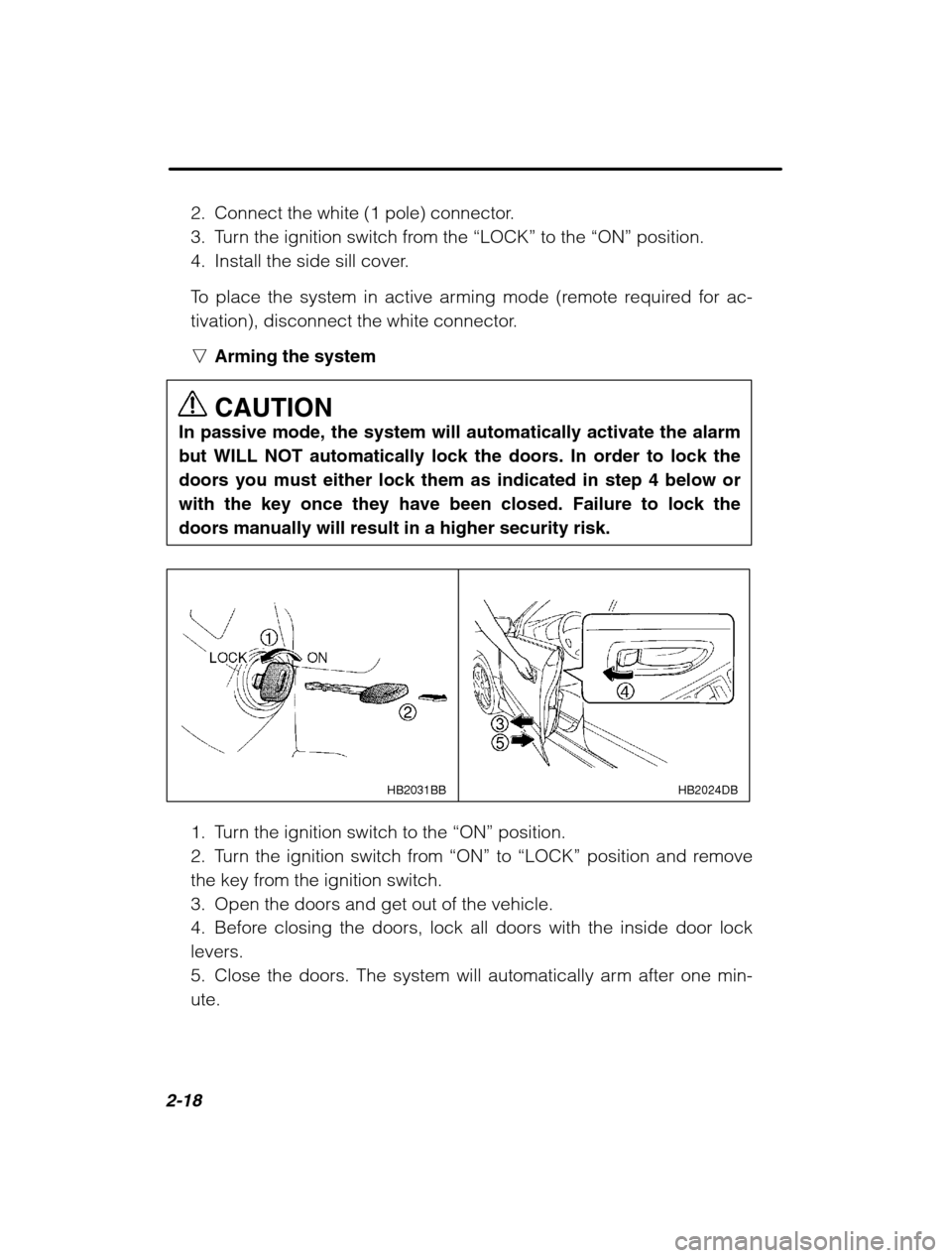

2-18
2. Connect the white (1 pole) connector.
3. Turn the ignition switch from the “LOCK” to the “ON” position.
4. Install the side sill cover.
To place the system in active arming mode (remote required for ac-
tivation), disconnect the white connector. n Arming the system CAUTION
In passive mode, the system will automatically activate the alarm
but WILL NOT automatically lock the doors. In order to lock thedoors you must either lock them as indicated in step 4 below orwith the key once they have been closed. Failure to lock thedoors manually will result in a higher security risk.
HB2024DB
HB2031BB
1. Turn the ignition switch to the “ON” position.
2. Turn the ignition switch from “ON” to “LOCK” position and remove
the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Before closing the doors, lock all doors with the inside door locklevers.
5. Close the doors. The system will automatically arm after one min-ute.

Keys and doors2-19
–
CONTINUED –
In the passive mode, the system can also be armed with the remote
transmitter or with the power door locking switches. If the remote
transmitter or power door lock switch is used to lock the vehicle, arm-
ing will take place immediately regardless of whether or not the pas-sive mode has been selected. Disarming the system
To disarm the system, briefly press the “UNLOCK/DISARM” button on
the transmitter. Tripped sensor identification
If the horn sounds four times and the parking lights flash four times
when you disarm the system, this indicates that the alarm was trig-
gered. The number of times the indicator light flashes indicates what
sensor caused the alarm condition.
To enter identification mode:
1. Open the driver ’s door and leave it open.
2. Turn the ignition switch to the “ON” position two times. ( “LOCK”
“ON” “LOCK” “ON” “LOCK”)
3. The indicator light will start flashing.
The indicator light provides the following indications. Flashing one time: Any door, the rear gate or the trunk lid has been
opened.
Flashing three times: The impact sensor in the system ’s unit has
been activated. This may indicate that your vehicle has been shocked
or tampered with by some outside force and/or unauthorized person.Flashing four times: The ignition switch has been turned on or the
battery has been disconnected.
NOTE The battery must be reconnected before the indicator light will flash.
To exit this mode, close the door and turn the ignition switch to the
“ON” position.

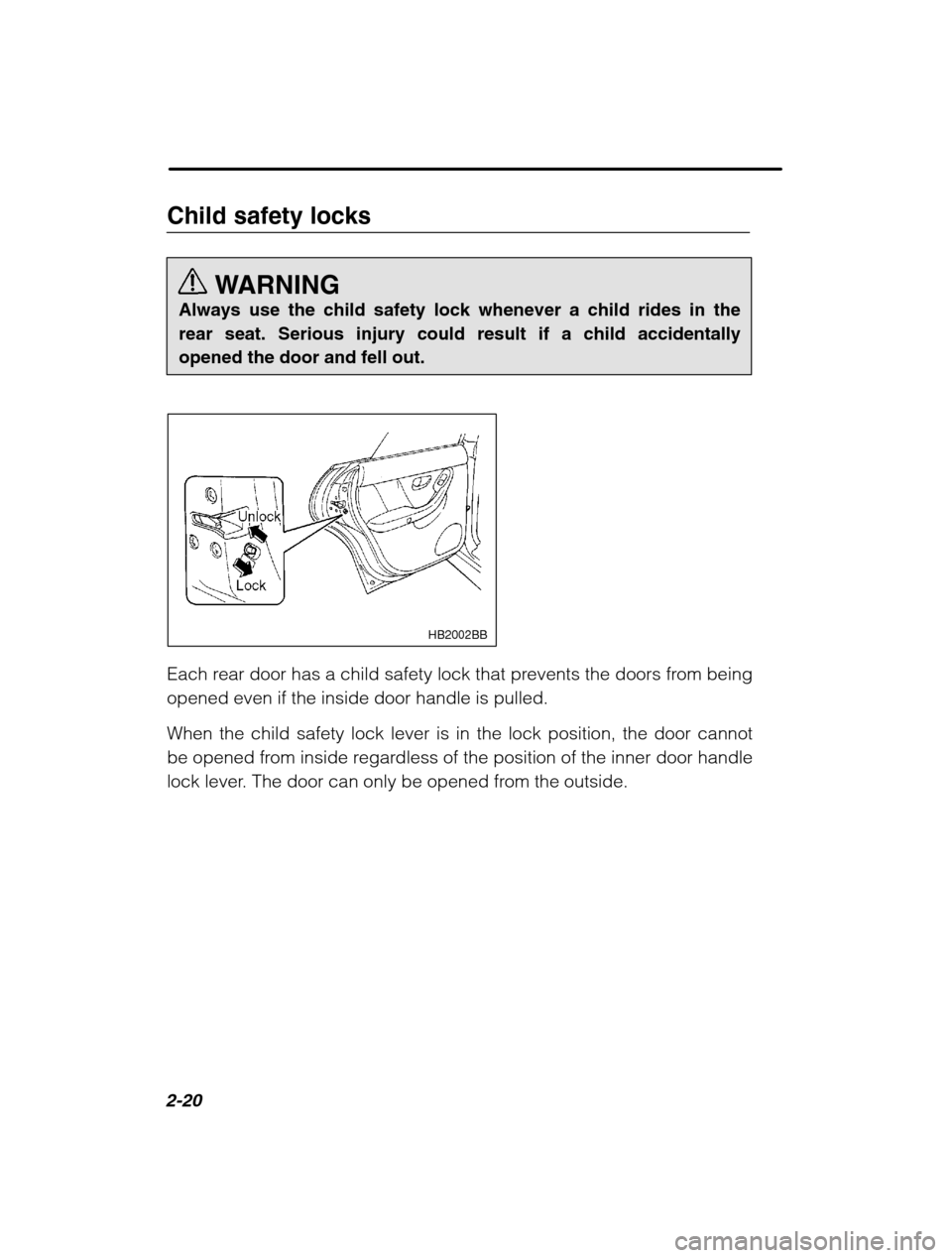

2-20
Child safety locksWARNING
Always use the child safety lock whenever a child rides in the rear seat. Serious injury could result if a child accidentallyopened the door and fell out.
HB2002BB
Each rear door has a child safety lock that prevents the doors from being
opened even if the inside door handle is pulled.
When the child safety lock lever is in the lock position, the door cannot
be opened from inside regardless of the position of the inner door handle
lock lever. The door can only be opened from the outside.

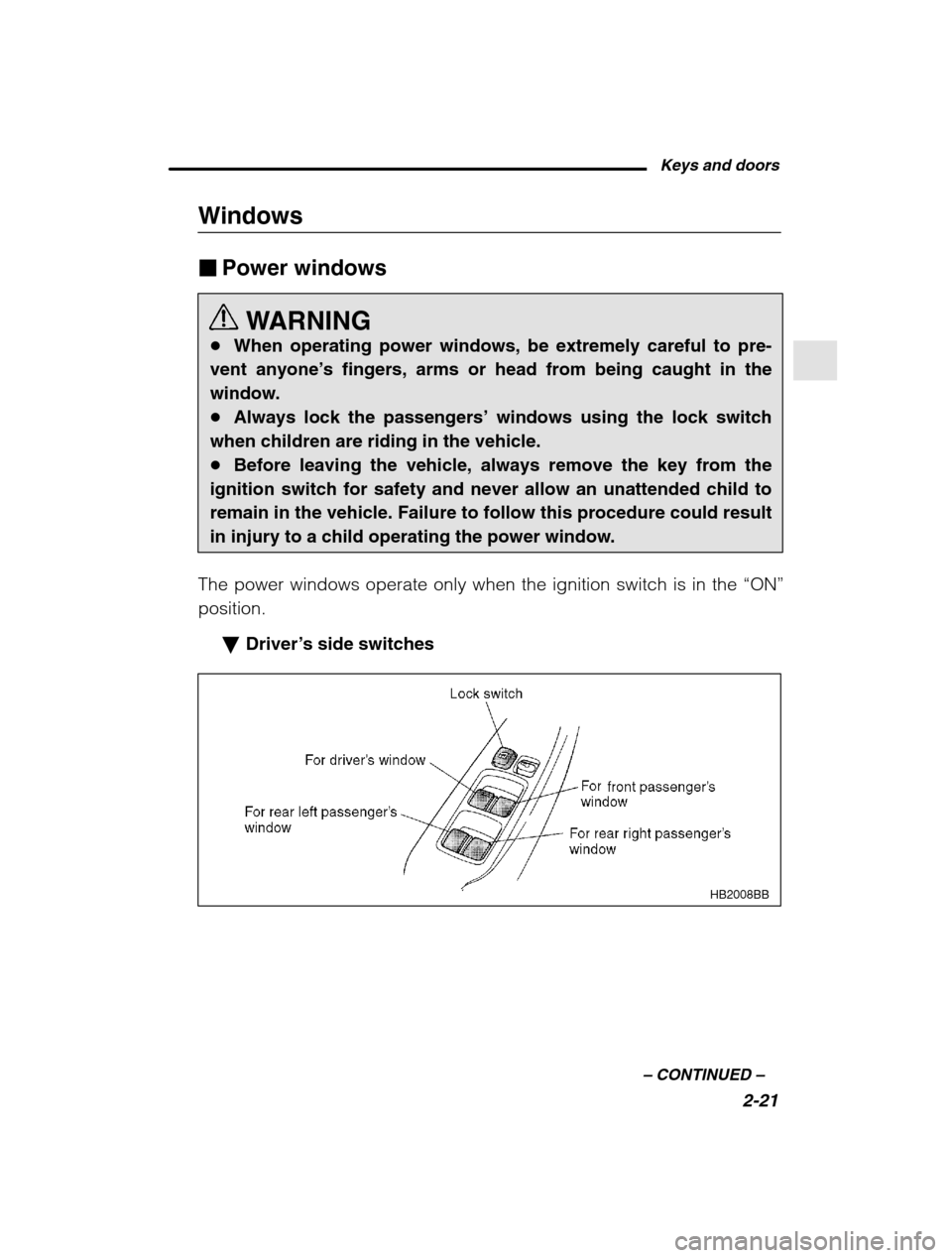

Keys and doors2-21
–
CONTINUED –
Windows Power windows
WARNING
When operating power windows, be extremely careful to pre-
vent anyone ’s fingers, arms or head from being caught in the
window. Always lock the passengers ’ windows using the lock switch
when children are riding in the vehicle. Before leaving the vehicle, always remove the key from the
ignition switch for safety and never allow an unattended child toremain in the vehicle. Failure to follow this procedure could result
in injury to a child operating the power window.
The power windows operate only when the ignition switch is in the “ON”
position.
Driver’ s side switches
HB2008BB
