set clock SUBARU OUTBACK 2002 3.G Owners Manual

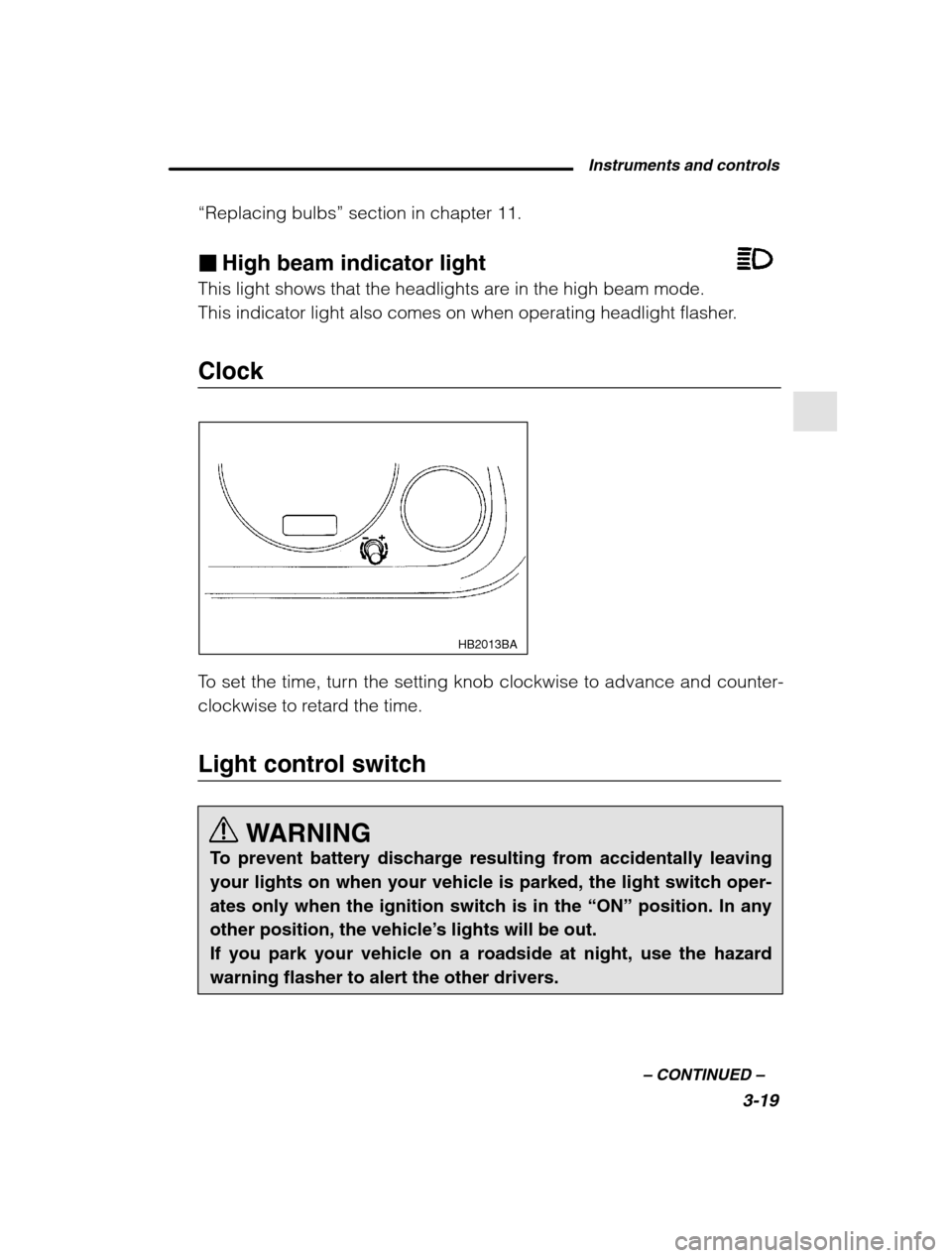

Instruments and controls3-19
–
CONTINUED –
“Replacing bulbs ” section in chapter 11.
High beam indicator light
This light shows that the headlights are in the high beam mode.
This indicator light also comes on when operating headlight flasher. Clock
HB2013BA
To set the time, turn the setting knob clockwise to advance and counter-
clockwise to retard the time.
Light control switch
WARNING
To prevent battery discharge resulting from accidentally leaving your lights on when your vehicle is parked, the light switch oper-ates only when the ignition switch is in the “ON” position. In any
other position, the vehicle ’s lights will be out.
If you park your vehicle on a roadside at night, use the hazardwarning flasher to alert the other drivers.

4-18

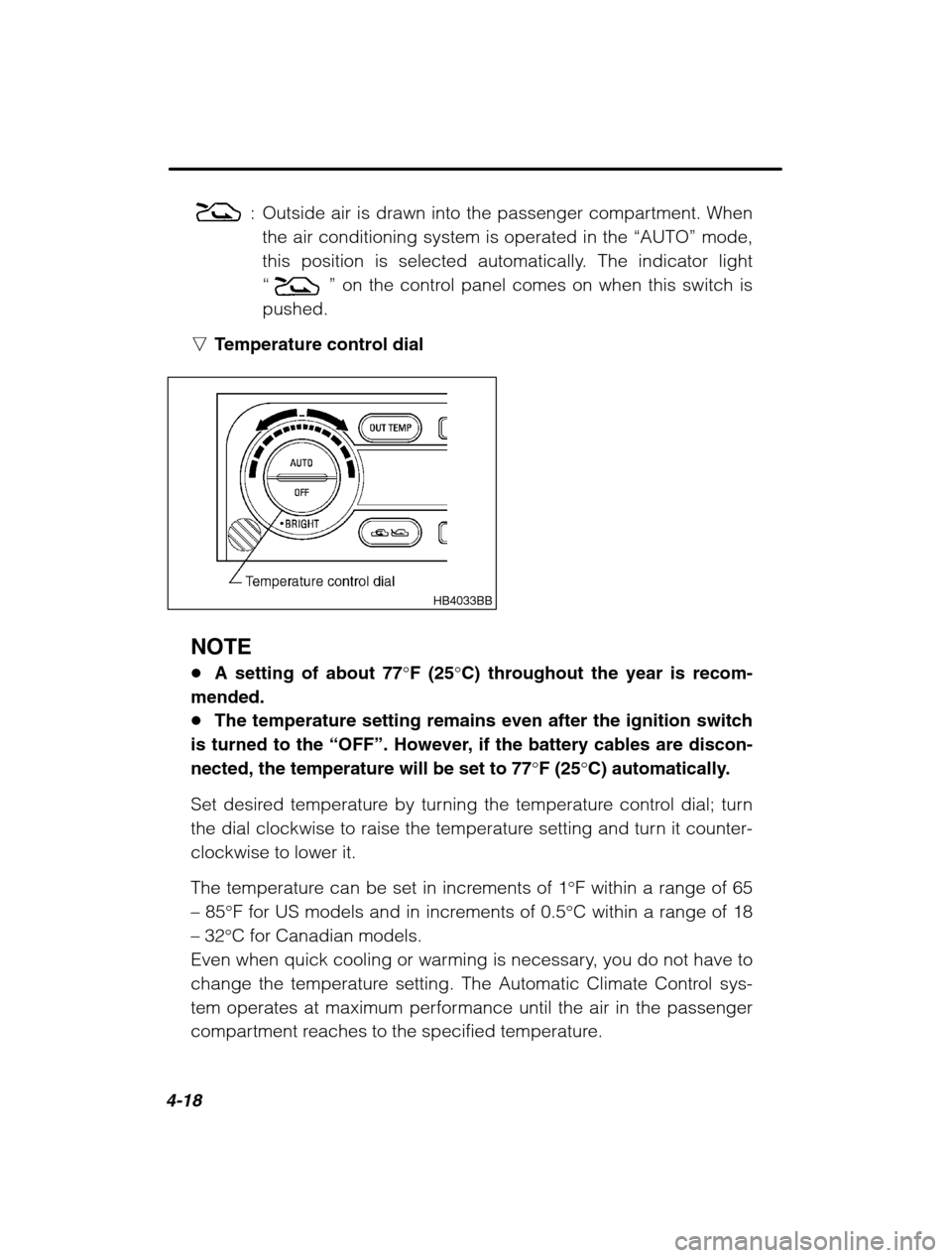

: Outside air is drawn into the passenger compartment. Whenthe air conditioning system is operated in the “AUTO” mode,
this position is selected automatically. The indicator light “
” on the control panel comes on when this switch is
pushed.
n Temperature control dial
HB4033BB
NOTE A setting of about 77 °F (25 °C) throughout the year is recom-
mended. The temperature setting remains even after the ignition switch
is turned to the “OFF”. However, if the battery cables are discon-
nected, the temperature will be set to 77 °F (25 °C) automatically.
Set desired temperature by turning the temperature control dial; turn
the dial clockwise to raise the temperature setting and turn it counter-clockwise to lower it.
The temperature can be set in increments of 1 °F within a range of 65
– 85 °F for US models and in increments of 0.5 °C within a range of 18
– 32 °C for Canadian models.
Even when quick cooling or warming is necessary, you do not have to
change the temperature setting. The Automatic Climate Control sys-
tem operates at maximum performance until the air in the passenger
compartment reaches to the specified temperature.

Audio5-9
–
CONTINUED –

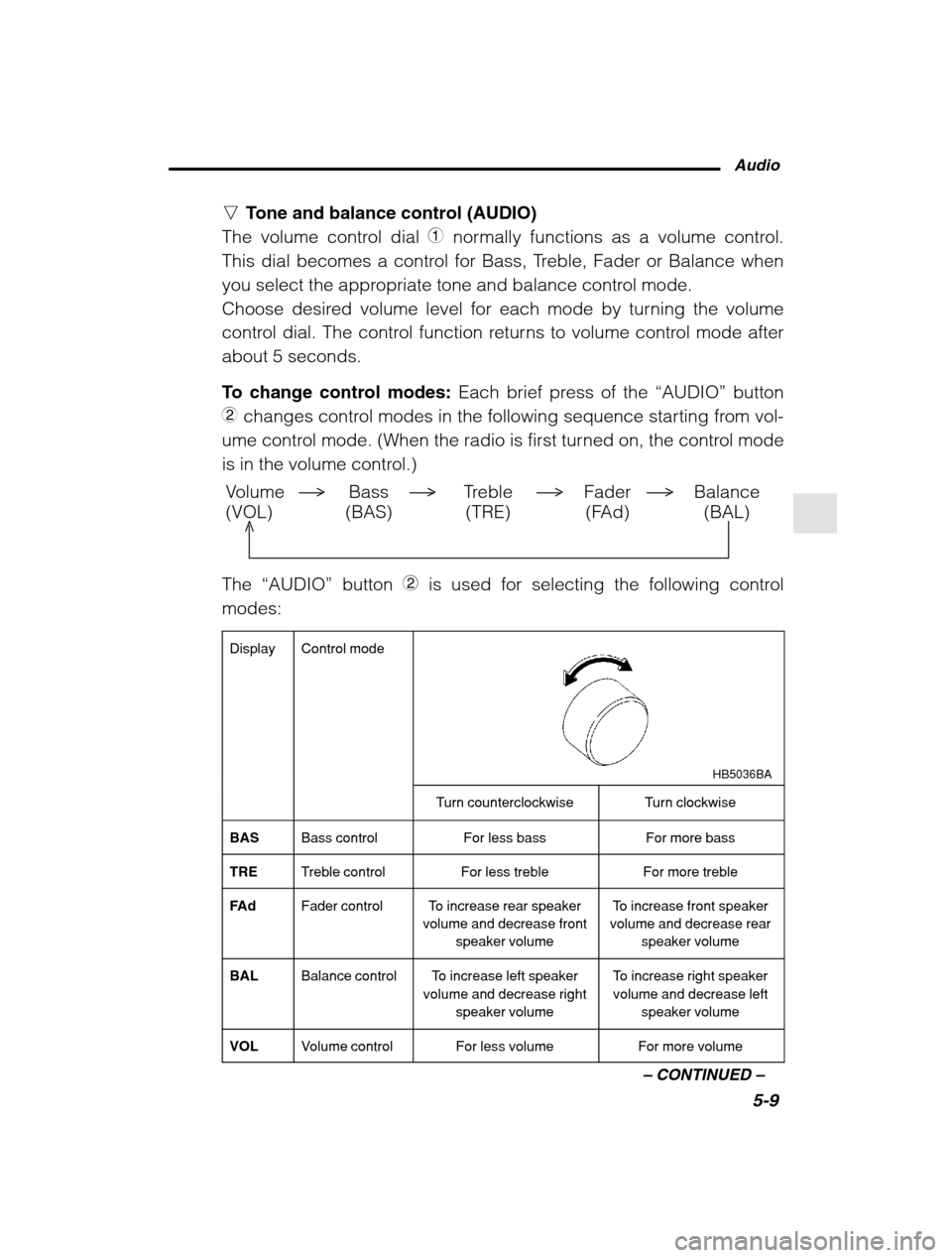

nTone and balance control (AUDIO)
The volume control dial 1 normally functions as a volume control.
This dial becomes a control for Bass, Treble, Fader or Balance when
you select the appropriate tone and balance control mode.
Choose desired volume level for each mode by turning the volume
control dial. The control function returns to volume control mode after
about 5 seconds.
To change control modes: Each brief press of the “AUDIO” button
2 changes control modes in the following sequence starting from vol-
ume control mode. (When the radio is first turned on, the control mode
is in the volume control.)
Volume Bass Treble Fader Balance
(VOL) (BAS) (TRE) (FAd) (BAL)
The “AUDIO” button 2 is used for selecting the following control
modes:
Display
Control mode
HB5036BA
Turn counterclockwiseTurn clockwise
BASBass controlFor less bassFor more bass
TRETreble controlFor less trebleFor more treble
FA dFader controlTo increase rear speaker
volume and decrease front
speaker volumeTo increase front speaker
volume and decrease rear
speaker volume
BALBalance controlTo increase left speaker
volume and decrease right
speaker volumeTo increase right speakervolume and decrease left
speaker volume
VOLVolume controlFor less volumeFor more volume

Audio5-21
–
CONTINUED –

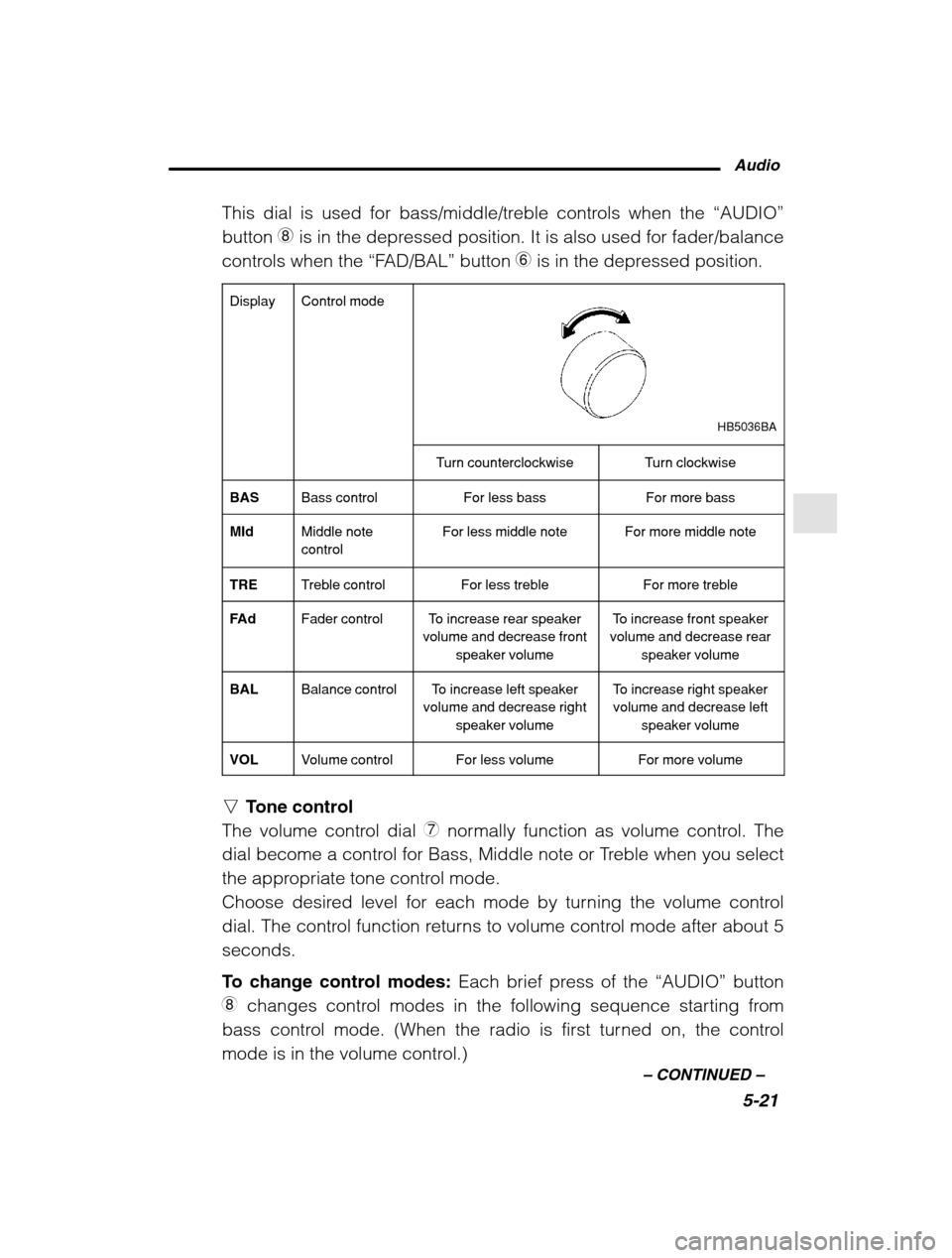

This dial is used for bass/middle/treble controls when the “AUDIO”
button 8 is in the depressed position. It is also used for fader/balance
controls when the “FAD/BAL” button 6 is in the depressed position.
Display
Control mode
HB5036BA
Turn counterclockwiseTurn clockwise
BASBass controlFor less bassFor more bass
MIdMiddle note controlFor less middle noteFor more middle note
TRETreble controlFor less trebleFor more treble
FA dFader controlTo increase rear speaker
volume and decrease front
speaker volumeTo increase front speaker
volume and decrease rear
speaker volume
BALBalance controlTo increase left speaker
volume and decrease right
speaker volumeTo increase right speakervolume and decrease left
speaker volume
VOLVolume controlFor less volumeFor more volume
nTone control
The volume control dial 7 normally function as volume control. The
dial become a control for Bass, Middle note or Treble when you select
the appropriate tone control mode.
Choose desired level for each mode by turning the volume control
dial. The control function returns to volume control mode after about 5seconds.
To change control modes: Each brief press of the “AUDIO” button
8 changes control modes in the following sequence starting from
bass control mode. (When the radio is first turned on, the control
mode is in the volume control.)

Audio5-35
–
CONTINUED –
nTone and balance control (AUDIO)
The volume control dial 1 normally functions as a volume control.
This dial becomes a control for Bass, Treble, Fader or Balance when
you select the appropriate tone and balance control mode.
Choose desired volume level for each mode by turning the volume
control dial. The control function returns to volume control mode after
about 5 seconds.
To change control modes: Each brief press of the “AUDIO” button
5 changes control modes in the following sequence starting from vol-
ume control mode. (When the radio is first turned on, the control mode
is in the volume control.)
Volume Bass Treble Balance Fader
(VOL) (BAS) (TRE) (BAL) (FAD)
The “AUDIO” button 5 is used for selecting the following control
modes:
Display
Control mode
HB5036BA
Turn counterclockwiseTurn clockwise
BASBass controlFor less bassFor more bass
TRETreble controlFor less trebleFor more treble
FA DFader controlTo increase rear speaker
volume and decrease front
speaker volumeTo increase front speaker
volume and decrease rear
speaker volume
BALBalance controlTo increase left speaker
volume and decrease right
speaker volumeTo increase right speakervolume and decrease left
speaker volume
VOLVolume controlFor less volumeFor more volume

Audio5-45
–
CONTINUED –

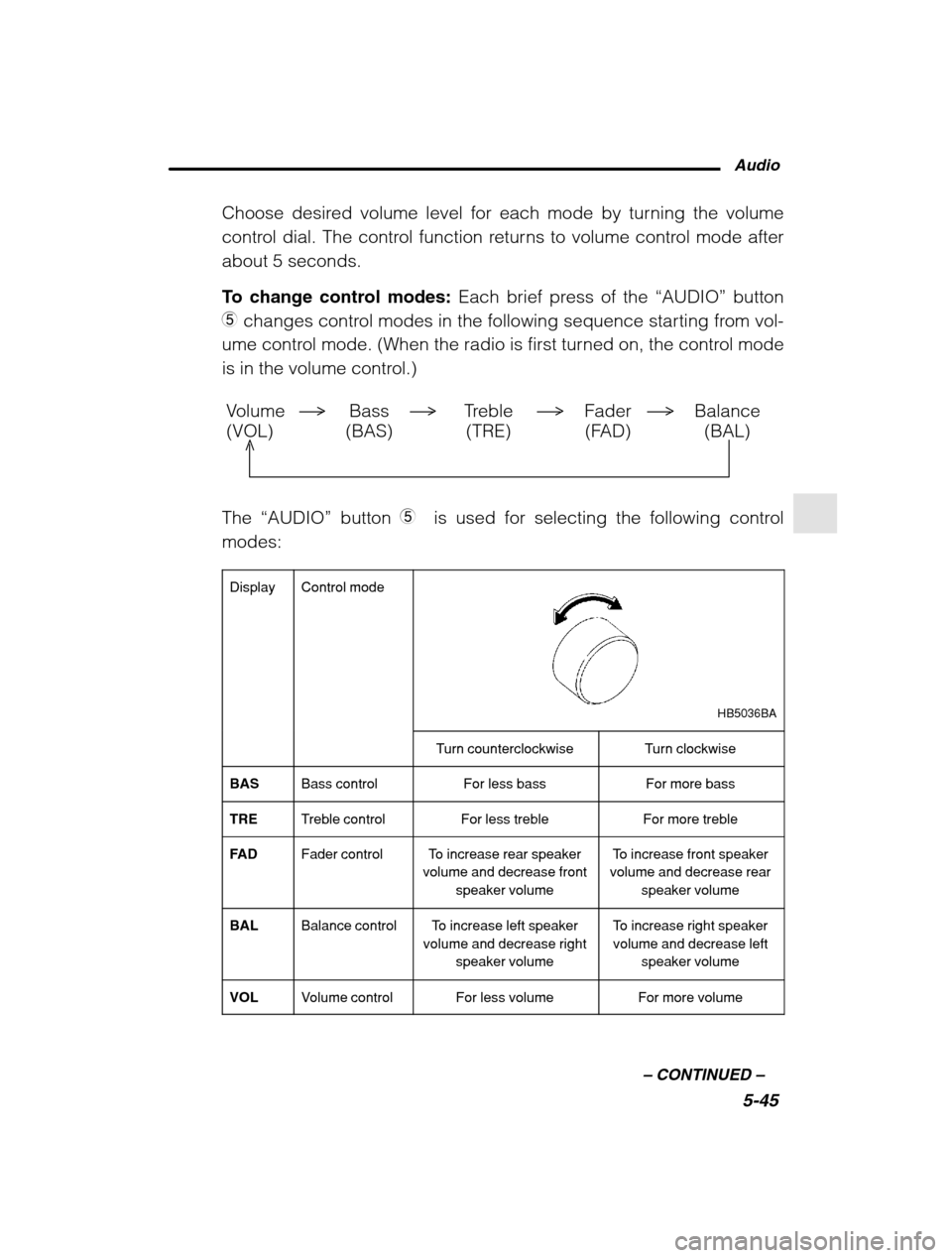

Choose desired volume level for each mode by turning the volume
control dial. The control function returns to volume control mode after
about 5 seconds.
To change control modes: Each brief press of the “AUDIO” button
5 changes control modes in the following sequence starting from vol-
ume control mode. (When the radio is first turned on, the control mode
is in the volume control.)
Volume Bass Treble Fader Balance(VOL) (BAS) (TRE) (FAD) (BAL)
The “AUDIO” button 5 is used for selecting the following control
modes:
Display
Control mode
HB5036BA
Turn counterclockwiseTurn clockwise
BASBass controlFor less bassFor more bass
TRETreble controlFor less trebleFor more treble
FA DFader controlTo increase rear speaker
volume and decrease front
speaker volumeTo increase front speaker
volume and decrease rear
speaker volume
BALBalance controlTo increase left speaker
volume and decrease right
speaker volumeTo increase right speakervolume and decrease left
speaker volume
VOLVolume controlFor less volumeFor more volume

Audio5-51
–
CONTINUED –

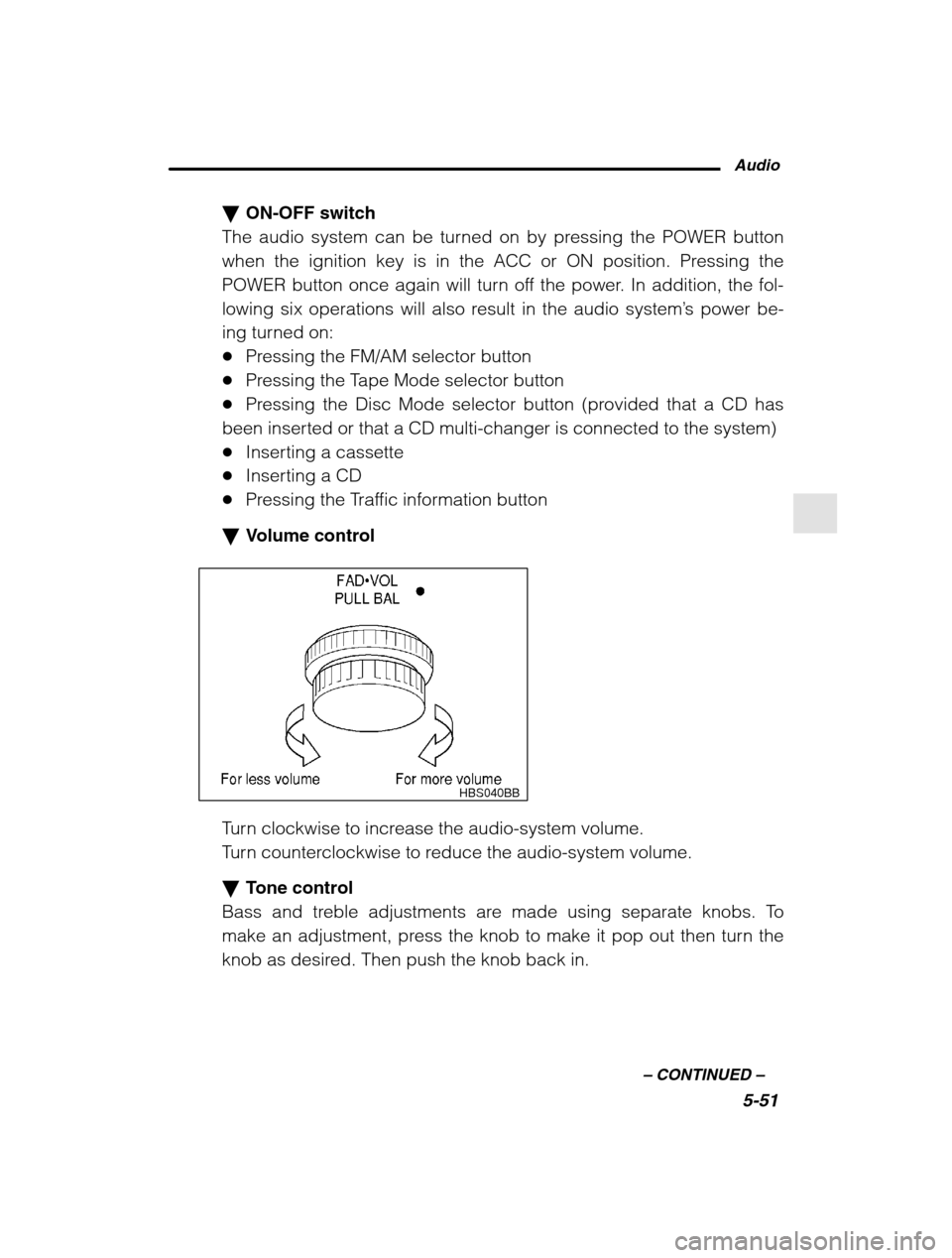

ON-OFF switch
The audio system can be turned on by pressing the POWER button
when the ignition key is in the ACC or ON position. Pressing the
POWER button once again will turn off the power. In addition, the fol-
lowing six operations will also result in the audio system ’s power be-
ing turned on: Pressing the FM/AM selector button
Pressing the Tape Mode selector button
Pressing the Disc Mode selector button (provided that a CD has
been inserted or that a CD multi-changer is connected to the system) Inserting a cassette
Inserting a CD
Pressing the Traffic information button
Volume control
HBS040BB
Turn clockwise to increase the audio-system volume.
Turn counterclockwise to reduce the audio-system volume. Tone control
Bass and treble adjustments are made using separate knobs. To
make an adjustment, press the knob to make it pop out then turn the
knob as desired. Then push the knob back in.

11-58

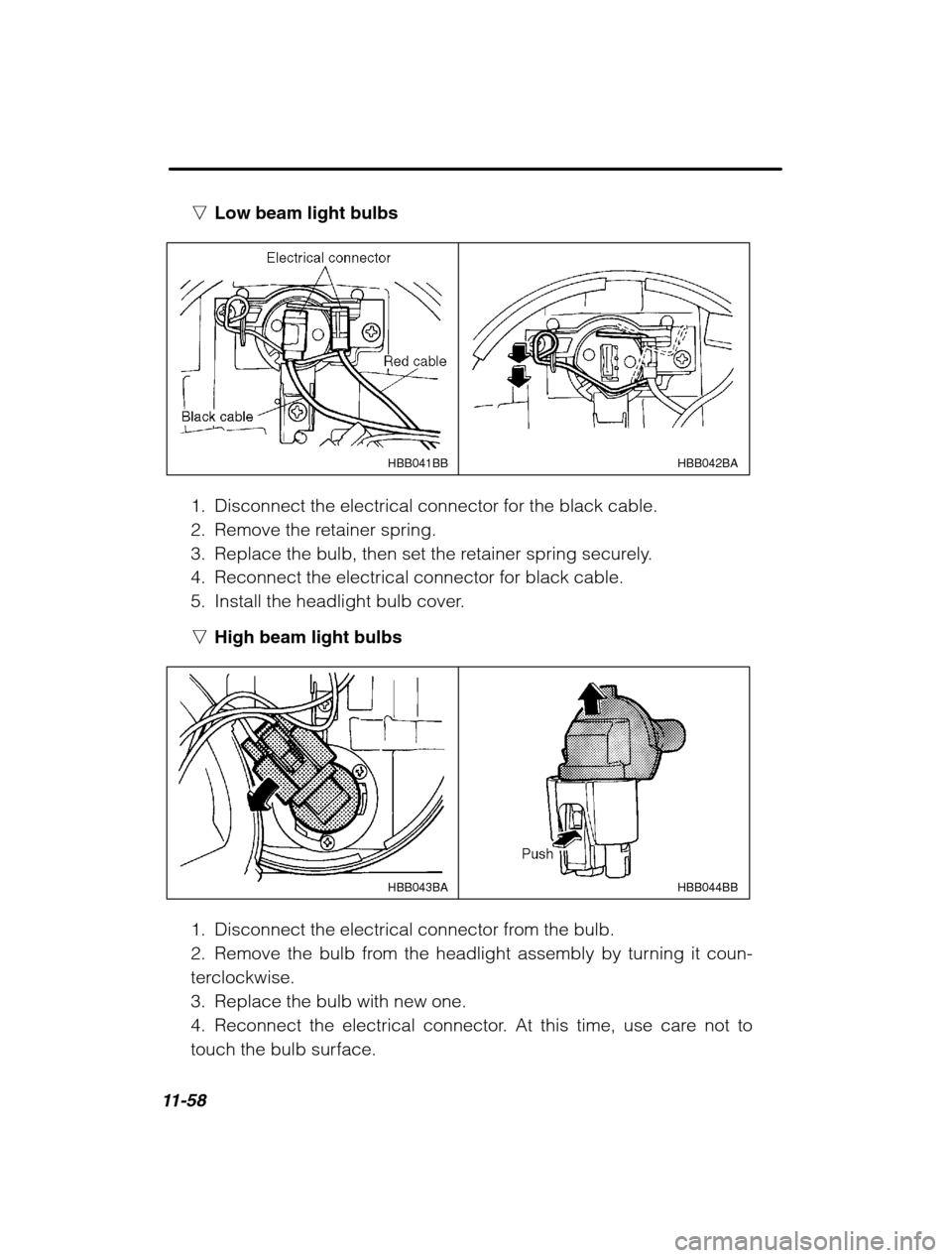

nLow beam light bulbs
HBB042BA
HBB041BB
1. Disconnect the electrical connector for the black cable.
2. Remove the retainer spring.
3. Replace the bulb, then set the retainer spring securely.
4. Reconnect the electrical connector for black cable.
5. Install the headlight bulb cover. n High beam light bulbs
HBB044BB
HBB043BA
1. Disconnect the electrical connector from the bulb.
2. Remove the bulb from the headlight assembly by turning it coun-
terclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At this time, use care not to
touch the bulb surface.

11-60

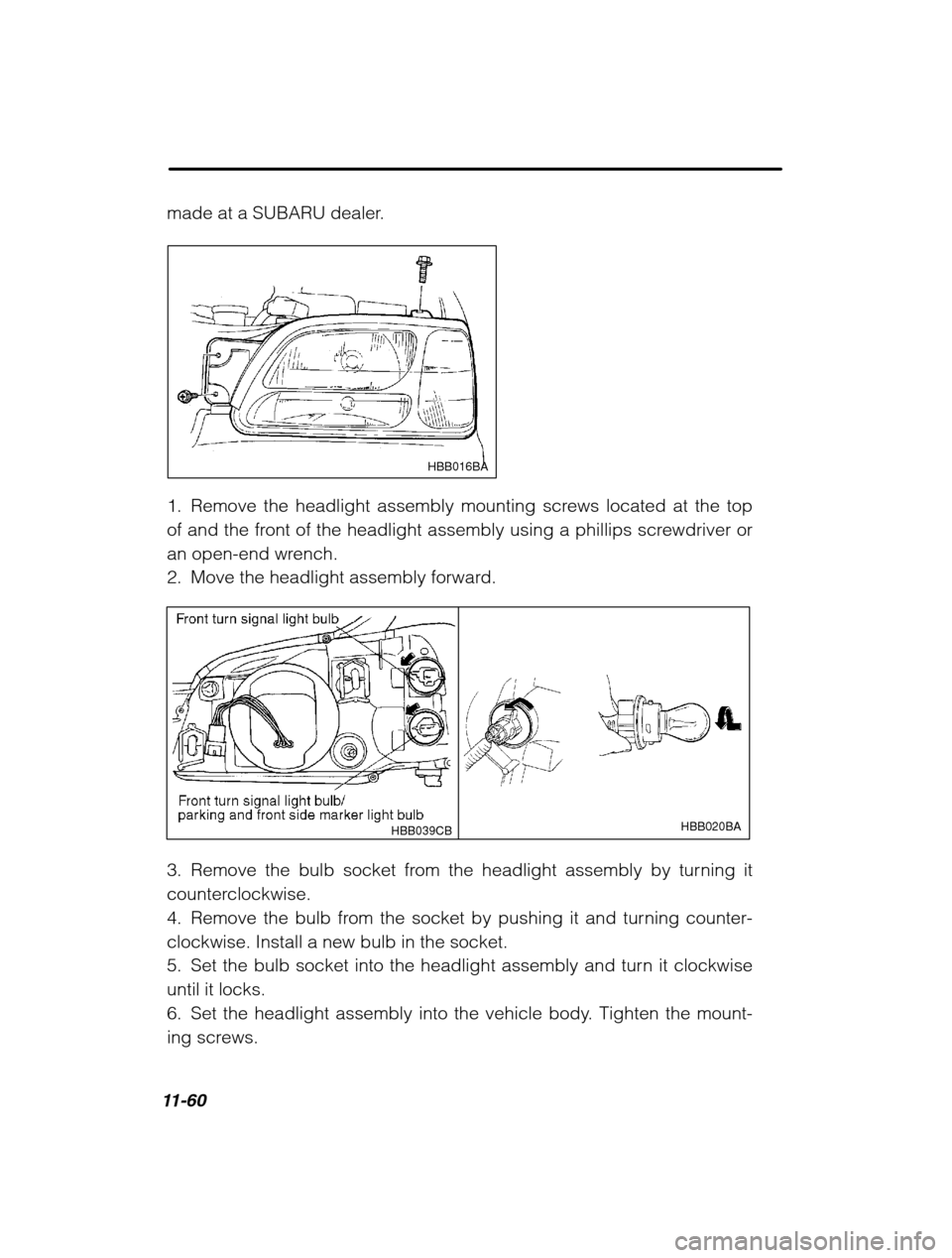

made at a SUBARU dealer.
HBB016BA
1. Remove the headlight assembly mounting screws located at the top
of and the front of the headlight assembly using a phillips screwdriver or
an open-end wrench.
2. Move the headlight assembly forward.
HBB039CBHBB020BA
3. Remove the bulb socket from the headlight assembly by turning it
counterclockwise.
4. Remove the bulb from the socket by pushing it and turning counter-clockwise. Install a new bulb in the socket.
5. Set the bulb socket into the headlight assembly and turn it clockwise
until it locks.
6. Set the headlight assembly into the vehicle body. Tighten the mount-
ing screws.

11-62

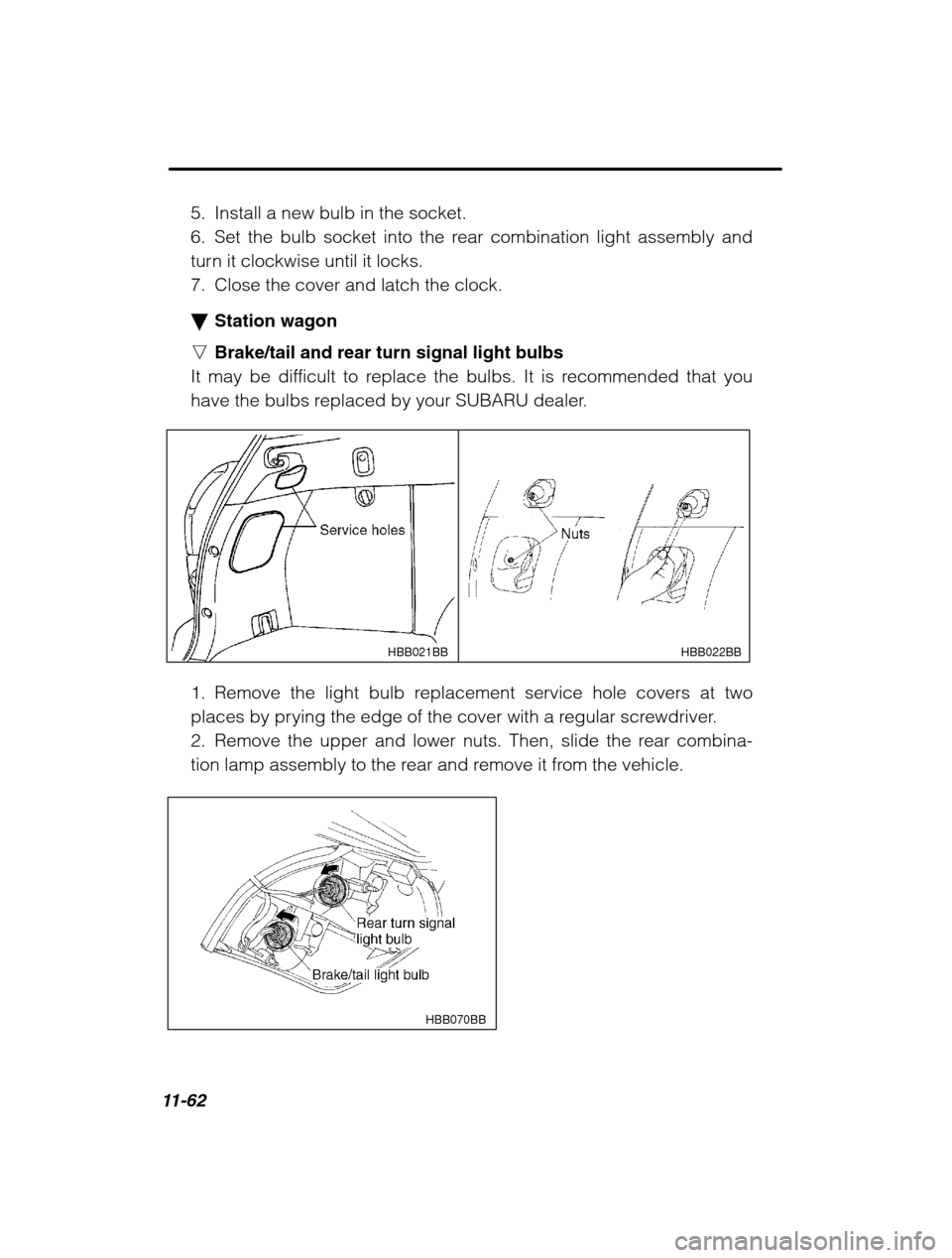

5. Install a new bulb in the socket.
6. Set the bulb socket into the rear combination light assembly and
turn it clockwise until it locks.
7. Close the cover and latch the clock. Station wagon
n Brake/tail and rear turn signal light bulbs
It may be difficult to replace the bulbs. It is recommended that you
have the bulbs replaced by your SUBARU dealer.
HBB022BB
HBB021BB
1. Remove the light bulb replacement service hole covers at two
places by prying the edge of the cover with a regular screwdriver.
2. Remove the upper and lower nuts. Then, slide the rear combina-
tion lamp assembly to the rear and remove it from the vehicle.
HBB070BB
