SUBARU OUTBACK 2004 4.G Owners Manual

2-4
Keys and doors
Locking without the key
1) Push the power door locking switch forward.
2) Close the door.
To lock the door from the outside using the power door
locking switch, push the switch forward (“LOCK” side)
and then close the door. In this case, all closed doors
and the rear gate (for station wagon) are locked at the same time.
Always make sure that all doors and the rear gate are
locked before leaving your vehicle.
NOTE
Make sure that you do not leave the key inside the vehicle before locking the doors from the outside
without the key. „
Locking and unlocking from the inside
Keep all doors locked when you drive, especial-
ly when small children are in your vehicle.
Along with the proper use of seat belts and
child restraints, locking the doors reduces the
chance of being thrown out of the vehicle in an
accident.
It also helps prevent passengers from falling
out if a door is accidentally opened, and intrud-
ers from unexpectedly opening doors and en-
tering your vehicle.
1
2
UB2024CB

2-5
Keys and doors
– CONTINUED –
1) Lock
2) Unlock
To lock the door from the inside, rotate the lock lever
rearward. To unlock the door from the inside, rotate
the lock lever forward.
The red mark on the lock lever appears when the door
is unlocked.
Pull the inside door handle to open an unlocked door.
Always make sure that all doors and the rear gate (sta-
tion wagon) are closed and locked before starting to
drive.
Power door locking switches
Driver’s switch
1) Lock
2) Unlock
12
UB2001BC
1
2
UB2008CB

2-6
Keys and doors
Front passenger’s switch
1) Lock
2) Unlock
All doors and the rear gate (station wagon) can be
locked and unlocked by the power door locking switch-
es located at the driver’s side and the front passen-
ger’s side doors.
To lock the doors, push the switch forward.
To unlock the doors, push the switch rearward.
When you close the doors after you set the door locks,
the doors remain locked.
NOTE
Make sure that you do not leave the key inside the
vehicle before locking the doors from the outside
using power door locking switches.
1
2
UB2009BB

2-7
Keys and doors
– CONTINUED –
Remote keyless entry system (if
equipped)
yDo not expose the transmitter to severe
shocks, such as those experienced as a result
of dropping or throwing. y Do not take the transmitter apart except when
replacing the battery. y Do not get the transmitter wet. If it gets wet,
wipe it dry with a cloth immediately.
This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada. Oper-
ation is subject to the following two conditions: (1)
This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equipment.
Two transmitters are provided for your vehicle.
The keyless entry system has the following functions. y
Locking and unlocking the doors (and rear gate on
the station wagon) without a key y Sounding a panic alarm
y Arming and disarming the security system (if your
vehicle is equipped with an optional security system).
See the next section “Security system (if equipped)”
for detailed information.
The operable distance of the keyless entry system is
approximately 30 feet (10 meters). However, this dis-
tance will vary depending on environmental condi-
tions. Range may be reduced near sources of RF in-
terference such as power plants and radio/television
broadcasting towers.
The keyless entry system does not operate when the
key is inserted in the ignition switch.

2-8
Keys and doors
A: “LOCK/ARM” button (Orange)
Press to lock all doors.
Press and Hold to activate panic alarm.
Press three times in a five second period to use vehi-
cle finder function.
B: “UNLOCK/DISARM” button (Blue) 1) Press once to Unlock driver’s door.
2) Press a second time to Unlock all other doors and rear gate.
C: LED
„ Locking the doors
Briefly press the “LOCK/ARM” button (for less than
two seconds) to lock all doors (and rear gate on the station wagon). An electronic chirp will sound one time
and the turn signal lights will flash one time.
If any of the doors (or the rear gate) is not fully closed,
an electronic chirp will sound five times and the turn
signal lights will flash five times to alert you that the
doors (or the rear gate) are not properly closed. When
you close the door, it will automatically lock.
NOTE
If the “LOCK/ALARM” button is pressed for two
seconds or longer, the panic alarm will sound.
When locking the doors in normal circumstances,
press the “LOCK/ALARM” button for less than two
seconds. For details on the panic alarm, refer to
“Sounding a panic alarm”. „
Unlocking the doors
Briefly press the “UNLOCK/DISARM” button (for less
than two seconds) to unlock the driver’s door. An elec-
tronic chirp will sound two times and the turn signal
lights will flash two times. To unlock all doors (and rear
gate on the station wagon), briefly press the “UN-
LOCK/DISARM” button a second time within 5 sec-
onds.
NOTE
If the interval between the first and second press-
C
A B1
B2
HS2016BB

2-9
Keys and doors
– CONTINUED –
es of the “UNLOCK/DISARM” button (for unlock-
ing of all of the doors and the rear gate) is extreme-
ly short, the system may not respond. „Illuminated entry
The interior (dome) light will illuminate when the “UN-
LOCK/DISARM” button is pressed. These lights stay
illuminated for approximately 30 seconds if any of the
doors (or the rear gate on the station wagon) is not
opened.
If the “LOCK/ARM” button is pressed before 30 sec-
onds have elapsed, these lights will go out. Also, these
lights will go out if the key is inserted in the ignition
switch. The interior light must be set to the middle po-
sition in order for this function to operate.
„ Vehicle finder function
Use this function to find your vehicle parked among
many vehicles in a large parking lot. Provided you are
within 30 feet (10 meters) of the vehicle, pressing the
“LOCK/ARM” button three times in a five-second peri-
od will cause your vehicle’s horn to sound one time
and its turn signal lights to flash three times. „ Sounding a panic alarm
To activate the alarm, keep the “LOCK/ARM” button pressed
for more than two seconds .
The horn will sound and the turn signal lights will flash.
To deactivate it, press the “LOCK/ARM” button or
“UNLOCK/DISARM” button. Unless a button on the re-
mote is pressed, the alarm will be deactivated after ap-
proximately 30 seconds. „ Selecting audible signal operation
Using an electronic chirp, the system will give you an
audible signal when the doors lock and unlock. If de-
sired, you may turn the audible signal off.
To turn the audible signal off, unlock the doors by
pushing “UNLOCK/DISARM” button and then simulta-
neously depress “LOCK/ARM” and “UNLOCK/DIS-
ARM” buttons for more than two seconds. An electron-
ic chirp will sound two times and the turn signal lights
will flash two times to inform you that the audible signal
has been turned off.
To turn the audible signal on, unlock the doors by
pushing “UNLOCK/DISARM” button and then simulta-
neously depress “LOCK/ARM” and “UNLOCK/DIS-
ARM” buttons for more than two seconds. An electron-
ic chirp will sound one time and the turn signal lights
will flash one time to inform you that the audible signal
has been turned on.

2-10
Keys and doors
„
Replacing the battery
Do not let dust, oil or water get on or in the
transmitter when replacing the battery.
When the transmitter battery begins to get weak,
transmitter range will begin to decrease and the LED
will not illuminate. Replace the battery as soon as pos-
sible.
To replace the battery:
1. Remove the two screws on the back of the trans- mitter case by using a phillips screwdriver.
2. Separate the case.
3. Remove the old battery from the holder.
1) Positive (+) side facing up
4. Replace with a new battery (Type CR2032 or
equivalent) making sure to install the new battery with
the positive (+) side facing up.
5. Install the back half of the transmitter case.
6. Reinstall the two screws on the back of the trans-
mitter case.
After the battery is replaced, the transmitter must
be synchronized with the keyless entry system’s
control unit. Press either the “LOCK/ARM” or “UN-
HS2017BA
1
HS2018BB

2-11
Keys and doors
– CONTINUED –
LOCK/DISARM” button six times to synchronize
the unit. „ Replacing lost transmitters
If you lose a transmitter or want to purchase additional
transmitters (up to four can be programmed), you
should re-program all of your transmitters for security
reasons. It is recommended that you have your dealer
program all of your transmitters into your system. T Programming the transmitters
The keyless entry system is equipped with a special
code learning feature that allows you to program new
transmitter codes into the system or to delete old
ones. The system can learn up to four unique transmit-
ter codes. The four transmitter codes may be the
same or different. To enter the programming mode:0
1. Press “UNLOCK/DISARM” button to disarm the se-
curity system. (if your vehicle is equipped with the op-
tional security system.)
HS2016CA

2-12
Keys and doors

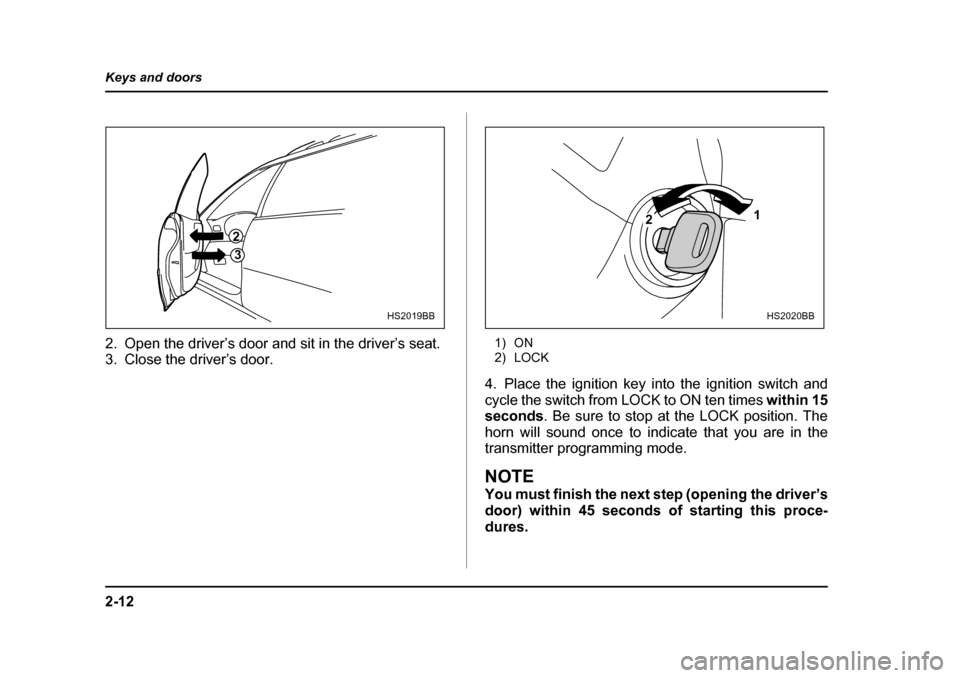

2. Open the driver’s door and sit in the driver’s seat.
3. Close the driver’s door.
1) ON
2) LOCK
4. Place the ignition key into the ignition switch and
cycle the switch from LOCK to ON ten times within 15
seconds . Be sure to stop at the LOCK position. The
horn will sound once to indicate that you are in the
transmitter programming mode.
NOTE
You must finish the next step (opening the driver’s
door) within 45 seconds of starting this proce-
dures.
3
2
HS2019BB
1
2
HS2020BB

2-13
Keys and doors
– CONTINUED –

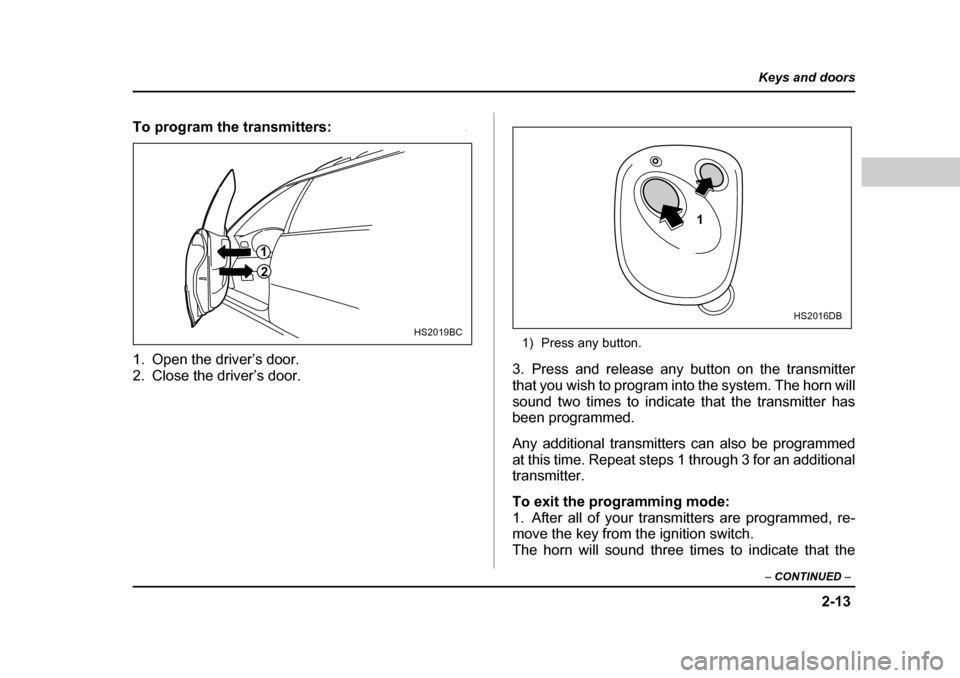

To program the transmitters:0
1. Open the driver’s door.
2. Close the driver’s door. 1) Press any button.
3. Press and release any button on the transmitter
that you wish to program into the system. The horn will
sound two times to indicate that the transmitter has
been programmed.
Any additional transmitters can also be programmed
at this time. Repeat steps 1 through 3 for an additional
transmitter.
To exit the programming mode:
1. After all of your transmitters are programmed, re-
move the key from the ignition switch.
The horn will sound three times to indicate that the
1
2
HS2019BC
1
HS2016DB
