SUBARU OUTBACK 2006 Owners Manual

9-14 In case of emergency
4. Screw the towing hook into the thread
hole until the threads can no longer be
seen.
5. Tighten the towing hook securely using
a wheel nut wrench.
After towing, remove the towing hook from
the vehicle and stow it in the tool bag.
Fit the towing hook cover on the bumper.

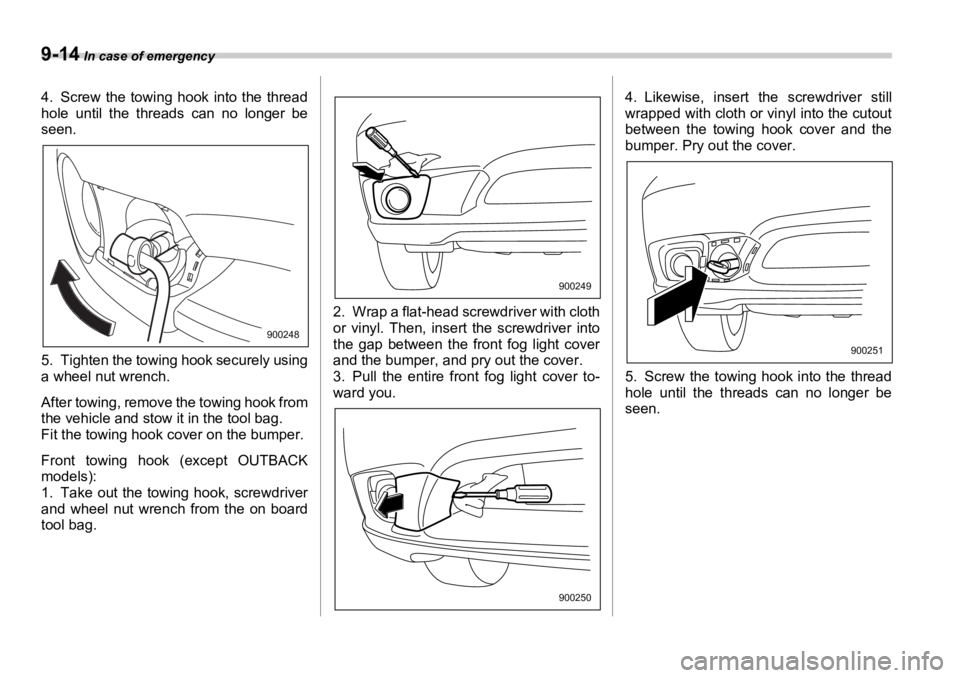

Front towing hook (except OUTBACK
models):
1. Take out the towing hook, screwdriver
and wheel nut wrench from the on board
tool bag. 2. Wrap a flat-head screwdriver with cloth
or vinyl. Then, insert the screwdriver into
the gap between the front fog light cover
and the bumper, and pry out the cover.
3. Pull the entire front fog light cover to-
ward you. 4. Likewise, insert the screwdriver still
wrapped with cloth or vinyl into the cutout
between the towing hook cover and the
bumper. Pry out the cover.
5. Screw the towing hook into the thread
hole until the threads can no longer be
seen.900248 900249
900250 900251

In case of emergency
9-15
– CONTINUED –6. Tighten the towing hook securely using
a wheel nut wrench.
After towing, remove the towing hook from
the vehicle and stow it in the tool bag.
Fit the fog light cover and towing hook
cover on the bumper. Rear towing hook:
The rear towing hook is located below the
center of the rear bumper.
Front tie-down hooks: The front tie-down hooks are located be-
tween each of the front tires and the front
bumper.
Rear tie-down hooks:
The rear tie-down hooks are located neary Do not use the towing hook ex-
cept when towing your vehicle.
y Be sure to remove the towing
hook after towing. Leaving the
towing hook mounted on the vehi-
cle could interfere with proper op-
eration of the SRS airbag system
in a frontal collision. 900252
Never use the rear towing hook to tie
the vehicle down. 600150 900253
900032

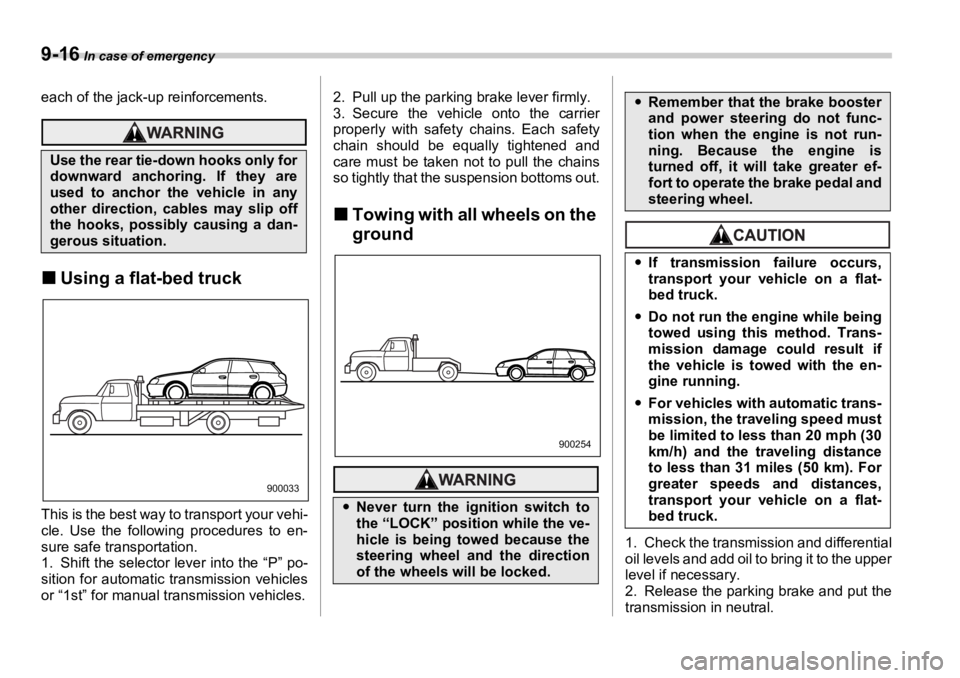

9-16 In case of emergency
each of the jack-up reinforcements.
„ Using a flat-bed truck
This is the best way to transport your vehi-
cle. Use the following procedures to en-
sure safe transportation.
1. Shift the selector lever into the “P” po-
sition for automatic transmission vehicles
or “1st” for manual transmission vehicles. 2. Pull up the parking brake lever firmly.
3. Secure the vehicle onto the carrier
properly with safety chains. Each safety
chain should be equally tightened and
care must be taken not to pull the chains
so tightly that the suspension bottoms out.
„ Towing with all wheels on the
ground
1. Check the transmission and differential
oil levels and add oil to bring it to the upper
level if necessary.
2. Release the parking brake and put the
transmission in neutral.Use the rear tie-down hooks only for
downward anchoring. If they are
used to anchor the vehicle in any
other direction, cables may slip off
the hooks, possibly causing a dan-
gerous situation.
900033
y Never turn the ignition switch to
the “LOCK” position while the ve-
hicle is being towed because the
steering wheel and the direction
of the wheels will be locked. 900254y Remember that the brake booster
and power steering do not func-
tion when the engine is not run-
ning. Because the engine is
turned off, it will take greater ef-
fort to operate the brake pedal and
steering wheel.
y If transmission failure occurs,
transport your vehicle on a flat-
bed truck.
y Do not run the engine while being
towed using this method. Trans-
mission damage could result if
the vehicle is towed with the en-
gine running.
y For vehicles with automatic trans-
mission, the traveling speed must
be limited to less than 20 mph (30
km/h) and the traveling distance
to less than 31 miles (50 km). For
greater speeds and distances,
transport your vehicle on a flat-
bed truck.

In case of emergency
9-173. The ignition switch should be in the
“ACC” position while the vehicle is being
towed.
4. Take up slack in the towline slowly to
prevent damage to the vehicle.

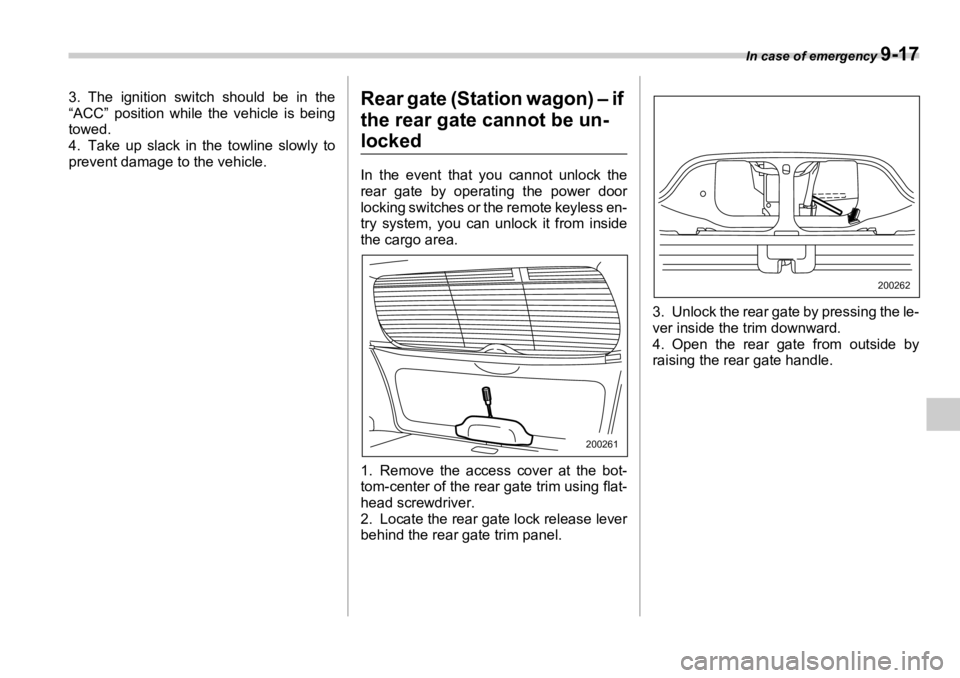

Rear gate (Station wagon) – if
the rear gate cannot be un-
locked In the event that y ou cannot unlock the
rear gate by operating the power door
locking switches or the remote keyless en-
try system, you can unlock it from inside
the cargo area. 0
1. Remove the access cover at the bot-
tom-center of the rear gate trim using flat-
head screwdriver.
2. Locate the rear gate lock release lever
behind the rear gate trim panel. 3. Unlock the rear gate by pressing the le-
ver inside the trim downward.
4. Open the rear gat e from outside by
raising the rear gate handle. 200261 200262

9-18 In case of emergency

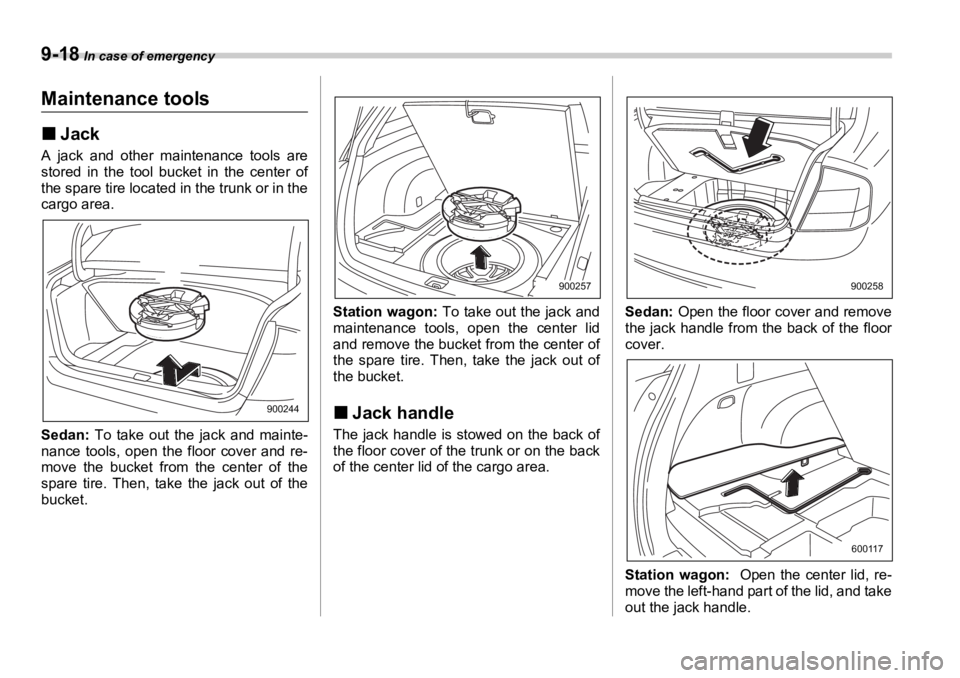

Maintenance tools „ JackA jack and other maintenance tools are
stored in the tool bucket in the center of
the spare tire located in the trunk or in the
cargo area.
Sedan: To take out the jack and mainte-
nance tools, open the floor cover and re-
move the bucket from the center of the
spare tire. Then, take the jack out of the
bucket. Station wagon: To take out the jack and
maintenance tools, open the center lid
and remove the bucket from the center of
the spare tire. Then, take the jack out of
the bucket.
„ Jack handle The jack handle is stowed on the back of
the floor cover of the trunk or on the back
of the center lid of the cargo area. Sedan: Open the floor cover and remove
the jack handle from the back of the floor
cover.
Station wagon: Open the center lid, re-
move the left-hand part of the lid, and take
out the jack handle.900244 900257 900258
600117

In case of emergency
9-19For how to use the jack, refer to “Flat
tires”.

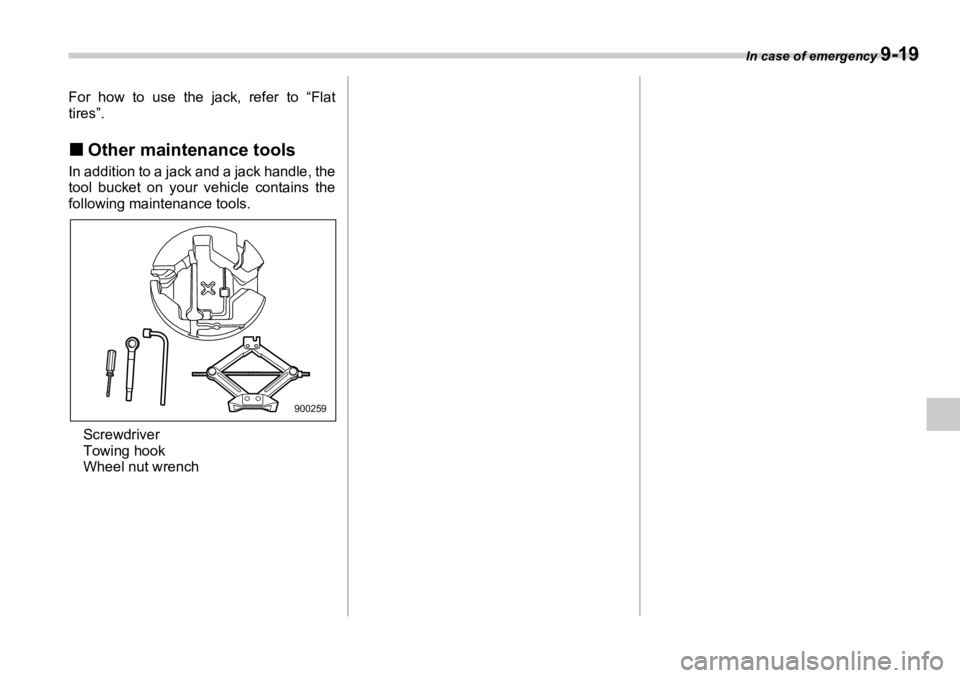

„ Other maintenance toolsIn addition to a jack and a jack handle, the
tool bucket on your vehicle contains the
following maintenance tools.
Screwdriver
Towing hook
Wheel nut wrench 900259

10Appearance care Exterior care ....................................................... 10-2 Washing ................................................................... 10-2
Waxing and polishing ............................................. 10-3
Cleaning aluminum wheels .................................... 10-3
Corrosion protection ......... ................................. 10-4Most common causes of corrosion ...................... 10-4
To help prevent corrosion ..................................... 10-4
Cleaning the interior .......................................... 10-5 Seat fabric ............................................................... 10-5
Leather seat materials ............................................ 10-5
Synthetic leather upholstery ................................. 10-5
Climate control panel, audio panel, instrument
panel, console panel, switches, combination
meter, and other plastic surface ......................... 10-5

10-2 Appearance care Appearance care
Exterior care „ Washing
NOTE When having your vehicle washed in
an automatic car wash, make sure be-
forehand that the car wash is of suit-
able type.
The best way to preserve your vehicle’s
beauty is frequent washing. Wash the ve-
hicle at least once a month to avoid con-
tamination by road grime.
Wash dirt off with a wet sponge and plenty
of lukewarm or cold water. Do not wash
the vehicle with hot water and in direct
sunlight.
Salt, chemicals, insects, tar, soot, tree
sap, and bird droppings should be washed
off by using a light detergent, as required.
If you use a light detergent, make certain that it is a neutral detergent. Do not use
strong soap or chemical detergents. All
cleaning agents should be promptly
flushed from the surface and not allowed
to dry there. Rinse the vehicle thoroughly
with plenty of lukewarm water. Wipe the
remaining water off with a chamois or soft
cloth.
T Washing the underbody
Chemicals, salts and gravel used for deic-
ing road surfaces are extremely corrosive,
accelerating the corrosion of underbody
components, such as the exhaust system,
fuel and brake lines, brake cables, floor
pan and fenders, and suspension.
Thoroughly flush the underbody and in-
side of the fenders with lukewarm or cold
water at frequent intervals to reduce the
harmful effects of such agents.
Mud and sand adhering to the underbody
components may accelerate their corro-
sion.
After driving off-road or muddy or sandy
roads, wash the mud and sand off the un-
derbody.
Carefully flush the suspension and axle
parts, as they are particularly prone to
mud and sand buildup. Do not use a
sharp-edged tool to remove caked mud.y When washing the vehicle, the
brakes may get wet. As a result,
the brake stopping distance will
be longer. To dry the brakes, drive
the vehicle at a safe speed while
lightly pressing the brake pedal to
heat up the brakes.
y Do not wash the engine compart-
ment and areas adjacent to it. If
water enters the engine air intake,
electrical parts or the power steer-
ing fluid reservoir, it will cause en-
gine trouble or faulty power steer-
ing respectively. y Since your vehicle is equipped
with a rear wiper, automatic car-
wash brushes could become tan-
gled around it, damaging the wip-
er arm and other components.
Ask the automatic car-wash oper-
ator not to let the brushes touch
the wiper arm or to fix the wiper
arm on the rear window glass with
adhesive tape before operating
the machine. (S tation wagon mod-
els only)

Appearance care
10-3NOTE Be careful not to damage brake hoses,
sensor harnesses, and other parts
when washing suspension compo-
nents.
T Using a warm water washer
y Keep a good distance of 12 in (30 cm)
or more between the washer nozzle and
the vehicle.
y Do not wash the same area continuous-
ly.
y If a stain will not come out easily, wash
by hand. Some warm water washers are
of the high temperature, high pressure
type, and they can damage or deform the
resin parts such as mouldings, or cause
water to leak in to the vehicle.
„ Waxing and polishingAlways wash and dry the vehicle before
waxing and polishing.
Use a good quality polish and wax and ap-
ply them according to the manufacturer’s
instructions. Wax or polish when the paint-
ed surface is cool.
Be sure to polish and wax the chrome trim,
as well as the painted surfaces. Loss of
wax on a painted surface leads to loss of
the original luster and also quickens the
deterioration of the su rface. It is recom- mended that a coat of wax be applied at
least once a month, or whenever the sur-
face no longer repels water.
If the appearance of the paint has dimin-
ished to the point where the luster or tone
cannot be restored, lightly polish the sur-
face with a fine-grained compound. Never
polish just the affected area, but include
the surrounding area as well. Always pol-
ish in only one direction. A No. 2000 grain
compound is recommended. Never use a
coarse-grained compound. Coarser
grained compounds have a smaller grain-
size number and could damage the paint.
After polishing with a compound, coat with
wax to restore the original luster. Frequent
polishing with a compound or an incorrect
polishing technique will result in removing
the paint layer and exposing the under-
coat. When in doubt, it is always best to
contact your SUBARU dealer or an auto
paint specialist.
NOTE Be careful not to block the windshield
washer nozzles with wax when waxing
the vehicle.
„ Cleaning aluminum wheels y Promptly wipe the aluminum wheels
clean of any kind of gr ime or agent. If dirt is left on too long, it may be difficult to
clean off.
y Do not use soap containing grit to clean
the wheels. Be sure to use a neutral clean-
ing agent, and later rinse thoroughly with
water. Do not clean the wheels with a stiff
brush or expose them to a high-speed
washing device.
y Clean the vehicle (including the alumi-
num wheels) with water as soon as possi-
ble when it has been splashed with sea
water, exposed to sea breezes, or driven
on roads treated with salt or other agents.
