SUBARU OUTBACK 2006 Repair Manual 1-36  Seat, seatbelt and SRS airbags
5. Before seating a child in the child re-
straint system, try to move seat back and
forth and left and right to verify that it is
held securely in position.
6. To

Page 62 of 425

SUBARU OUTBACK 2006 Repair Manual Seat, seatbelt and SRS airbags
1-37

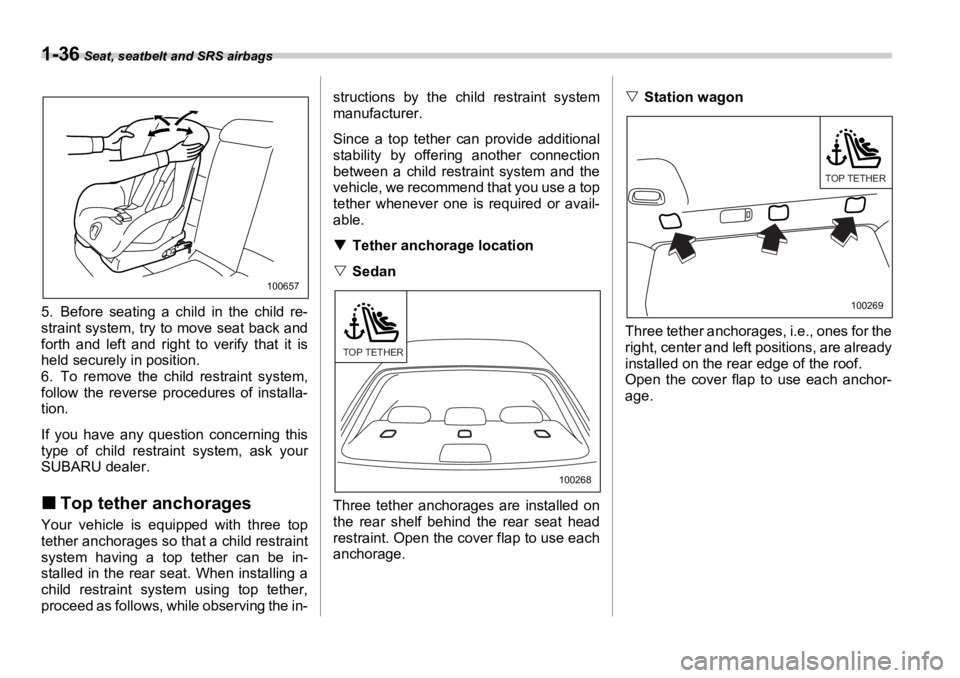

–  CONTINUED  –�T To hook the top tether
�V Sedan

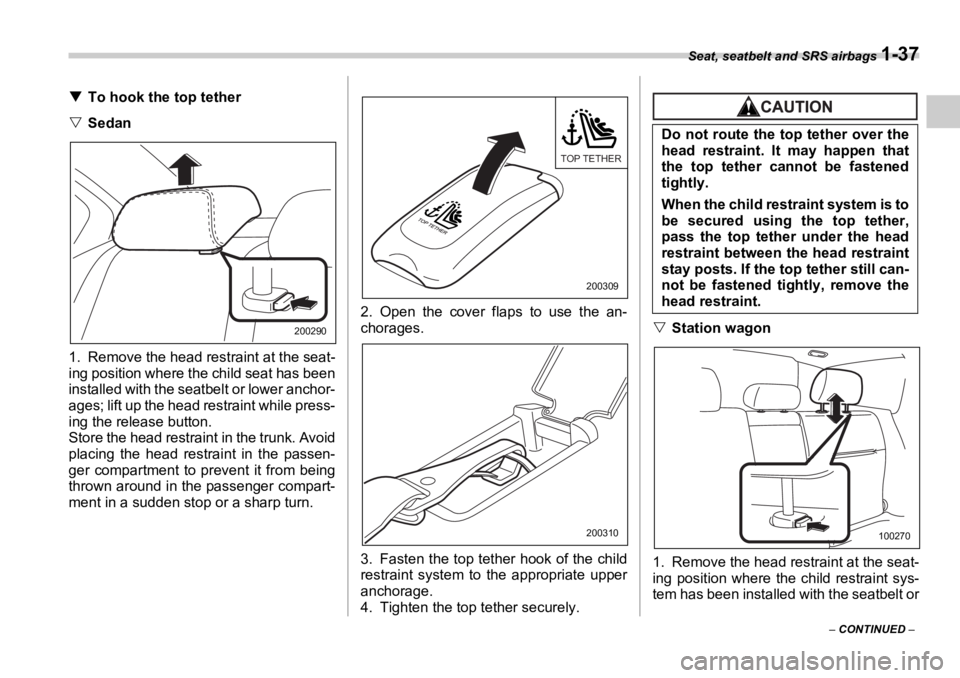

1. Remove the head restraint at the seat-
ing position where the child seat has been
installed with the seatb

Page 63 of 425

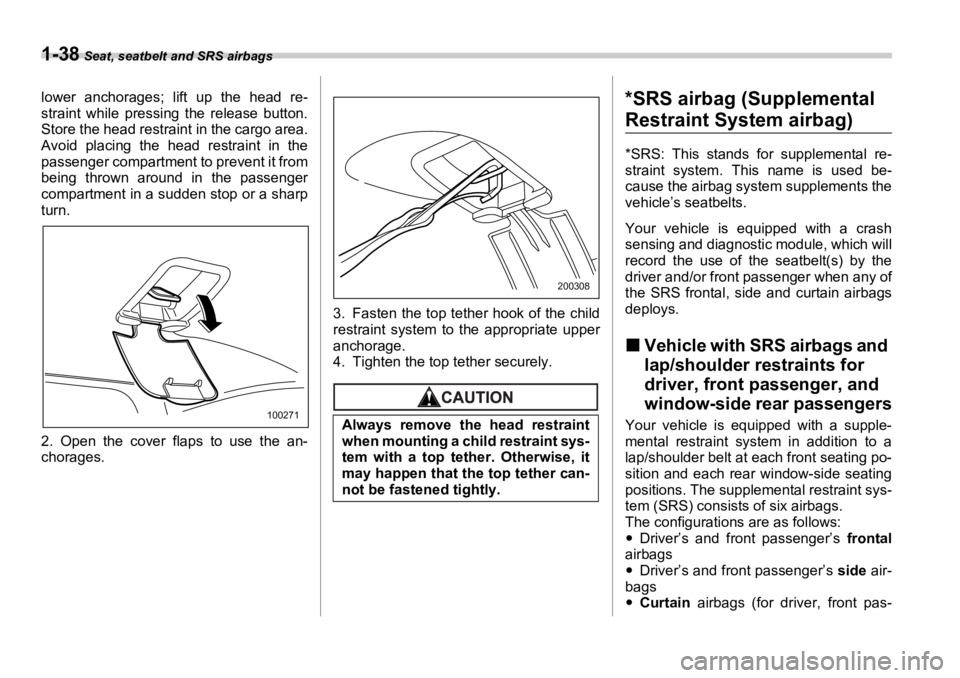

SUBARU OUTBACK 2006 Repair Manual 1-38  Seat, seatbelt and SRS airbags
lower anchorages; lift up the head re-
straint while pressing the release button.
Store the head restrain t in the cargo area.
Avoid placing the head restraint in

Page 64 of 425

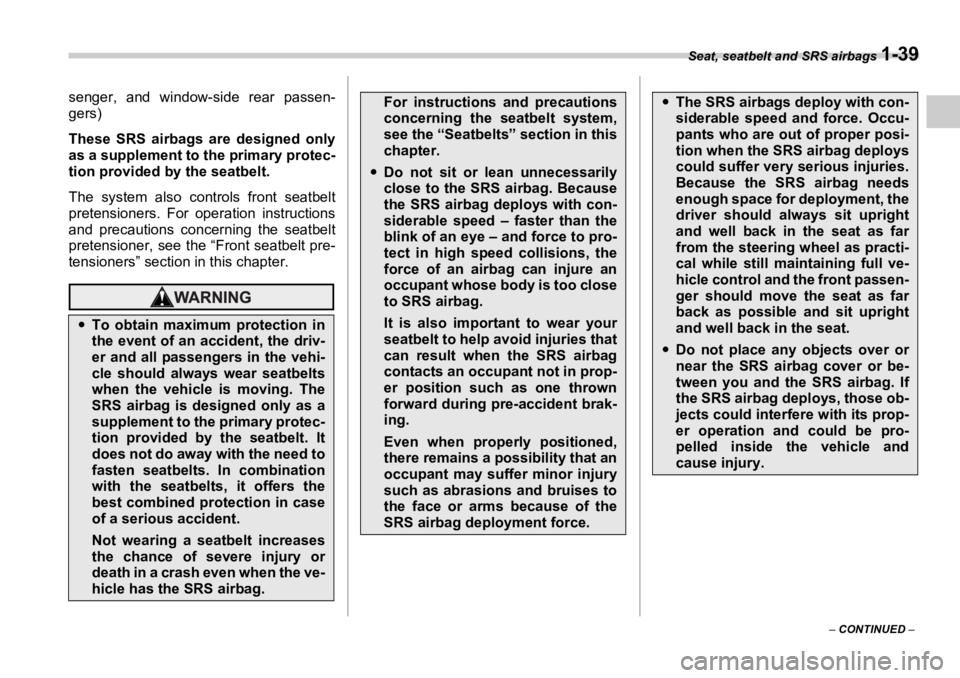

SUBARU OUTBACK 2006 Repair Manual Seat, seatbelt and SRS airbags
1-39
–  CONTINUED  –senger, and window-side rear passen-
gers)
These SRS airbags are designed only
as a supplement to the primary protec-
tion provided by the seatb

Page 65 of 425

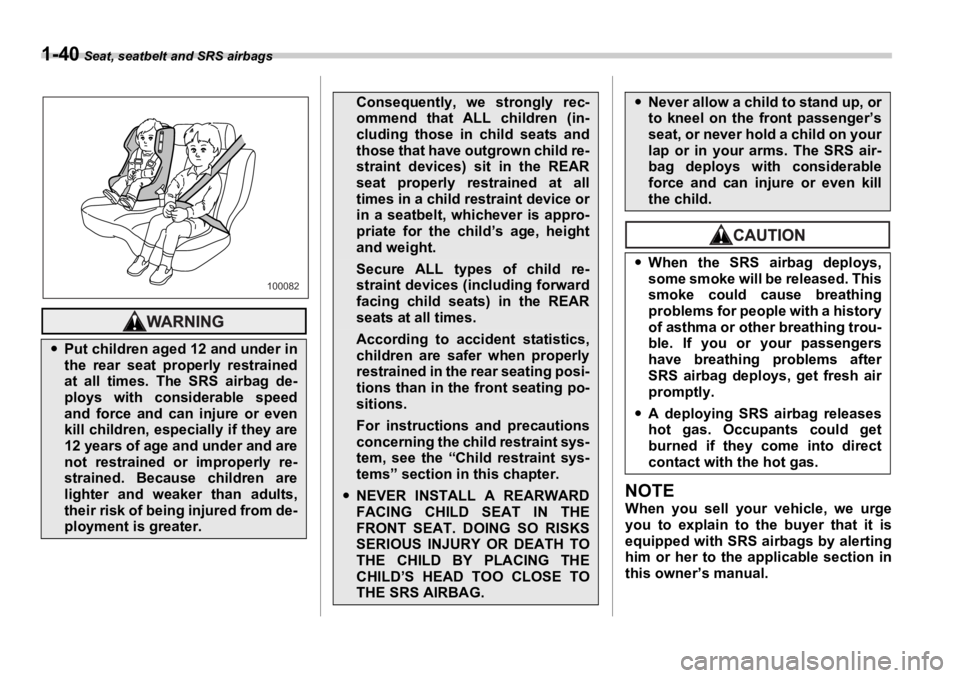

SUBARU OUTBACK 2006 Repair Manual 1-40  Seat, seatbelt and SRS airbags
NOTE When you sell your vehicle, we urge
you to explain to the buyer that it is
equipped with SRS airbags by alerting
him or her to the applicable section in
this

Page 66 of 425

SUBARU OUTBACK 2006 Repair Manual Seat, seatbelt and SRS airbags
1-41

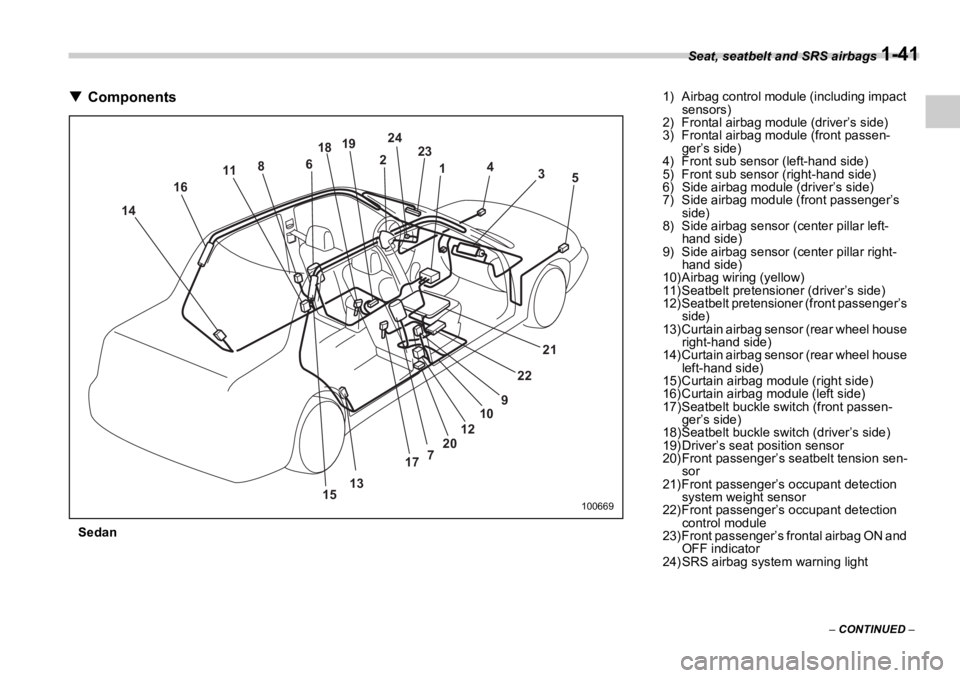

–  CONTINUED  –�T Components
Sedan  12
34
56 18 19 24
23
8
11
1314 16
15 21
22
9
7 10
12
20
17 1006691) Airbag control module (including impact
sensors)
2) Fr

Page 67 of 425

SUBARU OUTBACK 2006 Repair Manual 1-42  Seat, seatbelt and SRS airbags

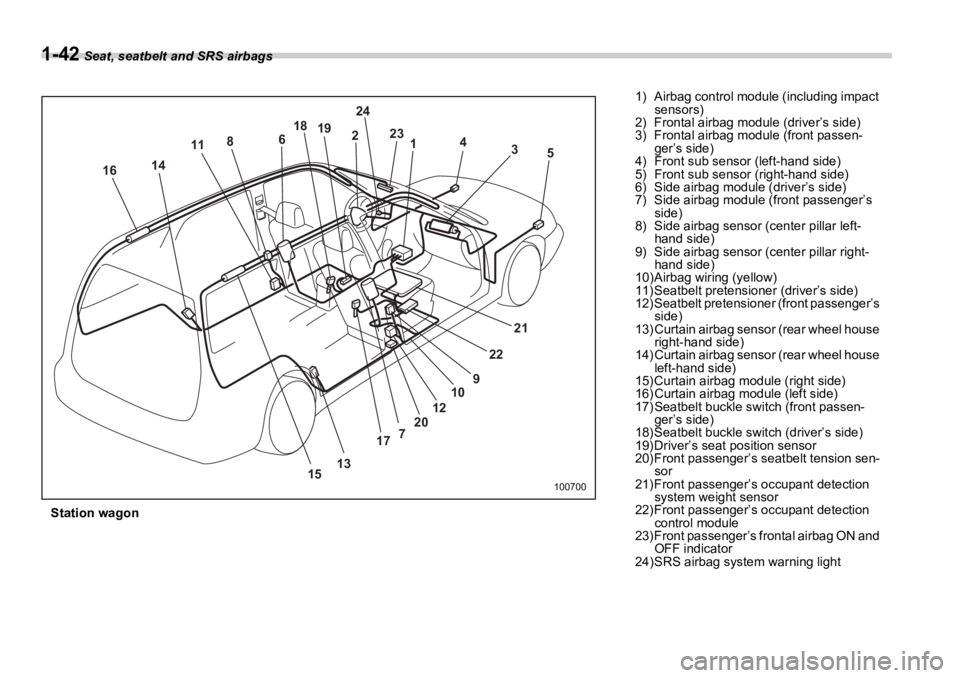

Station wagon  12
34
5
136 18
19 24
23
8
11
14
1516
21
22
9
7 10
12
20
17 1007001) Airbag control module (including impact
sensors)
2) Frontal airbag module (driv

Page 68 of 425

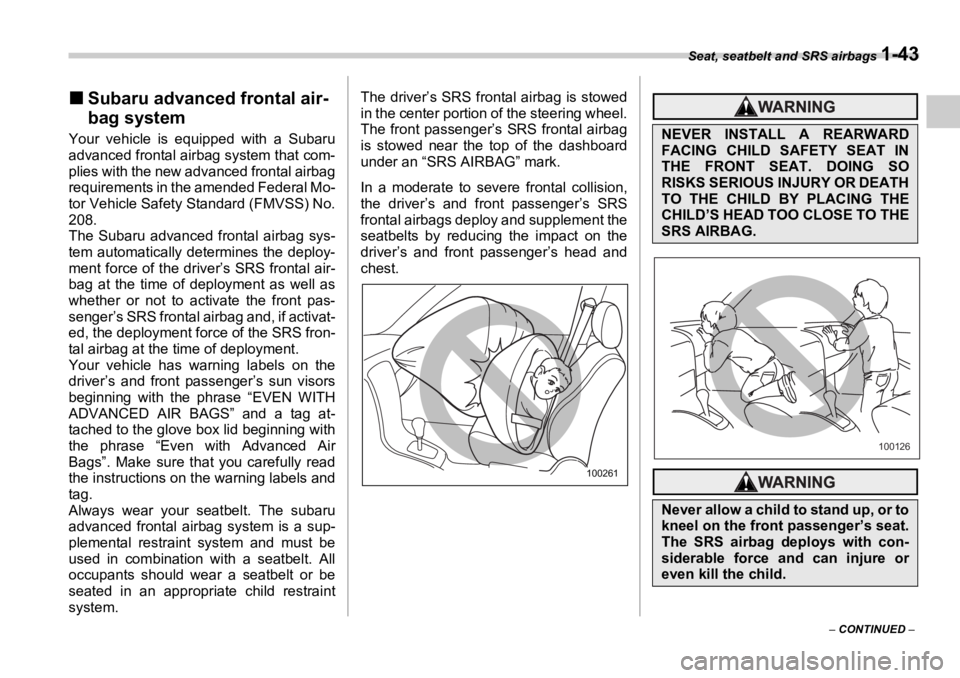

SUBARU OUTBACK 2006 Repair Manual Seat, seatbelt and SRS airbags
1-43
–  CONTINUED  –�„ Subaru advanced frontal air-
bag systemYour vehicle is equipped with a Subaru
advanced frontal airbag system that com-
plies with the new a

Page 69 of 425

SUBARU OUTBACK 2006 Repair Manual 1-44  Seat, seatbelt and SRS airbags

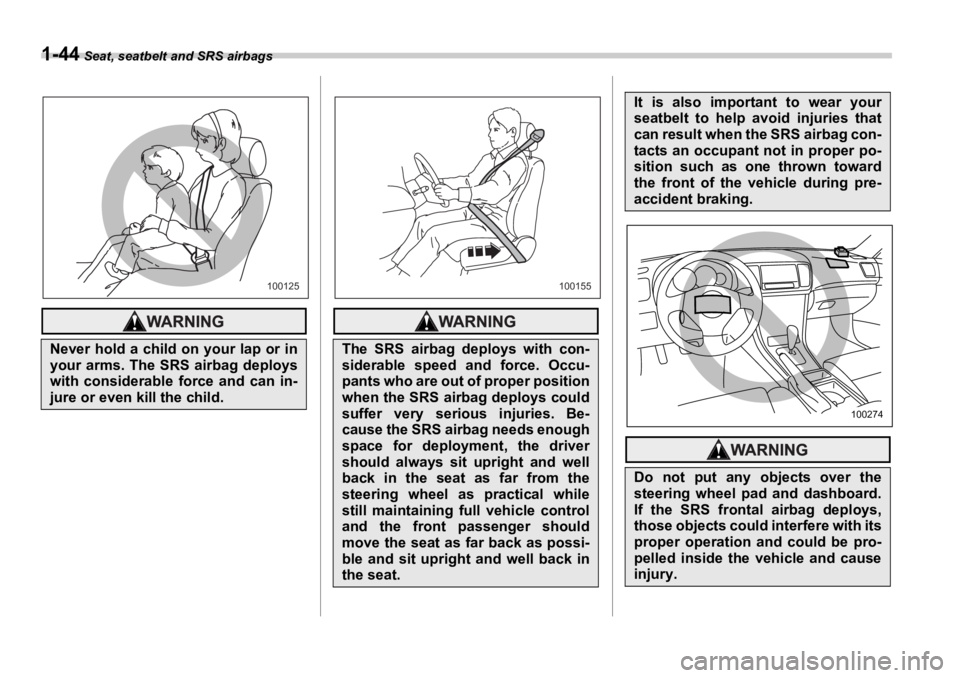

Never hold a child on your lap or in
your arms. The SRS airbag deploys
with considerable force and can in-
jure or even kill the child. 100125
The SRS airbag deplo

Page 70 of 425

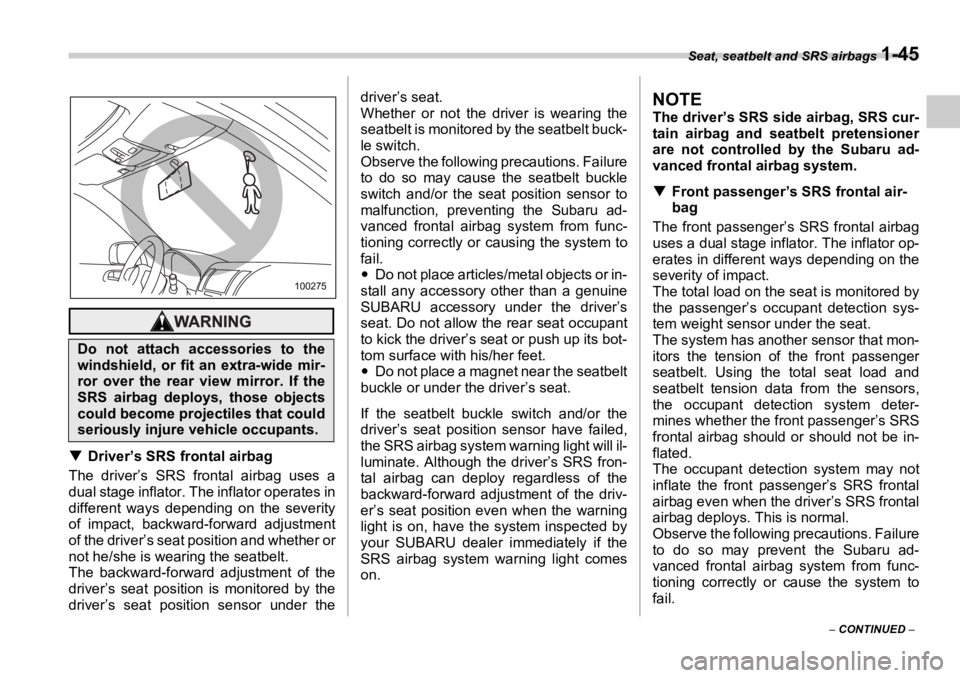

SUBARU OUTBACK 2006 Repair Manual Seat, seatbelt and SRS airbags
1-45
–  CONTINUED  –�T Driver’s SRS frontal airbag
The driver’s SRS frontal airbag uses a
dual stage inflator. The inflator operates in
different ways depending
